2544-2. Driving procedures
GS350_250_OM_OM30E16E_(EE)
■Turn signals can be operated when
The engine switch is in IGNITION ON mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
■If the turn signals stop flashing before a lane ch ange has been performed
Operate the lever again.
■Customization
The number of times the turn signals flash during a lane change can be changed.
(Customizable feature →P. 6 5 0 )
GS350_250_OM_OM30E16E_(EE).book Page 254 Tuesday, July 8, 201 4 7:11 PM

2774-3. Operating the lights and wipers
4
Driving
GS350_250_OM_OM30E16E_(EE)
■Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If AUTO mode is selected while the engine switch is in IGNITION ON mode, the
wipers will operate once to show that AUTO mode is activated.
●If the temperature of the raindrop sensor is 85°C (185°F) or higher, or -30°C
(-22°F) or lower, automatic operation may not occur. In this case, operate the
wipers in any mode other than AUTO mode.
■When the windshield wipers are in temporary operation
AUTO mode cannot be activated even if is pressed.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
●The raindrop sensor judges the amount of
raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.
CAUTION
■Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in AUTO mode. Take care that your fingers or
anything else do not become caught in the windshield wipers.
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes warm.
The fluid may freeze on the windshield and cause low visibility. This may lead to an
accident, resulting in death or serious injury.
GS350_250_OM_OM30E16E_(EE).book Page 277 Tuesday, July 8, 2014 7:11 PM

435
6Maintenance and care
GS350_250_OM_OM30E16E_(EE)
6-1. Maintenance and careCleaning and protecting the vehicle exterior................. 436
Cleaning and protecting the vehicle interior.................. 440
6-2. Maintenance Maintenance requirements............................. 444
6-3. Do-it-yourself maintenance Do-it-yourself service precautions.................................447
Hood ............................................... 450
Positioning a floor jack...............451
Engine compartment ............... 454
Tires.................................................. 466
Tire inflation pressure ...............483
Wheels ...........................................485
Air conditioning filter ............... 487
Electronic key battery ..............489
Checking and replacing fuses.............................................. 492
Light bulbs.......................................514
GS350_250_OM_OM30E16E_(EE).book Page 435 Tuesday, July 8, 201 4 7:11 PM

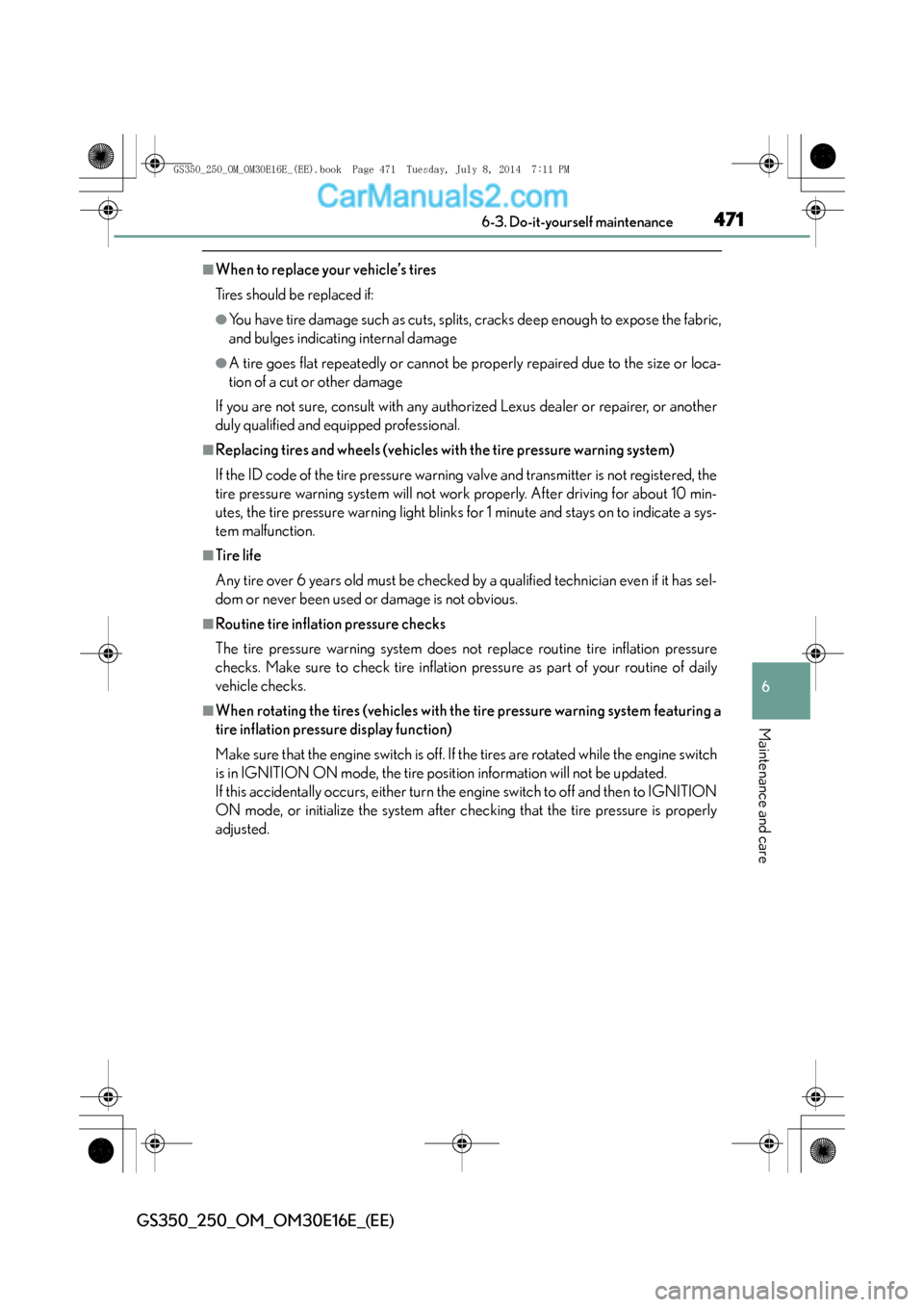

471 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_250_OM_OM30E16E_(EE)
■When to replace your vehicle’s tires
Tires should be replaced if:
●You have tire damage such as cuts, splits, cracks deep enough to expose the fabric,
and bulges indicating internal damage
●A tire goes flat repeatedly or cannot be properly repaired due to the size or loca-
tion of a cut or other damage
If you are not sure, consult with any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
■Replacing tires and wheels (vehicles wi th the tire pressure warning system)
If the ID code of the tire pressure warning valve and transmitter is not registered, the
tire pressure warning system will not work properly. After driving for about 10 min-
utes, the tire pressure warning light blinks for 1 minute and stays on to indicate a sys-
tem malfunction.
■Tire life
Any tire over 6 years old must be checked by a qualified technician even if it has sel-
dom or never been used or damage is not obvious.
■Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pressure
checks. Make sure to check tire inflation pressure as part of your routine of daily
vehicle checks.
■When rotating the tires (vehicles with the tire pressure warning system featuring a
tire inflation pressure display function)
Make sure that the engine switch is off. If the tires are rotated while the engine switch
is in IGNITION ON mode, the tire position information will not be updated.
If this accidentally occurs, either turn the engine switch to off and then to IGNITION
ON mode, or initialize the system after checking that the tire pressure is properly
adjusted.
GS350_250_OM_OM30E16E_(EE).book Page 471 Tuesday, July 8, 201 4 7:11 PM

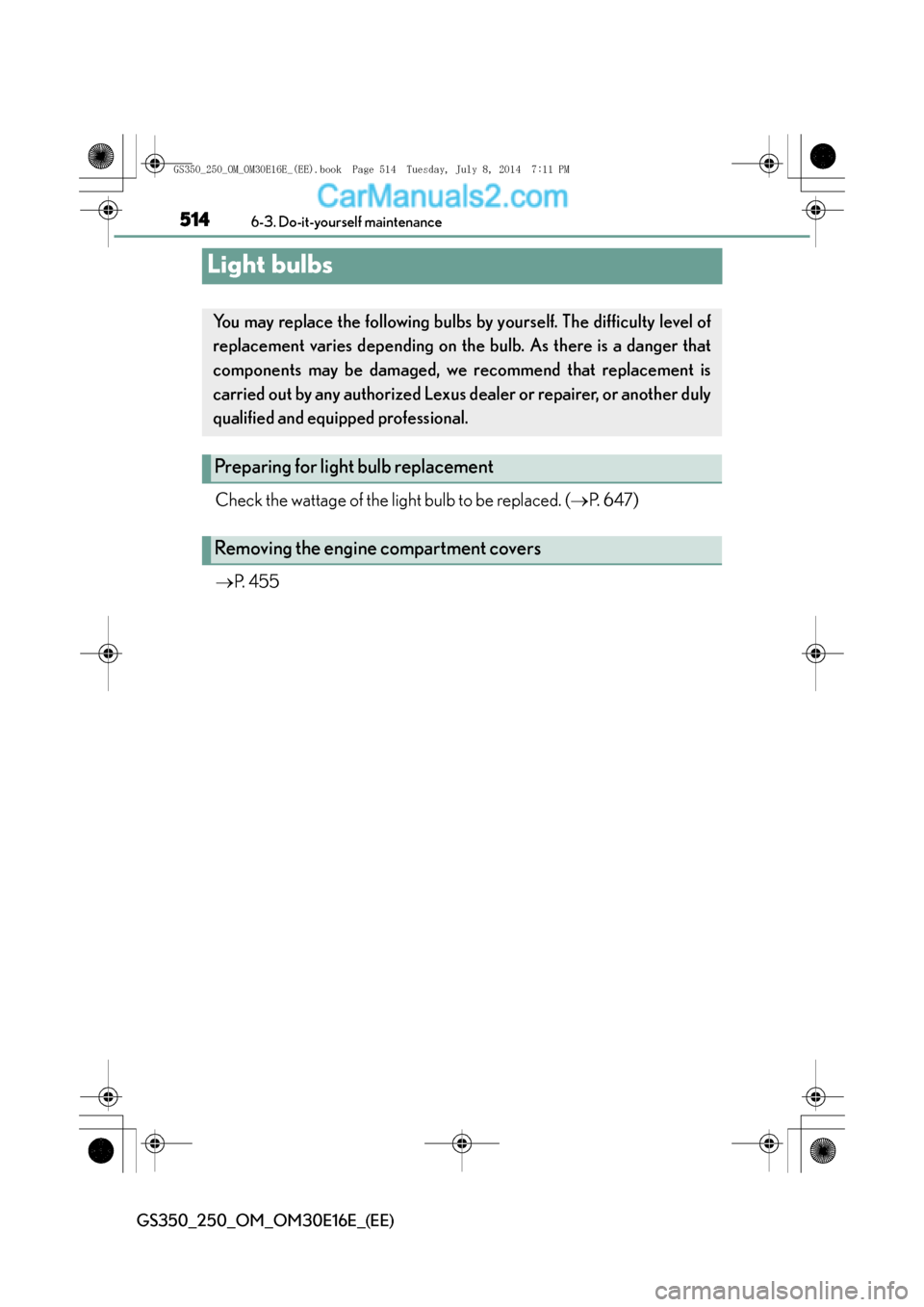

5146-3. Do-it-yourself maintenance
GS350_250_OM_OM30E16E_(EE)
Light bulbs
Check the wattage of the light bulb to be replaced. (→P. 6 4 7 )
→ P. 4 5 5
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on th e bulb. As there is a danger that
components may be damaged, we recommend that replacement is
carried out by any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
Preparing for light bulb replacement
Removing the engine compartment covers
GS350_250_OM_OM30E16E_(EE).book Page 514 Tuesday, July 8, 201 4 7:11 PM

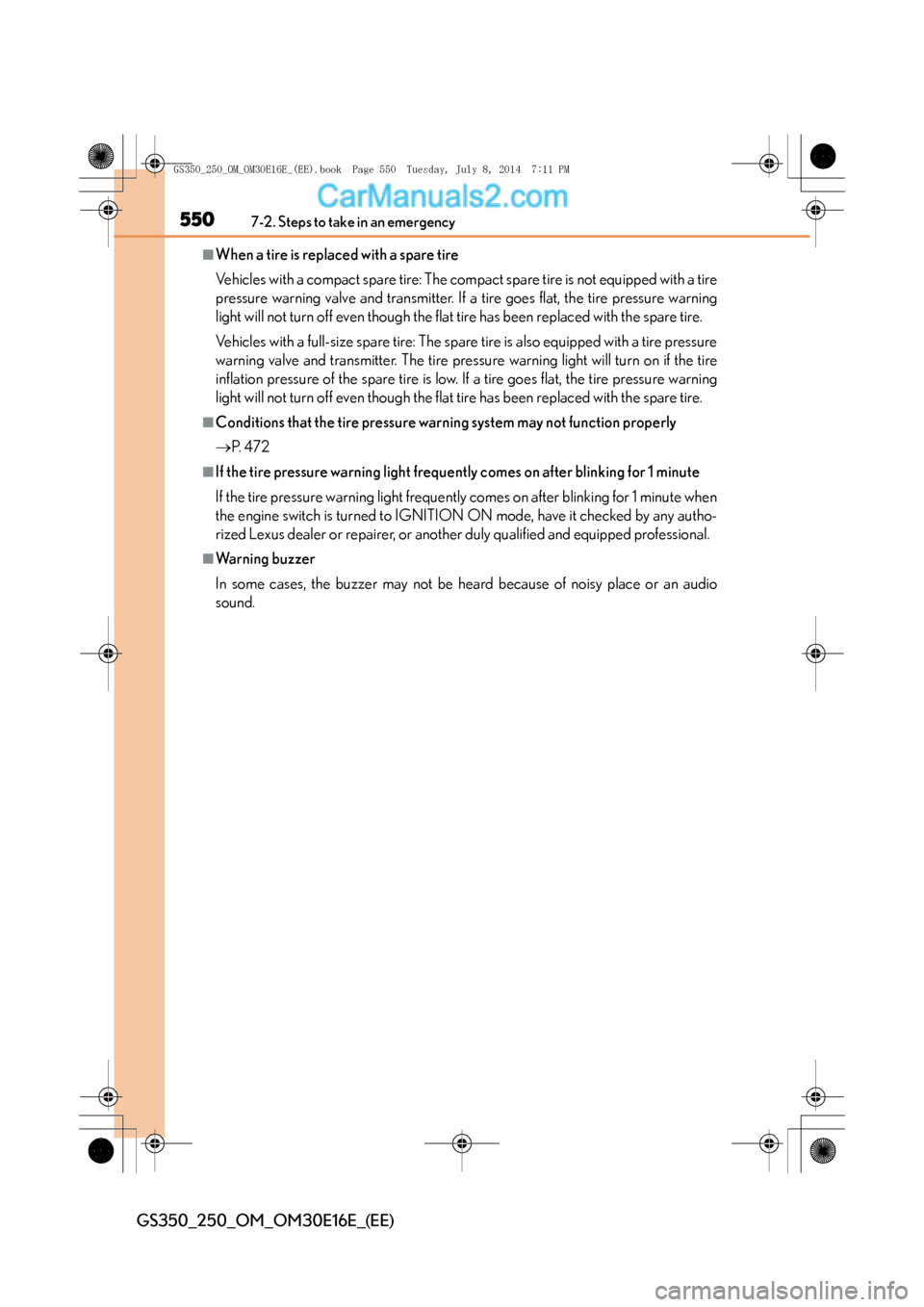

5507-2. Steps to take in an emergency
GS350_250_OM_OM30E16E_(EE)
■When a tire is replaced with a spare tire
Vehicles with a compact spare tire: The compact spare tire is not equipped with a tire
pressure warning valve and transmitter. If a tire goes flat, the tire pressure warning
light will not turn off even though the flat tire has been replaced with the spare tire.
Vehicles with a full-size spare tire: The spare tire is also equipped with a tire pressure
warning valve and transmitter. The tire pressure warning light will turn on if the tire
inflation pressure of the spare tire is low. If a tire goes flat, the tire pressure warning
light will not turn off even though the flat tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly
→P. 4 7 2
■If the tire pressure warning light freque ntly comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when
the engine switch is turned to IGNITION ON mode, have it checked by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped professional.
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an audio
sound.
GS350_250_OM_OM30E16E_(EE).book Page 550 Tuesday, July 8, 201 4 7:11 PM

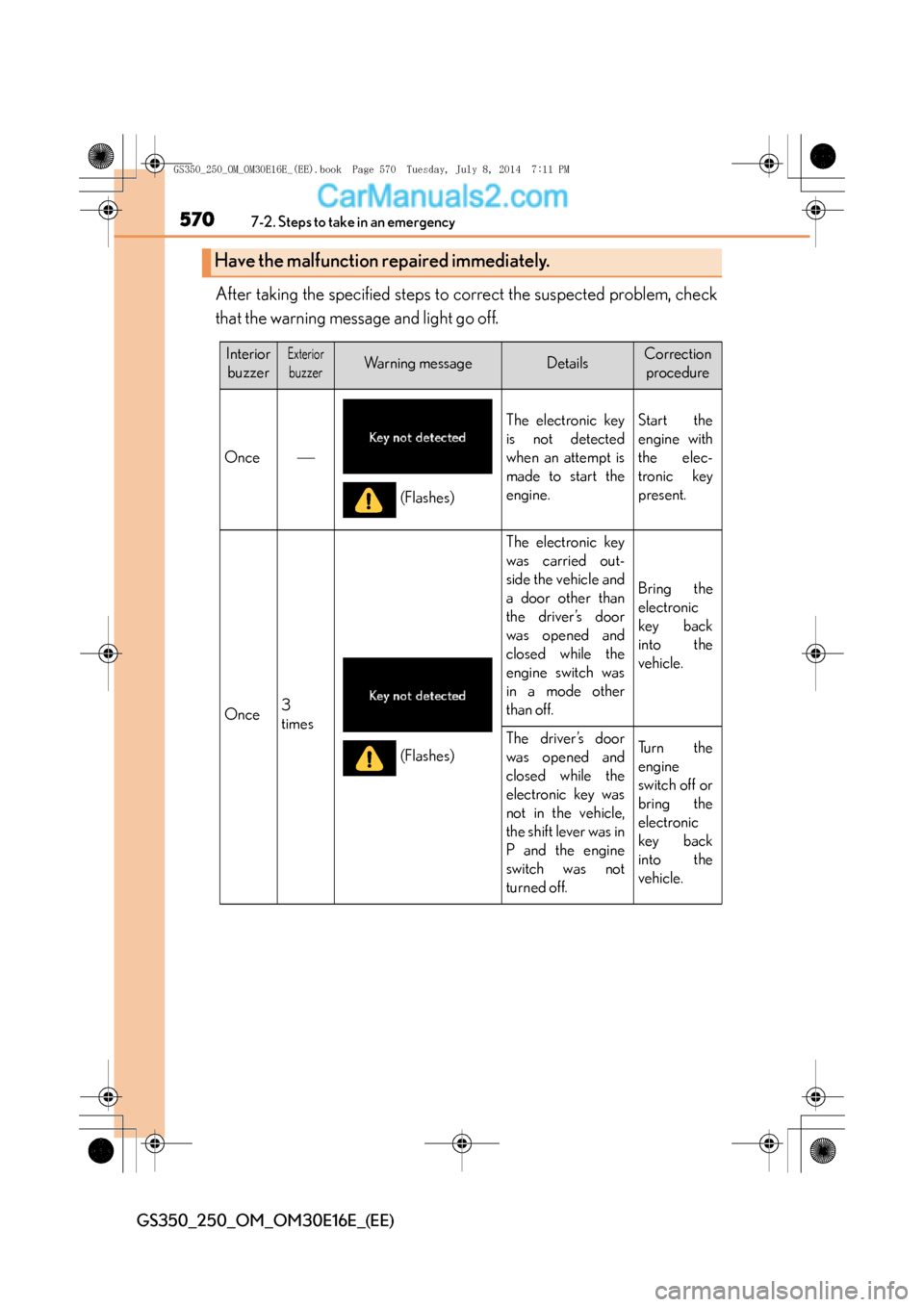

5707-2. Steps to take in an emergency
GS350_250_OM_OM30E16E_(EE)
After taking the specified steps to correct the suspected problem, check
that the warning message and light go off.
Have the malfunction repaired immediately.
Interior buzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once
The electronic key
is not detected
when an attempt is
made to start the
engine.Start the
engine with
the elec-
tronic key
present.
Once3
times
The electronic key
was carried out-
side the vehicle and
a door other than
the driver’s door
was opened and
closed while the
engine switch was
in a mode other
than off.
Bring the
electronic
key back
into the
vehicle.
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was in
P and the engine
switch was not
turned off.Tu r n t h e
engine
switch off or
bring the
electronic
key back
into the
vehicle.
(Flashes)
(Flashes)
GS350_250_OM_OM30E16E_(EE).book Page 570 Tuesday, July 8, 201 4 7:11 PM

676Alphabetical index
GS350_250_OM_OM30E16E_(EE)
Eco drive mode ...................................... 315
Eco Driving Indicator .................. 108, 112
Electric Power Steering (EPS)......... 321Function .................................................... 321
Warning light .......................................546
Warning message.............................557
Electronic key...........................................122
Battery-saving function.....................133
If the electronic key does not operate properly ............................. 618
Replacing the battery...................... 489
Emergency, in case of If a warning buzzer sounds .......... 544
If a warning light turns on...............544
If a warning message is
displayed ............................................552
If the battery is discharged ..............621
If the electronic key does not operate properly ............................. 618
If the engine will not start .................612
If the parking brake cannot be released......................................... 615
If the shift lever cannot be
shifted from P .....................................614
If you have a flat tire .............. 577, 592
If you think something is wrong............................................... 542
If your vehicle becomes stuck.....628
If your vehicle has to be stopped in an emergency..........535
If your vehicle needs to
be towed.............................................536
If your vehicle overheats ................625 Emergency brake signal......................321
Emergency flashers............................. 534
Emergency tire puncture
repair kit ................................................ 592
Engine ....................................................... 634 Accessory mode ............................... 238
Compartment ..................................... 454
Engine switch .......................................237
Hood ....................................................... 450
How to start the engine ..................237
Identification number....................... 633
If the engine will not start ................. 612
Ignition switch (engine switch)................................. 237
Overheating ........................................ 625
Engine compartment cover ............. 455
Engine coolant....................................... 459 Capacity................................................. 642
Checking ............................................... 459
Preparing and checking
before winter.................................... 354
Engine coolant temperature
gauge ........................................................ 99
Engine immobilizer system ................. 80
Engine oil ................................................. 456 Capacity................................................. 635
Checking ............................................... 456
Oil level warning message........... 562
Oil pressure warning message ............................................. 553
Preparing and checking before winter.................................... 354
E
GS350_250_OM_OM30E16E_(EE).book Page 676 Tuesday, July 8, 201 4 7:11 PM

685Alphabetical index
GS350_250_OM_OM30E16E_(EE)
Tire pressure warning reset switch....................................................469
Trunk closer switch .............................176
Trunk opener switch ..........................175
Trunk opener main switch .............. 176
Vehicle-to-vehicle distance button ................................................... 292
VSC OFF switch ............................... 322
Window lock switch.........................204
Windshield wipers
and washer switch ..........................272
Tachometer........................................99, 112
Tail lights ...................................................259 Light switch ........................................... 259
Replacing light bulbs....................... 530
Welcome light illumination
control.................................................... 127
Talk switch
*
Telephone switches*
Theft deterrent system
Alarm ..........................................................86
Double locking system ......................85
Engine immobilizer system..............80
Intrusion sensor and tilt sensor ......89
Tire inflation pressure .........................483 Maintenance data..............................645
Tire inflation pressure display function ................................................. 105
Warning light ...................................... 548
Warning message................ 567, 568 Tire pressure warning system ......... 468
Function.................................................. 468
Initializing ............................................... 469
Installing tire pressure warning
valves and transmitters ............... 468
Registering ID codes....................... 470
Tire pressure warning reset switch ................................................... 469
Warning light....................................... 548
Warning message ............... 567, 568
Tires............................................................ 466 Chains ..................................................... 356
Checking ............................................... 466
Emergency tire puncture
repair kit.............................................. 592
If you have a flat tire.............. 577, 592
Inflation pressure ............................... 645
Replacing................................................577
Rotating tires ........................................ 467
Size ........................................................... 645
Snow tires..............................................358
Spare tire ................................................577
Tire inflation pressure display function .................................................105
Tire pressure warning system..... 468
Warning light....................................... 548
Warning message ............................ 567
Tools............................................... 578, 593
Top strap ......................................................75
T
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
sec_10-02.fm Page 685 Friday, July 11, 2014 7:03 PM
