sensor Lexus GS250 2014 Owner's Guide

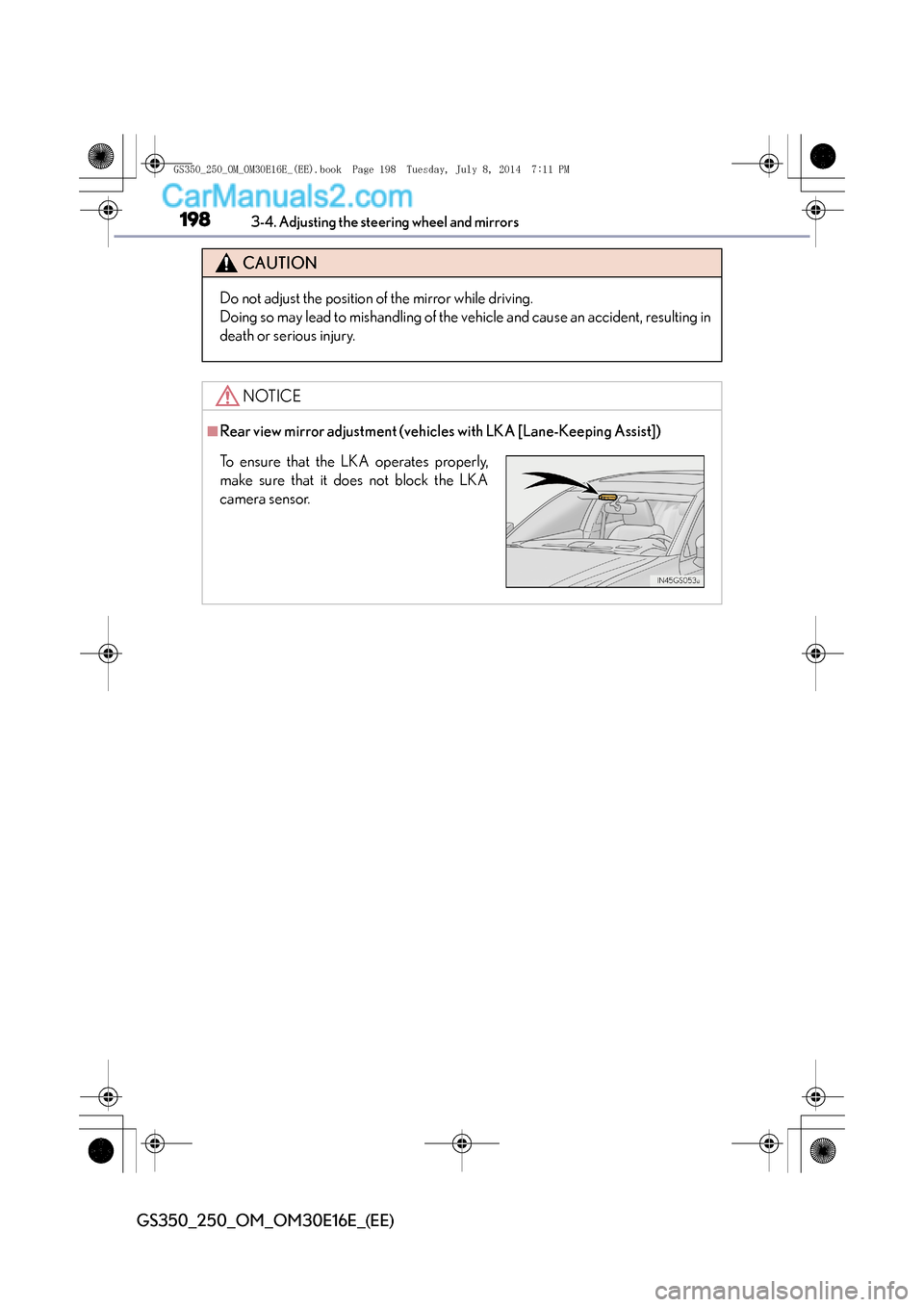

1983-4. Adjusting the steering wheel and mirrors
GS350_250_OM_OM30E16E_(EE)
CAUTION
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, resulting in
death or serious injury.
NOTICE
■Rear view mirror adjustment (vehicles with LKA [Lane-Keeping Assist])
To ensure that the LKA operates properly,
make sure that it does not block the LKA
camera sensor.
GS350_250_OM_OM30E16E_(EE).book Page 198 Tuesday, July 8, 2014 7:11 PM

2624-3. Operating the lights and wipers
GS350_250_OM_OM30E16E_(EE)

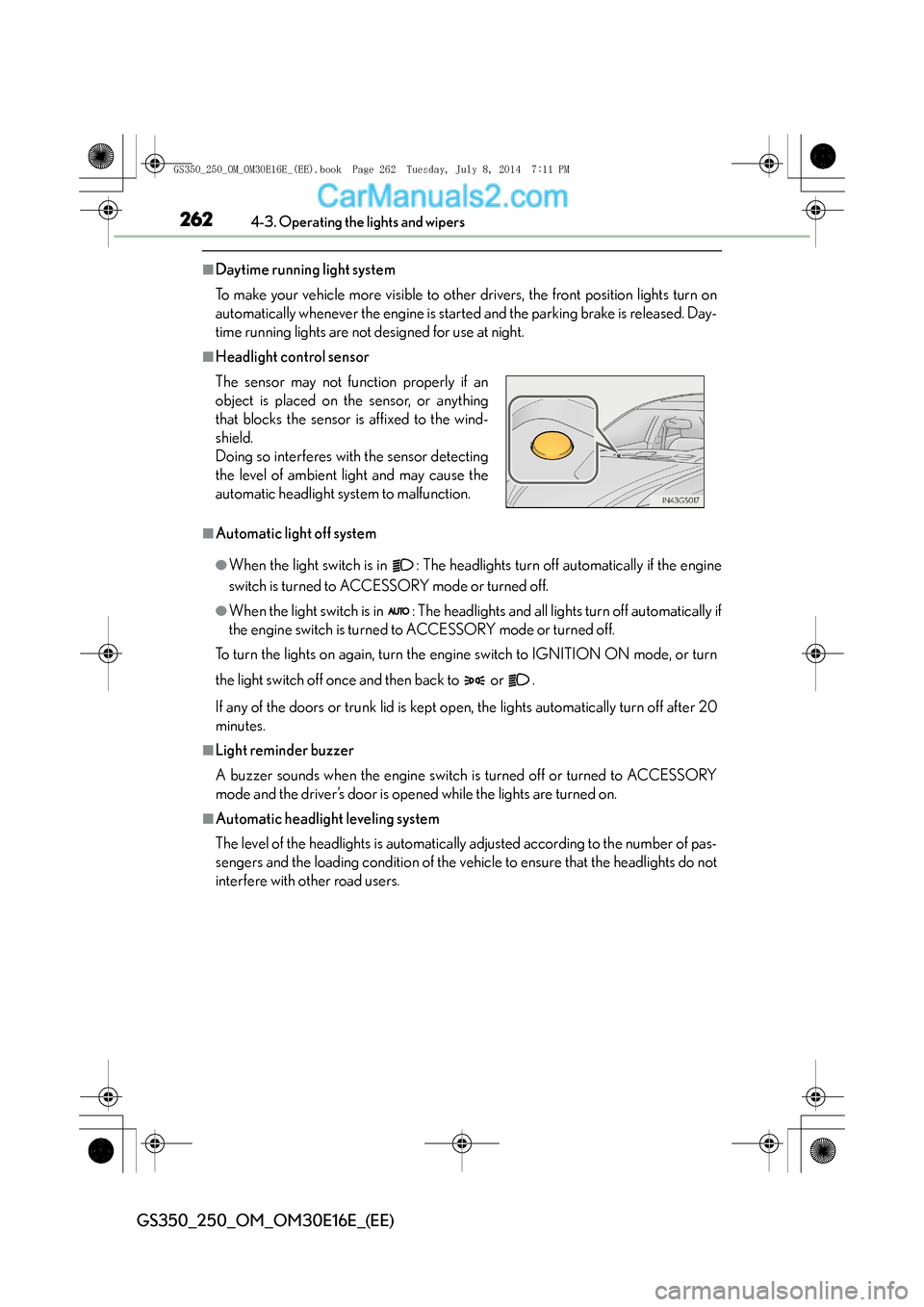

■Daytime running light system
To make your vehicle more visible to other drivers, the front position lights turn on
automatically whenever the engine is started and the parking brake is released. Day-
time running lights are not designed for use at night.
■Headlight control sensor
■Automatic light off system
●When the light switch is in : The headlights turn off automatically if the engine
switch is turned to ACCESSORY mode or turned off.
●When the light switch is in : The headlights and all lights turn off automatically if
the engine switch is turned to ACCESSORY mode or turned off.
To turn the lights on again, turn the engine switch to IGNITION ON mode, or turn
the light switch off once and then back to or .
If any of the doors or trunk lid is kept op en, the lights automatically turn off after 20
minutes.
■Light reminder buzzer
A buzzer sounds when the engine switch is turned off or turned to ACCESSORY
mode and the driver’s door is opened while the lights are turned on.
■Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number of pas-
sengers and the loading condition of the vehicle to ensure that the headlights do not
interfere with other road users. The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.
GS350_250_OM_OM30E16E_(EE).book Page 262 Tuesday, July 8, 201 4 7:11 PM

2634-3. Operating the lights and wipers
4
Driving
GS350_250_OM_OM30E16E_(EE)

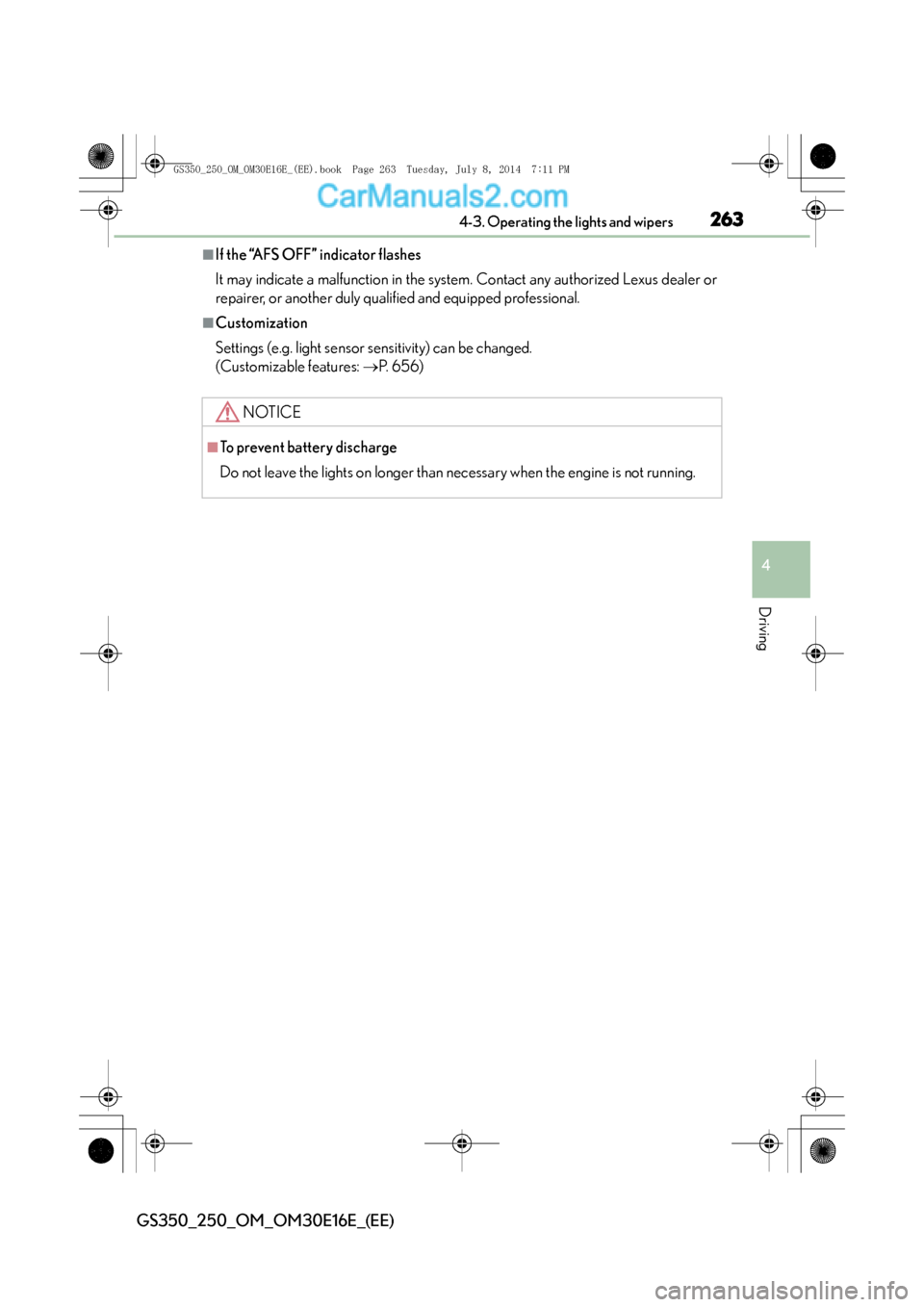

■If the “AFS OFF” indicator flashes
It may indicate a malfunction in the system. Contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: →P. 656)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.
GS350_250_OM_OM30E16E_(EE).book Page 263 Tuesday, July 8, 201 4 7:11 PM

2644-3. Operating the lights and wipers
GS350_250_OM_OM30E16E_(EE)

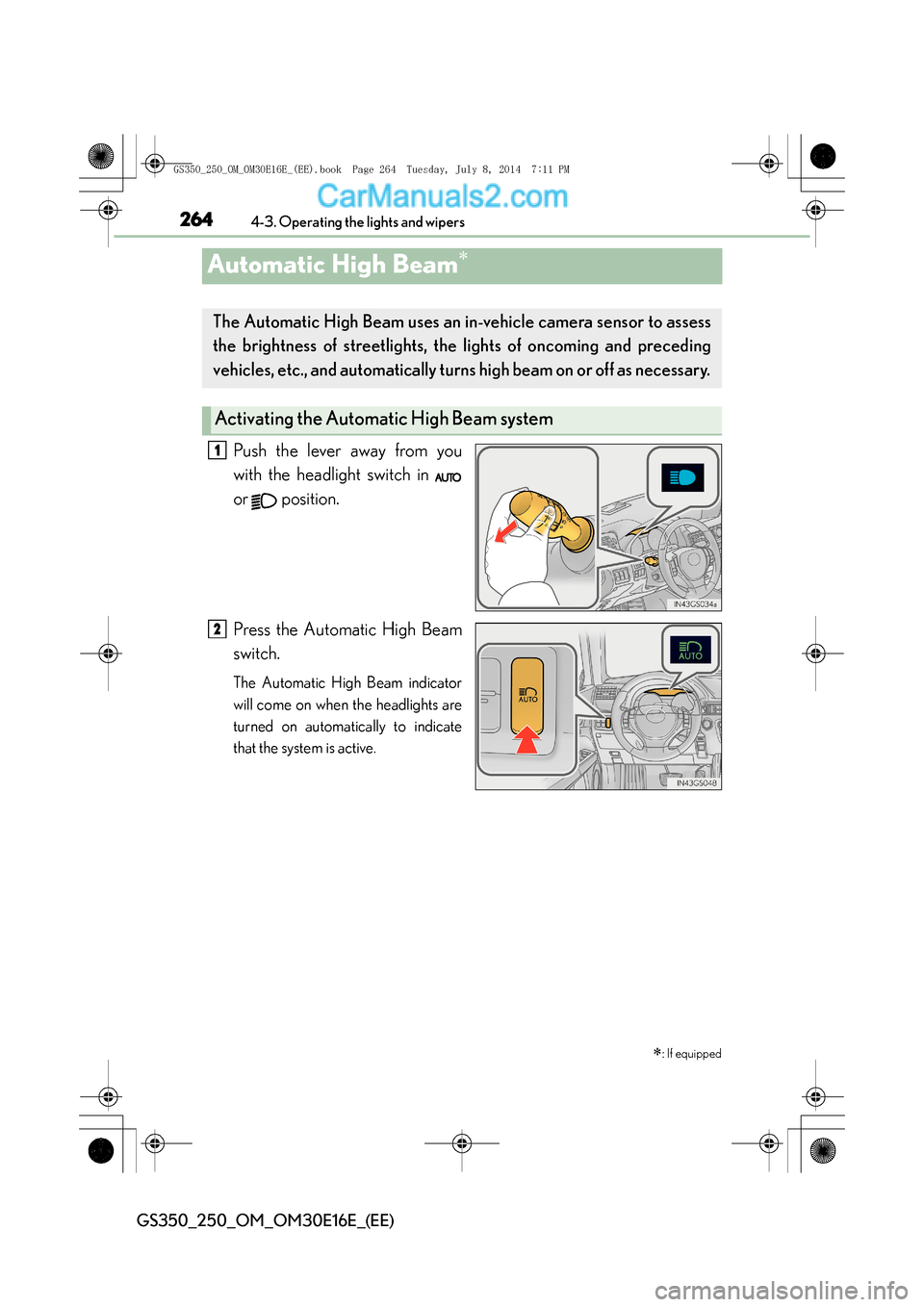

Automatic High Beam∗
Push the lever away from you
with the headlight switch in
or position.
Press the Automatic High Beam
switch.
The Automatic High Beam indicator
will come on when the headlights are
turned on automatically to indicate
that the system is active.
∗: If equipped
The Automatic High Beam uses an in-vehicle camera sensor to assess
the brightness of streetlights, the lights of oncoming and preceding
vehicles, etc., and automatically turns high beam on or off as necessary.
Activating the Automatic High Beam system
1
2
GS350_250_OM_OM30E16E_(EE).book Page 264 Tuesday, July 8, 201 4 7:11 PM

2674-3. Operating the lights and wipers
4
Driving
GS350_250_OM_OM30E16E_(EE)

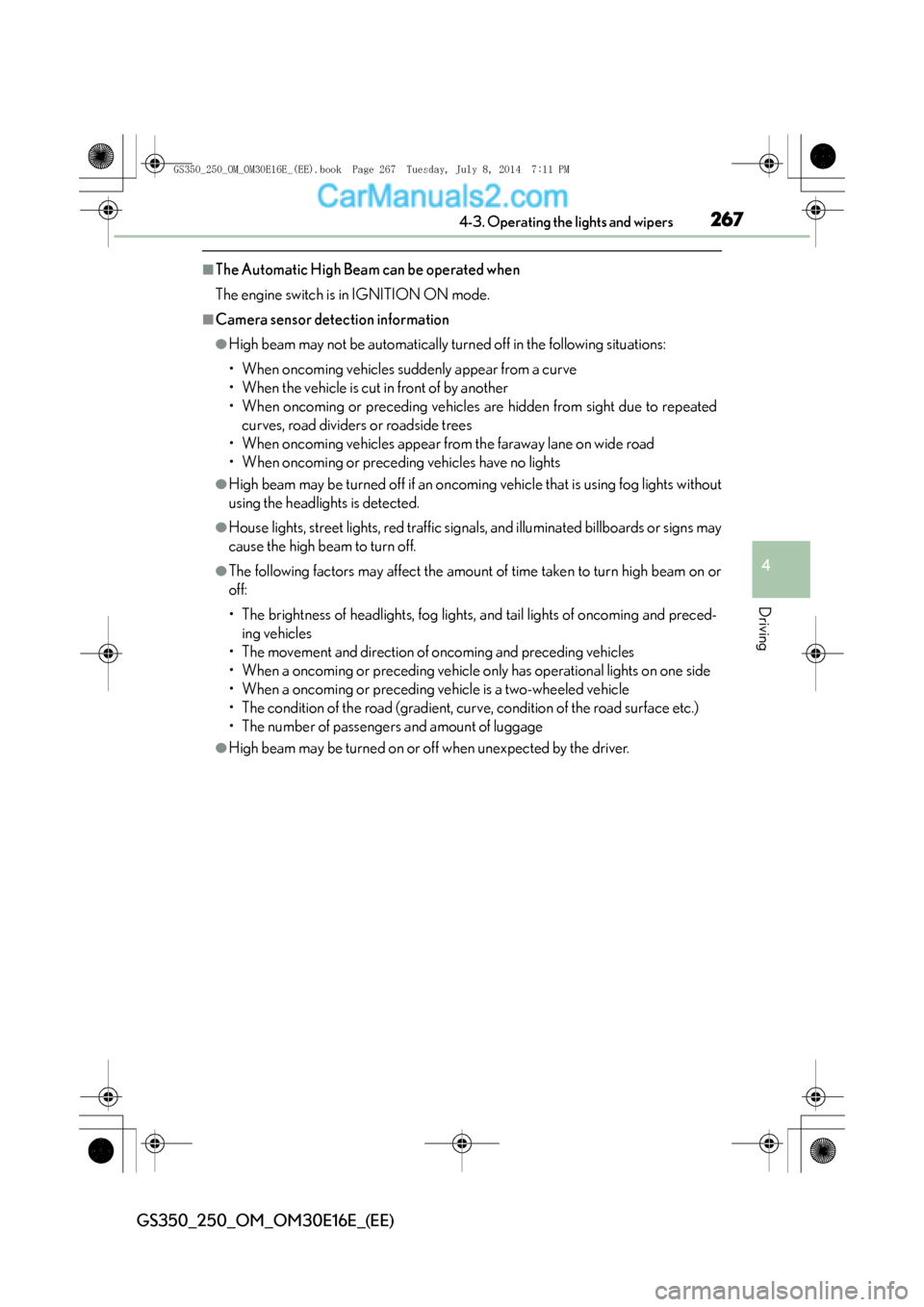

■The Automatic High Beam can be operated when
The engine switch is in IGNITION ON mode.
■Camera sensor detection information
●High beam may not be automatically turned off in the following situations:
• When oncoming vehicles suddenly appear from a curve
• When the vehicle is cut in front of by another
• When oncoming or preceding vehicles are hidden from sight due to repeatedcurves, road dividers or roadside trees
• When oncoming vehicles appear from the faraway lane on wide road
• When oncoming or preceding vehicles have no lights
●High beam may be turned off if an oncoming vehicle that is using fog lights without
using the headlights is detected.
●House lights, street lights, red traffic signals, and illuminated billboards or signs may
cause the high beam to turn off.
●The following factors may affect the amount of time taken to turn high beam on or
off:
• The brightness of headlights, fog lights, and tail lights of oncoming and preced- ing vehicles
• The movement and direction of oncoming and preceding vehicles
• When a oncoming or preceding vehicle only has operational lights on one side
• When a oncoming or preceding vehicle is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface etc.)
• The number of passengers and amount of luggage
●High beam may be turned on or off when unexpected by the driver.
GS350_250_OM_OM30E16E_(EE).book Page 267 Tuesday, July 8, 201 4 7:11 PM

2684-3. Operating the lights and wipers
GS350_250_OM_OM30E16E_(EE)

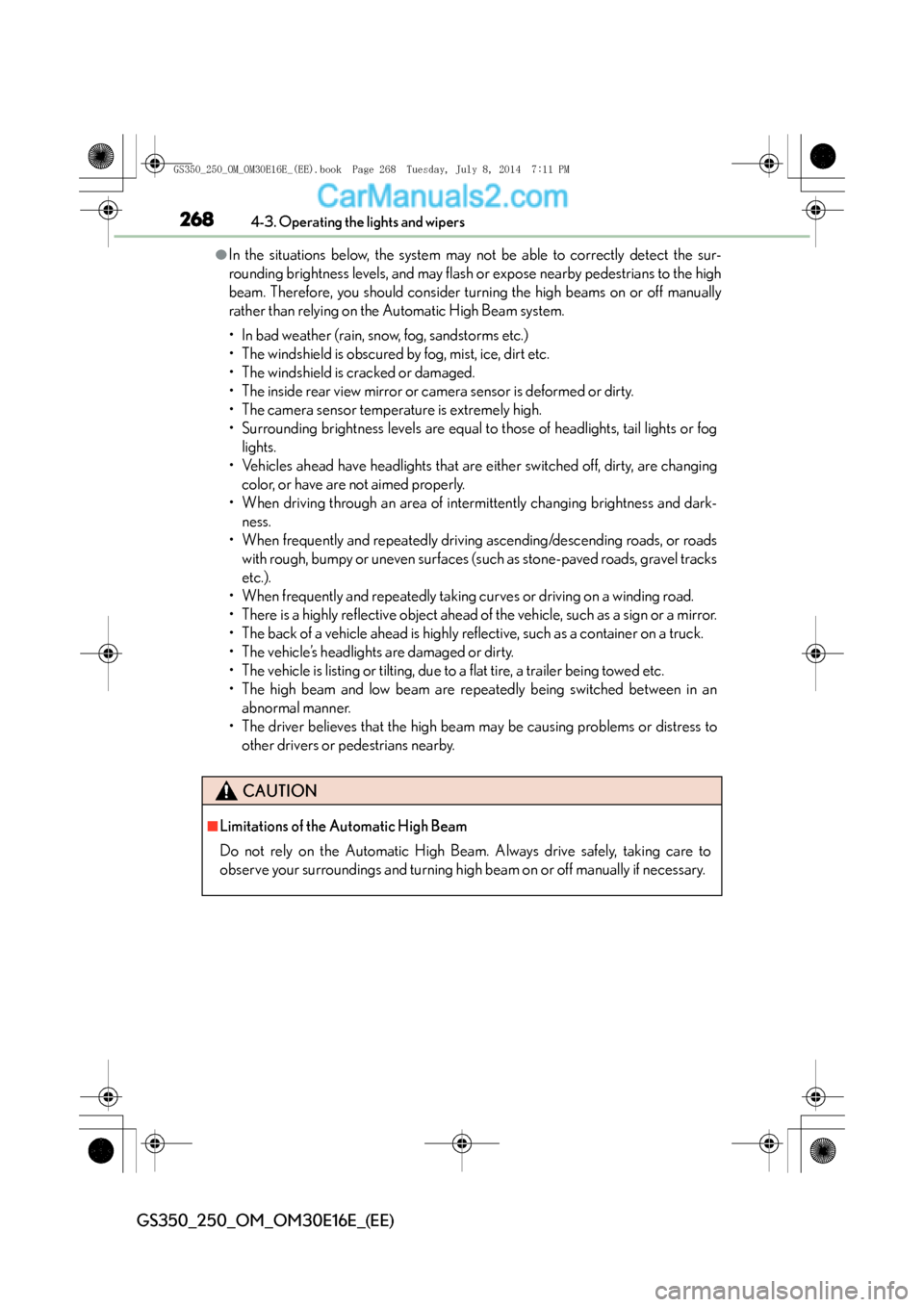

●In the situations below, the system may not be able to correctly detect the sur-
rounding brightness levels, and may flash or expose nearby pedestrians to the high
beam. Therefore, you should consider turning the high beams on or off manually
rather than relying on the Automatic High Beam system.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The inside rear view mirror or camera sensor is deformed or dirty.
• The camera sensor temperature is extremely high.
• Surrounding brightness levels are equal to those of headlights, tail lights or foglights.
• Vehicles ahead have headlights that are either switched off, dirty, are changing color, or have are not aimed properly.
• When driving through an area of intermittently changing brightness and dark- ness.
• When frequently and repeatedly driving ascending/descending roads, or roads with rough, bumpy or uneven surfaces (such as stone-paved roads, gravel tracks
etc.).
• When frequently and repeatedly taking curves or driving on a winding road.
• There is a highly reflective object ahead of the vehicle, such as a sign or a mirror.
• The back of a vehicle ahead is highly reflective, such as a container on a truck.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.
• The high beam and low beam are repeatedly being switched between in an abnormal manner.
• The driver believes that the high beam may be causing problems or distress to other drivers or pedestrians nearby.
CAUTION
■Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to
observe your surroundings and turning high beam on or off manually if necessary.
GS350_250_OM_OM30E16E_(EE).book Page 268 Tuesday, July 8, 201 4 7:11 PM

2694-3. Operating the lights and wipers
4
Driving
GS350_250_OM_OM30E16E_(EE)

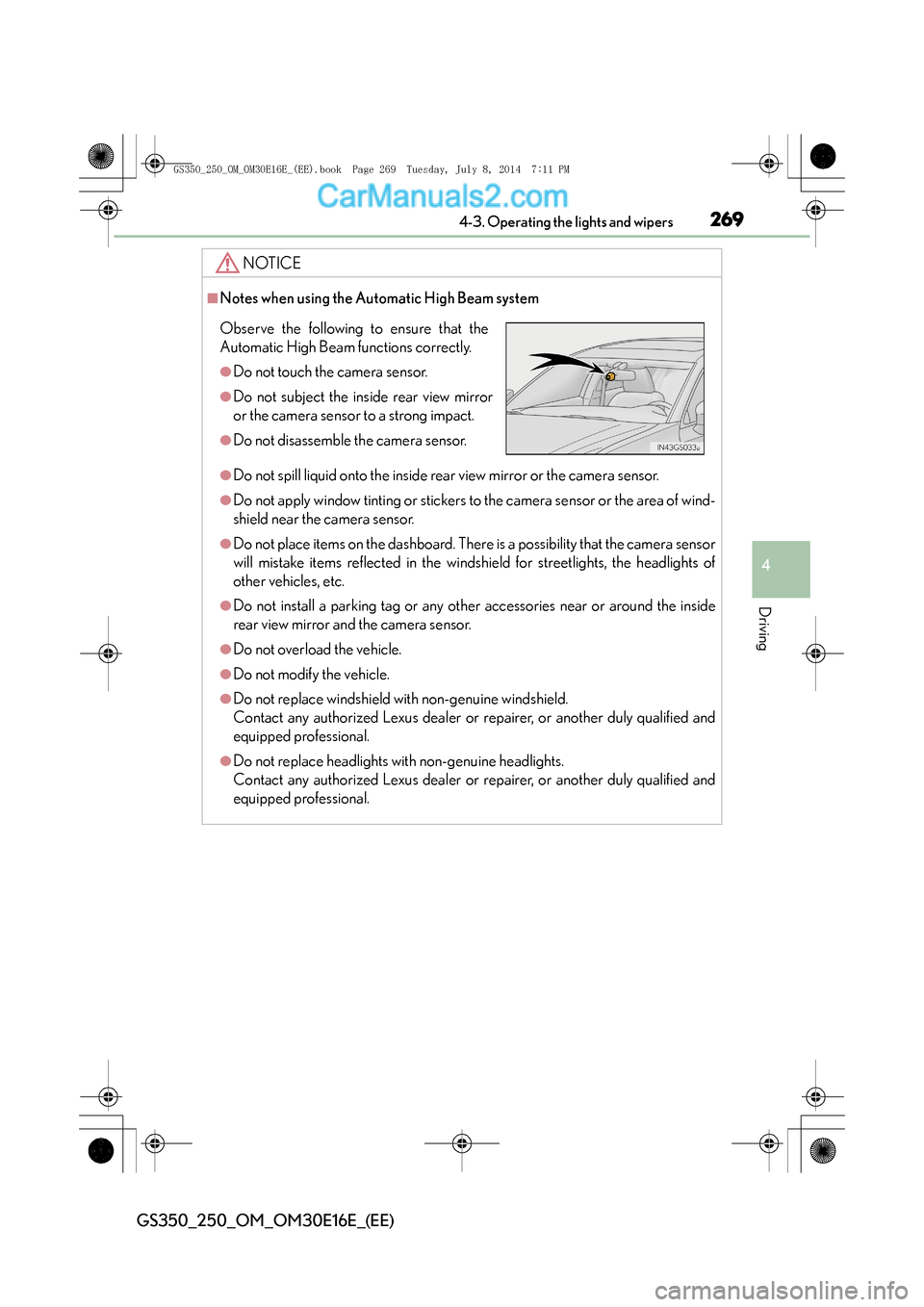

NOTICE
■Notes when using the Automatic High Beam system
●Do not spill liquid onto the inside rear view mirror or the camera sensor.
●Do not apply window tinting or stickers to the camera sensor or the area of wind-
shield near the camera sensor.
●Do not place items on the dashboard. There is a possibility that the camera sensor
will mistake items reflected in the windshield for streetlights, the headlights of
other vehicles, etc.
●Do not install a parking tag or any other accessories near or around the inside
rear view mirror and the camera sensor.
●Do not overload the vehicle.
●Do not modify the vehicle.
●Do not replace windshield with non-genuine windshield.
Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●Do not replace headlights with non-genuine headlights.
Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Observe the following to ensure that the
Automatic High Beam functions correctly.
●Do not touch the camera sensor.
●Do not subject the inside rear view mirror
or the camera sensor to a strong impact.
●Do not disassemble the camera sensor.
GS350_250_OM_OM30E16E_(EE).book Page 269 Tuesday, July 8, 2014 7:11 PM

2754-3. Operating the lights and wipers
4
Driving
GS350_250_OM_OM30E16E_(EE)

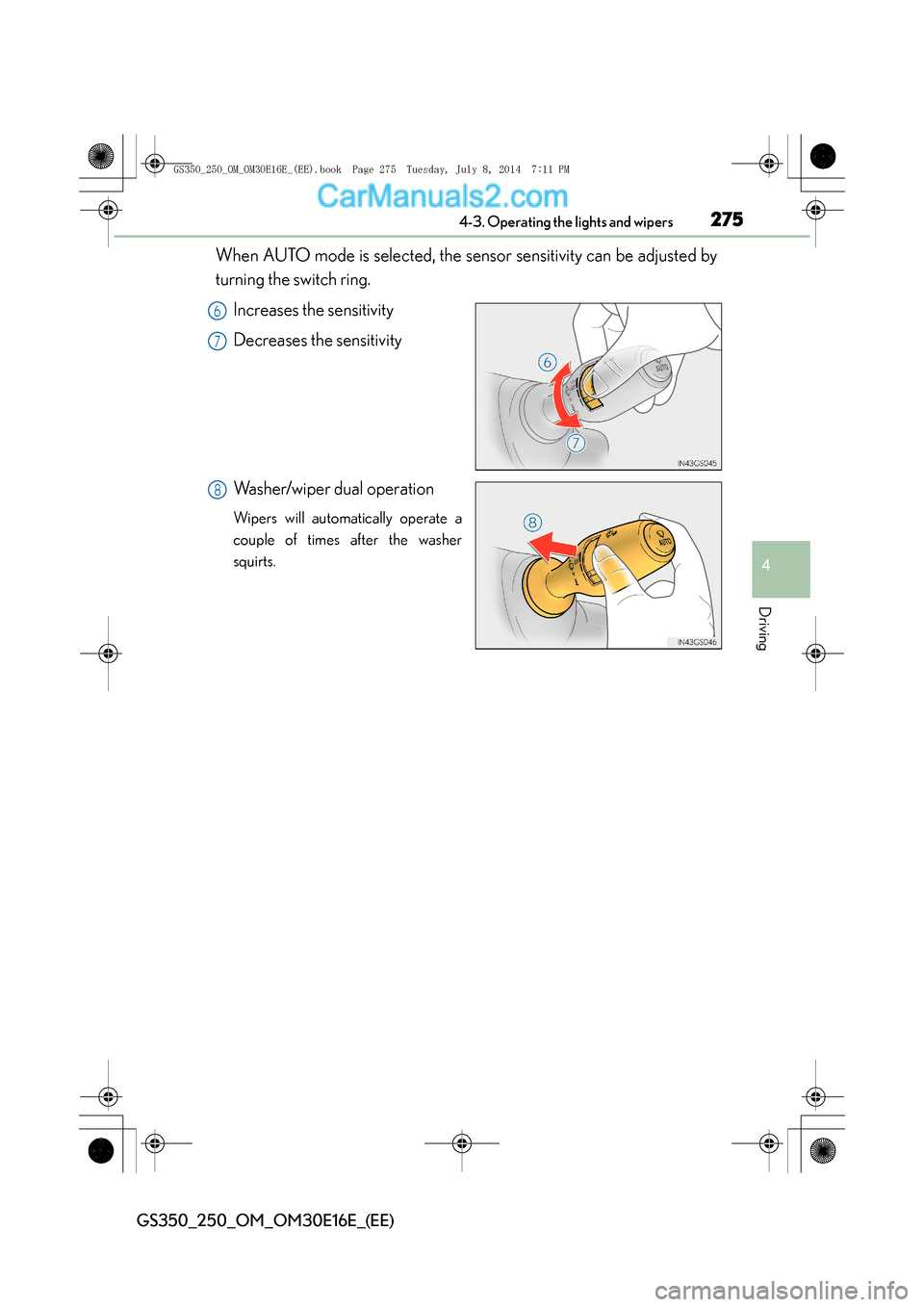

When AUTO mode is selected, the sensor sensitivity can be adjusted by
turning the switch ring.Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.
6
7
8
GS350_250_OM_OM30E16E_(EE).book Page 275 Tuesday, July 8, 201 4 7:11 PM

2774-3. Operating the lights and wipers
4
Driving
GS350_250_OM_OM30E16E_(EE)

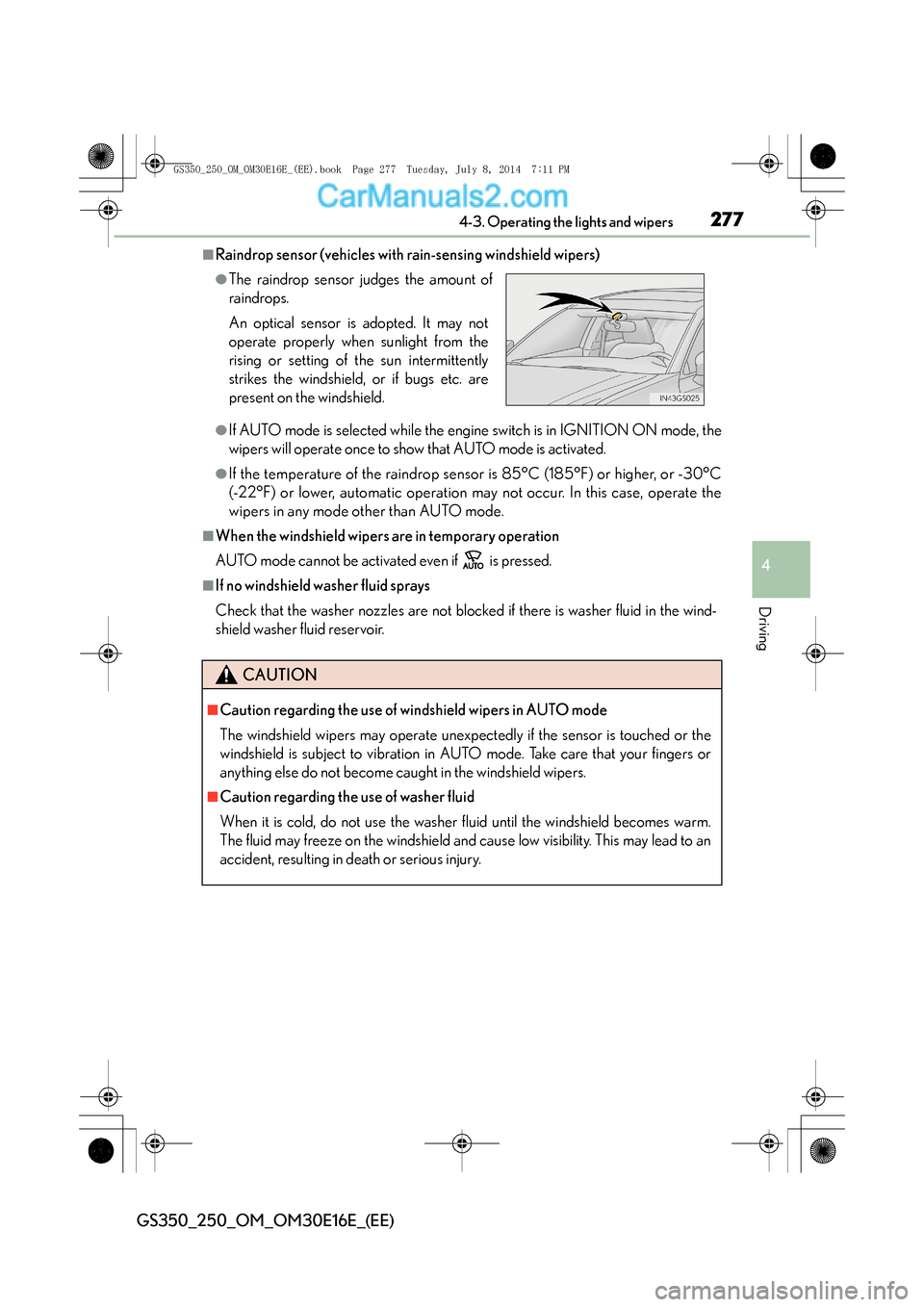

■Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If AUTO mode is selected while the engine switch is in IGNITION ON mode, the
wipers will operate once to show that AUTO mode is activated.
●If the temperature of the raindrop sensor is 85°C (185°F) or higher, or -30°C
(-22°F) or lower, automatic operation may not occur. In this case, operate the
wipers in any mode other than AUTO mode.
■When the windshield wipers are in temporary operation
AUTO mode cannot be activated even if is pressed.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
●The raindrop sensor judges the amount of
raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.
CAUTION
■Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in AUTO mode. Take care that your fingers or
anything else do not become caught in the windshield wipers.
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes warm.
The fluid may freeze on the windshield and cause low visibility. This may lead to an
accident, resulting in death or serious injury.
GS350_250_OM_OM30E16E_(EE).book Page 277 Tuesday, July 8, 2014 7:11 PM

2944-5. Using the driving support systems
GS350_250_OM_OM30E16E_(EE)

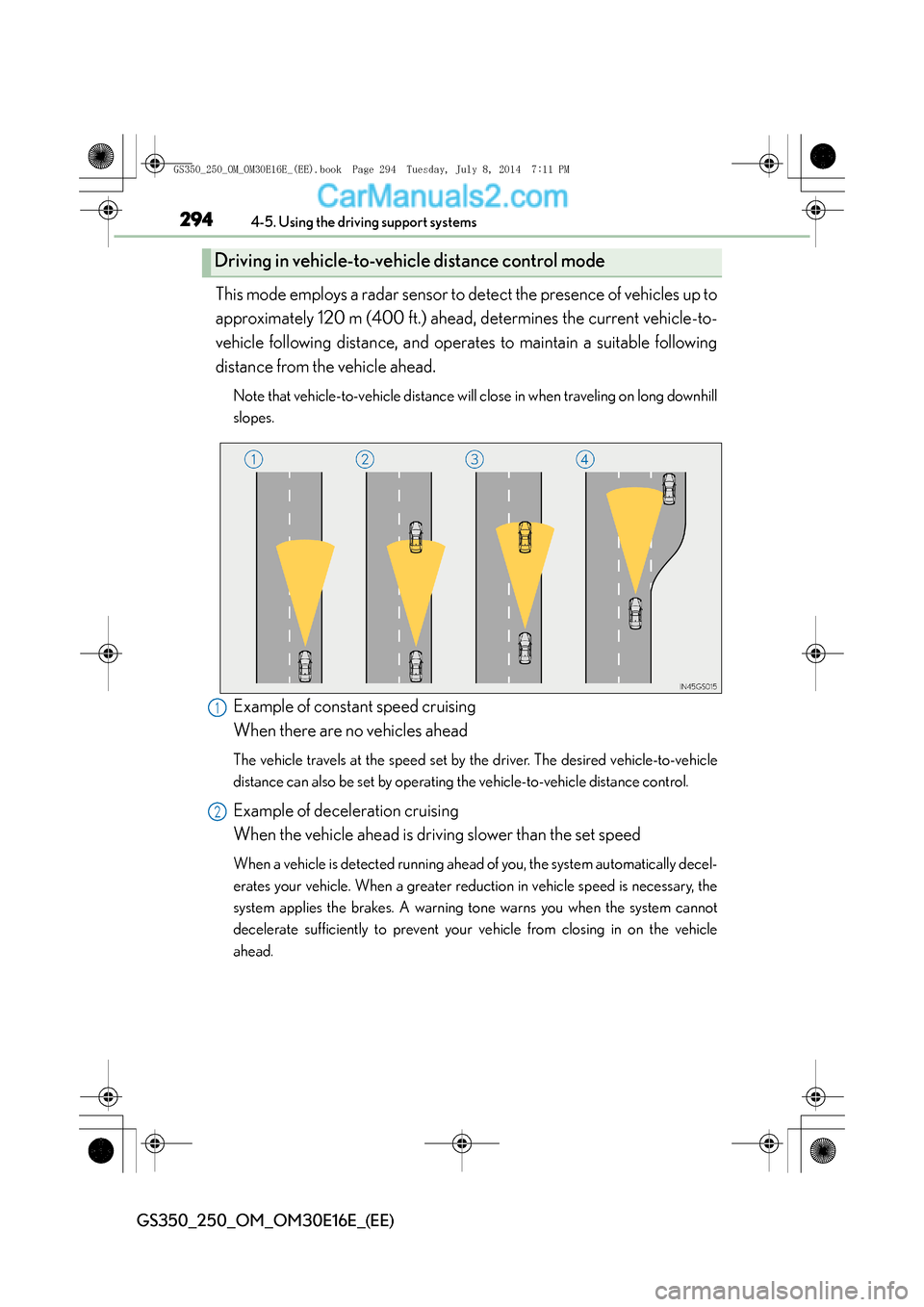

This mode employs a radar sensor to detect the presence of vehicles up to
approximately 120 m (400 ft.) ahead, determines the current vehicle-to-
vehicle following distance, and operates to maintain a suitable following
distance from the vehicle ahead.
Note that vehicle-to-vehicle distance will close in when traveling on long downhill
slopes.
Example of constant speed cruising
When there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-vehicle
distance can also be set by operating the vehicle-to-vehicle distance control.
Example of deceleration cruising
When the vehicle ahead is driving slower than the set speed
When a vehicle is detected running ahead of you, the system automatically decel-
erates your vehicle. When a greater reduction in vehicle speed is necessary, the
system applies the brakes. A warning tone warns you when the system cannot
decelerate sufficiently to prevent your vehicle from closing in on the vehicle
ahead.
Driving in vehicle-to-vehicle distance control mode
1
2
