sensor Lexus GS250 2014 Owner's Manual

TABLE OF CONTENTS6
GS350_250_OM_OM30E16E_(EE)
7-2. Steps to take in an emergencyIf your vehicle needs to be towed ................................536
If you think something is wrong ....................................... 542
Fuel pump shut off system ......543
If a warning light turns on or a warning buzzer sounds .....544
If a warning message is displayed................................. 552
If you have a flat tire (vehicles with a spare tire) ...................... 577
If you have a flat tire (vehicles without a spare tire)................ 592
If the engine will not start ..........612
If the shift lever cannot be shifted from P ..............................614
If the parking brake cannot be released .................. 615
If the electronic key does not operate properly ...................... 618
If the vehicle battery is discharged .............................. 621
If your vehicle overheats ......... 625
If the vehicle becomes stuck ......................... 628 8-1. Specifications
Maintenance data (fuel, oil level, etc.)................... 632
Fuel information ..........................648
8-2. Customization Customizable features............ 650
8-3. Initialization Item to initialize .............................661
What to do if... (Troubleshooting) ................................ 664
Alphabetical index ................................. 6728Vehicle specifications
Index
For information regarding the equipment listed below, refer to the
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”
• Audio system
• Lexus parking assist-sensor• Navigation system
• Lexus parking assist monitor
GS350_250_OM_OM30E16E_(EE).book Page 6 Tuesday, July 8, 2014 7:11 PM

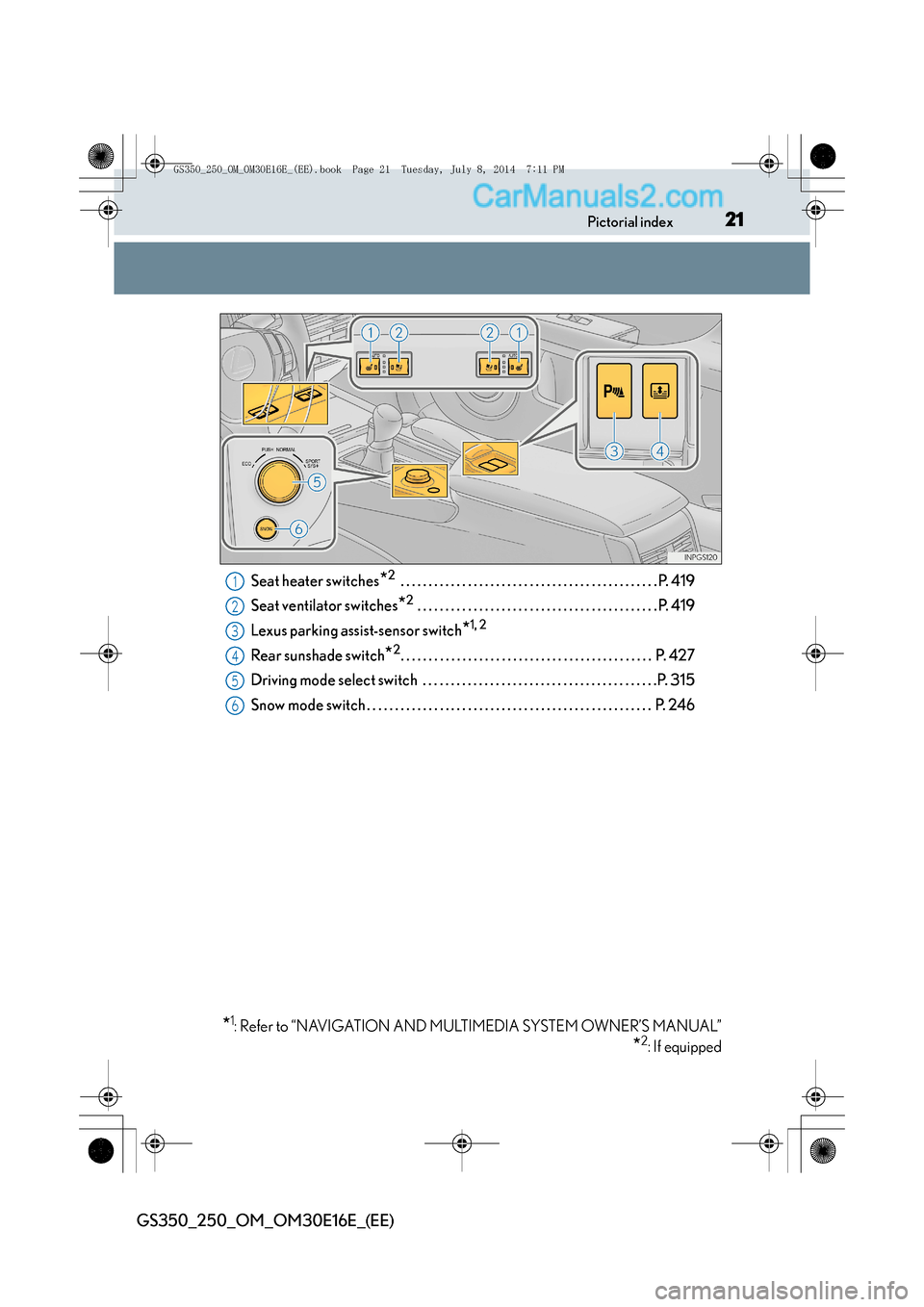

21Pictorial index
GS350_250_OM_OM30E16E_(EE)
Seat heater switches*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 419
Seat ventilator switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 419
Lexus parking assist-sensor switch
*1, 2
Rear sunshade switch*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 427
Driving mode select switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 315
Snow mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
*1: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”
*2: If equipped
1
2
3
4
5
6
GS350_250_OM_OM30E16E_(EE).book Page 21 Tuesday, July 8, 2014 7:11 PM

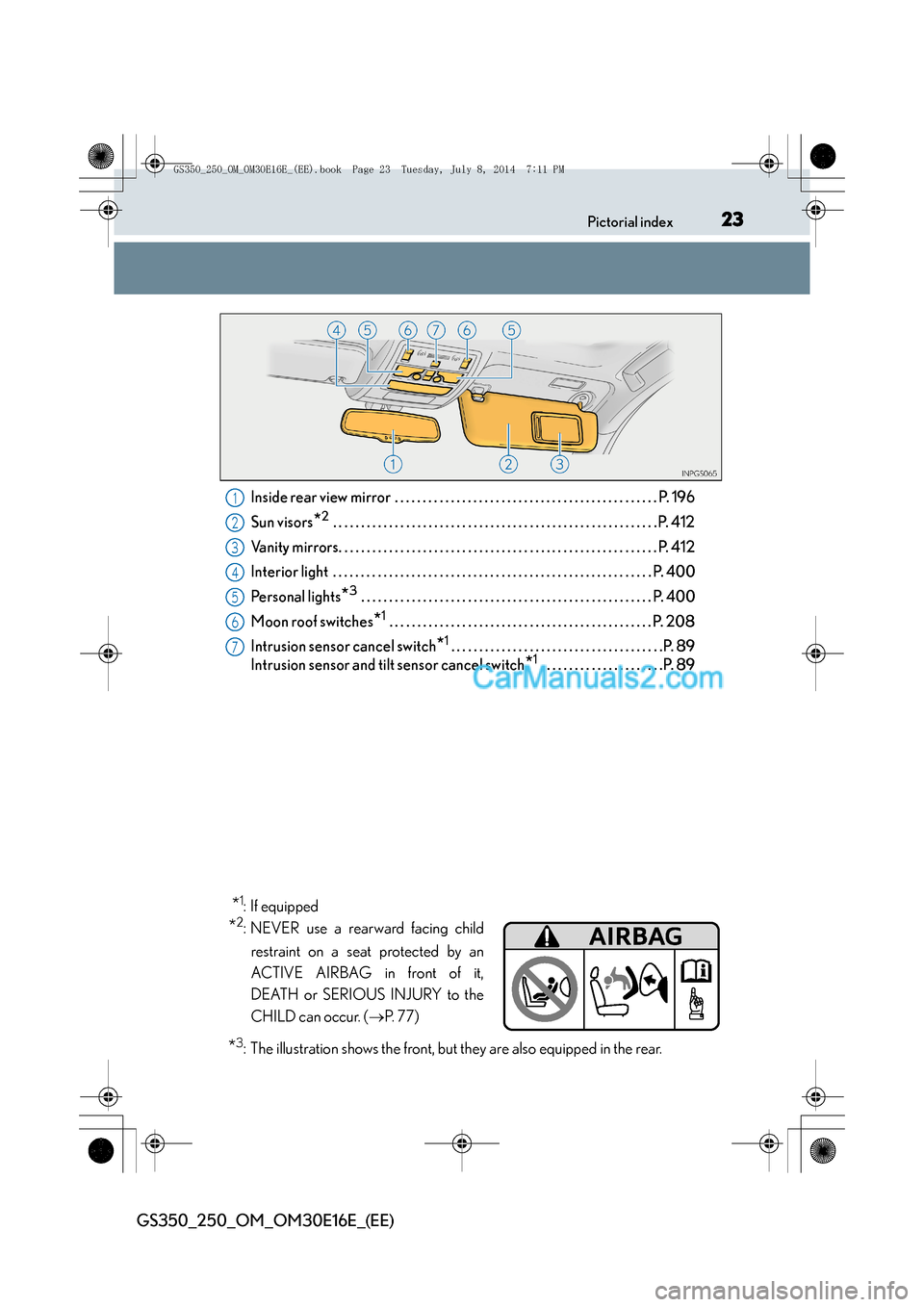

23Pictorial index
GS350_250_OM_OM30E16E_(EE)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 196
Sun visors
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 1 2
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 400
Personal lights
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400
Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
Intrusion sensor cancel switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 89
Intrusion sensor and tilt sensor cancel switch
*1 . . . . . . . . . . . . . . . . . . . . . .P. 89
1
2
3
4
5
6
7
*1: If equipped
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to the
CHILD can occur. ( →P. 77)
*3: The illustration shows the front, but they are also equipped in the rear.
GS350_250_OM_OM30E16E_(EE).book Page 23 Tuesday, July 8, 2014 7:11 PM

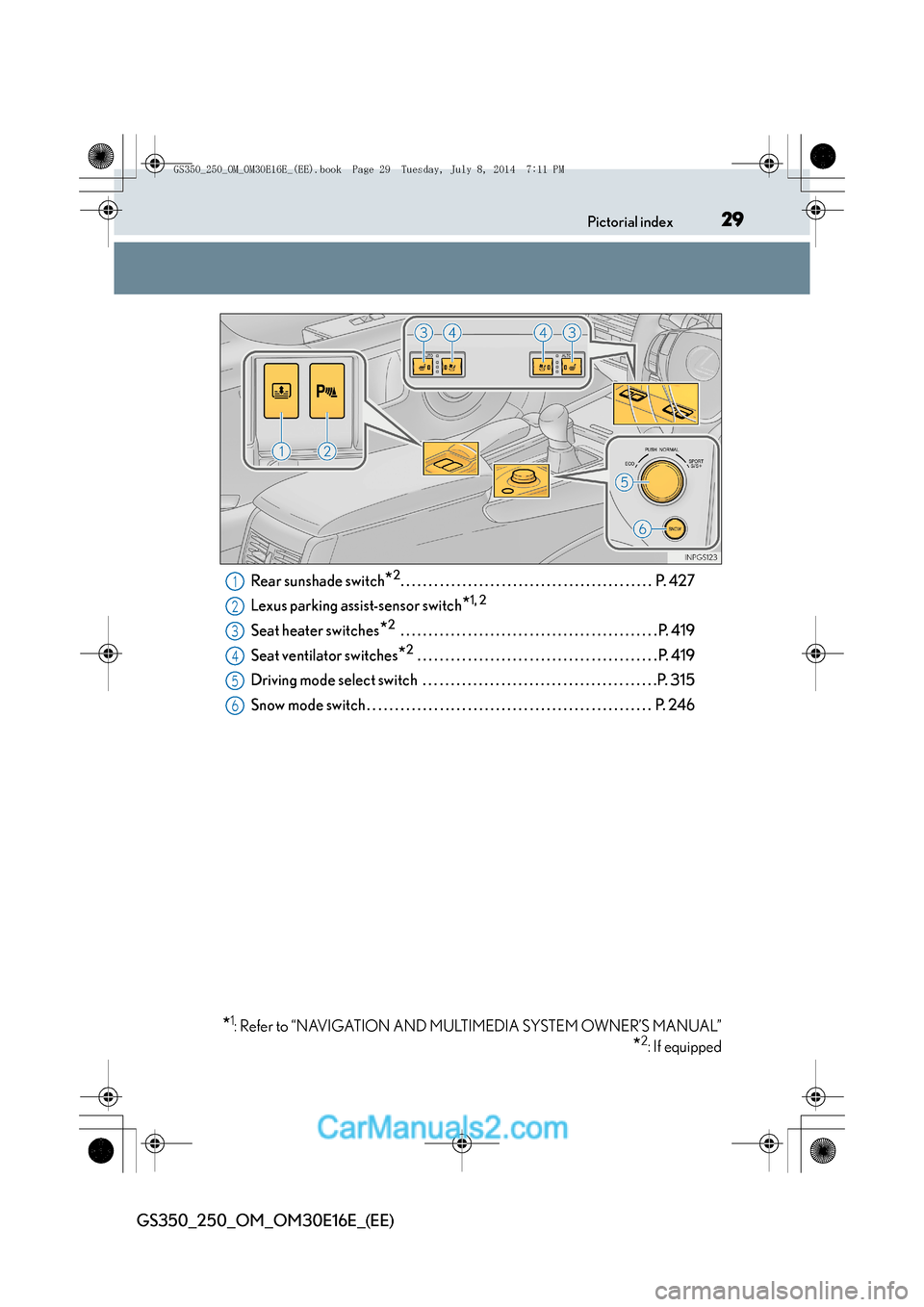

29Pictorial index
GS350_250_OM_OM30E16E_(EE)
Rear sunshade switch*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 427
Lexus parking assist-sensor switch
*1, 2
Seat heater switches*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 419
Seat ventilator switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 419
Driving mode select switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 315
Snow mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
*1: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”
*2: If equipped
1
2
3
4
5
6
GS350_250_OM_OM30E16E_(EE).book Page 29 Tuesday, July 8, 2014 7:11 PM

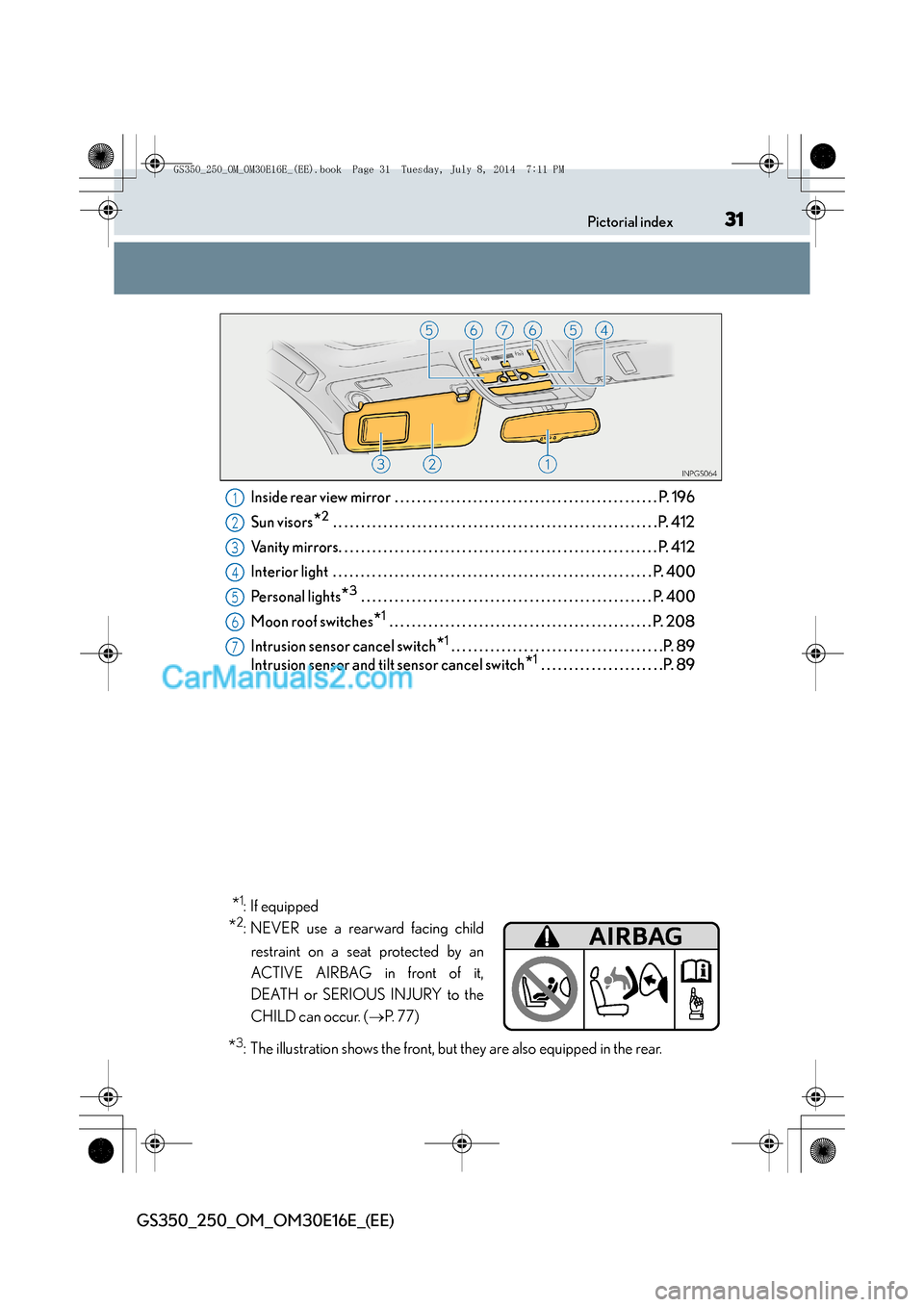

31Pictorial index
GS350_250_OM_OM30E16E_(EE)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 196
Sun visors
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 1 2
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 400
Personal lights
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400
Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
Intrusion sensor cancel switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 89
Intrusion sensor and tilt sensor cancel switch
*1 . . . . . . . . . . . . . . . . . . . . . .P. 89
1
2
3
4
5
6
7
*1: If equipped
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to the
CHILD can occur. ( →P. 77)
*3: The illustration shows the front, but they are also equipped in the rear.
GS350_250_OM_OM30E16E_(EE).book Page 31 Tuesday, July 8, 2014 7:11 PM

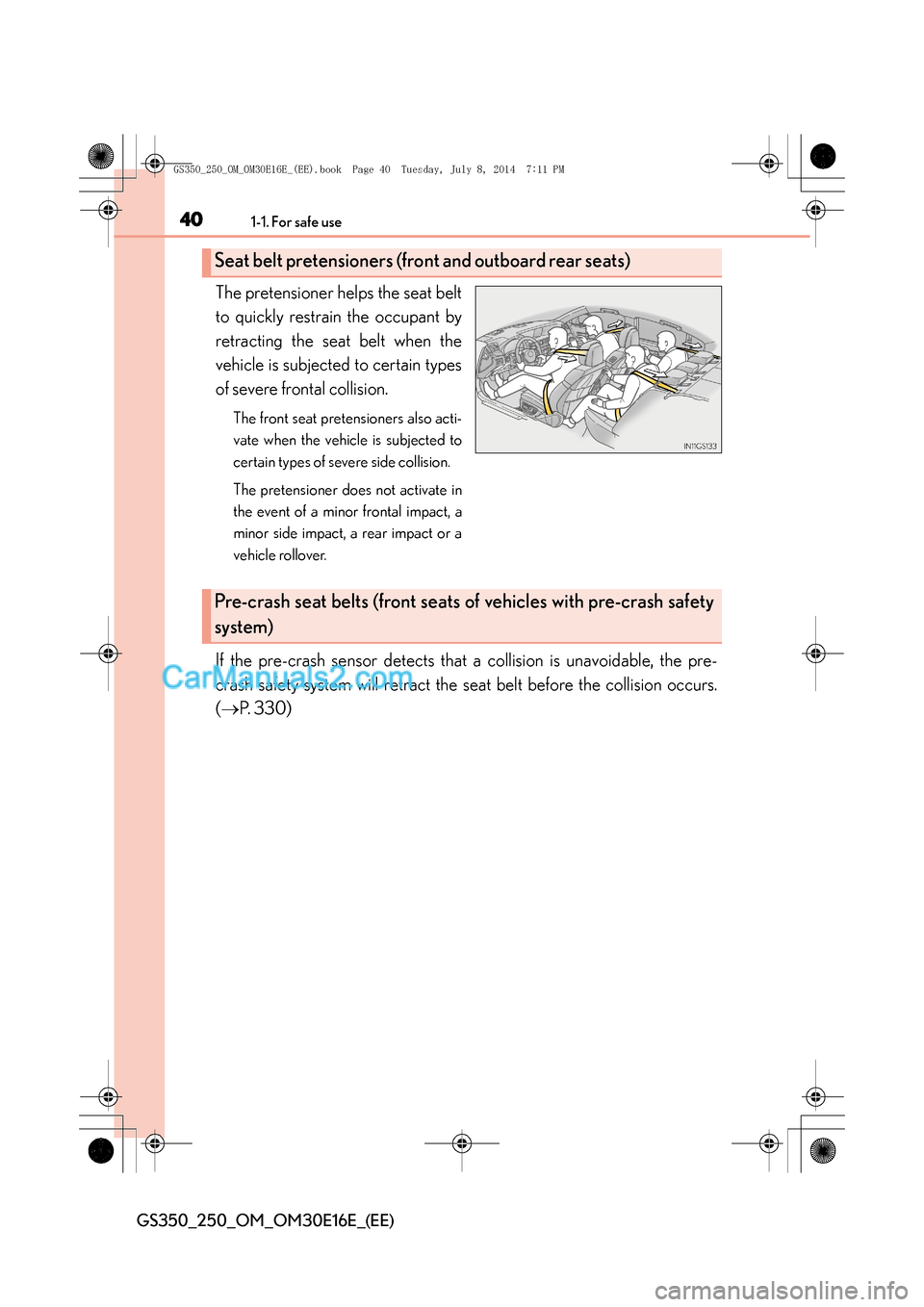

401-1. For safe use
GS350_250_OM_OM30E16E_(EE)
The pretensioner helps the seat belt
to quickly restrain the occupant by
retracting the seat belt when the
vehicle is subjected to certain types
of severe frontal collision.
The front seat pretensioners also acti-
vate when the vehicle is subjected to
certain types of severe side collision.
The pretensioner does not activate in
the event of a minor frontal impact, a
minor side impact, a rear impact or a
vehicle rollover.
If the pre-crash sensor detects that a collision is unavoidable, the pre-
crash safety system will retract the seat belt before the collision occurs.
(→ P. 3 3 0 )
Seat belt pretensioners (fro nt and outboard rear seats)
Pre-crash seat belts (front seats of vehicles with pre-crash safety
system)
GS350_250_OM_OM30E16E_(EE).book Page 40 Tuesday, July 8, 2014 7:11 PM

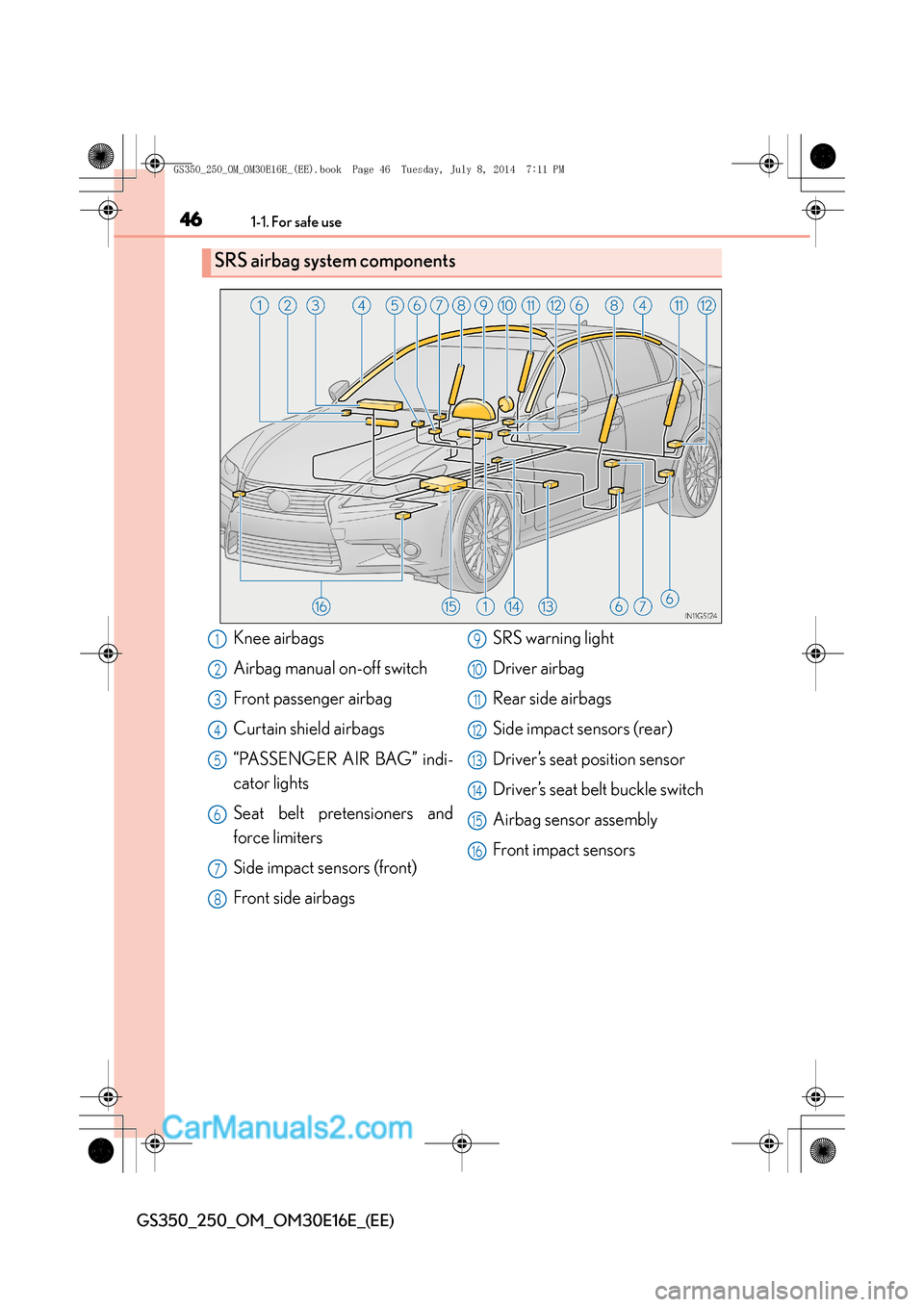

461-1. For safe use
GS350_250_OM_OM30E16E_(EE)
SRS airbag system components
Knee airbags
Airbag manual on-off switch
Front passenger airbag
Curtain shield airbags
“PASSENGER AIR BAG” indi-
cator lights
Seat belt pretensioners and
force limiters
Side impact sensors (front)
Front side airbagsSRS warning light
Driver airbag
Rear side airbags
Side impact sensors (rear)
Driver’s seat position sensor
Driver’s seat belt buckle switch
Airbag sensor assembly
Front impact sensors1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
GS350_250_OM_OM30E16E_(EE).book Page 46 Tuesday, July 8, 2014
7:11 PM

471-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
The main SRS airbag system components are shown above. The SRS air-
bag system is controlled by the airbag sensor assembly. As the airbags
deploy, a chemical reaction in the inflators quickly fills the airbags with
non-toxic gas to help restrain the motion of the occupants.
CAUTION
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be used with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause death or
serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.) of
inflation, placing yourself 250 mm (10 in.) from your driver airbag provides you
with a clear margin of safety. This distance is measured from the center of the
steering wheel to your breastbone. If you sit less than 250 mm (10 in.) away now,
you can change your driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedalscomfortably.
• Slightly recline the back of the seat. Although vehicle designs vary, many drivers can achieve the 250 mm (10 in.)
distance, even with the driver seat all the way forward, simply by reclining the
back of the seat somewhat. If reclining the back of your seat makes it hard to
see the road, raise yourself by using a firm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the airbag toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintaining con-
trol of the foot pedals, steering wheel, an d your view of the instrument panel con-
trols.
GS350_250_OM_OM30E16E_(EE).book Page 47 Tuesday, July 8, 2014 7:11 PM

85
1
1-2. Theft deterrent system
GS350_250_OM_OM30E16E_(EE)
For safety and security
Double locking system
Vehicles employing this system have
labels on the window glass of both
front doors.
Turn the engine switch off, have all the passengers exit the vehicle and
ensure that all the doors are closed.
Using the entry function:
Touch the sensor area on the outside door handle twice within 5 seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function: Hold the outside door handle.
Using the wireless remote control: Press .
Unauthorized access to the vehicle is
prevented by disabling the door
unlocking function from both the in terior and exterior of the vehicle.
Setting the double locking system
Canceling the double locking system
CAUTION
■Double locking system precaution
Never activate the double locking system when there are people in the vehicle
because all the doors cannot be opened from inside the vehicle.
GS350_250_OM_OM30E16E_(EE).book Page 85 Tuesday, July 8, 2014 7:11 PM

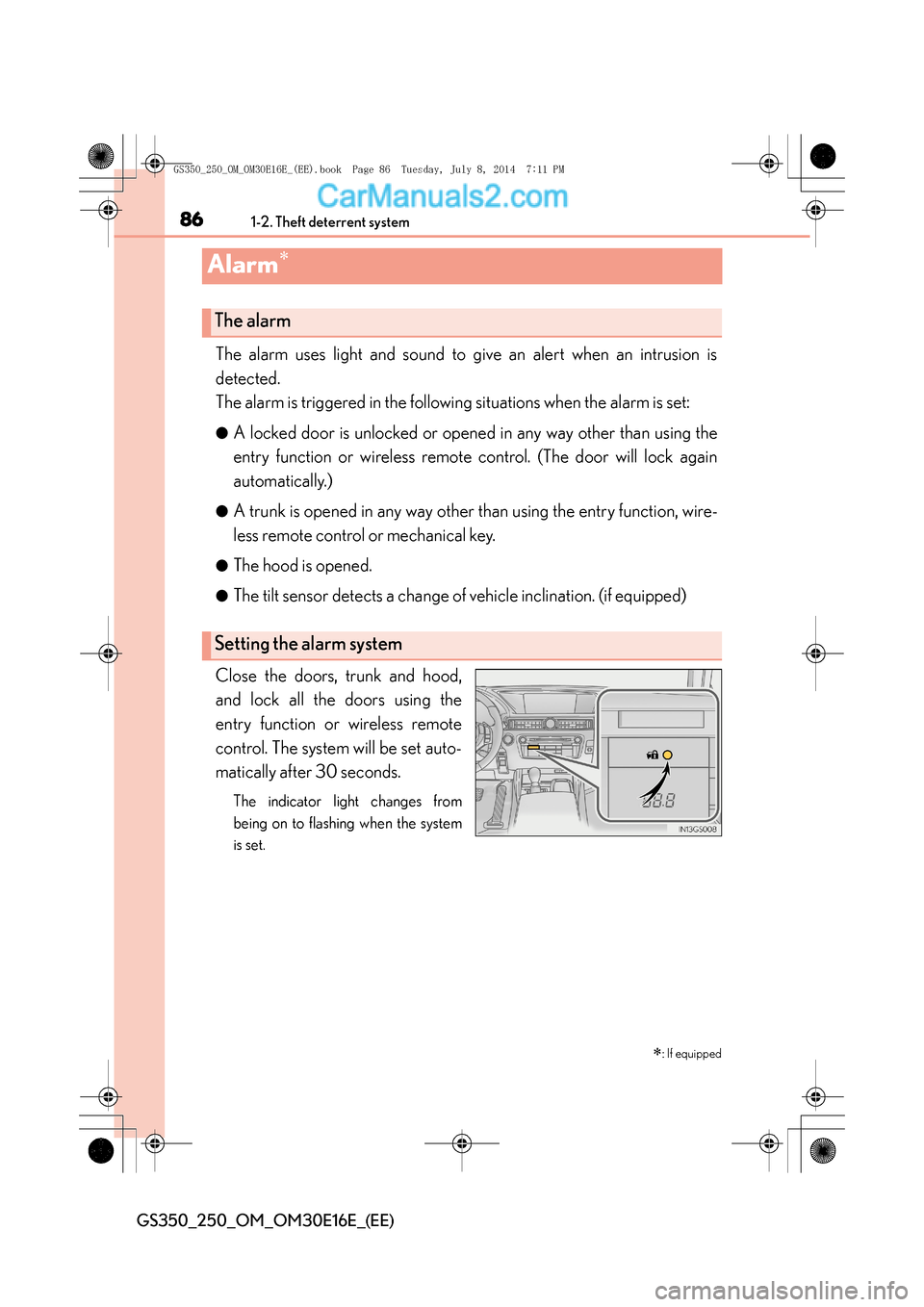

861-2. Theft deterrent system
GS350_250_OM_OM30E16E_(EE)
Alarm∗
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door is unlocked or opened in any way other than using the
entry function or wireless remote control. (The door will lock again
automatically.)
●A trunk is opened in any way other than using the entry function, wire-
less remote control or mechanical key.
●The hood is opened.
●The tilt sensor detects a change of vehicle inclination. (if equipped)
Close the doors, trunk and hood,
and lock all the doors using the
entry function or wireless remote
control. The system will be set auto-
matically after 30 seconds.
The indicator light changes from
being on to flashing when the system
is set.
∗: If equipped
The alarm
Setting the alarm system
GS350_250_OM_OM30E16E_(EE).book Page 86 Tuesday, July 8, 2014 7:11 PM
