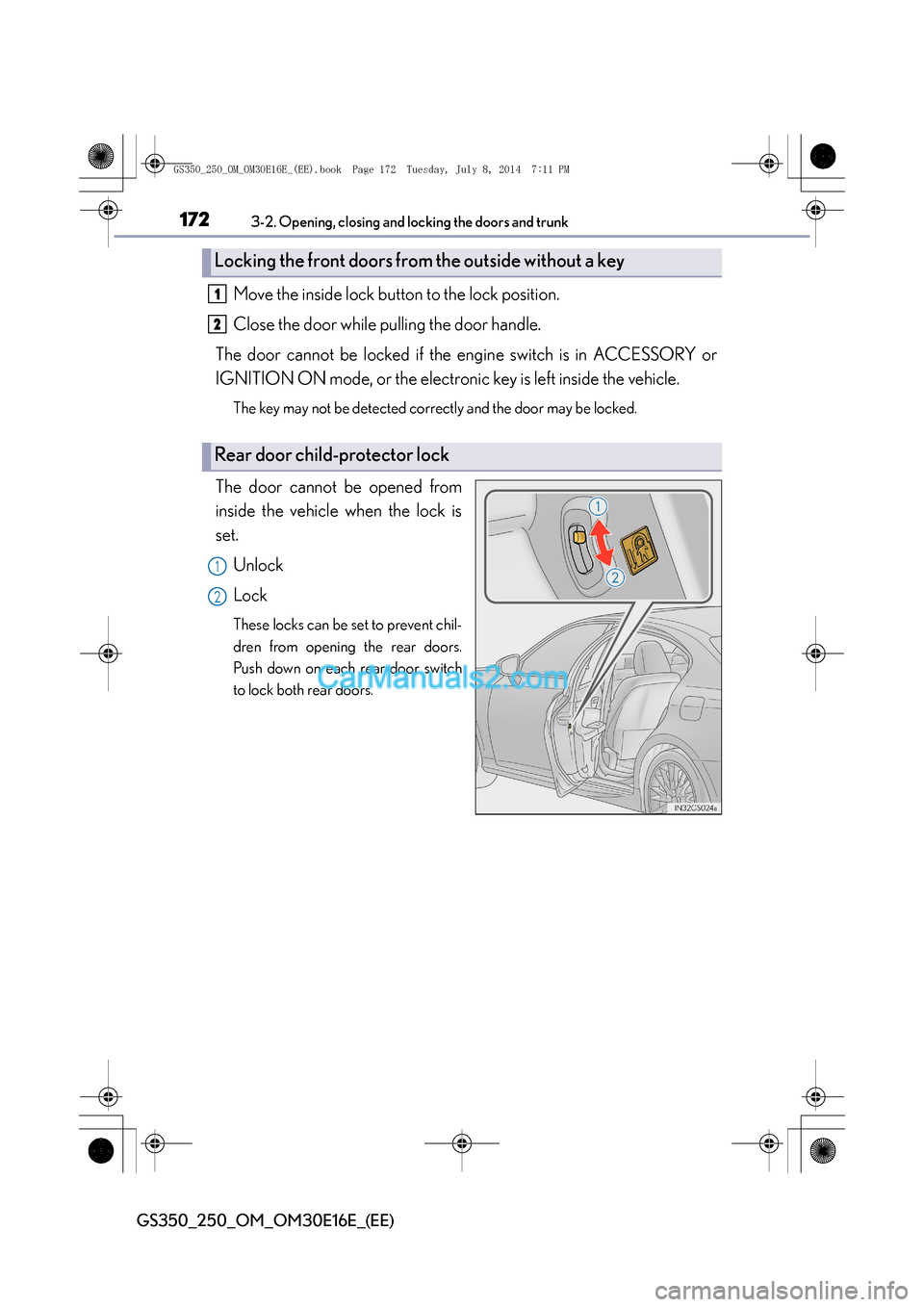

1723-2. Opening, closing and locking the doors and trunk
GS350_250_OM_OM30E16E_(EE)
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
The door cannot be opened from
inside the vehicle when the lock is
set. Unlock
Lock
These locks can be set to prevent chil-
dren from opening the rear doors.
Push down on each rear door switch
to lock both rear doors.
Locking the front doors from the outside without a key
Rear door child-protector lock
1
2
1
2
GS350_250_OM_OM30E16E_(EE).book Page 172 Tuesday, July 8, 201 4 7:11 PM

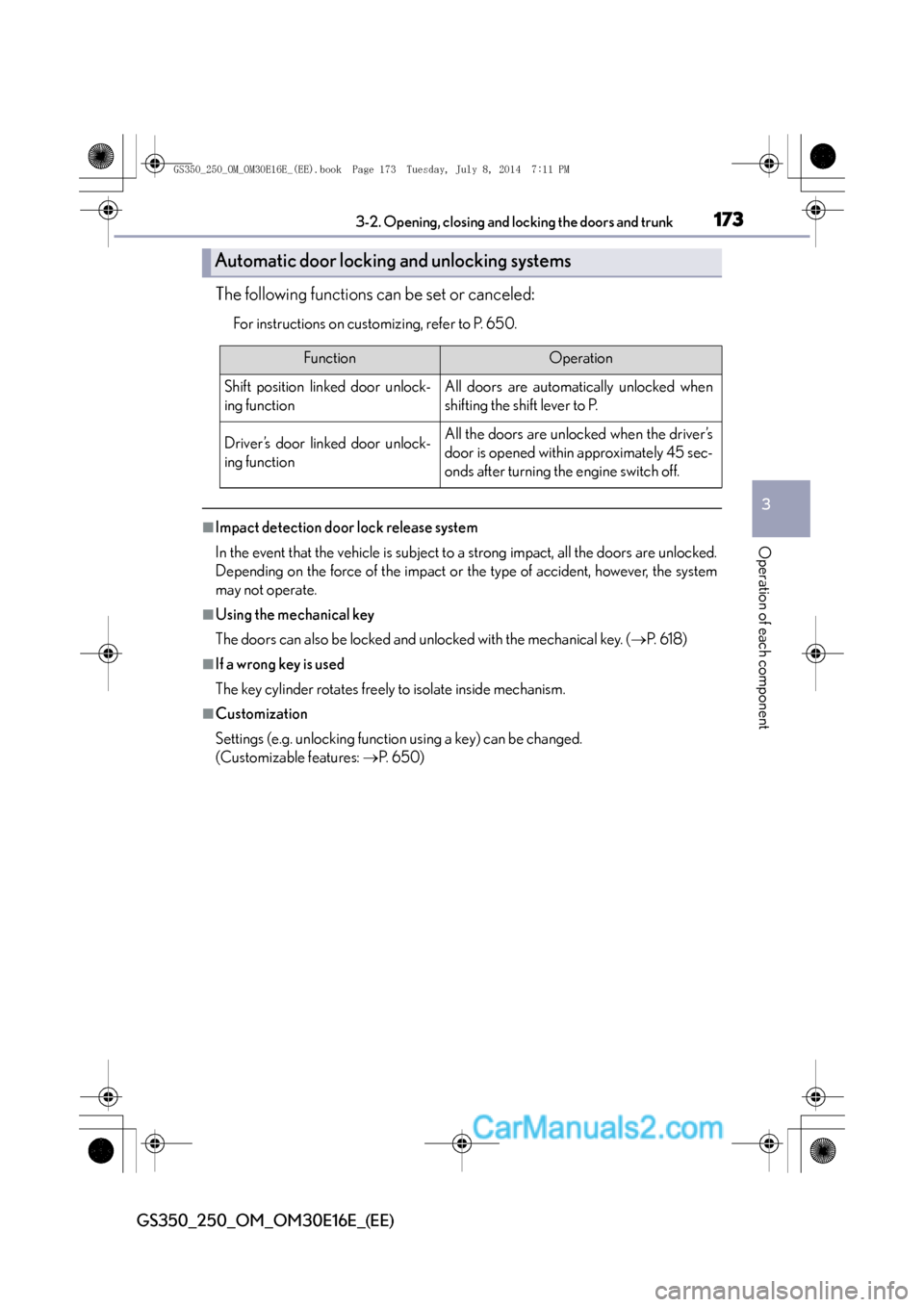

1733-2. Opening, closing and locking the doors and trunk
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)
The following functions can be set or canceled:
For instructions on customizing, refer to P. 650.
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (→P. 6 1 8 )
■If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: →P. 650)
Automatic door locking and unlocking systems
FunctionOperation
Shift position linked door unlock-
ing functionAll doors are automatically unlocked when
shifting the shift lever to P.
Driver’s door linked door unlock-
ing functionAll the doors are unlocked when the driver’s
door is opened within approximately 45 sec-
onds after turning the engine switch off.
GS350_250_OM_OM30E16E_(EE).book Page 173 Tuesday, July 8, 201 4 7:11 PM

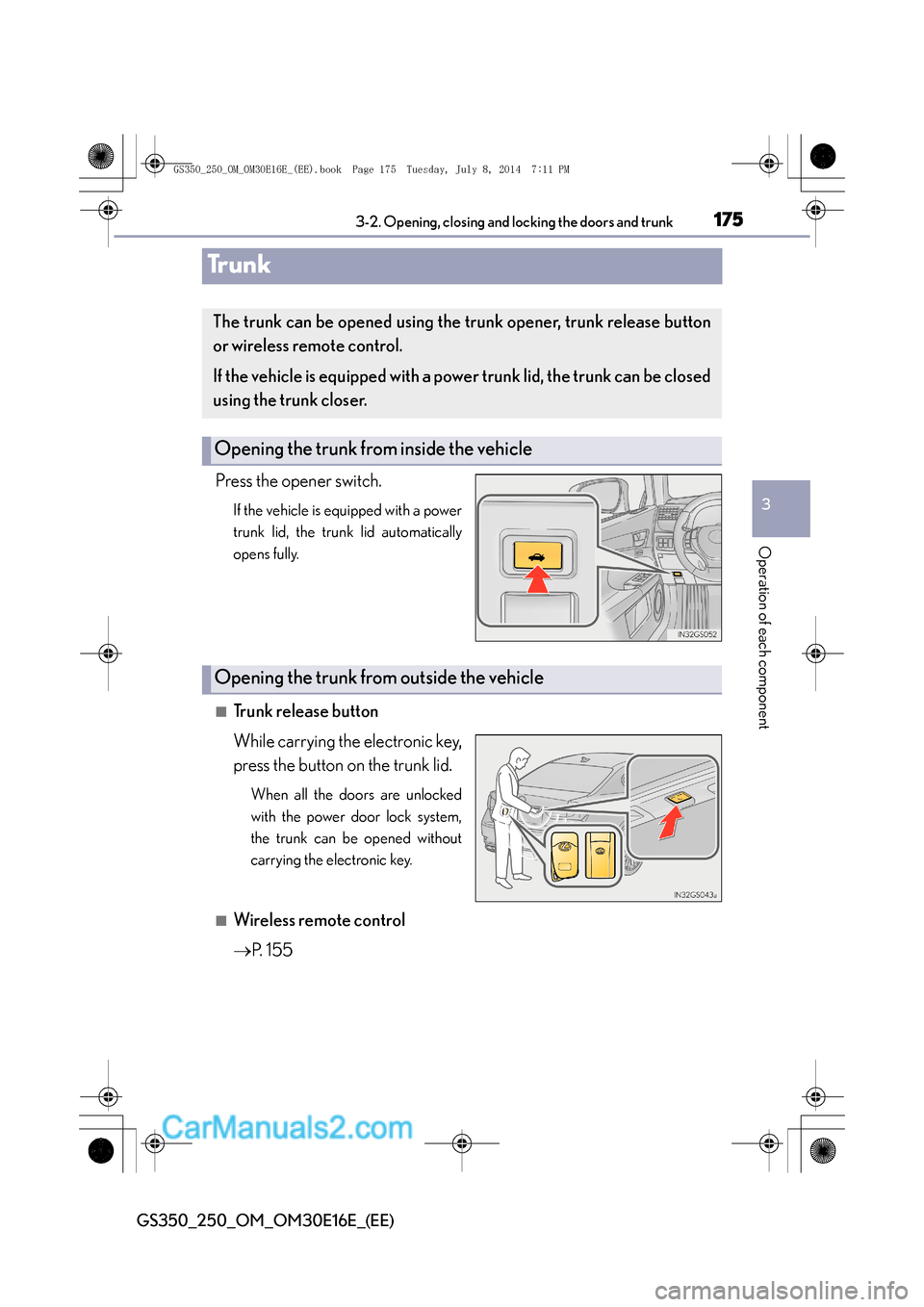

175
3
3-2. Opening, closing and locking the doors and trunk
Operation of each component
GS350_250_OM_OM30E16E_(EE)
Trunk
Press the opener switch.
If the vehicle is equipped with a power
trunk lid, the trunk lid automatically
opens fully.
■Trunk release button
While carrying the electronic key,
press the button on the trunk lid.
When all the doors are unlocked
with the power door lock system,
the trunk can be opened without
carrying the electronic key.
■Wireless remote control
→
P. 1 5 5
The trunk can be opened using the trunk opener, trunk release button
or wireless remote control.
If the vehicle is equipped with a powe r trunk lid, the trunk can be closed
using the trunk closer.
Opening the trunk from inside the vehicle
Opening the trunk from outside the vehicle
GS350_250_OM_OM30E16E_(EE).book Page 175 Tuesday, July 8, 201 4 7:11 PM

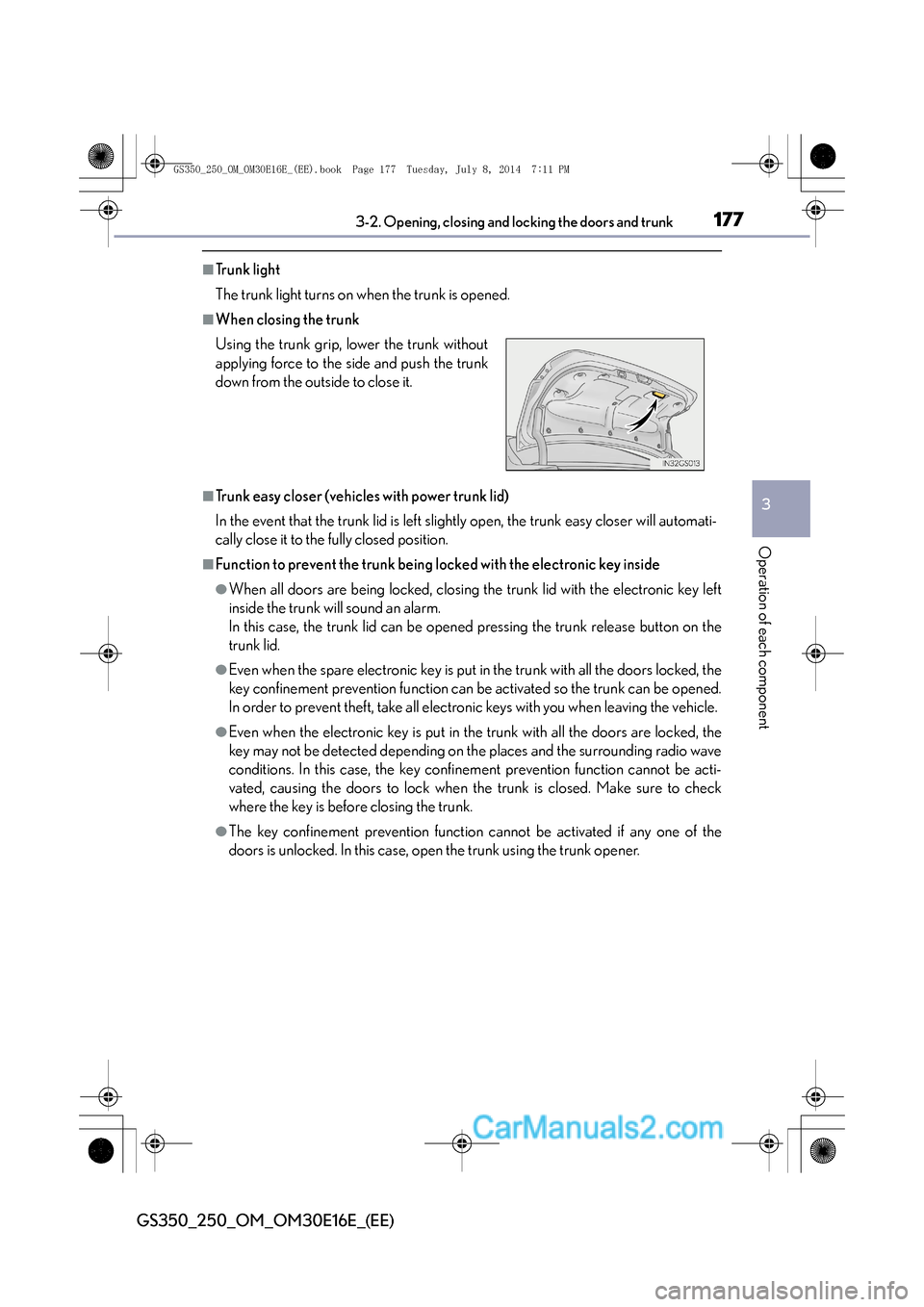

1773-2. Opening, closing and locking the doors and trunk
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)
■Trunk light
The trunk light turns on when the trunk is opened.
■When closing the trunk
■Trunk easy closer (vehicles with power trunk lid)
In the event that the trunk lid is left slightly open, the trunk easy closer will automati-
cally close it to the fully closed position.
■Function to prevent the trunk being locked with the electronic key inside
●When all doors are being locked, closing the trunk lid with the electronic key left
inside the trunk will sound an alarm.
In this case, the trunk lid can be opened pressing the trunk release button on the
trunk lid.
●Even when the spare electronic key is put in the trunk with all the doors locked, the
key confinement prevention function can be activated so the trunk can be opened.
In order to prevent theft, take all electronic keys with you when leaving the vehicle.
●Even when the electronic key is put in the trunk with all the doors are locked, the
key may not be detected depending on the places and the surrounding radio wave
conditions. In this case, the key confinement prevention function cannot be acti-
vated, causing the doors to lock when the trunk is closed. Make sure to check
where the key is before closing the trunk.
●The key confinement prevention function cannot be activated if any one of the
doors is unlocked. In this case, open the trunk using the trunk opener.
Using the trunk grip, lower the trunk without
applying force to the side and push the trunk
down from the outside to close it.
GS350_250_OM_OM30E16E_(EE).book Page 177 Tuesday, July 8, 201
4 7:11 PM

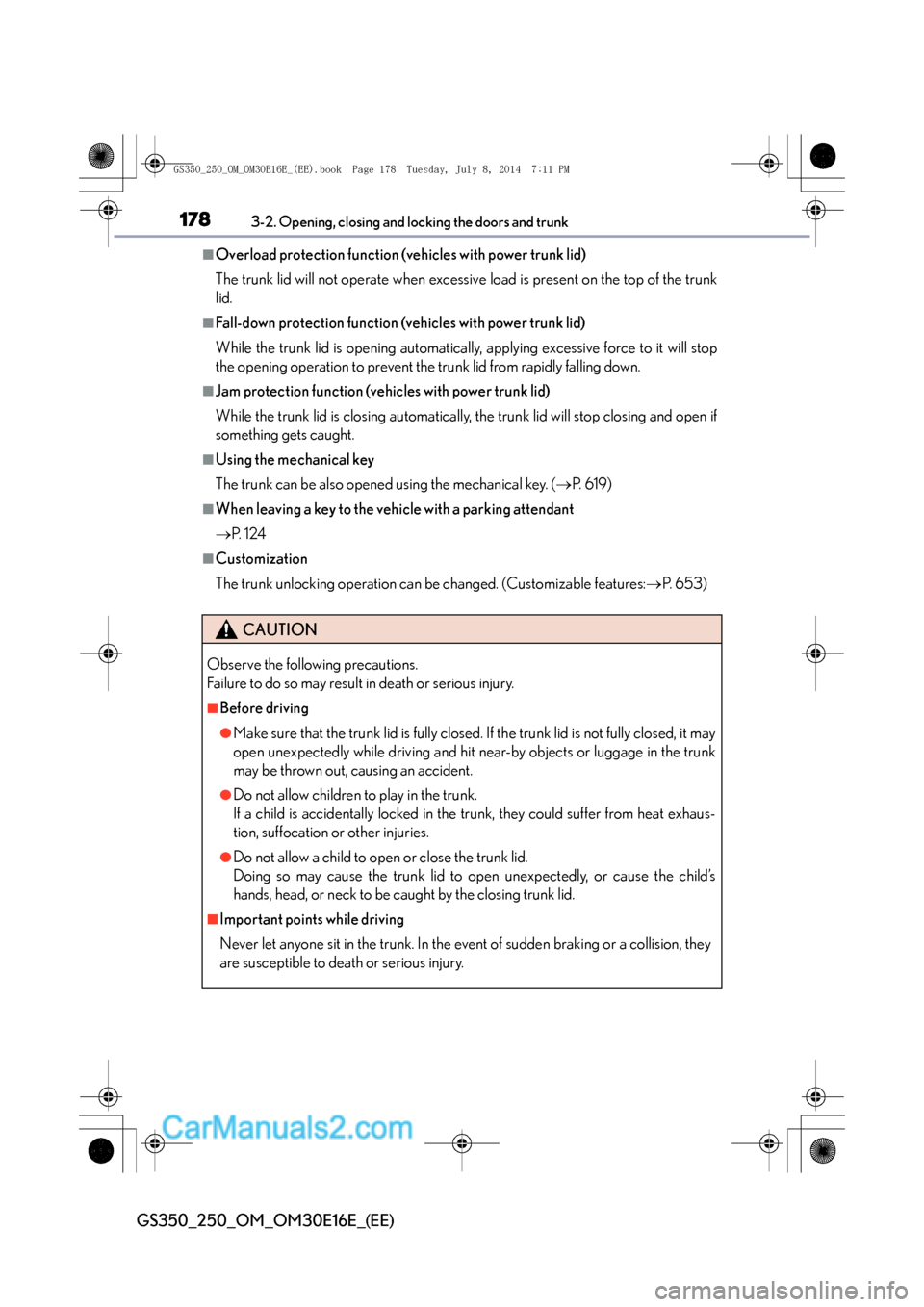

1783-2. Opening, closing and locking the doors and trunk
GS350_250_OM_OM30E16E_(EE)
■Overload protection function (vehicles with power trunk lid)
The trunk lid will not operate when excessive load is present on the top of the trunk
lid.
■Fall-down protection function (vehicles with power trunk lid)
While the trunk lid is opening automatically, applying excessive force to it will stop
the opening operation to prevent the trunk lid from rapidly falling down.
■Jam protection function (vehicles with power trunk lid)
While the trunk lid is closing automatically, the trunk lid will stop closing and open if
something gets caught.
■Using the mechanical key
The trunk can be also opened using the mechanical key. (→P. 6 1 9 )
■When leaving a key to the vehicle with a parking attendant
→P. 1 2 4
■Customization
The trunk unlocking operation can be changed. (Customizable features: →P. 6 5 3 )
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Before driving
●Make sure that the trunk lid is fully closed. If the trunk lid is not fully closed, it may
open unexpectedly while driving and hit near-by objects or luggage in the trunk
may be thrown out, causing an accident.
●Do not allow children to play in the trunk.
If a child is accidentally locked in the trunk, they could suffer from heat exhaus-
tion, suffocation or other injuries.
●Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to open unexpectedly, or cause the child’s
hands, head, or neck to be caught by the closing trunk lid.
■Important points while driving
Never let anyone sit in the trunk. In the event of sudden braking or a collision, they
are susceptible to death or serious injury.
GS350_250_OM_OM30E16E_(EE).book Page 178 Tuesday, July 8, 201 4 7:11 PM

1893-3. Adjusting the seats
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)
■Operating the driving position memory after turning the engine switch off
Driver’s seat:
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again.
Front passenger’s seat:
Recorded seat positions can be activated up to 180 seconds after the front passen-
ger’s door is opened.
■In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is operated in
the same direction, the recorded position may be slightly different when it is recalled.
Each electronic key (including a card key) can be registered to recall your
preferred driving position.
■Registering procedure
Record your driving position to button “1”, “2” or “3” before performing
the following:
Carry only the key you want to register, and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be
recorded properly.
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Recall the driving position that you want to record.
Memory recall function (driver’s side only)
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 189 Tuesday, July 8, 201 4 7:11 PM

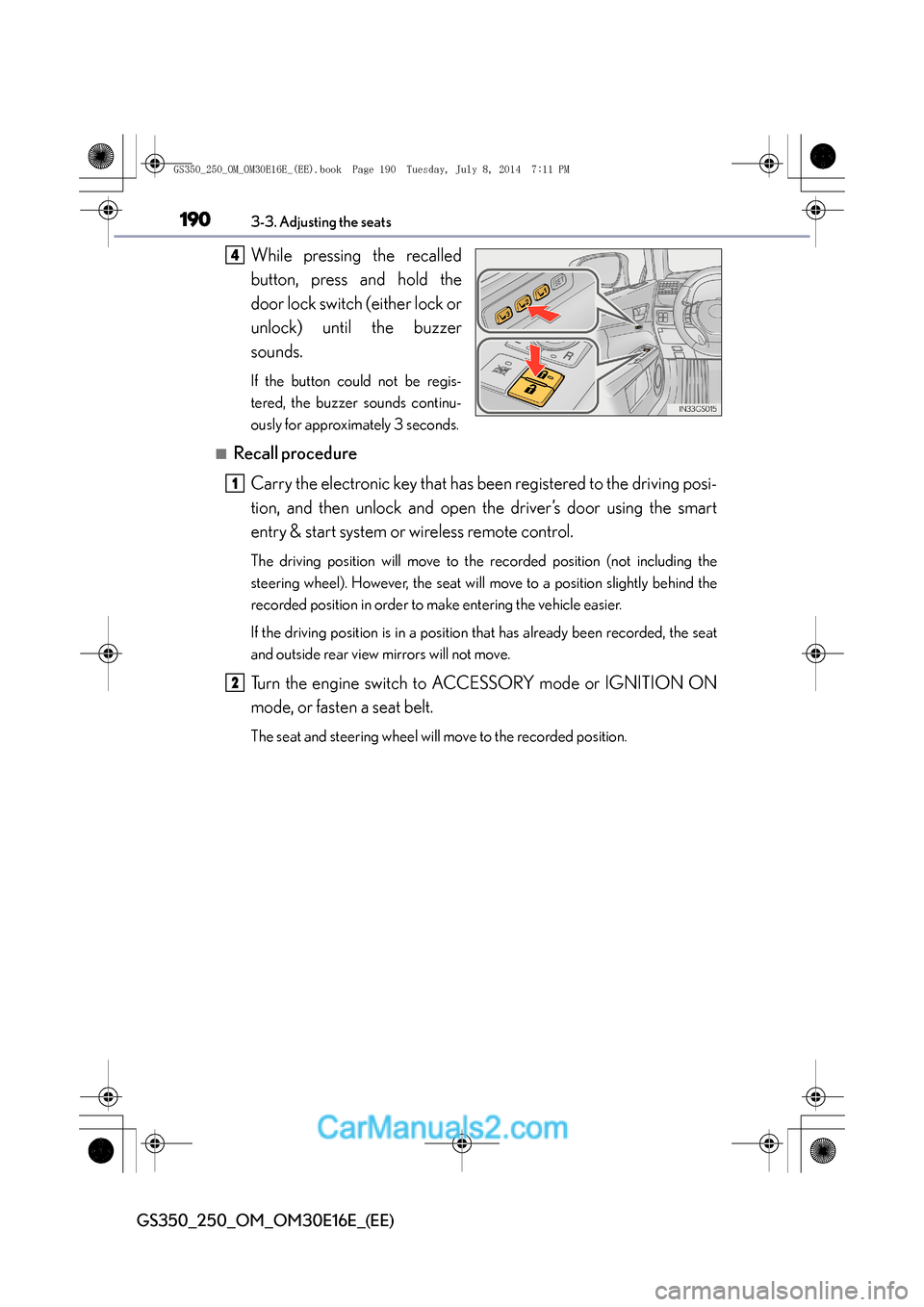

1903-3. Adjusting the seats
GS350_250_OM_OM30E16E_(EE)
While pressing the recalled
button, press and hold the
door lock switch (either lock or
unlock) until the buzzer
sounds.
If the button could not be regis-
tered, the buzzer sounds continu-
ously for approximately 3 seconds.
■Recall procedureCarry the electronic key that has been registered to the driving posi-
tion, and then unlock and open the driver’s door using the smart
entry & start system or wireless remote control.
The driving position will move to the recorded position (not including the
steering wheel). However, the seat will move to a position slightly behind the
recorded position in order to make entering the vehicle easier.
If the driving position is in a position that has already been recorded, the seat
and outside rear view mirrors will not move.
Turn the engine switch to ACCESSORY mode or IGNITION ON
mode, or fasten a seat belt.
The seat and steering wheel will move to the recorded position.
4
1
2
GS350_250_OM_OM30E16E_(EE).book Page 190 Tuesday, July 8, 201 4 7:11 PM

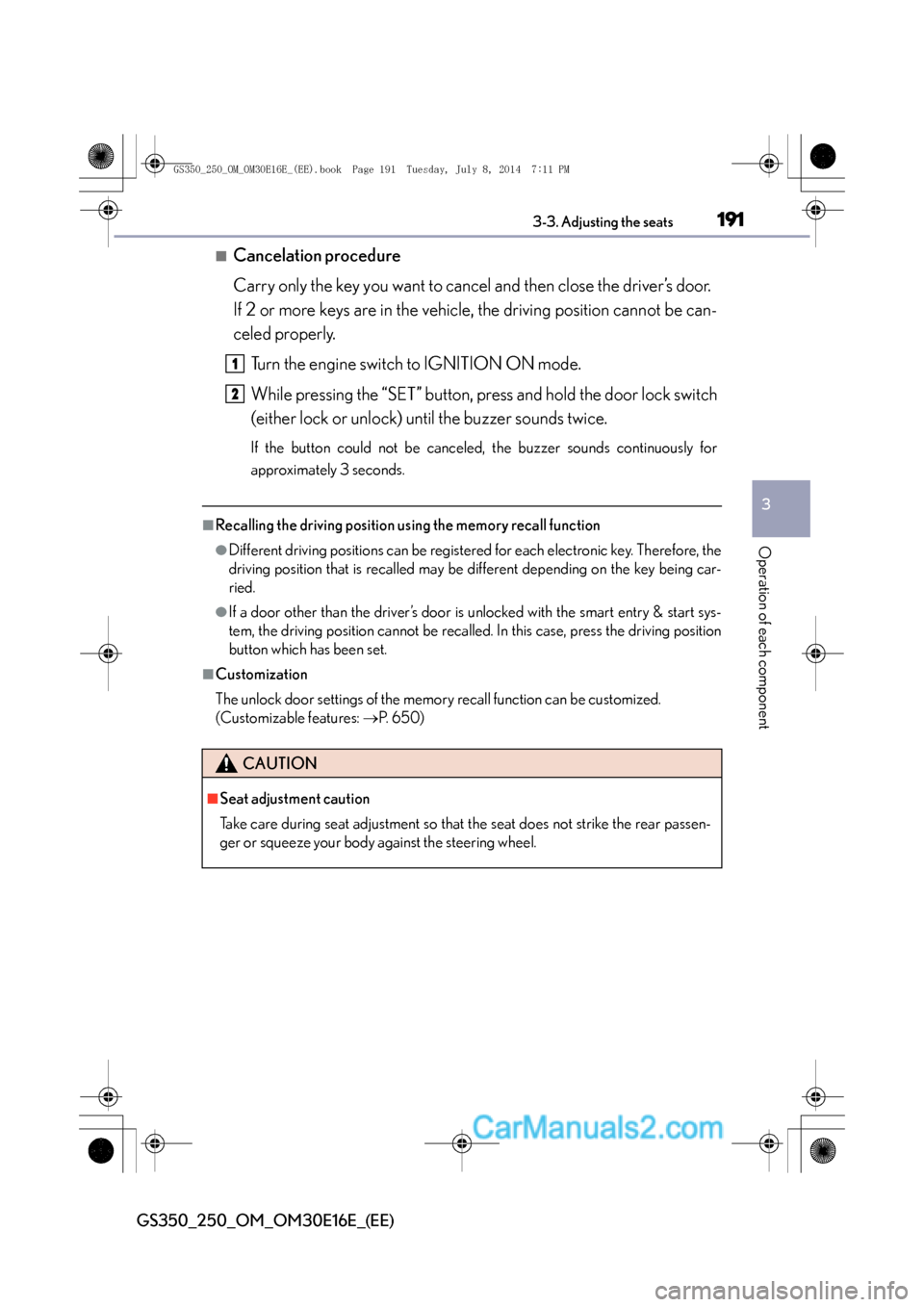

1913-3. Adjusting the seats
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)
■Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be can-
celed properly.Turn the engine switch to IGNITION ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) until the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for
approximately 3 seconds.
■Recalling the driving position us ing the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being car-
ried.
●If a door other than the driver’s door is unlocked with the smart entry & start sys-
tem, the driving position cannot be recalled. In this case, press the driving position
button which has been set.
■Customization
The unlock door settings of the memory recall function can be customized.
(Customizable features: →P. 650)
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.
1
2
GS350_250_OM_OM30E16E_(EE).book Page 191 Tuesday, July 8, 201 4 7:11 PM

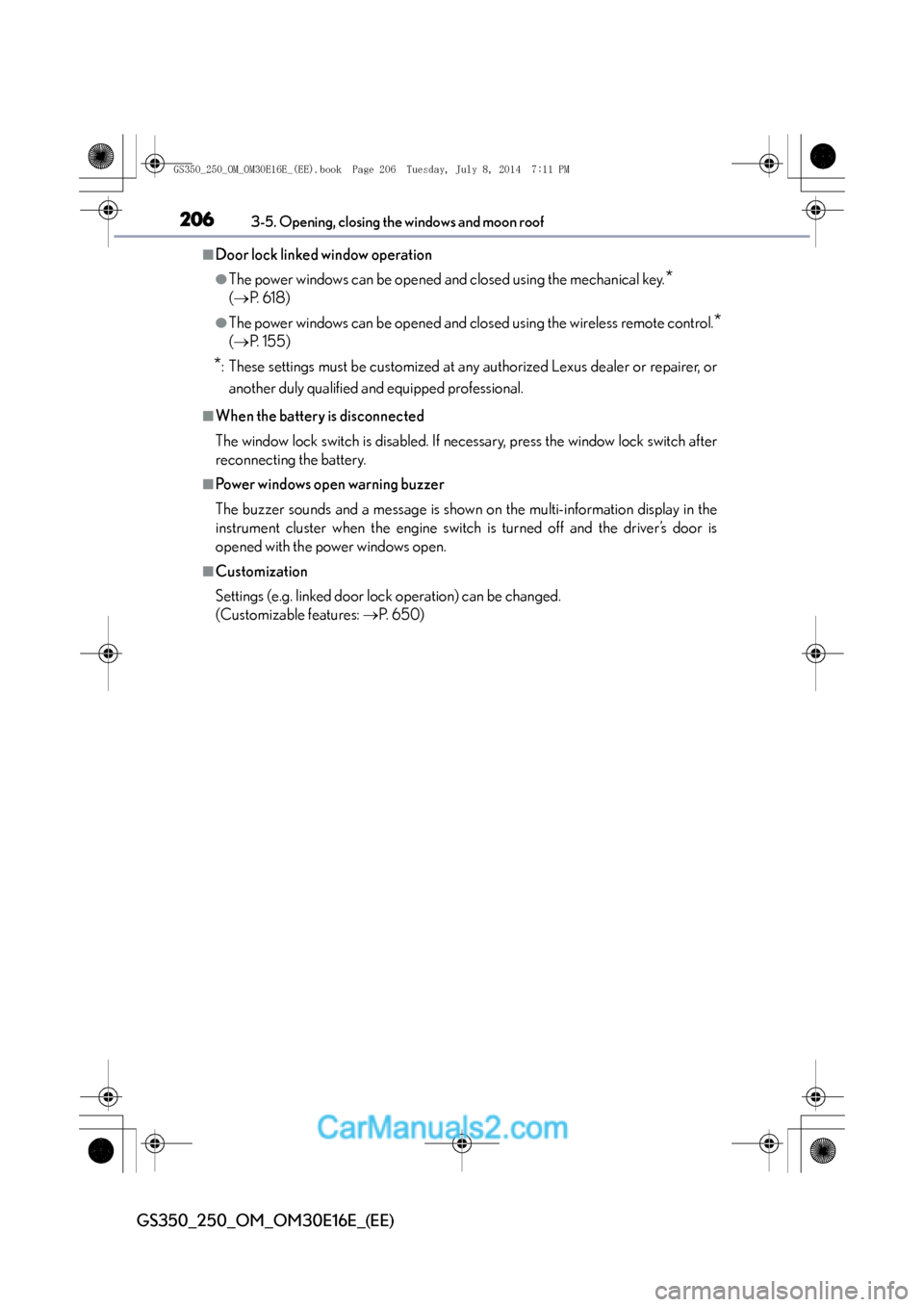

2063-5. Opening, closing the windows and moon roof
GS350_250_OM_OM30E16E_(EE)
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.*
( → P. 6 1 8 )
●The power windows can be opened and closed using the wireless remote control.*
(→ P. 1 5 5 )
*: These settings must be customized at any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
■When the battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the battery.
■Power windows open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the
instrument cluster when the engine switch is turned off and the driver’s door is
opened with the power windows open.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: →P. 650)
GS350_250_OM_OM30E16E_(EE).book Page 206 Tuesday, July 8, 201 4 7:11 PM

2073-5. Opening, closing the windows and moon roof
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the windows
●The driver is responsible for all the power window operations, including the oper-
ation for the passengers. In order to prevent accidental operation, especially by a
child, do not let a child operate the power windows. It is possible for children and
other passengers to have body parts caught in the power window. Also, when
riding with a child, it is recommended to use the window lock switch. (→P. 2 0 4 )
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●When using the wireless remote control or mechanical key and operating the
power windows, operate the power window after checking to make sure that
there is no possibility of any passenger having any of their body parts caught in
the window. Also do not let a child oper ate window by the wireless remote con-
trol or mechanical key. It is possible for children and other passengers to get
caught in the power window.
●When exiting the vehicle, turn the engine switch off, carry the key and exit the
vehicle along with the child. There may be accidental operation, due to mischief,
etc., that may possibly lead to an accident.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the window fully closes.
GS350_250_OM_OM30E16E_(EE).book Page 207 Tuesday, July 8, 201 4 7:11 PM
