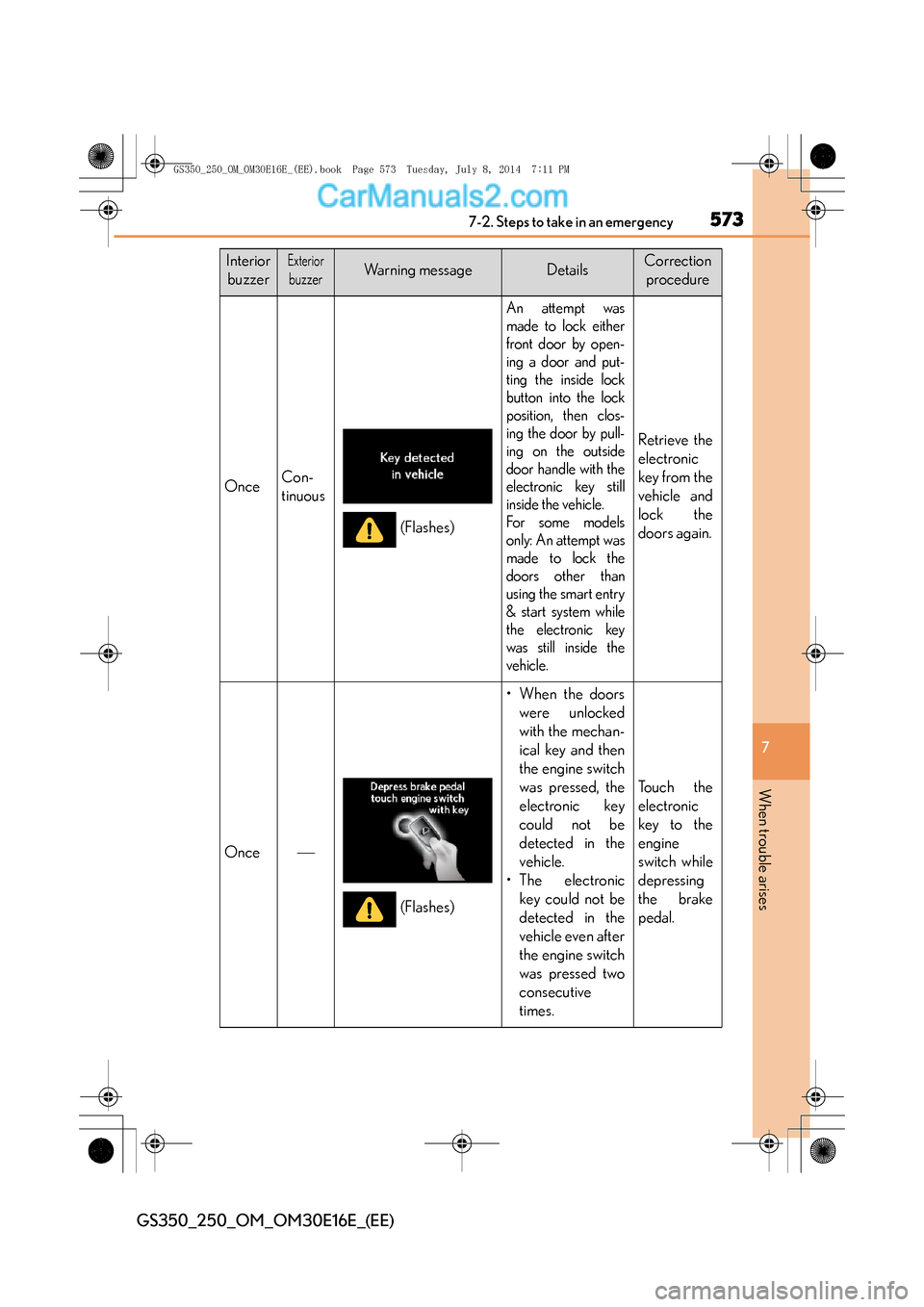

5737-2. Steps to take in an emergency
7
When trouble arises
GS350_250_OM_OM30E16E_(EE)
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
OnceCon-
tinuous
An attempt was
made to lock either
front door by open-
ing a door and put-
ting the inside lock
button into the lock
position, then clos-
ing the door by pull-
ing on the outside
door handle with the
electronic key still
inside the vehicle.
For some models
only: An attempt was
made to lock the
doors other than
using the smart entry
& start system while
the electronic key
was still inside the
vehicle.
Retrieve the
electronic
key from the
vehicle and
lock the
doors again.
Once
• When the doors were unlocked
with the mechan-
ical key and then
the engine switch
was pressed, the
electronic key
could not be
detected in the
vehicle.
• The electronic key could not be
detected in the
vehicle even after
the engine switch
was pressed two
consecutive
times.
To u c h t h e
electronic
key to the
engine
switch while
depressing
the brake
pedal.
(Flashes)
(Flashes)
GS350_250_OM_OM30E16E_(EE).book Page 573 Tuesday, July 8, 201 4 7:11 PM

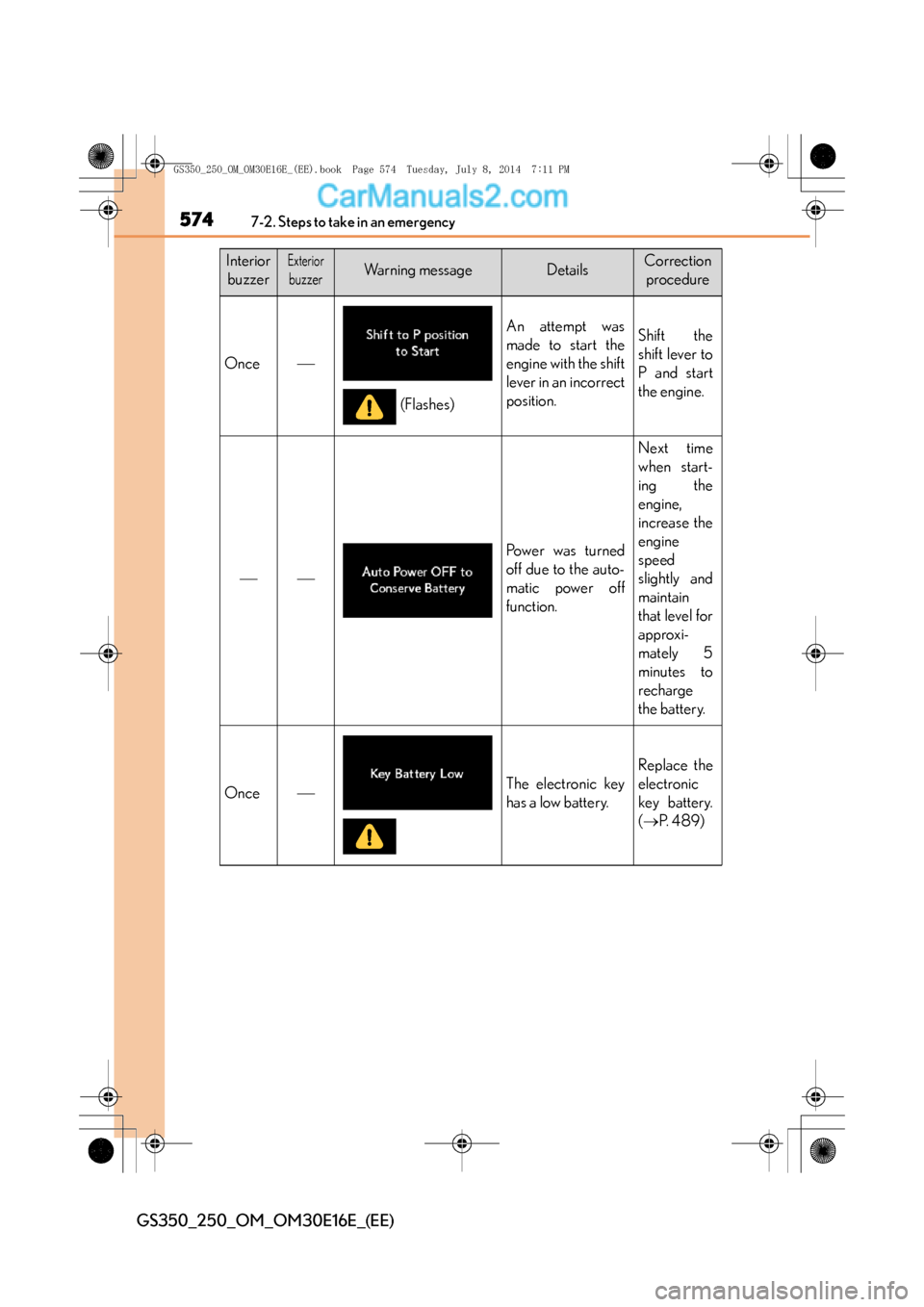

5747-2. Steps to take in an emergency
GS350_250_OM_OM30E16E_(EE)
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once
An attempt was
made to start the
engine with the shift
lever in an incorrect
position.Shift the
shift lever to
P and start
the engine.

Power was turned
off due to the auto-
matic power off
function.
Next time
when start-
ing the
engine,
increase the
engine
speed
slightly and
maintain
that level for
approxi-
mately 5
minutes to
recharge
the battery.
OnceThe electronic key
has a low battery.
Replace the
electronic
key battery.
( → P. 4 8 9 )
(Flashes)
GS350_250_OM_OM30E16E_(EE).book Page 574 Tuesday, July 8, 201 4 7:11 PM

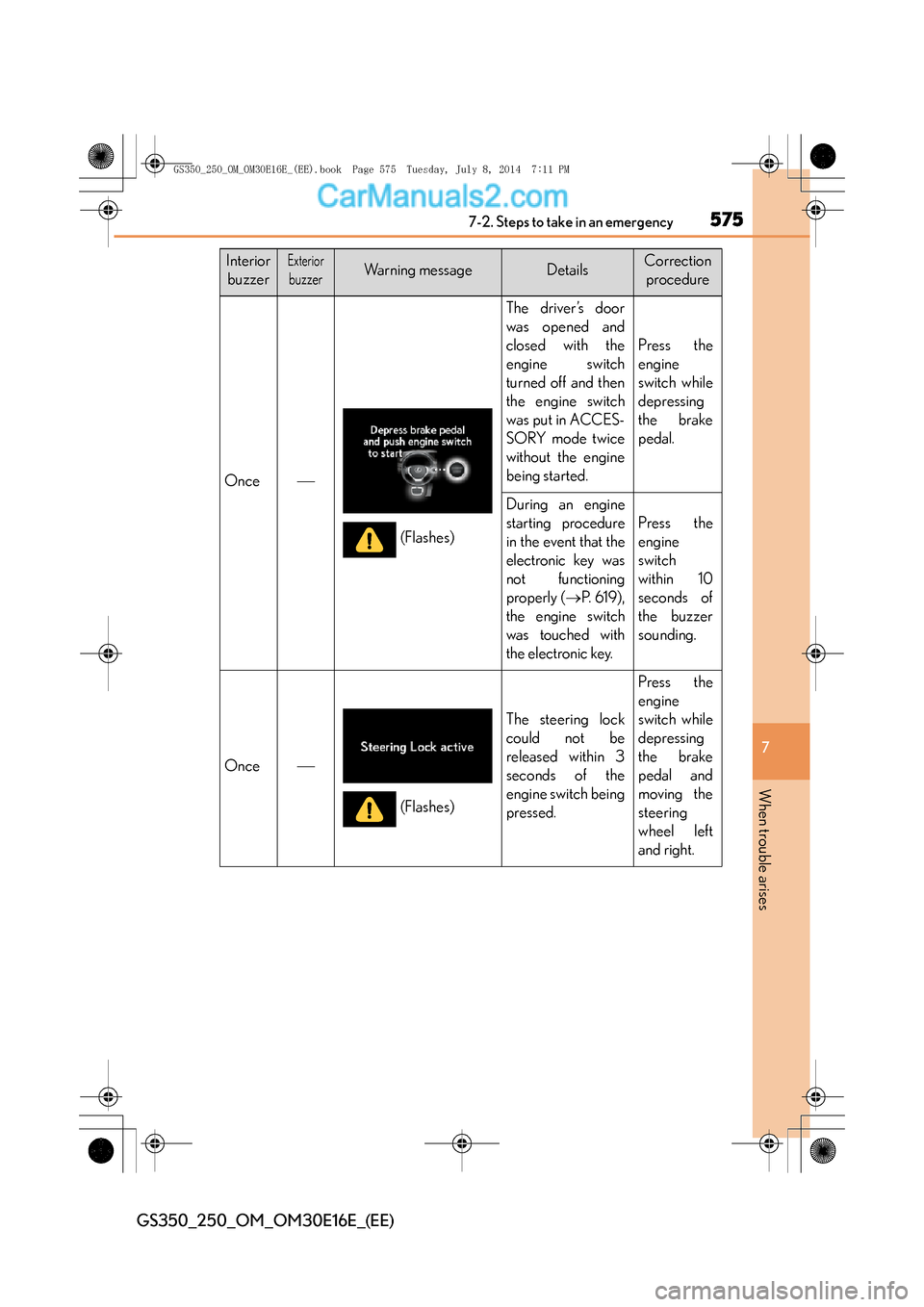

5757-2. Steps to take in an emergency
7
When trouble arises
GS350_250_OM_OM30E16E_(EE)
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once
The driver’s door
was opened and
closed with the
engine switch
turned off and then
the engine switch
was put in ACCES-
SORY mode twice
without the engine
being started.
Press the
engine
switch while
depressing
the brake
pedal.
During an engine
starting procedure
in the event that the
electronic key was
not functioning
properly ( →P. 6 1 9 ) ,
the engine switch
was touched with
the electronic key.
Press the
engine
switch
within 10
seconds of
the buzzer
sounding.
Once
The steering lock
could not be
released within 3
seconds of the
engine switch being
pressed.
Press the
engine
switch while
depressing
the brake
pedal and
moving the
steering
wheel left
and right.
(Flashes)
(Flashes)
GS350_250_OM_OM30E16E_(EE).book Page 575 Tuesday, July 8, 201 4 7:11 PM

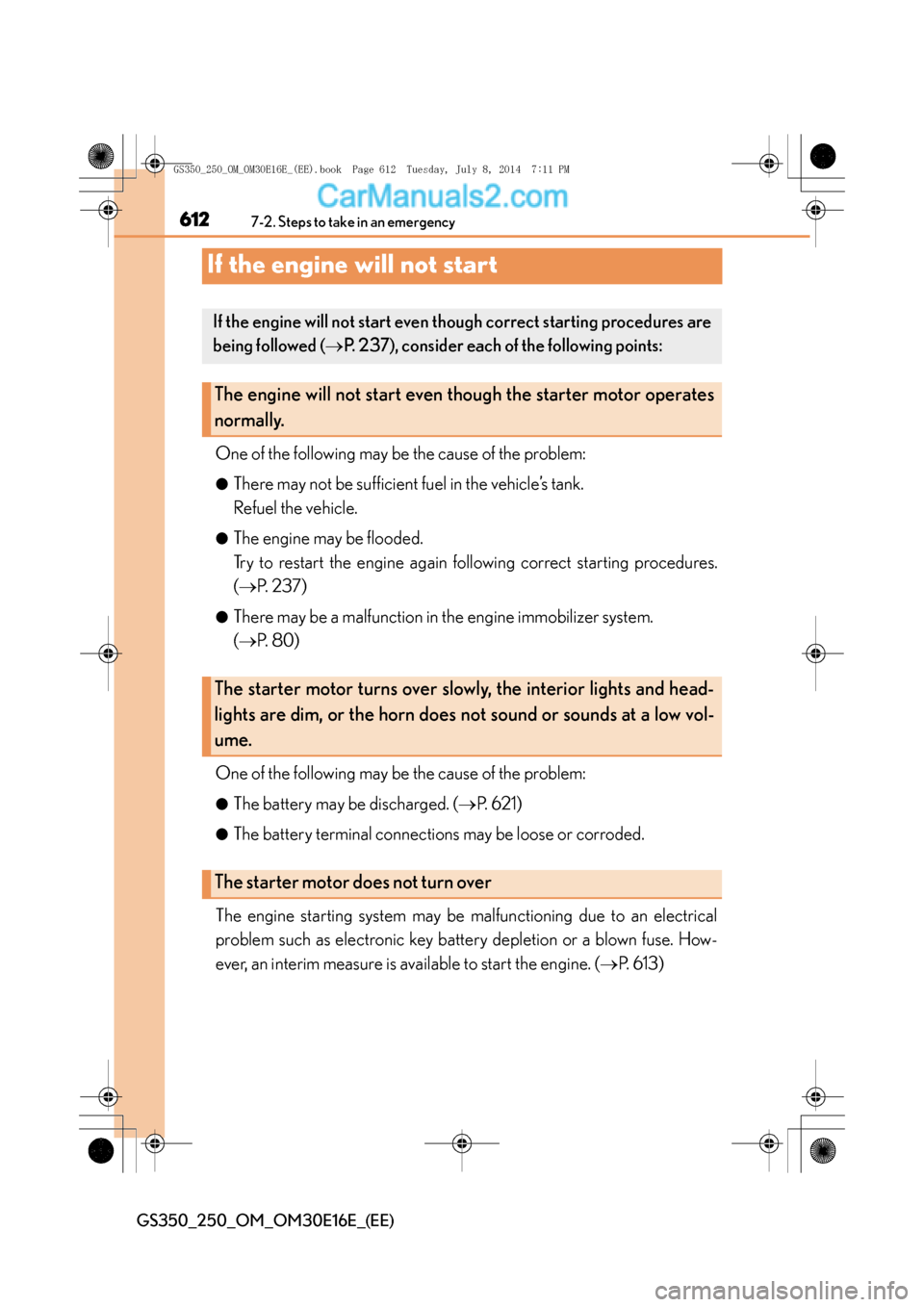

6127-2. Steps to take in an emergency
GS350_250_OM_OM30E16E_(EE)
If the engine will not start
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(→ P. 2 3 7 )
●There may be a malfunction in the engine immobilizer system.
(→ P. 8 0 )
One of the following may be the cause of the problem:
●The battery may be discharged. ( →P. 6 2 1 )
●The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an electrical
problem such as electronic key battery depletion or a blown fuse. How-
ever, an interim measure is available to start the engine. ( →P. 613)
If the engine will not start even th ough correct starting procedures are
being followed ( →P. 237), consider each of the following points:
The engine will not start even though the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low vol-
ume.
The starter motor does not turn over
GS350_250_OM_OM30E16E_(EE).book Page 612 Tuesday, July 8, 201 4 7:11 PM

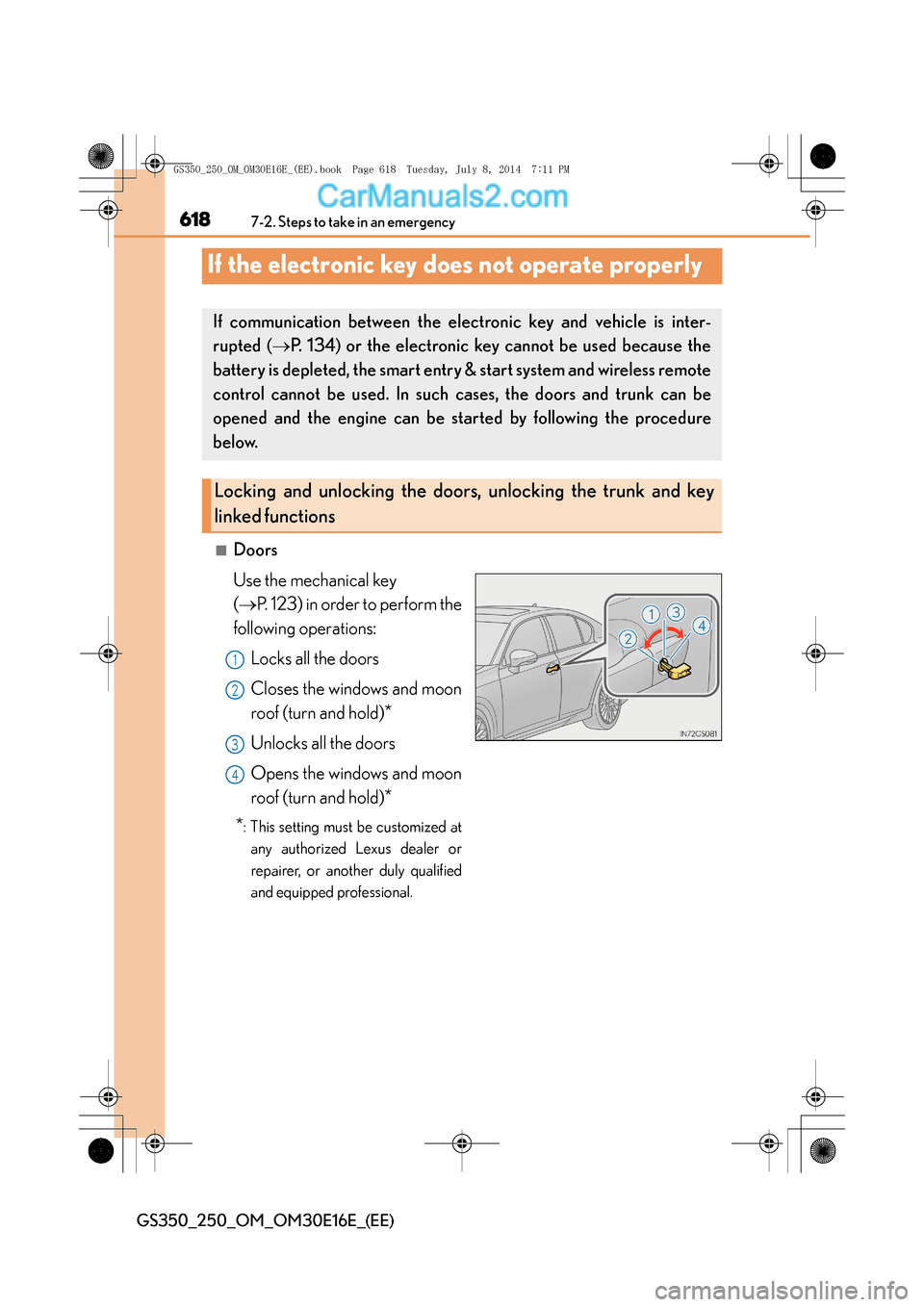

6187-2. Steps to take in an emergency
GS350_250_OM_OM30E16E_(EE)
If the electronic key does not operate properly
■Doors
Use the mechanical key
(→ P. 123) in order to perform the
following operations:
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks all the doors
Opens the windows and moon
roof (turn and hold)
*
*
: This setting must be customized at any authorized Lexus dealer or
repairer, or another duly qualified
and equipped professional.
If communication between the el ectronic key and vehicle is inter-
rupted ( →P. 134) or the electronic key cannot be used because the
battery is depleted, the smart entry & start system and wireless remote
control cannot be used. In such cases, the doors and trunk can be
opened and the engine can be st arted by following the procedure
below.
Locking and unlocking the doors, unlocking the trunk and key
linked functions
1
2
3
4
GS350_250_OM_OM30E16E_(EE).book Page 618 Tuesday, July 8, 201 4 7:11 PM

6197-2. Steps to take in an emergency
7
When trouble arises
GS350_250_OM_OM30E16E_(EE)
■Tr u n k
Turn the mechanical key clock-
wise to open.
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of
the electronic key to the engine
switch.
The engine switch will turn to IGNI-
TION ON mode.
When the smart entry & start system
is deactivated in customization setting,
the engine switch will turn to ACCES-
SORY mode.
Firmly depress the brake pedal and check that is shown on the
multi-information display.
Press the engine switch.
In the event that the engine still cannot be started, contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
Starting the engine
1
2
3
4
GS350_250_OM_OM30E16E_(EE).book Page 619 Tuesday, July 8, 201 4 7:11 PM

6207-2. Steps to take in an emergency
GS350_250_OM_OM30E16E_(EE)
■Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when stop-
ping the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the elec-
tronic key battery be replaced immediately when the battery is depleted. (→P. 4 8 9 )
■Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set, the
alarm may be triggered.
■Changing engine switch modes
Release the brake pedal and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is
pressed.( →P. 2 3 8 )
■When the electronic key does not work properly
●Make sure that the smart entry & start system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features: →P. 6 5 0 )
●Check if battery-saving mode is set. If it is set, cancel the function. ( →P. 1 3 3 )
CAUTION
■When using the mechanical key and operating the power windows and moon
roof
Operate the power window or moon roof after checking to make sure that there is
no possibility of any passenger having any of their body parts caught in the window
or moon roof.
Also, do not allow children to operate the mechanical key. It is possible for children
and other passengers to get caught in power window and moon roof.
3
GS350_250_OM_OM30E16E_(EE).book Page 620 Tuesday, July 8, 201 4 7:11 PM

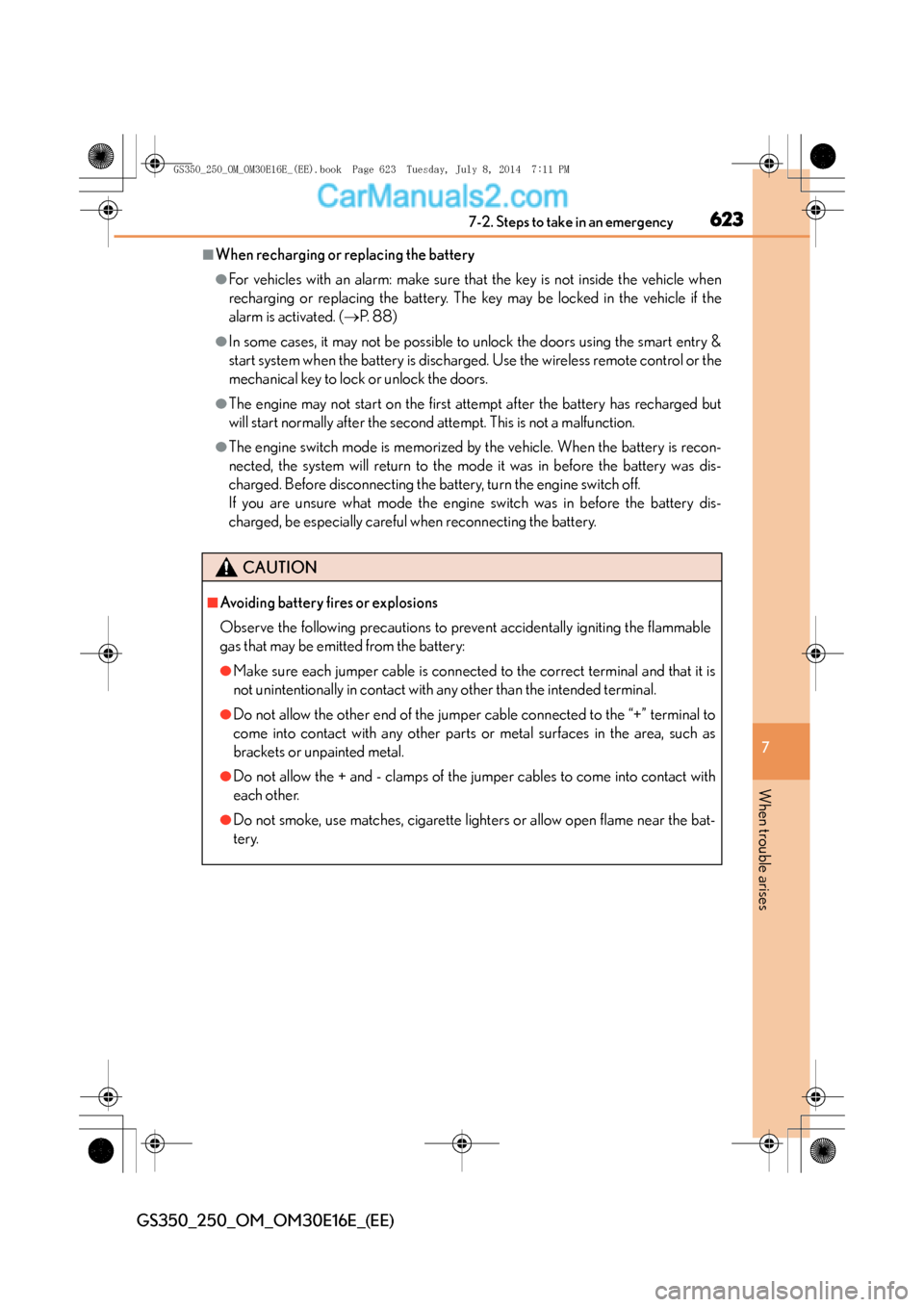

6237-2. Steps to take in an emergency
7
When trouble arises
GS350_250_OM_OM30E16E_(EE)
■When recharging or replacing the battery
●For vehicles with an alarm: make sure that the key is not inside the vehicle when
recharging or replacing the battery. The key may be locked in the vehicle if the
alarm is activated. (→P. 88)
●In some cases, it may not be possible to unlock the doors using the smart entry &
start system when the battery is discharged. Use the wireless remote control or the
mechanical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but
will start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-
nected, the system will return to the mode it was in before the battery was dis-
charged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery:
●Make sure each jumper cable is connected to the correct terminal and that it is
not unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” terminal to
come into contact with any other parts or metal surfaces in the area, such as
brackets or unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into contact with
each other.
●Do not smoke, use matches, cigarette lighters or allow open flame near the bat-
tery.
GS350_250_OM_OM30E16E_(EE).book Page 623 Tuesday, July 8, 201 4 7:11 PM

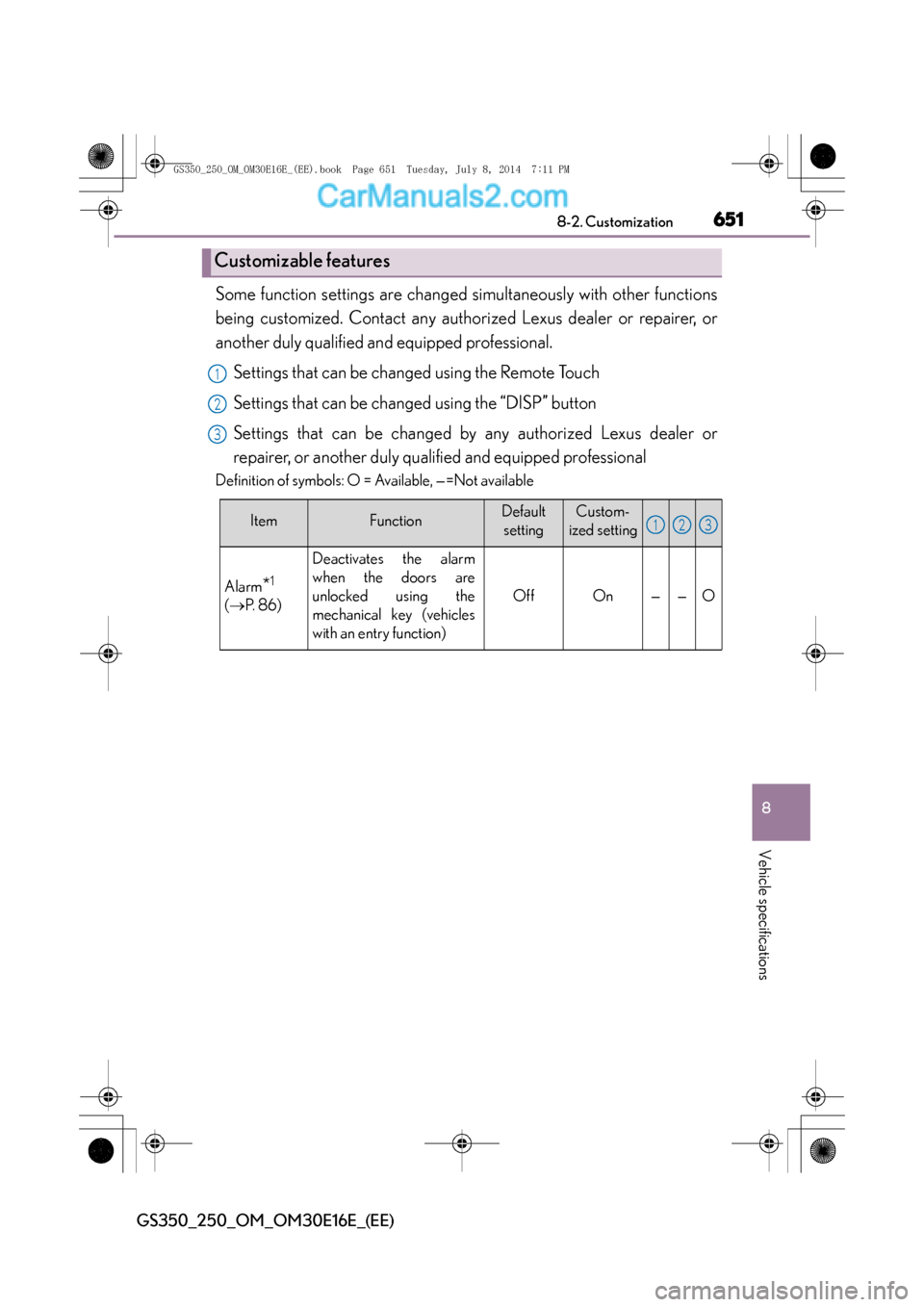

651
8
8-2. Customization
Vehicle specifications
GS350_250_OM_OM30E16E_(EE)
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Settings that can be changed using the Remote Touch
Settings that can be changed using the “DISP” button
Settings that can be changed by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
Definition of symbols: O = Available, —=Not available
Customizable features
1
2
3
ItemFunctionDefaultsettingCustom-
ized setting
Alarm*1
( → P. 8 6 )
Deactivates the alarm
when the doors are
unlocked using the
mechanical key (vehicles
with an entry function)
OffOn——O
123
GS350_250_OM_OM30E16E_(EE).book Page 651 Tuesday, July 8, 201 4 7:11 PM

653
8
8-2. Customization
Vehicle specifications
GS350_250_OM_OM30E16E_(EE)
Door lock
(
→ P. 171,
618)
Unlocking on second key
turn (Allows all doors to be
unlocked by turning the
mechanical key twice in
the driver’s door)Off
(All doors
unlocked in one step)
On
(Driver’s door
unlocked in
one step, all doors
unlocked in two steps)
O—O
Shift position linked door
unlocking functionOffOnO—O
Driver’s door linked door
unlocking functionOnOffO—O
Locking/unlocking of the
trunk when all doors are
locked/unlocked
OnOff——O
Entry func-
tion
*1
( → P. 1 2 7 )
and
wireless
remote
control
( → P. 1 5 5 )
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before auto-
matic door lock function is
activated if a door is not
opened after being
unlocked
30
seconds
60
seconds
——O
120
seconds
Open door reminder
buzzer (When locking the
vehicle)
OnOff——O
Entry func-
tion
*1
( → P. 1 2 7 )
Smart entry & start systemOnOffO—O
Unlocking operationAll the
doorsDriver’s doorO—O
ItemFunctionDefaultsettingCustom-
ized setting123
GS350_250_OM_OM30E16E_(EE).book Page 653 Tuesday, July 8, 201 4 7:11 PM
