2244-1. Before driving
GS350_250_OM_OM30E16E_(EE)
NOTICE
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause
the following serious damage to the vehicle:
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to
have any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional check the following:
●Brake function
●Changes in quantity and quality of oil and fluid used for the engine, transmission,
transfer (AWD models), differential, etc.
●Lubricant condition for the propeller shaft, bearings and suspension joints (where
possible), and the function of all joints, bearings, etc.
GS350_250_OM_OM30E16E_(EE).book Page 224 Tuesday, July 8, 201 4 7:11 PM

4456-2. Maintenance
6
Maintenance and care
GS350_250_OM_OM30E16E_(EE)
■Where to go for maintenance service?
In order to maintain your vehicle in the best possible condition, Lexus recommends
that maintenance service operations as well as other inspections and repairs be car-
ried out by authorized Lexus dealers or repairers or other duly qualified and
equipped professionals. For repairs and services covered by your warranty, please
visit an authorized Lexus dealer or repairer, who will use genuine Lexus parts in
repairing any difficulties you may encounter. There can also be advantages in utiliz-
ing authorized Lexus dealers or repairers for non-warranty repairs and services, as
members of the Lexus network will be able to expertly assist you with any difficulties
you may encounter.
Your Lexus dealer or repairer, or another duly qualified and equipped professional
will perform all of the scheduled maintenance on your vehicle reliably and economi-
cally due to their experience with Lexus vehicles.
■Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs that indi-
cate service is needed. Some important clues are:
●Engine missing, stumbling or pinging
●Appreciable loss of power
●Strange engine noises
●A fluid leak under the vehicle (However, water dripping from the air conditioning
system after use is normal.)
●Change in exhaust sound (This may indicate a dangerous carbon monoxide leak.
Drive with the windows open and have the exhaust system checked immediately.)
●Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
●Vehicle pulls to one side when driven straight on a level road
●Strange noises related to suspension movement
●Loss of brake effectiveness, spongy feeling brake pedal, pedal almost touches the
floor, vehicle pulls to one side when braking
●Engine coolant temperature continually higher than normal (→P. 99)
If you notice any of these clues, take your vehicle to any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional as soon as possible.
Your vehicle may need adjustment or repair.
GS350_250_OM_OM30E16E_(EE).book Page 445 Tuesday, July 8, 201 4 7:11 PM

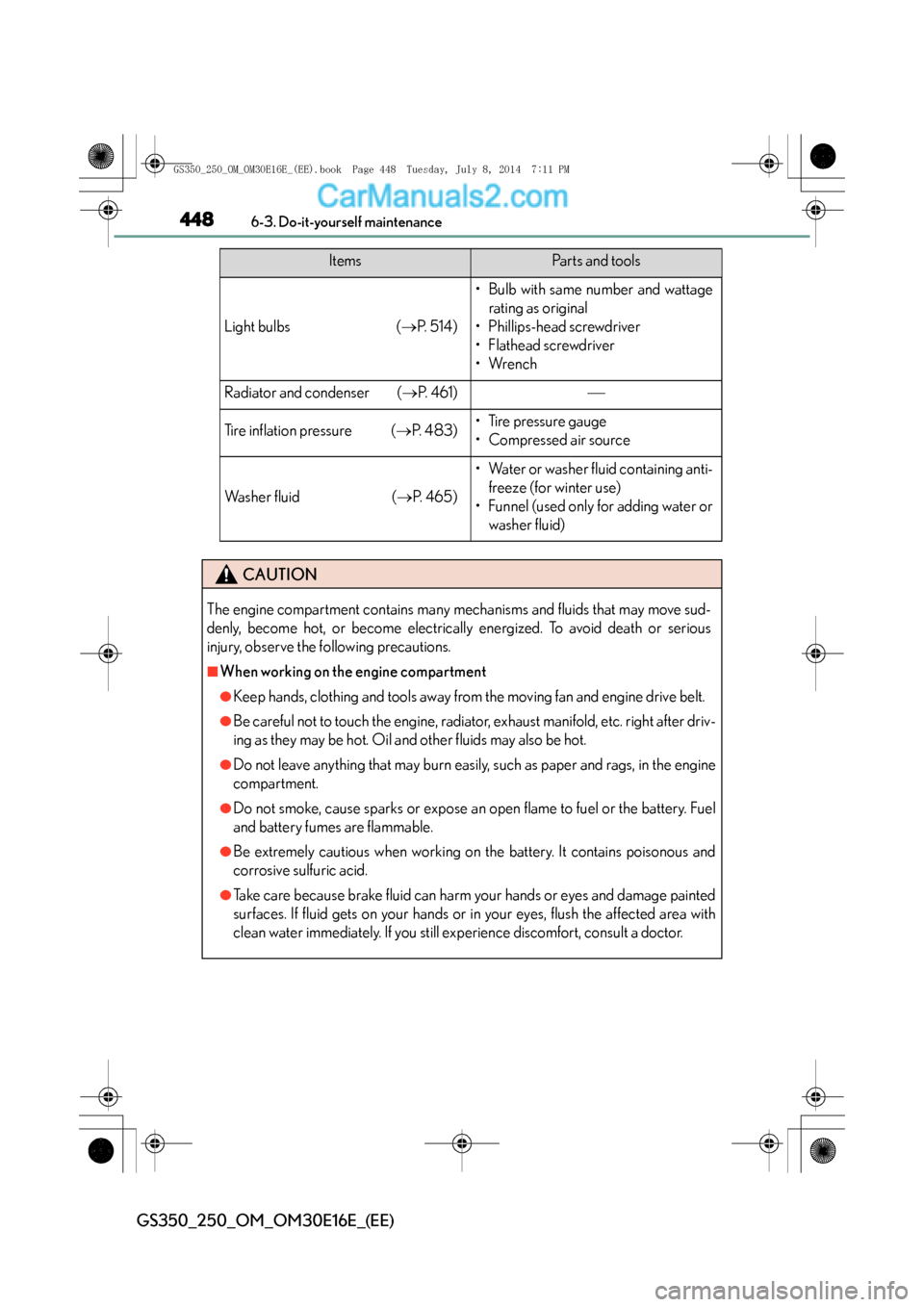

4486-3. Do-it-yourself maintenance
GS350_250_OM_OM30E16E_(EE)
Light bulbs (→P. 5 1 4 )
• Bulb with same number and wattage
rating as original
• Phillips-head screwdriver
•Flathead screwdriver
•Wrench
Radiator and condenser ( →P. 4 6 1 )
Tire inflation pressure ( →P. 4 8 3 )•Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( →P. 4 6 5 )
• Water or washer fluid containing anti-
freeze (for winter use)
• Funnel (used only for adding water or washer fluid)
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious
injury, observe the following precautions.
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
●Take care because brake fluid can harm your hands or eyes and damage painted
surfaces. If fluid gets on your hands or in your eyes, flush the affected area with
clean water immediately. If you still experience discomfort, consult a doctor.
ItemsParts and tools
GS350_250_OM_OM30E16E_(EE).book Page 448 Tuesday, July 8, 201 4 7:11 PM

449 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_250_OM_OM30E16E_(EE)
CAUTION
■When working near the electric cooling fans or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fans may
automatically start to run if the air conditioning is on and/or the coolant tempera-
ture is high. (→P. 4 6 1 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air.
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear or
when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
GS350_250_OM_OM30E16E_(EE).book Page 449 Tuesday, July 8, 201 4 7:11 PM

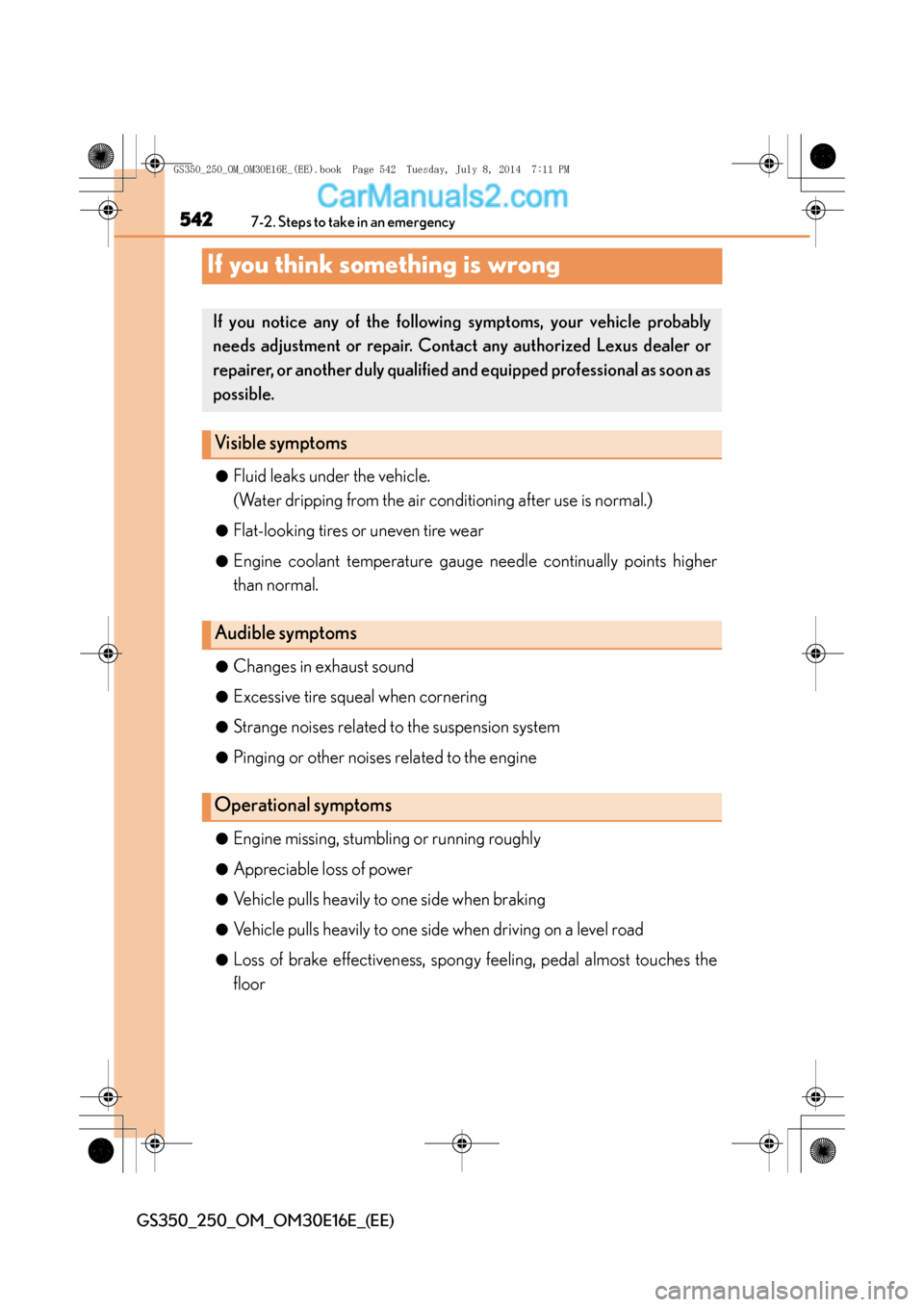

5427-2. Steps to take in an emergency
GS350_250_OM_OM30E16E_(EE)
If you think something is wrong
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher
than normal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the
floor
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional as soon as
possible.
Visible symptoms
Audible symptoms
Operational symptoms
GS350_250_OM_OM30E16E_(EE).book Page 542 Tuesday, July 8, 201 4 7:11 PM

5447-2. Steps to take in an emergency
GS350_250_OM_OM30E16E_(EE)

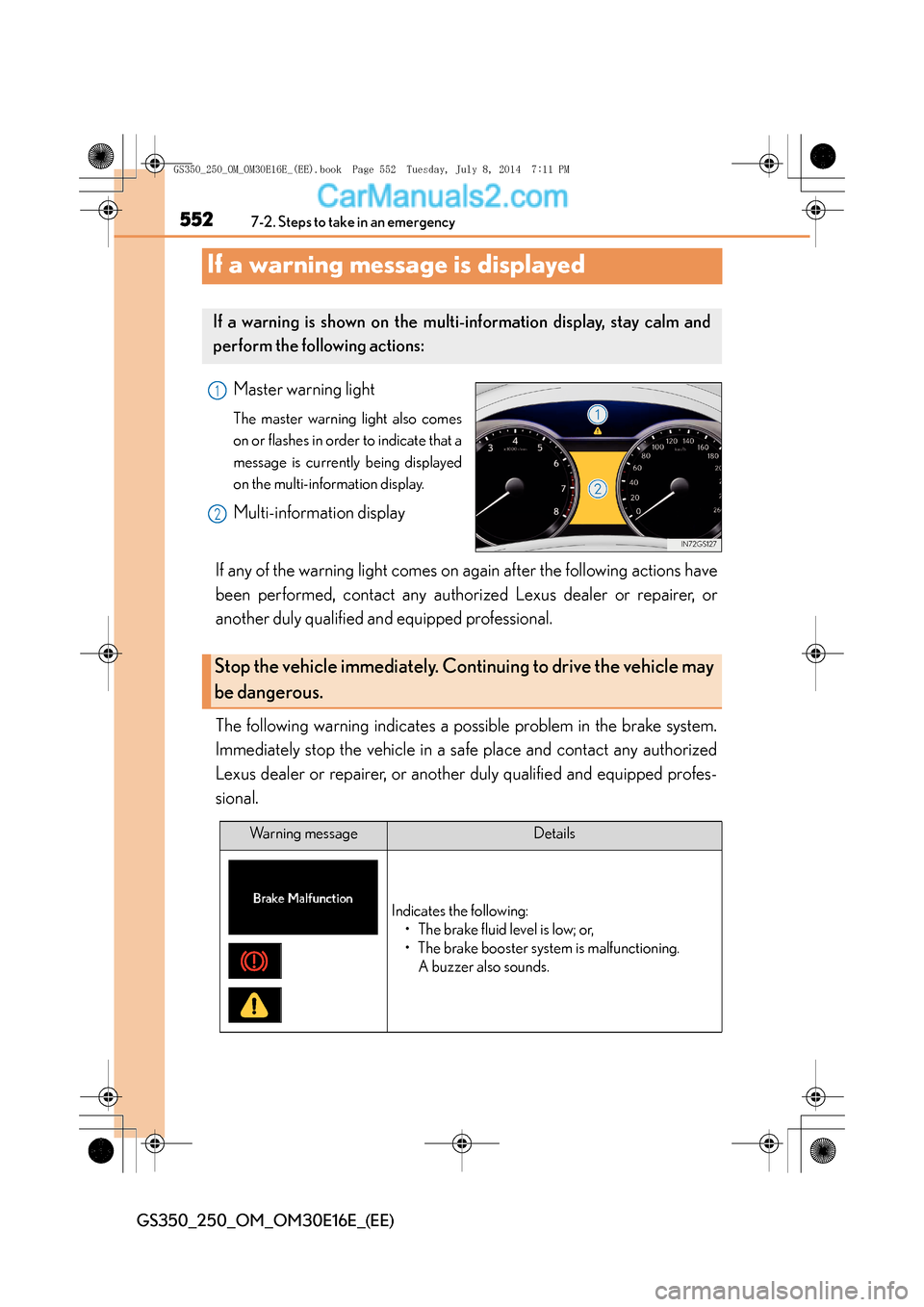

If a warning light turns on or a warning buzzer
sounds
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
Calmly perform the following actions if any of the warning lights comes
on or flashes. If a light comes on or flashes, but then goes off, this does
not necessarily indicate a malfunction in the system. However, if this
continues to occur, have the vehicl e inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Stop the vehicle immediately. Continuing to drive the vehicle may
be dangerous.
Warning lightWarning light/Details
Brake system warning light (warning buzzer) • Low brake fluid
• Malfunction in the brake booster system
GS350_250_OM_OM30E16E_(EE).book Page 544 Tuesday, July 8, 201 4 7:11 PM

5527-2. Steps to take in an emergency
GS350_250_OM_OM30E16E_(EE)
If a warning message is displayed
Master warning light
The master warning light also comes
on or flashes in order to indicate that a
message is currently being displayed
on the multi-information display.
Multi-information display
If any of the warning light comes on again after the following actions have
been performed, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
If a warning is shown on the multi-information display, stay calm and
perform the following actions:
1
2
Stop the vehicle immediately. Continuing to drive the vehicle may
be dangerous.
Wa r n i n g m e s s a g eDetails
Indicates the following: • The brake fluid level is low; or,
• The brake booster system is malfunctioning.A buzzer also sounds.
GS350_250_OM_OM30E16E_(EE).book Page 552 Tuesday, July 8, 201 4 7:11 PM

6448-1. Specifications
GS350_250_OM_OM30E16E_(EE)
Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional for fur-
ther details.
*: Minimum pedal clearance when depressed with a force of 500 N (51.0 kgf,112.4 lbf) while the engine is running.
Front differential (AWD models)
Oil capacity 0.70 L (0.74 qt., 0.62 Imp.qt.)
Oil type and viscosity
Hypoid gear oil API GL-5
Above -18 °C (0 °F): SAE90
Below -18 °C (0 °F): SAE80W or SAE80W-90
Rear differential
Oil capacityGS2501.15 L (1.22 qt., 1.01 Imp.qt.)
GS3501.35 L (1.43 qt., 1.19 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Brakes
Pe d a l
clearance
*
2WD115 mm (4.5 in.) Min.
AW D126 mm (5.0 in.) Min.
Pedal free play1.0 — 2.0 mm (0.04 — 0.08 in.)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3,
SAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)
GS350_250_OM_OM30E16E_(EE).book Page 644 Tuesday, July 8, 201 4 7:11 PM
