child lock Lexus GS250 2014 Owner's Manual

TABLE OF CONTENTS2
GS350_250_OM_OM30E16E_(EE)
For your information ...................................8
Reading this manual .................................. 12
How to search.............................................. 13
Pictorial index .............................................. 14
1-1. For safe useBefore driving .................................34
For safety drive ............................... 36
Seat belts ..........................................38
SRS airbags ..................................... 44
Airbag manual on-off system .............................................56
Safety information for children................................... 58
Child restraint systems................ 59
Installing child restraints ............. 70
Exhaust gas precautions ............ 79
1-2. Theft deterrent system Engine immobilizer system ...... 80
Double locking system............... 85
Alarm .................................................86 2. Instrument cluster
Warning lights and indicators .............................. 94
Gauges and meters ..................... 99
Multi-information display......... 102
Head-up display ........................... 110
Fuel consumption information.................................... 117
3-1. Key information Keys................................................... 122
3-2. Opening, closing and locking the doors and trunk
Smart entry & start system .......127
Wireless remote control .......... 155
Doors ................................................. 171
Trunk ..................................................175
3-3. Adjusting the seats Front seats ...................................... 182
Driving position memory ......... 186
Head restraints............................. 192
1For safety and security
2Instrument cluster
3Operation of each
component
GS350_250_OM_OM30E16E_(EE).book Page 2 Tuesday, July 8, 2014 7:11 PM

33
1For safety and security
GS350_250_OM_OM30E16E_(EE)
1-1. For safe useBefore driving................................. 34
For safety drive............................... 36
Seat belts .......................................... 38
SRS airbags ..................................... 44
Airbag manual on-off system ............................................. 56
Safety information for children ...................................58
Child restraint systems ............... 59
Installing child restraints ............. 70
Exhaust gas precautions ............ 79
1-2. Theft deterrent system Engine immobilizer system .......80
Double locking system ...............85
Alarm ................................................. 86
GS350_250_OM_OM30E16E_(EE).book Page 33 Tuesday, July 8, 2014 7:11 PM

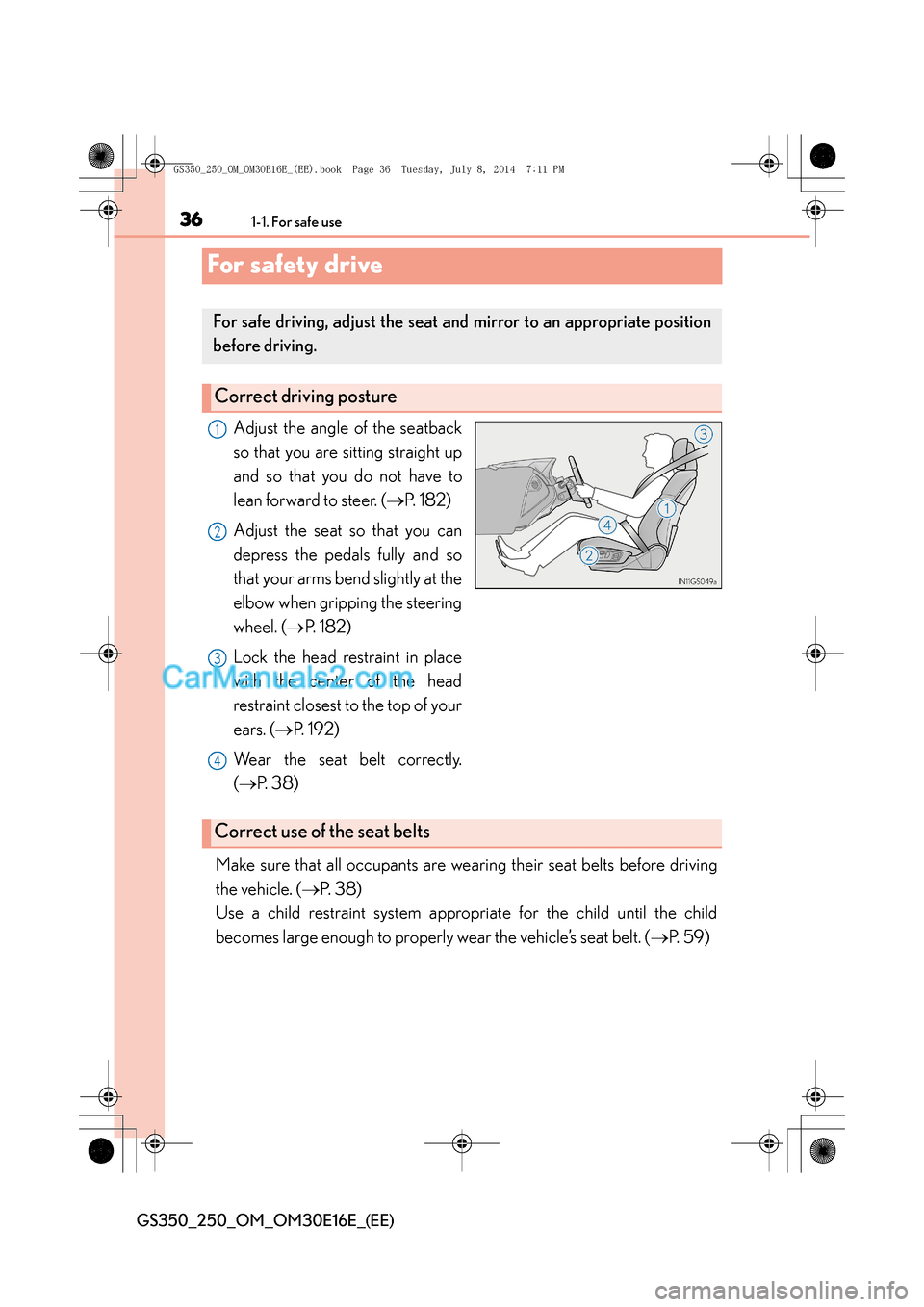

361-1. For safe use
GS350_250_OM_OM30E16E_(EE)
For safety drive
Adjust the angle of the seatback
so that you are sitting straight up
and so that you do not have to
lean forward to steer. (→P. 182)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at the
elbow when gripping the steering
wheel. ( →P. 182)
Lock the head restraint in place
with the center of the head
restraint closest to the top of your
ears. ( →P. 1 9 2 )
Wear the seat belt correctly.
( → P. 38)
Make sure that all occupants are wearing their seat belts before driving
the vehicle. ( →P. 38)
Use a child restraint system approp riate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt. ( →P. 5 9 )
For safe driving, adjust the seat and mirror to an appropriate position
before driving.
Correct driving posture
1
2
3
4
Correct use of the seat belts
GS350_250_OM_OM30E16E_(EE).book Page 36 Tuesday, July 8, 2014 7:11 PM

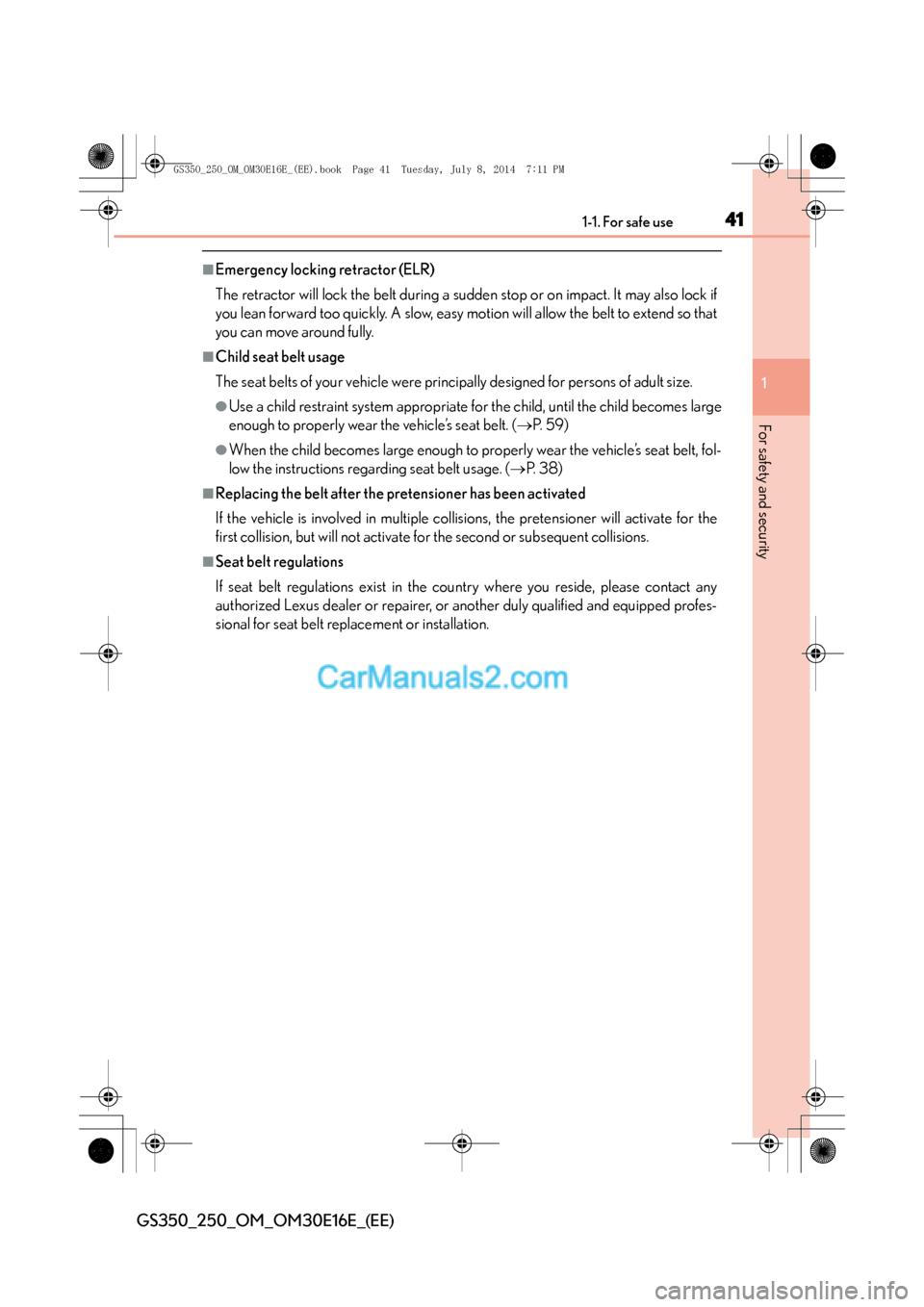

411-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend so that
you can move around fully.
■Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
●Use a child restraint system appropriate for the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. (→P. 5 9 )
●When the child becomes large enough to properly wear the vehicle’s seat belt, fol-
low the instructions regarding seat belt usage. ( →P. 3 8 )
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the second or subsequent collisions.
■Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional for seat belt replacement or installation.
GS350_250_OM_OM30E16E_(EE).book Page 41 Tuesday, July 8, 2014 7:11 PM

431-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
CAUTION
■People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (→P. 3 8 )
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
■Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that case,
the seat belt cannot be used again and must be replaced at any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoul-
der. The belt should be kept away from your neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in the event of a sudden stop, sudden swerve or accident.
(→ P. 3 9 )
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed
in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from death or serious injury.
●Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
●Replace the seat assembly, including the belts, if your vehicle has been involved in
a serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional. Inappropriate han-
dling may lead to incorrect operation.
GS350_250_OM_OM30E16E_(EE).book Page 43 Tuesday, July 8, 2014 7:11 PM

581-1. For safe use
GS350_250_OM_OM30E16E_(EE)
Safety information for children
●It is recommended that children sit in the rear seats to avoid accidental
contact with the shift lever, wiper switch etc.
●Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the power
window accidentally. ( →P. 172, 204)
●Do not let small children operate equipment which may catch or pinch
body parts, such as the power window, hood, trunk, seats etc.
Observe the following precautions wh en children are in the vehicle.
Use a child restraint system appropri ate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt.
CAUTION
Never leave children unattended in the vehicle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the windows, the
moon roof or other features of the vehicle. In addition, heat build-up or extremely
cold temperatures inside the vehicle can be fatal to children.
GS350_250_OM_OM30E16E_(EE).book Page 58 Tuesday, July 8, 2014 7:11 PM

651-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of univer-sal category approved for use in this mass group.
IL: Suitable for child restraint systems shown in the ISOFIX child restraint system list.
When using a “LEXUS MINI” or “LEXUS MIDI”, adjust the support leg
and the ISOFIX connectors as follows: Lock the ISOFIX connectors
where numbers 3, 4 and 5 can
be seen.
Lock the support leg where 5th
hole can be seen.
X: ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class.
*: If the head restraint interferes with your child restraint system, and the head
restraint can be removed, remove the head restraint.
The child restraint system mentioned in the table may not be available out-
side of the EU area.
Other child restraint systems different from the systems mentioned in the
table can be used, but the suitability of the systems must be carefully
checked with the child restraint system manufacturer and retailer.
1
2
GS350_250_OM_OM30E16E_(EE).book Page 65 Tuesday, July 8, 2014 7:11 PM

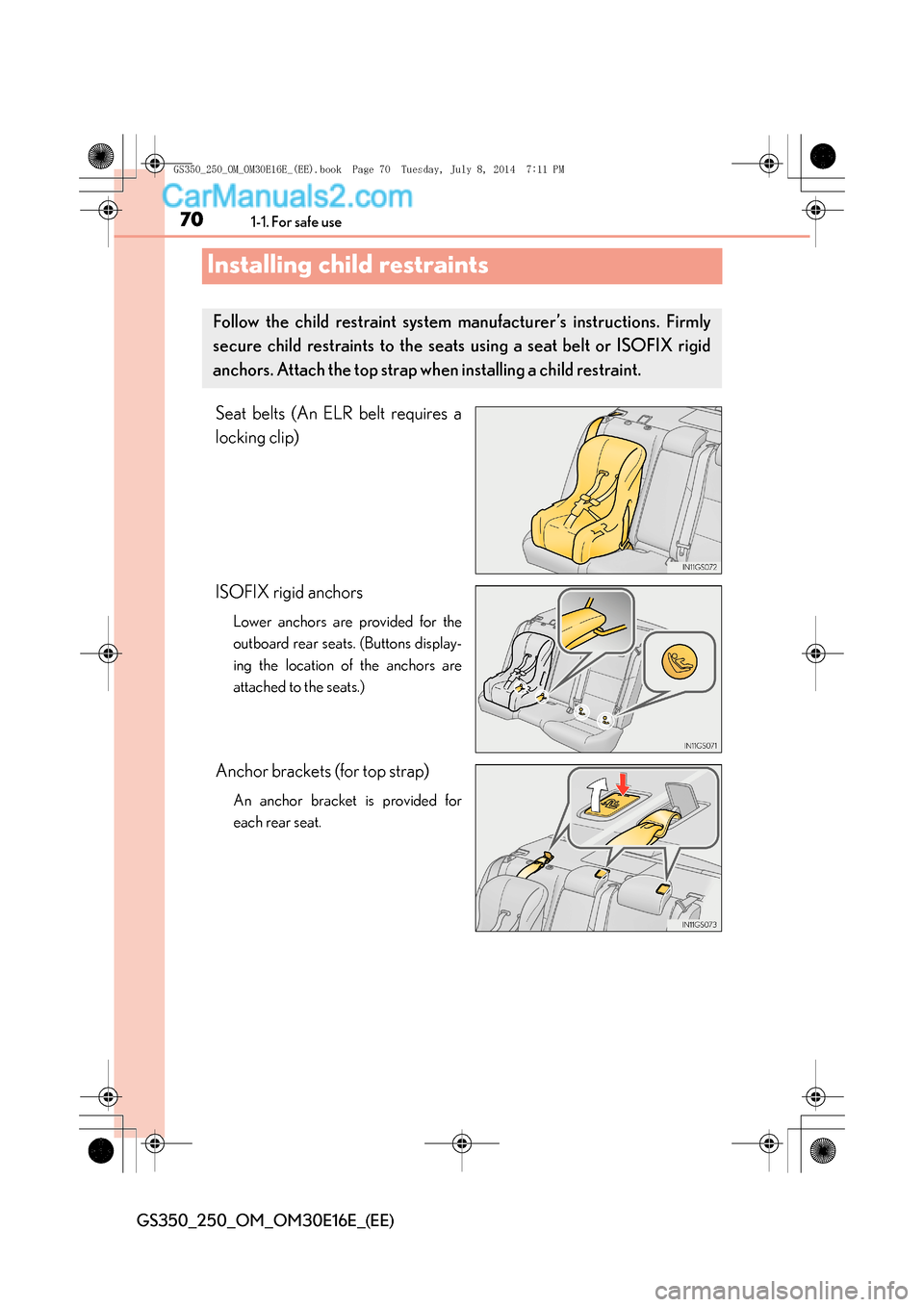

701-1. For safe use
GS350_250_OM_OM30E16E_(EE)
Installing child restraints
Seat belts (An ELR belt requires a
locking clip)
ISOFIX rigid anchors
Lower anchors are provided for the
outboard rear seats. (Buttons display-
ing the location of the anchors are
attached to the seats.)
Anchor brackets (for top strap)
An anchor bracket is provided for
each rear seat.
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the seats using a seat belt or ISOFIX rigid
anchors. Attach the top strap wh en installing a child restraint.
GS350_250_OM_OM30E16E_(EE).book Page 70 Tuesday, July 8, 2014 7:11 PM

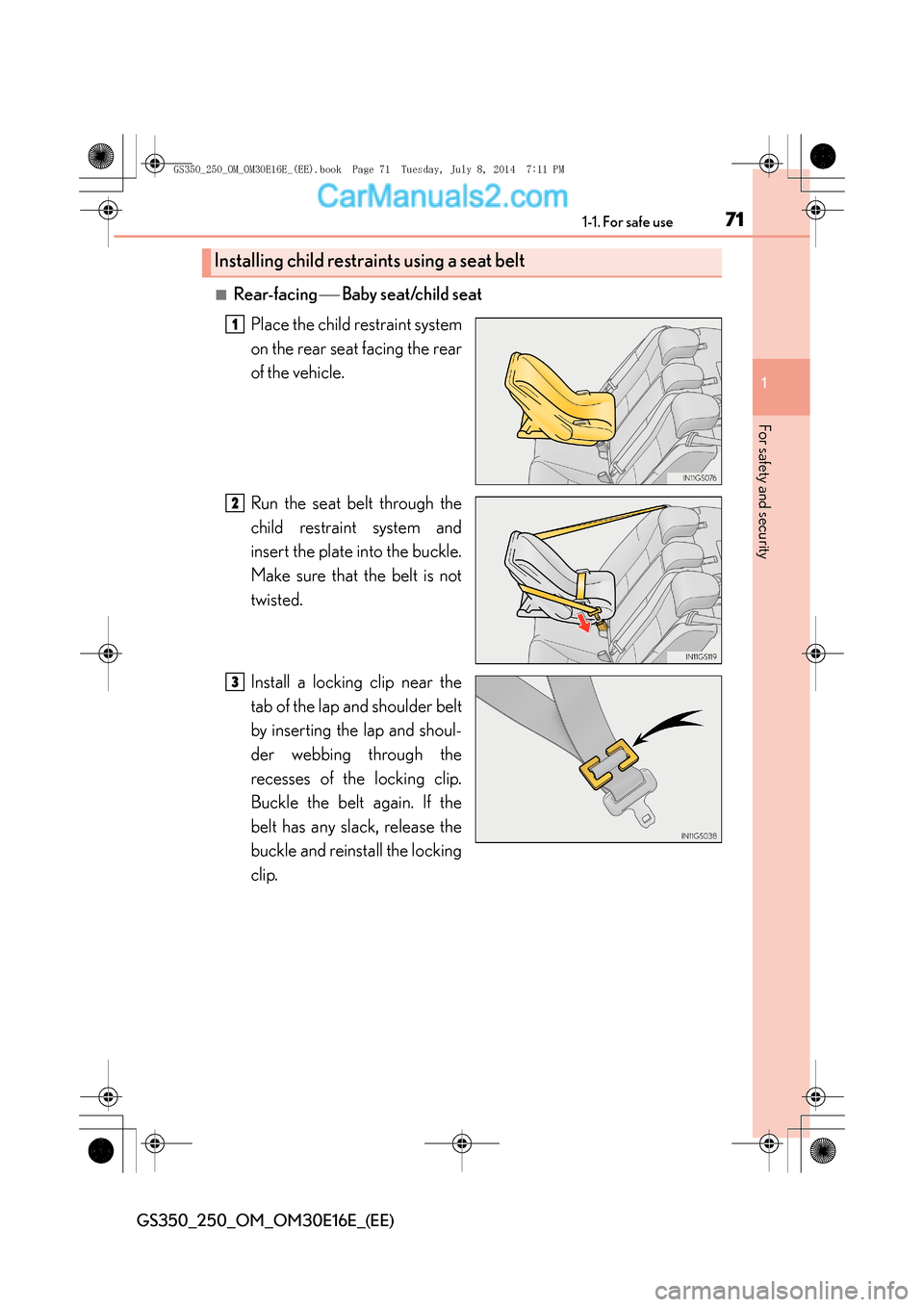

711-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
■Rear-facing  Baby seat/child seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Install a locking clip near the
tab of the lap and shoulder belt
by inserting the lap and shoul-
der webbing through the
recesses of the locking clip.
Buckle the belt again. If the
belt has any slack, release the
buckle and reinstall the locking
clip.
Installing child restraints using a seat belt
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 71 Tuesday, July 8, 2014 7:11 PM

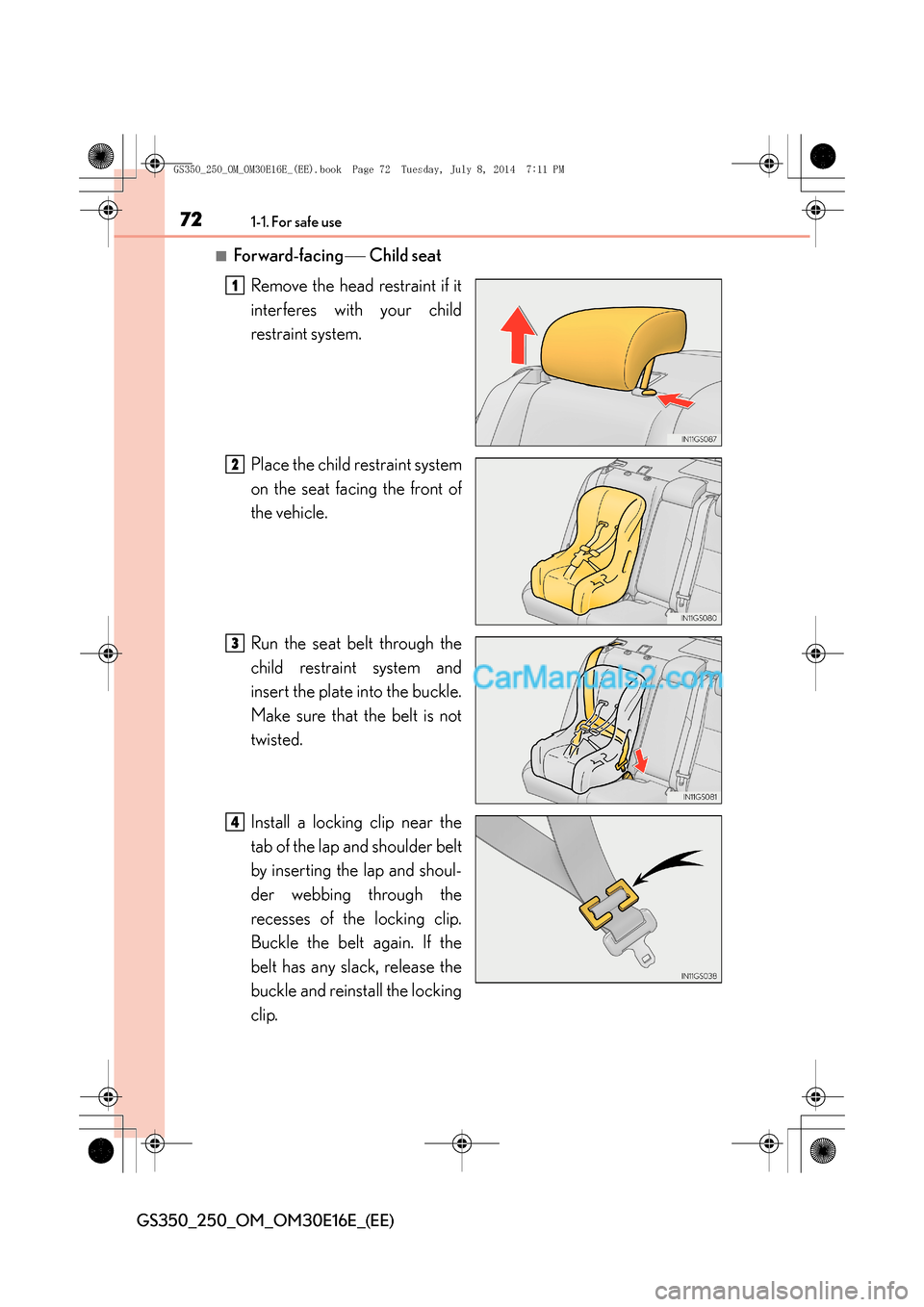

721-1. For safe use
GS350_250_OM_OM30E16E_(EE)
■Forward-facing  Child seat
Remove the head restraint if it
interferes with your child
restraint system.
Place the child restraint system
on the seat facing the front of
the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Install a locking clip near the
tab of the lap and shoulder belt
by inserting the lap and shoul-
der webbing through the
recesses of the locking clip.
Buckle the belt again. If the
belt has any slack, release the
buckle and reinstall the locking
clip.
1
2
3
4
GS350_250_OM_OM30E16E_(EE).book Page 72 Tuesday, July 8, 2014 7:11 PM
