flat tire Lexus GS250 2014 Owner's Manual

5
1
8 7
6
5
4
3
2
GS350_250_OM_OM30E16E_(EE)
6-1. Maintenance and careCleaning and protecting the vehicle exterior .................436
Cleaning and protecting the vehicle interior ..................440
6-2. Maintenance Maintenance requirements .............................444
6-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................ 447
Hood ...............................................450
Positioning a floor jack .............. 451
Engine compartment................ 454
Tires ..................................................466
Tire inflation pressure............... 483
Wheels........................................... 485
Air conditioning filter................ 487
Electronic key battery ..............489
Checking and replacing fuses .............................................. 492
Light bulbs ...................................... 514 7-1. Essential information
Emergency flashers...................534
If your vehicle has to be stopped
in an emergency ......................535
6Maintenance and care7When trouble arises
GS350_250_OM_OM30E16E_(EE).book Page 5 Tuesday, July 8, 2014 7:11 PM

TABLE OF CONTENTS6
GS350_250_OM_OM30E16E_(EE)
7-2. Steps to take in an emergencyIf your vehicle needs to be towed ................................536
If you think something is wrong ....................................... 542
Fuel pump shut off system ......543
If a warning light turns on or a warning buzzer sounds .....544
If a warning message is displayed................................. 552
If you have a flat tire (vehicles with a spare tire) ...................... 577
If you have a flat tire (vehicles without a spare tire)................ 592
If the engine will not start ..........612
If the shift lever cannot be shifted from P ..............................614
If the parking brake cannot be released .................. 615
If the electronic key does not operate properly ...................... 618
If the vehicle battery is discharged .............................. 621
If your vehicle overheats ......... 625
If the vehicle becomes stuck ......................... 628 8-1. Specifications
Maintenance data (fuel, oil level, etc.)................... 632
Fuel information ..........................648
8-2. Customization Customizable features............ 650
8-3. Initialization Item to initialize .............................661
What to do if... (Troubleshooting) ................................ 664
Alphabetical index ................................. 6728Vehicle specifications
Index
For information regarding the equipment listed below, refer to the
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”
• Audio system
• Lexus parking assist-sensor• Navigation system
• Lexus parking assist monitor
GS350_250_OM_OM30E16E_(EE).book Page 6 Tuesday, July 8, 2014 7:11 PM

15Pictorial index
GS350_250_OM_OM30E16E_(EE)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 354
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . . . . . . . . . . . . . . P. 397
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 438
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 280
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 280
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 634
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 466
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 645
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 354
Checking/rotation/tire pressure warning system
*1. . . . . . . . . . . . . . . . . . P. 466
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 577, 592
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 455
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 6 3 5
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 625
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 559
Headlights/front position lights/daytime ru nning lights . . . . . . . . . . . . P. 259
Front fog lights
*1/rear fog light*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 270
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 253
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Stop lights
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Back-up light
*2
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 514, Watts: P. 647)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
8
9
10
11
12
13
14
GS350_250_OM_OM30E16E_(EE).book Page 15 Tuesday, July 8, 2014 7:11 PM

1022. Instrument cluster
GS350_250_OM_OM30E16E_(EE)
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
●Eco Driving Indicator (→P. 103)
●Outside temperature display
(→ P. 103)
●Trip information ( →P. 103)
Displays driving range, fuel consump-
tion and other cruising related infor-
mation
●
Tire inflation pressure (if equipped) ( →P. 105)
●Drive monitor ( →P. 105)
●Lexus parking assist-sensor display*1, 2 (if equipped)
●Dynamic radar cruise control display*1 (if equipped) ( →P. 2 8 9 )
●LKA (Lane-Keeping Assist) display*1 (if equipped) ( →P. 305)
●Warning messages ( →P. 5 5 2 )
Automatically displayed when a malfunction occurs in one of the vehicle’s sys-
tems. Display can be switched by pressing the “DISP” button. ( →P. 1 0 3 )
*1: Automatically displayed when the system is used. Display can be switched by
pressing the “DISP” button. ( →P. 1 0 3 )
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”
Display contents
GS350_250_OM_OM30E16E_(EE).book Page 102 Tuesday, July 8, 201 4 7:11 PM

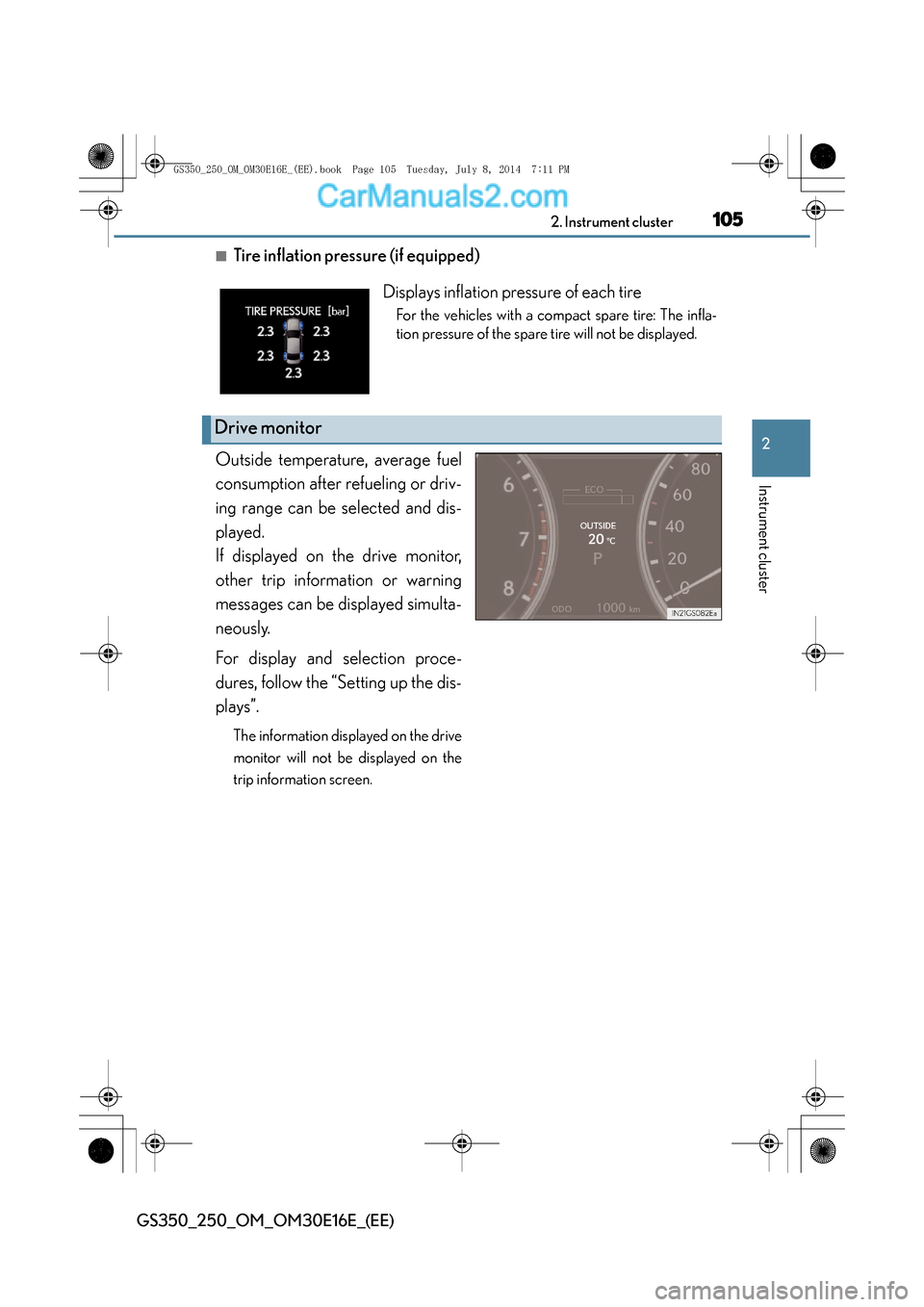

1052. Instrument cluster
2
Instrument cluster
GS350_250_OM_OM30E16E_(EE)
■Tire inflation pressure (if equipped)
Outside temperature, average fuel
consumption after refueling or driv-
ing range can be selected and dis-
played.
If displayed on the drive monitor,
other trip information or warning
messages can be displayed simulta-
neously.
For display and selection proce-
dures, follow the “Setting up the dis-
plays”.
The information displayed on the drive
monitor will not be displayed on the
trip information screen.
Displays inflation pressure of each tire
For the vehicles with a compact spare tire: The infla-
tion pressure of the spare tire will not be displayed.
Drive monitor
GS350_250_OM_OM30E16E_(EE).book Page 105 Tuesday, July 8, 201 4 7:11 PM

1092. Instrument cluster
2
Instrument cluster
GS350_250_OM_OM30E16E_(EE)
■Tire inflation pressure (if equipped)
●It may take a few minutes to display the tire inflation pressure after the engine
switch is turned to IGNITION ON mode. It may also take a few minutes to display
the tire inflation pressure after inflation pressure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Customizable features: →P. 6 5 2 )
CAUTION
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, caus-
ing rapid and excessive engine braking and possibly an accident resulting in death
or injury.
■Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such as a
garage, exhaust gases including harmful carbon monoxide (CO) may collect and
enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
■During setting up the display
To prevent battery discharge, ensure that the engine is running while setting up the
display features.
GS350_250_OM_OM30E16E_(EE).book Page 109 Tuesday, July 8, 201 4 7:11 PM

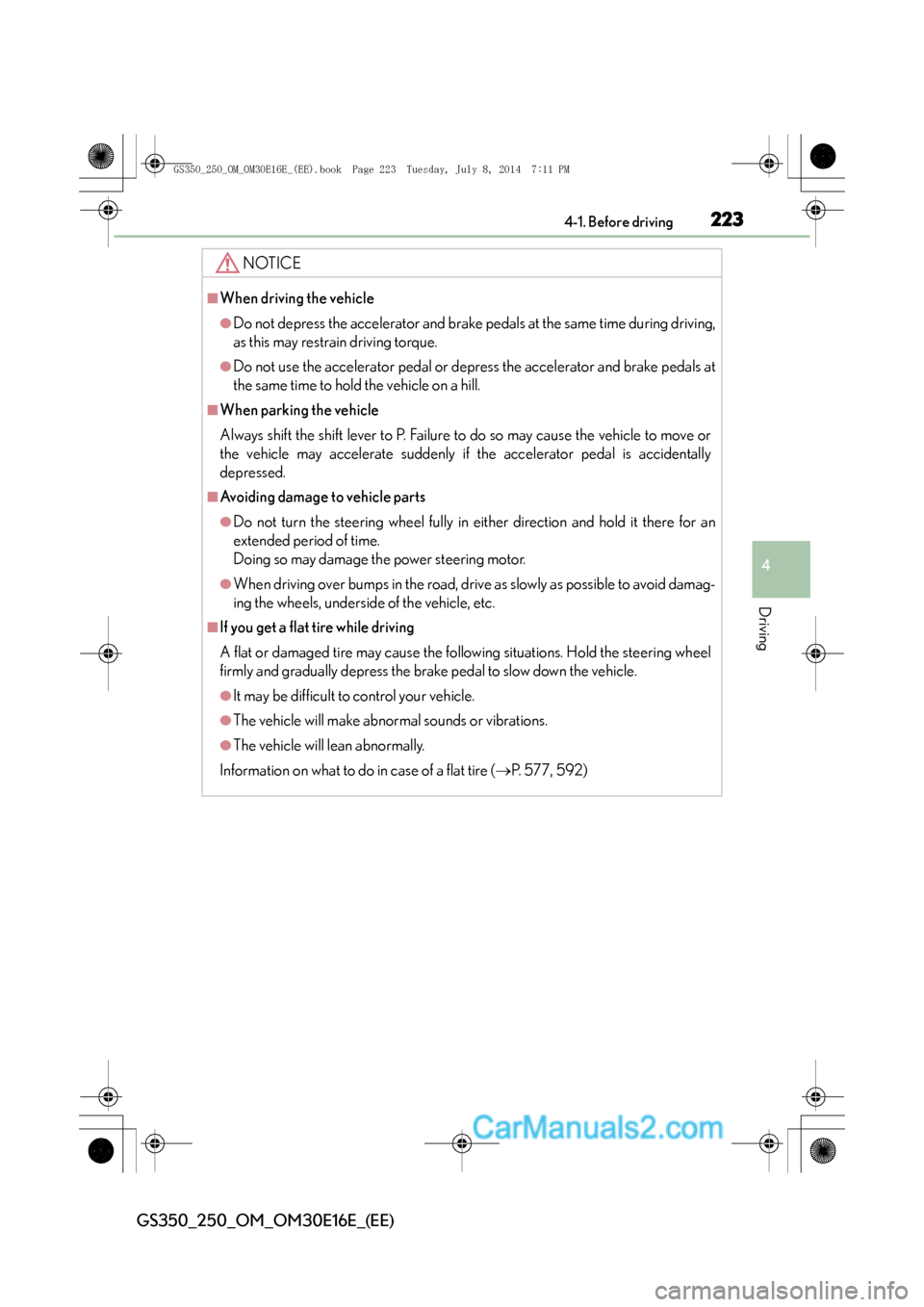

2234-1. Before driving
4
Driving
GS350_250_OM_OM30E16E_(EE)
NOTICE
■When driving the vehicle
●Do not depress the accelerator and brake pedals at the same time during driving,
as this may restrain driving torque.
●Do not use the accelerator pedal or depress the accelerator and brake pedals at
the same time to hold the vehicle on a hill.
■When parking the vehicle
Always shift the shift lever to P. Failure to do so may cause the vehicle to move or
the vehicle may accelerate suddenly if the accelerator pedal is accidentally
depressed.
■Avoiding damage to vehicle parts
●Do not turn the steering wheel fully in either direction and hold it there for an
extended period of time.
Doing so may damage the power steering motor.
●When driving over bumps in the road, drive as slowly as possible to avoid damag-
ing the wheels, underside of the vehicle, etc.
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering wheel
firmly and gradually depress the brake pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds or vibrations.
●The vehicle will lean abnormally.
Information on what to do in case of a flat tire ( →P. 577, 592)
GS350_250_OM_OM30E16E_(EE).book Page 223 Tuesday, July 8, 201 4 7:11 PM

2324-1. Before driving
GS350_250_OM_OM30E16E_(EE)
■Tire information
●Increase the tire inflation pressure to 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) greater
than the recommended value when towing. ( →P. 6 4 5 )
●Increase the air pressure of the trailer tires in accordance with the total trailer
weight and according to the values recommended by the manufacturer of your
trailer.
■Trailer lights
●Please consult at any authorized dealer or repairer, or another duly qualified and
equipped professional when installing trailer lights, as incorrect installation may
cause damage to the vehicle’s lights. Please take care to comply with your state’s
laws when installing trailer lights.
●Check that the turn signal lights and stoplights are operating correctly every time
you hitch up the trailer. Directly wiring up to your vehicle may damage the electrical
system and stop the lights from functioning correctly.
■Break-in schedule
Lexus recommends that vehicles fitted with new power train components should not
be used for towing trailers for the first 800 km (500 miles).
■Safety checks before towing
●Check that the maximum load limit for the towing hitch/bracket and hitch ball is not
exceeded. Bear in mind that the coupling weight of the trailer will add to the load
exerted on the vehicle. Also make sure that the total load exerted on the vehicle is
within the range of the weight limits. ( →P. 2 2 8 )
●Ensure that the trailer load is secure.
●Supplementary outside rear view mirrors should be added to the vehicle if the traf-
fic behind cannot be clearly seen with standard mirrors. Adjust the extending arms
of these mirrors on both sides of the vehicle so that they always provide maximum
visibility of the road behind.
■Maintenance
●Maintenance must be performed more frequently when using the vehicle for tow-
ing due to the greater weight burden placed on the vehicle compared to normal
driving.
●Retighten all bolts securing the hitching ball and bracket after towing for approxi-
mately 1000 km (600 miles).
GS350_250_OM_OM30E16E_(EE).book Page 232 Tuesday, July 8, 201 4 7:11 PM

2684-3. Operating the lights and wipers
GS350_250_OM_OM30E16E_(EE)
●In the situations below, the system may not be able to correctly detect the sur-
rounding brightness levels, and may flash or expose nearby pedestrians to the high
beam. Therefore, you should consider turning the high beams on or off manually
rather than relying on the Automatic High Beam system.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The inside rear view mirror or camera sensor is deformed or dirty.
• The camera sensor temperature is extremely high.
• Surrounding brightness levels are equal to those of headlights, tail lights or foglights.
• Vehicles ahead have headlights that are either switched off, dirty, are changing color, or have are not aimed properly.
• When driving through an area of intermittently changing brightness and dark- ness.
• When frequently and repeatedly driving ascending/descending roads, or roads with rough, bumpy or uneven surfaces (such as stone-paved roads, gravel tracks
etc.).
• When frequently and repeatedly taking curves or driving on a winding road.
• There is a highly reflective object ahead of the vehicle, such as a sign or a mirror.
• The back of a vehicle ahead is highly reflective, such as a container on a truck.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.
• The high beam and low beam are repeatedly being switched between in an abnormal manner.
• The driver believes that the high beam may be causing problems or distress to other drivers or pedestrians nearby.
CAUTION
■Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to
observe your surroundings and turning high beam on or off manually if necessary.
GS350_250_OM_OM30E16E_(EE).book Page 268 Tuesday, July 8, 201 4 7:11 PM

3114-5. Using the driving support systems
4
Driving
GS350_250_OM_OM30E16E_(EE)
■After the vehicle has been parked in the sun
The LKA system functions may not be available and a warning message (→P. 5 6 3 )
will be displayed for a while after driving has started. In such cases, turn the LKA sys-
tem off and turn it on again after normal temperature returns. When the temperature
in the cabin decreases and the temperature around the camera sensor ( →P. 3 0 5 )
becomes suitable for its operation, the functions will begin to operate.
■If there are lane markers on only one side of the vehicle
The lane keeping assist function will not operate. Also, the lane departure warning
will not operate for the side on which lane markers could not be recognized.
■Conditions in which the function may not operate correctly
In the following conditions, the LKA system functions may not operate, or it may not
be possible to ensure adequate performance. Also, the camera sensor may be
unable to recognize lane lines causing the lane departure warning function to oper-
ate incorrectly, or the lane keeping assist function may not operate properly. How-
ever, this does not indicate a malfunction.
●When driving through an area with no lane markers, such as a tollbooth, a crossing
or before a ticket checkpoint
●When driving on a sharp curve
●When lanes are extremely narrow or extremely wide
●When the vehicle leans to one side an unusual amount due to a heavy load or
improper tire inflation pressure
●When the following distance between your vehicle and the vehicle ahead is
extremely short
●When the lane markers are yellow (These may be more difficult for the system to
recognize compared to white markers.)
●When the lane markers are broken, “Raised pavement marker” or stones
●When lane markers are obscured or partially obscured by sand, dirt, etc.
●When there are shadows on the road running parallel with lane markers, or if a
shadow covers the lane markers
●When driving on a particularly bright road surface, such as concrete
●When driving on a road surface that is bright due to reflected light
●When driving in a location where the light level changes rapidly, such as the
entrance to or exit from a tunnel
●When sunlight or the headlights of oncoming vehicles are shining directly into the
camera lens
●When driving on roads that are branching or merging
GS350_250_OM_OM30E16E_(EE).book Page 311 Tuesday, July 8, 201 4 7:11 PM
