Page 5 of 688
5
1
8 7
6
5
4
3
2
GS350_250_OM_OM30E16E_(EE)
6-1. Maintenance and careCleaning and protecting the vehicle exterior .................436
Cleaning and protecting the vehicle interior ..................440
6-2. Maintenance Maintenance requirements .............................444
6-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................ 447
Hood ...............................................450
Positioning a floor jack .............. 451
Engine compartment................ 454
Tires ..................................................466
Tire inflation pressure............... 483
Wheels........................................... 485
Air conditioning filter................ 487
Electronic key battery ..............489
Checking and replacing fuses .............................................. 492
Light bulbs ...................................... 514 7-1. Essential information
Emergency flashers...................534
If your vehicle has to be stopped
in an emergency ......................535
6Maintenance and care7When trouble arises
GS350_250_OM_OM30E16E_(EE).book Page 5 Tuesday, July 8, 2014 7:11 PM
Page 435 of 688
435
6Maintenance and care
GS350_250_OM_OM30E16E_(EE)
6-1. Maintenance and careCleaning and protecting the vehicle exterior................. 436
Cleaning and protecting the vehicle interior.................. 440
6-2. Maintenance Maintenance requirements............................. 444
6-3. Do-it-yourself maintenance Do-it-yourself service precautions.................................447
Hood ............................................... 450
Positioning a floor jack...............451
Engine compartment ............... 454
Tires.................................................. 466
Tire inflation pressure ...............483
Wheels ...........................................485
Air conditioning filter ............... 487
Electronic key battery ..............489
Checking and replacing fuses.............................................. 492
Light bulbs.......................................514
GS350_250_OM_OM30E16E_(EE).book Page 435 Tuesday, July 8, 201 4 7:11 PM
Page 447 of 688
447
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS350_250_OM_OM30E16E_(EE)
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given
in these sections.
ItemsParts and tools
Battery condition ( →P. 4 6 1 )
•Warm water
• Baking soda
• Grease
• Conventional wrench
(for terminal clamp bolts)
•Distilled water
Engine coolant level ( →P. 4 5 9 )
•“To y o t a Super Long Life Coolant” or
a similar high quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite and non-borate coolant with
long-life hybrid organic acid technol-
ogy
“Toyota Super Long Life Coolant” is
pre-mixed with 50% coolant and
50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level ( →P. 4 5 6 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( →P. 4 9 2 )• Fuse with same amperage rating as
original
GS350_250_OM_OM30E16E_(EE).book Page 447 Tuesday, July 8, 201 4 7:11 PM
Page 492 of 688
4926-3. Do-it-yourself maintenance
GS350_250_OM_OM30E16E_(EE)
Checking and replacing fuses
Turn the engine switch off.
After a system failure, see “Fuse layout and amperage ratings” for
details about which fuse to check. (→P. 4 9 7 )
Open the fuse box cover.
XEngine compartment: type A fuse box (left-hand drive vehicles)
Push the tab in and lift the lid off.
XEngine compartment: type A fuse box (right-hand drive vehicles)
Push the tab in and lift the lid off.
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check an d replace the fuses as necessary.
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 492 Tuesday, July 8, 201 4 7:11 PM

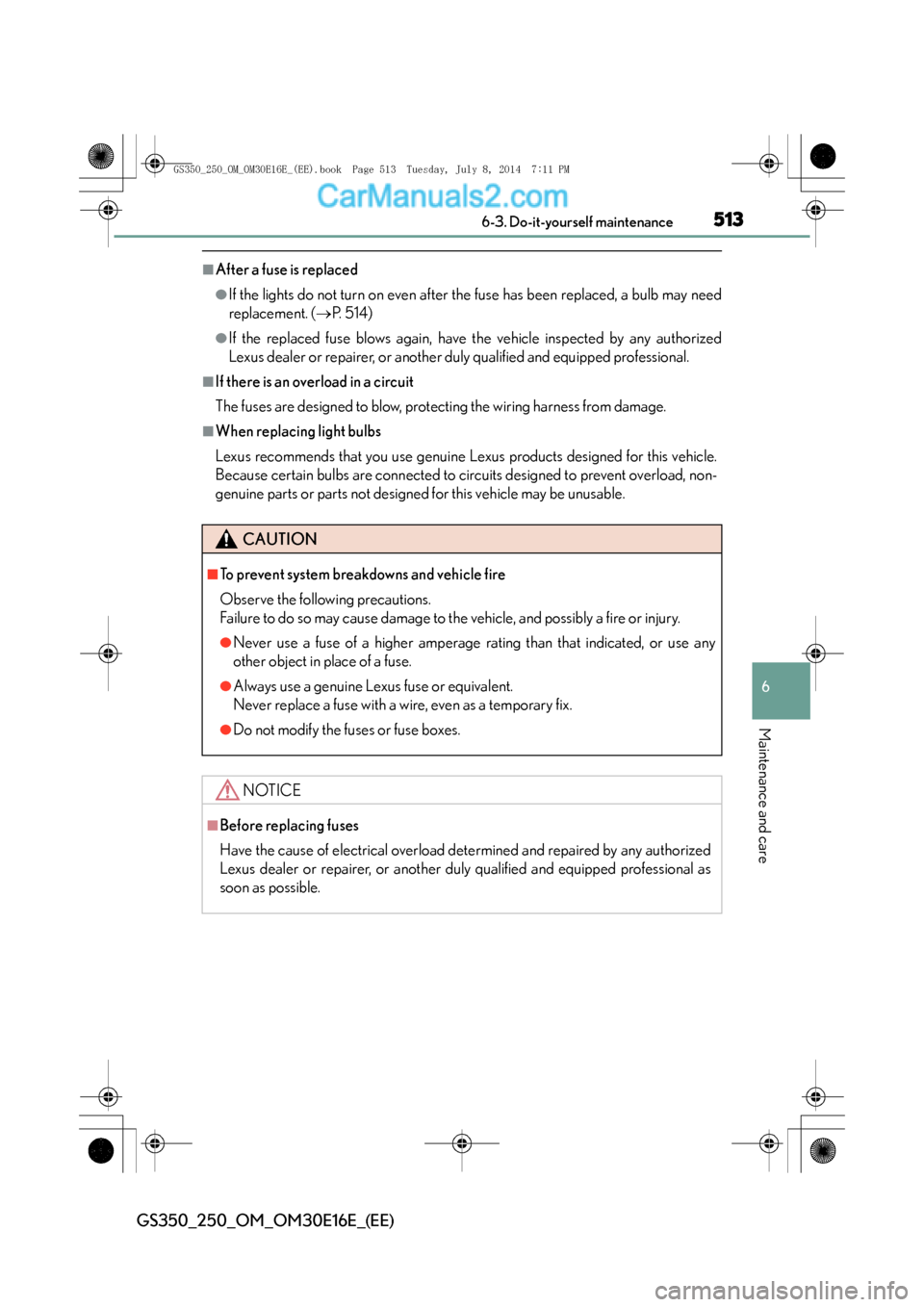

Page 513 of 688
513 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_250_OM_OM30E16E_(EE)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (→P. 5 1 4 )
●If the replaced fuse blows again, have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circ uits designed to prevent overload, non-
genuine parts or parts not designed for this vehicle may be unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional as
soon as possible.
GS350_250_OM_OM30E16E_(EE).book Page 513 Tuesday, July 8, 201 4 7:11 PM
Page 677 of 688
677Alphabetical index
GS350_250_OM_OM30E16E_(EE)
Engine switch ......................................... 237
EPS (Electric Power Steering)......... 321Function .................................................... 321
Warning light .......................................546
Warning message.............................557
First-aid kit storage net.......................409
Flat tire Vehicles with a spare tire .............. 577
Vehicles without a spare tire .......592
Floor mats ................................................... 34
Fluid Automatic transmission ..................643
Brake........................................................ 644
Washer ...................................................465
Fog lights .................................................. 270 Replacing light bulbs............. 517, 530
Switch ...................................................... 270
Wattage.................................................. 647
Follow me home system ....................260
Footwell light ..........................................399
Front air conditioning system ............371
Front fog lights ....................................... 270 Replacing light bulbs............. 517, 530
Switch ...................................................... 270
Wattage.................................................. 647
Front personal lights ........................... 400
Front position lights.............................. 259 Light switch ........................................... 259
Replacing light bulbs....................... 530
Welcome light illumination
control.................................................... 127 Front seats .................................................182
Adjustment ............................................. 182
Cleaning ................................................ 440
Correct driving posture.................... 36
Driving position memory ................186
Head restraints ..................................... 192
Power easy access system.............186
Seat heaters............................................ 419
Seat position memory .......................186
Seat ventilators ..................................... 419
Front turn signal lights ........................ 253 Replacing light bulbs .............. 519, 521
Turn signal lever................................. 253
Wattage ................................................. 647
Fuel ............................................................. 280 Capacity................................................. 634
Fuel gauge ............................................... 99
Fuel pump shut off system ............ 543
Information............................................ 648
Refueling ................................................ 280
Type .............................................280, 634
Warning light....................................... 547
Warning messages .......................... 565
Fuel filler door ........................................ 280
Refueling ................................................ 280
When the fuel filler door cannot be opened......................... 283
Fuel pump shut off system ................ 543
Fuses .......................................................... 492
F
GS350_250_OM_OM30E16E_(EE).book Page 677 Wednesday, July 9, 2 014 9:18 AM
Page 682 of 688
682Alphabetical index
GS350_250_OM_OM30E16E_(EE)
Pre-Crash Safety system (PCS).....330Function ..................................................330
PCS OFF switch ..................................331
Warning light .......................................546
Warning message....554, 563, 569
Radar cruise control (dynamic radar cruise control) ........................289
Radiator ..................................................... 461
Radio
*
Radio Data System (RDS)*
Rear air conditioning system ............ 391
Rear door sunshades .......................... 427
Rear fog light .......................................... 270 Replacing light bulb ......................... 530
Switch ...................................................... 270
Rear personal lights ............................ 400
Rear seat heaters ................................... 419
Rear sunshade ....................................... 427
Operation .............................................. 427
Reverse operation feature ............428
Rear turn signal lights..........................253 Replacing light bulbs........................ 523
Turn signal lever ................................. 253
Wattage.................................................. 647
Rear view mirror Inside rear view mirror ..................... 196
Outside rear view mirrors.............. 199
Rear view monitor system
*
Rear window defogger .....................396 Refueling .................................................. 280
Capacity................................................. 634
Fuel types .............................................. 634
Opening the fuel tank cap ............ 282
When the fuel filler door cannot be opened......................... 283
Remote Touch
*.................................... 362
Replacing
Electronic key battery ..................... 489
Fuses ........................................................ 492
Light bulbs .............................................. 514
Tires ...........................................................577
Seat belt reminder light ..................... 547
Seat belts..................................................... 38 Adjusting the seat belt ....................... 39
Child restraint system installation ................................................71
Cleaning and maintaining
the seat belt......................................... 441
Emergency Locking
Retractor (ELR) ................................... 41
How to wear your seat belt ............ 38
How your child should wear the seat belt............................................ 41
Pre-crash seat belts ............................ 40
Pregnant women, proper seat belt use ..........................................42
Reminder light and buzzer........... 547
Seat belt pretensioners...................... 40
SRS warning light .............................. 545R
S
GS350_250_OM_OM30E16E_(EE).book Page 682 Tuesday, July 8, 201 4 7:11 PM
