1883-3. Adjusting the seats
GS350_250_OM_OM30E16E_(EE)
■Recall procedureCheck that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Press one of the buttons for the
driving position you want to
recall until the buzzer sounds.
Vehicles with front passenger’s seat
ottoman:
The recorded position will only be
recalled if the ottoman is in a posi-
tion higher than the recorded posi-
tion. It will not move in an upward
direction.
■To stop the position recall operation part-way through
Perform any of the following:
●Press the “SET” button.
●Press button “1”, “2” or “3”.
●Operate any of the seat adjustment switches (only cancels seat position recall).
●Operate the tilt and telescopic steering control switch (only cancels steering wheel
position recall).
■Seat positions that can be memorized ( →P. 1 8 2 )
XVehicles without seatback side support adjustment switch
The adjusted positions other than the position adjusted by lumbar support switch can
be recorded.
XVehicles with seatback side support adjustment switch
All adjusted positions can be recorded.
■Automatic ottoman adjustment (if equipped)
While the recorded position is being recalled, if it appears that the front edge of the
cushion will touch the area surrounding the instrument panel, the ottoman will be
automatically stowed.
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 188 Tuesday, July 8, 201 4 7:11 PM

227
4
4-1. Before driving
Driving
GS350_250_OM_OM30E16E_(EE)
Trailer towing (vehicles with towing package)
◆Weight limits
Check the allowable towing capacity, GVM (Gross Vehicle Mass),
MPAC (Maximum Permissible Axle Capacity), and permissible draw
bar load before towing. (
→P. 6 3 2 )
◆Towing hitch/bracket
Lexus recommends the use of the Lexus hitch/bracket for your vehicle.
Other products of a suitable nature and comparable quality may also
be used.
Your vehicle is designed primaril y as a passenger carrying vehicle.
Towing a trailer will have an adve rse effect on handling, performance,
braking, durability, and fuel consum ption. Your safety and satisfaction
depend on the proper use of correct equipment and cautious driving
habits. For your safety and the safety of others, do not overload the
vehicle or trailer.
To tow a trailer safely, use extreme care and drive the vehicle in accor-
dance with the trailer’s character istics and operating conditions.
Lexus warranties do not apply to damage or malfunction caused by
towing a trailer for commercial purposes.
Ask your local authorized Lexus dealer or repairer, or another duly
qualified and equipped professional for further details before towing,
as there are additional legal re quirements in some countries.
GS350_250_OM_OM30E16E_(EE).book Page 227 Tuesday, July 8, 201 4 7:11 PM

2284-1. Before driving
GS350_250_OM_OM30E16E_(EE)
■Total trailer weight and permissible drawbar loadTotal trailer weight
Weight of the trailer itself plus the
trailer load should be within the
maximum towing capacity.
Exceeding this weight is danger-
ous. ( →P. 6 3 2 )
When towing a trailer, use a friction
coupler or friction stabilizer (sway
control device).
Permissible drawbar load
Allocate the trailer load so that the
drawbar load is greater than 25 kg
(55.1 lb.) or 4% of the towing
capacity. Do not let the drawbar
load exceed the indicated weight.
( → P. 6 3 2 )

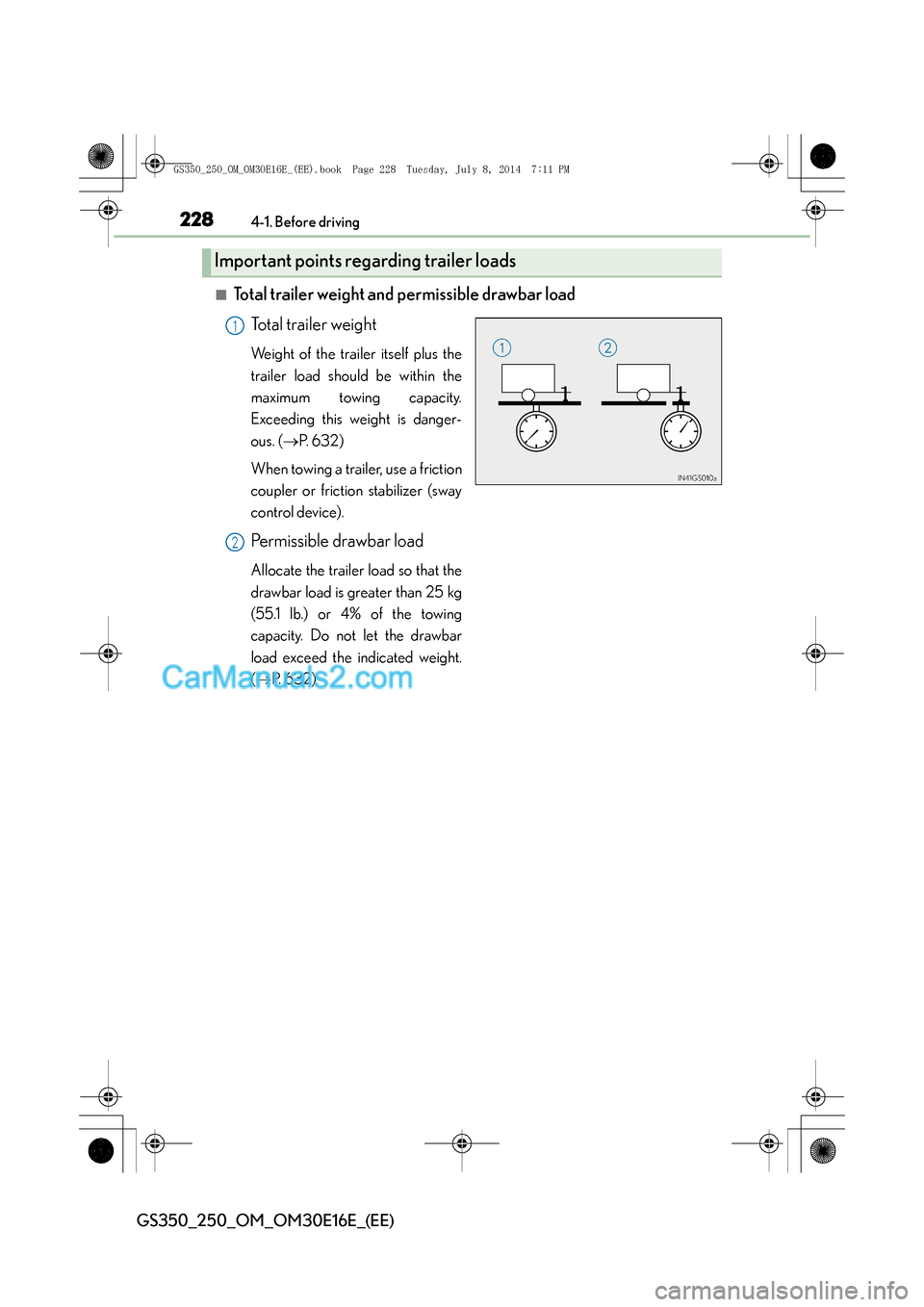

Important points regarding trailer loads
1
2
GS350_250_OM_OM30E16E_(EE).book Page 228 Tuesday, July 8, 201 4 7:11 PM

2294-1. Before driving
4
Driving
GS350_250_OM_OM30E16E_(EE)

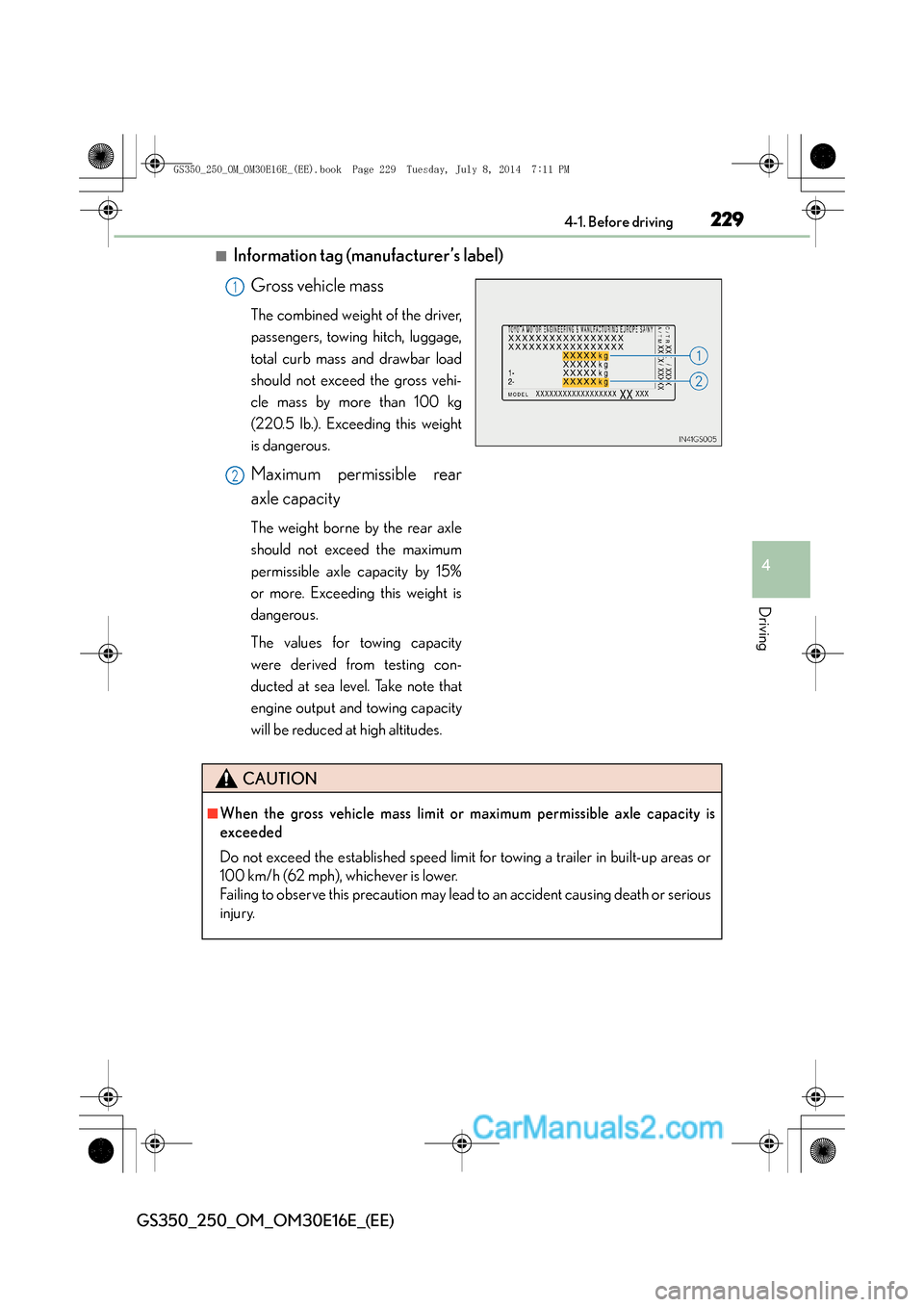

■Information tag (manufacturer’s label)Gross vehicle mass
The combined weight of the driver,
passengers, towing hitch, luggage,
total curb mass and drawbar load
should not exceed the gross vehi-
cle mass by more than 100 kg
(220.5 lb.). Exceeding this weight
is dangerous.
Maximum permissible rear
axle capacity
The weight borne by the rear axle
should not exceed the maximum
permissible axle capacity by 15%
or more. Exceeding this weight is
dangerous.
The values for towing capacity
were derived from testing con-
ducted at sea level. Take note that
engine output and towing capacity
will be reduced at high altitudes.
1
2
CAUTION
■When the gross vehicle mass limit or maximum permissible axle capacity is
exceeded
Do not exceed the established speed limit for towing a trailer in built-up areas or
100 km/h (62 mph), whichever is lower.
Failing to observe this precaution may lead to an accident causing death or serious
injury.
GS350_250_OM_OM30E16E_(EE).book Page 229 Tuesday, July 8, 201 4 7:11 PM

2324-1. Before driving
GS350_250_OM_OM30E16E_(EE)

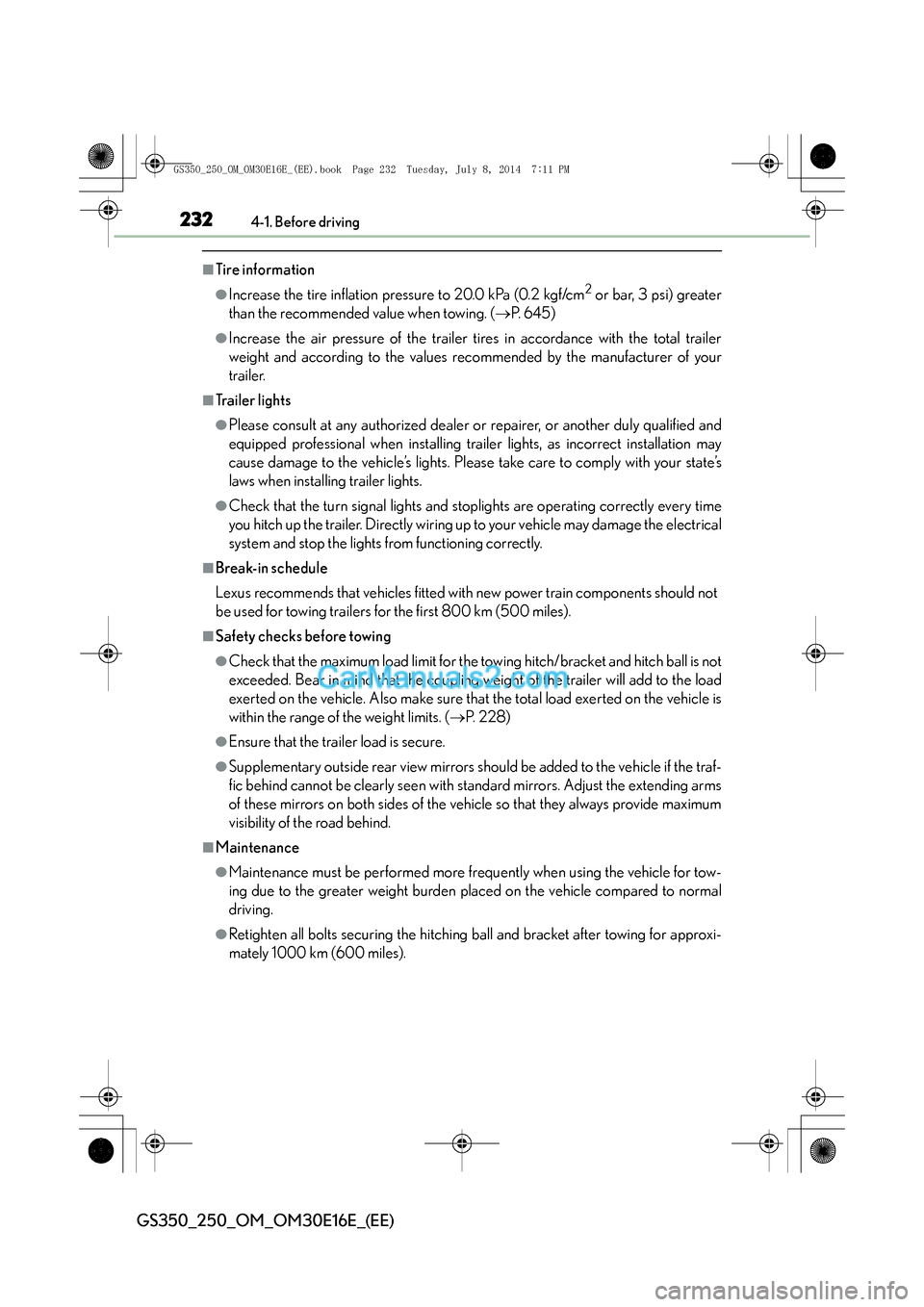

■Tire information
●Increase the tire inflation pressure to 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) greater
than the recommended value when towing. ( →P. 6 4 5 )
●Increase the air pressure of the trailer tires in accordance with the total trailer
weight and according to the values recommended by the manufacturer of your
trailer.
■Trailer lights
●Please consult at any authorized dealer or repairer, or another duly qualified and
equipped professional when installing trailer lights, as incorrect installation may
cause damage to the vehicle’s lights. Please take care to comply with your state’s
laws when installing trailer lights.
●Check that the turn signal lights and stoplights are operating correctly every time
you hitch up the trailer. Directly wiring up to your vehicle may damage the electrical
system and stop the lights from functioning correctly.
■Break-in schedule
Lexus recommends that vehicles fitted with new power train components should not
be used for towing trailers for the first 800 km (500 miles).
■Safety checks before towing
●Check that the maximum load limit for the towing hitch/bracket and hitch ball is not
exceeded. Bear in mind that the coupling weight of the trailer will add to the load
exerted on the vehicle. Also make sure that the total load exerted on the vehicle is
within the range of the weight limits. ( →P. 2 2 8 )
●Ensure that the trailer load is secure.
●Supplementary outside rear view mirrors should be added to the vehicle if the traf-
fic behind cannot be clearly seen with standard mirrors. Adjust the extending arms
of these mirrors on both sides of the vehicle so that they always provide maximum
visibility of the road behind.
■Maintenance
●Maintenance must be performed more frequently when using the vehicle for tow-
ing due to the greater weight burden placed on the vehicle compared to normal
driving.
●Retighten all bolts securing the hitching ball and bracket after towing for approxi-
mately 1000 km (600 miles).
GS350_250_OM_OM30E16E_(EE).book Page 232 Tuesday, July 8, 201 4 7:11 PM

3134-5. Using the driving support systems
4
Driving
GS350_250_OM_OM30E16E_(EE)
CAUTION

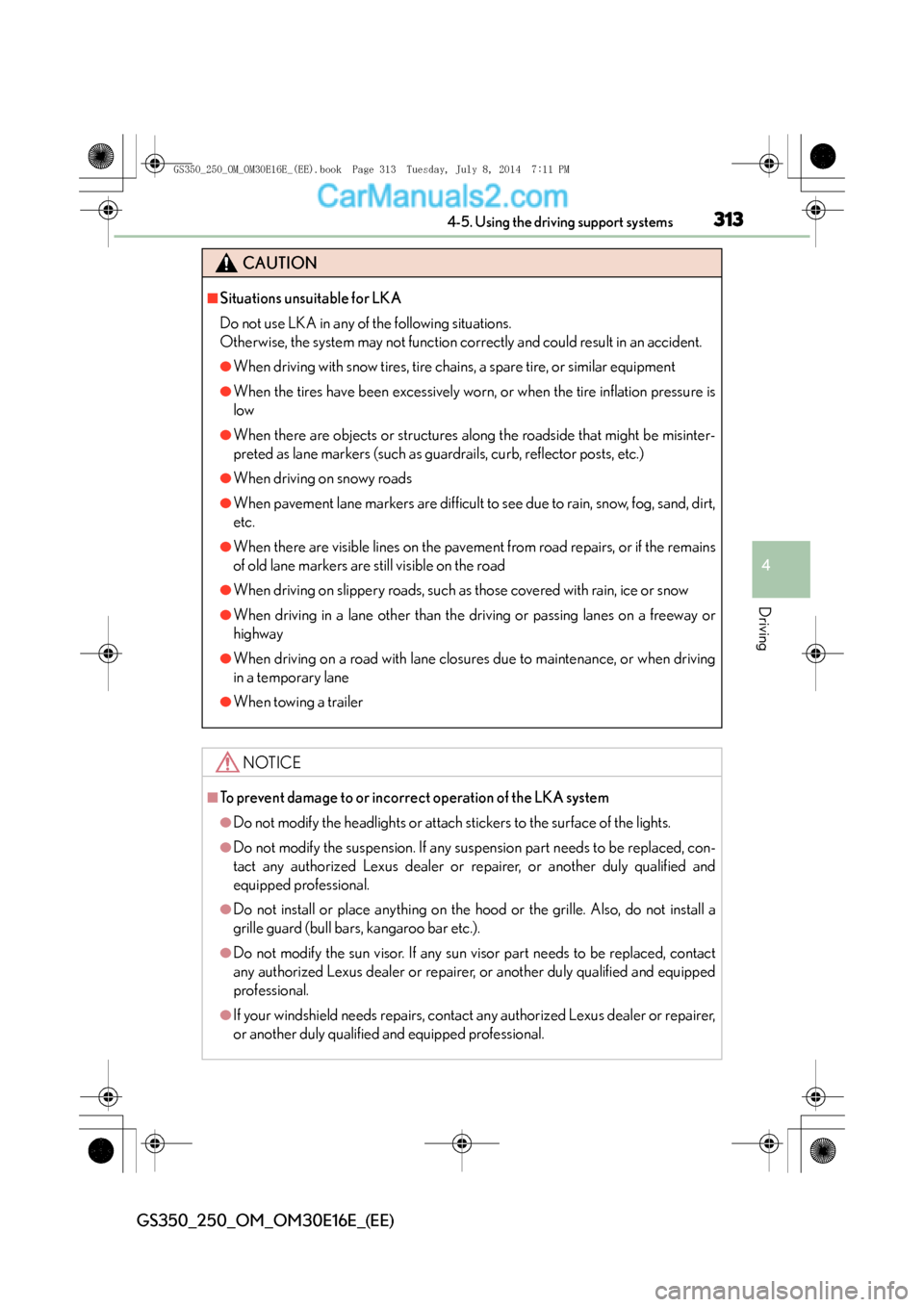

■Situations unsuitable for LKA
Do not use LKA in any of the following situations.
Otherwise, the system may not function correctly and could result in an accident.
●When driving with snow tires, tire chains, a spare tire, or similar equipment
●When the tires have been excessively worn, or when the tire inflation pressure is
low
●When there are objects or structures along the roadside that might be misinter-
preted as lane markers (such as guardrails, curb, reflector posts, etc.)
●When driving on snowy roads
●When pavement lane markers are difficult to see due to rain, snow, fog, sand, dirt,
etc.
●When there are visible lines on the pavement from road repairs, or if the remains
of old lane markers are still visible on the road
●When driving on slippery roads, such as those covered with rain, ice or snow
●When driving in a lane other than the driving or passing lanes on a freeway or
highway
●When driving on a road with lane closures due to maintenance, or when driving
in a temporary lane
●When towing a trailer
NOTICE
■To prevent damage to or incorrect operation of the LKA system
●Do not modify the headlights or attach stickers to the surface of the lights.
●Do not modify the suspension. If any suspension part needs to be replaced, con-
tact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●Do not install or place anything on the hood or the grille. Also, do not install a
grille guard (bull bars, kangaroo bar etc.).
●Do not modify the sun visor. If any sun visor part needs to be replaced, contact
any authorized Lexus dealer or repairer, or another duly qualified and equipped
professional.
●If your windshield needs repairs, contact any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
GS350_250_OM_OM30E16E_(EE).book Page 313 Tuesday, July 8, 201 4 7:11 PM

5397-2. Steps to take in an emergency
7
When trouble arises
GS350_250_OM_OM30E16E_(EE)
Take out the towing eyelet. (→P. 578, 593)
Remove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a rag
between the screwdriver and the vehi-
cle body as shown in the illustration.
Insert the towing eyelet into the
hole and tighten partially by hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench or hard metal bar.
Securely attach a cable or chain to the towing eyelet.
Take care not to damage the vehicle body.
Enter the vehicle being towed and start the engine.
If the engine does not start, turn the engine switch to IGNITION ON mode.
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted: →P. 6 1 4

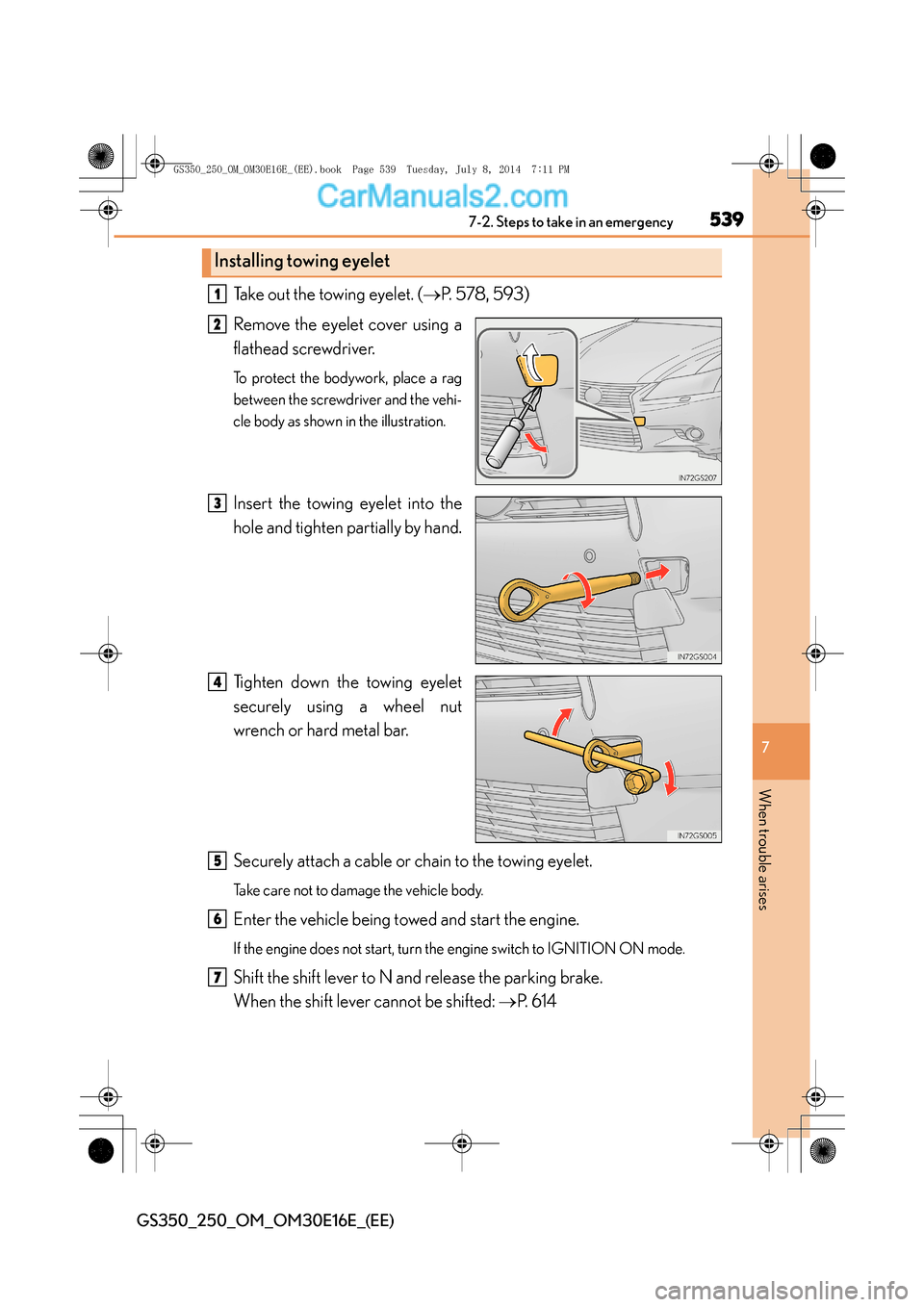

Installing towing eyelet
1
2
3
4
5
6
7
GS350_250_OM_OM30E16E_(EE).book Page 539 Tuesday, July 8, 201 4 7:11 PM

6328-1. Specifications
GS350_250_OM_OM30E16E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2:Vehicles with 265/35R19 tires
*3: Vehicles with towing package
*4:AWD models

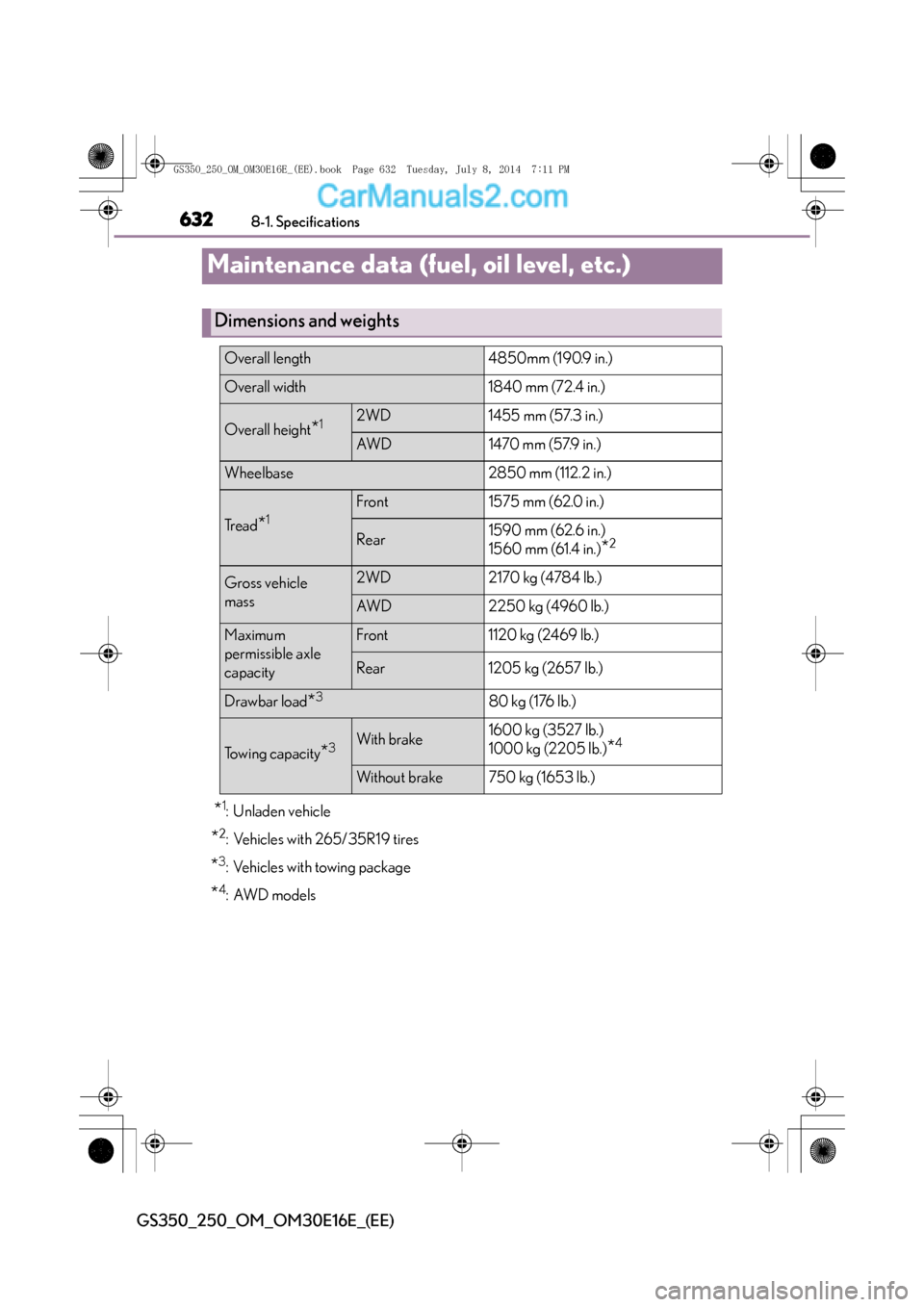

Dimensions and weights
Overall length 4850mm (190.9 in.)
Overall width 1840 mm (72.4 in.)
Overall height*12WD 1455 mm (57.3 in.)
AWD 1470 mm (57.9 in.)
Wheelbase 2850 mm (112.2 in.)
Tr e a d*1
Front 1575 mm (62.0 in.)
Rear1590 mm (62.6 in.)
1560 mm (61.4 in.)*2
Gross vehicle
mass2WD 2170 kg (4784 lb.)
AWD 2250 kg (4960 lb.)
Maximum
permissible axle
capacityFront 1120 kg (2469 lb.)
Rear 1205 kg (2657 lb.)
Drawbar load*380 kg (176 lb.)
Towing capacity*3With brake1600 kg (3527 lb.)
1000 kg (2205 lb.)*4
Without brake 750 kg (1653 lb.)
GS350_250_OM_OM30E16E_(EE).book Page 632 Tuesday, July 8, 201
4 7:11 PM

6468-1. Specifications
GS350_250_OM_OM30E16E_(EE)
XType C
*1: 5 passengers and full loaded
*2: 5 passengers and full loaded (235/40R19 96Y XL tires only)
XCompact spare tire (if equipped)
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm
2 or bar, 3 psi) to the recommended tire inflation pressure
and drive at speeds below 100 km/h (62 mph).
Ti r e s i z e235/40R19 96Y XL, 265/35R19 94Y
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front tire
kPa (kgf/cm2 or
bar, psi)
Rear tire
kPa (kgf/cm2 or
bar, psi)
More than 210 km/h
(132 mph)250 (2.5, 36)*1
240 (2.4, 35)
270 (2.7, 39)*2
250 (2.5, 36)
From 160 km/h (100
mph) to 210 km/h
(132 mph)
240 (2.4, 35)250 (2.5, 36)
160 km/h (100 mph)
or less
Wheel size19 × 8J (235/40R19), 19 × 9J (265/35R19)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Ti r e s i z eT155/70D17 110M, T145/70D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17 × 4T (T155/70D17), 18 × 4T (T145/70D18)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
GS350_250_OM_OM30E16E_(EE).book Page 646 Tuesday, July 8, 201 4 7:11 PM
