Lexus GS300 2002 Comfort Adjustment
Manufacturer: LEXUS, Model Year: 2002, Model line: GS300, Model: Lexus GS300 2002Pages: 56, PDF Size: 0.89 MB
Page 1 of 56

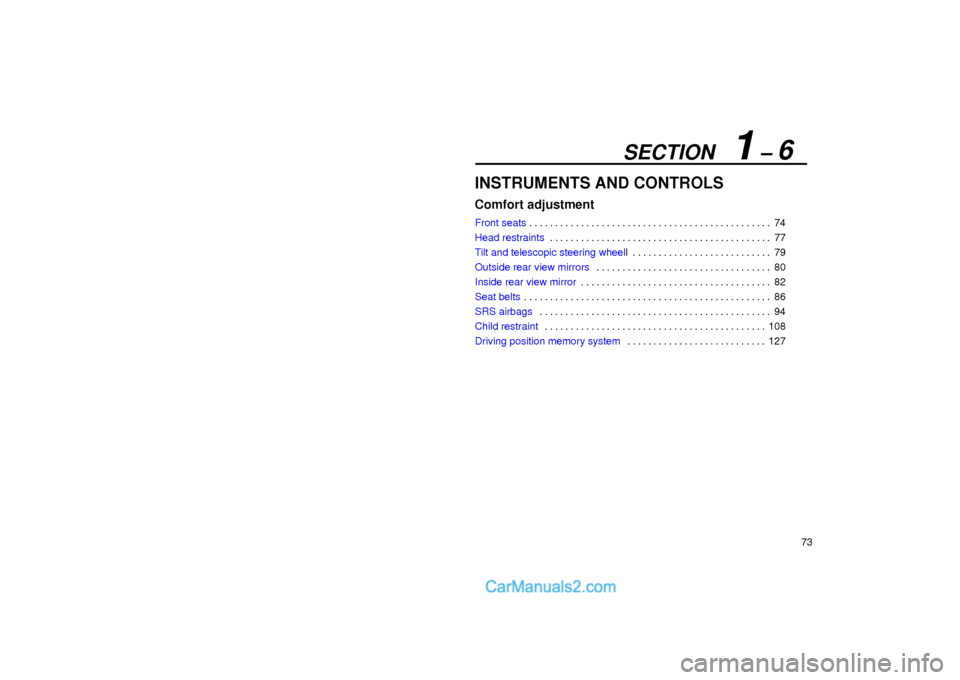

SECTION 1 ± 6
73
INSTRUMENTS AND CONTROLS
Comfort adjustment
Front seats74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head restraints77 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt and telescopic steering wheell79. . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside rear view mirror82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS airbags94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Child restraint108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving position memory system127 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 2 of 56
COMFORT ADJUSTMENT
74

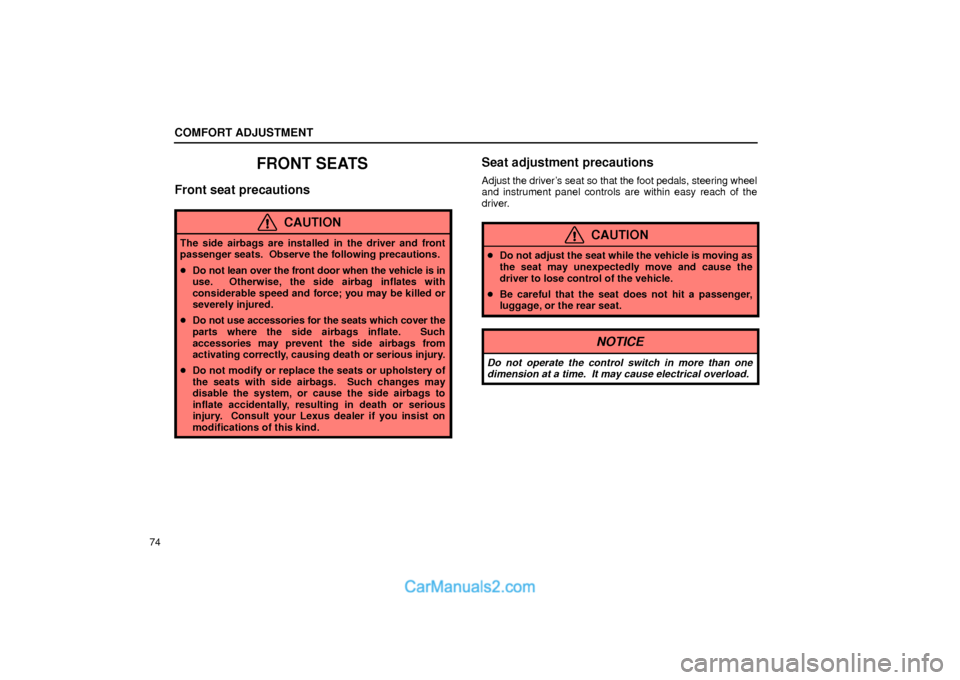

FRONT SEATS
Front seat precautions
CAUTION
The side airbags are installed in the driver and front
passenger seats. Observe the following precautions.
Do not lean over the front door when the vehicle is in
use. Otherwise, the side airbag inflates with
considerable speed and force; you may be killed or
severely injured.
Do not use accessories for the seats which cover the
parts where the side airbags inflate. Such
accessories may prevent the side airbags from
activating correctly, causing death or serious injury.
Do not modify or replace the seats or upholstery of
the seats with side airbags. Such changes may
disable the system, or cause the side airbags to
inflate accidentally, resulting in death or serious
injury. Consult your Lexus dealer if you insist on
modifications of this kind.
Seat adjustment precautions
Adjust the driver's seat so that the foot pedals, steering wheel
and instrument panel controls are within easy reach of the
driver.
CAUTION
Do not adjust the seat while the vehicle is moving as
the seat may unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not hit a passenger,
luggage, or the rear seat.
NOTICE
Do not operate the control switch in more than one
dimension at a time. It may cause electrical overload.
Page 3 of 56
COMFORT ADJUSTMENT
75

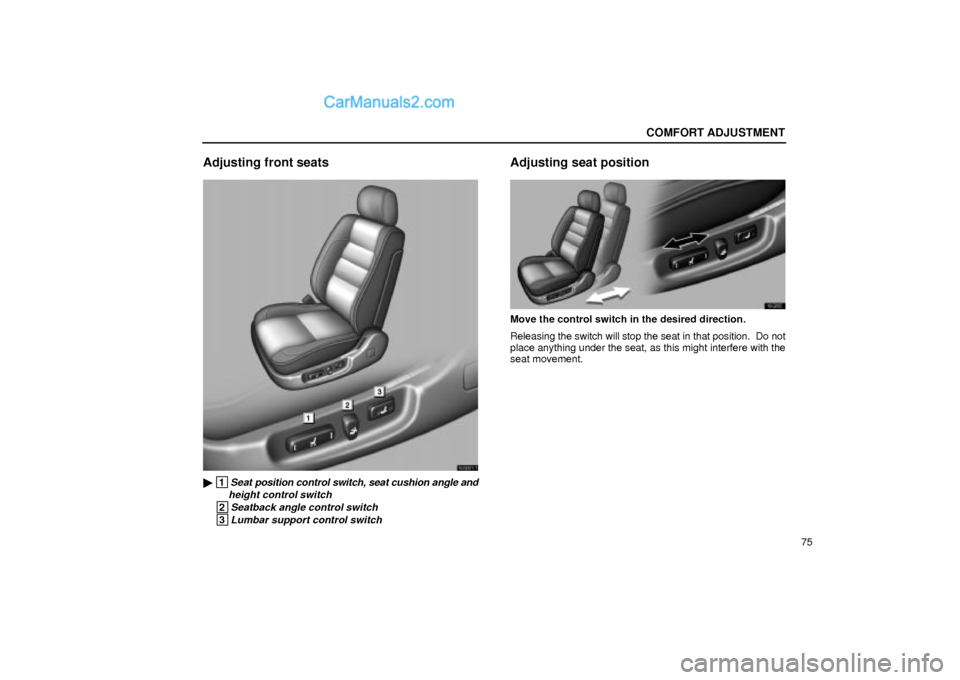

Adjusting front seats
16G001±1
1Seat position control switch, seat cushion angle and
height control switch
2Seatback angle control switch
3Lumbar support control switch
Adjusting seat position
16G002
Move the control switch in the desired direction.
Releasing the switch will stop the seat in that position. Do not
place anything under the seat, as this might interfere with the
seat movement.
Page 4 of 56
COMFORT ADJUSTMENT
76

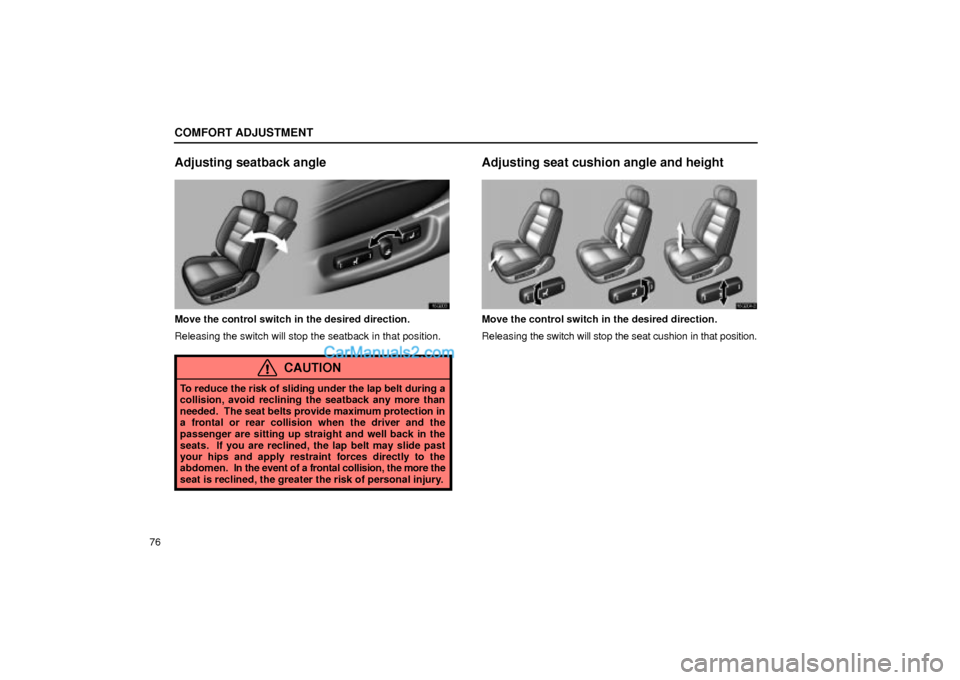

Adjusting seatback angle
16G003
Move the control switch in the desired direction.
Releasing the switch will stop the seatback in that position.
CAUTION
To reduce the risk of sliding under the lap belt during a
collision, avoid reclining the seatback any more than
needed. The seat belts provide maximum protection in
a frontal or rear collision when the driver and the
passenger are sitting up straight and well back in the
seats. If you are reclined, the lap belt may slide past
your hips and apply restraint forces directly to the
abdomen. In the event of a frontal collision, the more the
seat is reclined, the greater the risk of personal injury.
Adjusting seat cushion angle and height
16G004±2
Move the control switch in the desired direction.
Releasing the switch will stop the seat cushion in that position.
Page 5 of 56
COMFORT ADJUSTMENT
77

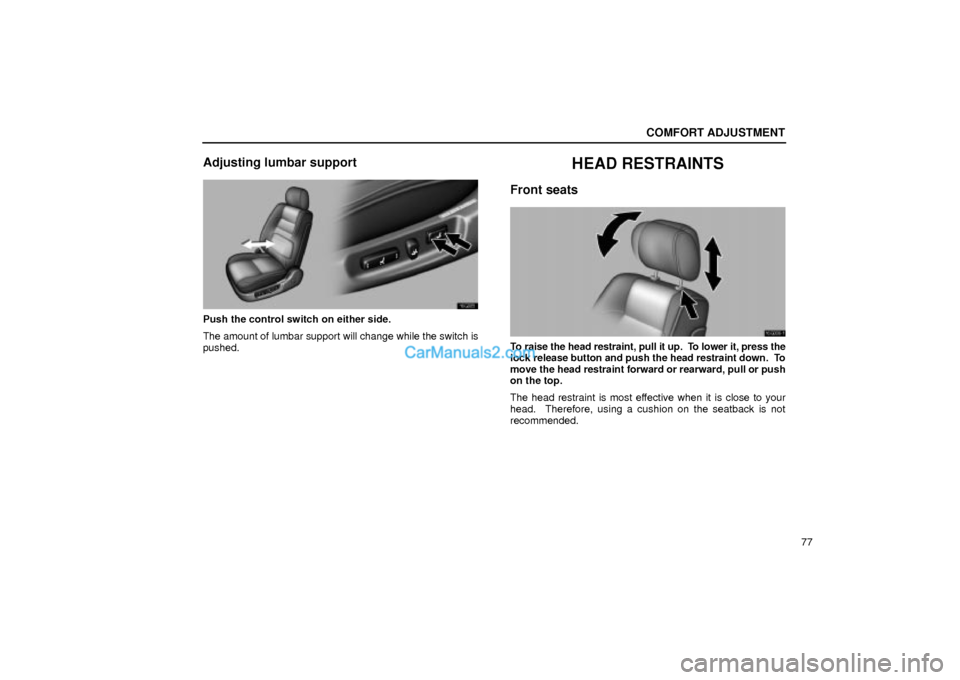

Adjusting lumbar support
16G005
Push the control switch on either side.
The amount of lumbar support will change while the switch is
pushed.
HEAD RESTRAINTS
Front seats
16G006±1
To raise the head restraint, pull it up. To lower it, press the
lock release button and push the head restraint down. To
move the head restraint forward or rearward, pull or push
on the top.
The head restraint is most effective when it is close to your
head. Therefore, using a cushion on the seatback is not
recommended.
Page 6 of 56
COMFORT ADJUSTMENT
78
CAUTION
Adjust the center of the head restraint so that it is
closest to the top of your ears.
After adjusting the head restraint, make sure it is
locked in position.
Do not drive with the head restraints removed.
Rear seats
16G007
Outside rear seats
To raise the head restraint, pull it up. To lower it, press the
lock release button and push the head restraint down. To
move the head restraint forward or rearward, pull or push
on the top.
16G009±1
Center rear seat
To raise the head restraint, pull it up. To lower it, press the
lock release button and push the head restraint down.
The head restraint is most effective when it is close to your
head. Therefore, using a cushion on the seatback is not
recommended.
CAUTION
Adjust the center of the head restraint so that it is
closest to the top of your ears.
After adjusting the head restraint, make sure it is
locked in position.
Do not drive with the head restraints removed.
Page 7 of 56
COMFORT ADJUSTMENT
79

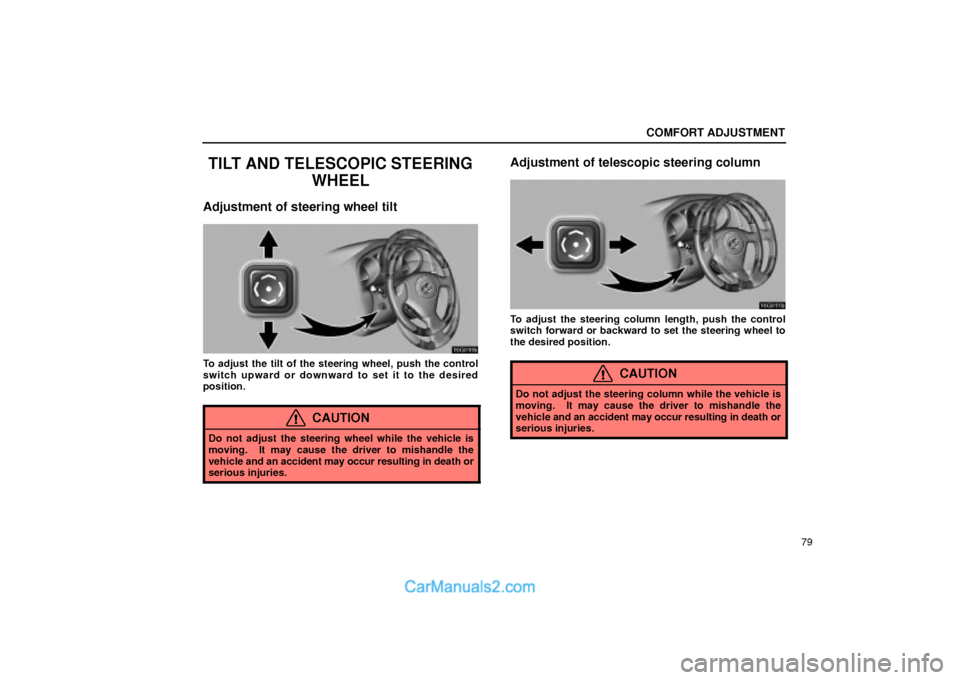

TILT AND TELESCOPIC STEERING
WHEEL
Adjustment of steering wheel tilt
16G010b
To adjust the tilt of the steering wheel, push the control
switch upward or downward to set it to the desired
position.
CAUTION
Do not adjust the steering wheel while the vehicle is
moving. It may cause the driver to mishandle the
vehicle and an accident may occur resulting in death or
serious injuries.
Adjustment of telescopic steering column
16G011b
To adjust the steering column length, push the control
switch forward or backward to set the steering wheel to
the desired position.
CAUTION
Do not adjust the steering column while the vehicle is
moving. It may cause the driver to mishandle the
vehicle and an accident may occur resulting in death or
serious injuries.
Page 8 of 56
COMFORT ADJUSTMENT
80

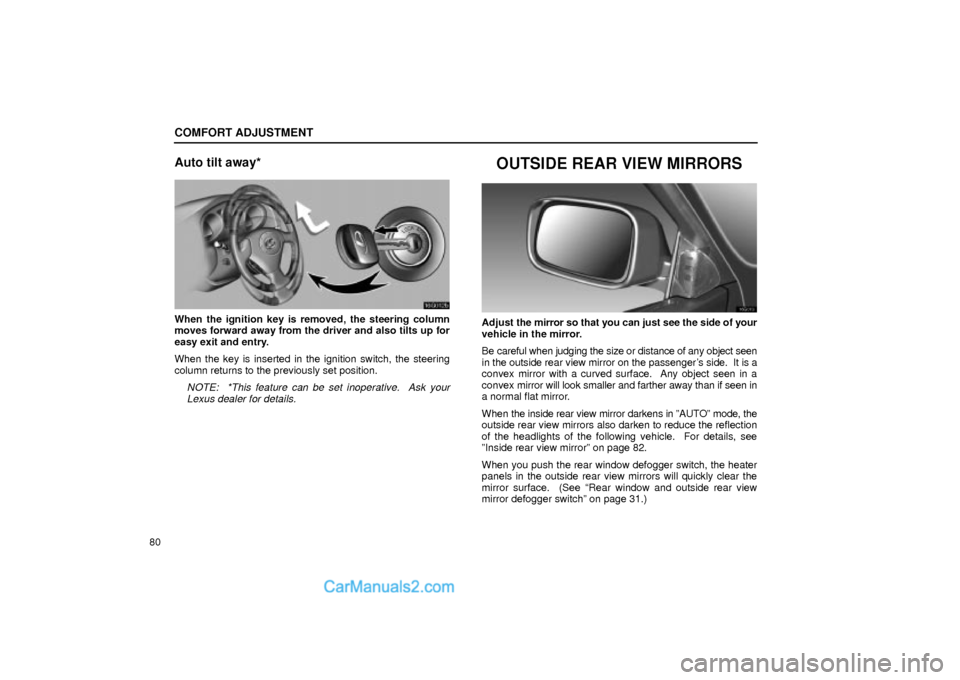

Auto tilt away*
16G012b
When the ignition key is removed, the steering column
moves forward away from the driver and also tilts up for
easy exit and entry.
When the key is inserted in the ignition switch, the steering
column returns to the previously set position.
NOTE: *This feature can be set inoperative. Ask your
Lexus dealer for details.
OUTSIDE REAR VIEW MIRRORS
16G013
Adjust the mirror so that you can just see the side of your
vehicle in the mirror.
Be careful when judging the size or distance of any object seen
in the outside rear view mirror on the passenger's side. It is a
convex mirror with a curved surface. Any object seen in a
convex mirror will look smaller and farther away than if seen in
a normal flat mirror.
When the inside rear view mirror darkens in ºAUTOº mode, the
outside rear view mirrors also darken to reduce the reflection
of the headlights of the following vehicle. For details, see
ºInside rear view mirrorº on page 82.
When you push the rear window defogger switch, the heater
panels in the outside rear view mirrors will quickly clear the
mirror surface. (See ªRear window and outside rear view
mirror defogger switchº on page 31.)
Page 9 of 56
COMFORT ADJUSTMENT
81
CAUTION
Do not adjust the mirror while the vehicle is moving.
Doing so may cause the driver to mishandle the
vehicle and an accident may occur resulting in death
or serious injuries.
Since the mirror surfaces can get hot, keep your
hands off them when the rear window and outside
rear view mirror defogger switch is on.

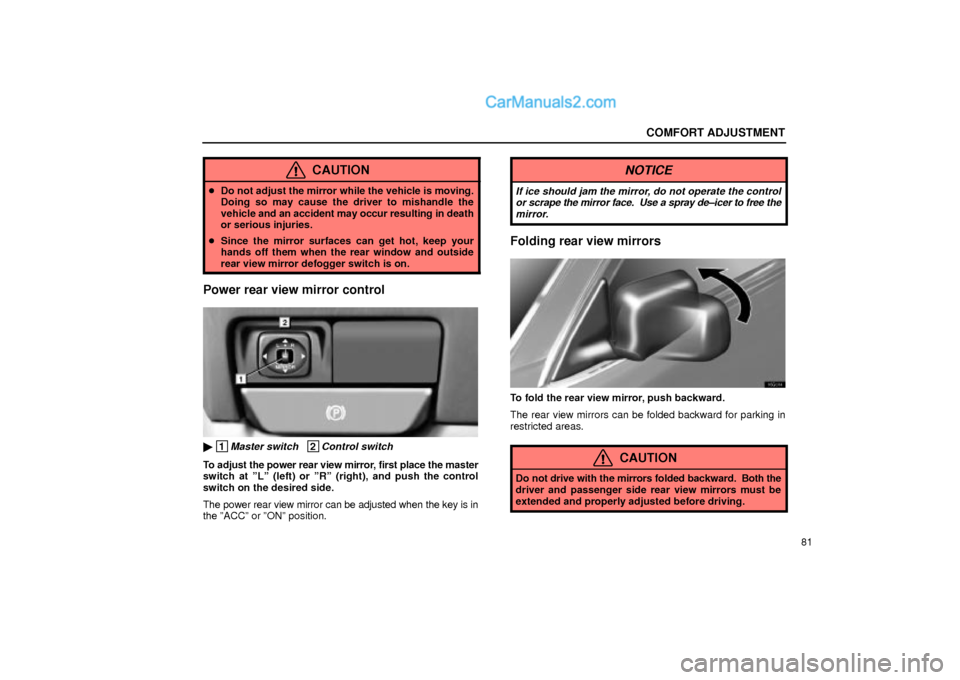

Power rear view mirror control
16L017-1
1Master switch 2Control switch
To adjust the power rear view mirror, first place the master
switch at ºLº (left) or ºRº (right), and push the control
switch on the desired side.
The power rear view mirror can be adjusted when the key is in
the ºACCº or ºONº position.
NOTICE
If ice should jam the mirror, do not operate the control
or scrape the mirror face. Use a spray de±icer to free the
mirror.
Folding rear view mirrors
16G014
To fold the rear view mirror, push backward.
The rear view mirrors can be folded backward for parking in
restricted areas.
CAUTION
Do not drive with the mirrors folded backward. Both the
driver and passenger side rear view mirrors must be
extended and properly adjusted before driving.
Page 10 of 56
COMFORT ADJUSTMENT
82

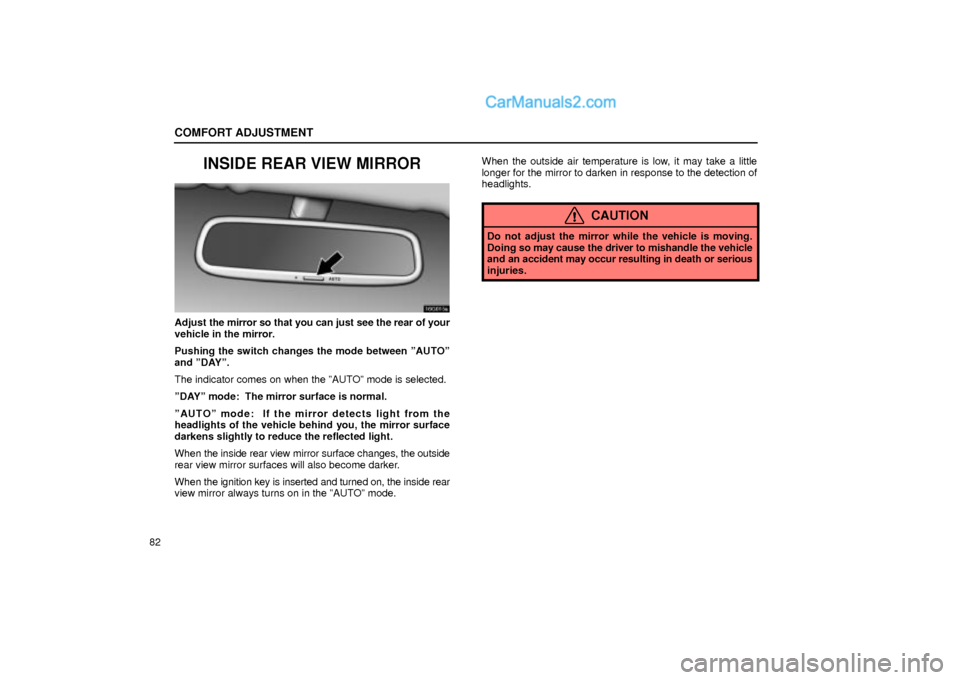

INSIDE REAR VIEW MIRROR
16G015a
Adjust the mirror so that you can just see the rear of your
vehicle in the mirror.
Pushing the switch changes the mode between ºAUTOº
and ºDAYº.
The indicator comes on when the ºAUTOº mode is selected.
ºDAYº mode: The mirror surface is normal.
ºAUTOº mode: If the mirror detects light from the
headlights of the vehicle behind you, the mirror surface
darkens slightly to reduce the reflected light.
When the inside rear view mirror surface changes, the outside
rear view mirror surfaces will also become darker.
When the ignition key is inserted and turned on, the inside rear
view mirror always turns on in the ºAUTOº mode.When the outside air temperature is low, it may take a little
longer for the mirror to darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the vehicle is moving.
Doing so may cause the driver to mishandle the vehicle
and an accident may occur resulting in death or serious
injuries.
