Lexus GS300 2003 Comfort Adjustment

16G055

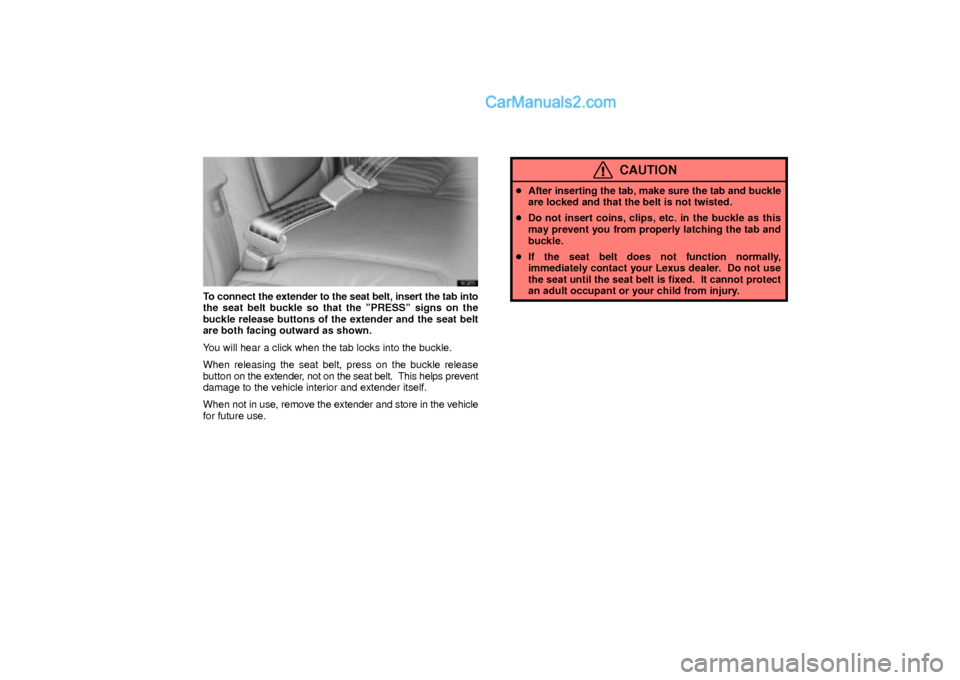

To connect the extender to the seat belt, insert the tab into
the seat belt buckle so that the ºPRESSº signs on the
buckle release buttons of the extender and the seat belt
are both facing outward as shown.
You will hear a click when the tab locks into the buckle.
When releasing the seat belt, press on the buckle release
button on the extender, not on the seat belt. This helps prevent
damage to the vehicle interior and extender itself.
When not in use, remove the extender and store in the vehicle
for future use.
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the belt is not twisted.
Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed. It cannot protect
an adult occupant or your child from injury.

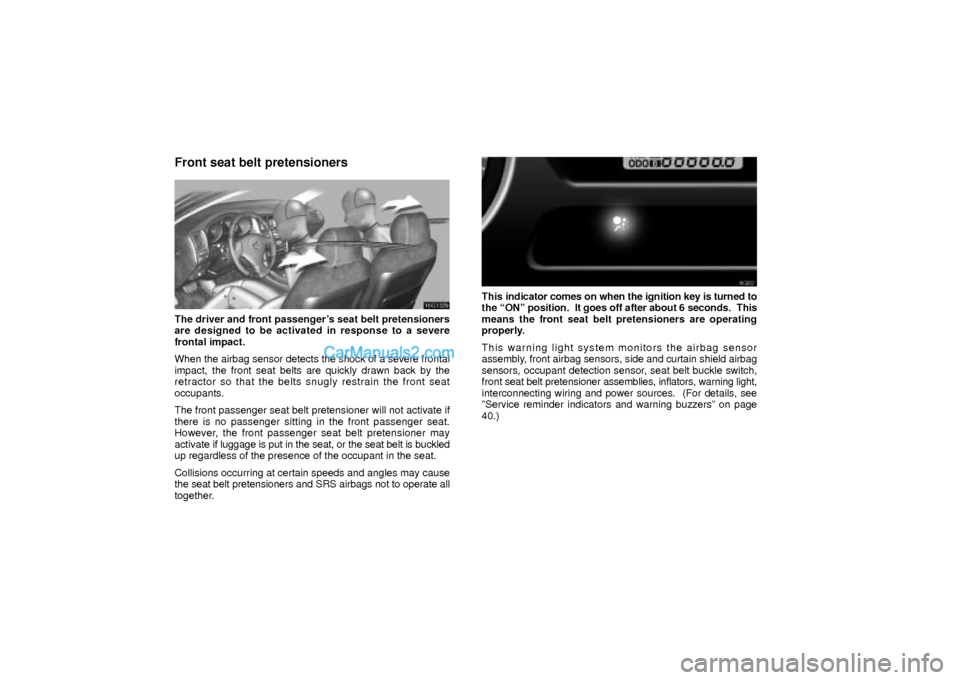

Front seat belt pretensioners
16G132b
The driver and front passenger's seat belt pretensioners
are designed to be activated in response to a severe
frontal impact.
When the airbag sensor detects the shock of a severe frontal
impact, the front seat belts are quickly drawn back by the
retractor so that the belts snugly restrain the front seat
occupants.
The front passenger seat belt pretensioner will not activate if
there is no passenger sitting in the front passenger seat.
However, the front passenger seat belt pretensioner may
activate if luggage is put in the seat, or the seat belt is buckled
up regardless of the presence of the occupant in the seat.
Collisions occurring at certain speeds and angles may cause
the seat belt pretensioners and SRS airbags not to operate all
together.
16G022
This indicator comes on when the ignition key is turned to
the ªONº position. It goes off after about 6 seconds. This
means the front seat belt pretensioners are operating
properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensors, occupant detection sensor, seat belt buckle switch,
front seat belt pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources. (For details, see
ºService reminder indicators and warning buzzersº on page
40.)

16G134a

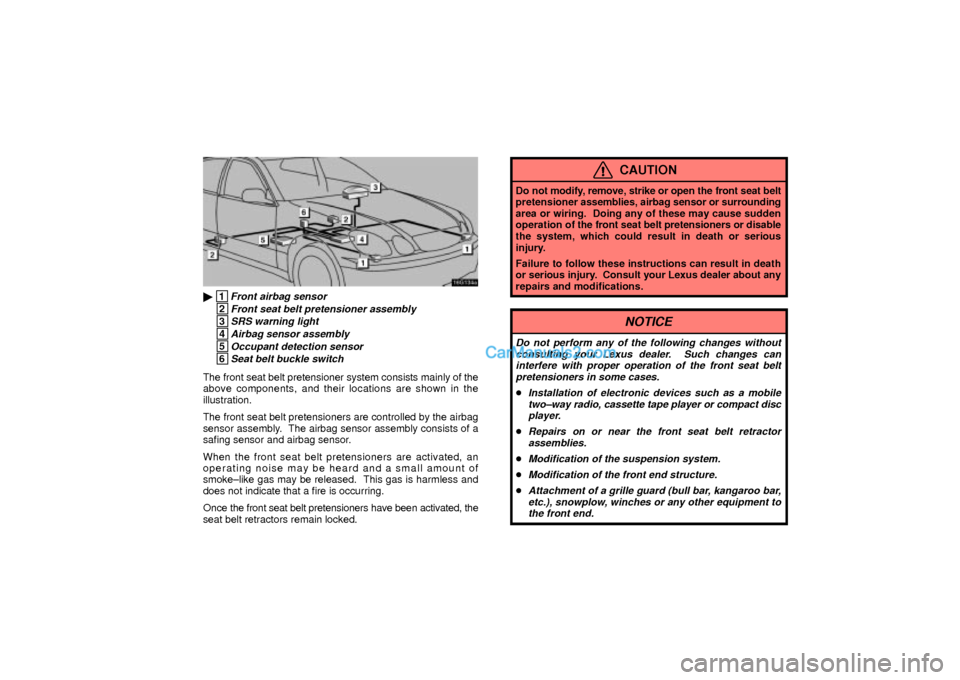

1Front airbag sensor
2Front seat belt pretensioner assembly
3SRS warning light
4Airbag sensor assembly
5Occupant detection sensor
6Seat belt buckle switch
The front seat belt pretensioner system consists mainly of the
above components, and their locations are shown in the
illustration.
The front seat belt pretensioners are controlled by the airbag
sensor assembly. The airbag sensor assembly consists of a
safing sensor and airbag sensor.
When the front seat belt pretensioners are activated, an
operating noise may be heard and a small amount of
smoke±like gas may be released. This gas is harmless and
does not indicate that a fire is occurring.
Once the front seat belt pretensioners have been activated, the
seat belt retractors remain locked.
CAUTION
Do not modify, remove, strike or open the front seat belt
pretensioner assemblies, airbag sensor or surrounding
area or wiring. Doing any of these may cause sudden
operation of the front seat belt pretensioners or disable
the system, which could result in death or serious
injury.
Failure to follow these instructions can result in death
or serious injury. Consult your Lexus dealer about any
repairs and modifications.
NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the front seat belt
pretensioners in some cases.
Installation of electronic devices such as a mobile
two±way radio, cassette tape player or compact disc
player.
Repairs on or near the front seat belt retractor
assemblies.
Modification of the suspension system.
Modification of the front end structure.
Attachment of a grille guard (bull bar, kangaroo bar,
etc.), snowplow, winches or any other equipment to
the front end.

Repairs made on or near the front fenders, front end
structure or console.
16G022

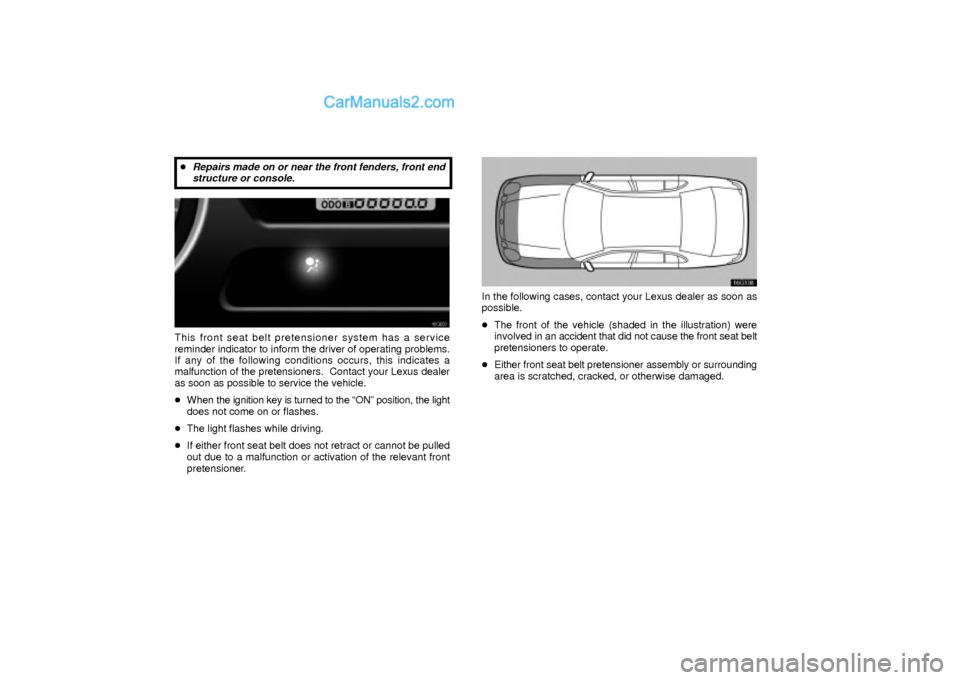

This front seat belt pretensioner system has a service
reminder indicator to inform the driver of operating problems.
If any of the following conditions occurs, this indicates a
malfunction of the pretensioners. Contact your Lexus dealer
as soon as possible to service the vehicle.
When the ignition key is turned to the ªONº position, the light
does not come on or flashes.
The light flashes while driving.
If either front seat belt does not retract or cannot be pulled
out due to a malfunction or activation of the relevant front
pretensioner.
16G136
In the following cases, contact your Lexus dealer as soon as
possible.
The front of the vehicle (shaded in the illustration) were
involved in an accident that did not cause the front seat belt
pretensioners to operate.
Either front seat belt pretensioner assembly or surrounding
area is scratched, cracked, or otherwise damaged.

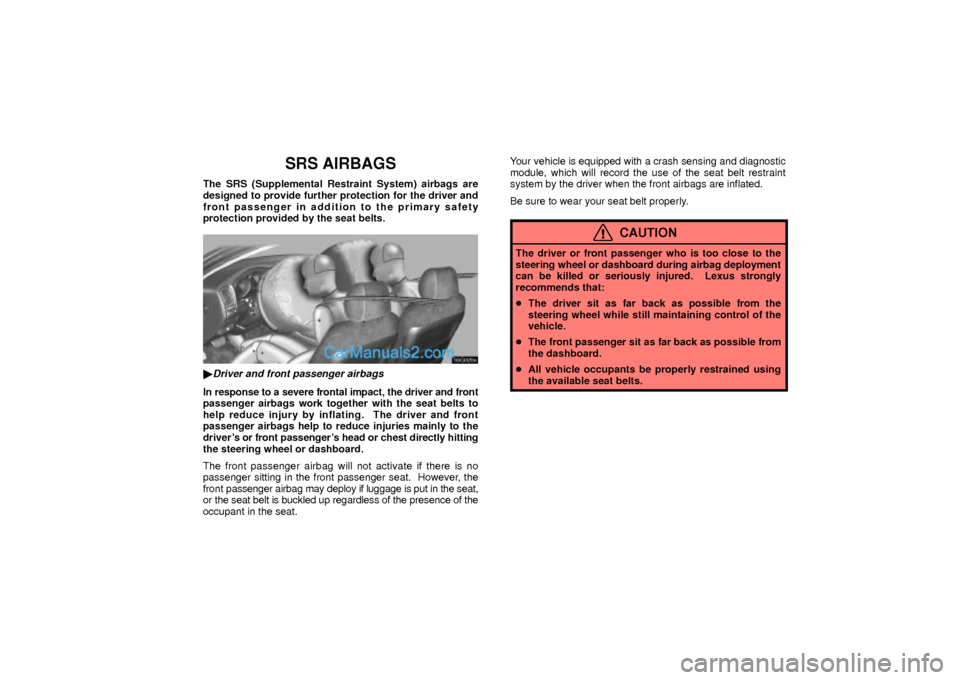

SRS AIRBAGS
The SRS (Supplemental Restraint System) airbags are
designed to provide further protection for the driver and
front passenger in addition to the primary safety
protection provided by the seat belts.
16G020c

Driver and front passenger airbags
In response to a severe frontal impact, the driver and front
passenger airbags work together with the seat belts to
help reduce injury by inflating. The driver and front
passenger airbags help to reduce injuries mainly to the
driver's or front passenger's head or chest directly hitting
the steering wheel or dashboard.
The front passenger airbag will not activate if there is no
passenger sitting in the front passenger seat. However, the
front passenger airbag may deploy if luggage is put in the seat,
or the seat belt is buckled up regardless of the presence of the
occupant in the seat.Your vehicle is equipped with a crash sensing and diagnostic
module, which will record the use of the seat belt restraint
system by the driver when the front airbags are inflated.
Be sure to wear your seat belt properly.
CAUTION
The driver or front passenger who is too close to the
steering wheel or dashboard during airbag deployment
can be killed or seriously injured. Lexus strongly
recommends that:
The driver sit as far back as possible from the
steering wheel while still maintaining control of the
vehicle.
The front passenger sit as far back as possible from
the dashboard.
All vehicle occupants be properly restrained using
the available seat belts.

16G021b

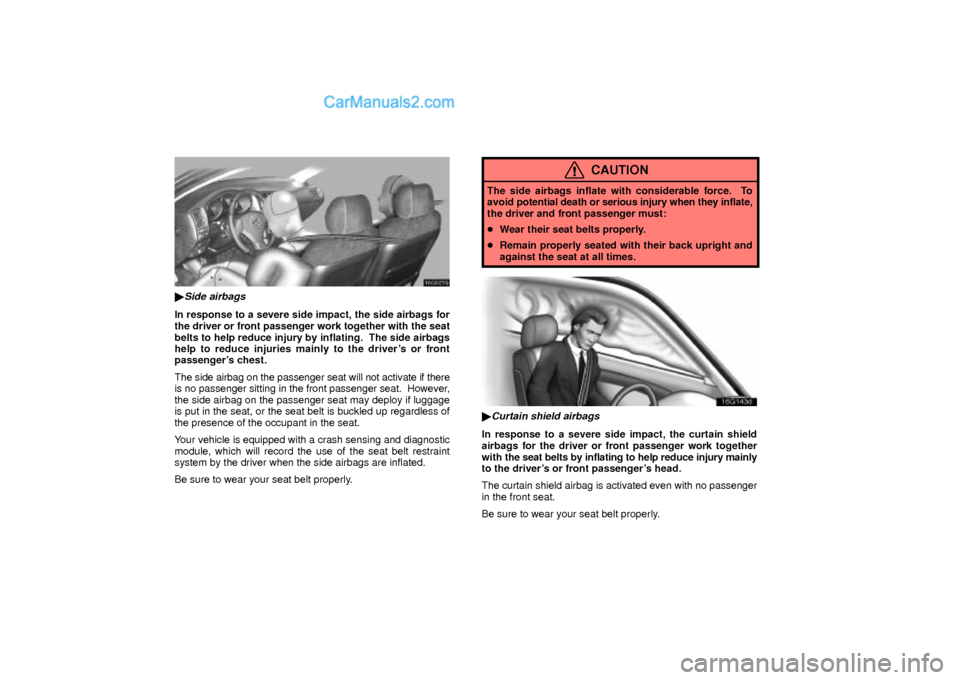

Side airbags
In response to a severe side impact, the side airbags for
the driver or front passenger work together with the seat
belts to help reduce injury by inflating. The side airbags
help to reduce injuries mainly to the driver's or front
passenger's chest.
The side airbag on the passenger seat will not activate if there
is no passenger sitting in the front passenger seat. However,
the side airbag on the passenger seat may deploy if luggage
is put in the seat, or the seat belt is buckled up regardless of
the presence of the occupant in the seat.
Your vehicle is equipped with a crash sensing and diagnostic
module, which will record the use of the seat belt restraint
system by the driver when the side airbags are inflated.
Be sure to wear your seat belt properly.
CAUTION
The side airbags inflate with considerable force. To
avoid potential death or serious injury when they inflate,
the driver and front passenger must:
Wear their seat belts properly.
Remain properly seated with their back upright and
against the seat at all times.
16G143d

Curtain shield airbags
In response to a severe side impact, the curtain shield
airbags for the driver or front passenger work together
with the seat belts by inflating to help reduce injury mainly
to the driver's or front passenger's head.
The curtain shield airbag is activated even with no passenger
in the front seat.
Be sure to wear your seat belt properly.

Your vehicle is equipped with a crash sensing and diagnostic
module, which will record the use of the seat belt restraint
system by the driver when the curtain shield airbags are
inflated.

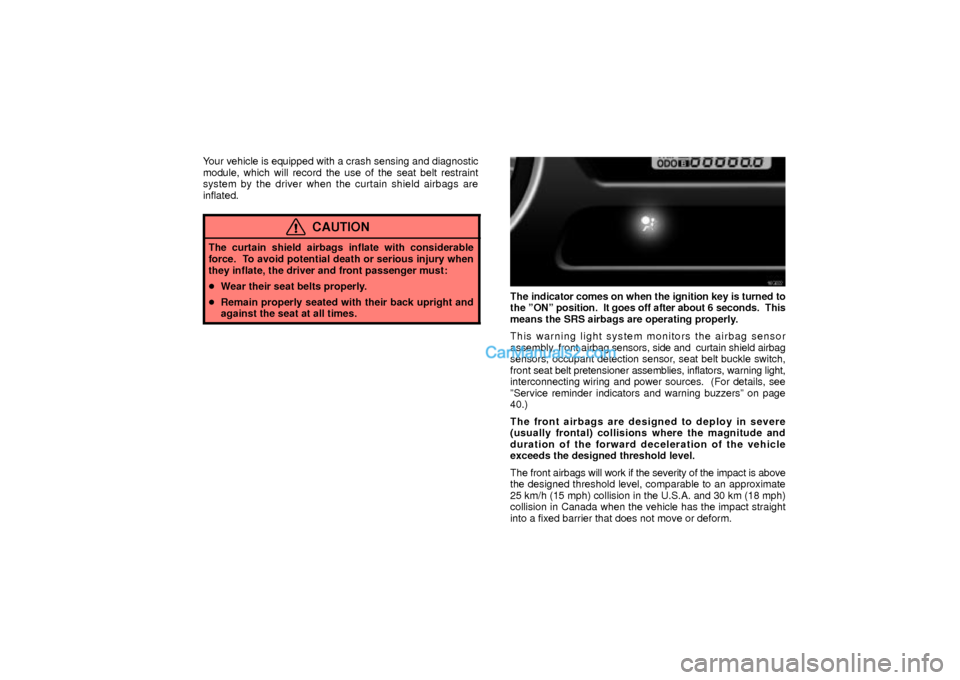

CAUTION
The curtain shield airbags inflate with considerable
force. To avoid potential death or serious injury when
they inflate, the driver and front passenger must:
Wear their seat belts properly.
Remain properly seated with their back upright and
against the seat at all times.
16G022
The indicator comes on when the ignition key is turned to
the ºONº position. It goes off after about 6 seconds. This
means the SRS airbags are operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensors, occupant detection sensor, seat belt buckle switch,
front seat belt pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources. (For details, see
ºService reminder indicators and warning buzzersº on page
40.)
The front airbags are designed to deploy in severe
(usually frontal) collisions where the magnitude and
duration of the forward deceleration of the vehicle
exceeds the designed threshold level.
The front airbags will work if the severity of the impact is above
the designed threshold level, comparable to an approximate
25 km/h (15 mph) collision in the U.S.A. and 30 km (18 mph)
collision in Canada when the vehicle has the impact straight
into a fixed barrier that does not move or deform.

However, this threshold velocity will be considerably higher if
the vehicle strikes an object, such as a parked vehicle or sign
pole, which can move or deform on impact, or if the vehicle is
involved in an underride collision (e.g. a collision in which the
front of the vehicle ºunderridesº, or goes under, the bed of a
truck, etc.).
It is possible that in some collisions where the forward
deceleration of the vehicle is very close to the designed
threshold level, the SRS airbags and the seat belt
pretensioners may not activate together.
For the safety of all occupants, always wear your seat belts
properly.
16G024a

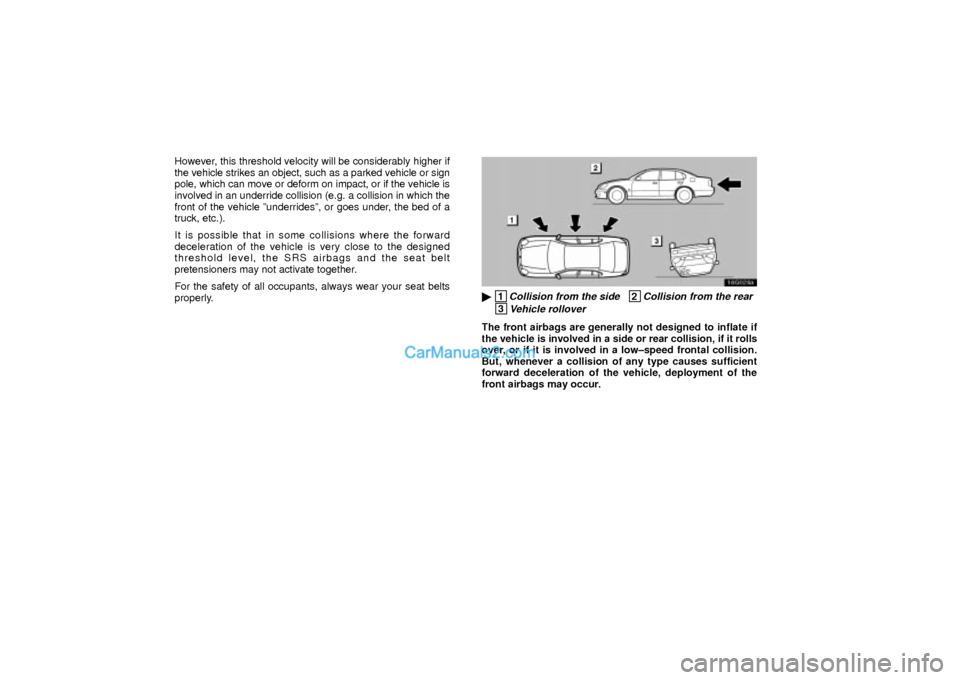

1Collision from the side 2Collision from the rear
3Vehicle rollover
The front airbags are generally not designed to inflate if
the vehicle is involved in a side or rear collision, if it rolls
over, or if it is involved in a low±speed frontal collision.
But, whenever a collision of any type causes sufficient
forward deceleration of the vehicle, deployment of the
front airbags may occur.

16G025a

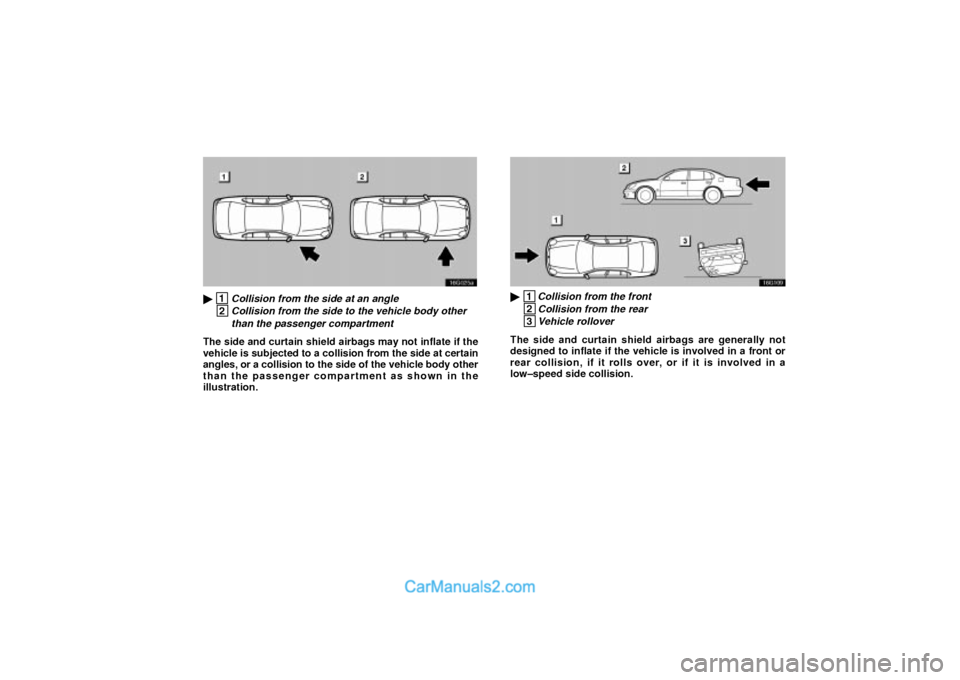

1Collision from the side at an angle
2Collision from the side to the vehicle body other
than the passenger compartment
The side and curtain shield airbags may not inflate if the
vehicle is subjected to a collision from the side at certain
angles, or a collision to the side of the vehicle body other
than the passenger compartment as shown in the
illustration.
16G109

1Collision from the front
2Collision from the rear
3Vehicle rollover
The side and curtain shield airbags are generally not
designed to inflate if the vehicle is involved in a front or
rear collision, if it rolls over, or if it is involved in a
low±speed side collision.

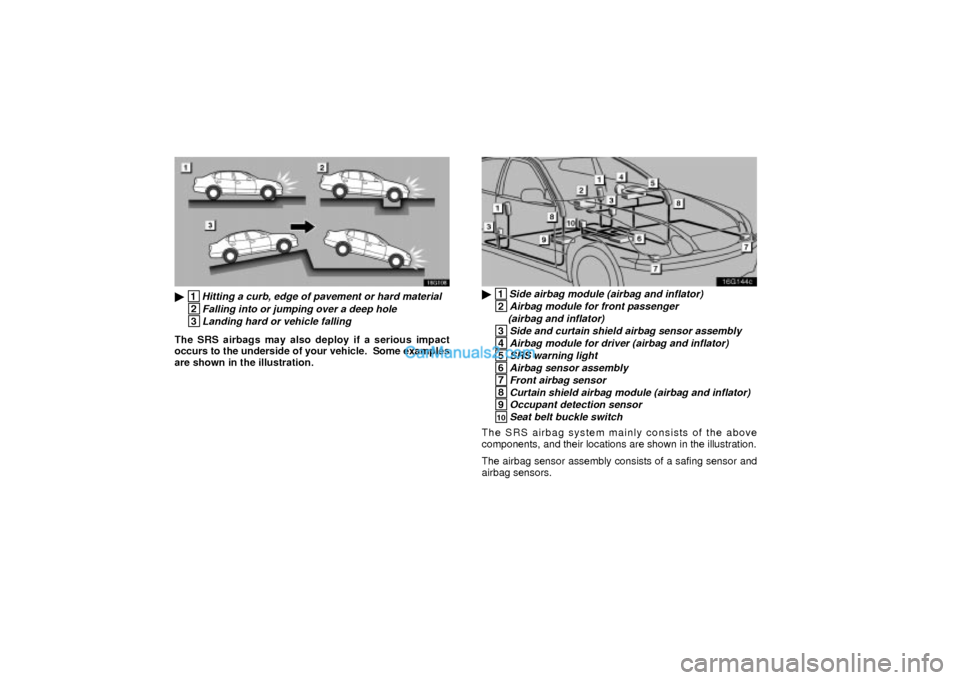

16G108

1Hitting a curb, edge of pavement or hard material
2Falling into or jumping over a deep hole
3Landing hard or vehicle falling
The SRS airbags may also deploy if a serious impact
occurs to the underside of your vehicle. Some examples
are shown in the illustration.
16G144c

1Side airbag module (airbag and inflator)
2Airbag module for front passenger
(airbag and inflator)
3Side and curtain shield airbag sensor assembly
4Airbag module for driver (airbag and inflator)
5SRS warning light
6Airbag sensor assembly
7Front airbag sensor
8Curtain shield airbag module (airbag and inflator)
9Occupant detection sensor
10Seat belt buckle switch
The SRS airbag system mainly consists of the above
components, and their locations are shown in the illustration.
The airbag sensor assembly consists of a safing sensor and
airbag sensors.
