Lexus GS300 2003 Comfort Adjustment

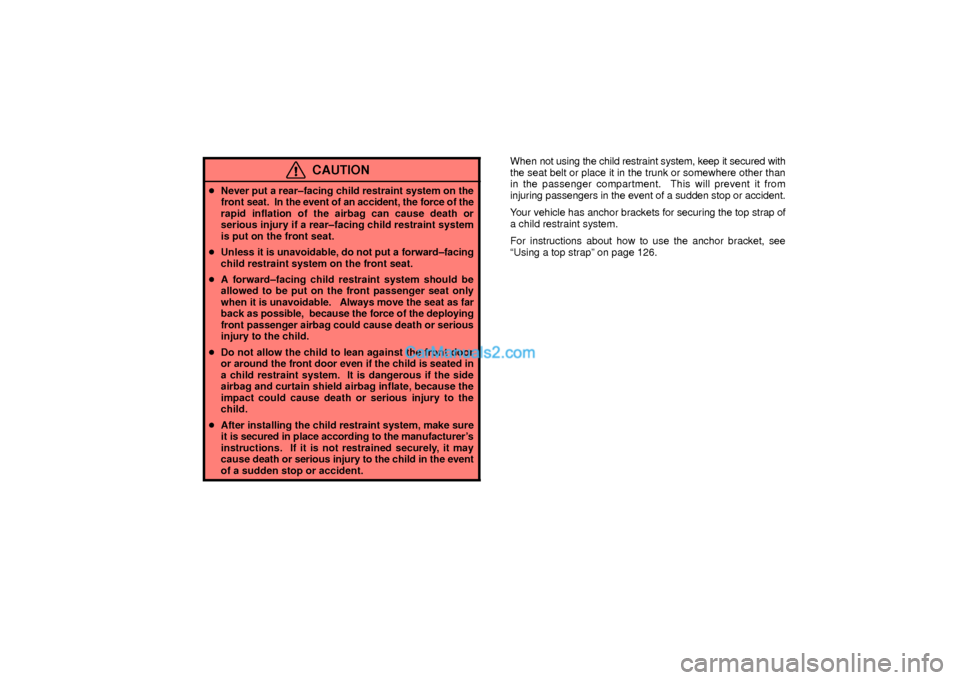

CAUTION
Never put a rear±facing child restraint system on the
front seat. In the event of an accident, the force of the
rapid inflation of the airbag can cause death or
serious injury if a rear±facing child restraint system
is put on the front seat.
Unless it is unavoidable, do not put a forward±facing
child restraint system on the front seat.
A forward±facing child restraint system should be
allowed to be put on the front passenger seat only
when it is unavoidable. Always move the seat as far
back as possible, because the force of the deploying
front passenger airbag could cause death or serious
injury to the child.
Do not allow the child to lean against the front door
or around the front door even if the child is seated in
a child restraint system. It is dangerous if the side
airbag and curtain shield airbag inflate, because the
impact could cause death or serious injury to the
child.
After installing the child restraint system, make sure
it is secured in place according to the manufacturer's
instructions. If it is not restrained securely, it may
cause death or serious injury to the child in the event
of a sudden stop or accident.
When not using the child restraint system, keep it secured with
the seat belt or place it in the trunk or somewhere other than
in the passenger compartment. This will prevent it from
injuring passengers in the event of a sudden stop or accident.
Your vehicle has anchor brackets for securing the top strap of
a child restraint system.
For instructions about how to use the anchor bracket, see
ªUsing a top strapº on page 126.

Types of child restraint system
Child restraint systems are classified into the following 3 types
depending on the child's age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following the instructions
provided by its manufacturer.
Child restraint lower anchorages approved for your vehicle
may also be used. See ªInstallation with child restraint lower
anchoragesº on page 127.
(A) Infant seat
16G066a
(B) Convertible seat
16G035
(C) Booster seat
16G037

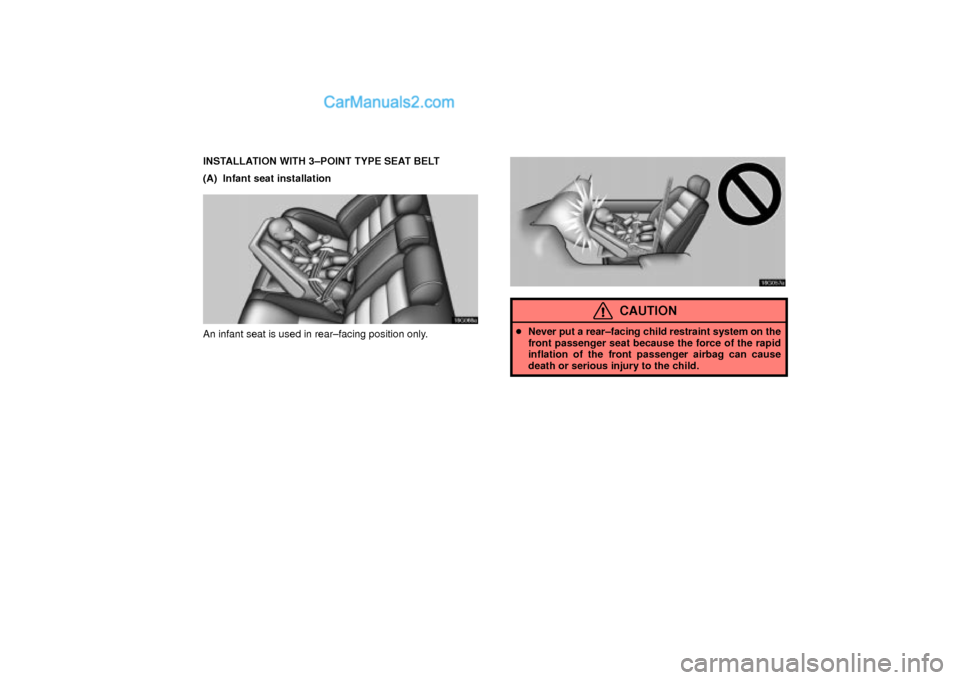

INSTALLATION WITH 3±POINT TYPE SEAT BELT
(A) Infant seat installation
16G066a
An infant seat is used in rear±facing position only.
16G057a
CAUTION
Never put a rear±facing child restraint system on the
front passenger seat because the force of the rapid
inflation of the front passenger airbag can cause
death or serious injury to the child.

16g040
If the driver's seat position does not allow sufficient
space for safe installation, install the child restraint
system on the rear right seat.
16G067
1. Run the lap and shoulder belt through or around the infant
seat following the instructions provided by its manufacturer
and inserting the tab into the buckle taking care not to twist the
belt. Keep the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the child restraint system until the seat belt is fixed.
It cannot protect your child from injury.

16G068

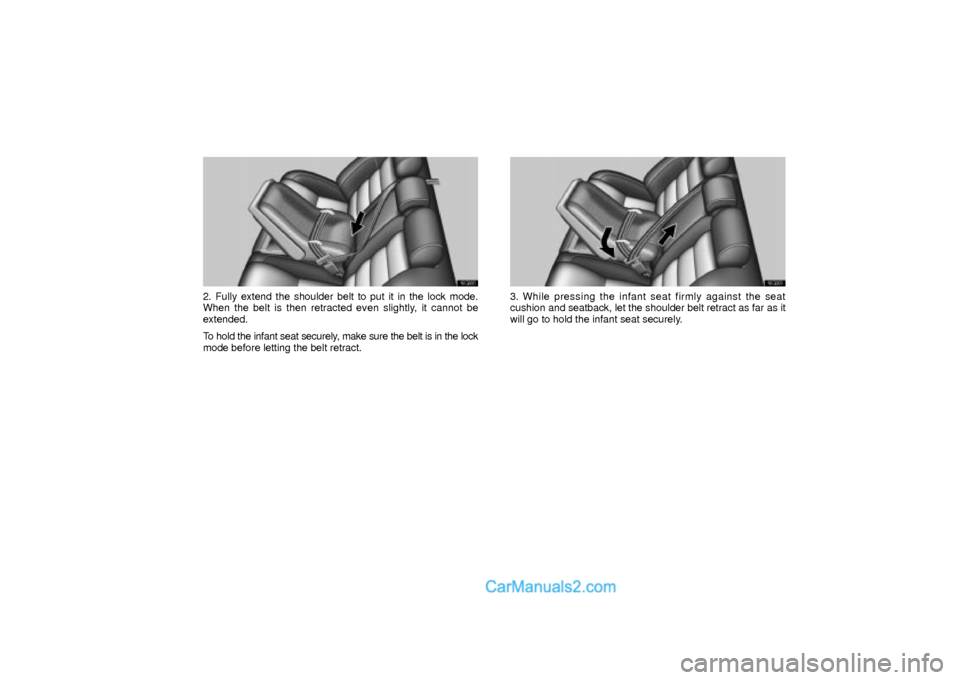

2. Fully extend the shoulder belt to put it in the lock mode.
When the belt is then retracted even slightly, it cannot be
extended.
To hold the infant seat securely, make sure the belt is in the lock
mode before letting the belt retract.
16G069
3. While pressing the infant seat firmly against the seat
cushion and seatback, let the shoulder belt retract as far as it
will go to hold the infant seat securely.

16G070

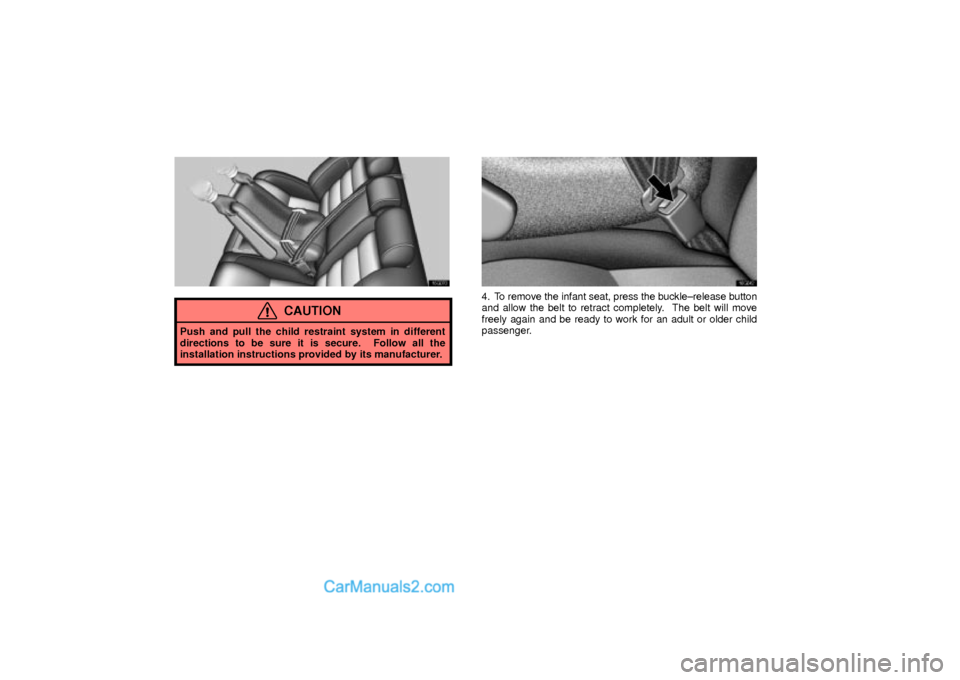

CAUTION
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its manufacturer.
16G042
4. To remove the infant seat, press the buckle±release button
and allow the belt to retract completely. The belt will move
freely again and be ready to work for an adult or older child
passenger.

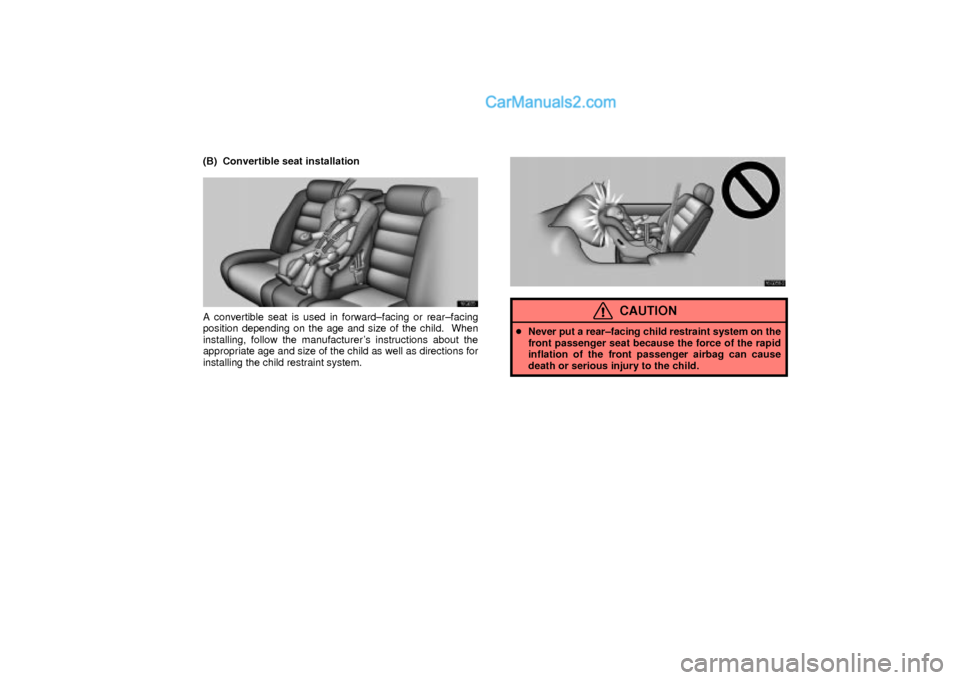

(B) Convertible seat installation
16G035
A convertible seat is used in forward±facing or rear±facing
position depending on the age and size of the child. When
installing, follow the manufacturer's instructions about the
appropriate age and size of the child as well as directions for
installing the child restraint system.
16G058±2
CAUTION
Never put a rear±facing child restraint system on the
front passenger seat because the force of the rapid
inflation of the front passenger airbag can cause
death or serious injury to the child.

16G059±2

Move seat fully back
A forward±facing child restraint system should be
allowed to be put on the front passenger seat only
when it is unavoidable. Always move the seat as far
back as possible, because the force of the deploying
front passenger airbag could cause death or serious
injury to the child.
Do not allow the child to lean against the front door
or around the front door even if the child is seated in
a child restraint system. It is dangerous if the side
airbag and curtain shield airbags inflate, because the
impact could cause death or serious injury to the
child.
16g141
If the driver's seat position does not allow sufficient
space for safe installation, install the child restraint
system on the rear right seat.

16G046

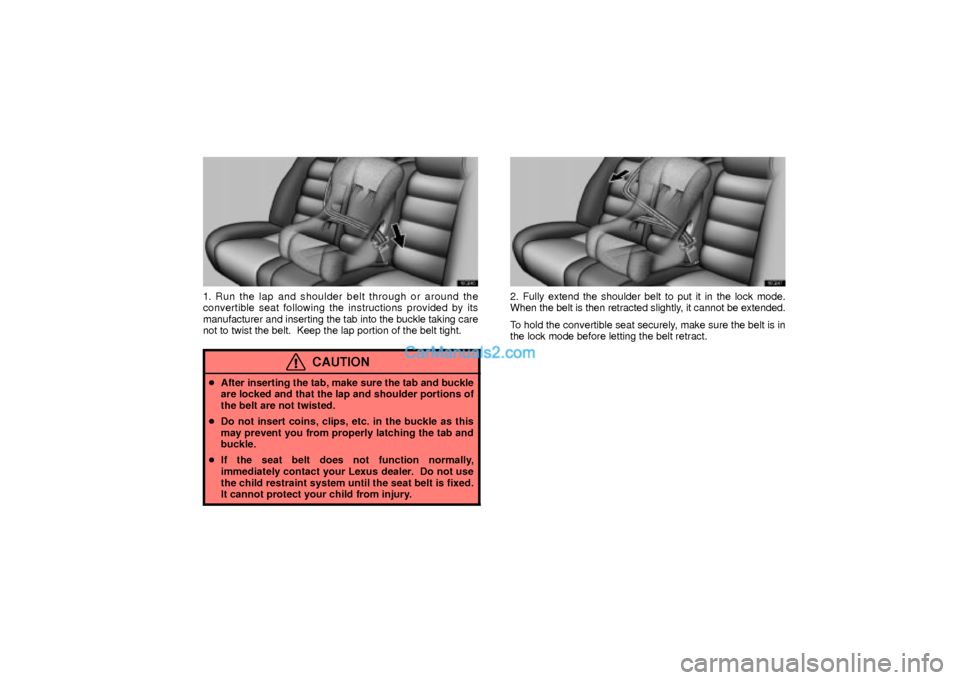

1. Run the lap and shoulder belt through or around the
convertible seat following the instructions provided by its
manufacturer and inserting the tab into the buckle taking care
not to twist the belt. Keep the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the child restraint system until the seat belt is fixed.
It cannot protect your child from injury.
16G047
2. Fully extend the shoulder belt to put it in the lock mode.
When the belt is then retracted slightly, it cannot be extended.
To hold the convertible seat securely, make sure the belt is in
the lock mode before letting the belt retract.

16G048

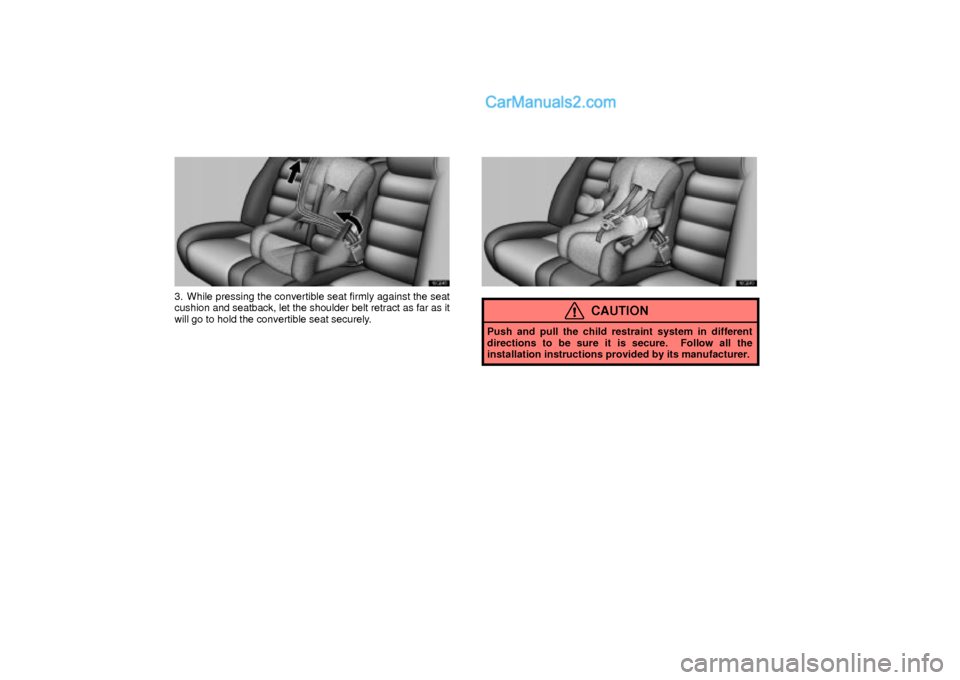

3. While pressing the convertible seat firmly against the seat
cushion and seatback, let the shoulder belt retract as far as it
will go to hold the convertible seat securely.
16G049
CAUTION
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its manufacturer.
