Page 6 of 66
AUDIO
278
Using your audio system: some basics
This section describes some of the basic features of the Lexus
audio system. Some information may not pertain to your
system.
Your audio system works when the engine switch is selected
in “ACC” or “IG−ON” mode.
NOTICE
To prevent the battery from being discharged, do not
leave the audio system on longer than necessary when
the engine is not running.
Vehicles with navigation system only:
G21047
By pushing the button above, you can operate the speech
command system.
For the operation of the speech command system, see the
“Navigation System Owner’s Manual”.
Page 28 of 66
AUDIO
300
CD player operation
(a) Inserting or ejecting CDs
The engine switch must be in “ACC” or “IG−ON” mode.
Your automatic changer can store up to 6 discs.
G22022
Setting a single CD:
1. Push the “LOAD” button briefly.
The green indicators at both ends of the slot start blinking and
“WAIT” appears on the display. After the blinking indicators
stay on and the “WAIT” changes to the “LOAD”, the CD door
opens.2. Insert only one disc while the CD door is open.
You can set a disc at the lowest empty disc number.
After insertion, the set disc is automatically loaded.
If the label faces downward, the disc cannot be played. In this
case, “CD CHECK” appears on the display.
If you need to insert the next disc, repeat the same procedure
to insert another disc.
Setting all the discs:
1. Push the “LOAD” button until you hear a beep.
The green indicators at both ends of the slot start blinking and
“WAIT” appears on the display. After the blinking indicators
stay on and the “WAIT” changes to the “LOAD”, the CD door
opens.
2. Insert only one disc while the CD door is open.
The CD door closes and “WAIT” appears again.
3. Insert the next disc after the “WAIT” changes to the
“LOAD” and the CD door opens.
4. Repeat this procedure until you insert all the discs.
To cancel the operation, push the “LOAD” or “DISC” button.
If you do not insert the discs within 15 seconds after pushing
the “LOAD” button and “LOAD” is displayed, the operation will
be canceled automatically.
Page 35 of 66
AUDIO
307

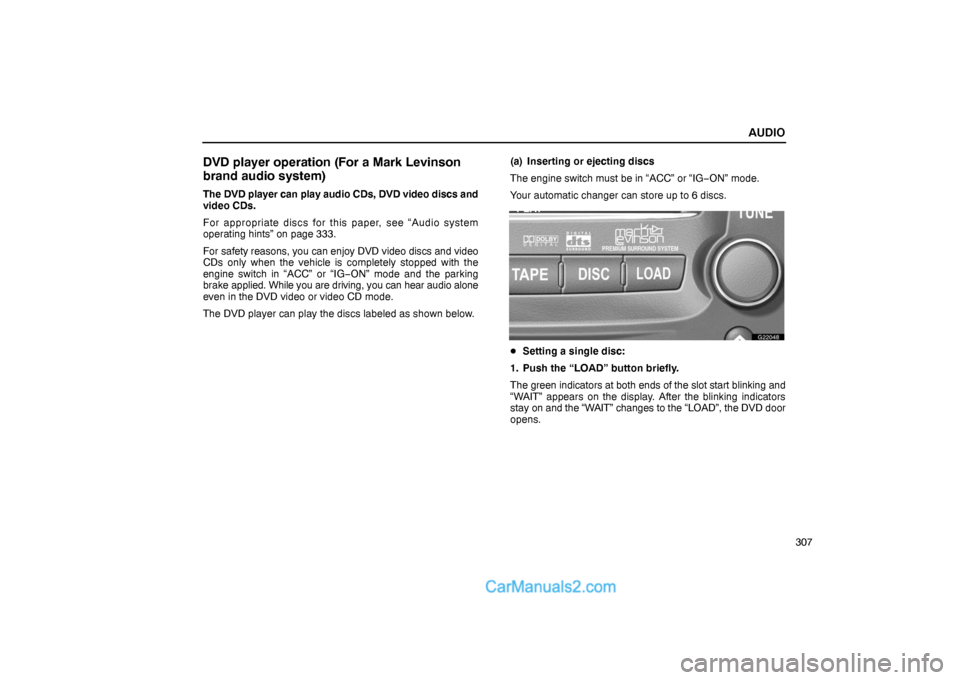

DVD player operation (For a Mark Levinson
brand audio system)
The DVD player can play audio CDs, DVD video discs and
video CDs.
For appropriate discs for this paper, see “Audio system
operating hints” on page 333.
For safety reasons, you can enjoy DVD video discs and video
CDs only when the vehicle is completely stopped with the
engine switch in “ACC” or “IG−ON” mode and the parking
brake applied. While you are driving, you can hear audio alone
even in the DVD video or video CD mode.
The DVD player can play the discs labeled as shown below.(a) Inserting or ejecting discs
The engine switch must be in “ACC” or “IG−ON” mode.
Your automatic changer can store up to 6 discs.
G22048
Setting a single disc:
1. Push the “LOAD” button briefly.
The green indicators at both ends of the slot start blinking and
“WAIT” appears on the display. After the blinking indicators
stay on and the “WAIT” changes to the “LOAD”, the DVD door
opens.
Page 43 of 66
AUDIO
315

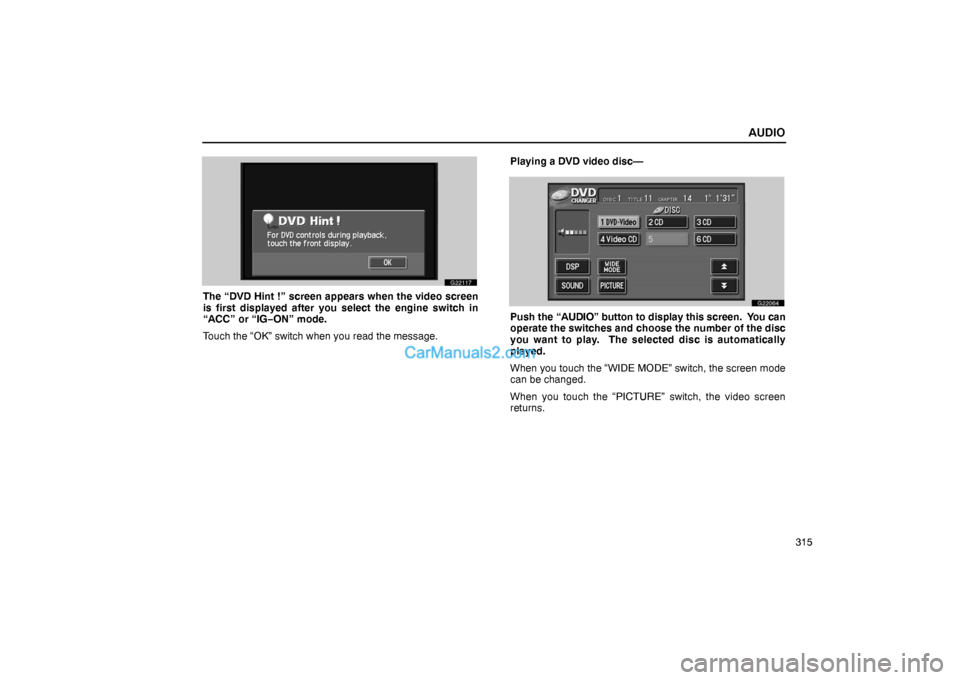

G22117
The “DVD Hint !” screen appears when the video screen
is first displayed after you select the engine switch in
“ACC” or “IG−ON” mode.
Touch the “OK” switch when you read the message.Playing a DVD video disc—
G22064
Push the “AUDIO” button to display this screen. You can
operate the switches and choose the number of the disc
you want to play. The selected disc is automatically
played.
When you touch the “WIDE MODE” switch, the screen mode
can be changed.
When you touch the “PICTURE” switch, the video screen
returns.
Page 59 of 66
AUDIO

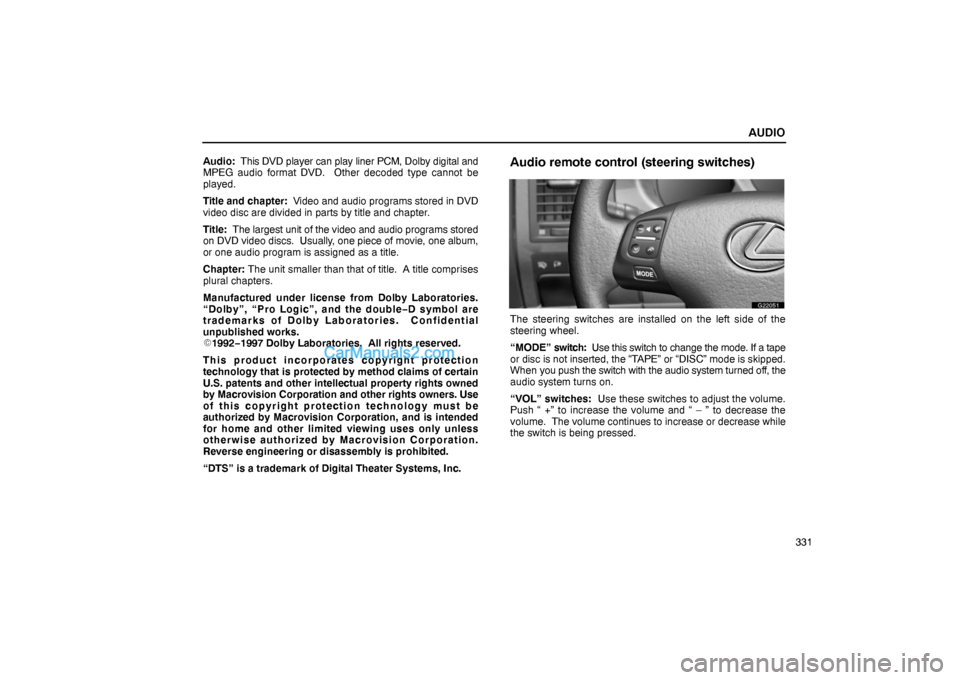

331 Audio: This DVD player can play liner PCM, Dolby digital and
MPEG audio format DVD. Other decoded type cannot be
played.
Title and chapter: Video and audio programs stored in DVD
video disc are divided in parts by title and chapter.
Title: The largest unit of the video and audio programs stored
on DVD video discs. Usually, one piece of movie, one album,
or one audio program is assigned as a title.
Chapter: The unit smaller than that of title. A title comprises
plural chapters.
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double−D symbol are
trademarks of Dolby Laboratories. Confidential
unpublished works.
1992−1997 Dolby Laboratories. All rights reserved.
This product incorporates copyright protection
technology that is protected by method claims of certain
U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use
of this copyright protection technology must be
authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
“DTS” is a trademark of Digital Theater Systems, Inc.
Audio remote control (steering switches)
G22051
The steering switches are installed on the left side of the
steering wheel.
“MODE” switch: Use this switch to change the mode. If a tape
or disc is not inserted, the “TAPE” or “DISC” mode is skipped.
When you push the switch with the audio system turned off, the
audio system turns on.
“VOL” switches: Use these switches to adjust the volume.
Push “ +” to increase the volume and “ – ” to decrease the
volume. The volume continues to increase or decrease while
the switch is being pressed.
