Lexus GS300 2006  Electrical Components SECTION   6 – 4
563
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications564 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking batt

Page 2 of 26

Lexus GS300 2006  Electrical Components ELECTRICAL COMPONENTS
564
SPECIFICATIONS
− FUSE LOCATION
G64001
 1
Engine compartment
 2
Left side kick panel
 3
Right side kick panel
 4
Engine compartment 5
Trunk− FUSES
G64002
Right side kick

Page 3 of 26

Lexus GS300 2006  Electrical Components ELECTRICAL COMPONENTS
565
g64004
Engine compartment
G64005
Engine compartment (GS430)
G64006
Engine compartment (GS300)
G64007
Trunk

Page 4 of 26

Lexus GS300 2006  Electrical Components ELECTRICAL COMPONENTS
566

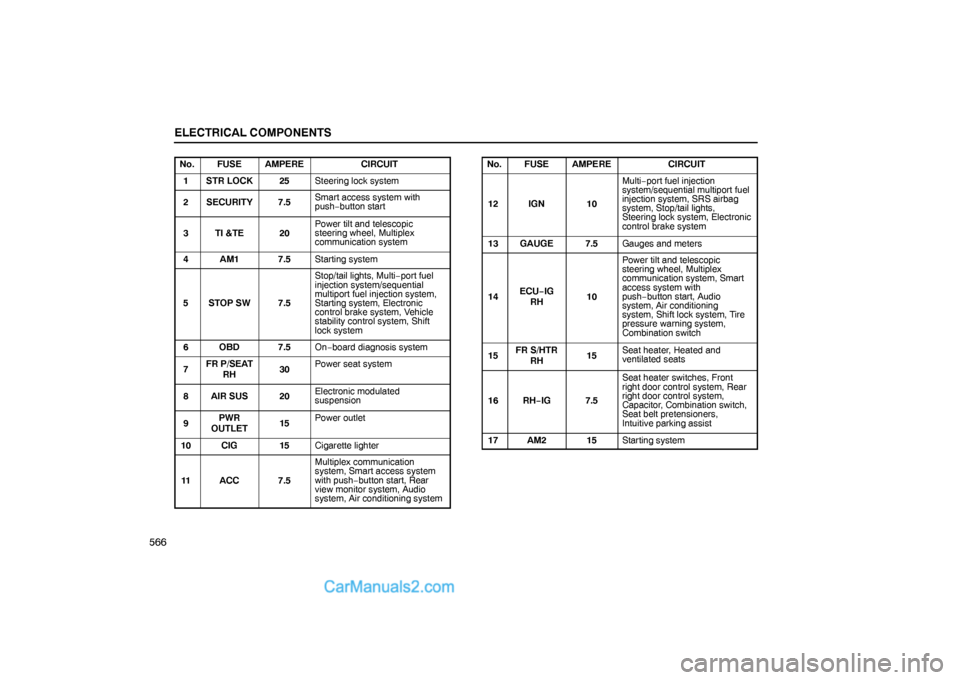

No.FUSEAMPERECIRCUIT
1 STR LOCK25Steering lock system
2 SECURITY7.5Smart access system with
push−button start
3 TI &TE20Power tilt and telescopic
steering wheel, Multiplex

Page 5 of 26

Lexus GS300 2006  Electrical Components ELECTRICAL COMPONENTS
567
No.FUSEAMPERECIRCUIT
18 FR DOOR
RH20
Front right door control system
(Power door lock system,
Power rear view mirror control
system, Door courtesy light,
Outside rear view mi

Page 6 of 26

Lexus GS300 2006  Electrical Components ELECTRICAL COMPONENTS
568
No.FUSEAMPERECIRCUIT
28 ECU−IG LH10
Vehicle stability control system,
Electronic control brake system,
Yaw rate and G sensor,
Steering sensor, Cruise control
system, Dynami

Page 7 of 26

Lexus GS300 2006  Electrical Components ELECTRICAL COMPONENTS
569
No.FUSEAMPERECIRCUIT
47 ABS
MAIN110Capacitor
48 E/G−B60“FR CTRL BATT”, “ETCS” and
“ALT−S”
49 ABS150Vehicle stability control system,
“ABS MAIN1”, “ABS M

Page 8 of 26

Lexus GS300 2006  Electrical Components ELECTRICAL COMPONENTS
570
No.FUSEAMPERECIRCUIT
70 A/F15Multi−port fuel injection
system/sequential multiport fuel
injection system
71 ETCS10Multi−port fuel injection
system/sequential multiport fu

Page 9 of 26

Lexus GS300 2006  Electrical Components ELECTRICAL COMPONENTS
571
No.FUSEAMPERECIRCUIT
97 STOP LP R10High mounted stoplights
98 RR TAIL10License plate lights, Tail lights,
Rear side marker lights
CHECKING BATTERY CONDITION
Precautions
CAUTI

Page 10 of 26

Lexus GS300 2006  Electrical Components ELECTRICAL COMPONENTS
572
If electrolyte gets on your skin, thoroughly wash the
contacted area.  If you feel a pain or burn, get medical
attention immediately.
If electrolyte gets on your clothes, t
