ELECTRICAL COMPONENTS
573
NOTICE
Make sure the engine and all accessories are turned
off before performing maintenance.
When checking the battery, remove the ground cable
first and reinstall it last.
Be careful not to cause a short circuit with tools.
Take care no solution gets into the battery when
washing it.
If the battery is disconnected or run down
The following functions may not operate correctly when you
reconnect or replace the battery. In these cases, you should
normalize each system referring to the following pages.
Power windows (See page 59.)
Moon roof (See page 134.)
Variable gear ratio steering system (See page 424.)
Intuitive parking assist (See page 380.)
Checking battery condition
Checking by indicator
G64009
Check the battery condition by the indicator color.
1
BLUE − Good condition.
2
WHITE − Charging necessary. Have the battery checked
by your Lexus dealer.
3
RED − Have the battery checked by your Lexus dealer.
NOTICE
Do not refill the battery with water.
Page 12 of 26
ELECTRICAL COMPONENTS
574
BATTERY RECHARGING
PRECAUTIONS
During recharging, the battery is producing hydrogen
gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be
sure to disconnect the ground cable.
2. Make sure the power switch on the recharger is off when
connecting the charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an unconfined area. Do
not charge the battery in a garage or closed room
where there is not sufficient ventilation.
Only do a slow charge (5 A or less). Charging at a
quicker rate is dangerous. The battery may explode
causing personal injuries.
NOTICE
Never recharge the battery while the engine is running.
Also, be sure all accessories are turned off.
CHECKING AND REPLACING THE
BLADE TYPE FUSES
G64010
Left side kick panel
G64011
Right side kick panel
Page 13 of 26
ELECTRICAL COMPONENTS
575
G64012
Engine compartment
G64013
Engine compartment 1
Pull−out tool 2
Spare fuses
G64014
Trunk
1. Turn the engine switch off and open the fuse box lid.
Determine which fuse may be causing the problem. The lid of
the fuse box shows the name of the circuit for each fuse.
Page 14 of 26
ELECTRICAL COMPONENTS
576
64L013
2. Make sure the inoperative component is turned off. Pull
the suspected fuse straight out with the pull−out tool and
check it. If it has blown, push a new fuse into the clips.
64G008a
GoodBlown
a. Look carefully at the fuse. If the thin wire is broken, the fuse
has blown. If you are not sure or if it is too dark to see, try
replacing the suspected fuse with one of the same value that
you know is good.
b. Install only a fuse with the amperage rating designated on
the fuse box lid.
If you do not have a spare fuse, in an emergency you can pull
out the ”CIG”, ”RAD NO.1” or ”OBD” fuse, which may be
dispensable for normal driving, and use it if its amperage rating
is the same.
If you cannot use one of the same amperage, use one lower
than, but as close to the amperage as possible. If the
amperage is lower than that specified, the fuse might blow out
again but this does not indicate anything wrong. Be sure to get
the correct fuse as soon as possible and return the substitute
to its original clips.
Page 15 of 26
ELECTRICAL COMPONENTS
577 It is a good idea to purchase a set of spare fuses and keep them
in your vehicle for emergencies.
If the new fuse immediately blows out, there is a problem with
the electrical system. Have your Lexus dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher amperage rating, or any
other object, in place of a fuse. This may cause
extensive damage and possibly a fire.
CHECKING THE CARTRIDGE TYPE
FUSES
G64015
Engine compartment
Page 16 of 26
ELECTRICAL COMPONENTS

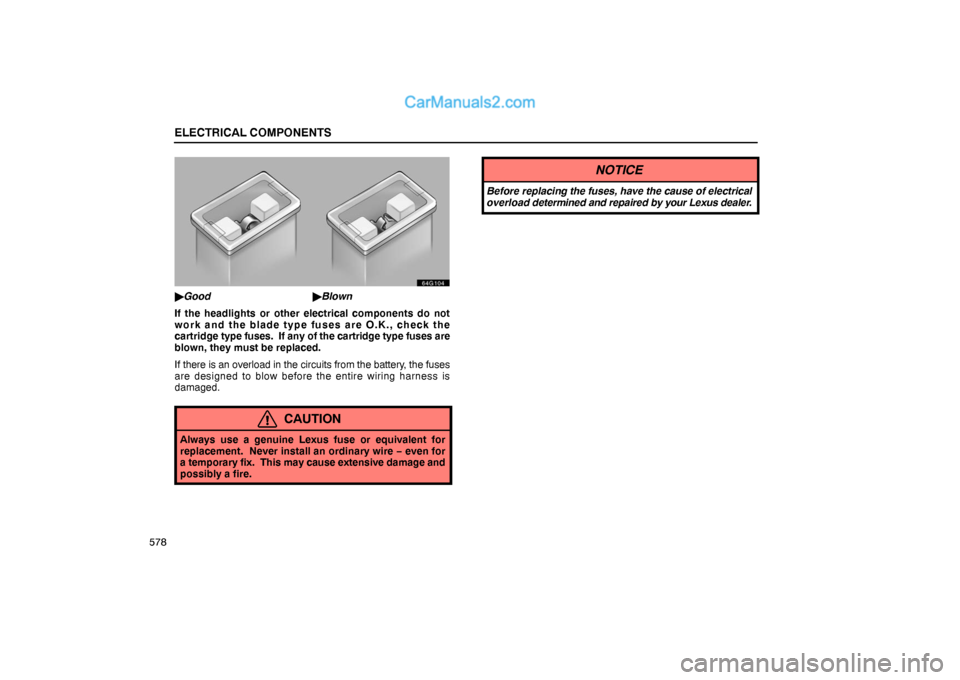

578
64g104
GoodBlown
If the headlights or other electrical components do not
work and the blade type fuses are O.K., check the
cartridge type fuses. If any of the cartridge type fuses are
blown, they must be replaced.
If there is an overload in the circuits from the battery, the fuses
are designed to blow before the entire wiring harness is
damaged.
CAUTION
Always use a genuine Lexus fuse or equivalent for
replacement. Never install an ordinary wire − even for
a temporary fix. This may cause extensive damage and
possibly a fire.
NOTICE
Before replacing the fuses, have the cause of electrical
overload determined and repaired by your Lexus dealer.
Page 17 of 26
ELECTRICAL COMPONENTS
579
ADDING WASHER FLUID
If the washer tank becomes nearly empty, add washer
fluid.
You may use plain water as washer fluid. However, in cold
areas where temperatures range below the freezing point, use
washer fluid containing antifreeze. This product is available at
your Lexus dealer and most auto parts stores. Follow the
manufacturer’s directions for how much to mix with water.
NOTICE
Do not use engine antifreeze or any other substitute
because it may damage your vehicle’s paint.
CHECKING THE HEADLIGHT AIM
G64020
1
Beam angle gauge
(horizontal movement for high beam)
2
Beam angle gauge
(vertical movement for high beam)
3
Beam angle gauge
(vertical movement for low beam)
4
Beam angle gauge
(horizontal movement for low beam)
Before checking the headlight aim:
1. Be sure that the body around the headlight is not deformed.
2. Park the vehicle on a level spot.
3. The driver gets into the driver’s seat and puts the vehicle in
a state readying for a driving (with a full tank).
4. Bounce the vehicle several times.
Page 18 of 26
ELECTRICAL COMPONENTS
580

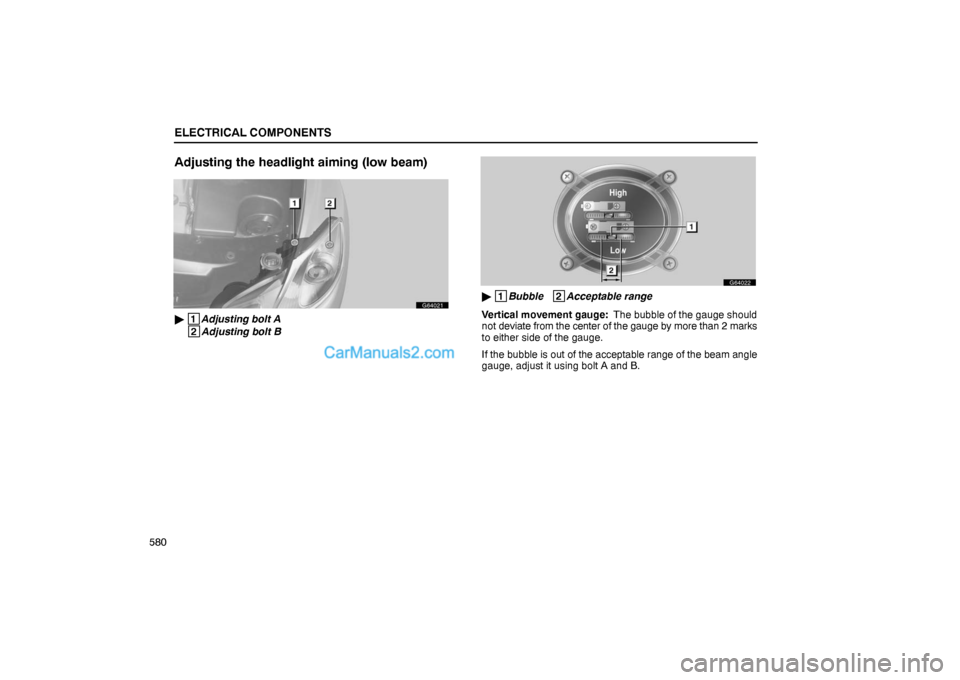

Adjusting the headlight aiming (low beam)
G64021
1
Adjusting bolt A
2
Adjusting bolt B
G64022
1
Bubble 2
Acceptable range
Vertical movement gauge: The bubble of the gauge should
not deviate from the center of the gauge by more than 2 marks
to either side of the gauge.
If the bubble is out of the acceptable range of the beam angle
gauge, adjust it using bolt A and B.
Page 19 of 26
ELECTRICAL COMPONENTS

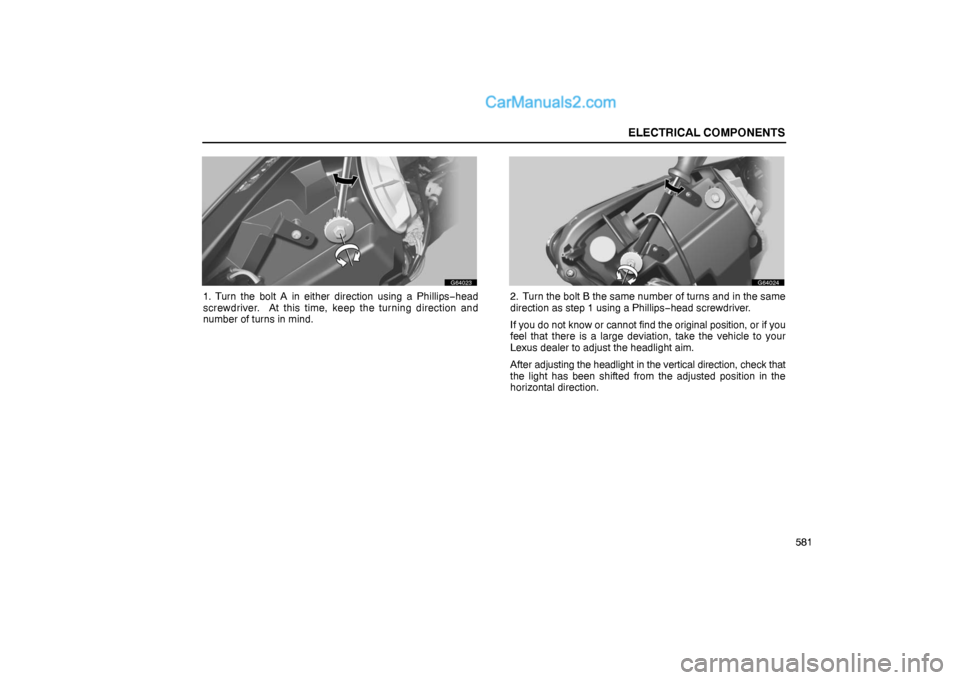

581
G64023
1. Turn the bolt A in either direction using a Phillips−head
screwdriver. At this time, keep the turning direction and
number of turns in mind.
G64024
2. Turn the bolt B the same number of turns and in the same
direction as step 1 using a Phillips−head screwdriver.
If you do not know or cannot find the original position, or if you
feel that there is a large deviation, take the vehicle to your
Lexus dealer to adjust the headlight aim.
After adjusting the headlight in the vertical direction, check that
the light has been shifted from the adjusted position in the
horizontal direction.
Page 20 of 26
ELECTRICAL COMPONENTS
582

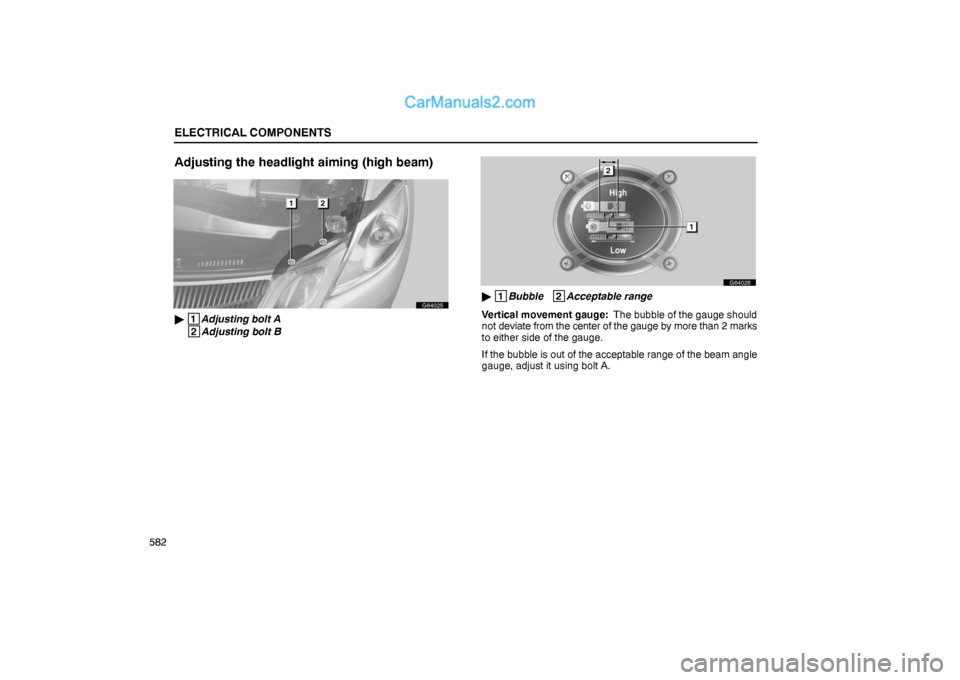

Adjusting the headlight aiming (high beam)
G64025
1
Adjusting bolt A
2
Adjusting bolt B
G64026
1
Bubble 2
Acceptable range
Vertical movement gauge: The bubble of the gauge should
not deviate from the center of the gauge by more than 2 marks
to either side of the gauge.
If the bubble is out of the acceptable range of the beam angle
gauge, adjust it using bolt A.
