STARTING AND DRIVING

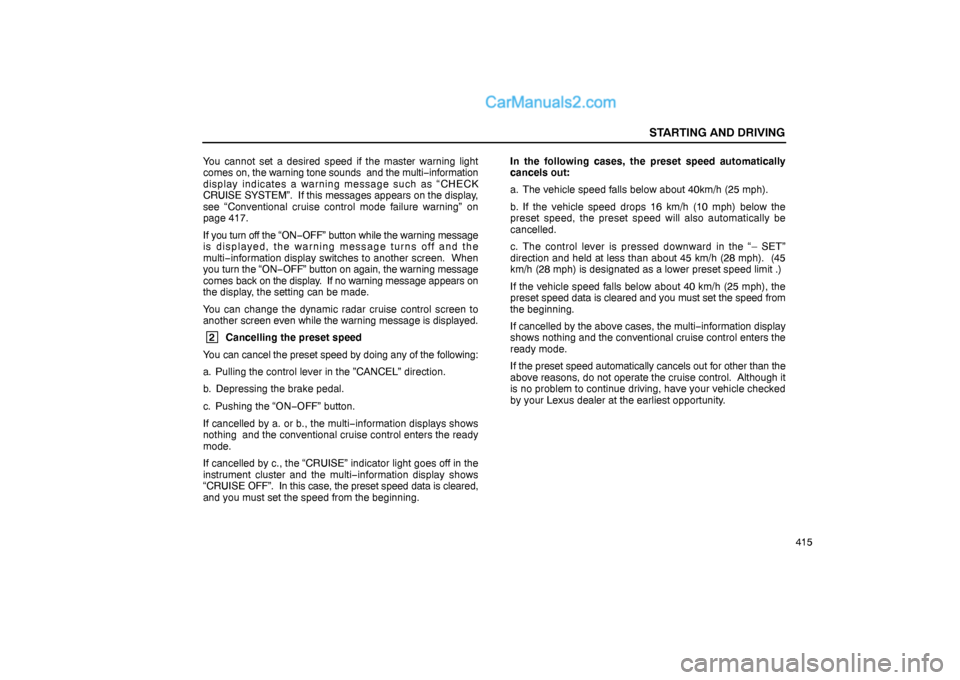

415 You cannot set a desired speed if the master warning light
comes on, the warning tone sounds and the multi−information
display indicates a warning message such as “CHECK
CRUISE SYSTEM”. If this messages appears on the display,
see “Conventional cruise control mode failure warning” on
page 417.
If you turn off the “ON−OFF” button while the warning message
is displayed, the warning message turns off and the
multi−information display switches to another screen. When
you turn the “ON−OFF” button on again, the warning message
comes back on the display. If no warning message appears on
the display, the setting can be made.
You can change the dynamic radar cruise control screen to
another screen even while the warning message is displayed.
2
Cancelling the preset speed
You can cancel the preset speed by doing any of the following:
a. Pulling the control lever in the ”CANCEL” direction.
b. Depressing the brake pedal.
c. Pushing the “ON−OFF” button.
If cancelled by a. or b., the multi−information displays shows
nothing and the conventional cruise control enters the ready
mode.
If cancelled by c., the “CRUISE” indicator light goes off in the
instrument cluster and the multi−information display shows
“CRUISE OFF”. In this case, the preset speed data is cleared,
and you must set the speed from the beginning.In the following cases, the preset speed automatically
cancels out:
a. The vehicle speed falls below about 40km/h (25 mph).
b. If the vehicle speed drops 16 km/h (10 mph) below the
preset speed, the preset speed will also automatically be
cancelled.
c. The control lever is pressed downward in the “– SET”
direction and held at less than about 45 km/h (28 mph). (45
km/h (28 mph) is designated as a lower preset speed limit .)
If the vehicle speed falls below about 40 km/h (25 mph), the
preset speed data is cleared and you must set the speed from
the beginning.
If cancelled by the above cases, the multi−information display
shows nothing and the conventional cruise control enters the
ready mode.
If the preset speed automatically cancels out for other than the
above reasons, do not operate the cruise control. Although it
is no problem to continue driving, have your vehicle checked
by your Lexus dealer at the earliest opportunity.

STARTING AND DRIVING
417
5

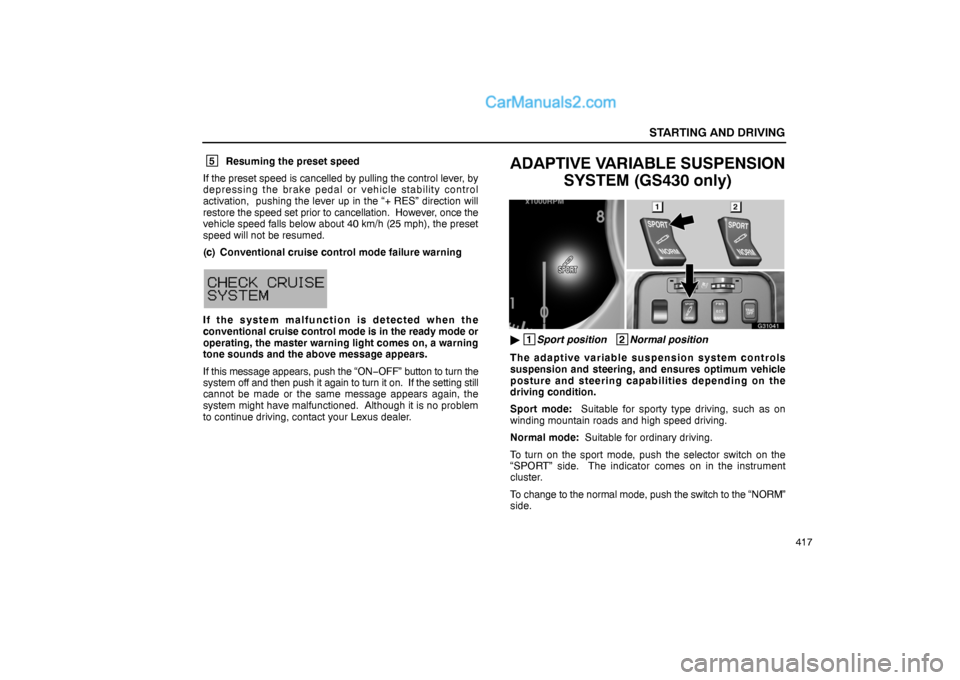

Resuming the preset speed
If the preset speed is cancelled by pulling the control lever, by
depressing the brake pedal or vehicle stability control
activation, pushing the lever up in the “+ RES” direction will
restore the speed set prior to cancellation. However, once the
vehicle speed falls below about 40 km/h (25 mph), the preset
speed will not be resumed.
(c) Conventional cruise control mode failure warning
G13075
If the system malfunction is detected when the
conventional cruise control mode is in the ready mode or
operating, the master warning light comes on, a warning
tone sounds and the above message appears.
If this message appears, push the “ON−OFF” button to turn the
system off and then push it again to turn it on. If the setting still
cannot be made or the same message appears again, the
system might have malfunctioned. Although it is no problem
to continue driving, contact your Lexus dealer.
ADAPTIVE VARIABLE SUSPENSION
SYSTEM (GS430 only)
G31041

1
Sport position 2
Normal position
The adaptive variable suspension system controls
suspension and steering, and ensures optimum vehicle
posture and steering capabilities depending on the
driving condition.
Sport mode: Suitable for sporty type driving, such as on
winding mountain roads and high speed driving.
Normal mode: Suitable for ordinary driving.
To turn on the sport mode, push the selector switch on the
“SPORT” side. The indicator comes on in the instrument
cluster.
To change to the normal mode, push the switch to the “NORM”
side.
