sensor Lexus GS300 2006 Starting and Driving

STARTING AND DRIVING
400
G31013

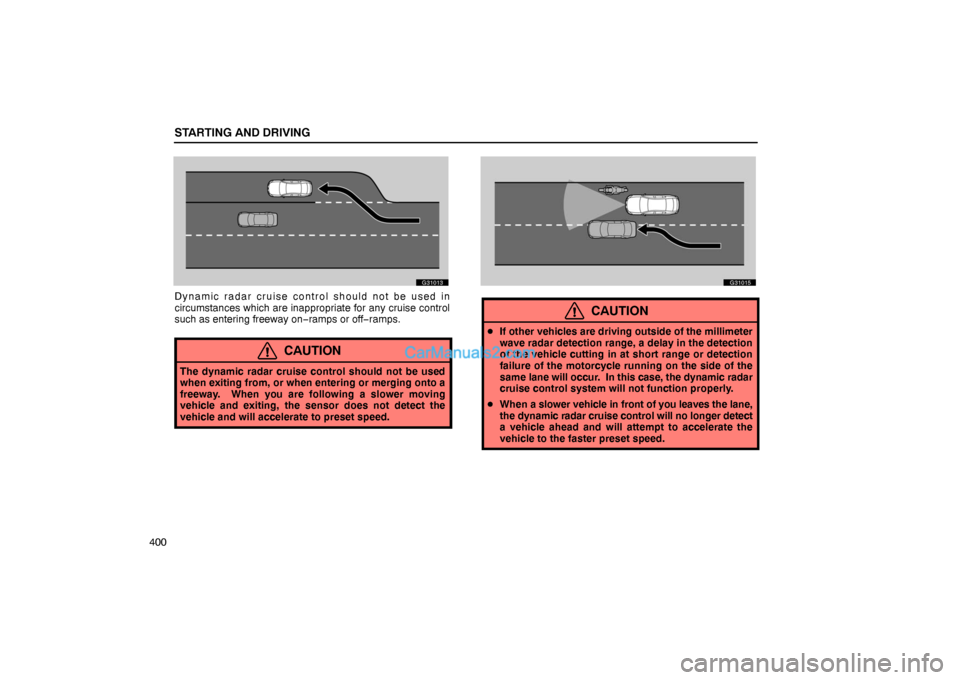

Dynamic radar cruise control should not be used in
circumstances which are inappropriate for any cruise control
such as entering freeway on−ramps or off−ramps.
CAUTION
The dynamic radar cruise control should not be used
when exiting from, or when entering or merging onto a
freeway. When you are following a slower moving
vehicle and exiting, the sensor does not detect the
vehicle and will accelerate to preset speed.
G31015
CAUTION
If other vehicles are driving outside of the millimeter
wave radar detection range, a delay in the detection
of the vehicle cutting in at short range or detection
failure of the motorcycle running on the side of the
same lane will occur. In this case, the dynamic radar
cruise control system will not function properly.
When a slower vehicle in front of you leaves the lane,
the dynamic radar cruise control will no longer detect
a vehicle ahead and will attempt to accelerate the
vehicle to the faster preset speed.

STARTING AND DRIVING
402(c) Setting operation
G31014

Each function is described below.
1
Setting the desired speed
The transmission must be in “D”, “6” (sixth range), “5” (fifth
range) or “4”(fourth range) before you set the cruise control
speed.After bringing the vehicle to the desired speed, press the
control lever downward in the “– SET” direction and release it.
This sets the vehicle at that speed. At this time, the
multi−information display indicates settings such as the preset
vehicle speed, whether a vehicle is present ahead and
selected vehicle−to−vehicle distance. If there is no vehicle
detected ahead, the dynamic radar cruise control screen does
not display the vehicle ahead. At this time, you may take your
foot off the accelerator pedal. If you need to accelerate − for
example, when passing − depress the accelerator pedal
enough for the vehicle to exceed the preset speed. When you
release the accelerator pedal, the vehicle will return to the
control prior to acceleration.
You cannot set a desired speed if the master warning light
comes on, the warning tone sounds and the multi−information
display indicates a warning message such as “CRUISE NOT
AVAILABLE”, “CLEAN RADAR SENSOR” or “CHECK
CRUISE SYSTEM”. If any of the above messages appears on
the display, see “Vehicle−to−vehicle distance control mode
failure warning” on page 410.
If you turn off the “ON−OFF” button while the warning message
is displayed, the warning message turns off and the
multi−information display switches to another screen. If no
warning message appears on the display, when you turn the
“ON−OFF” button on again, the setting can be made.
You can change the dynamic radar cruise control screen to
another screen even while the warning message is displayed.

STARTING AND DRIVING
403
2
Cancelling the preset speed
You can cancel the preset speed by doing any of the following:
a. Pulling the control lever, in the ”CANCEL” direction.
b. Depressing the brake pedal.
c. Pushing the “ON−OFF” button.
If cancelled by a. or b., the multi−information display shows
“RADAR READY” and the dynamic radar cruise control enters
the ready mode.
If cancelled by c., the “CRUISE” indicator light goes off in the
instrument cluster and the multi−information display shows
“CRUISE OFF”. In this case, the preset speed data is cleared,
and you must set the speed from the beginning.
In the following case, the preset speed automatically
cancels out. At this time, the multi−information display
shows “RADAR READY” and the dynamic radar cruise
control enters the ready mode.
The vehicle speed falls below about 40 km/h (25 mph). (40
km/h (25 mph) is designated as a cancel speed.)
CAUTION
In this case, the warning tone reminds you that the
dynamic radar cruise control is cancelled and you must
apply the brakes to slow the vehicle.
In the following cases, the warning messages appear and
the preset speed automatically cancels out. When
dynamic radar cruise control is restored, the warning
messages turn off and dynamic radar cruise control
enters “RADAR READY” mode.
a. The slip indicator light blinks and a warning tone sounds.
(This occurs when the vehicle is about to skid.)
b. The driving pattern selector switch is set to snow mode.
c. The anti−lock brake system is activated by automatic
braking. (The warning tone sounds.)
d. The sensor does not operate properly because a foreign
matter sticks to the sensor.
e. The wipers are operated at high speed (including high
speed operation with the wiper lever in the “AUTO” position.)
NOTICE
If the preset speed automatically cancels out for other
than the above reasons, do not operate the dynamic
radar cruise control. Although it is no problem to
continue driving, have your vehicle checked by your
Lexus dealer at the earliest opportunity.

STARTING AND DRIVING

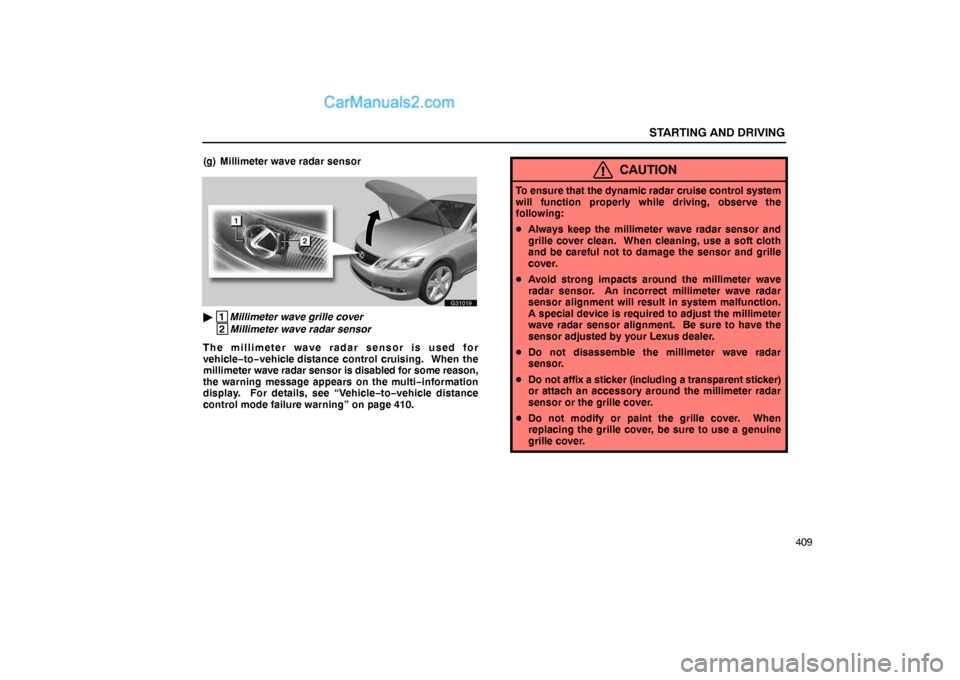

409 (g) Millimeter wave radar sensor
G31019

1
Millimeter wave grille cover
2
Millimeter wave radar sensor
The millimeter wave radar sensor is used for
vehicle−to−vehicle distance control cruising. When the
millimeter wave radar sensor is disabled for some reason,
the warning message appears on the multi−information
display. For details, see “Vehicle−to−vehicle distance
control mode failure warning” on page 410.
CAUTION
To ensure that the dynamic radar cruise control system
will function properly while driving, observe the
following:
Always keep the millimeter wave radar sensor and
grille cover clean. When cleaning, use a soft cloth
and be careful not to damage the sensor and grille
cover.
Avoid strong impacts around the millimeter wave
radar sensor. An incorrect millimeter wave radar
sensor alignment will result in system malfunction.
A special device is required to adjust the millimeter
wave radar sensor alignment. Be sure to have the
sensor adjusted by your Lexus dealer.
Do not disassemble the millimeter wave radar
sensor.
Do not affix a sticker (including a transparent sticker)
or attach an accessory around the millimeter radar
sensor or the grille cover.
Do not modify or paint the grille cover. When
replacing the grille cover, be sure to use a genuine
grille cover.

STARTING AND DRIVING

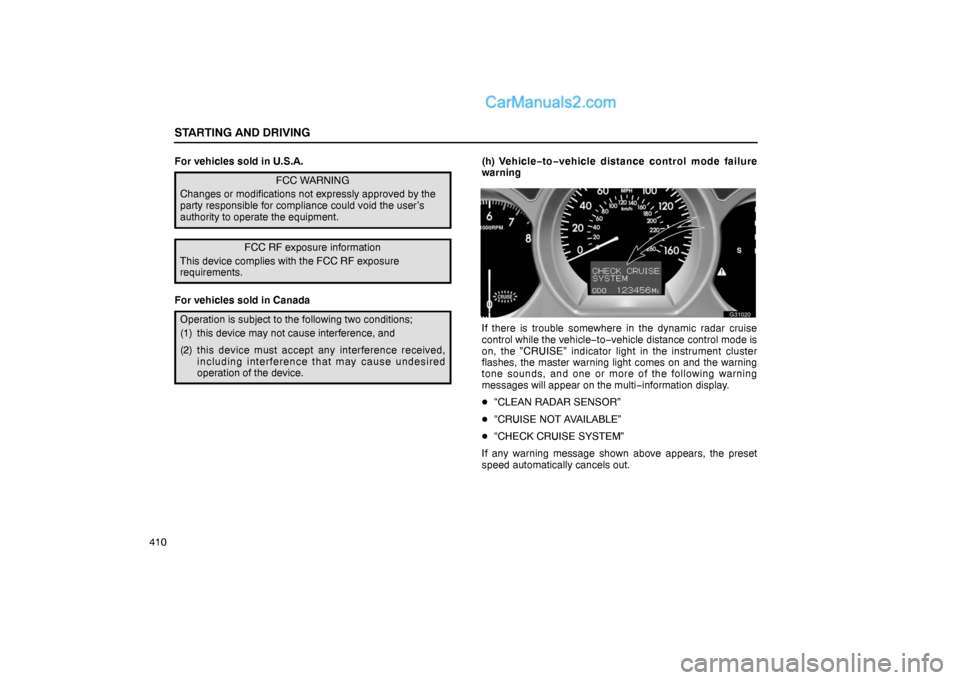

410For vehicles sold in U.S.A.
FCC WARNING
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
FCC RF exposure information
This device complies with the FCC RF exposure
requirements.
For vehicles sold in Canada
Operation is subject to the following two conditions;
(1) this device may not cause interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
(h) Vehicle−to−vehicle distance control mode failure
warning
G31020
If there is trouble somewhere in the dynamic radar cruise
control while the vehicle−to−vehicle distance control mode is
on, the ”CRUISE” indicator light in the instrument cluster
flashes, the master warning light comes on and the warning
tone sounds, and one or more of the following warning
messages will appear on the multi−information display.
“CLEAN RADAR SENSOR”
“CRUISE NOT AVAILABLE”
“CHECK CRUISE SYSTEM”
If any warning message shown above appears, the preset
speed automatically cancels out.

STARTING AND DRIVING
411

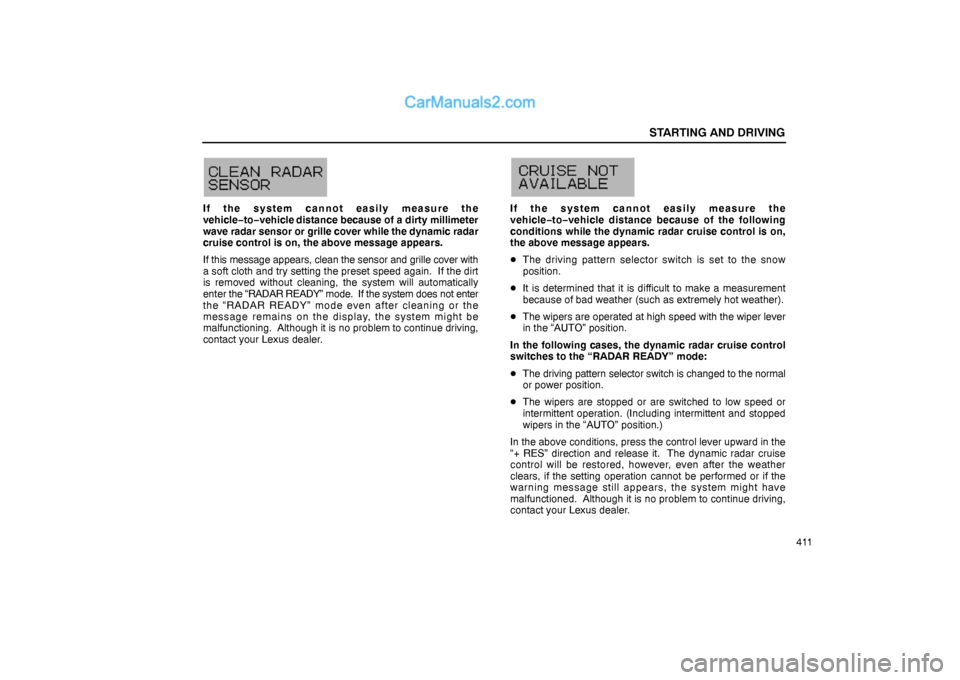

G13073
If the system cannot easily measure the
vehicle−to−vehicle distance because of a dirty millimeter
wave radar sensor or grille cover while the dynamic radar
cruise control is on, the above message appears.
If this message appears, clean the sensor and grille cover with
a soft cloth and try setting the preset speed again. If the dirt
is removed without cleaning, the system will automatically
enter the “RADAR READY” mode. If the system does not enter
the “RADAR READY” mode even after cleaning or the
message remains on the display, the system might be
malfunctioning. Although it is no problem to continue driving,
contact your Lexus dealer.
G13074
If the system cannot easily measure the
vehicle−to−vehicle distance because of the following
conditions while the dynamic radar cruise control is on,
the above message appears.
The driving pattern selector switch is set to the snow
position.
It is determined that it is difficult to make a measurement
because of bad weather (such as extremely hot weather).
The wipers are operated at high speed with the wiper lever
in the “AUTO” position.
In the following cases, the dynamic radar cruise control
switches to the “RADAR READY” mode:
The driving pattern selector switch is changed to the normal
or power position.
The wipers are stopped or are switched to low speed or
intermittent operation. (Including intermittent and stopped
wipers in the “AUTO” position.)
In the above conditions, press the control lever upward in the
“+ RES” direction and release it. The dynamic radar cruise
control will be restored, however, even after the weather
clears, if the setting operation cannot be performed or if the
warning message still appears, the system might have
malfunctioned. Although it is no problem to continue driving,
contact your Lexus dealer.

STARTING AND DRIVING
429
CAUTION
Do not overestimate the anti−lock brake system:
Although the anti−lock brake system assists in
providing vehicle control, it is still important to drive
with all due care and maintain a moderate speed and
safe distance from the vehicle in front of you, because
there are limits to the vehicle stability and effectiveness
of steering wheel operation even with the anti−lock
brake system on.
If tire grip performance exceeds its capability, or if
hydroplaning occurs during high speed driving in the
rain, the anti−lock brake system does not provide
vehicle control.
Anti−lock brake system is not designed to shorten the
stopping distance: Always drive at a moderate speed
and maintain a safe distance from the vehicle in front of
you. Compared with vehicles without an anti−lock
brake system, your vehicle may require a longer
stopping distance in the following cases:
Driving on rough, gravel or snow−covered roads.
Driving with tire chains installed.
Driving over the steps such as the joints on the road.
Driving on roads where the road surface is pitted or
has other differences in surface height.
Install all 4 tires of specified size at appropriate
pressure: The anti−lock brake system detects vehicle
speeds using the speed sensors for respective wheels’
turning speeds. The use of tires other than specified
may fail to detect the accurate turning speed resulting
in a longer stopping distance.

STARTING AND DRIVING

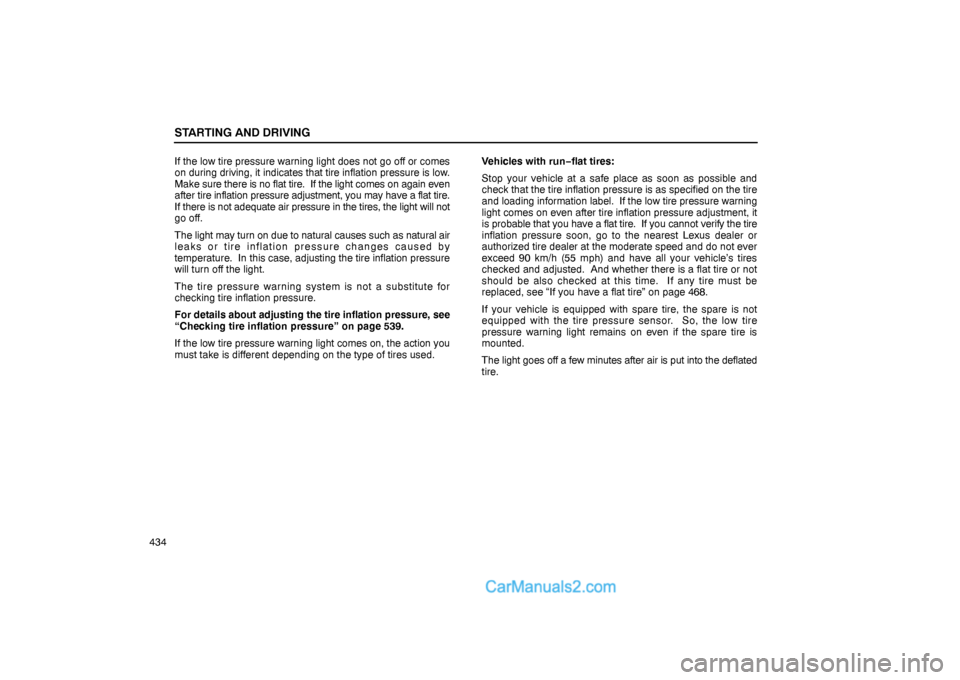

434If the low tire pressure warning light does not go off or comes
on during driving, it indicates that tire inflation pressure is low.
Make sure there is no flat tire. If the light comes on again even
after tire inflation pressure adjustment, you may have a flat tire.
If there is not adequate air pressure in the tires, the light will not
go off.
The light may turn on due to natural causes such as natural air
leaks or tire inflation pressure changes caused by
temperature. In this case, adjusting the tire inflation pressure
will turn off the light.
The tire pressure warning system is not a substitute for
checking tire inflation pressure.
For details about adjusting the tire inflation pressure, see
“Checking tire inflation pressure” on page 539.
If the low tire pressure warning light comes on, the action you
must take is different depending on the type of tires used.Vehicles with run−flat tires:
Stop your vehicle at a safe place as soon as possible and
check that the tire inflation pressure is as specified on the tire
and loading information label. If the low tire pressure warning
light comes on even after tire inflation pressure adjustment, it
is probable that you have a flat tire. If you cannot verify the tire
inflation pressure soon, go to the nearest Lexus dealer or
authorized tire dealer at the moderate speed and do not ever
exceed 90 km/h (55 mph) and have all your vehicle’s tires
checked and adjusted. And whether there is a flat tire or not
should be also checked at this time. If any tire must be
replaced, see “If you have a flat tire” on page 468.
If your vehicle is equipped with spare tire, the spare is not
equipped with the tire pressure sensor. So, the low tire
pressure warning light remains on even if the spare tire is
mounted.
The light goes off a few minutes after air is put into the deflated
tire.

STARTING AND DRIVING
435

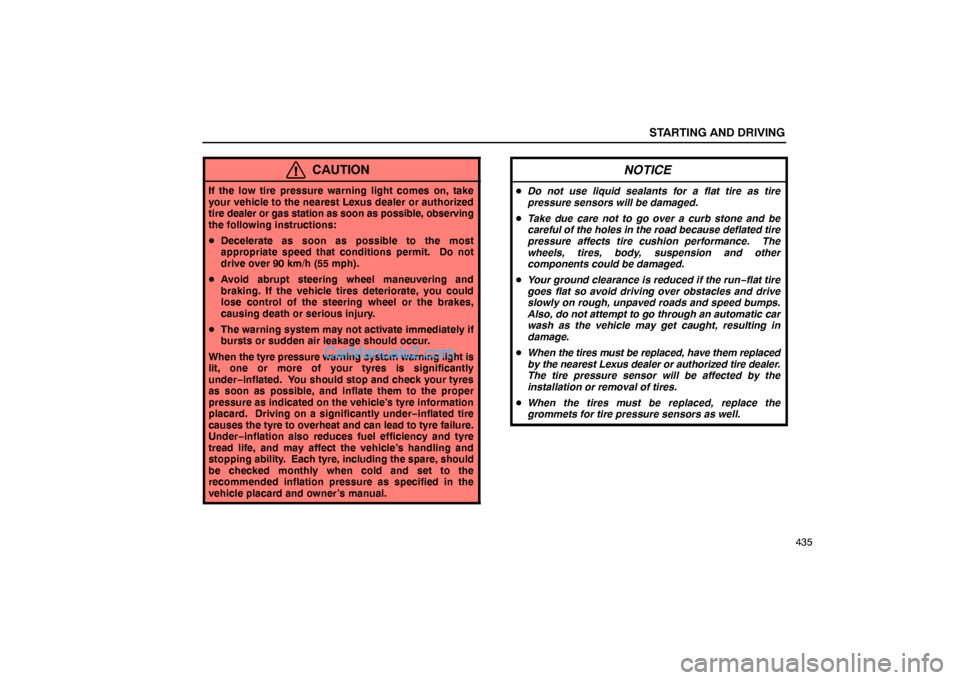

CAUTION
If the low tire pressure warning light comes on, take
your vehicle to the nearest Lexus dealer or authorized
tire dealer or gas station as soon as possible, observing
the following instructions:
Decelerate as soon as possible to the most
appropriate speed that conditions permit. Do not
drive over 90 km/h (55 mph).
Avoid abrupt steering wheel maneuvering and
braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes,
causing death or serious injury.
The warning system may not activate immediately if
bursts or sudden air leakage should occur.
When the tyre pressure warning system warning light is
lit, one or more of your tyres is significantly
under−inflated. You should stop and check your tyres
as soon as possible, and inflate them to the proper
pressure as indicated on the vehicle’s tyre information
placard. Driving on a significantly under−inflated tire
causes the tyre to overheat and can lead to tyre failure.
Under−inflation also reduces fuel efficiency and tyre
tread life, and may affect the vehicle’s handling and
stopping ability. Each tyre, including the spare, should
be checked monthly when cold and set to the
recommended inflation pressure as specified in the
vehicle placard and owner’s manual.
NOTICE
Do not use liquid sealants for a flat tire as tire
pressure sensors will be damaged.
Take due care not to go over a curb stone and be
careful of the holes in the road because deflated tire
pressure affects tire cushion performance. The
wheels, tires, body, suspension and other
components could be damaged.
Your ground clearance is reduced if the run−flat tire
goes flat so avoid driving over obstacles and drive
slowly on rough, unpaved roads and speed bumps.
Also, do not attempt to go through an automatic car
wash as the vehicle may get caught, resulting in
damage.
When the tires must be replaced, have them replaced
by the nearest Lexus dealer or authorized tire dealer.
The tire pressure sensor will be affected by the
installation or removal of tires.
When the tires must be replaced, replace the
grommets for tire pressure sensors as well.

STARTING AND DRIVING

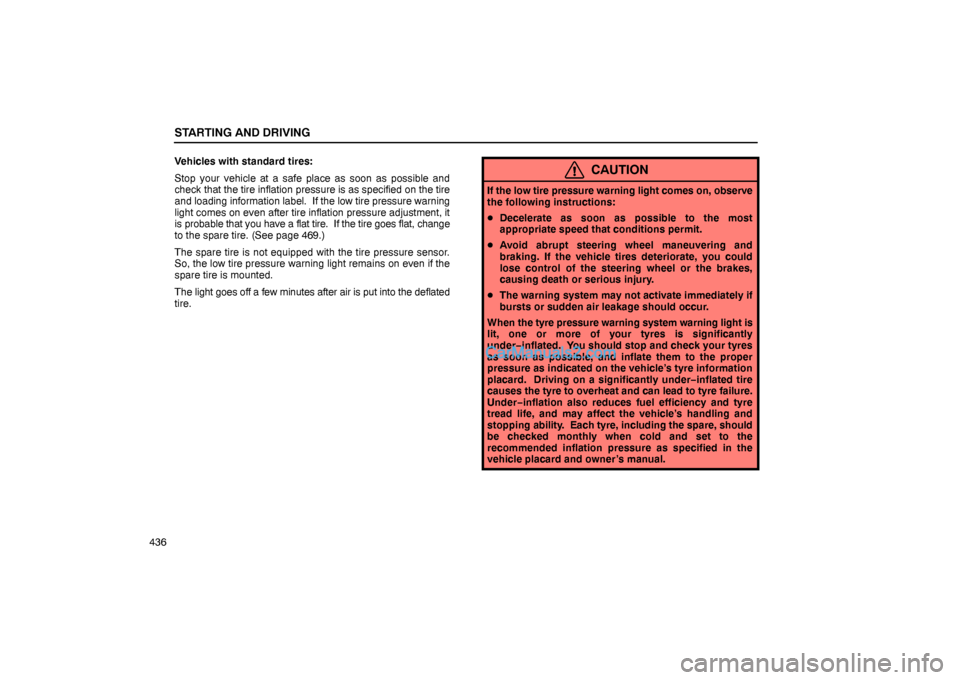

436Vehicles with standard tires:
Stop your vehicle at a safe place as soon as possible and
check that the tire inflation pressure is as specified on the tire
and loading information label. If the low tire pressure warning
light comes on even after tire inflation pressure adjustment, it
is probable that you have a flat tire. If the tire goes flat, change
to the spare tire. (See page 469.)
The spare tire is not equipped with the tire pressure sensor.
So, the low tire pressure warning light remains on even if the
spare tire is mounted.
The light goes off a few minutes after air is put into the deflated
tire.
CAUTION
If the low tire pressure warning light comes on, observe
the following instructions:
Decelerate as soon as possible to the most
appropriate speed that conditions permit.
Avoid abrupt steering wheel maneuvering and
braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes,
causing death or serious injury.
The warning system may not activate immediately if
bursts or sudden air leakage should occur.
When the tyre pressure warning system warning light is
lit, one or more of your tyres is significantly
under−inflated. You should stop and check your tyres
as soon as possible, and inflate them to the proper
pressure as indicated on the vehicle’s tyre information
placard. Driving on a significantly under−inflated tire
causes the tyre to overheat and can lead to tyre failure.
Under−inflation also reduces fuel efficiency and tyre
tread life, and may affect the vehicle’s handling and
stopping ability. Each tyre, including the spare, should
be checked monthly when cold and set to the
recommended inflation pressure as specified in the
vehicle placard and owner’s manual.
