Page 80 of 110
STARTING AND DRIVING
418
TRACTION CONTROL SYSTEM
The traction control system automatically helps prevent
the spinning of rear wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the engine switch is selected in “IG−ON” mode, the
system automatically turns on.
CAUTION
Under certain slippery road conditions, full traction of
the vehicle and power against rear wheels cannot be
maintained, even though the traction control system is
in operation. Do not drive the vehicle under any speed
or maneuvering conditions which may cause the
vehicle to lose traction control. In situations where the
road surface is covered with ice or snow, your vehicle
should be fitted with snow tires or tire chains. Always
drive at an appropriate and cautious speed for the
present road conditions.
G31038
Slip indicator light
Leave the system on during the ordinary driving so that it
can operate when needed.
You may hear a sound in the engine compartment for a few
seconds just after the vehicle begins to move. This means that
the traction control system is in the self−check mode, but does
not indicate a malfunction.
When the traction control system is operating, the following
conditions occur:
The system controls the spinning of the rear wheels. At this
time, the slip indicator light blinks.
You may feel vibration or noise in your vehicle, caused by
operation of the brakes. This indicates the system is
functioning properly.
GS430—The slip indicator light comes on when the engine
switch is selected in “IG−ON” mode. The light goes off when
the engine is started.
Page 83 of 110
STARTING AND DRIVING
421

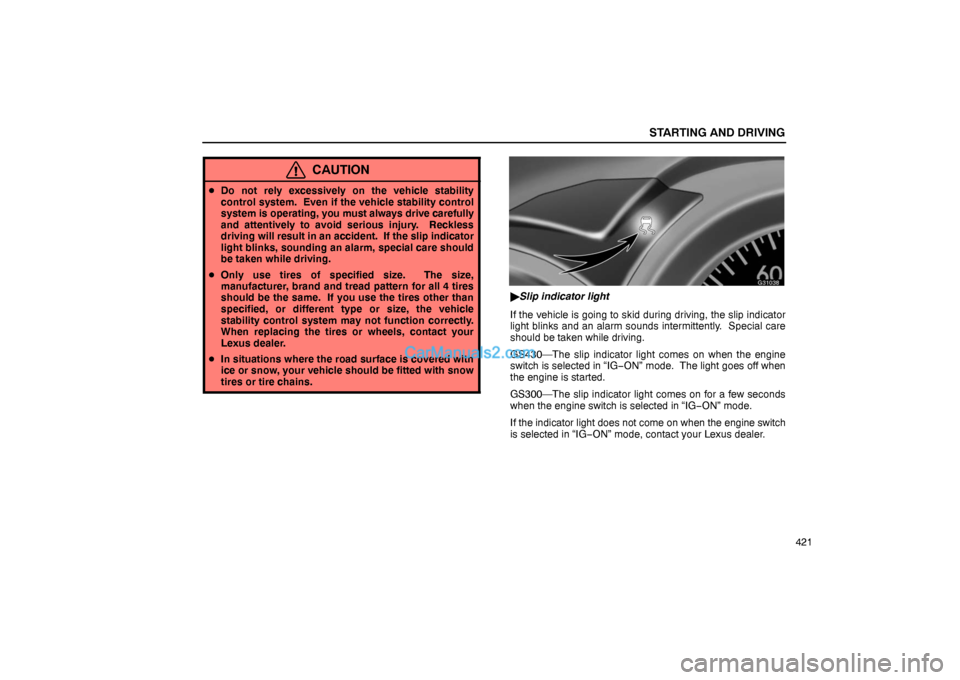

CAUTION
Do not rely excessively on the vehicle stability
control system. Even if the vehicle stability control
system is operating, you must always drive carefully
and attentively to avoid serious injury. Reckless
driving will result in an accident. If the slip indicator
light blinks, sounding an alarm, special care should
be taken while driving.
Only use tires of specified size. The size,
manufacturer, brand and tread pattern for all 4 tires
should be the same. If you use the tires other than
specified, or different type or size, the vehicle
stability control system may not function correctly.
When replacing the tires or wheels, contact your
Lexus dealer.
In situations where the road surface is covered with
ice or snow, your vehicle should be fitted with snow
tires or tire chains.
G31038
Slip indicator light
If the vehicle is going to skid during driving, the slip indicator
light blinks and an alarm sounds intermittently. Special care
should be taken while driving.
GS430—The slip indicator light comes on when the engine
switch is selected in “IG−ON” mode. The light goes off when
the engine is started.
GS300—The slip indicator light comes on for a few seconds
when the engine switch is selected in “IG−ON” mode.
If the indicator light does not come on when the engine switch
is selected in “IG−ON” mode, contact your Lexus dealer.
Page 91 of 110
STARTING AND DRIVING
429

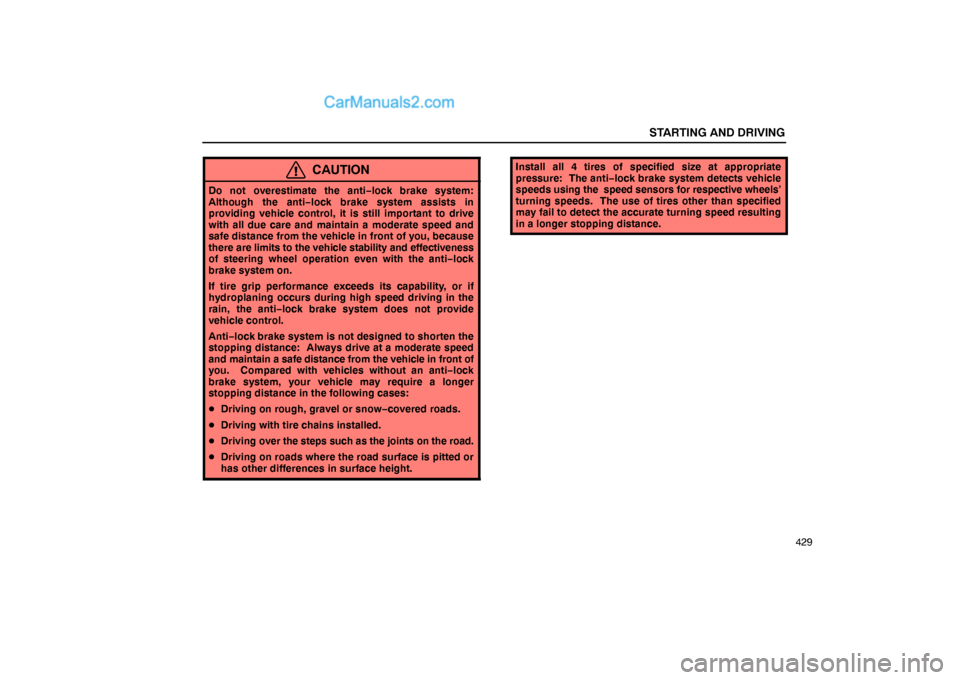

CAUTION
Do not overestimate the anti−lock brake system:
Although the anti−lock brake system assists in
providing vehicle control, it is still important to drive
with all due care and maintain a moderate speed and
safe distance from the vehicle in front of you, because
there are limits to the vehicle stability and effectiveness
of steering wheel operation even with the anti−lock
brake system on.
If tire grip performance exceeds its capability, or if
hydroplaning occurs during high speed driving in the
rain, the anti−lock brake system does not provide
vehicle control.
Anti−lock brake system is not designed to shorten the
stopping distance: Always drive at a moderate speed
and maintain a safe distance from the vehicle in front of
you. Compared with vehicles without an anti−lock
brake system, your vehicle may require a longer
stopping distance in the following cases:
Driving on rough, gravel or snow−covered roads.
Driving with tire chains installed.
Driving over the steps such as the joints on the road.
Driving on roads where the road surface is pitted or
has other differences in surface height.
Install all 4 tires of specified size at appropriate
pressure: The anti−lock brake system detects vehicle
speeds using the speed sensors for respective wheels’
turning speeds. The use of tires other than specified
may fail to detect the accurate turning speed resulting
in a longer stopping distance.
Page 99 of 110
STARTING AND DRIVING
437

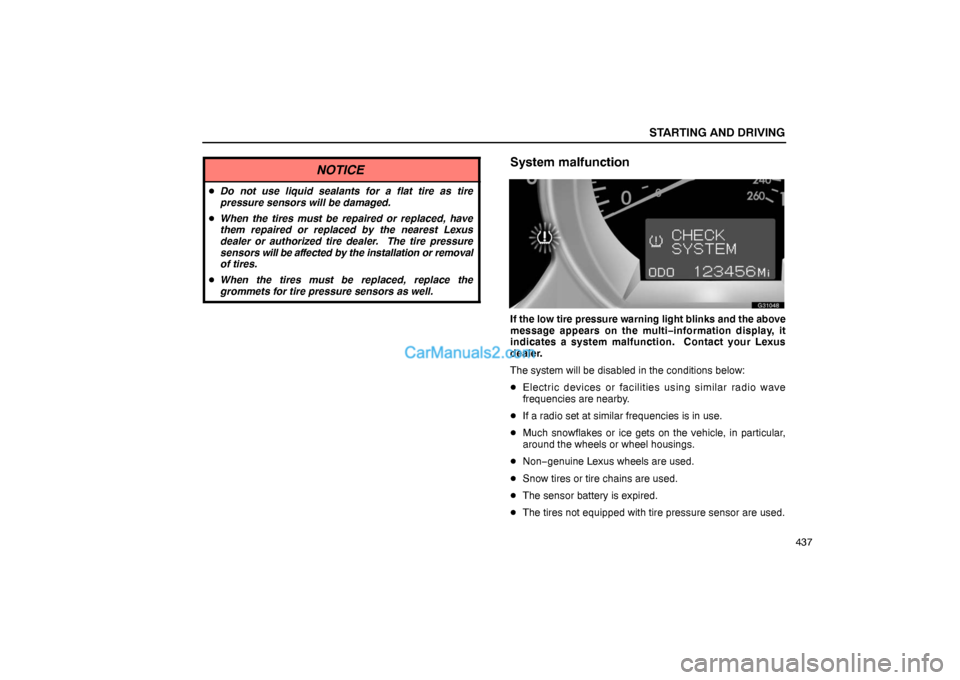

NOTICE
Do not use liquid sealants for a flat tire as tire
pressure sensors will be damaged.
When the tires must be repaired or replaced, have
them repaired or replaced by the nearest Lexus
dealer or authorized tire dealer. The tire pressure
sensors will be affected by the installation or removal
of tires.
When the tires must be replaced, replace the
grommets for tire pressure sensors as well.
System malfunction
G31048
If the low tire pressure warning light blinks and the above
message appears on the multi−information display, it
indicates a system malfunction. Contact your Lexus
dealer.
The system will be disabled in the conditions below:
Electric devices or facilities using similar radio wave
frequencies are nearby.
If a radio set at similar frequencies is in use.
Much snowflakes or ice gets on the vehicle, in particular,
around the wheels or wheel housings.
Non−genuine Lexus wheels are used.
Snow tires or tire chains are used.
The sensor battery is expired.
The tires not equipped with tire pressure sensor are used.
