5117-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
7
When trouble arises

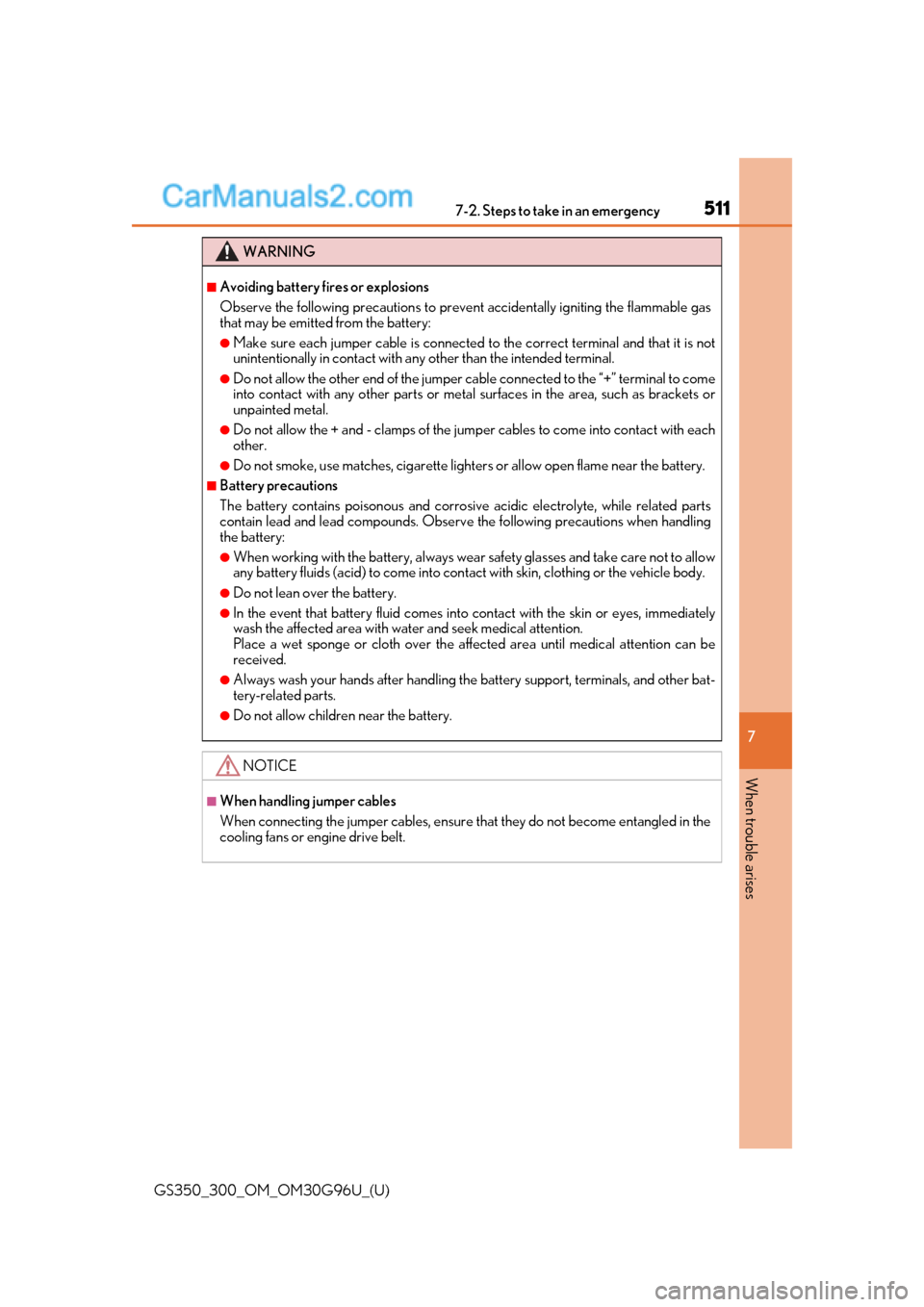

WARNING
■Avoiding battery fires or explosions
Observe the following precautions to preven t accidentally igniting the flammable gas
that may be emitted from the battery:
●Make sure each jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cab le connected to the “+” terminal to come
into contact with any other parts or metal surfaces in the area, such as brackets or
unpainted metal.
●Do not allow the + and - clamps of the jump er cables to come into contact with each
other.
●Do not smoke, use matches, cigarette lighters or allow open flame near the battery.
■Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while related parts
contain lead and lead compounds. Observ e the following precautions when handling
the battery:
●When working with the battery, always wear safety glasses and take care not to allow
any battery fluids (acid) to come into cont act with skin, clothing or the vehicle body.
●Do not lean over the battery.
●In the event that battery fluid comes into contact with the skin or eyes, immediately
wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
●Always wash your hands afte r handling the battery support, terminals, and other bat-
tery-related parts.
●Do not allow childre n near the battery.
NOTICE
■When handling jumper cables
When connecting the jumper cables, ensure that they do not become entangled in the
cooling fans or engine drive belt.

512
GS350_300_OM_OM30G96U_(U)7-2. Steps to take in an emergency

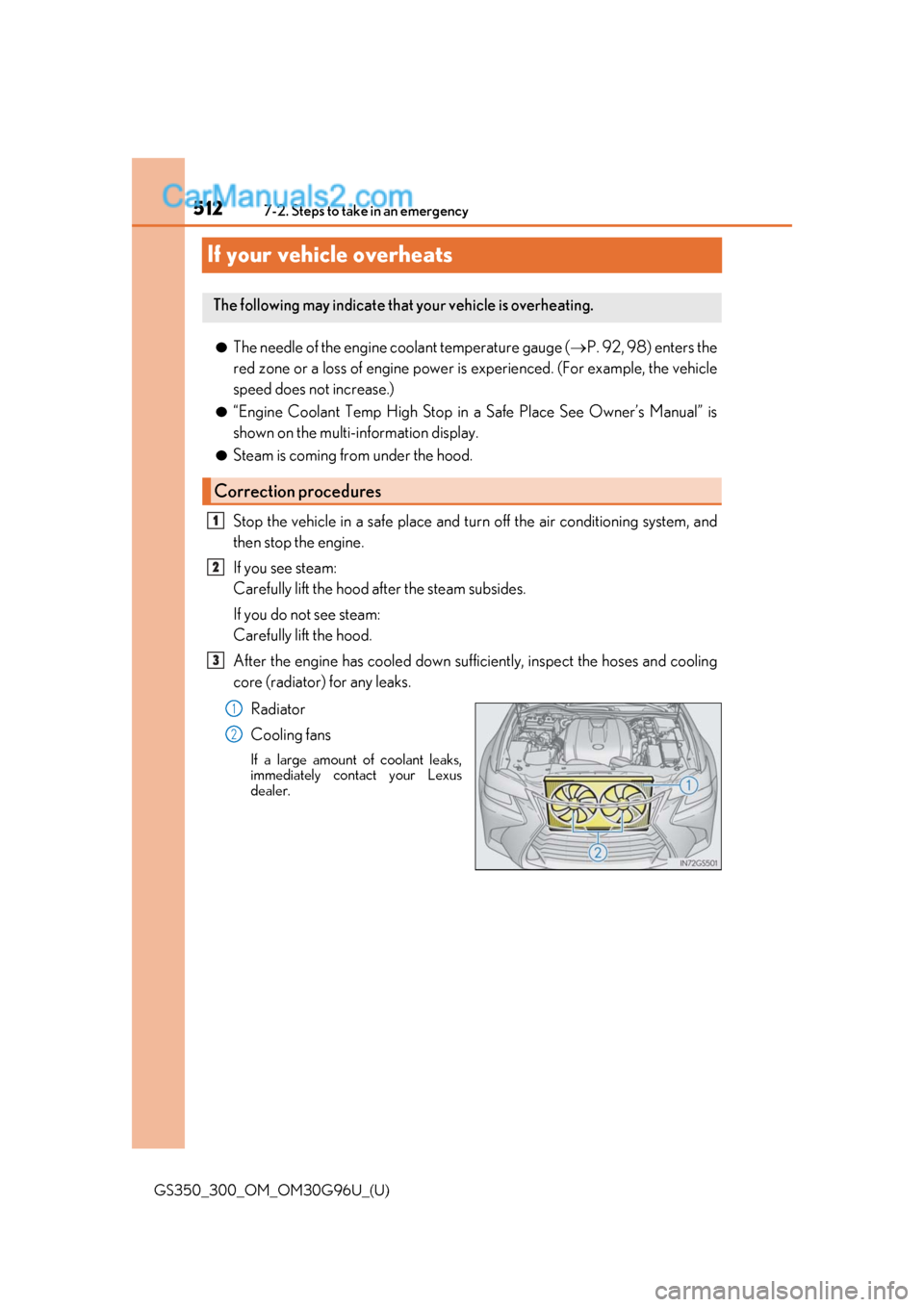

If your vehicle overheats
●The needle of the engine coolant temperature gauge (
P. 92, 98) enters the
red zone or a loss of engine power is experienced. (For example, the vehicle
speed does not increase.)
●“Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is
shown on the multi-information display.
●Steam is coming from under the hood.
Stop the vehicle in a safe place and tu rn off the air conditioning system, and
then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down sufficiently, inspect the hoses and cooling
core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2

5137-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
7
When trouble arises

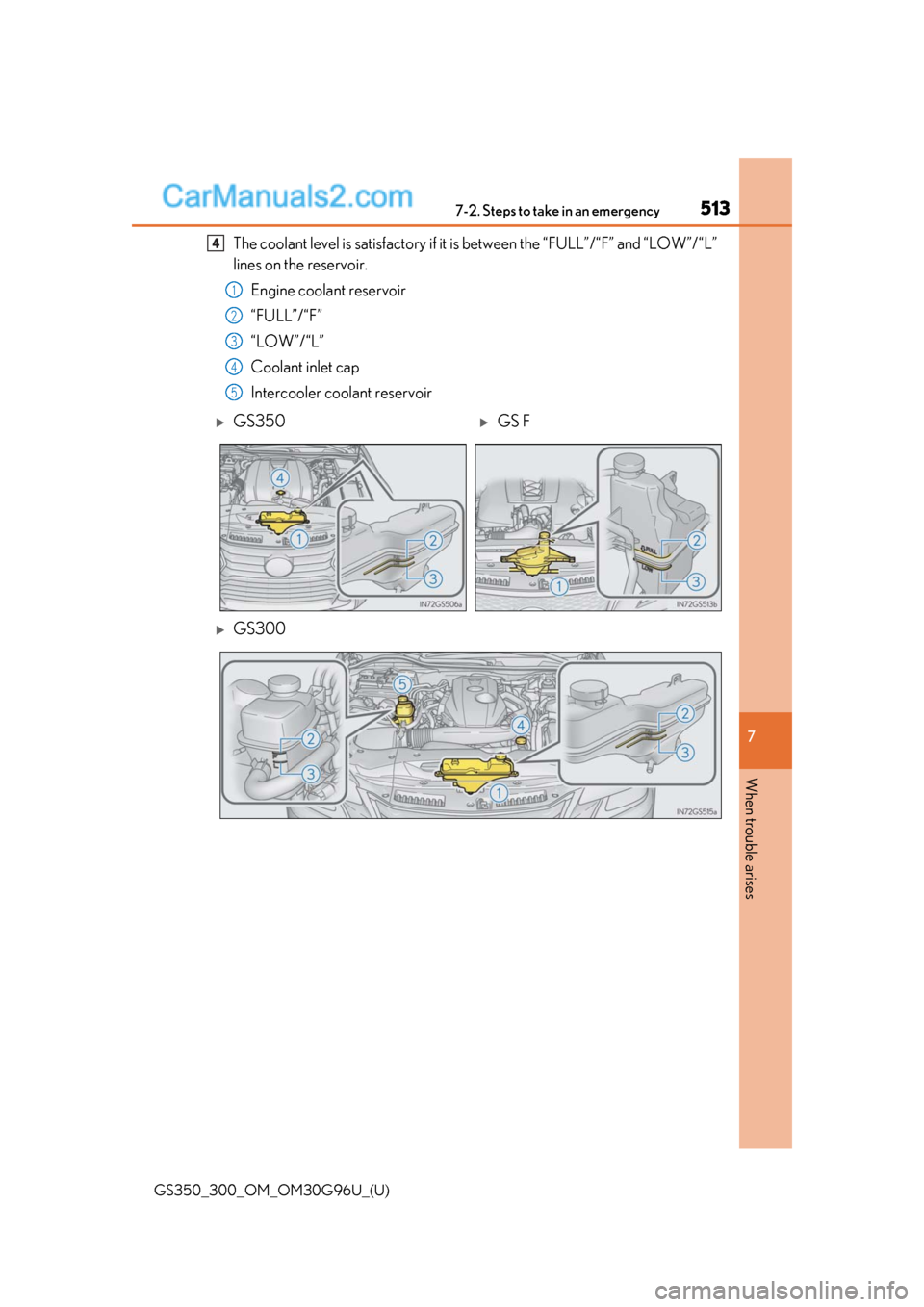

The coolant level is satisfactory if it is between the “FULL”/“F” and “LOW”/“L”
lines on the reservoir.
Engine coolant reservoir
“FULL”/“F”
“LOW”/“L”
Coolant inlet cap
Intercooler coolant reservoir4
1
2
3
4
5
GS350GS F
GS300

5147-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)

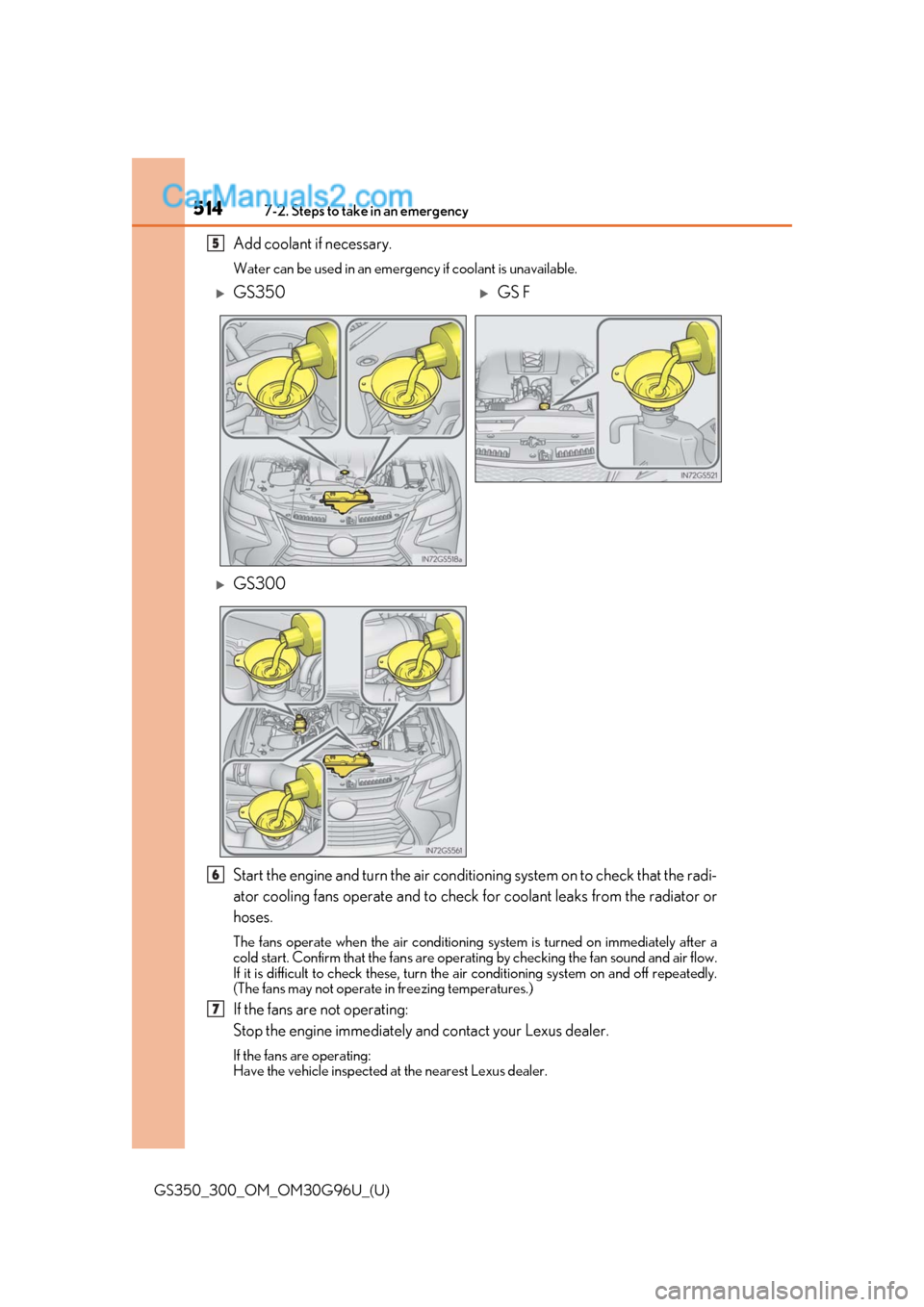

Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
Start the engine and turn the air conditio ning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately an d contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
5
GS350GS F
GS300
6
7

5157-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
7
When trouble arises
■When adding engine coolant (GS350/GS300)
Add coolant in accordance with the following procedure. Remove caps A and B.
Add engine coolant through the inlet of cap A up to the “[AR/GR] B” line, and then
install cap A.
Add engine coolant through the inlet of cap B until it is full, and then install cap B.
GS300 only: When inst alling cap B, apply coolant to the O-ring on the end of cap B.
Cap A
Cap B
“[AR/GR] B” line (Target fill line)
1
2
3
GS350 GS300
1
2
3

5167-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the h ood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-
ous injury.
●GS350: Do not loosen the coolant inlet cap
or the engine coolant reservoir cap while the
engine and radiator are hot.
High temperature steam or coolant could
spray out.
●GS F: Do not loosen the engine coolant res-
ervoir cap while the engine and radiator are
hot.
High temperature steam or coolant could
spray out.
●GS300: Do not loosen the coolant inlet cap,
the engine coolant rese rvoir cap or the inter-
cooler coolant reservoir cap while the engine
and radiator are hot.
High temperature steam or coolant could
spray out.

5177-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
7
When trouble arises

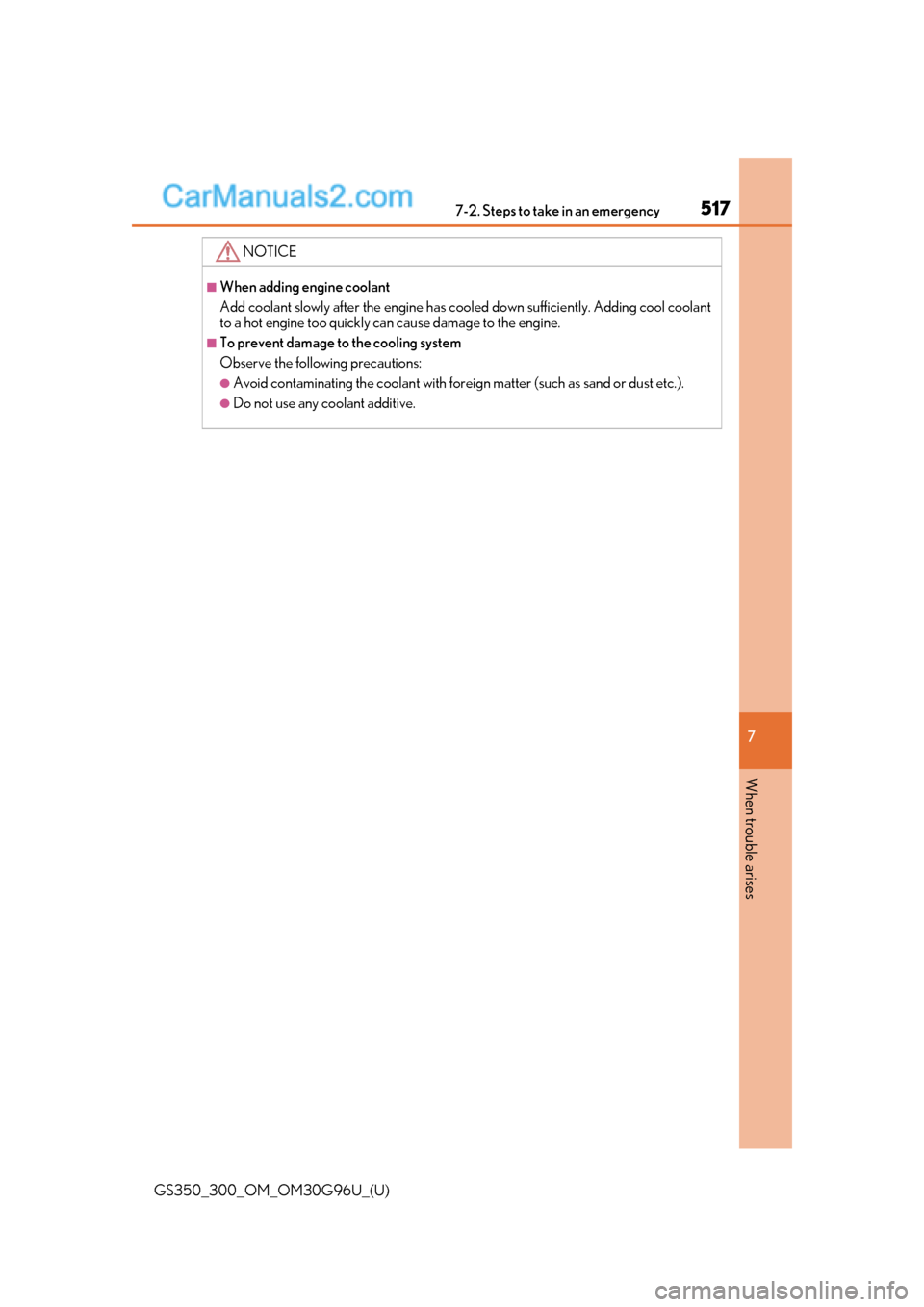

NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cool ed down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreig n matter (such as sand or dust etc.).
●Do not use any coolant additive.

518
GS350_300_OM_OM30G96U_(U)7-2. Steps to take in an emergency

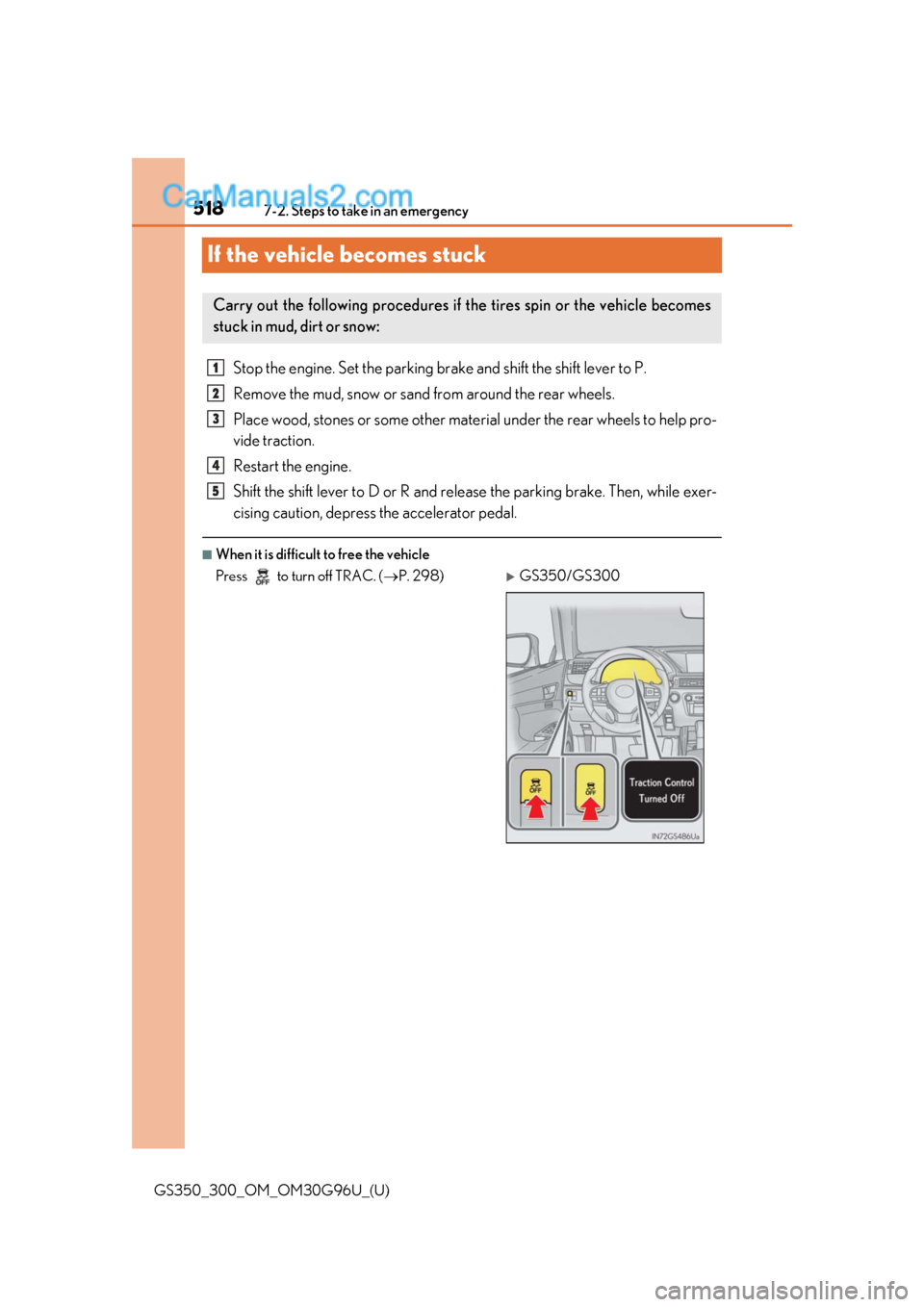

If the vehicle becomes stuck
Stop the engine. Set the parking br
ake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other materi al under the rear wheels to help pro-
vide traction.
Restart the engine.
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRAC. ( P. 298)GS350/GS300
1
2
3
4
5

5197-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
7
When trouble arises

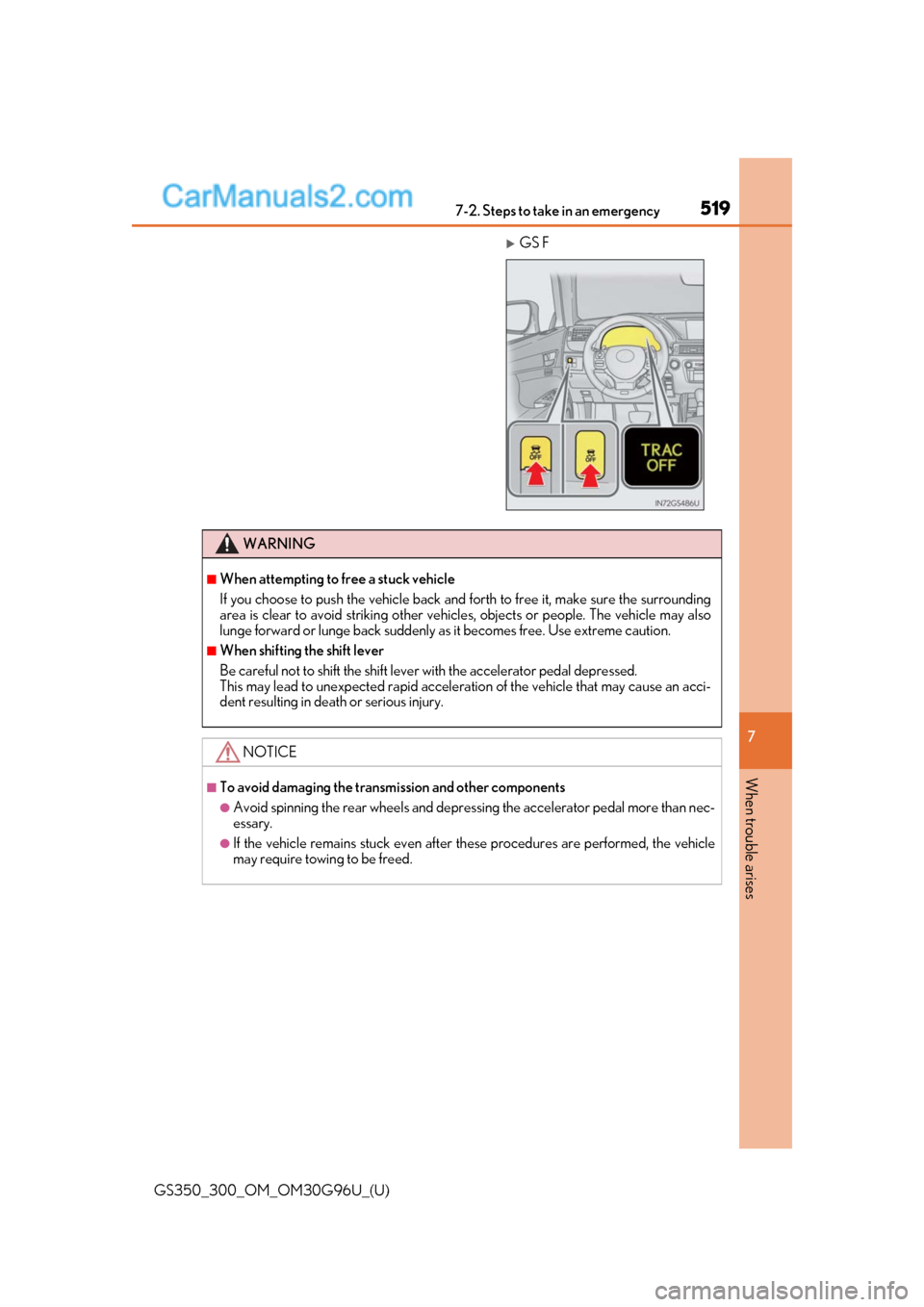

GS F
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehicl es, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-
dent resulting in deat h or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than nec-
essary.
●If the vehicle remains stuck even after th ese procedures are performed, the vehicle
may require towing to be freed.

5207-2. Steps to take in an emergency
