Lexus GS300h 2013 Owner's Manual

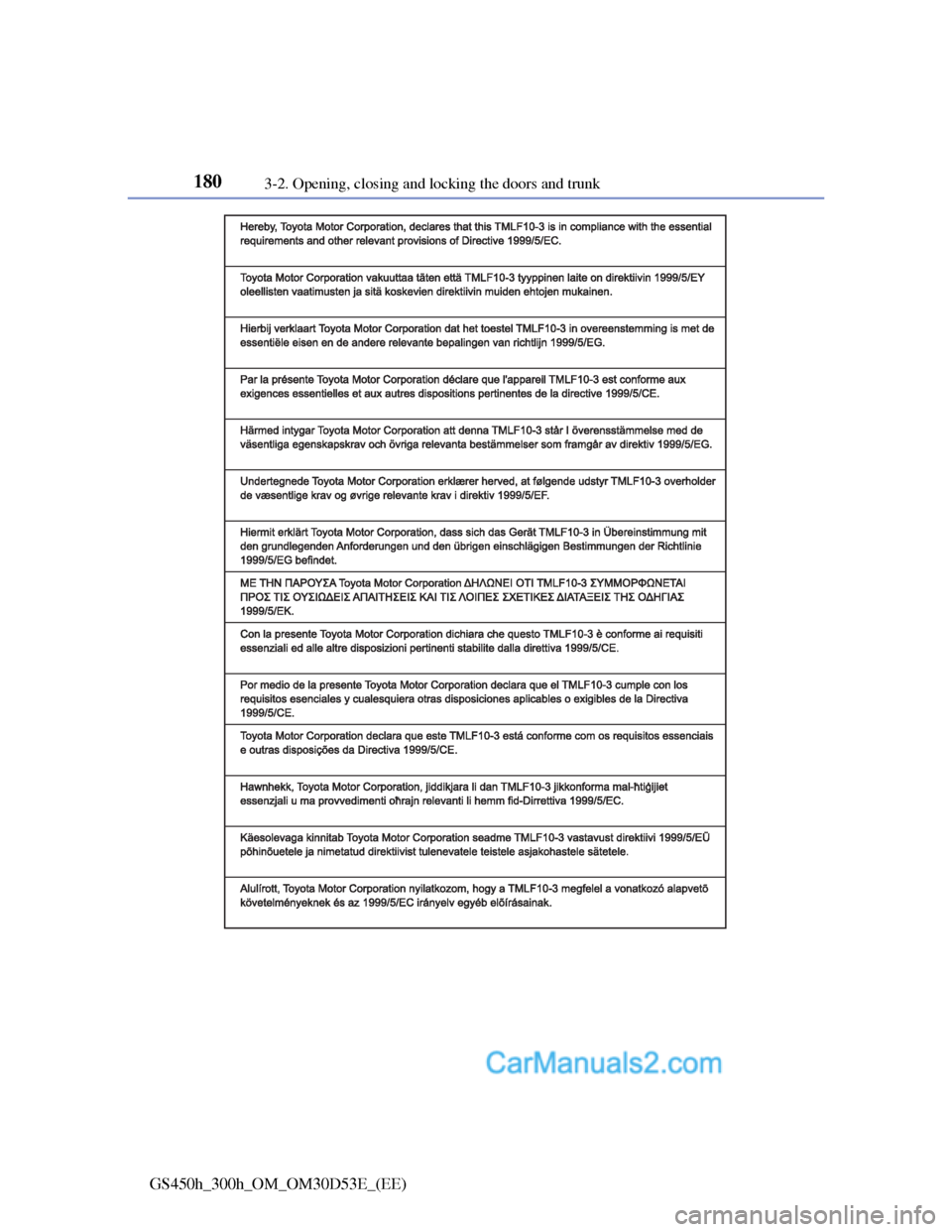

1803-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30D53E_(EE)

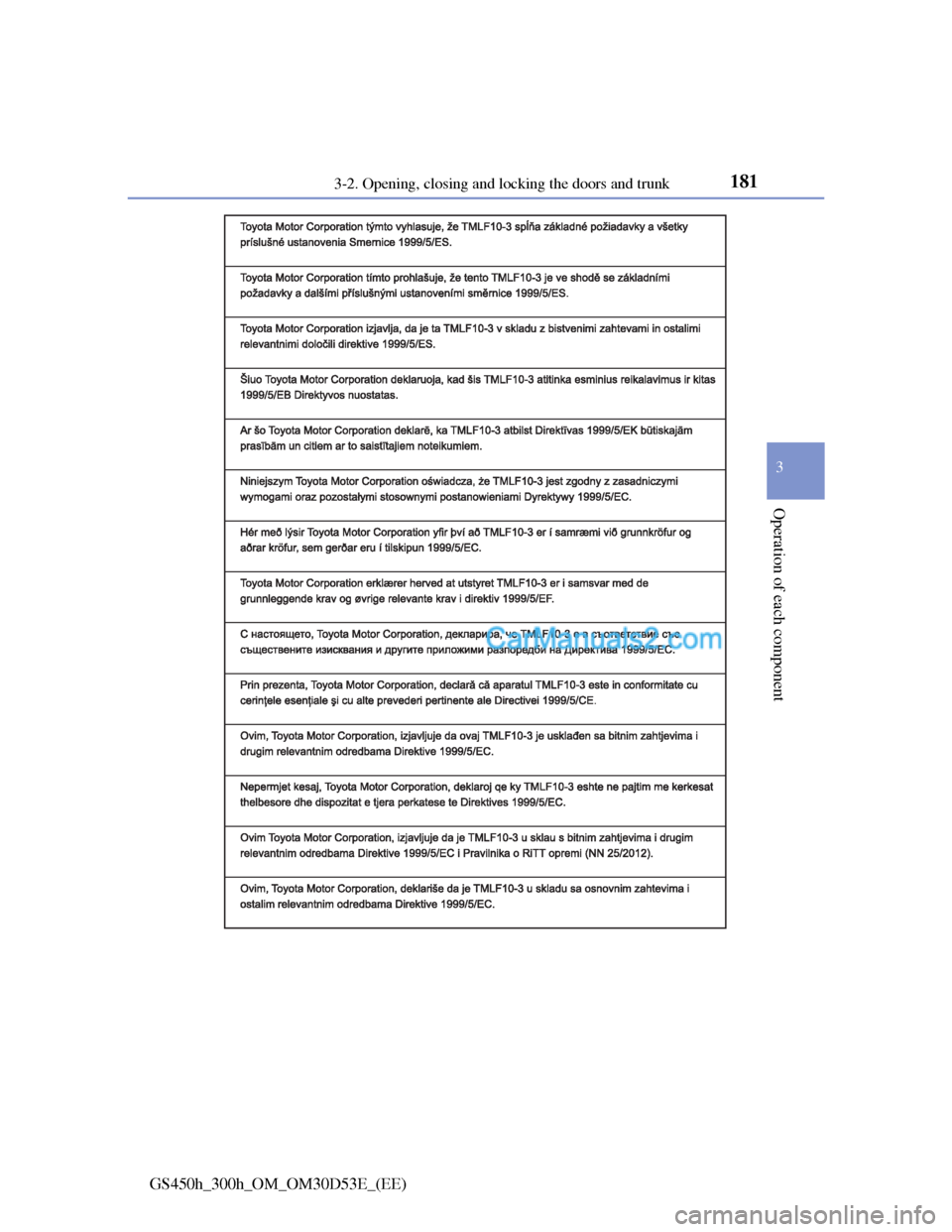

1813-2. Opening, closing and locking the doors and trunk
3
Operation of each component
GS450h_300h_OM_OM30D53E_(EE)

1823-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30D53E_(EE)

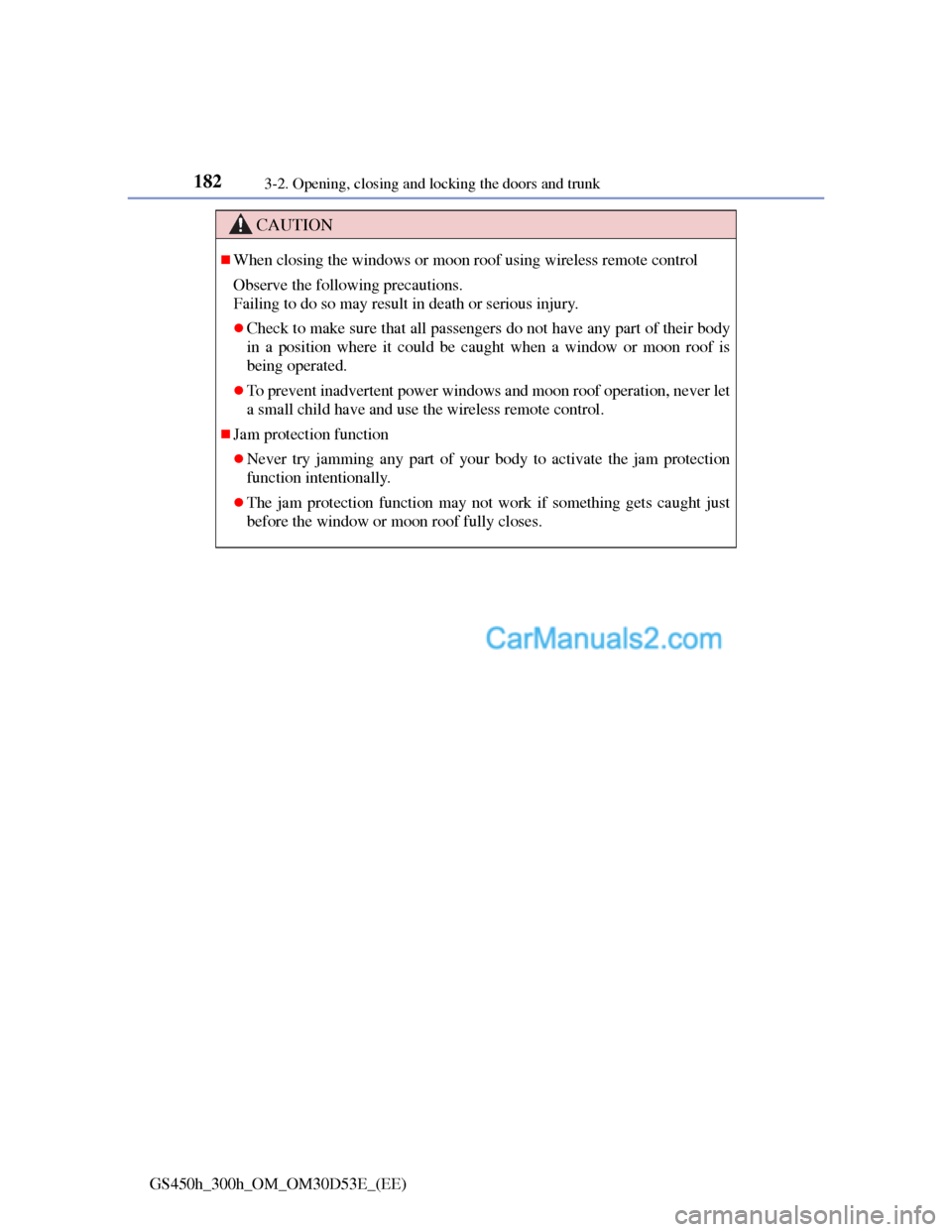

CAUTION
When closing the windows or moon roof using wireless remote control
Observe the following precautions.
Failing to do so may result in death or serious injury.
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window or moon roof is
being operated.
To prevent inadvertent power windows and moon roof operation, never let
a small child have and use the wireless remote control.
Jam protection function
Never try jamming any part of your body to activate the jam protection
function intentionally.
The jam protection function may not work if something gets caught just
before the window or moon roof fully closes.

183
3 3-2. Opening, closing and locking the doors and trunk
Operation of each component
GS450h_300h_OM_OM30D53E_(EE)

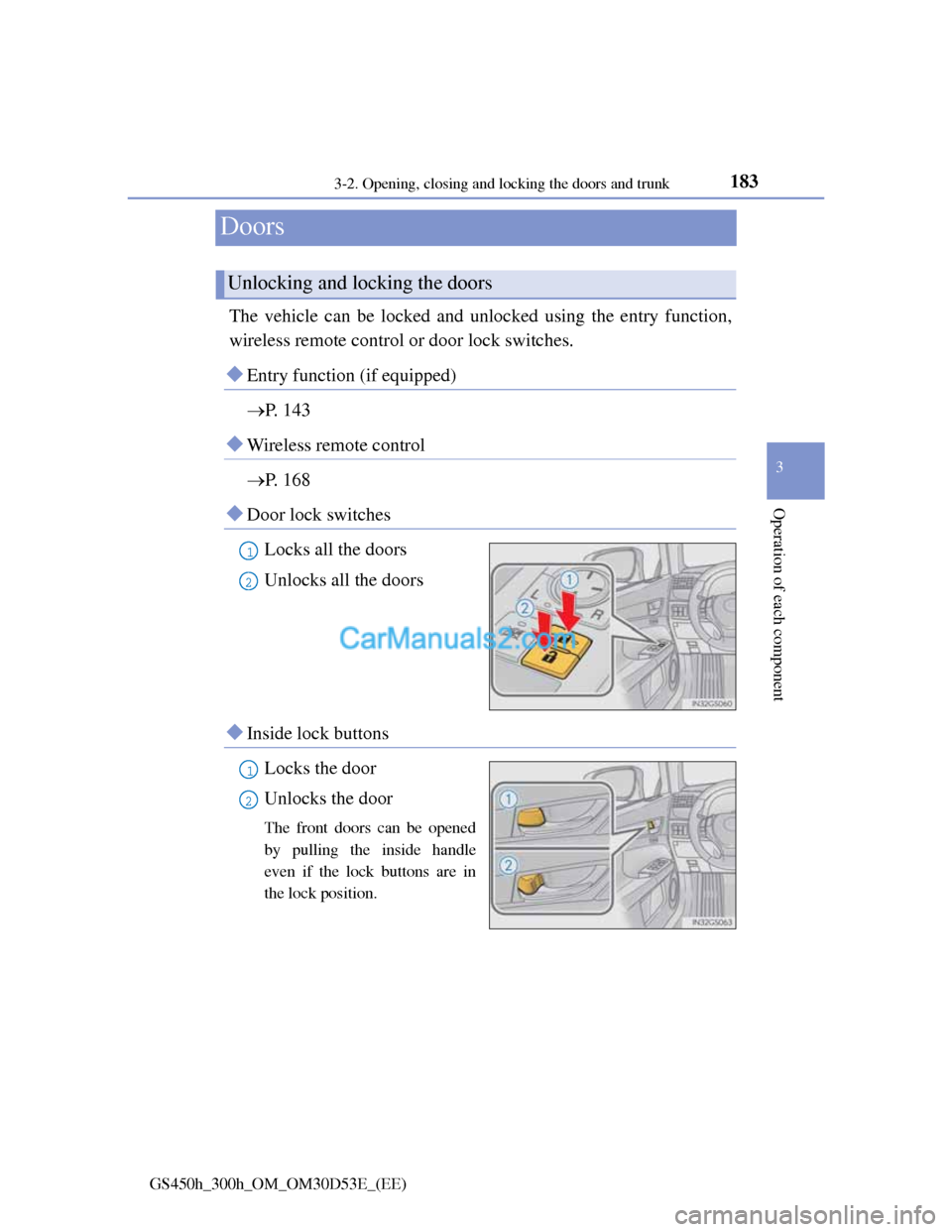

Doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control or door lock switches.
Entry function (if equipped)
P. 143
Wireless remote control
P. 168
Door lock switches
Locks all the doors
Unlocks all the doors
Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Unlocking and locking the doors
1
2
1
2

1843-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30D53E_(EE)

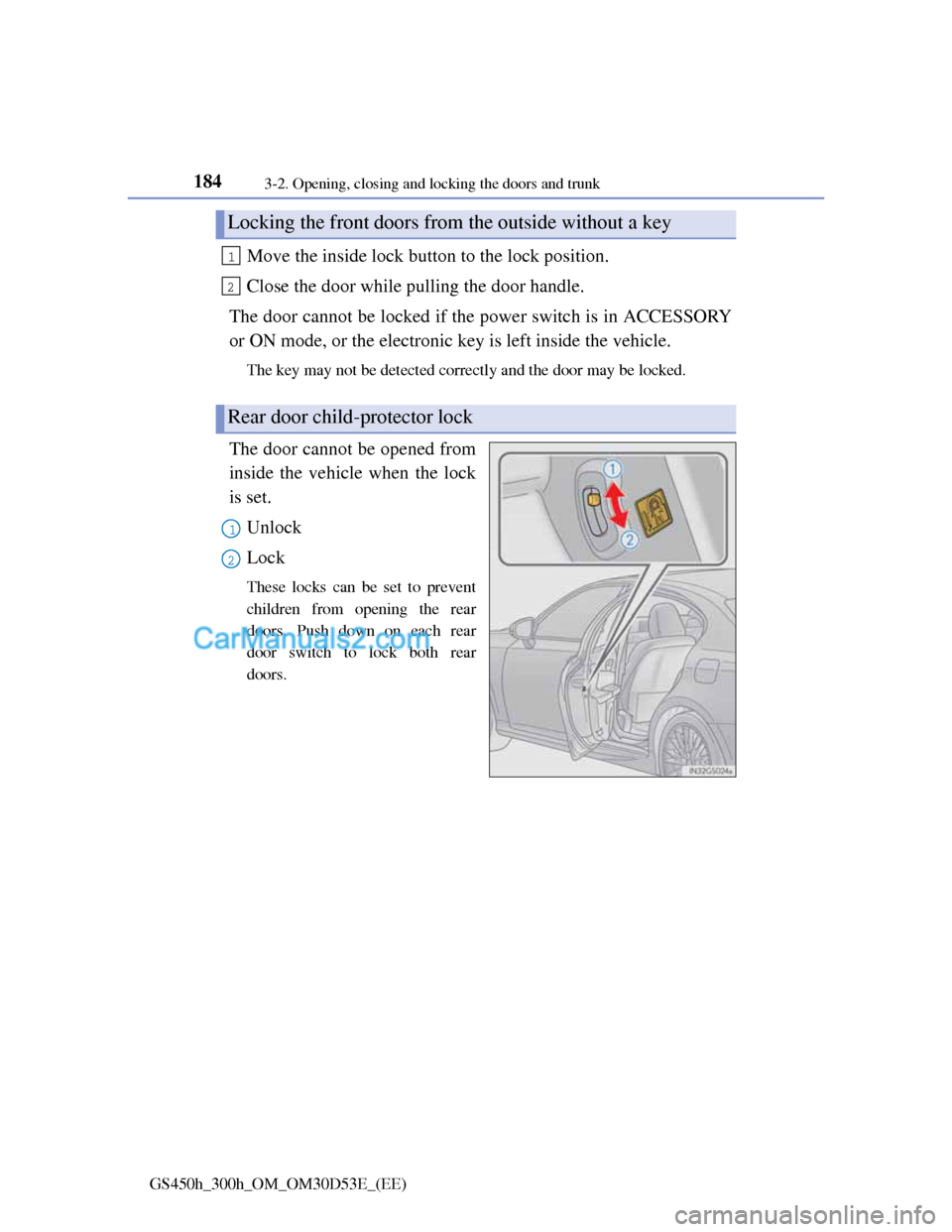

Move the inside lock button to the lock position.
Close the door while pulling the door handle.
The door cannot be locked if the power switch is in ACCESSORY
or ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
The door cannot be opened from
inside the vehicle when the lock
is set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
Locking the front doors from the outside without a key
Rear door child-protector lock
1
2
1
2

1853-2. Opening, closing and locking the doors and trunk
3
Operation of each component
GS450h_300h_OM_OM30D53E_(EE)

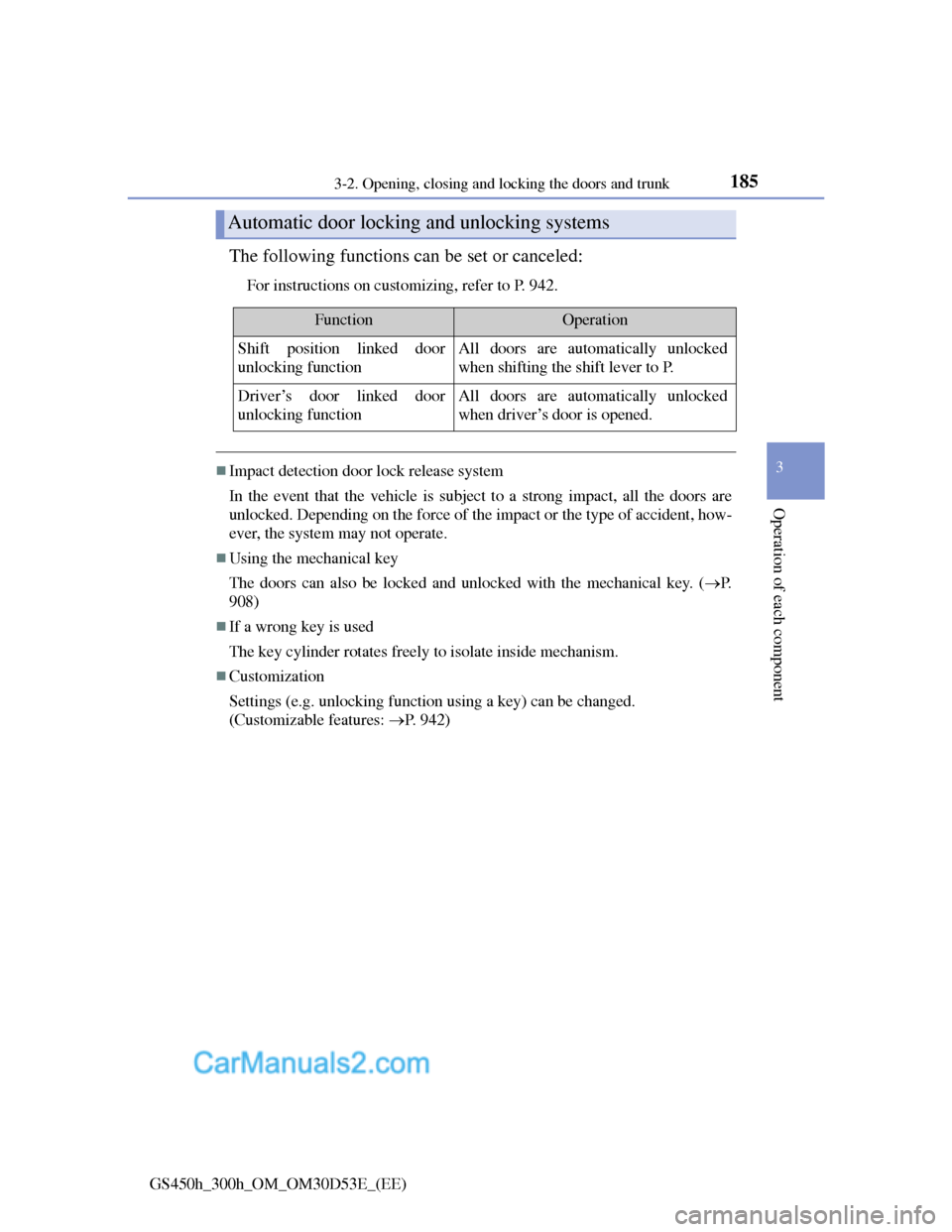

The following functions can be set or canceled:
For instructions on customizing, refer to P. 942.
Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.
Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (P.
908)
If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: P. 942)
Automatic door locking and unlocking systems
FunctionOperation
Shift position linked door
unlocking functionAll doors are automatically unlocked
when shifting the shift lever to P.
Driver’s door linked door
unlocking functionAll doors are automatically unlocked
when driver’s door is opened.

1863-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30D53E_(EE)

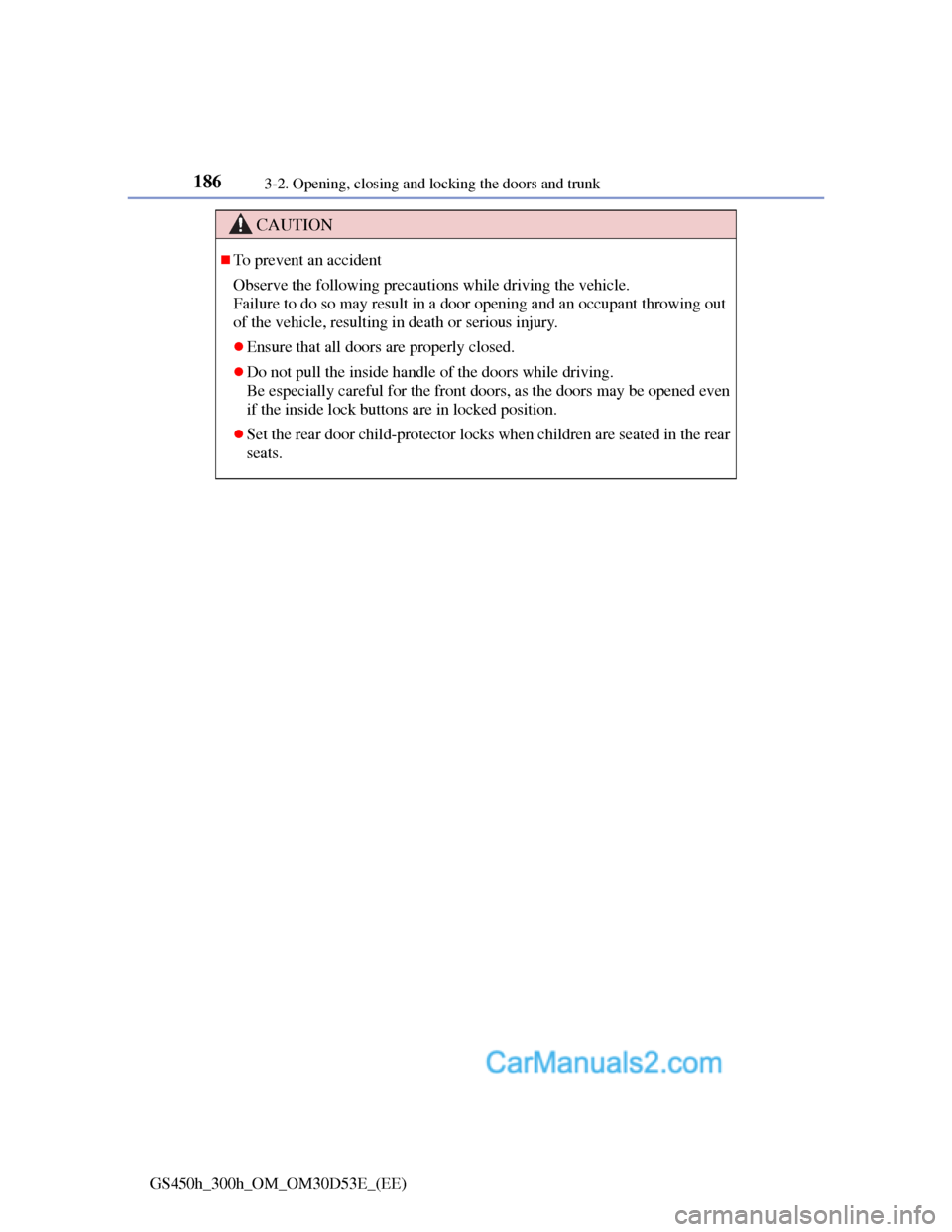

CAUTION
To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out
of the vehicle, resulting in death or serious injury.
Ensure that all doors are properly closed.
Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
Set the rear door child-protector locks when children are seated in the rear
seats.

187
3 3-2. Opening, closing and locking the doors and trunk
Operation of each component
GS450h_300h_OM_OM30D53E_(EE)

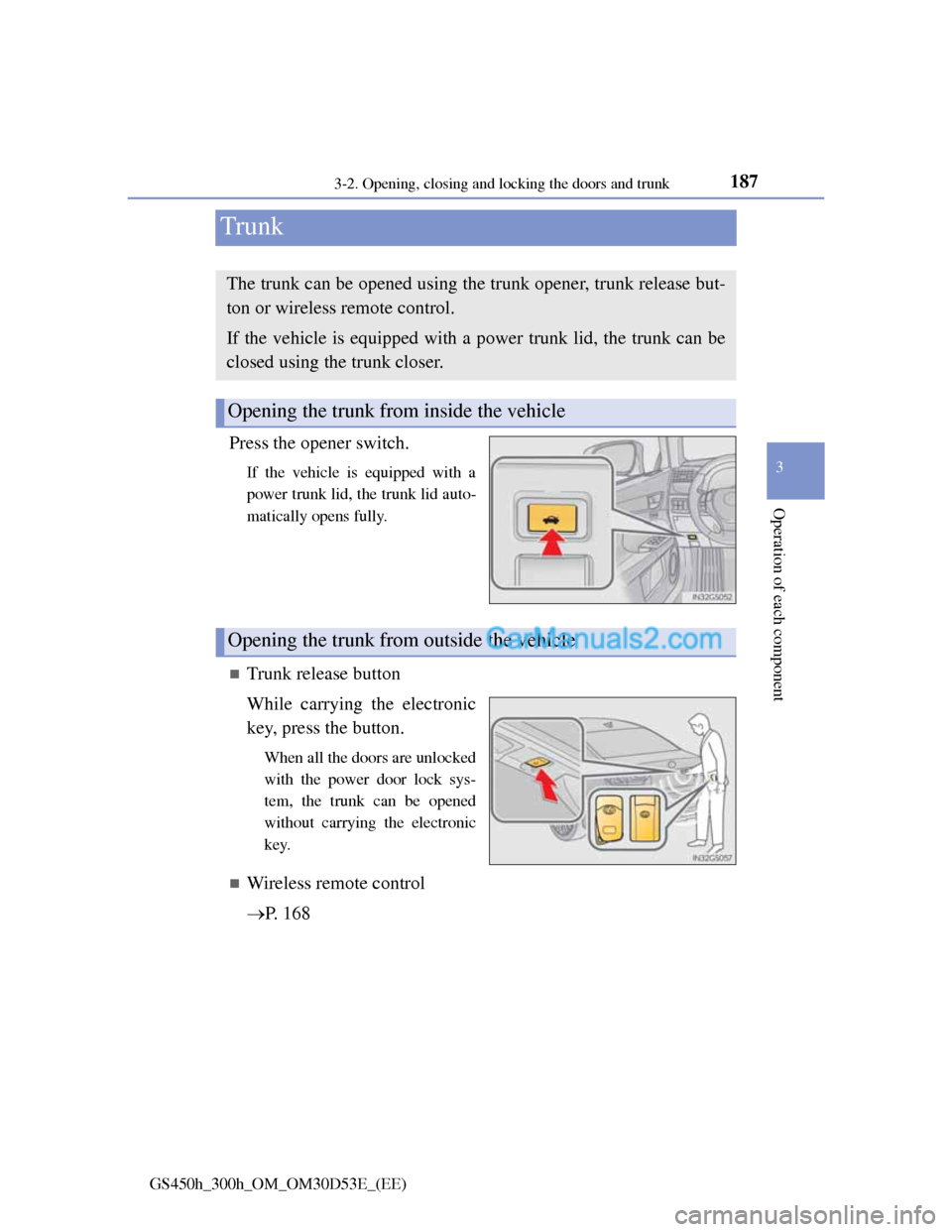

Trunk
Press the opener switch.
If the vehicle is equipped with a
power trunk lid, the trunk lid auto-
matically opens fully.
Trunk release button
While carrying the electronic
key, press the button.
When all the doors are unlocked
with the power door lock sys-
tem, the trunk can be opened
without carrying the electronic
key.
Wireless remote control
P. 168
The trunk can be opened using the trunk opener, trunk release but-
ton or wireless remote control.
If the vehicle is equipped with a power trunk lid, the trunk can be
closed using the trunk closer.
Opening the trunk from inside the vehicle
Opening the trunk from outside the vehicle

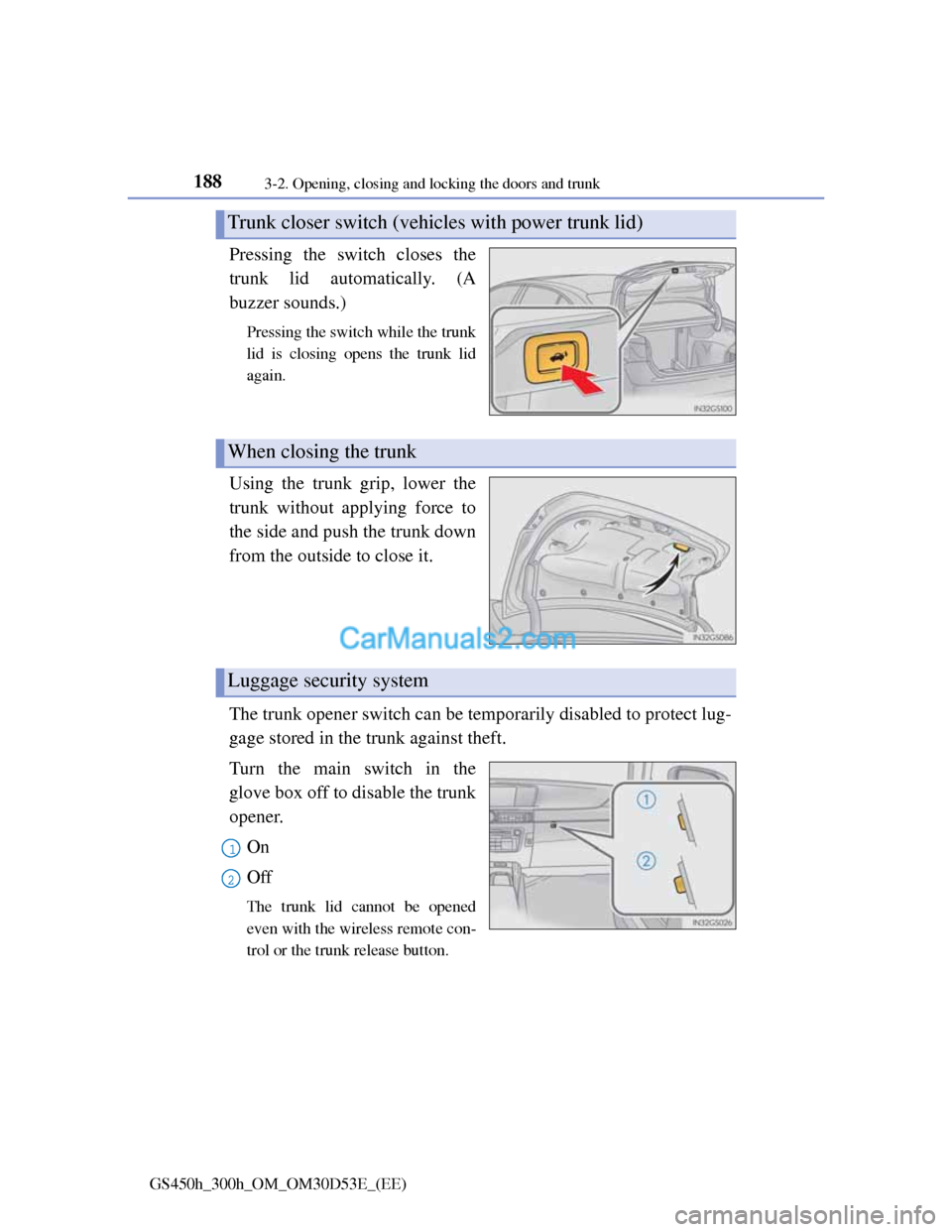

1883-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30D53E_(EE)
Pressing the switch closes the
trunk lid automatically. (A
buzzer sounds.)
Pressing the switch while the trunk
lid is closing opens the trunk lid
again.
Using the trunk grip, lower the
trunk without applying force to
the side and push the trunk down
from the outside to close it.
The trunk opener switch can be temporarily disabled to protect lug-
gage stored in the trunk against theft.
Turn the main switch in the
glove box off to disable the trunk
opener.
On
Off
The trunk lid cannot be opened
even with the wireless remote con-
trol or the trunk release button.
Trunk closer switch (vehicles with power trunk lid)
When closing the trunk
Luggage security system
1
2

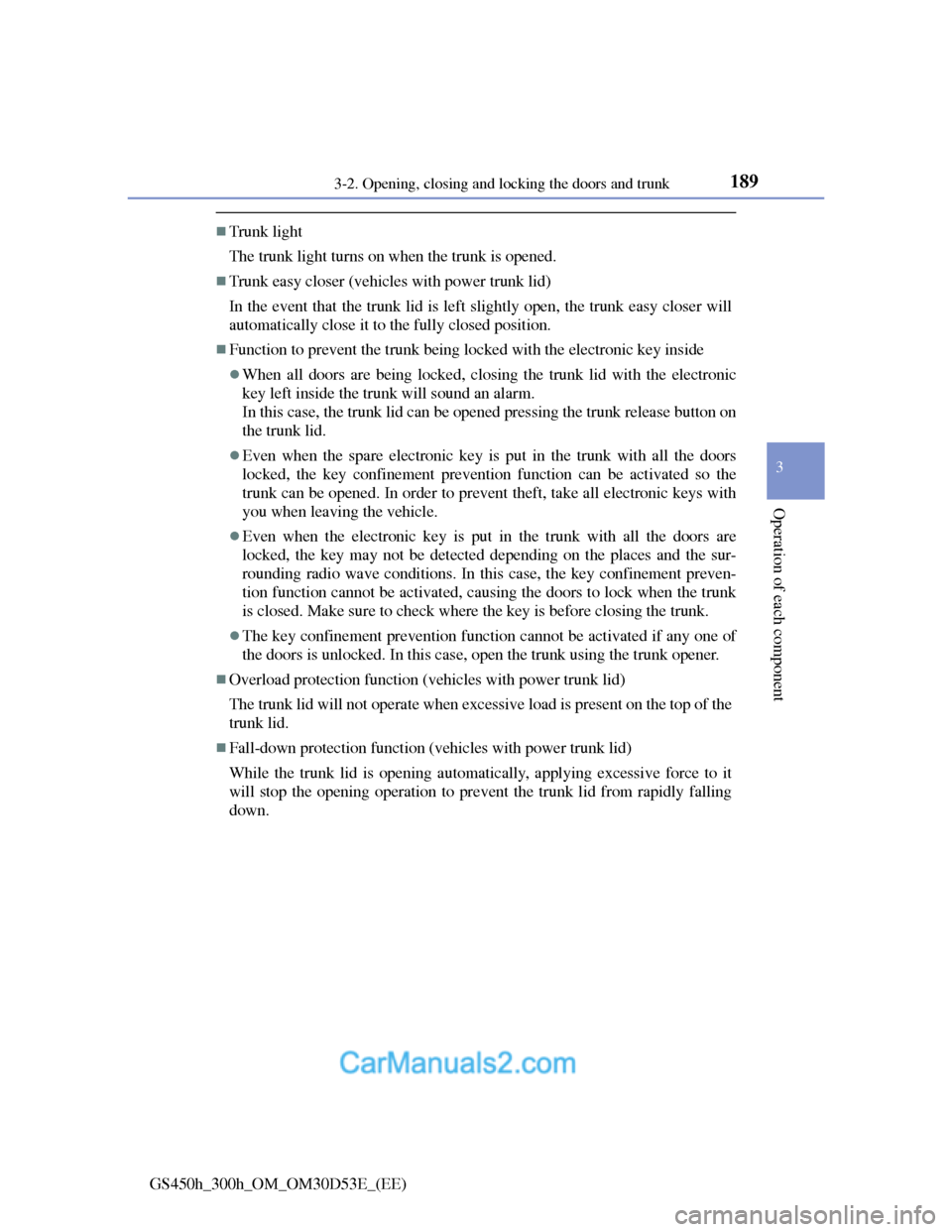

1893-2. Opening, closing and locking the doors and trunk
3
Operation of each component
GS450h_300h_OM_OM30D53E_(EE)
Trunk light
The trunk light turns on when the trunk is opened.
Trunk easy closer (vehicles with power trunk lid)
In the event that the trunk lid is left slightly open, the trunk easy closer will
automatically close it to the fully closed position.
Function to prevent the trunk being locked with the electronic key inside
When all doors are being locked, closing the trunk lid with the electronic
key left inside the trunk will sound an alarm.
In this case, the trunk lid can be opened pressing the trunk release button on
the trunk lid.
Even when the spare electronic key is put in the trunk with all the doors
locked, the key confinement prevention function can be activated so the
trunk can be opened. In order to prevent theft, take all electronic keys with
you when leaving the vehicle.
Even when the electronic key is put in the trunk with all the doors are
locked, the key may not be detected depending on the places and the sur-
rounding radio wave conditions. In this case, the key confinement preven-
tion function cannot be activated, causing the doors to lock when the trunk
is closed. Make sure to check where the key is before closing the trunk.
The key confinement prevention function cannot be activated if any one of
the doors is unlocked. In this case, open the trunk using the trunk opener.
Overload protection function (vehicles with power trunk lid)
The trunk lid will not operate when excessive load is present on the top of the
trunk lid.
Fall-down protection function (vehicles with power trunk lid)
While the trunk lid is opening automatically, applying excessive force to it
will stop the opening operation to prevent the trunk lid from rapidly falling
down.
