Lexus GS300h 2013 Owner's Manual

2083-4. Adjusting the steering wheel and mirrors
GS450h_300h_OM_OM30D53E_(EE)

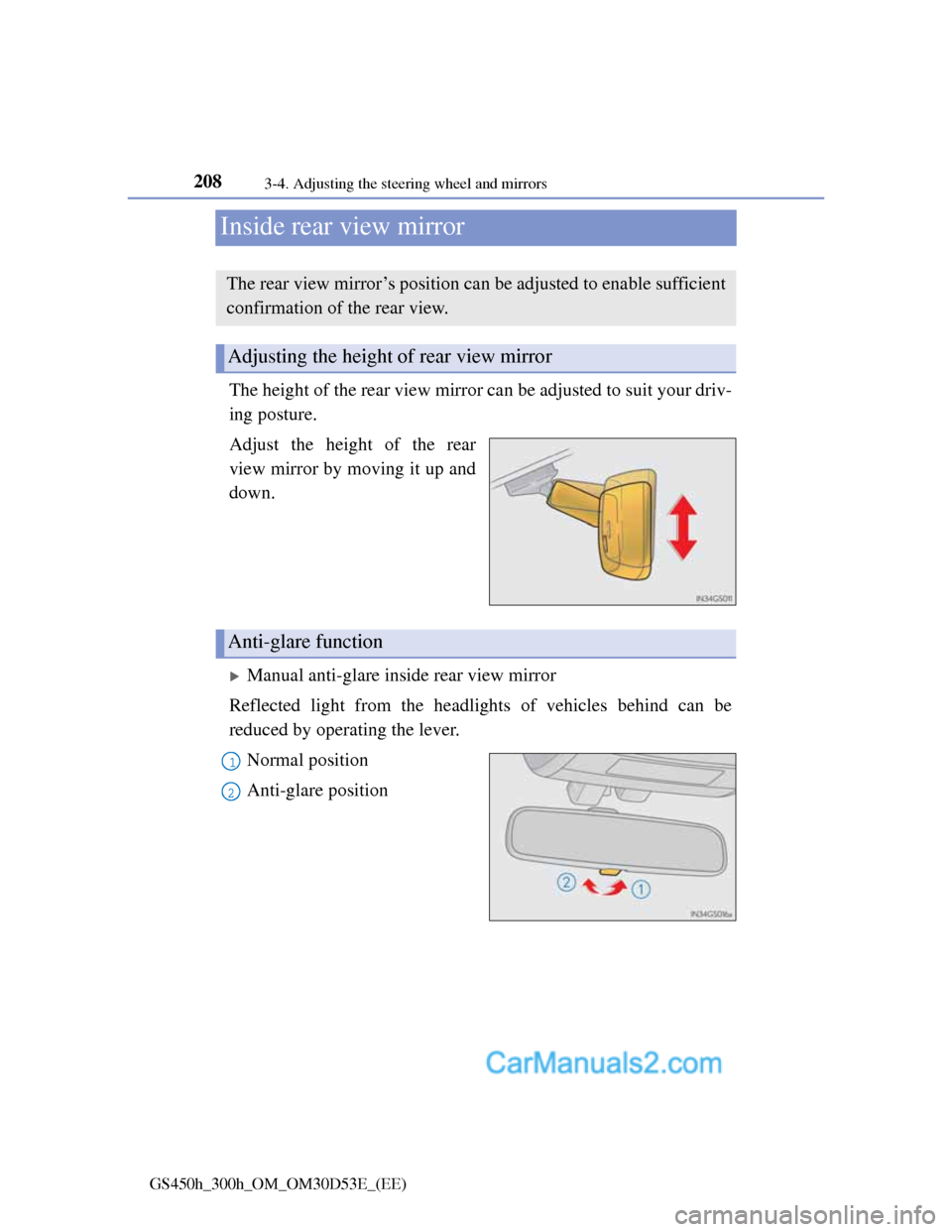

Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driv-
ing posture.
Adjust the height of the rear
view mirror by moving it up and
down.
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be
reduced by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable sufficient
confirmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2

2093-4. Adjusting the steering wheel and mirrors
3
Operation of each component
GS450h_300h_OM_OM30D53E_(EE)

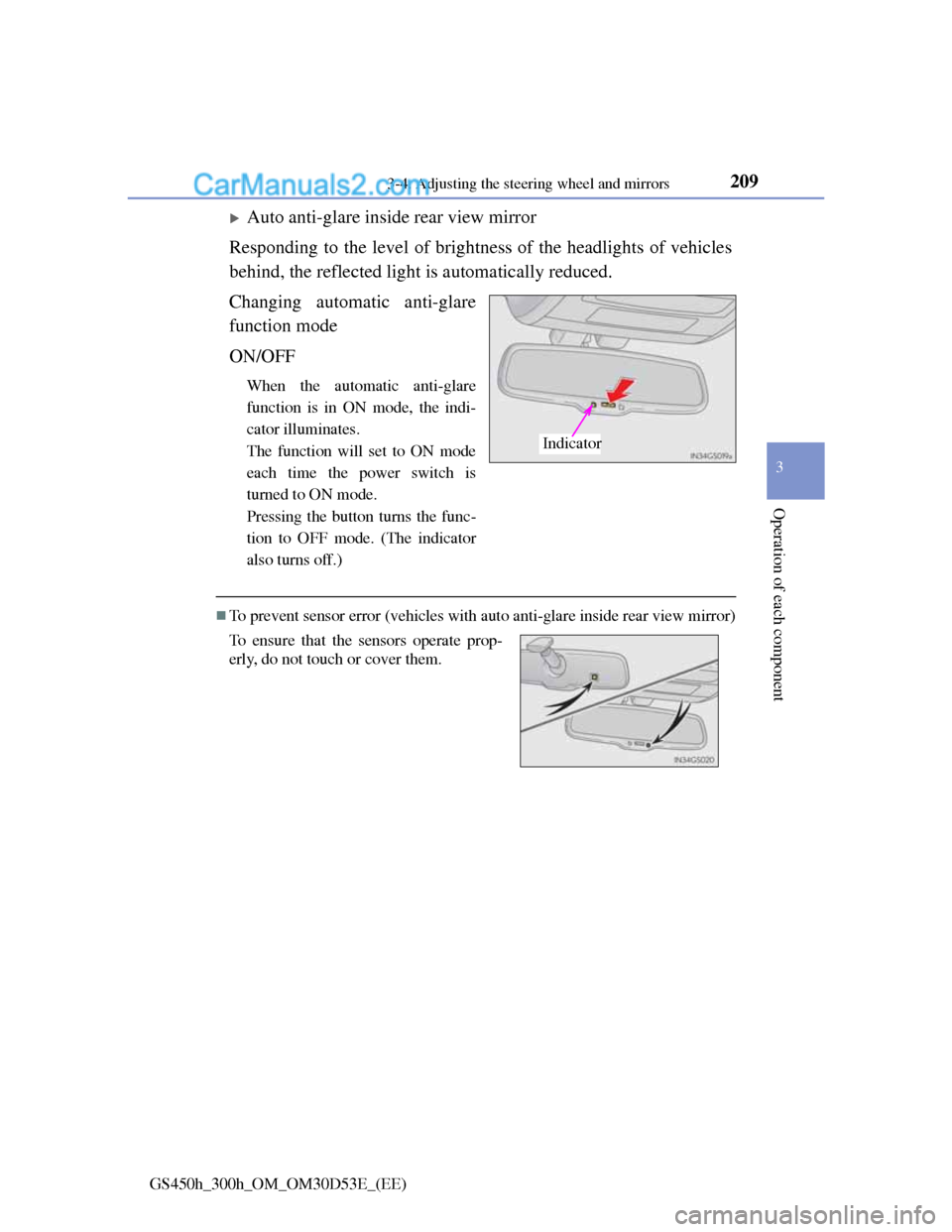

Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON/OFF
When the automatic anti-glare
function is in ON mode, the indi-
cator illuminates.
The function will set to ON mode
each time the power switch is
turned to ON mode.
Pressing the button turns the func-
tion to OFF mode. (The indicator
also turns off.)
To prevent sensor error (vehicles with auto anti-glare inside rear view mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.

2103-4. Adjusting the steering wheel and mirrors
GS450h_300h_OM_OM30D53E_(EE)

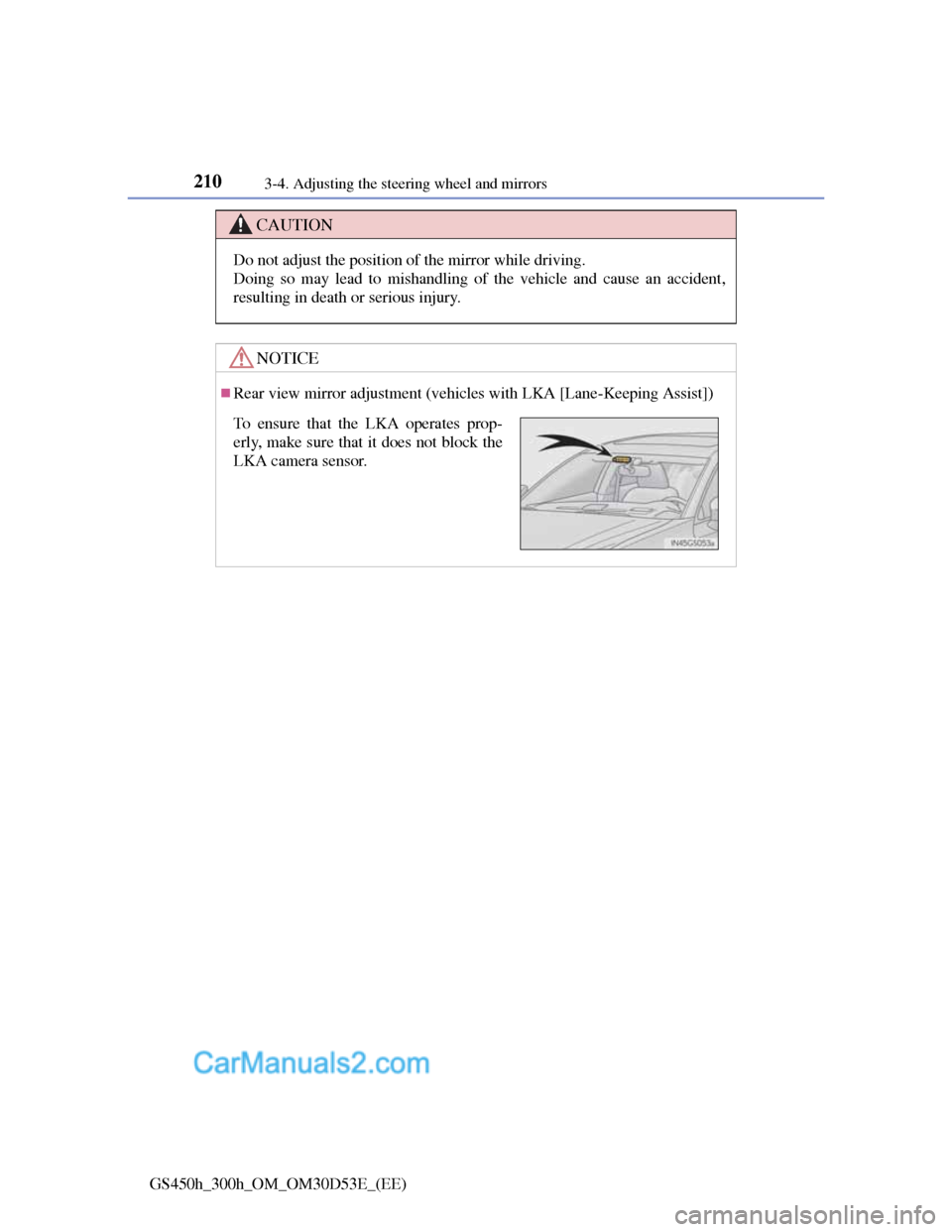

CAUTION
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
NOTICE
Rear view mirror adjustment (vehicles with LKA [Lane-Keeping Assist])
To ensure that the LKA operates prop-
erly, make sure that it does not block the
LKA camera sensor.

211
3 3-4. Adjusting the steering wheel and mirrors
Operation of each component
GS450h_300h_OM_OM30D53E_(EE)

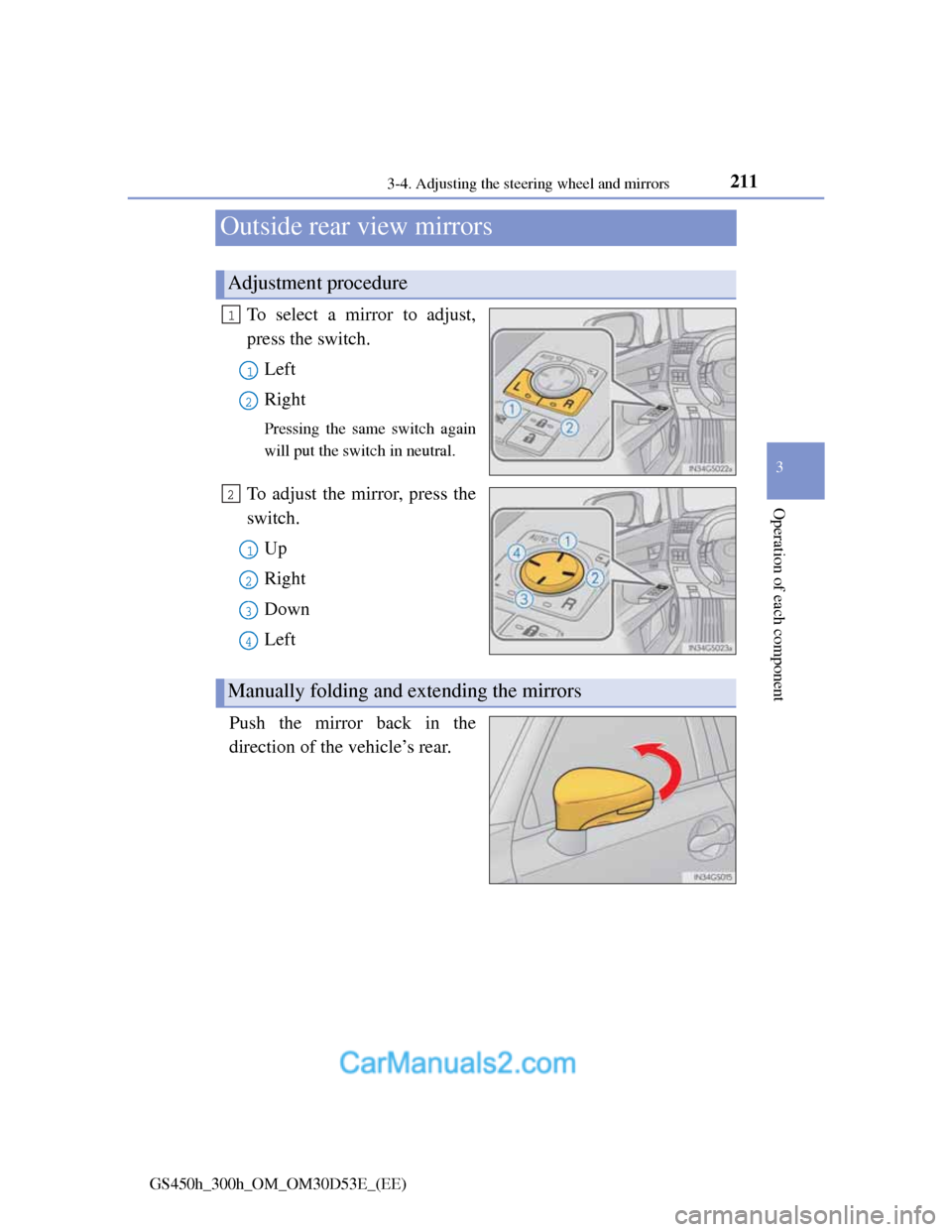

Outside rear view mirrors
To select a mirror to adjust,
press the switch.
Left
Right
Pressing the same switch again
will put the switch in neutral.
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Push the mirror back in the
direction of the vehicle’s rear.
Adjustment procedure
1
1
2
2
1
2
3
4
Manually folding and extending the mirrors

2123-4. Adjusting the steering wheel and mirrors
GS450h_300h_OM_OM30D53E_(EE)

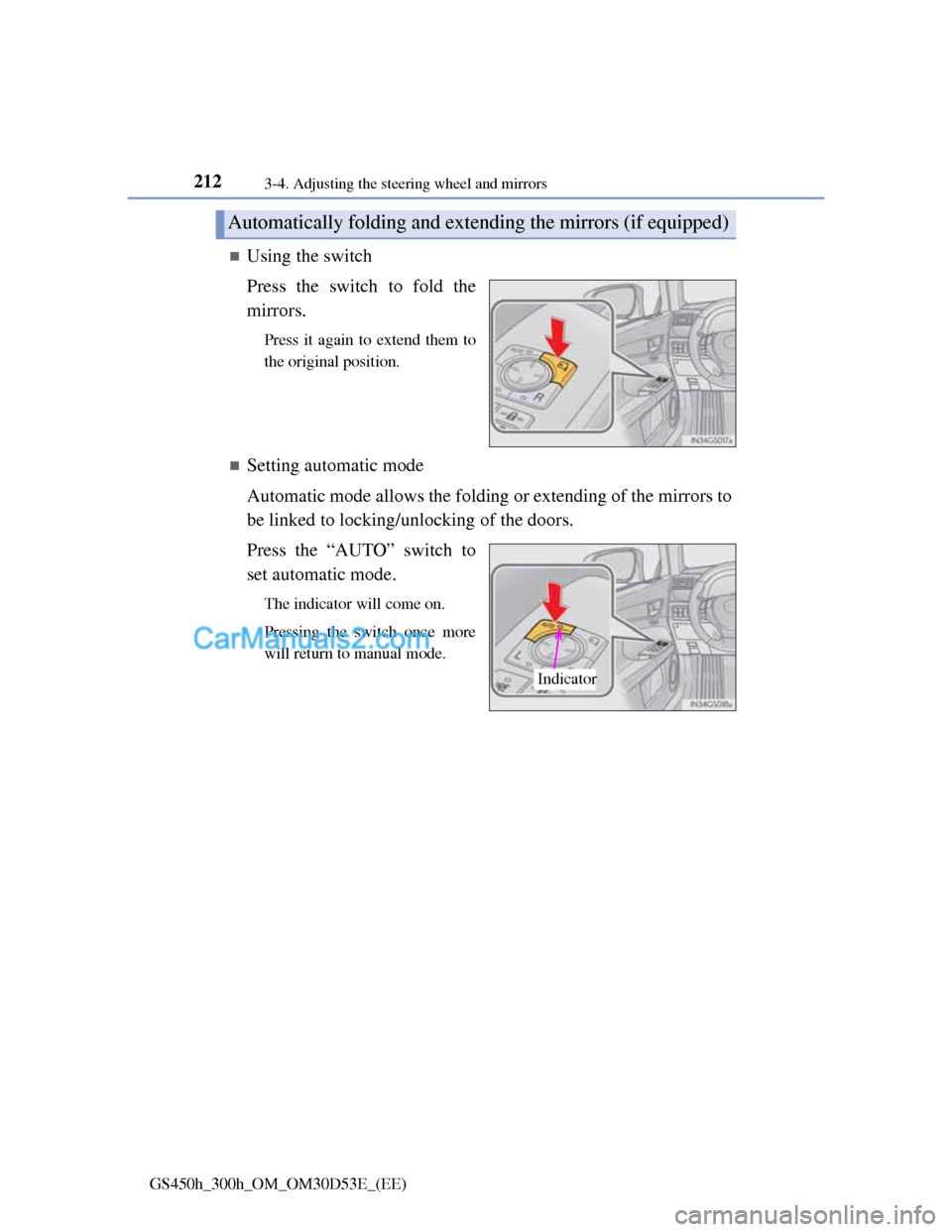

Using the switch
Press the switch to fold the
mirrors.
Press it again to extend them to
the original position.
Setting automatic mode
Automatic mode allows the folding or extending of the mirrors to
be linked to locking/unlocking of the doors.
Press the “AUTO” switch to
set automatic mode.
The indicator will come on.
Pressing the switch once more
will return to manual mode.
Automatically folding and extending the mirrors (if equipped)
Indicator

2133-4. Adjusting the steering wheel and mirrors
3
Operation of each component
GS450h_300h_OM_OM30D53E_(EE)

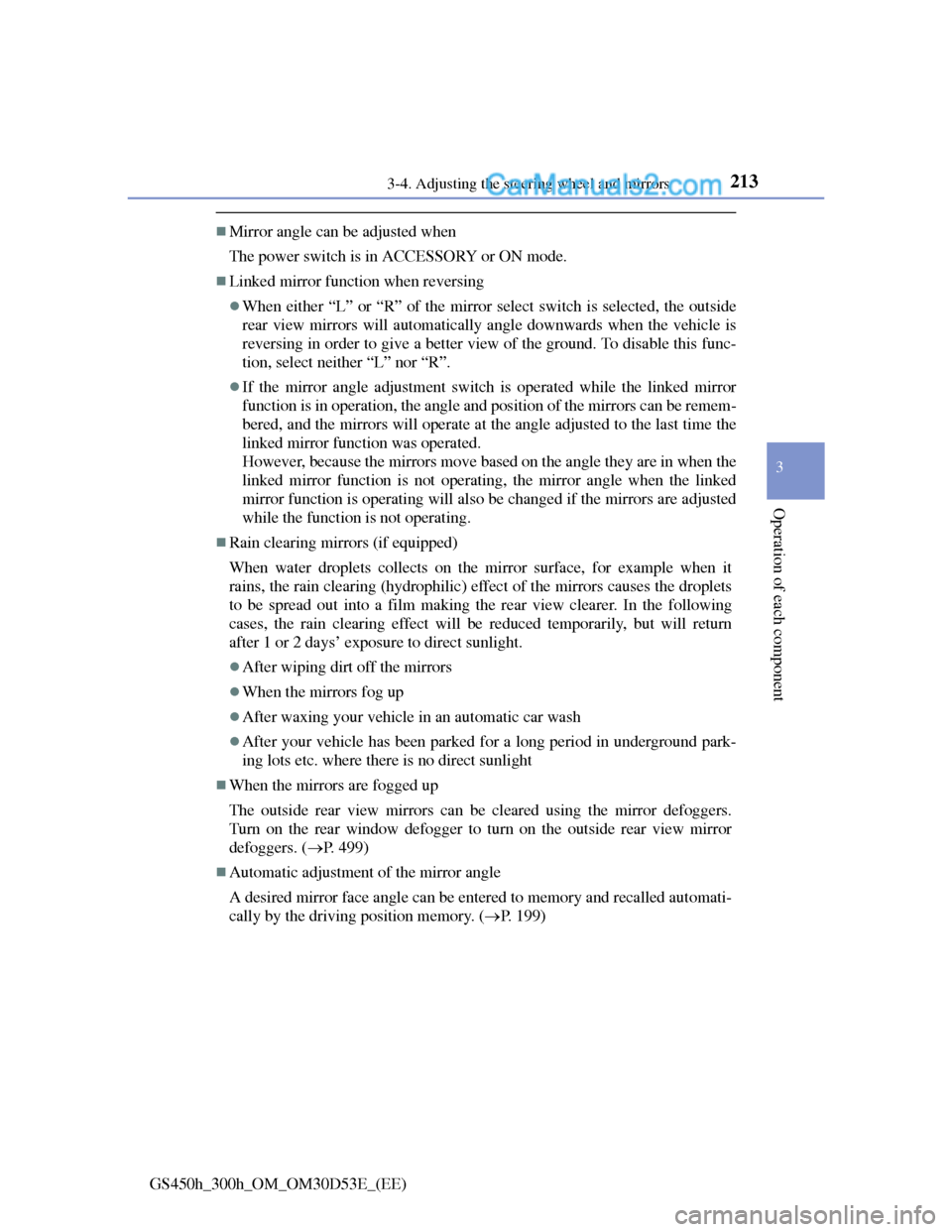

Mirror angle can be adjusted when
The power switch is in ACCESSORY or ON mode.
Linked mirror function when reversing
When either “L” or “R” of the mirror select switch is selected, the outside
rear view mirrors will automatically angle downwards when the vehicle is
reversing in order to give a better view of the ground. To disable this func-
tion, select neither “L” nor “R”.
If the mirror angle adjustment switch is operated while the linked mirror
function is in operation, the angle and position of the mirrors can be remem-
bered, and the mirrors will operate at the angle adjusted to the last time the
linked mirror function was operated.
However, because the mirrors move based on the angle they are in when the
linked mirror function is not operating, the mirror angle when the linked
mirror function is operating will also be changed if the mirrors are adjusted
while the function is not operating.
Rain clearing mirrors (if equipped)
When water droplets collects on the mirror surface, for example when it
rains, the rain clearing (hydrophilic) effect of the mirrors causes the droplets
to be spread out into a film making the rear view clearer. In the following
cases, the rain clearing effect will be reduced temporarily, but will return
after 1 or 2 days’ exposure to direct sunlight.
After wiping dirt off the mirrors
When the mirrors fog up
After waxing your vehicle in an automatic car wash
After your vehicle has been parked for a long period in underground park-
ing lots etc. where there is no direct sunlight
When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers.
Turn on the rear window defogger to turn on the outside rear view mirror
defoggers. (P. 499)
Automatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled automati-
cally by the driving position memory. (P. 199)

2143-4. Adjusting the steering wheel and mirrors
GS450h_300h_OM_OM30D53E_(EE)

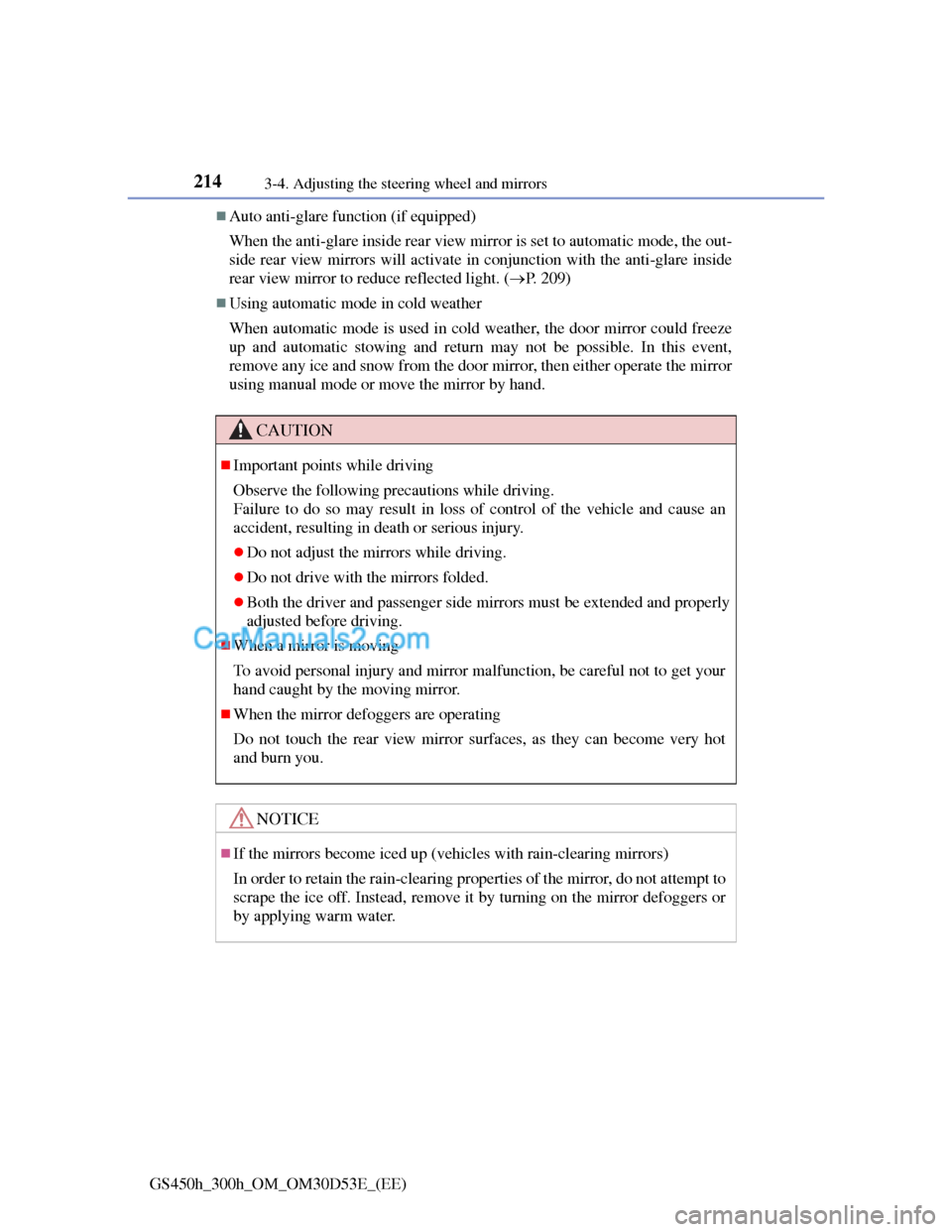

Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the out-
side rear view mirrors will activate in conjunction with the anti-glare inside
rear view mirror to reduce reflected light. (P. 209)
Using automatic mode in cold weather
When automatic mode is used in cold weather, the door mirror could freeze
up and automatic stowing and return may not be possible. In this event,
remove any ice and snow from the door mirror, then either operate the mirror
using manual mode or move the mirror by hand.
CAUTION
Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
Do not adjust the mirrors while driving.
Do not drive with the mirrors folded.
Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.
NOTICE
If the mirrors become iced up (vehicles with rain-clearing mirrors)
In order to retain the rain-clearing properties of the mirror, do not attempt to
scrape the ice off. Instead, remove it by turning on the mirror defoggers or
by applying warm water.

215
3 3-5. Opening, closing the windows and moon roof
Operation of each component
GS450h_300h_OM_OM30D53E_(EE)

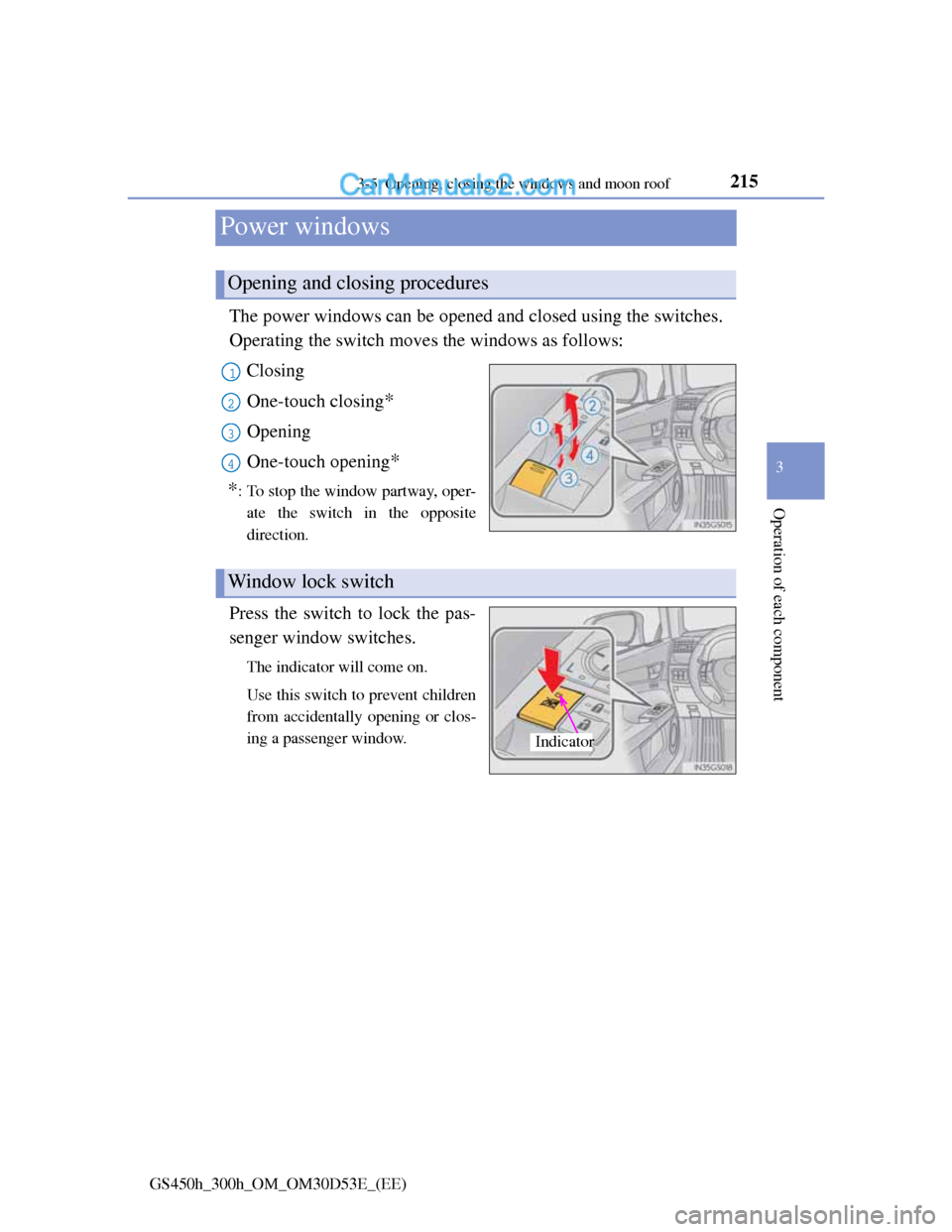

Power windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: To stop the window partway, oper-
ate the switch in the opposite
direction.
Press the switch to lock the pas-
senger window switches.
The indicator will come on.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Opening and closing procedures
1
2
3
4
Window lock switch
Indicator

2163-5. Opening, closing the windows and moon roof
GS450h_300h_OM_OM30D53E_(EE)

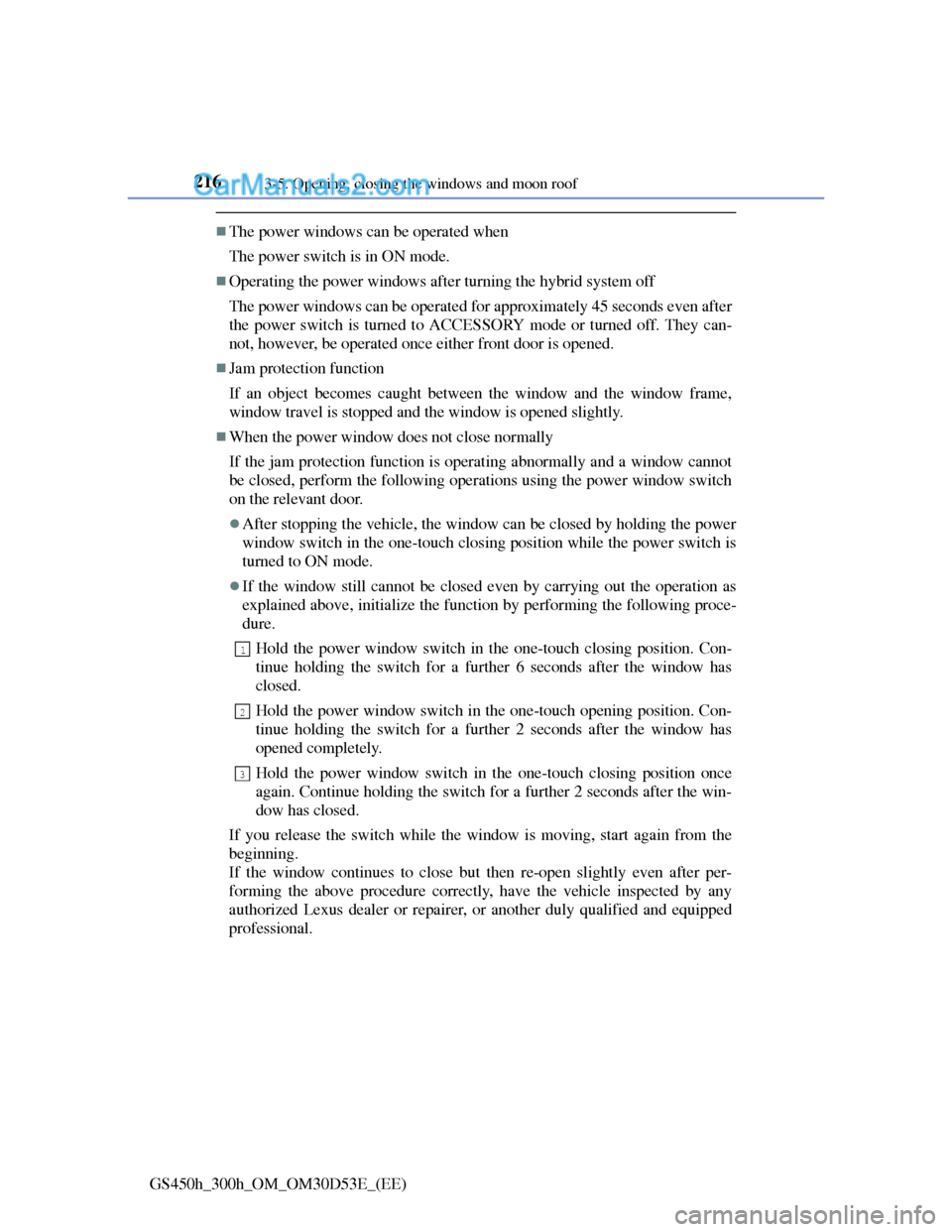

The power windows can be operated when
The power switch is in ON mode.
Operating the power windows after turning the hybrid system off
The power windows can be operated for approximately 45 seconds even after
the power switch is turned to ACCESSORY mode or turned off. They can-
not, however, be operated once either front door is opened.
Jam protection function
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.
When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, perform the following operations using the power window switch
on the relevant door.
After stopping the vehicle, the window can be closed by holding the power
window switch in the one-touch closing position while the power switch is
turned to ON mode.
If the window still cannot be closed even by carrying out the operation as
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position. Con-
tinue holding the switch for a further 6 seconds after the window has
closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the
beginning.
If the window continues to close but then re-open slightly even after per-
forming the above procedure correctly, have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and equipped
professional.
1
2
3

2173-5. Opening, closing the windows and moon roof
3
Operation of each component
GS450h_300h_OM_OM30D53E_(EE)

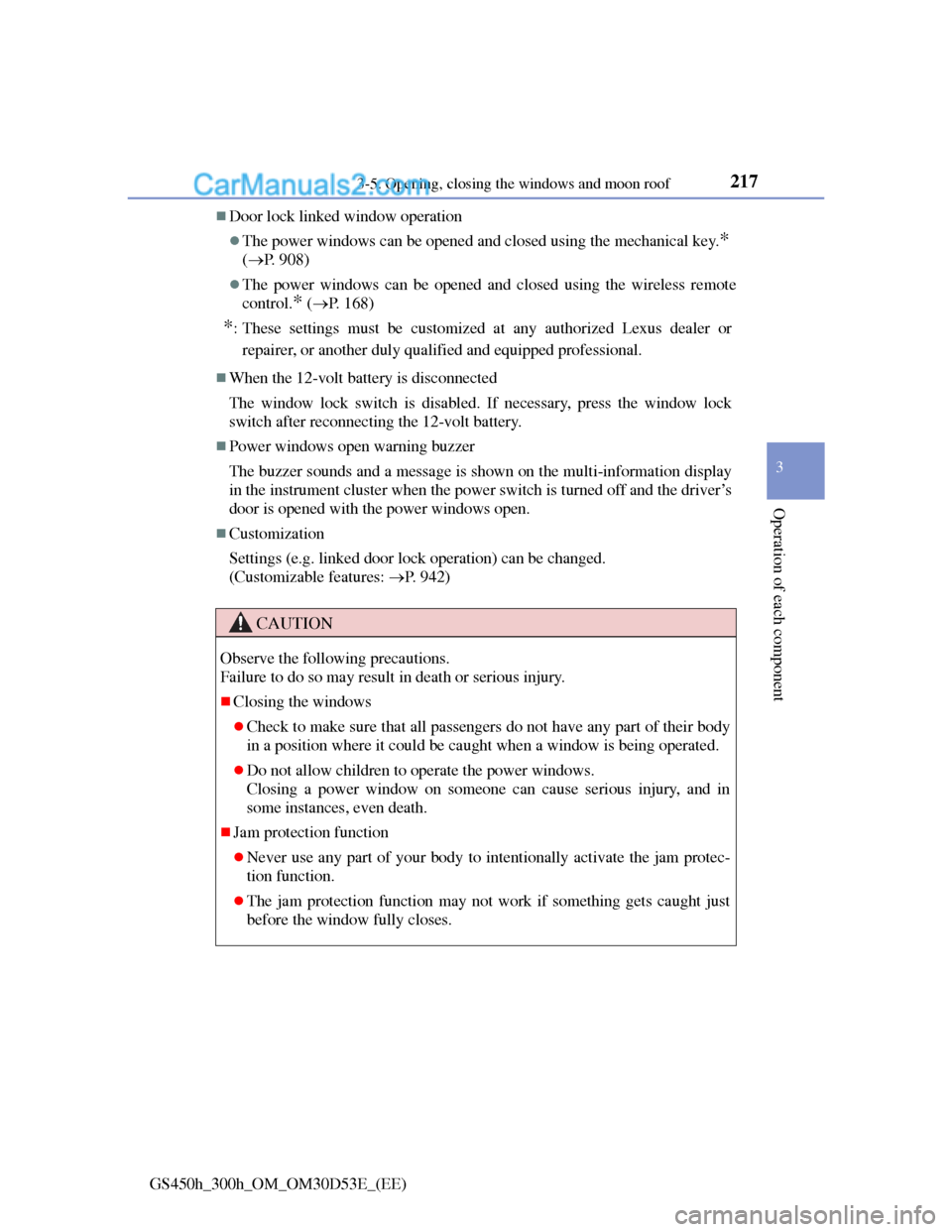

Door lock linked window operation
The power windows can be opened and closed using the mechanical key.*
(P. 908)
The power windows can be opened and closed using the wireless remote
control.
* (P. 168)
*: These settings must be customized at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
When the 12-volt battery is disconnected
The window lock switch is disabled. If necessary, press the window lock
switch after reconnecting the 12-volt battery.
Power windows open warning buzzer
The buzzer sounds and a message is shown on the multi-information display
in the instrument cluster when the power switch is turned off and the driver’s
door is opened with the power windows open.
Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: P. 942)
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
Closing the windows
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.
Jam protection function
Never use any part of your body to intentionally activate the jam protec-
tion function.
The jam protection function may not work if something gets caught just
before the window fully closes.
