Lexus GS300h 2013 Owner's Guide

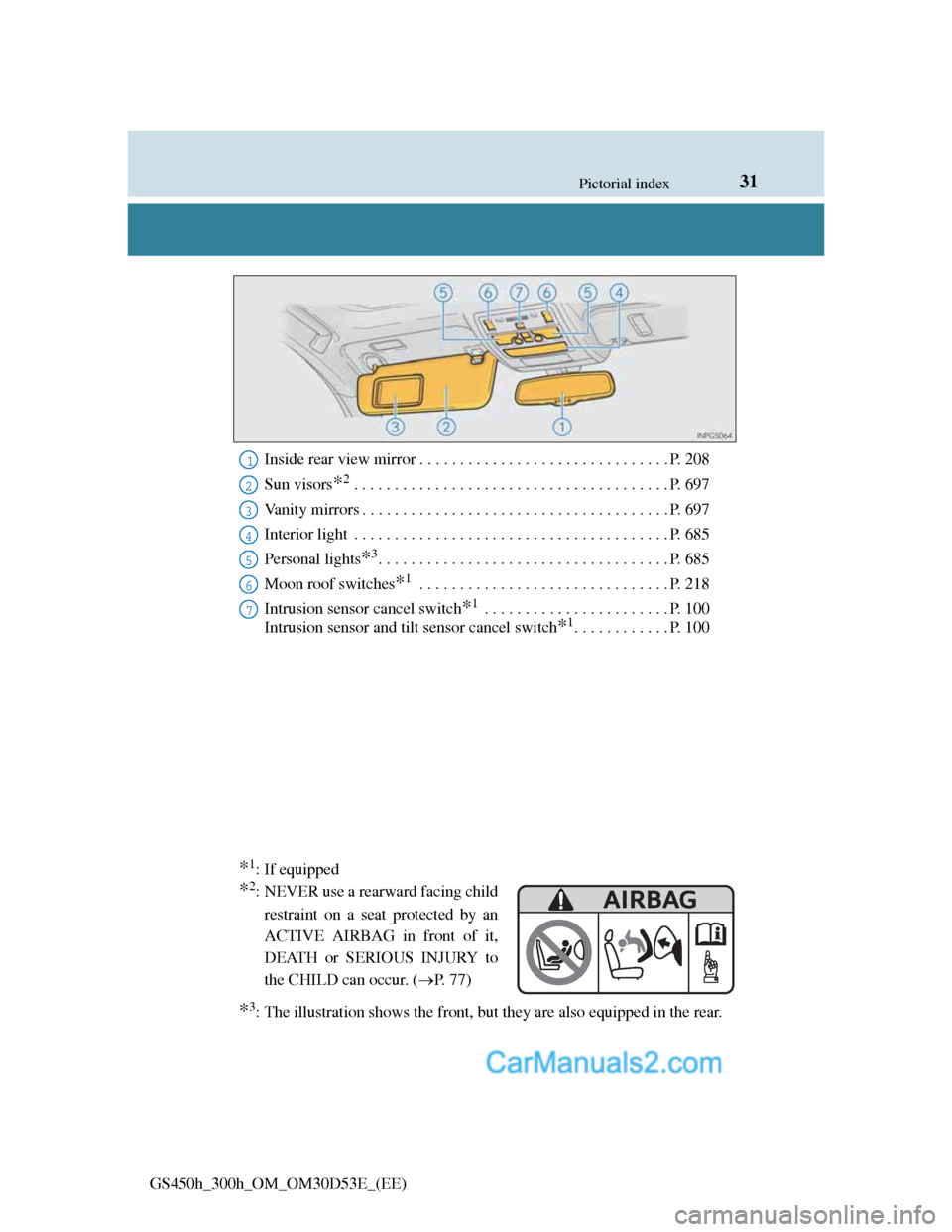

31Pictorial index
GS450h_300h_OM_OM30D53E_(EE)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
Sun visors
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 697
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 697
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 685
Personal lights
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 685
Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
Intrusion sensor cancel switch
*1 . . . . . . . . . . . . . . . . . . . . . . . P. 100
Intrusion sensor and tilt sensor cancel switch
*1. . . . . . . . . . . . P. 100
1
2
3
4
5
6
7
*1:If equipped
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to
the CHILD can occur. (P. 77)
*3: The illustration shows the front, but they are also equipped in the rear.

32Pictorial index
GS450h_300h_OM_OM30D53E_(EE)

33

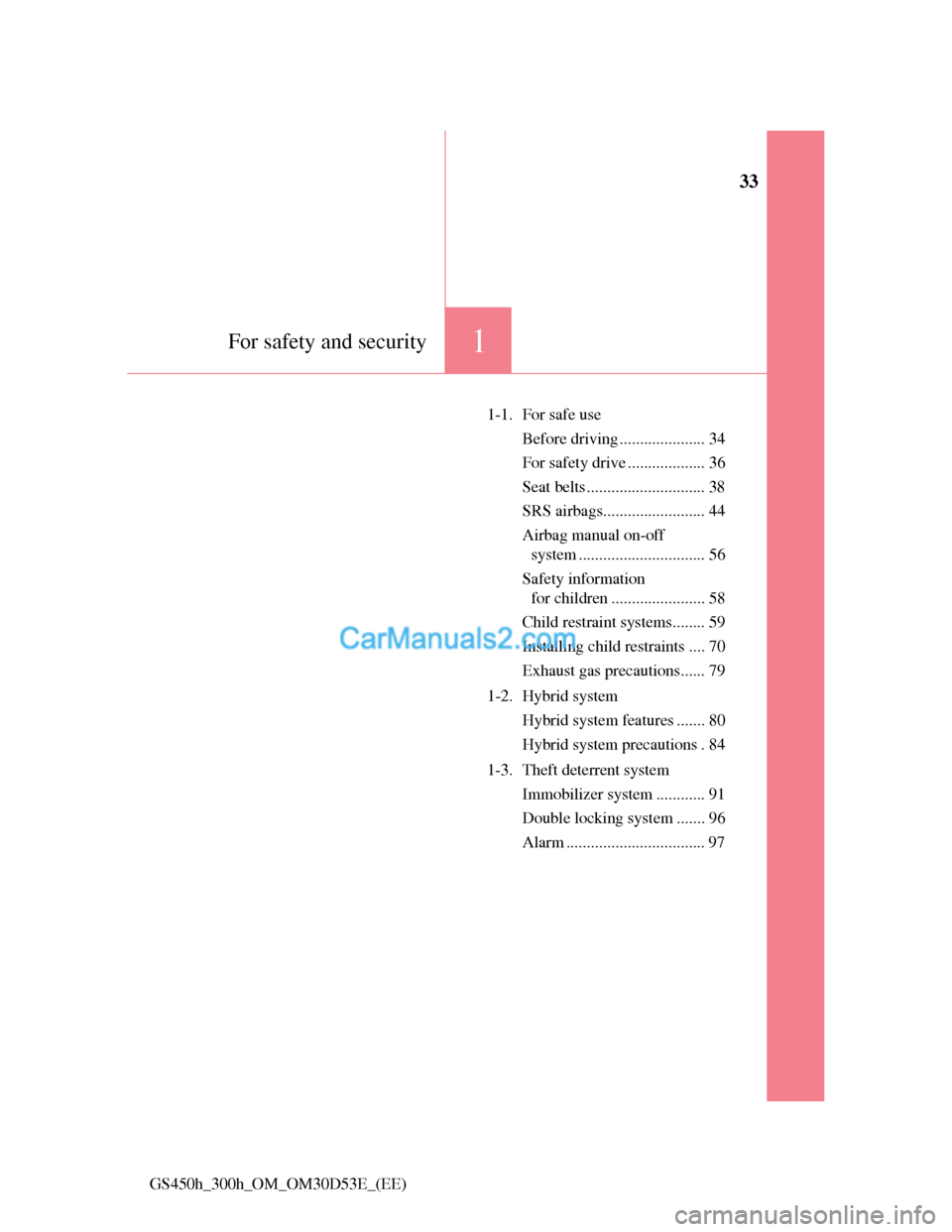

1For safety and security
GS450h_300h_OM_OM30D53E_(EE)1-1. For safe use
Before driving ..................... 34
For safety drive ................... 36
Seat belts ............................. 38
SRS airbags......................... 44
Airbag manual on-off
system ............................... 56
Safety information
for children ....................... 58
Child restraint systems........ 59
Installing child restraints .... 70
Exhaust gas precautions...... 79
1-2. Hybrid system
Hybrid system features ....... 80
Hybrid system precautions . 84
1-3. Theft deterrent system
Immobilizer system ............ 91
Double locking system ....... 96
Alarm .................................. 97

341-1. For safe use
GS450h_300h_OM_OM30D53E_(EE)

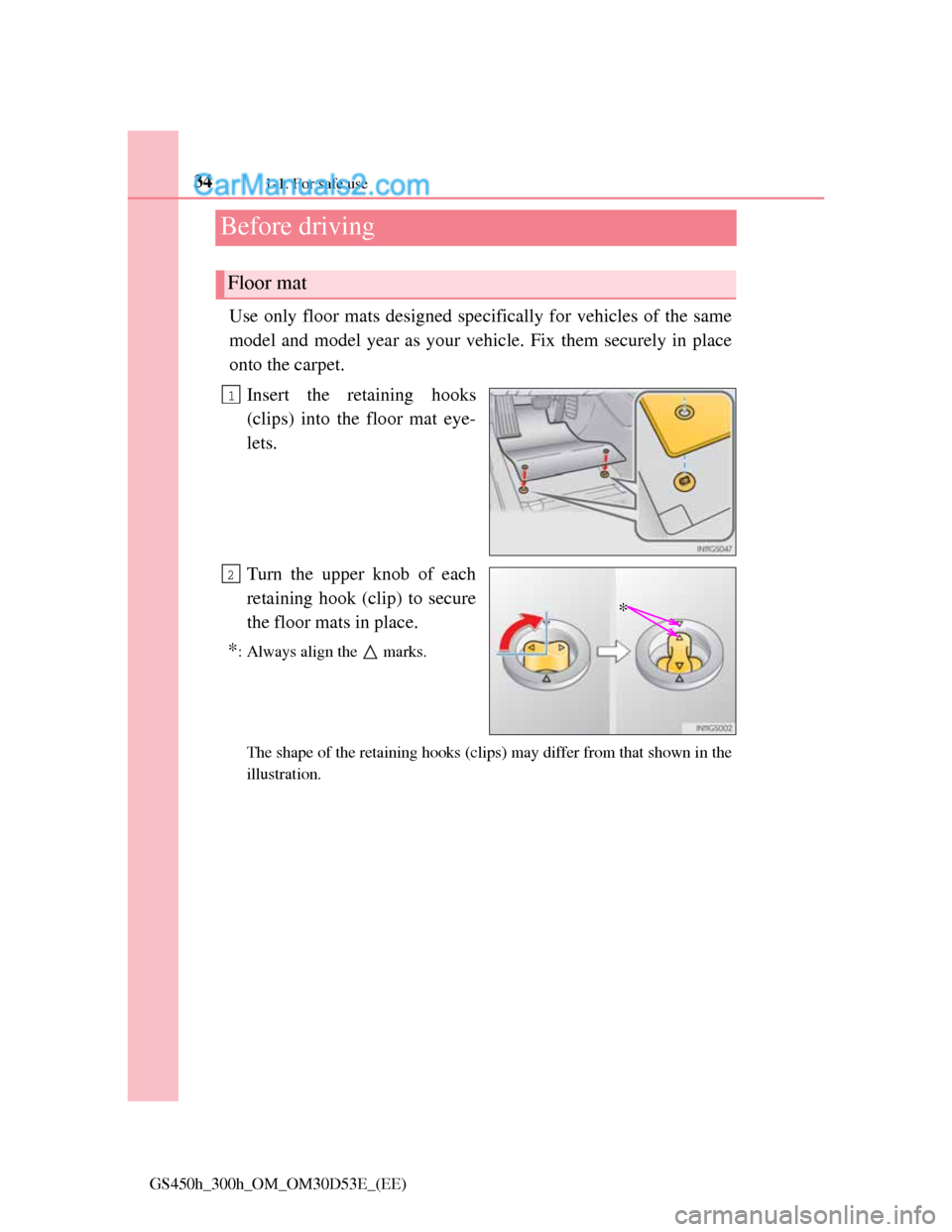

Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Floor mat
1
*
2

351-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30D53E_(EE)

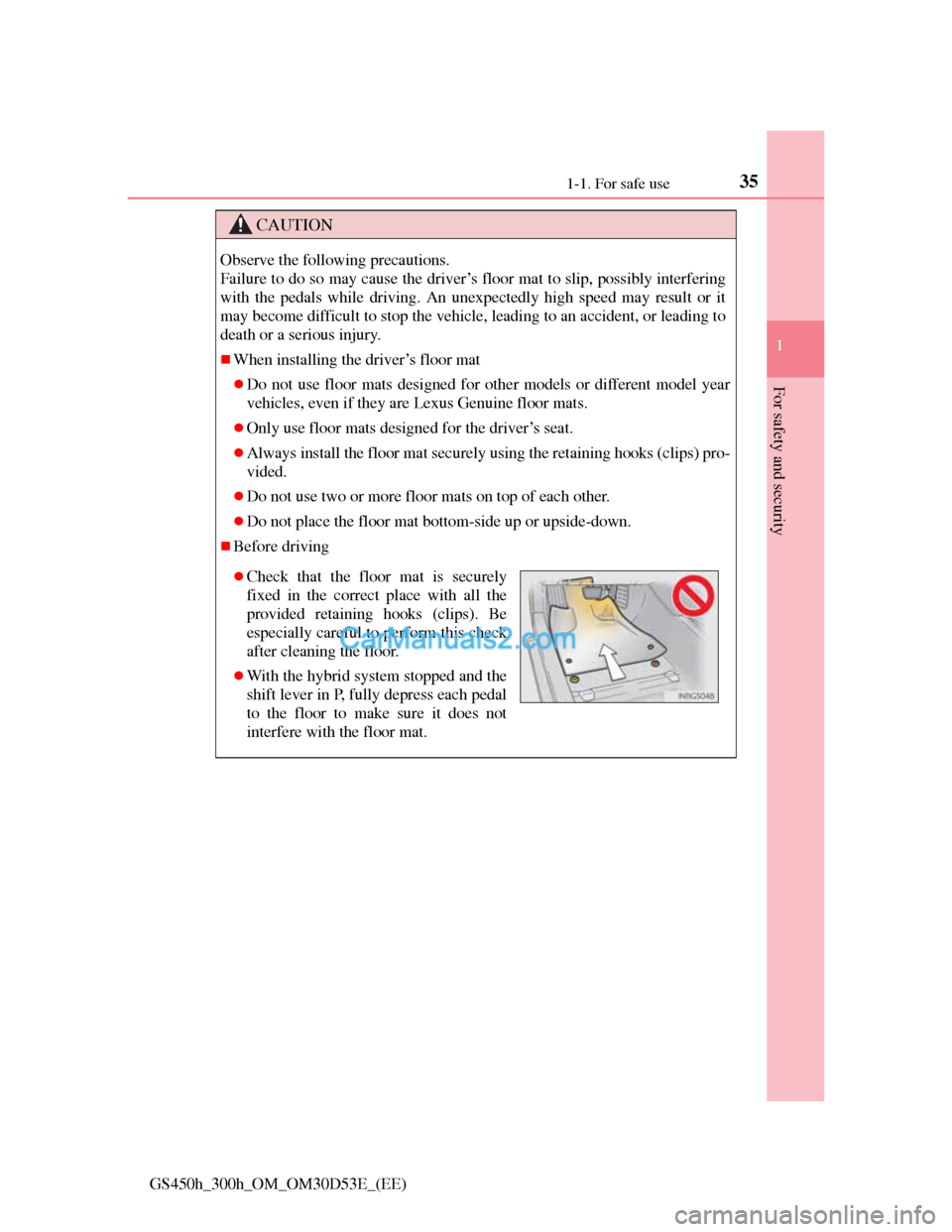

CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it
may become difficult to stop the vehicle, leading to an accident, or leading to
death or a serious injury.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Lexus Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the hybrid system stopped and the
shift lever in P, fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.

361-1. For safe use
GS450h_300h_OM_OM30D53E_(EE)

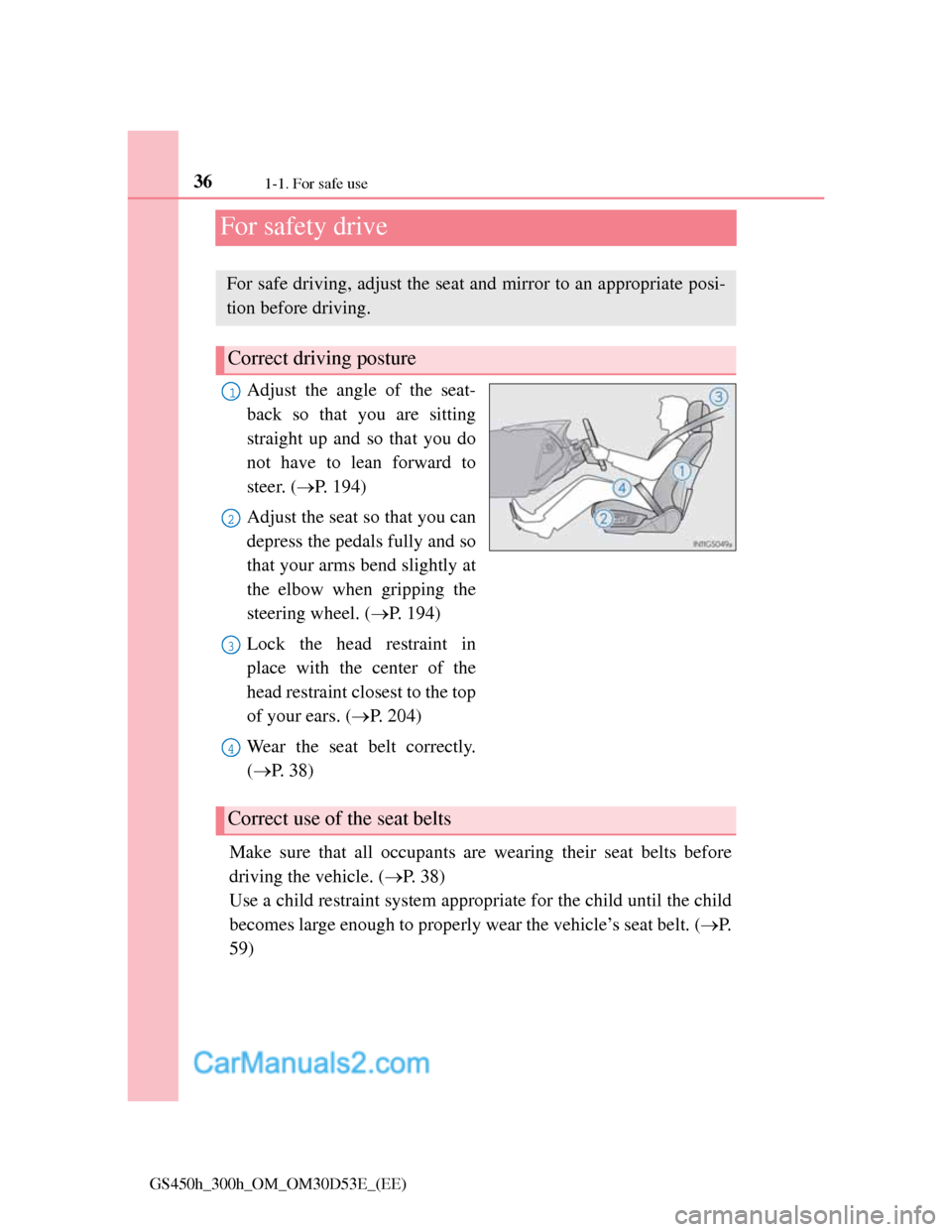

For safety drive
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 194)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. (P. 194)
Lock the head restraint in
place with the center of the
head restraint closest to the top
of your ears. (P. 204)
Wear the seat belt correctly.
(P. 38)
Make sure that all occupants are wearing their seat belts before
driving the vehicle. (P. 38)
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt. (P.
59)
For safe driving, adjust the seat and mirror to an appropriate posi-
tion before driving.
Correct driving posture
1
2
3
4
Correct use of the seat belts

371-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30D53E_(EE)

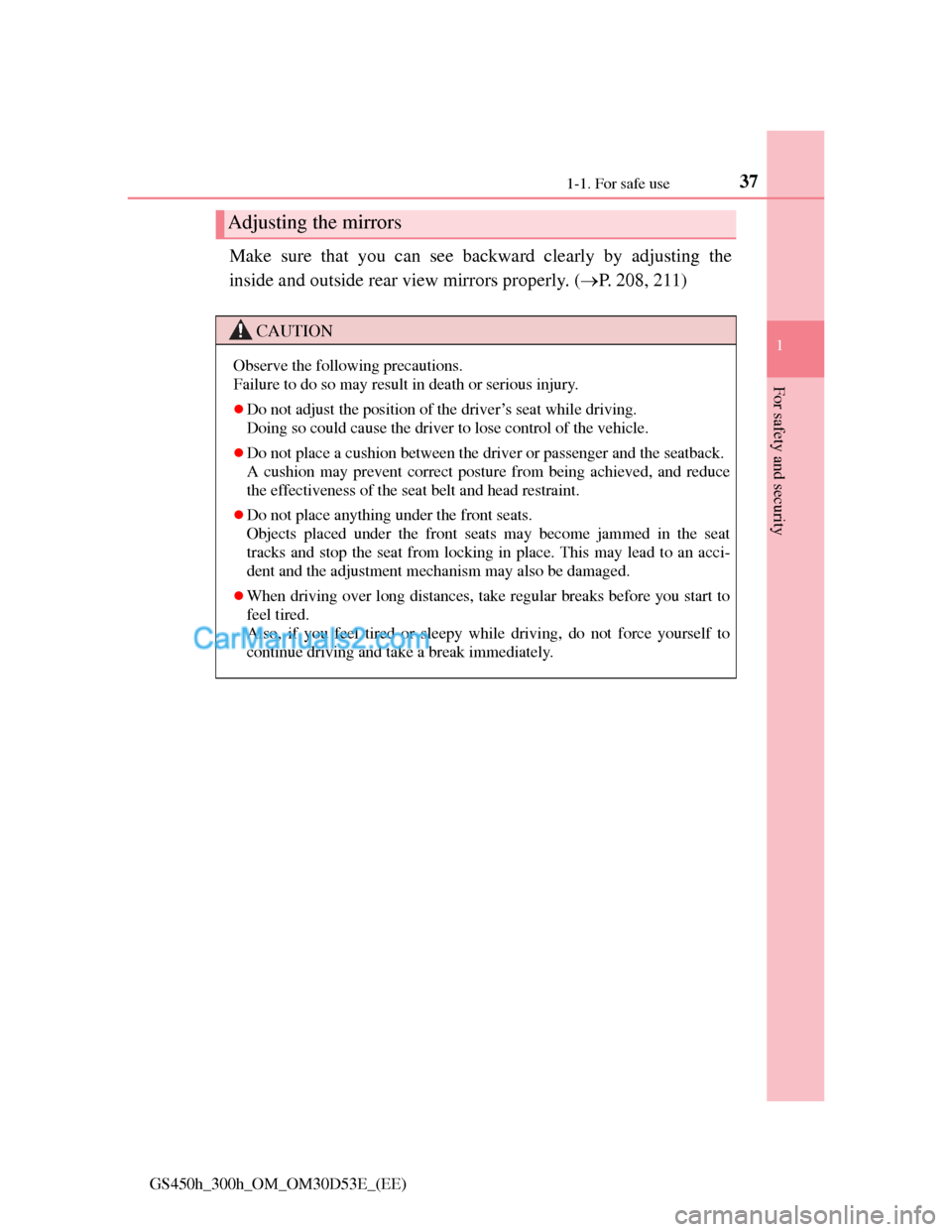

Make sure that you can see backward clearly by adjusting the
inside and outside rear view mirrors properly. (P. 208, 211)
Adjusting the mirrors
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to
continue driving and take a break immediately.

381-1. For safe use
GS450h_300h_OM_OM30D53E_(EE)

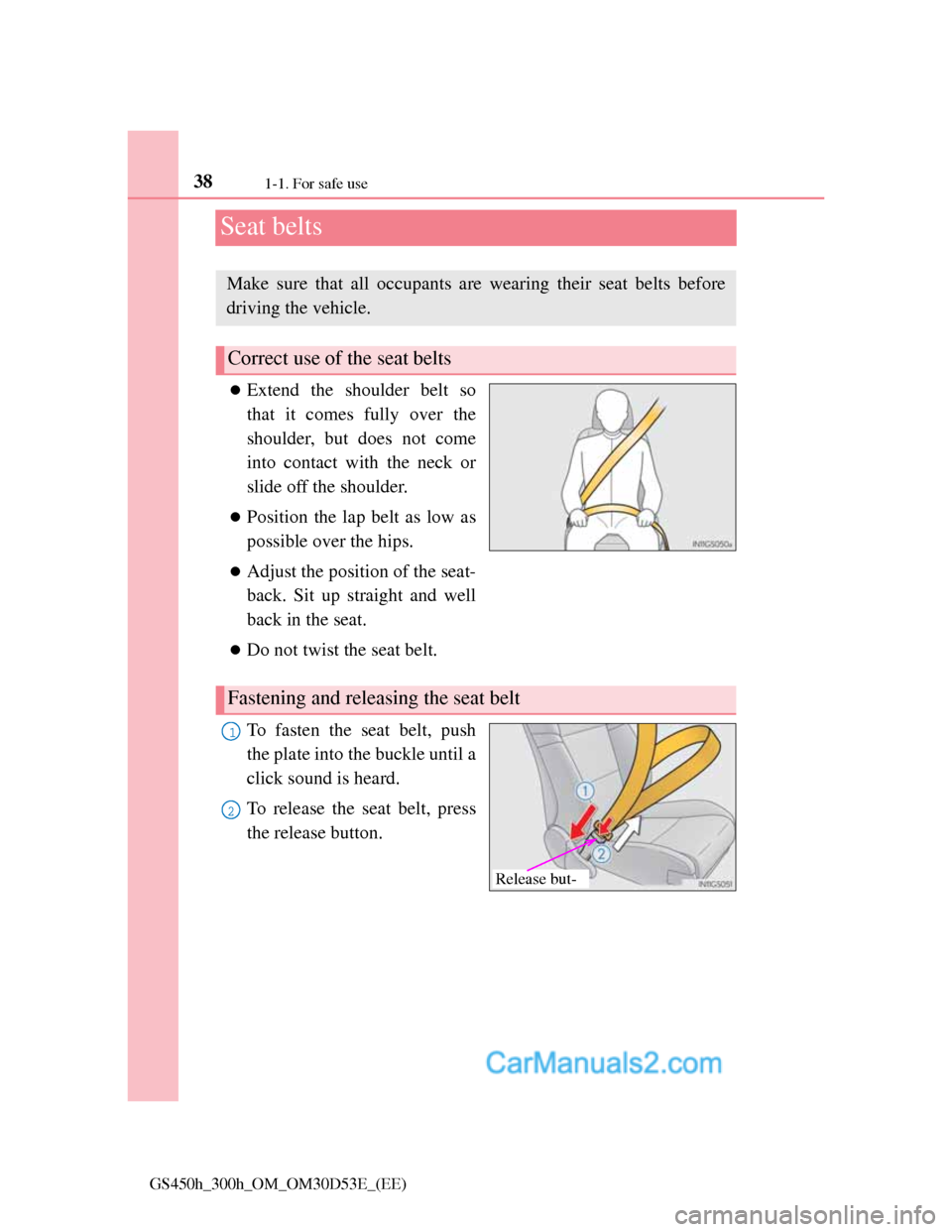

Seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.
Position the lap belt as low as
possible over the hips.
Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
Do not twist the seat belt.
To fasten the seat belt, push
the plate into the buckle until a
click sound is heard.
To release the seat belt, press
the release button.
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release but-
1
2

391-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30D53E_(EE)

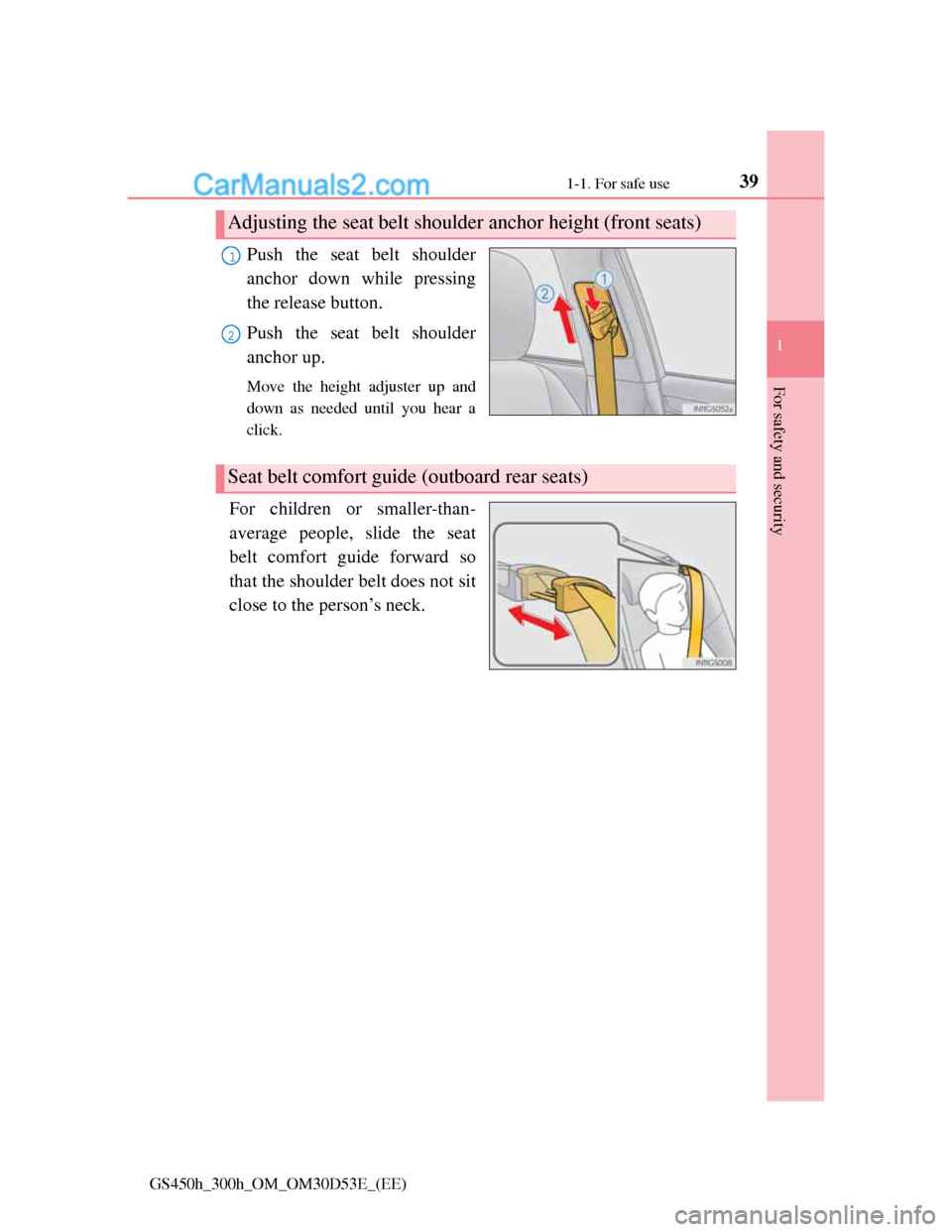

Push the seat belt shoulder
anchor down while pressing
the release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up and
down as needed until you hear a
click.
For children or smaller-than-
average people, slide the seat
belt comfort guide forward so
that the shoulder belt does not sit
close to the person’s neck.
Adjusting the seat belt shoulder anchor height (front seats)
1
2
Seat belt comfort guide (outboard rear seats)

401-1. For safe use
GS450h_300h_OM_OM30D53E_(EE)

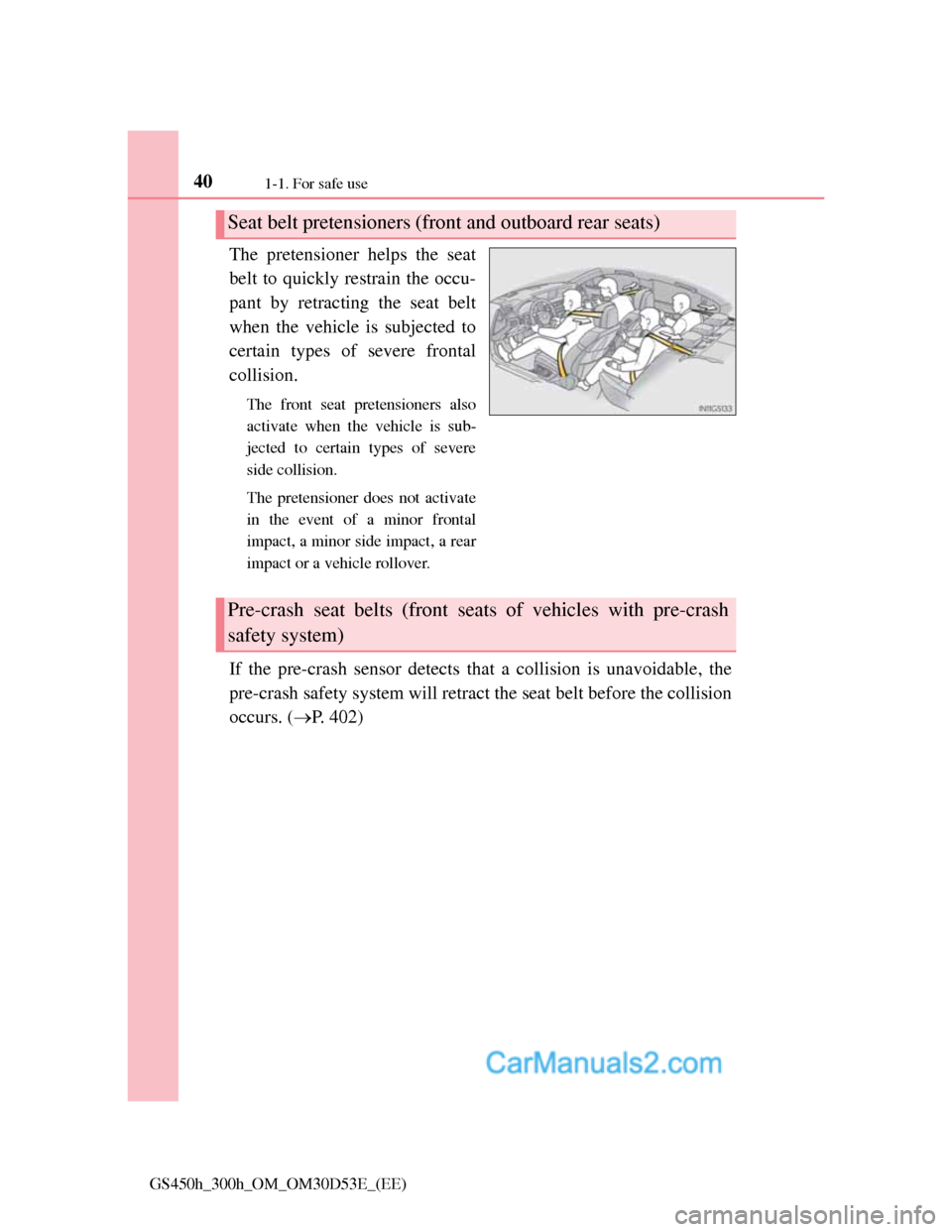

The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The front seat pretensioners also
activate when the vehicle is sub-
jected to certain types of severe
side collision.
The pretensioner does not activate
in the event of a minor frontal
impact, a minor side impact, a rear
impact or a vehicle rollover.
If the pre-crash sensor detects that a collision is unavoidable, the
pre-crash safety system will retract the seat belt before the collision
occurs. (P. 402)
Seat belt pretensioners (front and outboard rear seats)
Pre-crash seat belts (front seats of vehicles with pre-crash
safety system)
