711-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30D53E_(EE)

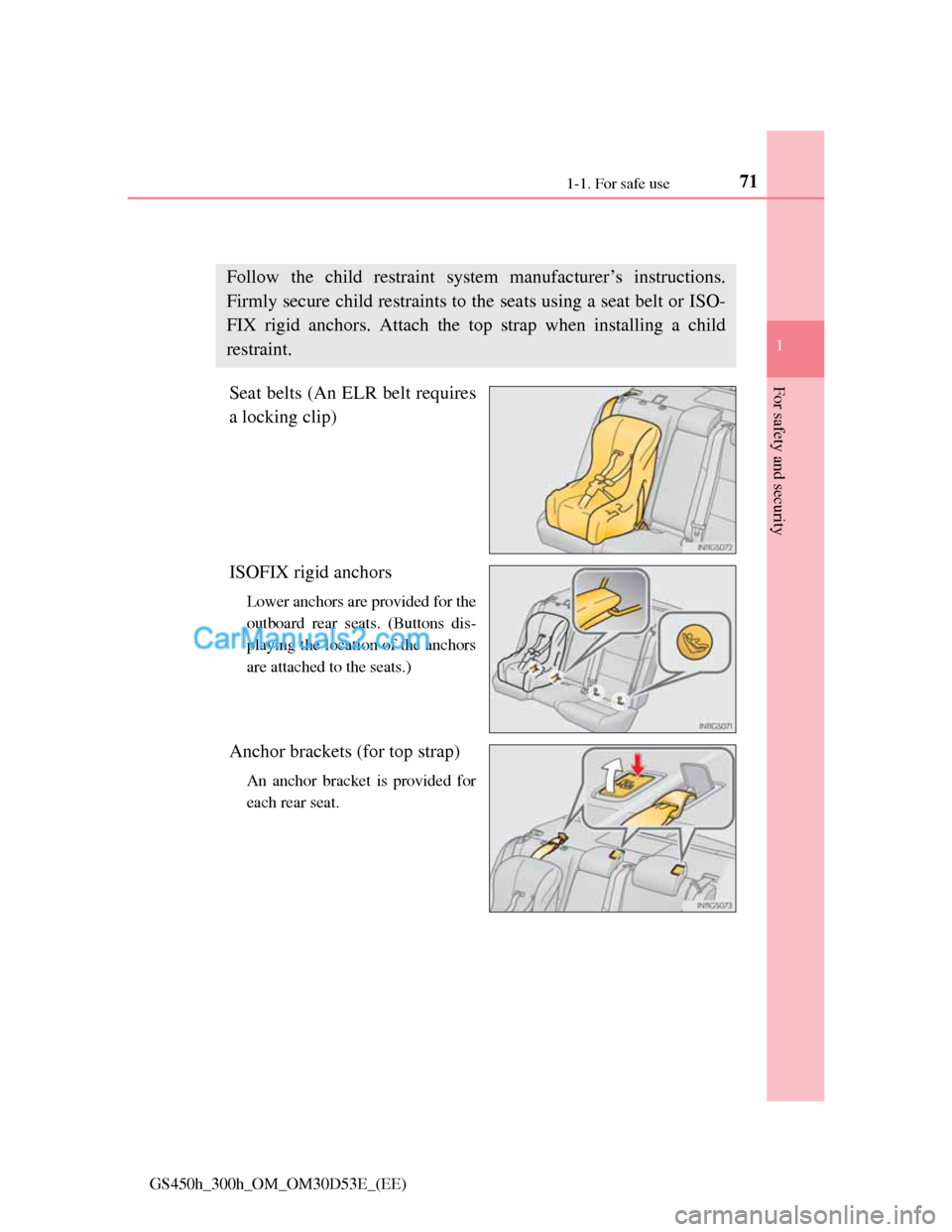

Installing child restraints
Seat belts (An ELR belt requires
a locking clip)
ISOFIX rigid anchors
Lower anchors are provided for the
outboard rear seats. (Buttons dis-
playing the location of the anchors
are attached to the seats.)
Anchor brackets (for top strap)
An anchor bracket is provided for
each rear seat.
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using a seat belt or ISO-
FIX rigid anchors. Attach the top strap when installing a child
restraint.

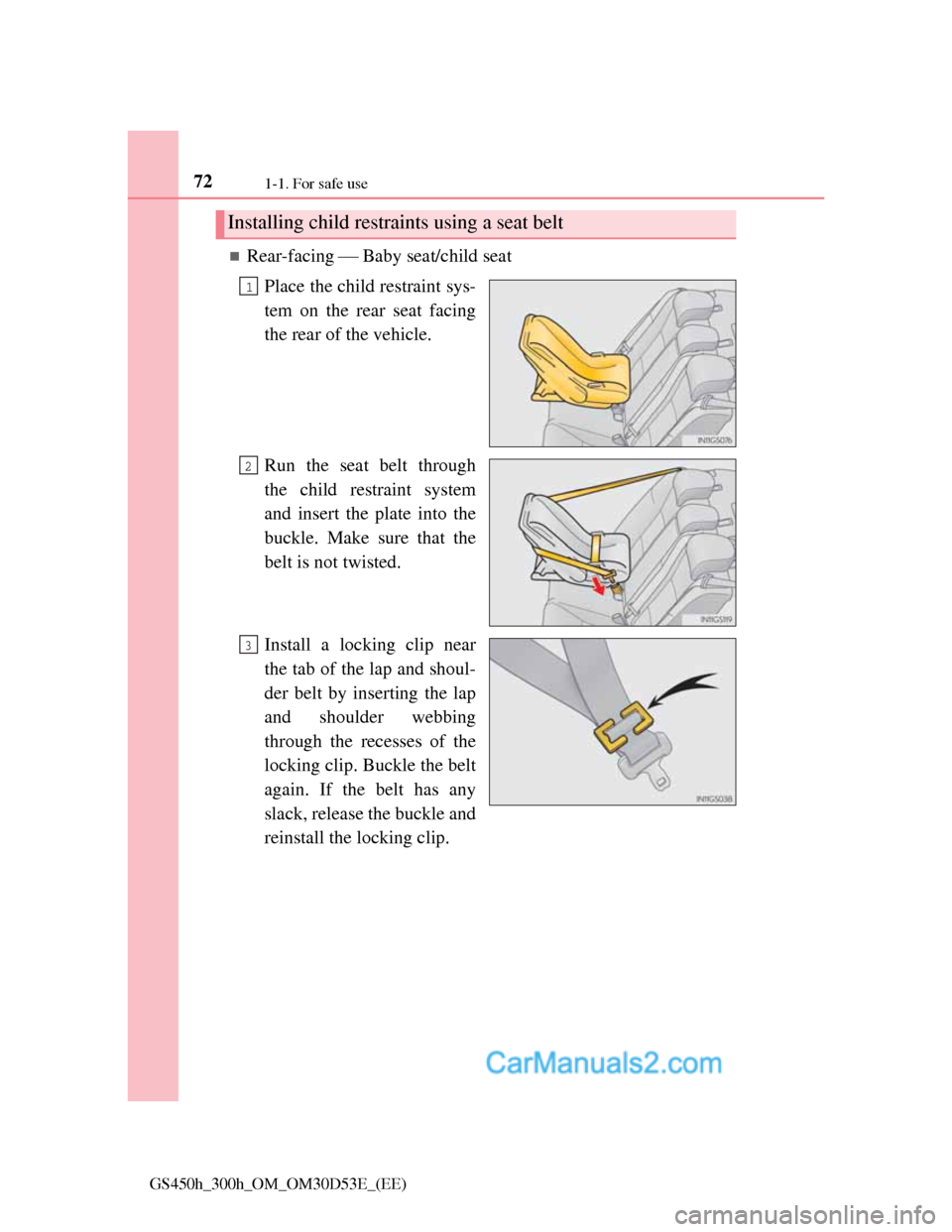

721-1. For safe use
GS450h_300h_OM_OM30D53E_(EE)
Rear-facing  Baby seat/child seat
Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.
Run the seat belt through
the child restraint system
and insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near
the tab of the lap and shoul-
der belt by inserting the lap
and shoulder webbing
through the recesses of the
locking clip. Buckle the belt
again. If the belt has any
slack, release the buckle and
reinstall the locking clip.
Installing child restraints using a seat belt
1
2
3

731-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30D53E_(EE)

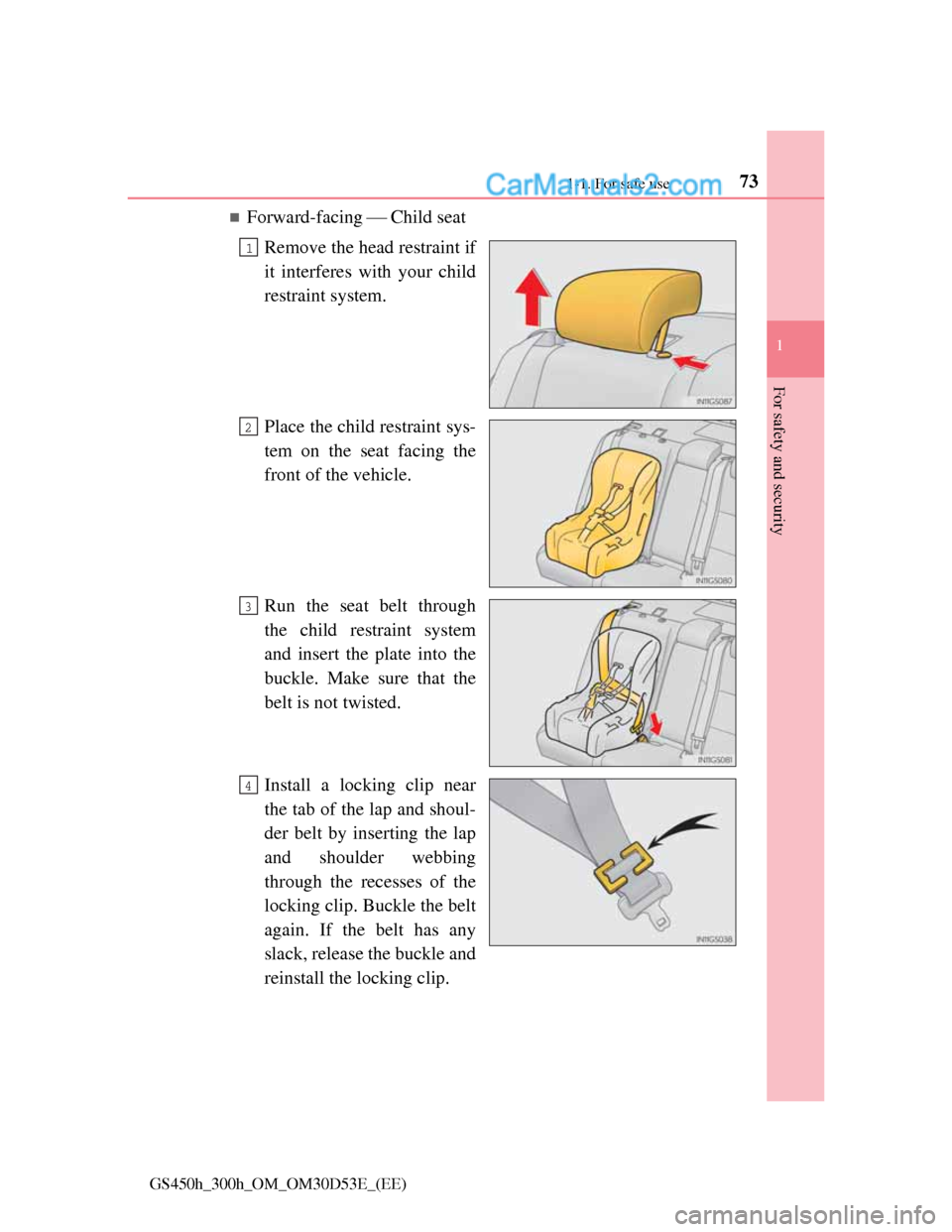

Forward-facing Child seat
Remove the head restraint if
it interferes with your child
restraint system.
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Run the seat belt through
the child restraint system
and insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near
the tab of the lap and shoul-
der belt by inserting the lap
and shoulder webbing
through the recesses of the
locking clip. Buckle the belt
again. If the belt has any
slack, release the buckle and
reinstall the locking clip.
1
2
3
4

741-1. For safe use
GS450h_300h_OM_OM30D53E_(EE)

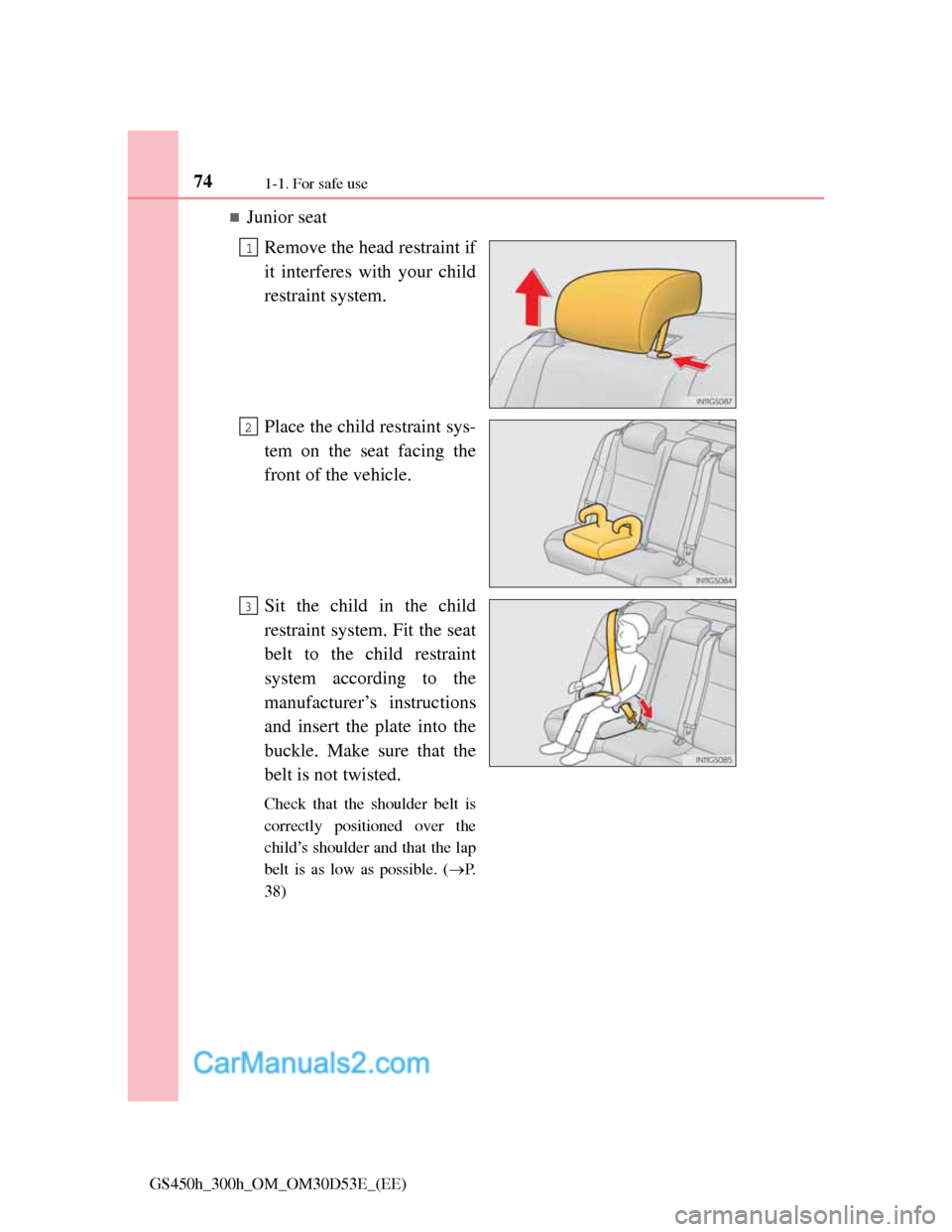

Junior seat
Remove the head restraint if
it interferes with your child
restraint system.
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint
system according to the
manufacturer’s instructions
and insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder and that the lap
belt is as low as possible. (P.
38)
1
2
3

751-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30D53E_(EE)

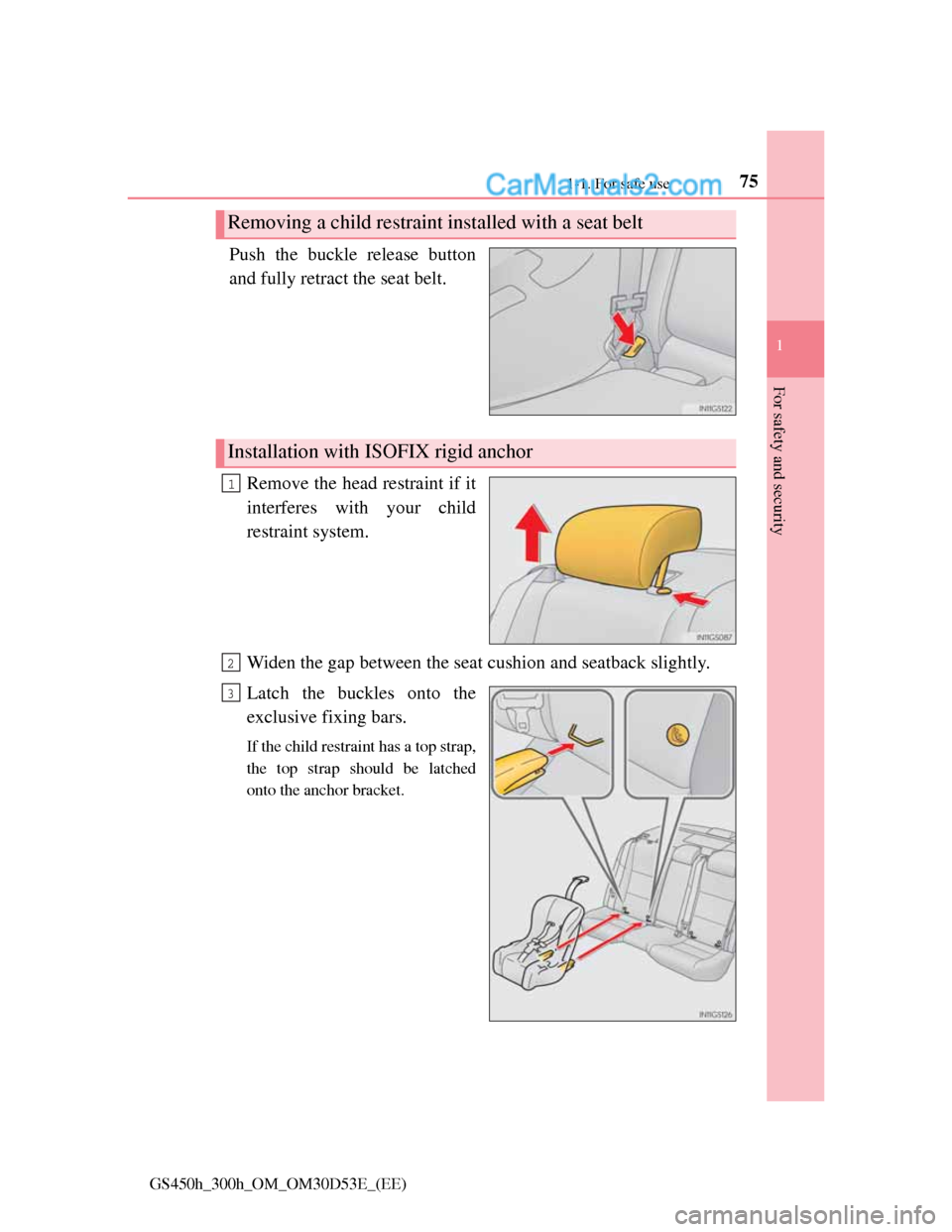

Push the buckle release button
and fully retract the seat belt.
Remove the head restraint if it
interferes with your child
restraint system.
Widen the gap between the seat cushion and seatback slightly.
Latch the buckles onto the
exclusive fixing bars.
If the child restraint has a top strap,
the top strap should be latched
onto the anchor bracket.
Removing a child restraint installed with a seat belt
Installation with ISOFIX rigid anchor
1
2
3

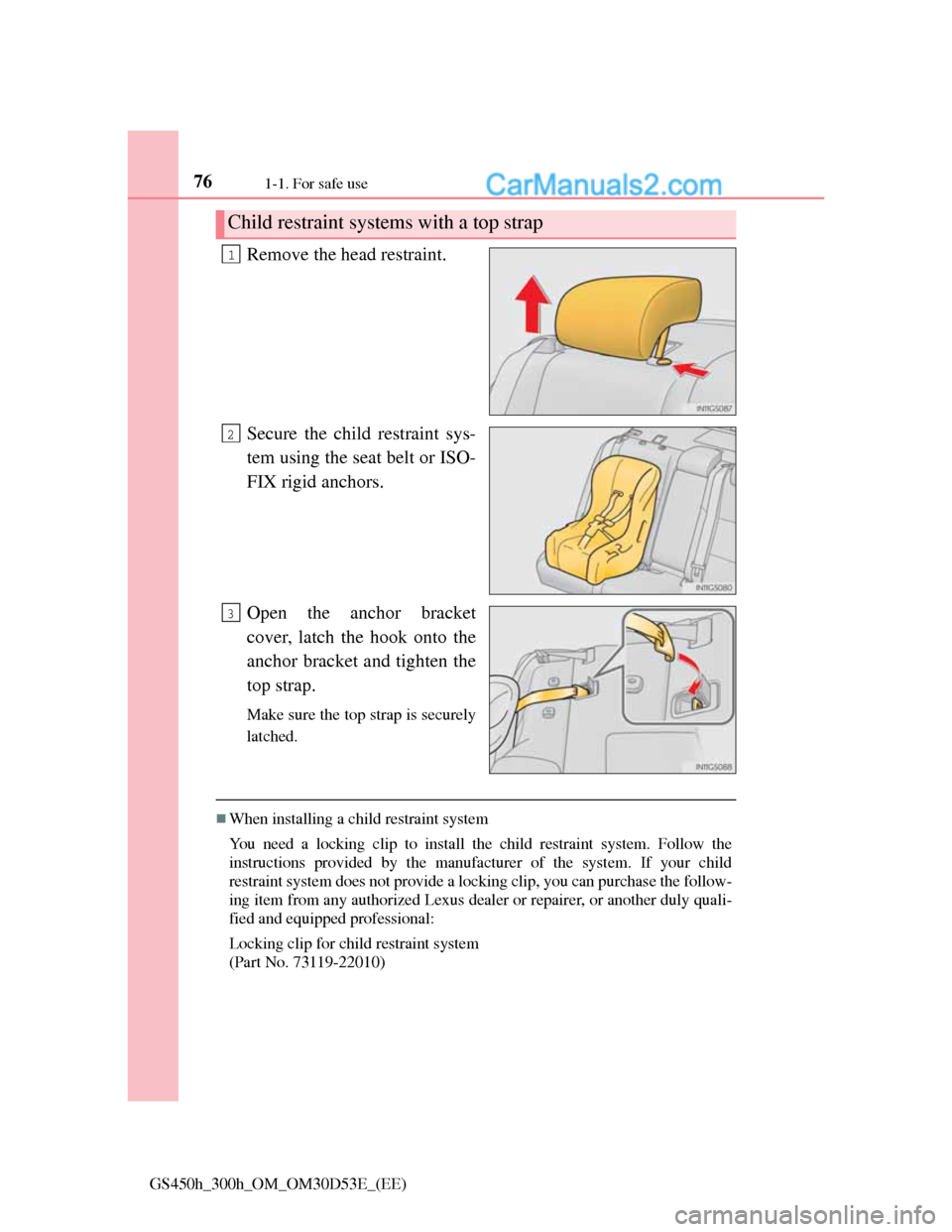

761-1. For safe use
GS450h_300h_OM_OM30D53E_(EE)
Remove the head restraint.
Secure the child restraint sys-
tem using the seat belt or ISO-
FIX rigid anchors.
Open the anchor bracket
cover, latch the hook onto the
anchor bracket and tighten the
top strap.
Make sure the top strap is securely
latched.
When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child
restraint system does not provide a locking clip, you can purchase the follow-
ing item from any authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional:
Locking clip for child restraint system
(Part No. 73119-22010)
Child restraint systems with a top strap
1
2
3

771-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30D53E_(EE)

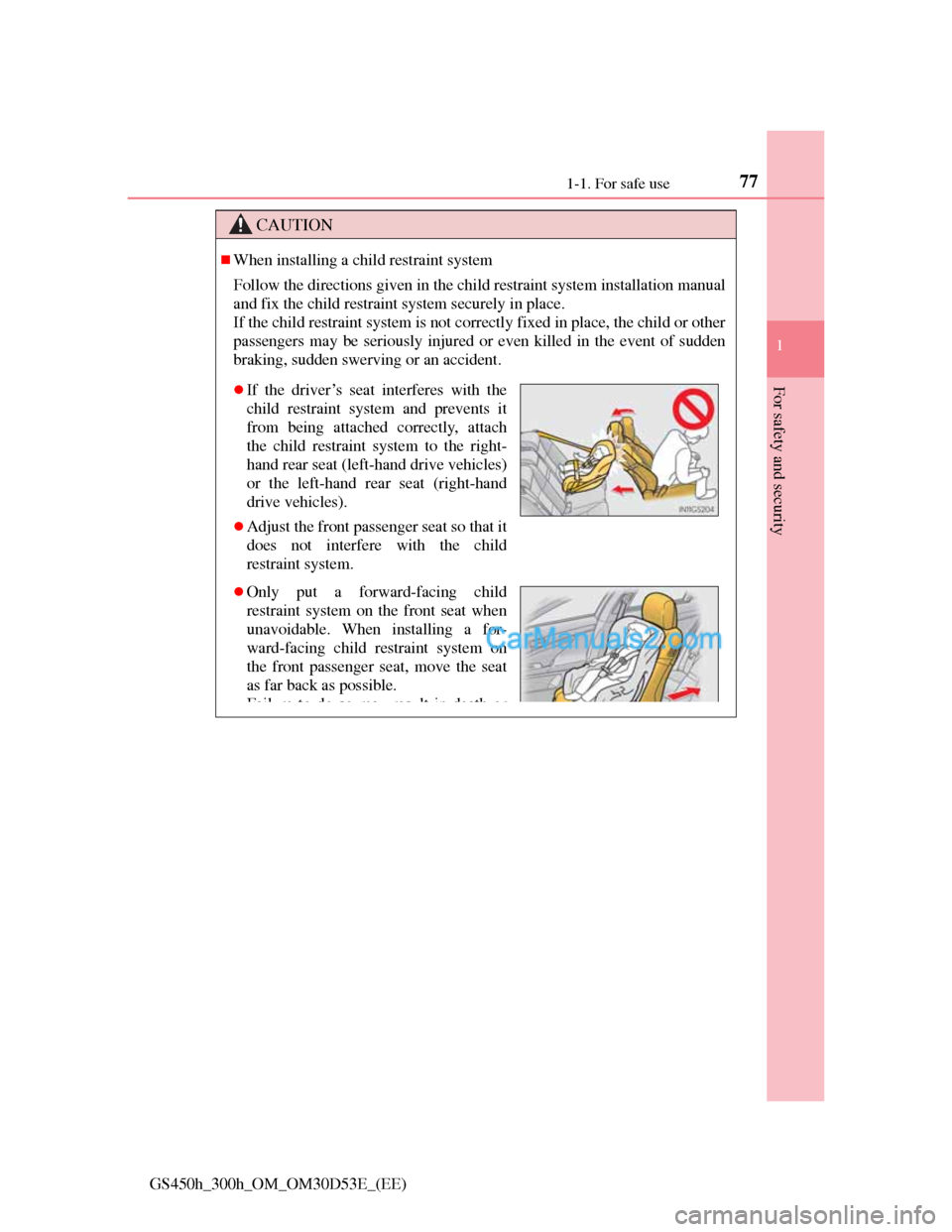

CAUTION
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat (left-hand drive vehicles)
or the left-hand rear seat (right-hand
drive vehicles).
Adjust the front passenger seat so that it
does not interfere with the child
restraint system.
Only put a forward-facing child
restraint system on the front seat when
unavoidable. When installing a for-
ward-facing child restraint system on
the front passenger seat, move the seat
as far back as possible.
Fail re to do so ma res lt in death or

781-1. For safe use
GS450h_300h_OM_OM30D53E_(EE)

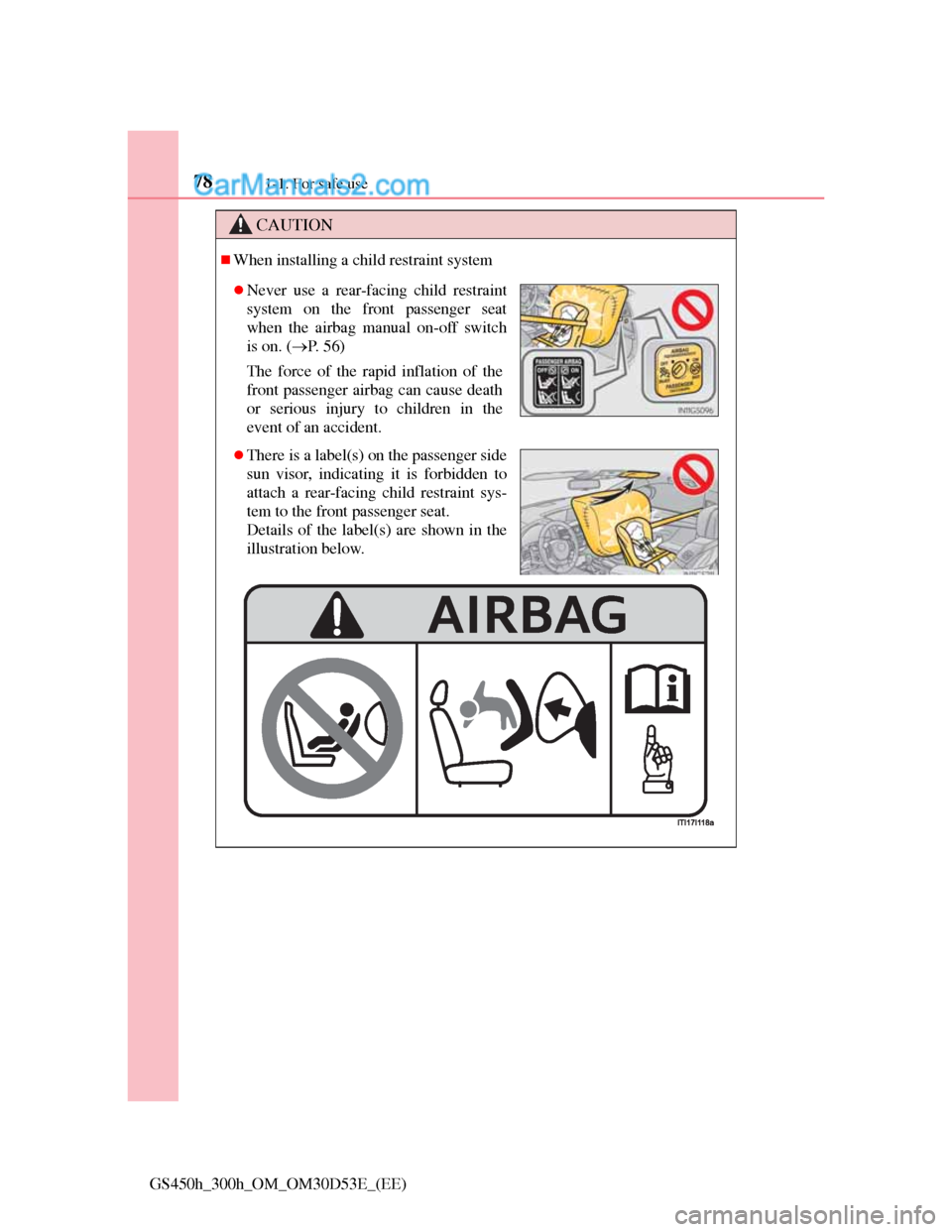

CAUTION
When installing a child restraint system
Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch
is on. (P. 5 6 )
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the
event of an accident.
There is a label(s) on the passenger side
sun visor, indicating it is forbidden to
attach a rear-facing child restraint sys-
tem to the front passenger seat.
Details of the label(s) are shown in the
illustration below.

791-1. For safe use
1
GS450h_300h_OM_OM30D53E_(EE)
For safety and security

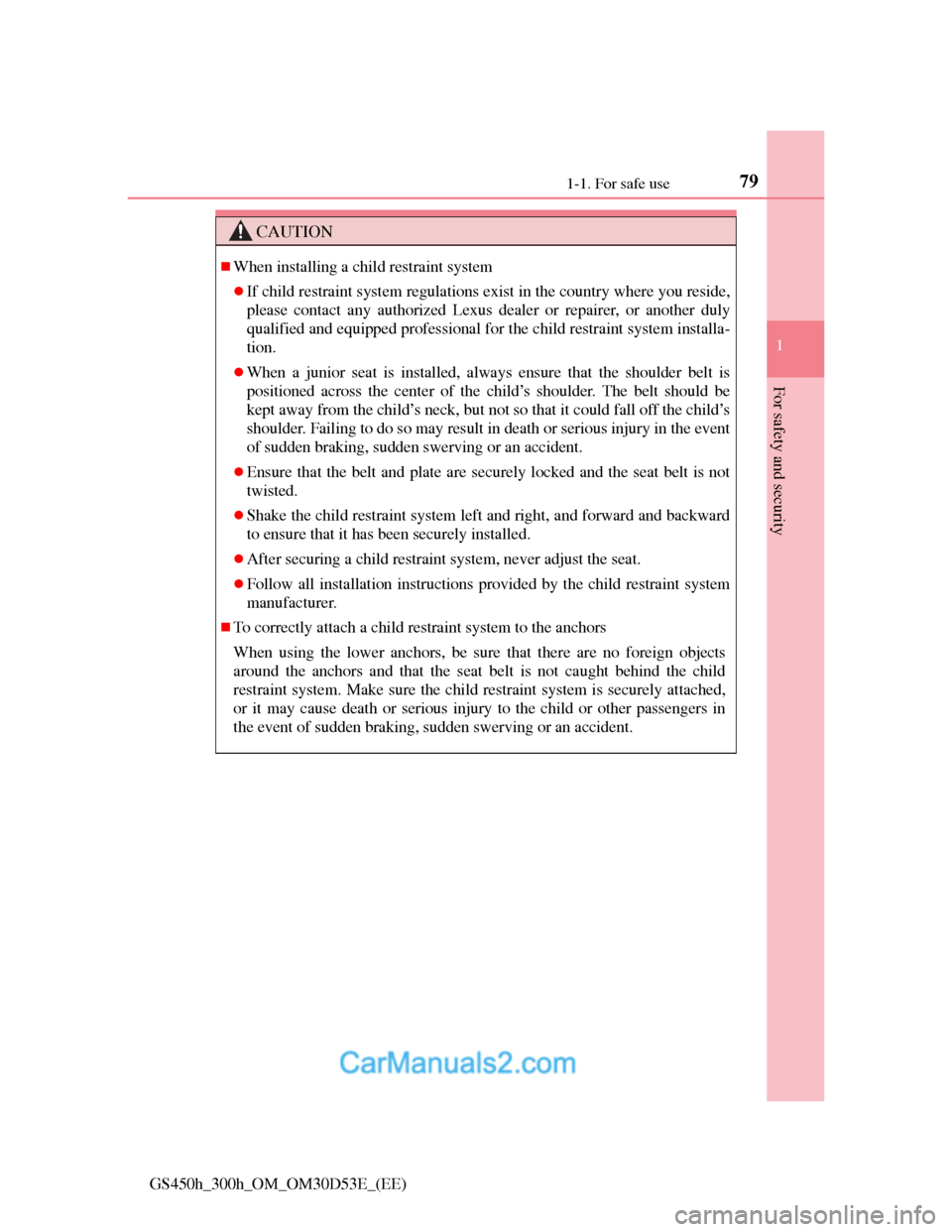

CAUTION
When installing a child restraint system
If child restraint system regulations exist in the country where you reside,
please contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional for the child restraint system installa-
tion.
When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
After securing a child restraint system, never adjust the seat.
Follow all installation instructions provided by the child restraint system
manufacturer.
To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in
the event of sudden braking, sudden swerving or an accident.

801-1. For safe use
GS450h_300h_OM_OM30D53E_(EE)

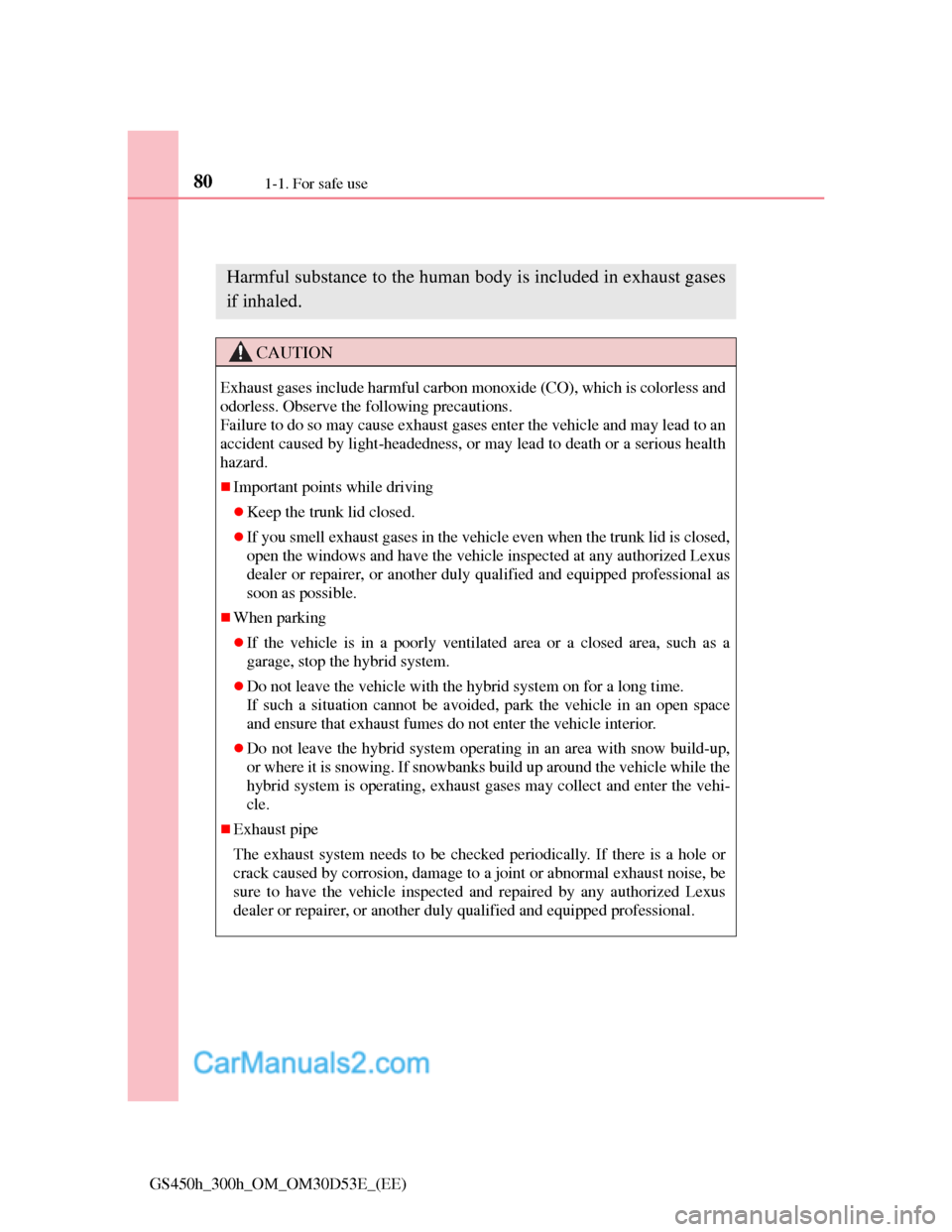

Exhaust gas precautions
Harmful substance to the human body is included in exhaust gases
if inhaled.
CAUTION
Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an
accident caused by light-headedness, or may lead to death or a serious health
hazard.
Important points while driving
Keep the trunk lid closed.
If you smell exhaust gases in the vehicle even when the trunk lid is closed,
open the windows and have the vehicle inspected at any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional as
soon as possible.
When parking
If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the hybrid system.
Do not leave the vehicle with the hybrid system on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
Do not leave the hybrid system operating in an area with snow build-up,
or where it is snowing. If snowbanks build up around the vehicle while the
hybrid system is operating, exhaust gases may collect and enter the vehi-
cle.
Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
