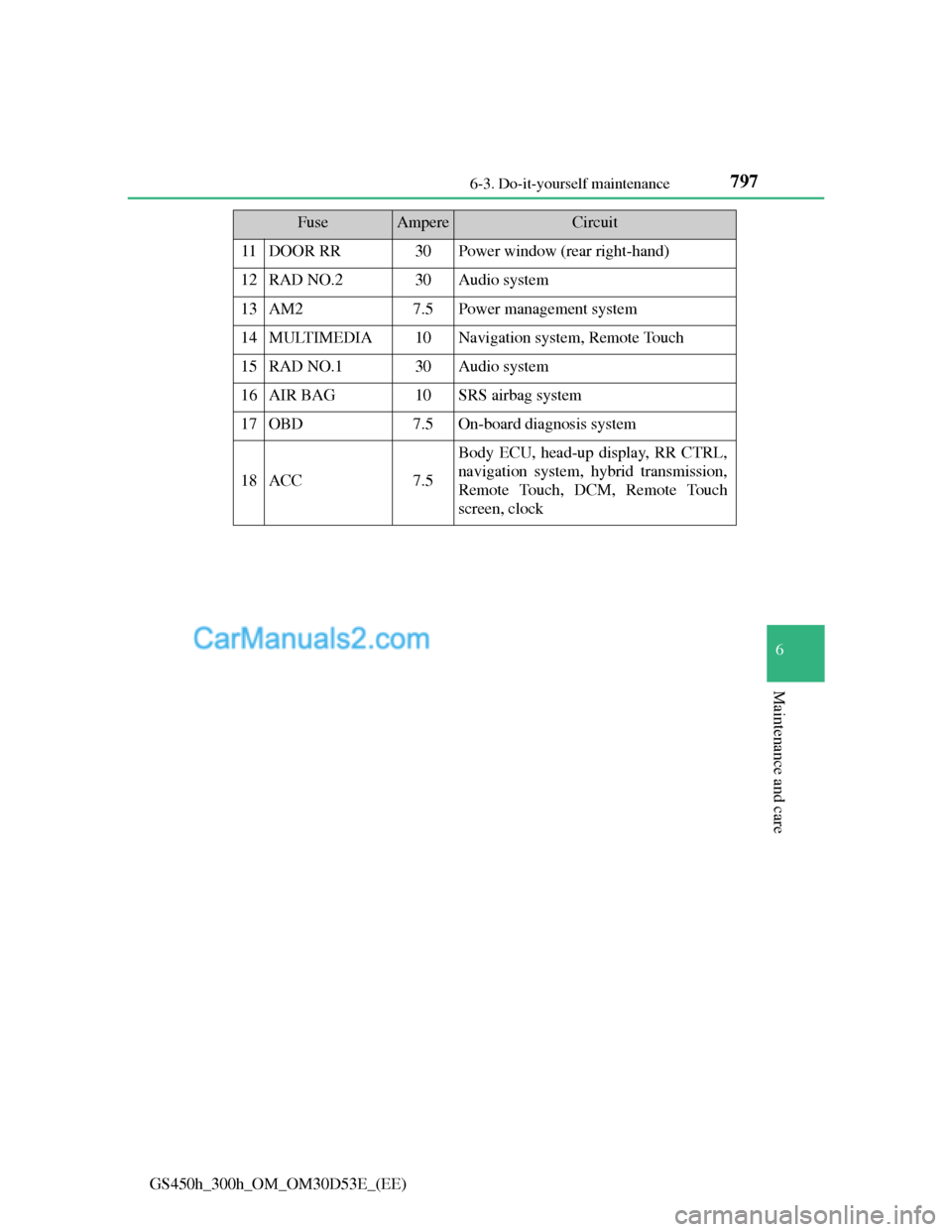

11DOOR RR30Power window (rear right-hand)
12RAD NO.230Audio system
13AM27.5Power management system
14MULTIMEDIA10Navigation system, Remote Touch
15RAD NO.130Audio system
16AIR BAG10SRS airbag system
17OBD7.5On-board diagnosis system
18ACC7.5
Body ECU, head-up display, RR CTRL,
navigation system, hybrid transmission,
Remote Touch, DCM, Remote Touch
screen, clock
FuseAmpereCircuit

7986-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30D53E_(EE)

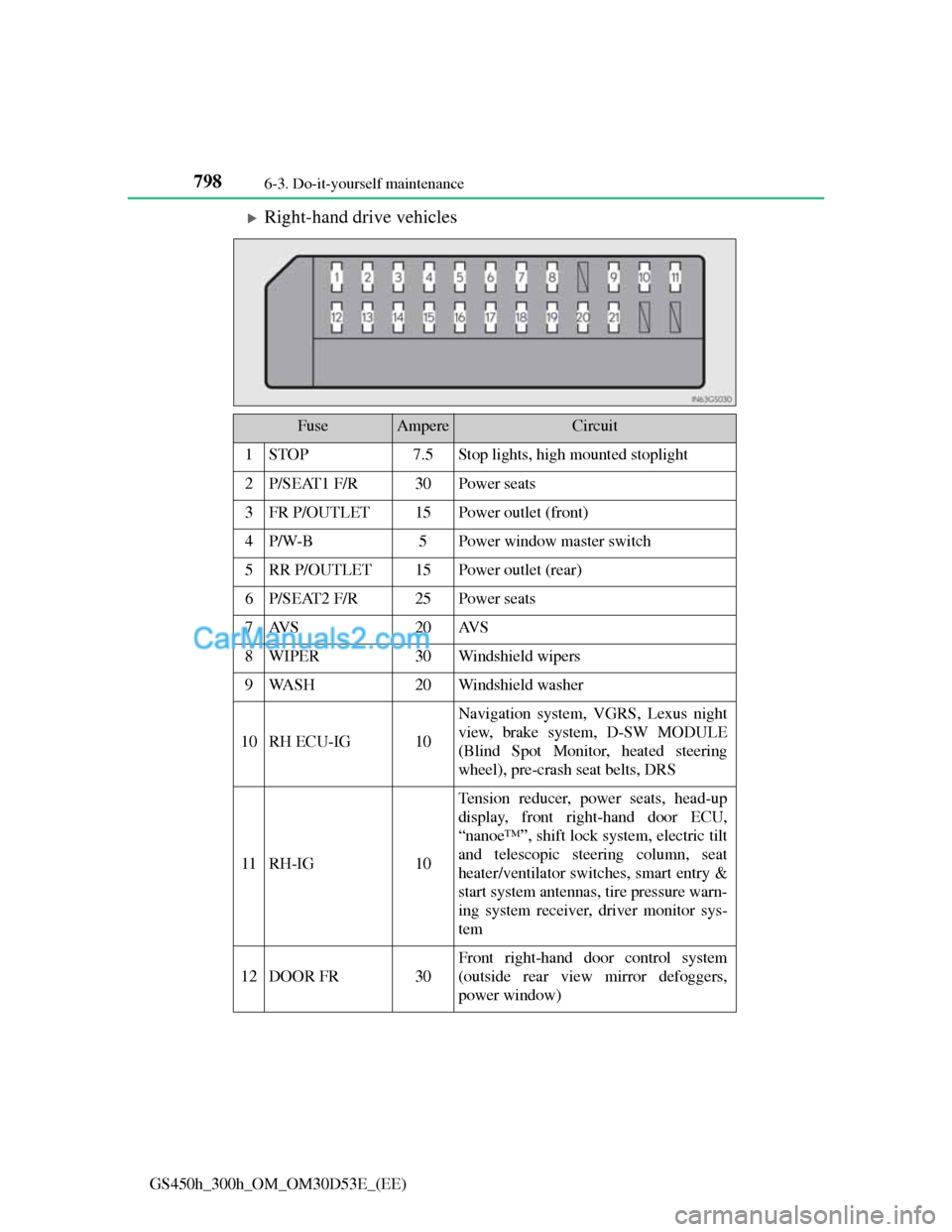

Right-hand drive vehicles
FuseAmpereCircuit
1STOP7.5Stop lights, high mounted stoplight
2P/SEAT1 F/R30Power seats
3FR P/OUTLET15Power outlet (front)
4P/W-B5Power window master switch
5RR P/OUTLET15Power outlet (rear)
6P/SEAT2 F/R25Power seats
7AV S20AV S
8WIPER30Windshield wipers
9WA S H20Windshield washer
10RH ECU-IG10
Navigation system, VGRS, Lexus night
view, brake system, D-SW MODULE
(Blind Spot Monitor, heated steering
wheel), pre-crash seat belts, DRS
11RH-IG10
Tension reducer, power seats, head-up
display, front right-hand door ECU,
“nanoe™”, shift lock system, electric tilt
and telescopic steering column, seat
heater/ventilator switches, smart entry &
start system antennas, tire pressure warn-
ing system receiver, driver monitor sys-
tem
12DOOR FR30
Front right-hand door control system
(outside rear view mirror defoggers,
power window)

799 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS450h_300h_OM_OM30D53E_(EE)

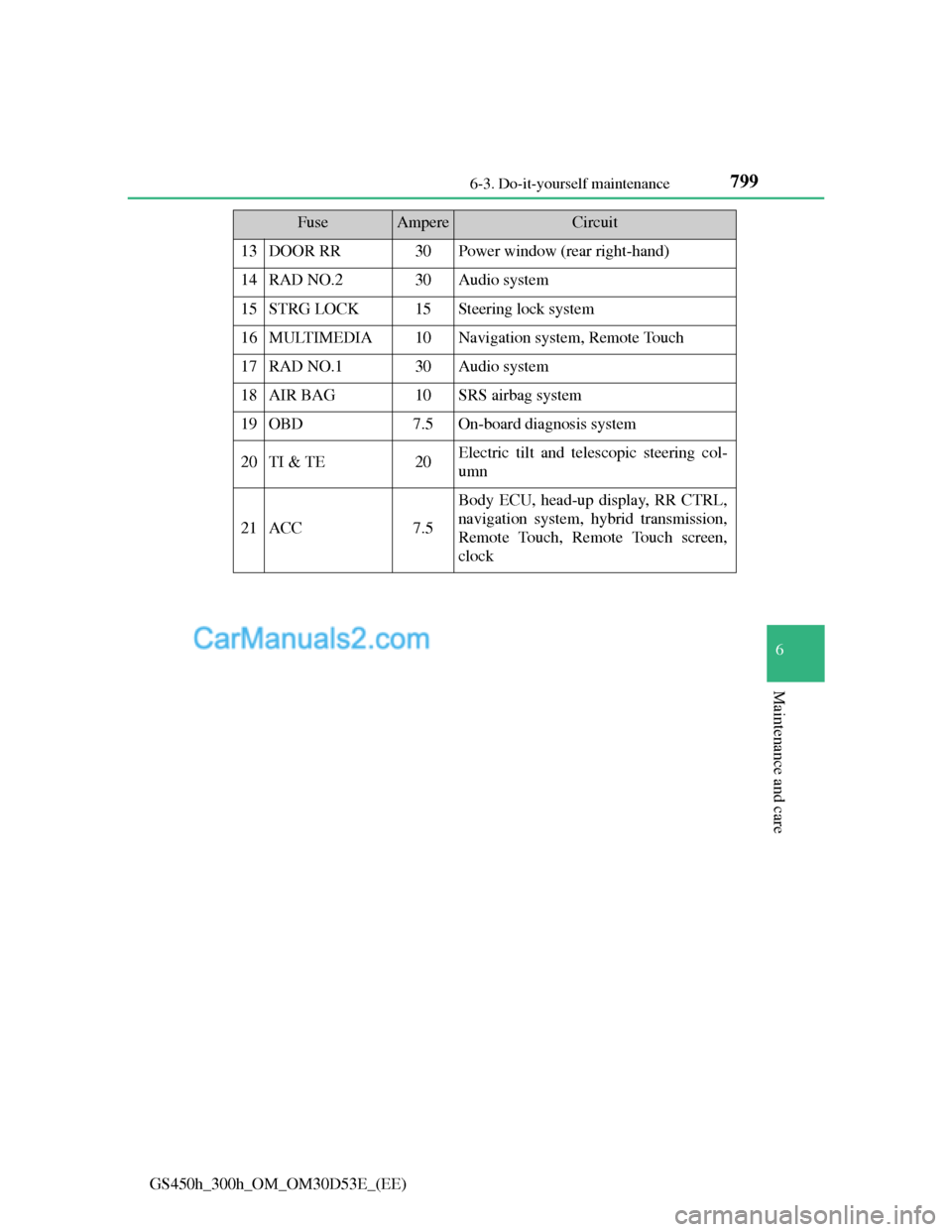

13DOOR RR30Power window (rear right-hand)
14RAD NO.230Audio system
15STRG LOCK15Steering lock system
16MULTIMEDIA10Navigation system, Remote Touch
17RAD NO.130Audio system
18AIR BAG10SRS airbag system
19OBD7.5On-board diagnosis system
20TI & TE20Electric tilt and telescopic steering col-
umn
21ACC7.5
Body ECU, head-up display, RR CTRL,
navigation system, hybrid transmission,
Remote Touch, Remote Touch screen,
clock
FuseAmpereCircuit

8006-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30D53E_(EE)

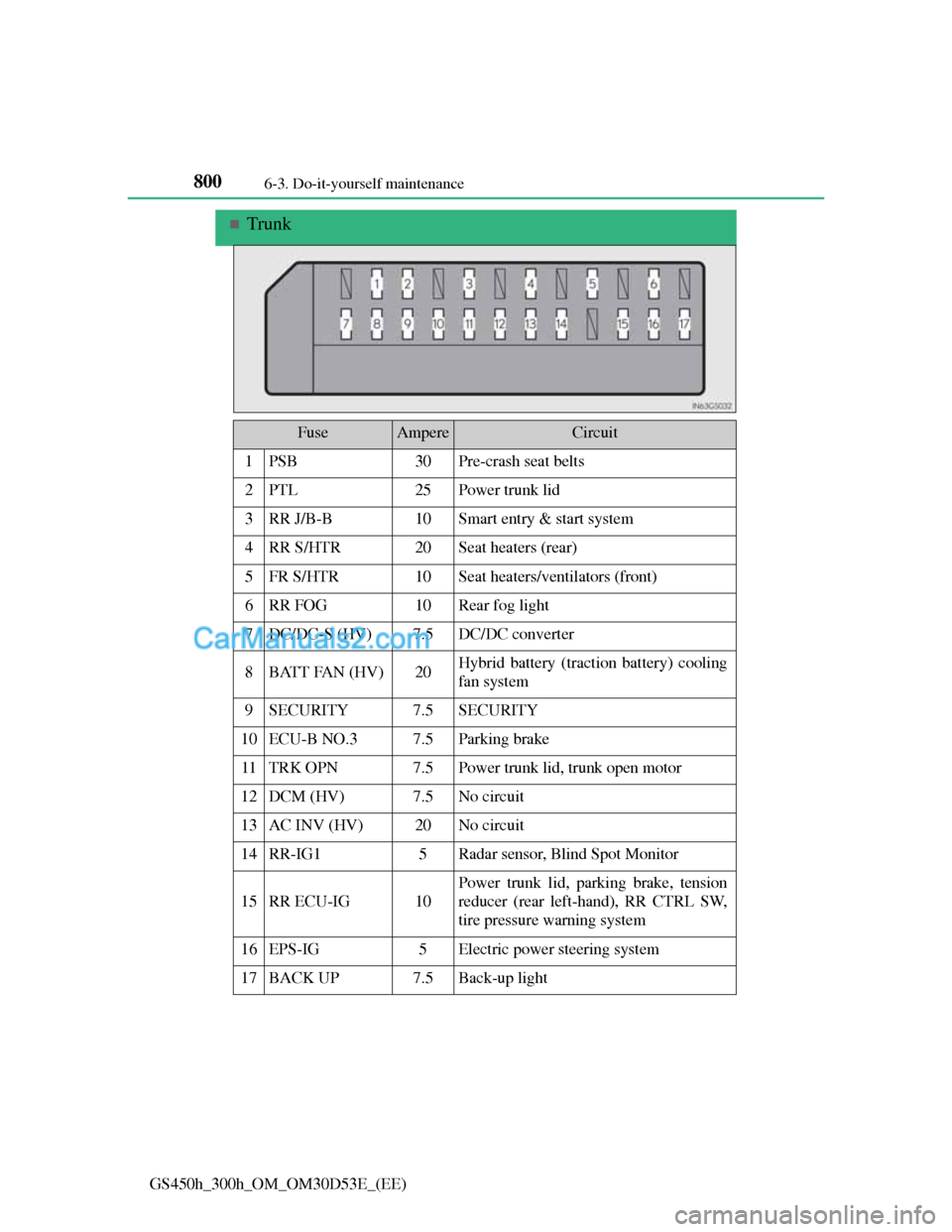

Trunk
FuseAmpereCircuit
1PSB30Pre-crash seat belts
2PTL25Power trunk lid
3RR J/B-B10Smart entry & start system
4RR S/HTR20Seat heaters (rear)
5FR S/HTR10Seat heaters/ventilators (front)
6RR FOG10Rear fog light
7DC/DC-S (HV)7.5DC/DC converter
8BATT FAN (HV)20Hybrid battery (traction battery) cooling
fan system
9SECURITY7.5SECURITY
10ECU-B NO.37.5Parking brake
11TRK OPN7.5Power trunk lid, trunk open motor
12DCM (HV)7.5No circuit
13AC INV (HV)20No circuit
14RR-IG15Radar sensor, Blind Spot Monitor
15RR ECU-IG10
Power trunk lid, parking brake, tension
reducer (rear left-hand), RR CTRL SW,
tire pressure warning system
16EPS-IG5Electric power steering system
17BACK UP7.5Back-up light

801 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS450h_300h_OM_OM30D53E_(EE)

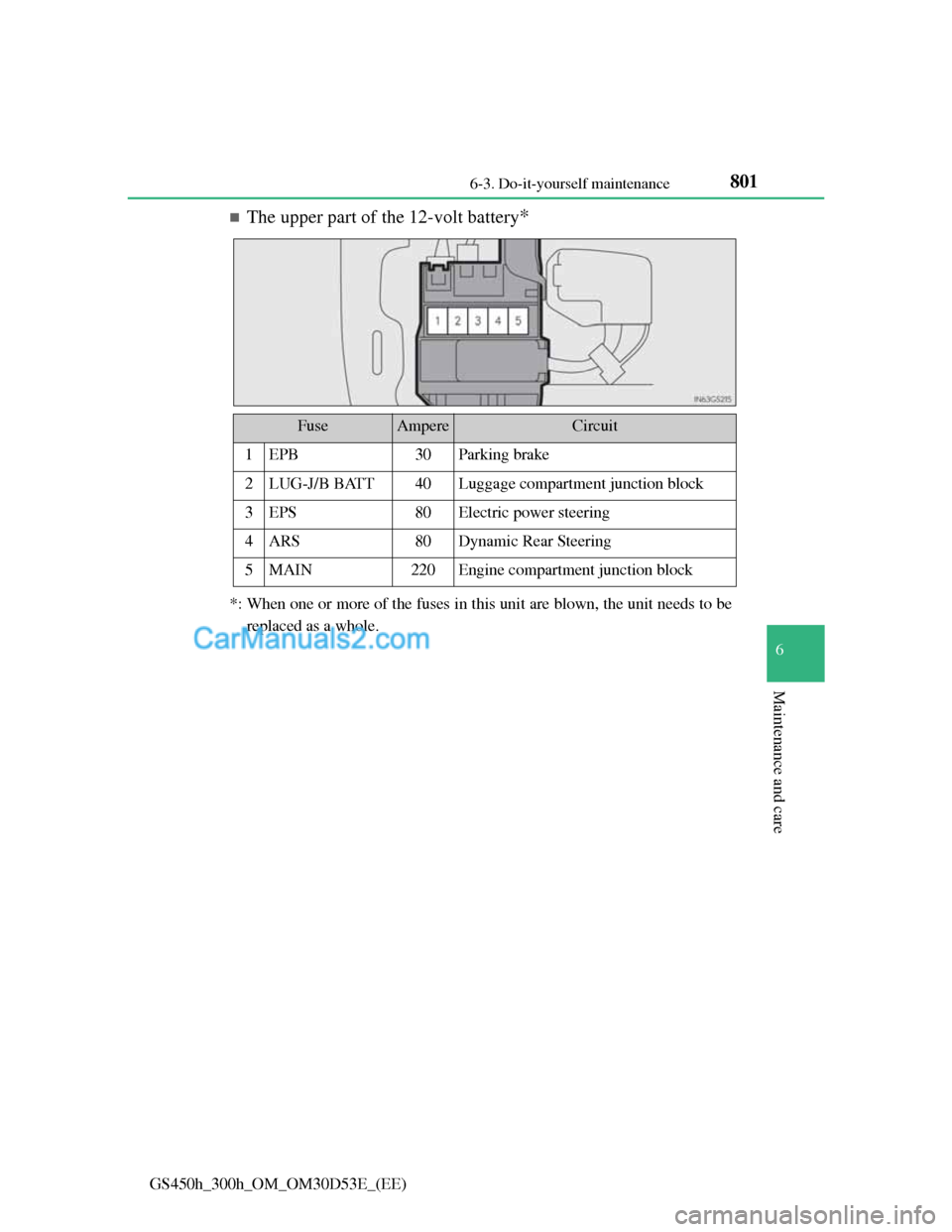

The upper part of the 12-volt battery*
*: When one or more of the fuses in this unit are blown, the unit needs to be
replaced as a whole.
FuseAmpereCircuit
1EPB30Parking brake
2LUG-J/B BATT40Luggage compartment junction block
3EPS80Electric power steering
4ARS80Dynamic Rear Steering
5MAIN220Engine compartment junction block

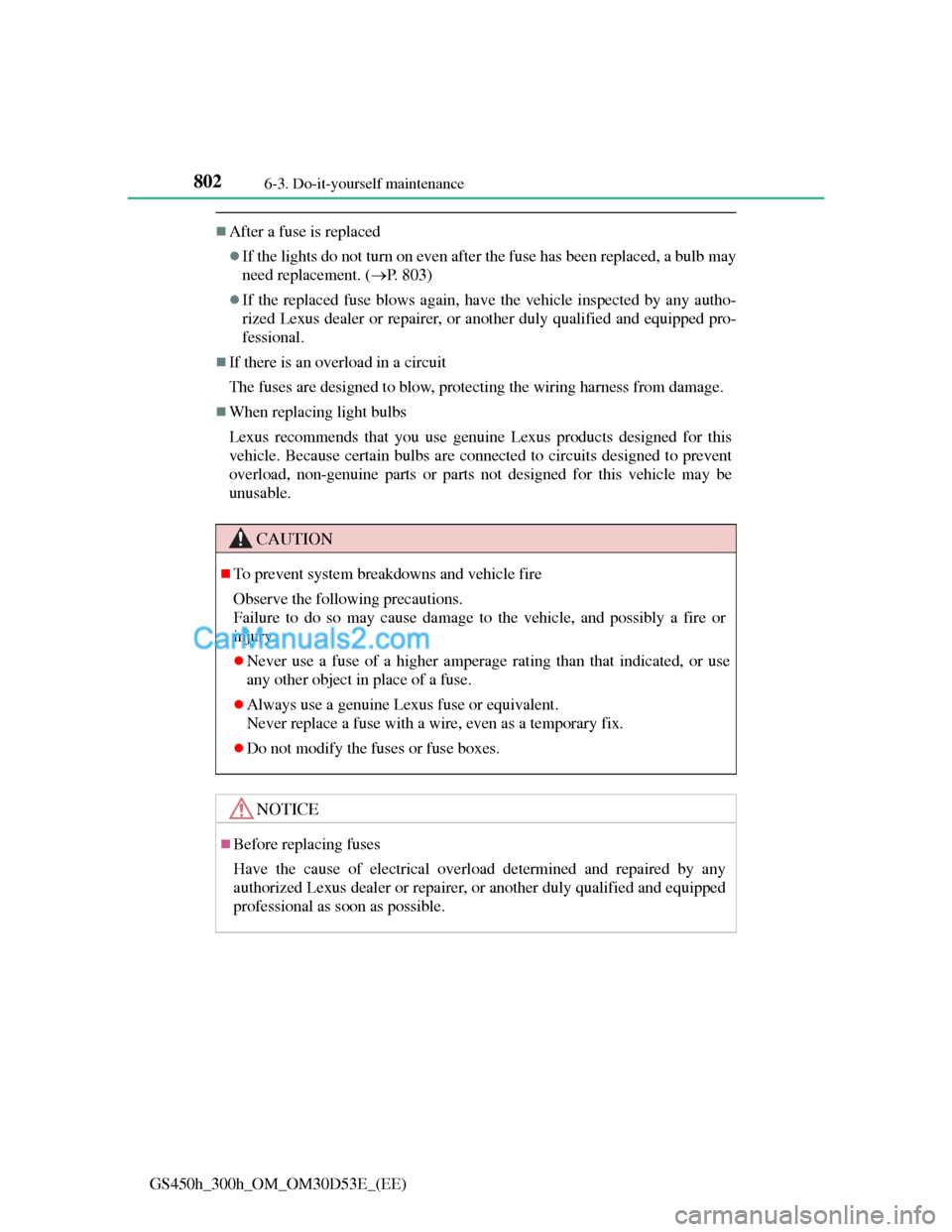

8026-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30D53E_(EE)
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 803)
If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
Do not modify the fuses or fuse boxes.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Lexus dealer or repairer, or another duly qualified and equipped
professional as soon as possible.

803 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS450h_300h_OM_OM30D53E_(EE)
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 939)
P. 740
Front
Vehicles with discharge headlights
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Preparing for light bulb replacement
Removing the engine compartment covers

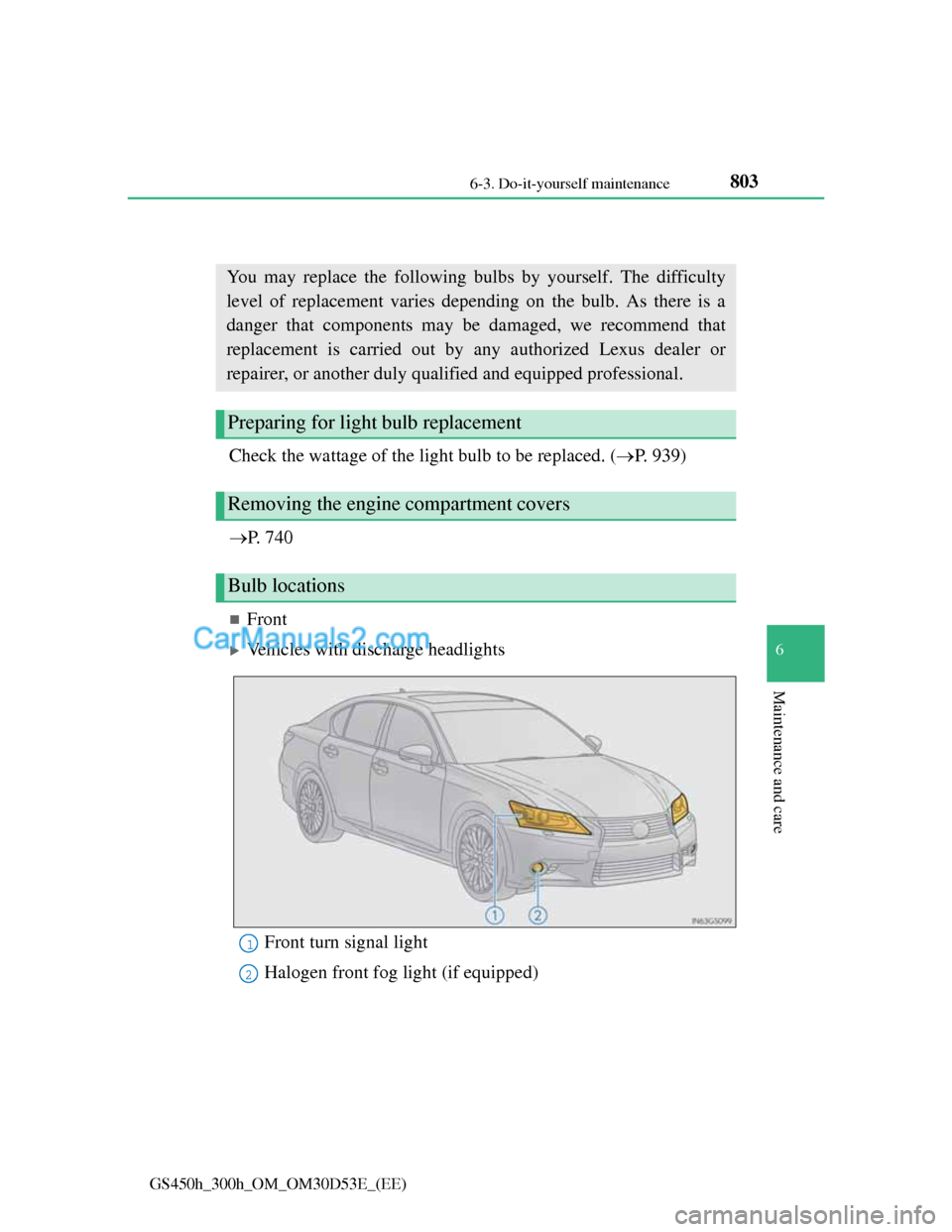

Bulb locations
Front turn signal light
Halogen front fog light (if equipped)1
2

8046-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30D53E_(EE)

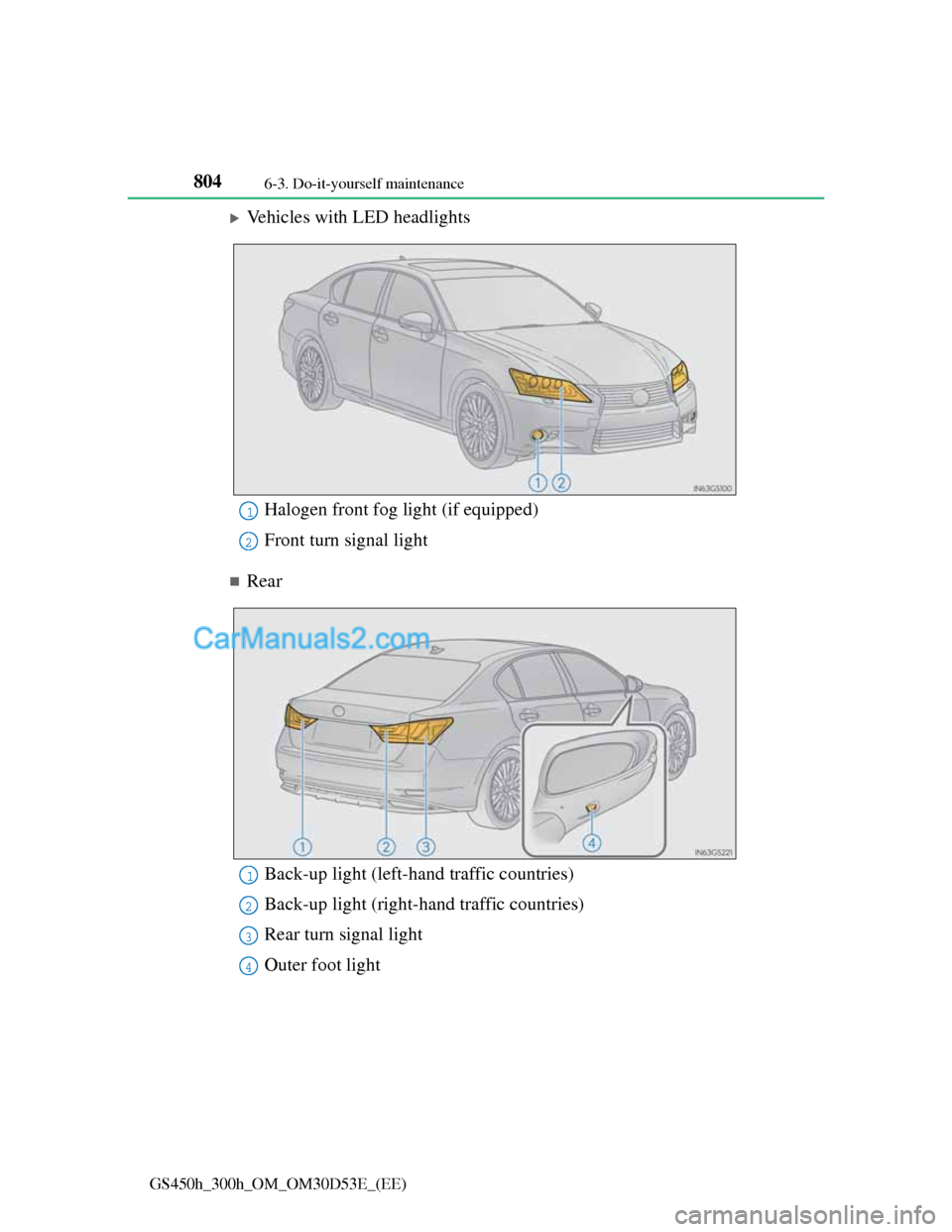

Vehicles with LED headlights
Rear
Halogen front fog light (if equipped)
Front turn signal light1
2
Back-up light (left-hand traffic countries)
Back-up light (right-hand traffic countries)
Rear turn signal light
Outer foot light1
2
3
4

805 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS450h_300h_OM_OM30D53E_(EE)

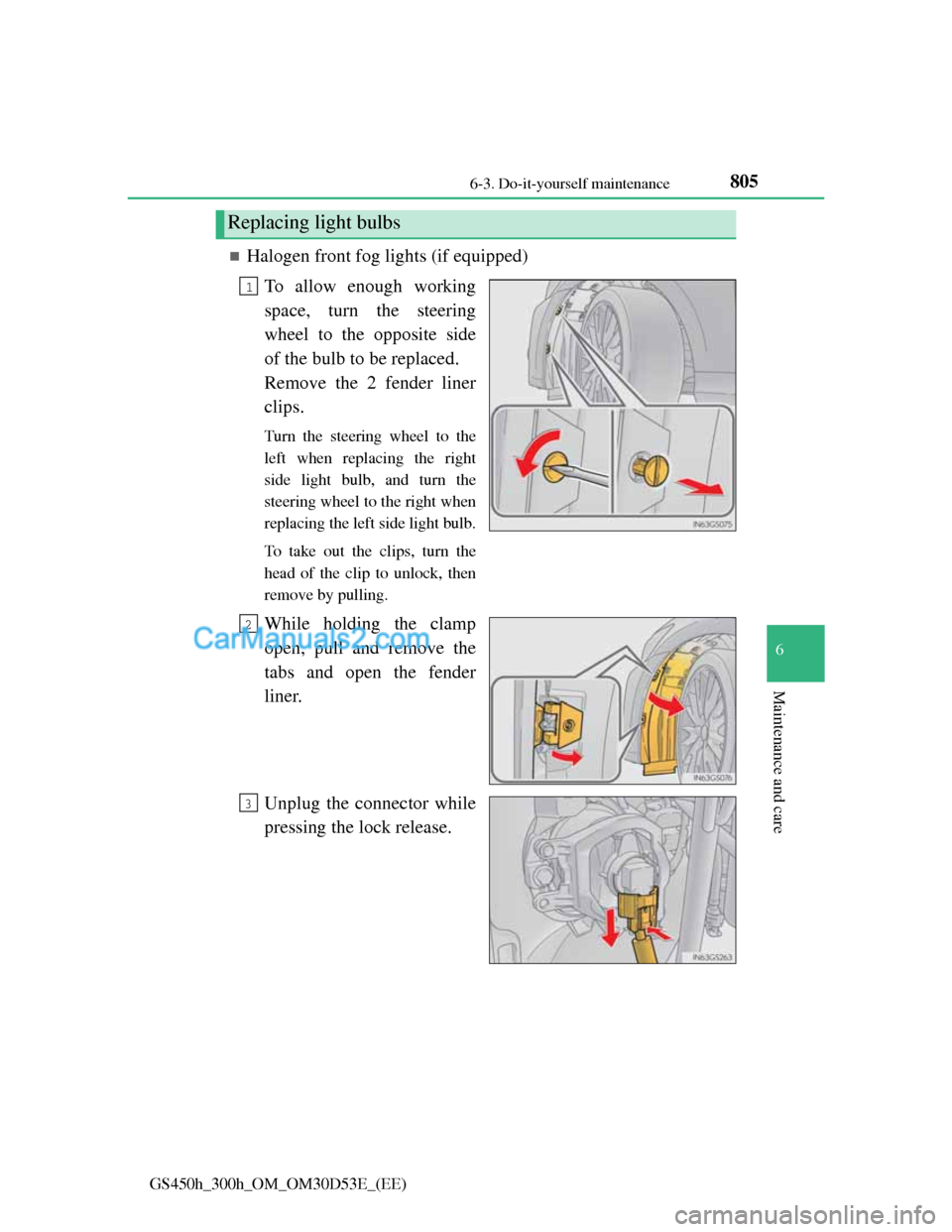

Halogen front fog lights (if equipped)
To allow enough working
space, turn the steering
wheel to the opposite side
of the bulb to be replaced.
Remove the 2 fender liner
clips.
Turn the steering wheel to the
left when replacing the right
side light bulb, and turn the
steering wheel to the right when
replacing the left side light bulb.
To take out the clips, turn the
head of the clip to unlock, then
remove by pulling.
While holding the clamp
open, pull and remove the
tabs and open the fender
liner.
Unplug the connector while
pressing the lock release.
Replacing light bulbs
1
2
3

8066-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30D53E_(EE)

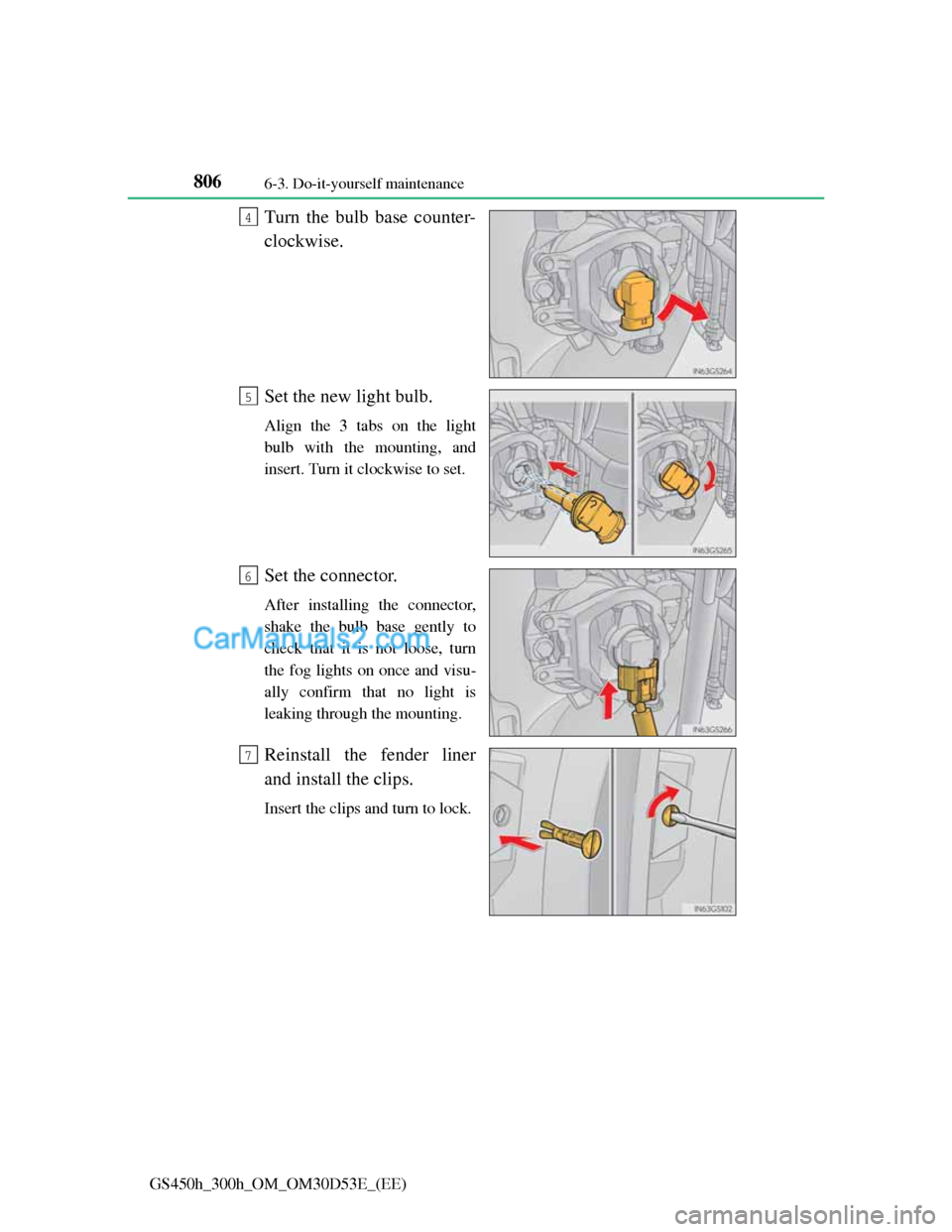

Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light
bulb with the mounting, and
insert. Turn it clockwise to set.
Set the connector.
After installing the connector,
shake the bulb base gently to
check that it is not loose, turn
the fog lights on once and visu-
ally confirm that no light is
leaking through the mounting.
Reinstall the fender liner
and install the clips.
Insert the clips and turn to lock.
4
5
6
7
