Lexus GS300h 2013 Owner's Manual

8247-2. Steps to take in an emergency
GS450h_300h_OM_OM30D53E_(EE)

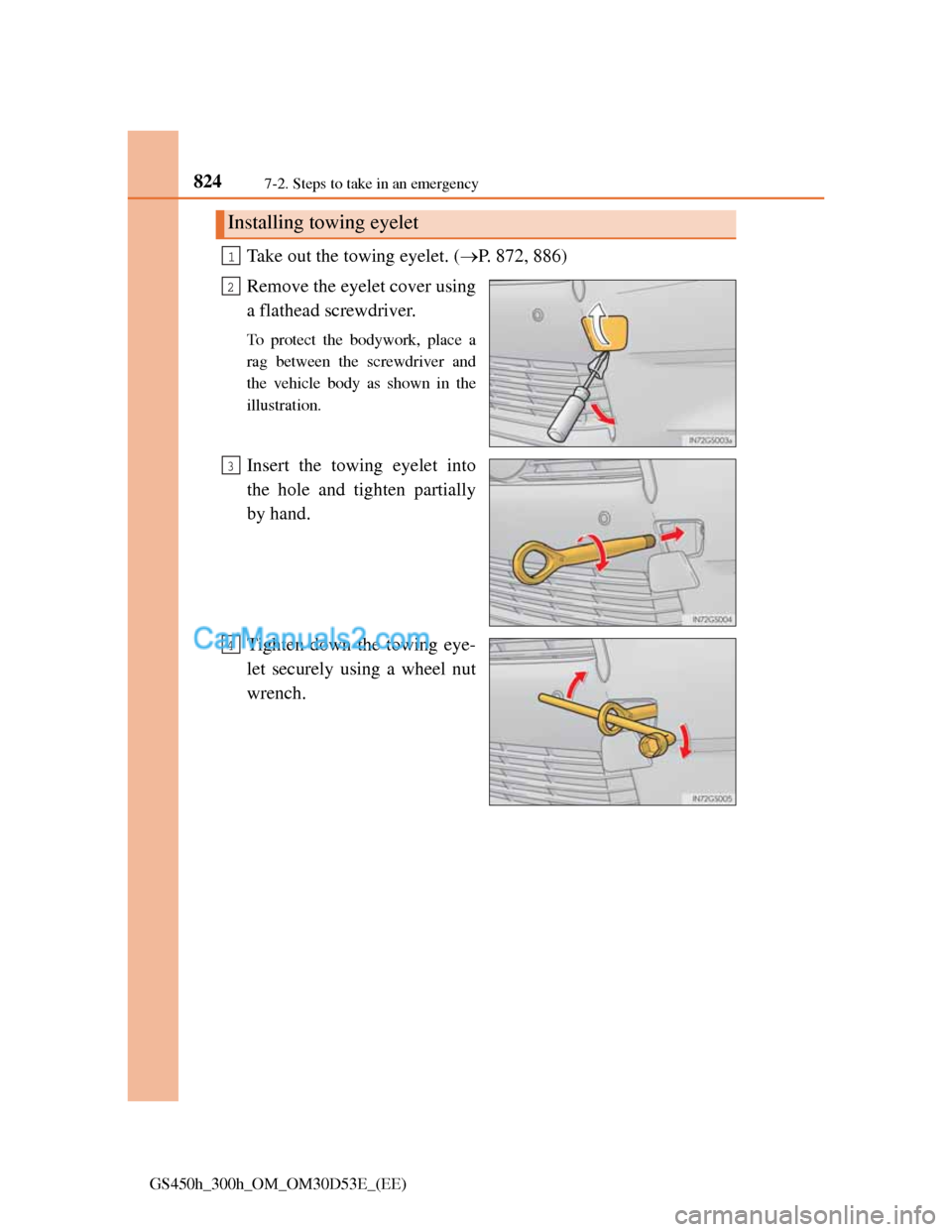

Take out the towing eyelet. (P. 872, 886)
Remove the eyelet cover using
a flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body as shown in the
illustration.
Insert the towing eyelet into
the hole and tighten partially
by hand.
Tighten down the towing eye-
let securely using a wheel nut
wrench.
Installing towing eyelet
1
2
3
4

8257-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30D53E_(EE)

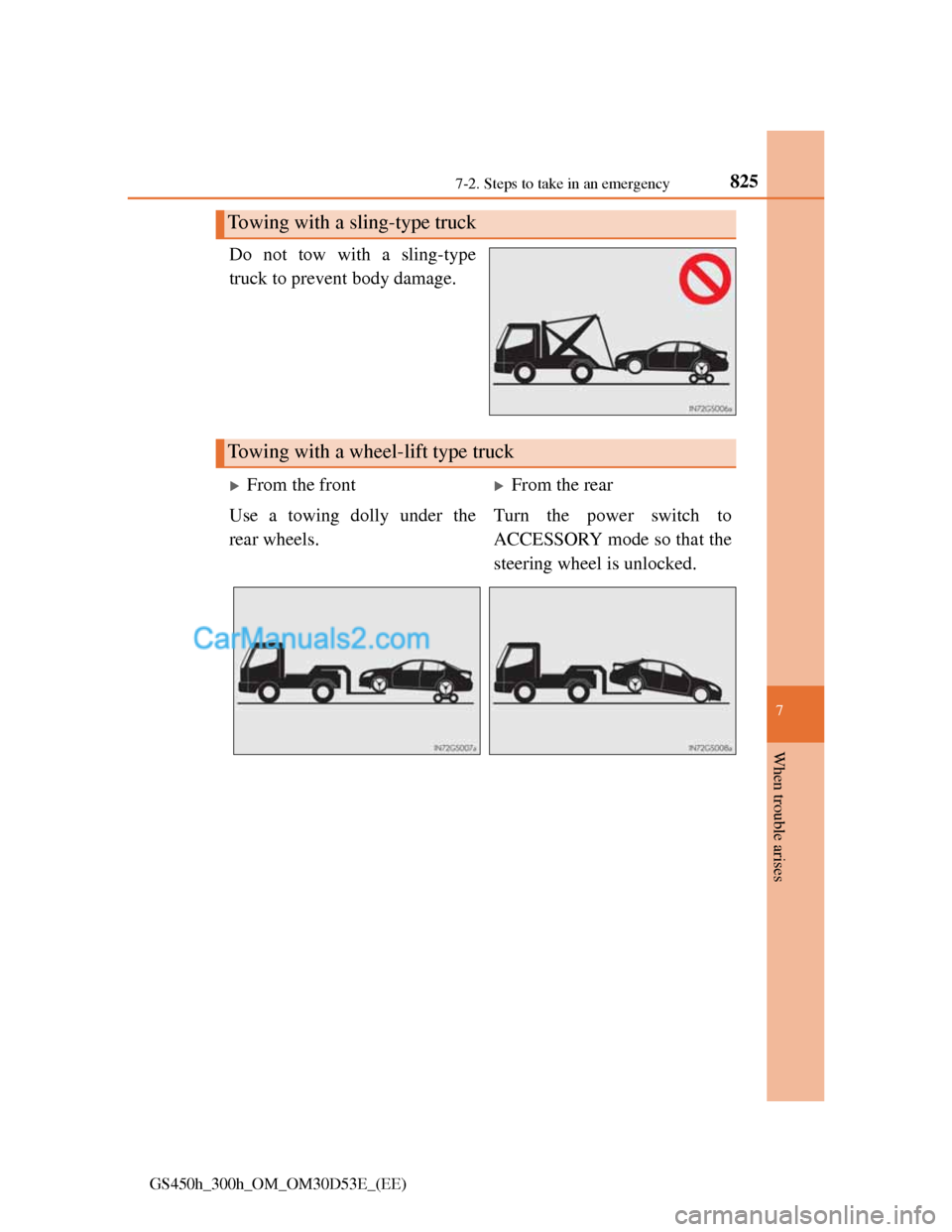

Do not tow with a sling-type
truck to prevent body damage.
Towing with a sling-type truck
Towing with a wheel-lift type truck
From the frontFrom the rear
Use a towing dolly under the
rear wheels.Turn the power switch to
ACCESSORY mode so that the
steering wheel is unlocked.

8267-2. Steps to take in an emergency
GS450h_300h_OM_OM30D53E_(EE)

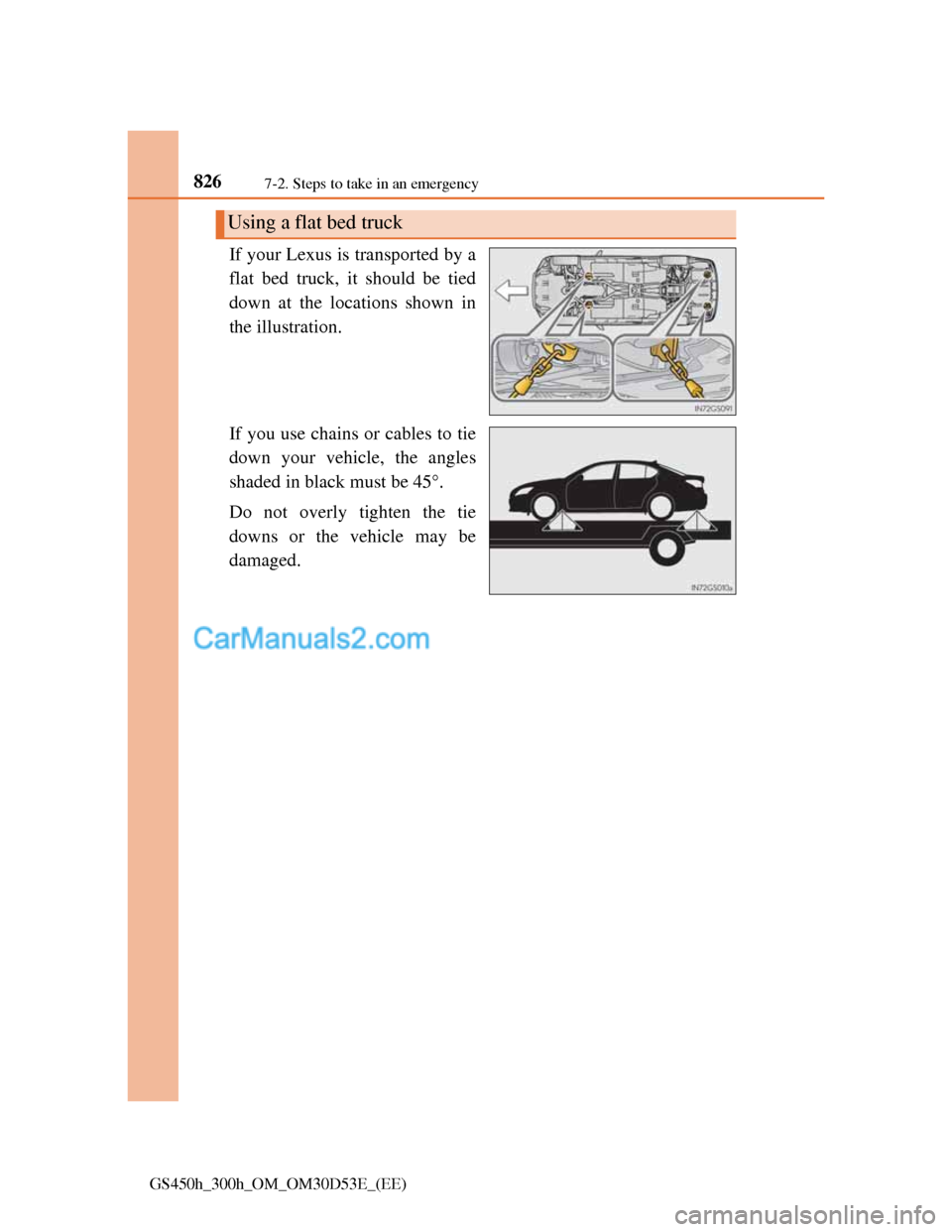

If your Lexus is transported by a
flat bed truck, it should be tied
down at the locations shown in
the illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be
damaged.
Using a flat bed truck

8277-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30D53E_(EE)
Before emergency towing
Release the parking brake.
Shift the shift lever to N.
Turn the power switch to ACCESSORY (hybrid system off) or ON (hybrid
system operating) mode.
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
When transporting the vehicle
Caution while towing
Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelets and the cables or chains. Always
be cautious of the surroundings and other vehicles while towing.
If the hybrid system is off, the power assist for the brakes and steering will
not function, making steering and braking more difficult.
Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing.
1
2
3
Be sure to transport the vehicle with the
rear wheels raised or with all four wheels
raised off the ground. If the vehicle is
towed with the rear wheels contacting
the ground, the drivetrain and related
parts may be damaged or the motor may
generate electricity. If the motor gener-
ates electricity, depending on the state of
the damage or malfunction, a fire may
dt hti it

8287-2. Steps to take in an emergency
GS450h_300h_OM_OM30D53E_(EE)

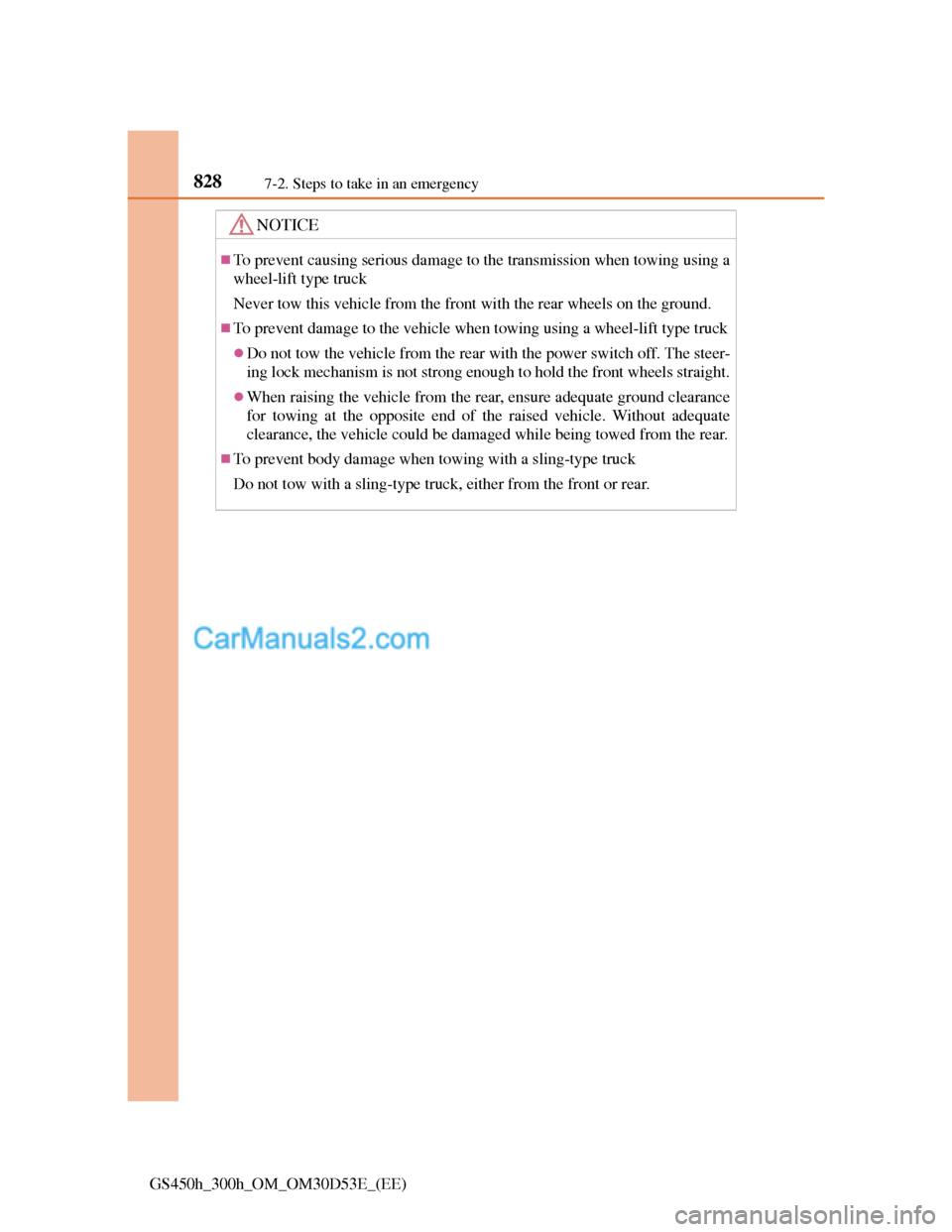

NOTICE
To prevent causing serious damage to the transmission when towing using a
wheel-lift type truck
Never tow this vehicle from the front with the rear wheels on the ground.
To prevent damage to the vehicle when towing using a wheel-lift type truck
Do not tow the vehicle from the rear with the power switch off. The steer-
ing lock mechanism is not strong enough to hold the front wheels straight.
When raising the vehicle from the rear, ensure adequate ground clearance
for towing at the opposite end of the raised vehicle. Without adequate
clearance, the vehicle could be damaged while being towed from the rear.
To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.

829
7 7-2. Steps to take in an emergency
When trouble arises
GS450h_300h_OM_OM30D53E_(EE)

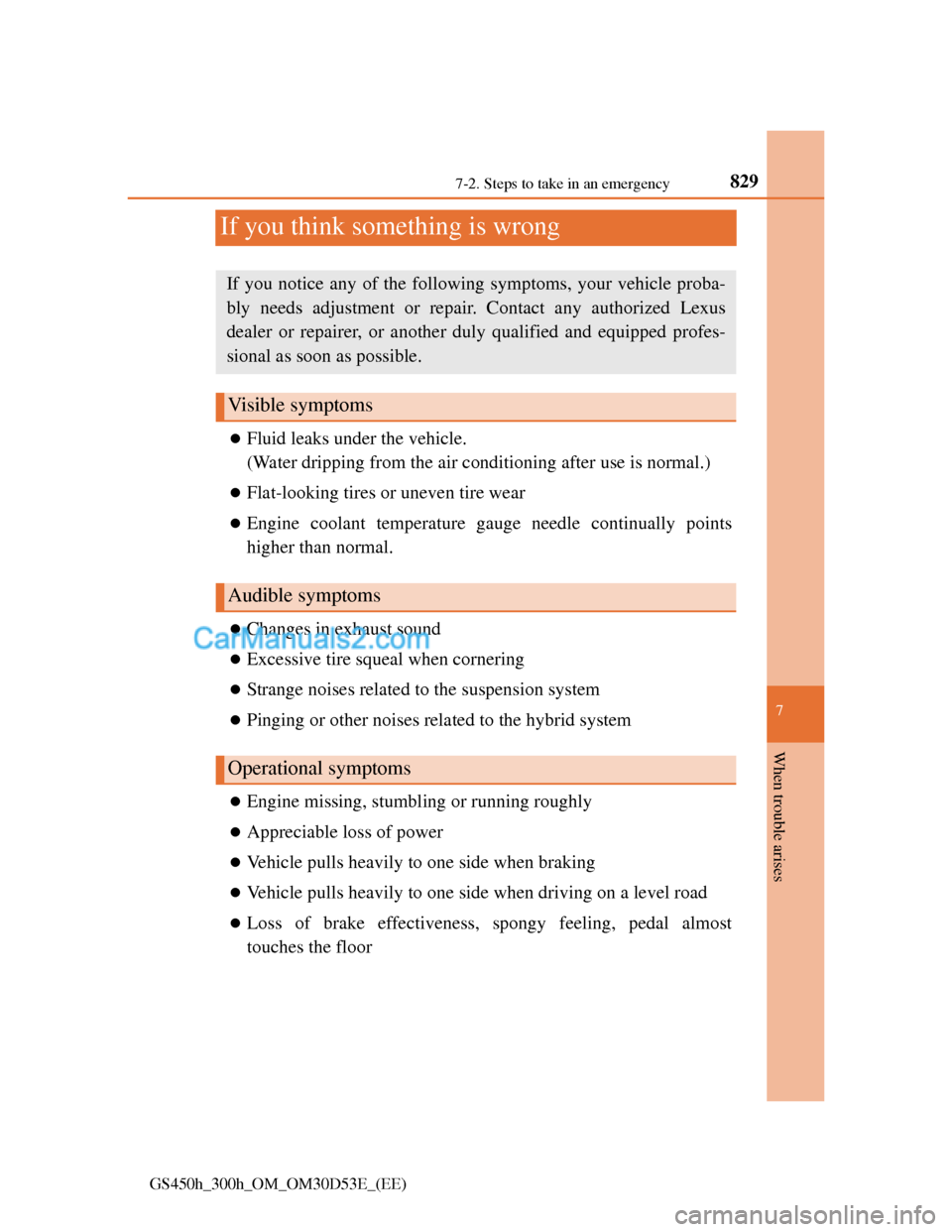

If you think something is wrong
Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
Flat-looking tires or uneven tire wear
Engine coolant temperature gauge needle continually points
higher than normal.
Changes in exhaust sound
Excessive tire squeal when cornering
Strange noises related to the suspension system
Pinging or other noises related to the hybrid system
Engine missing, stumbling or running roughly
Appreciable loss of power
Vehicle pulls heavily to one side when braking
Vehicle pulls heavily to one side when driving on a level road
Loss of brake effectiveness, spongy feeling, pedal almost
touches the floor
If you notice any of the following symptoms, your vehicle proba-
bly needs adjustment or repair. Contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped profes-
sional as soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

8307-2. Steps to take in an emergency
GS450h_300h_OM_OM30D53E_(EE)

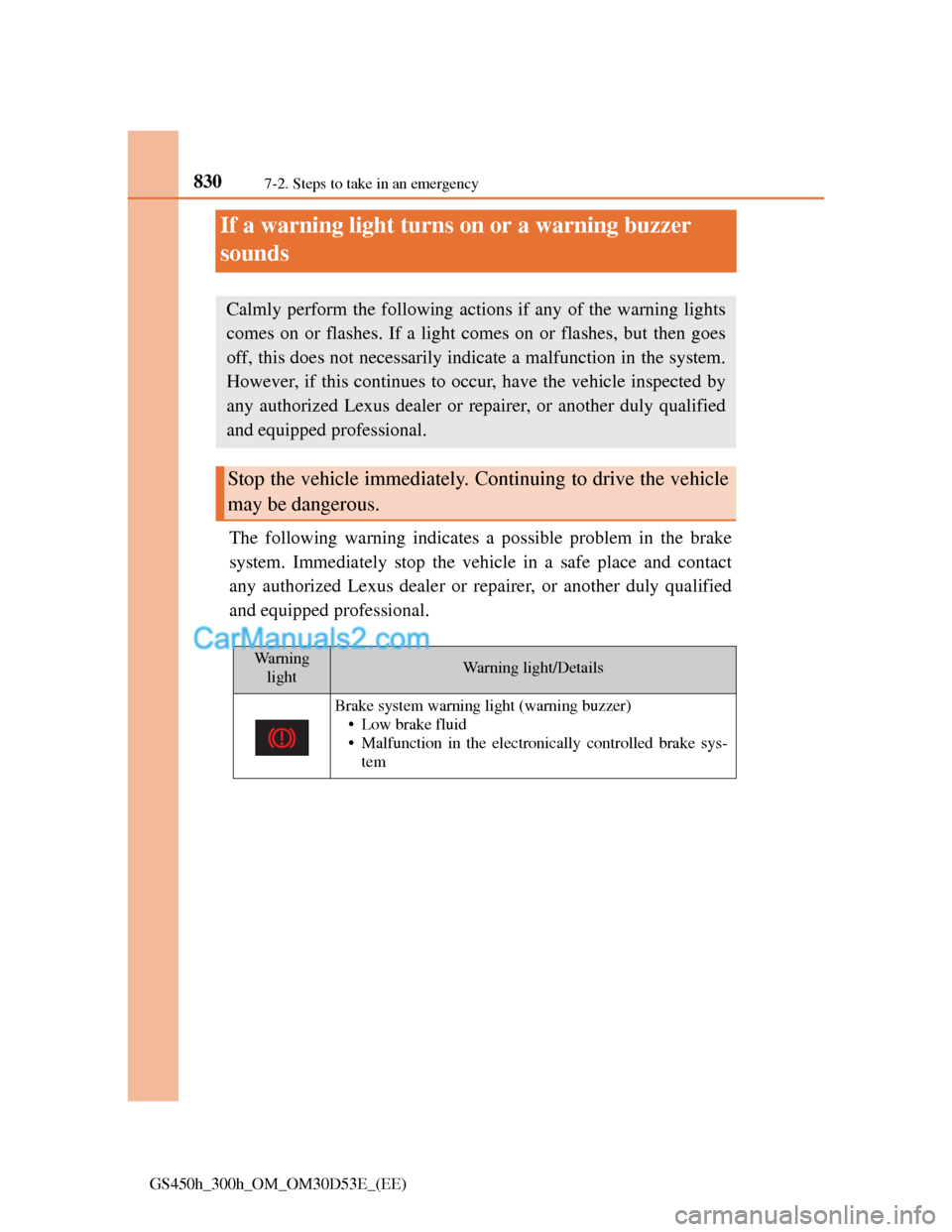

If a warning light turns on or a warning buzzer
sounds
The following warning indicates a possible problem in the brake
system. Immediately stop the vehicle in a safe place and contact
any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then goes
off, this does not necessarily indicate a malfunction in the system.
However, if this continues to occur, have the vehicle inspected by
any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.
Wa r n i n g
lightWarning light/Details
Brake system warning light (warning buzzer)
• Low brake fluid
• Malfunction in the electronically controlled brake sys-
tem

8317-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30D53E_(EE)

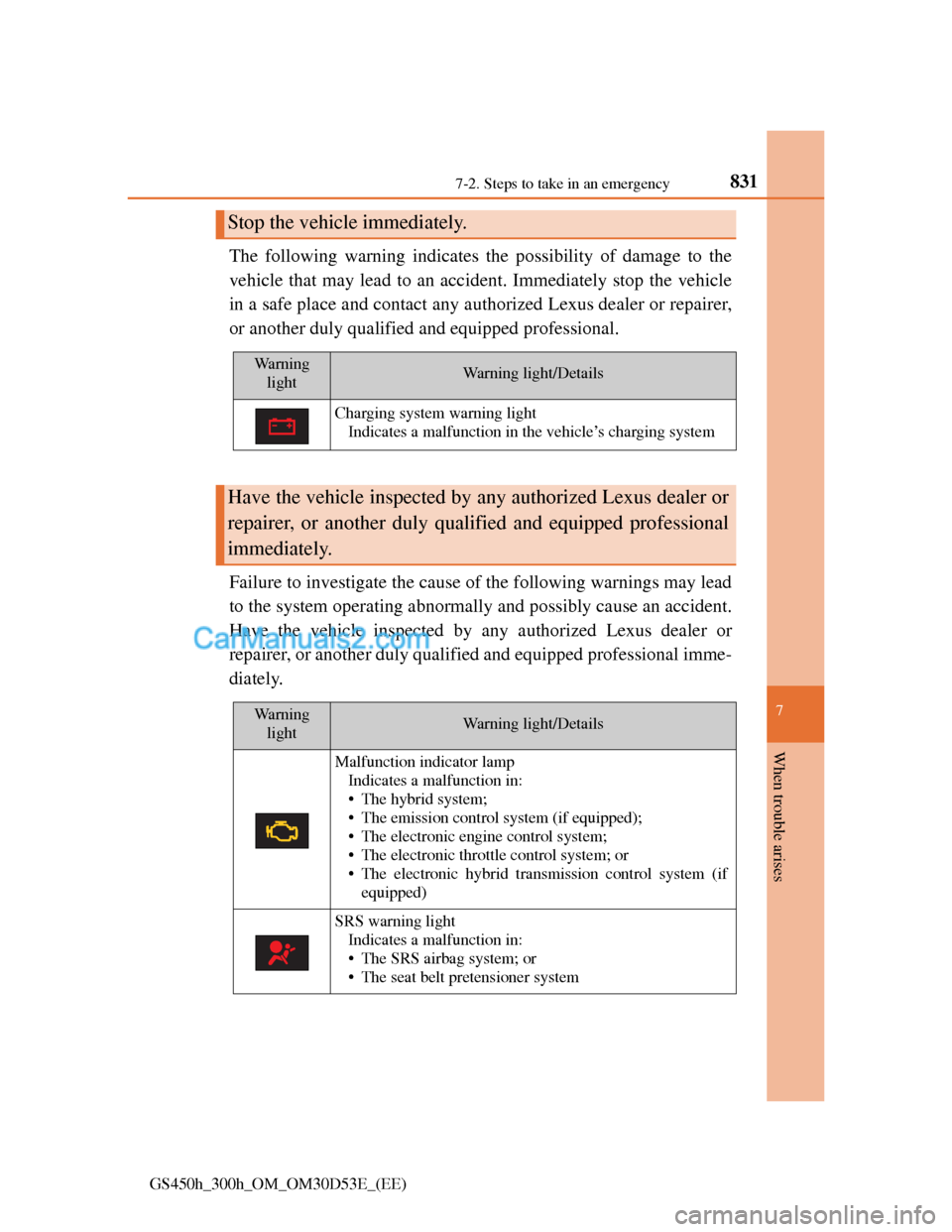

The following warning indicates the possibility of damage to the
vehicle that may lead to an accident. Immediately stop the vehicle
in a safe place and contact any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
Failure to investigate the cause of the following warnings may lead
to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional imme-
diately.
Stop the vehicle immediately.
Wa r n i n g
lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Wa r n i n g
lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The emission control system (if equipped);
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic hybrid transmission control system (if
equipped)
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system

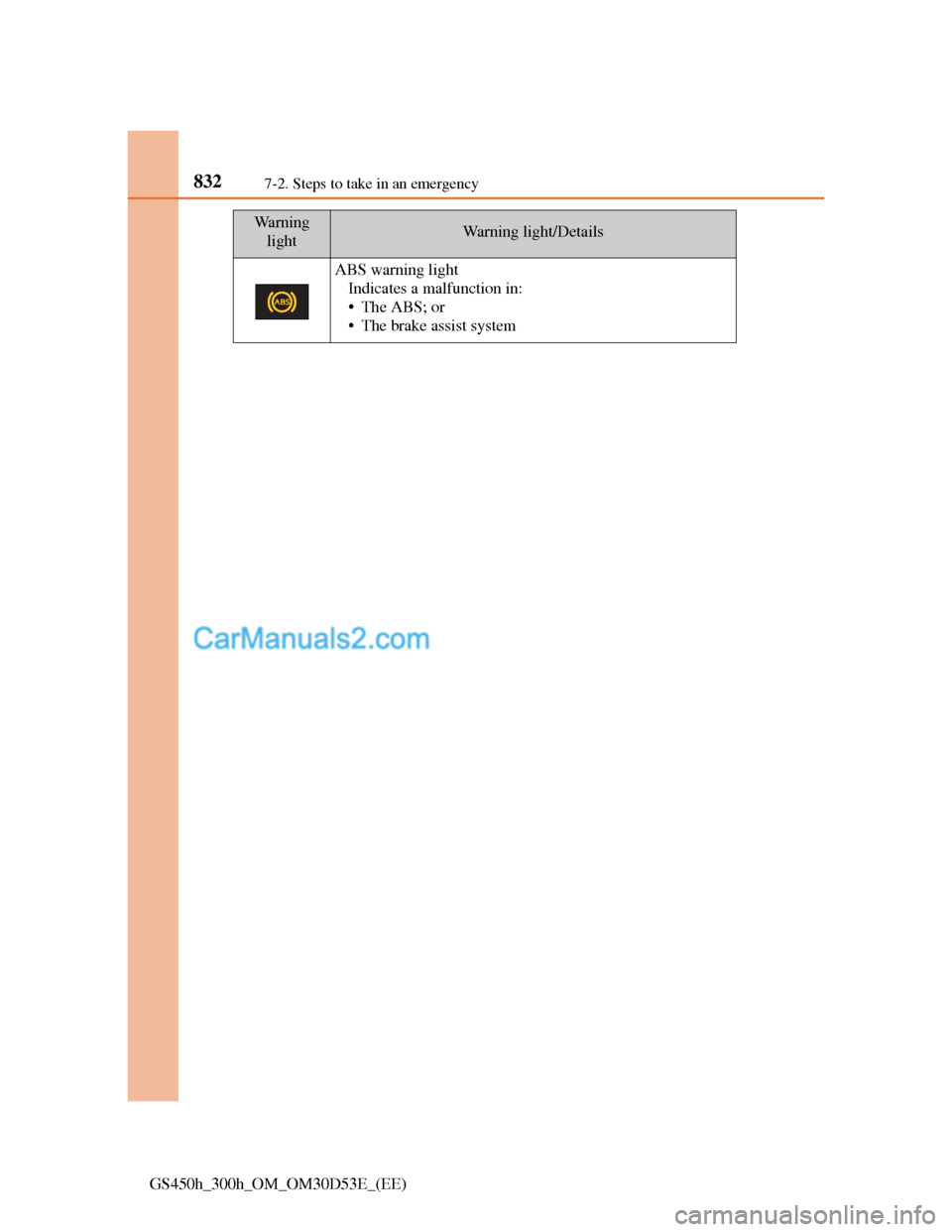

8327-2. Steps to take in an emergency
GS450h_300h_OM_OM30D53E_(EE)
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system
Wa r n i n g
lightWarning light/Details

8337-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30D53E_(EE)

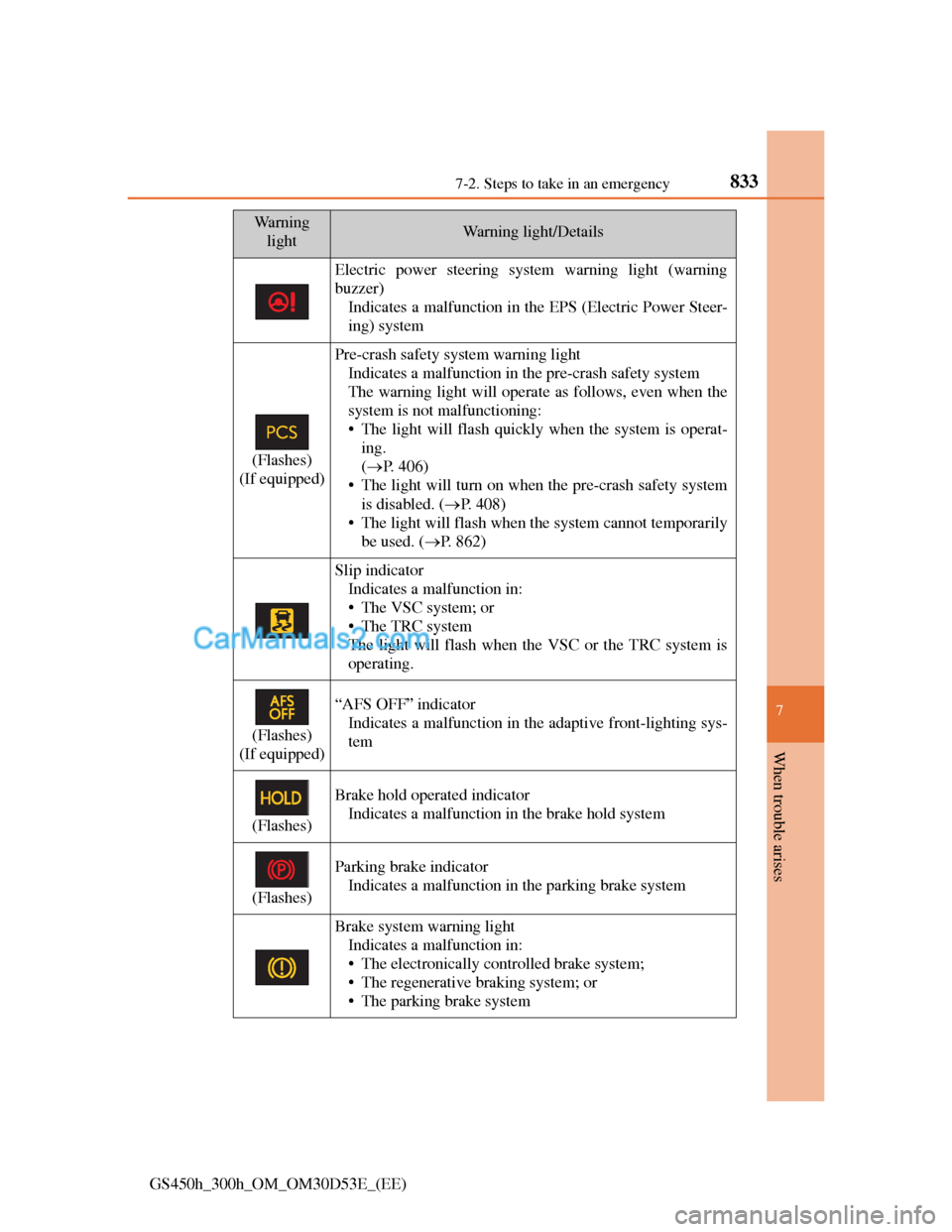

Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
(Flashes)
(If equipped)
Pre-crash safety system warning light
Indicates a malfunction in the pre-crash safety system
The warning light will operate as follows, even when the
system is not malfunctioning:
• The light will flash quickly when the system is operat-
ing.
(P. 406)
• The light will turn on when the pre-crash safety system
is disabled. (P. 408)
• The light will flash when the system cannot temporarily
be used. (P. 862)
Slip indicator
Indicates a malfunction in:
•The VSC system; or
• The TRC system
The light will flash when the VSC or the TRC system is
operating.
(Flashes)
(If equipped)
“AFS OFF” indicator
Indicates a malfunction in the adaptive front-lighting sys-
tem
(Flashes)
Brake hold operated indicator
Indicates a malfunction in the brake hold system
(Flashes)
Parking brake indicator
Indicates a malfunction in the parking brake system
Brake system warning light
Indicates a malfunction in:
• The electronically controlled brake system;
• The regenerative braking system; or
• The parking brake system
Wa r n i n g
lightWarning light/Details
