Lexus GS300h 2013 Owner's Manual

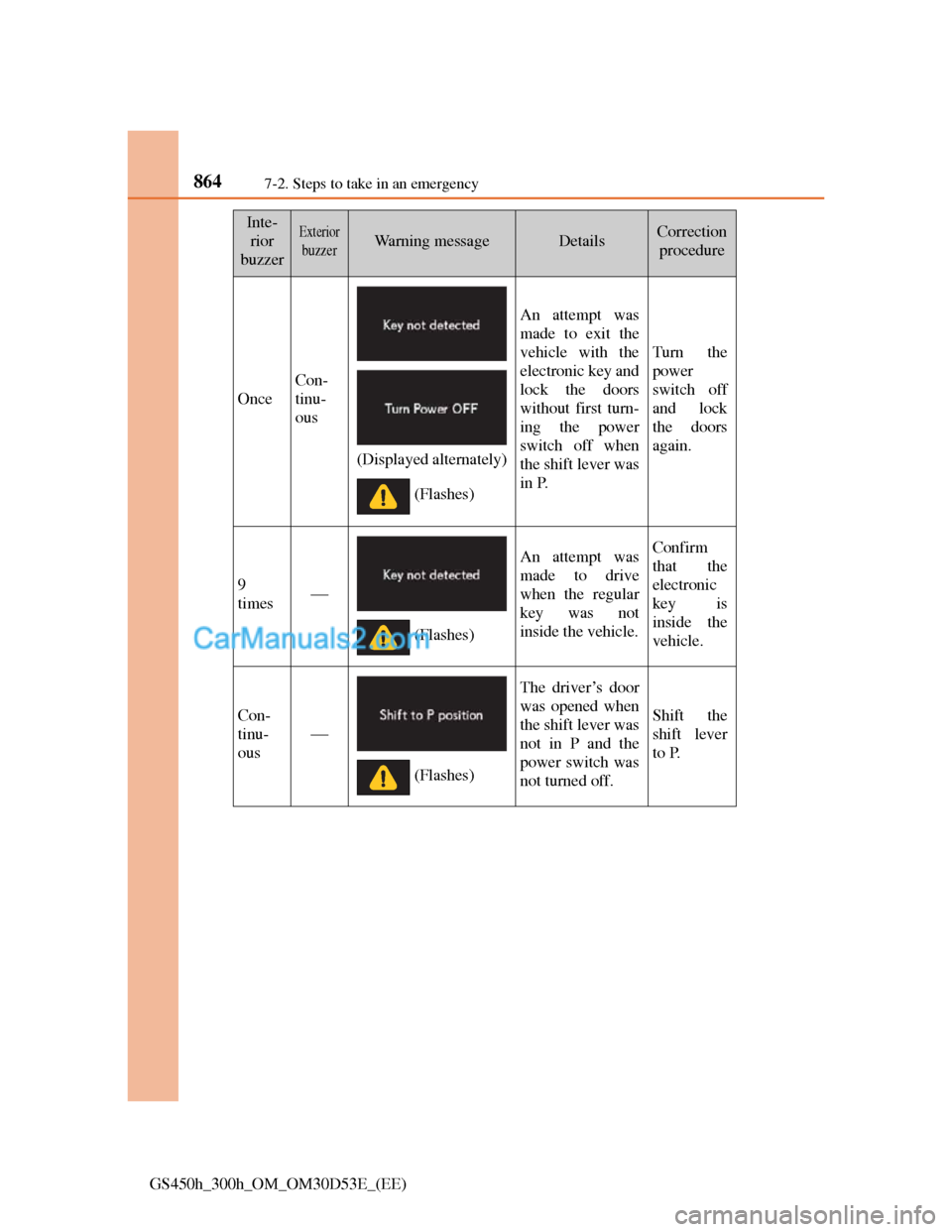

8647-2. Steps to take in an emergency
GS450h_300h_OM_OM30D53E_(EE)
Inte-
rior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Once
Con-
tinu-
ous
An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors
without first turn-
ing the power
switch off when
the shift lever was
in P.
Turn the
power
switch off
and lock
the doors
again.
9
times
An attempt was
made to drive
when the regular
key was not
inside the vehicle.Confirm
that the
electronic
key is
inside the
vehicle.
Con-
tinu-
ous

The driver’s door
was opened when
the shift lever was
not in P and the
power switch was
not turned off.
Shift the
shift lever
to P.
(Displayed alternately)
(Flashes)
(Flashes)
(Flashes)

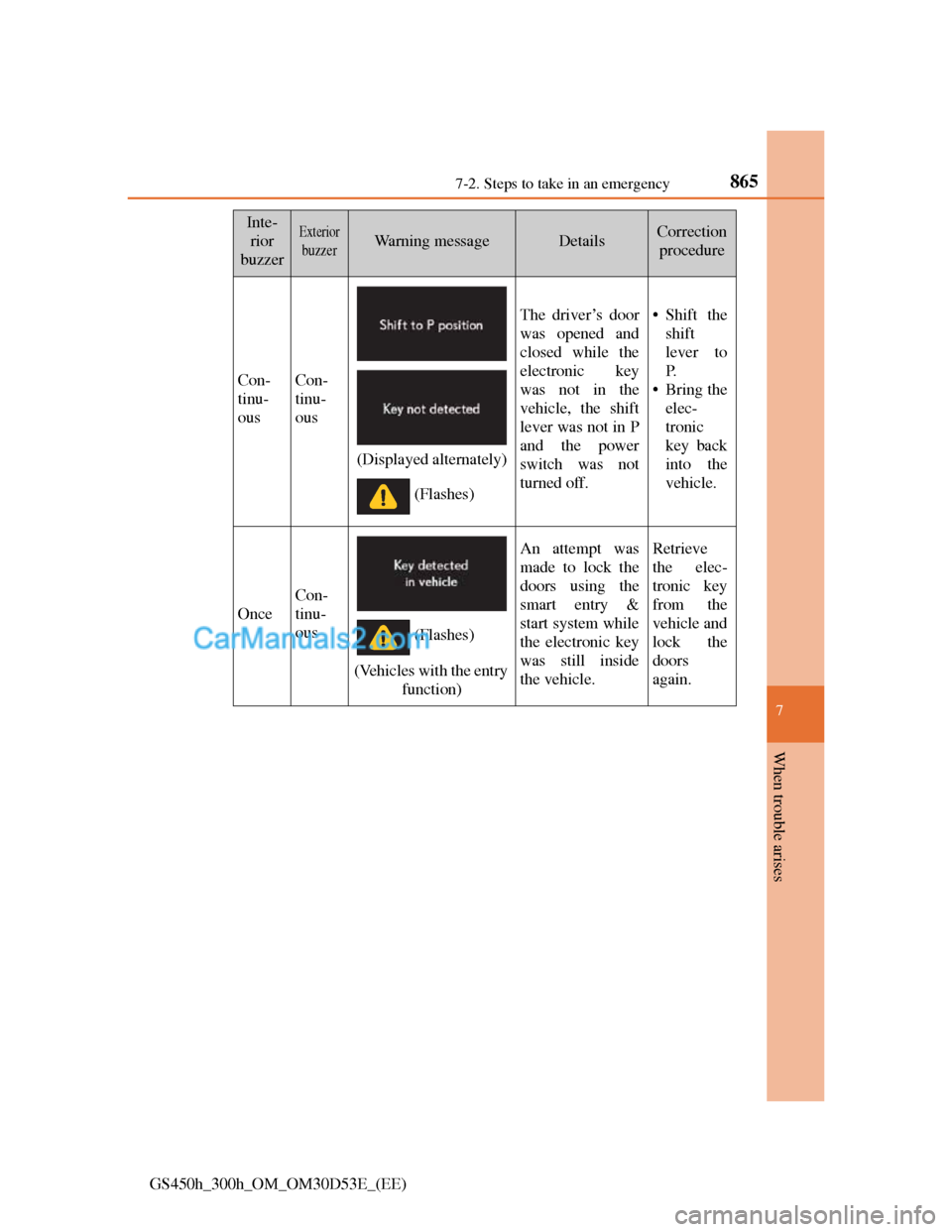

8657-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30D53E_(EE)
Inte-
rior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Con-
tinu-
ousCon-
tinu-
ousThe driver’s door
was opened and
closed while the
electronic key
was not in the
vehicle, the shift
lever was not in P
and the power
switch was not
turned off.•Shift the
shift
lever to
P.
•Bring the
elec-
tronic
key back
into the
vehicle.
Once
Con-
tinu-
ous
(Vehicles with the entry
function)
An attempt was
made to lock the
doors using the
smart entry &
start system while
the electronic key
was still inside
the vehicle.Retrieve
the elec-
tronic key
from the
vehicle and
lock the
doors
again.
(Displayed alternately)
(Flashes)
(Flashes)

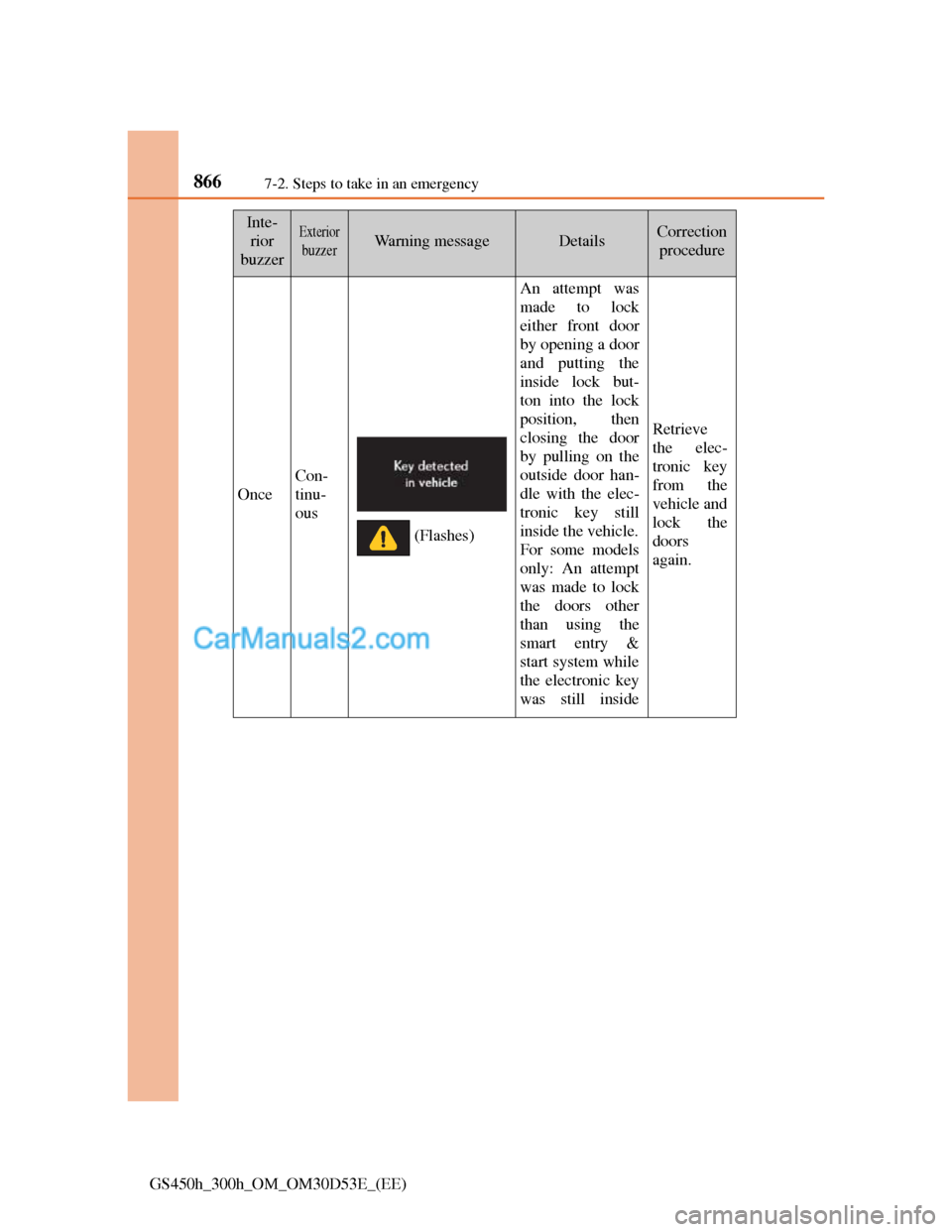

8667-2. Steps to take in an emergency
GS450h_300h_OM_OM30D53E_(EE)
Once
Con-
tinu-
ous
An attempt was
made to lock
either front door
by opening a door
and putting the
inside lock but-
ton into the lock
position, then
closing the door
by pulling on the
outside door han-
dle with the elec-
tronic key still
inside the vehicle.
For some models
only: An attempt
was made to lock
the doors other
than using the
smart entry &
start system while
the electronic key
was still inside
Retrieve
the elec-
tronic key
from the
vehicle and
lock the
doors
again.
Inte-
rior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)

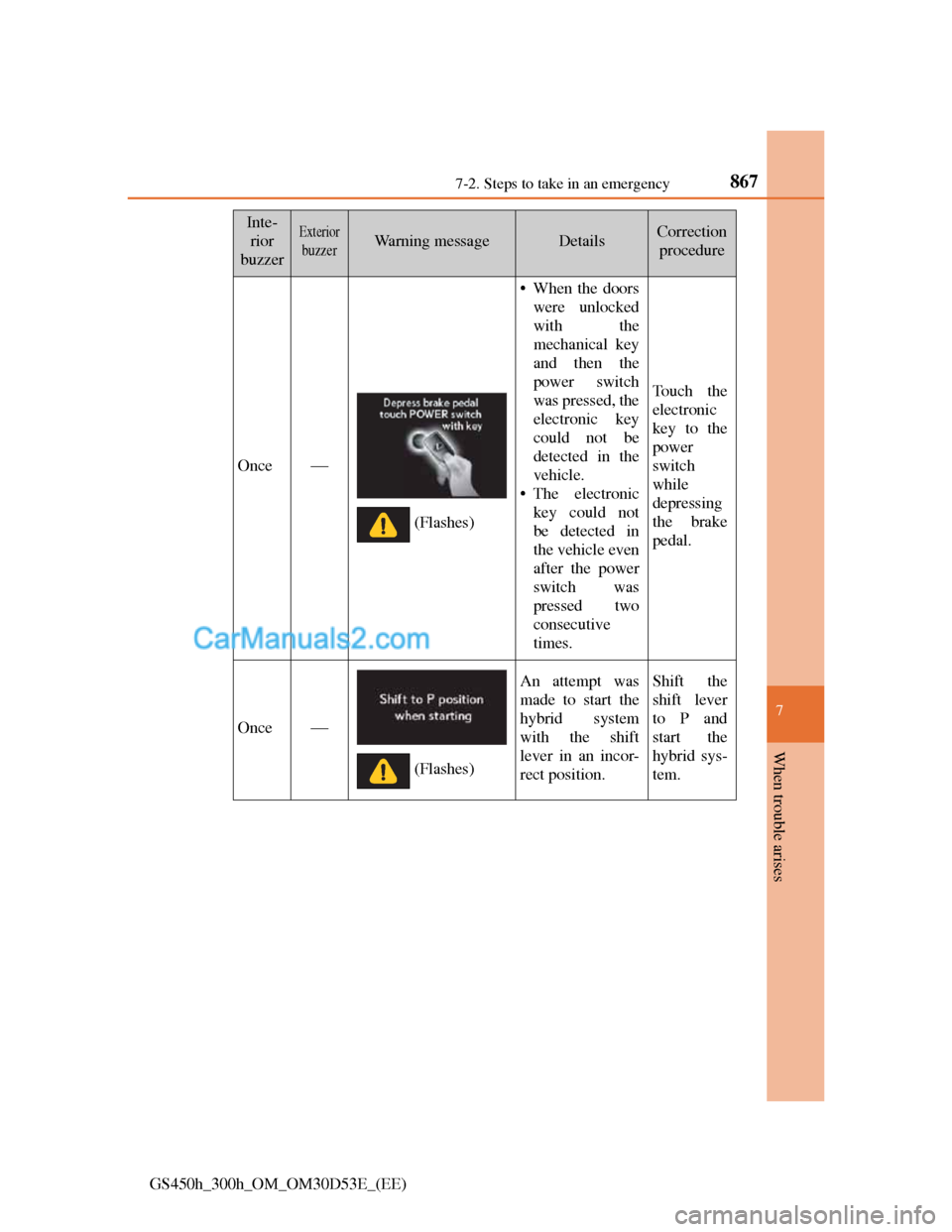

8677-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30D53E_(EE)
Inte-
rior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Once
• When the doors
were unlocked
with the
mechanical key
and then the
power switch
was pressed, the
electronic key
could not be
detected in the
vehicle.
• The electronic
key could not
be detected in
the vehicle even
after the power
switch was
pressed two
consecutive
times.
To u c h t h e
electronic
key to the
power
switch
while
depressing
the brake
pedal.
Once
An attempt was
made to start the
hybrid system
with the shift
lever in an incor-
rect position.Shift the
shift lever
to P and
start the
hybrid sys-
tem.
(Flashes)
(Flashes)

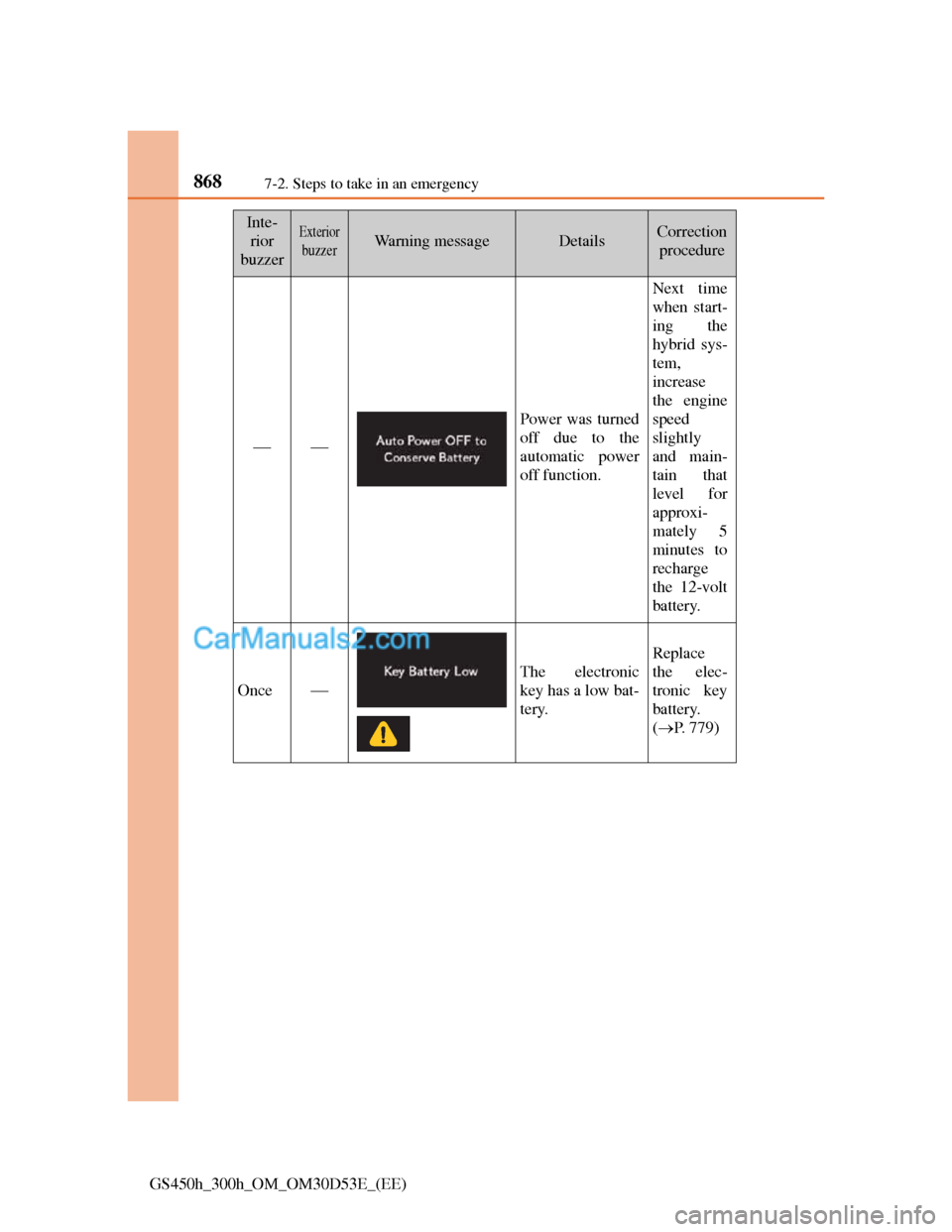

8687-2. Steps to take in an emergency
GS450h_300h_OM_OM30D53E_(EE)
Inte-
rior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

Power was turned
off due to the
automatic power
off function.
Next time
when start-
ing the
hybrid sys-
tem,
increase
the engine
speed
slightly
and main-
tain that
level for
approxi-
mately 5
minutes to
recharge
the 12-volt
battery.
Once
The electronic
key has a low bat-
tery.
Replace
the elec-
tronic key
battery.
(P. 779)

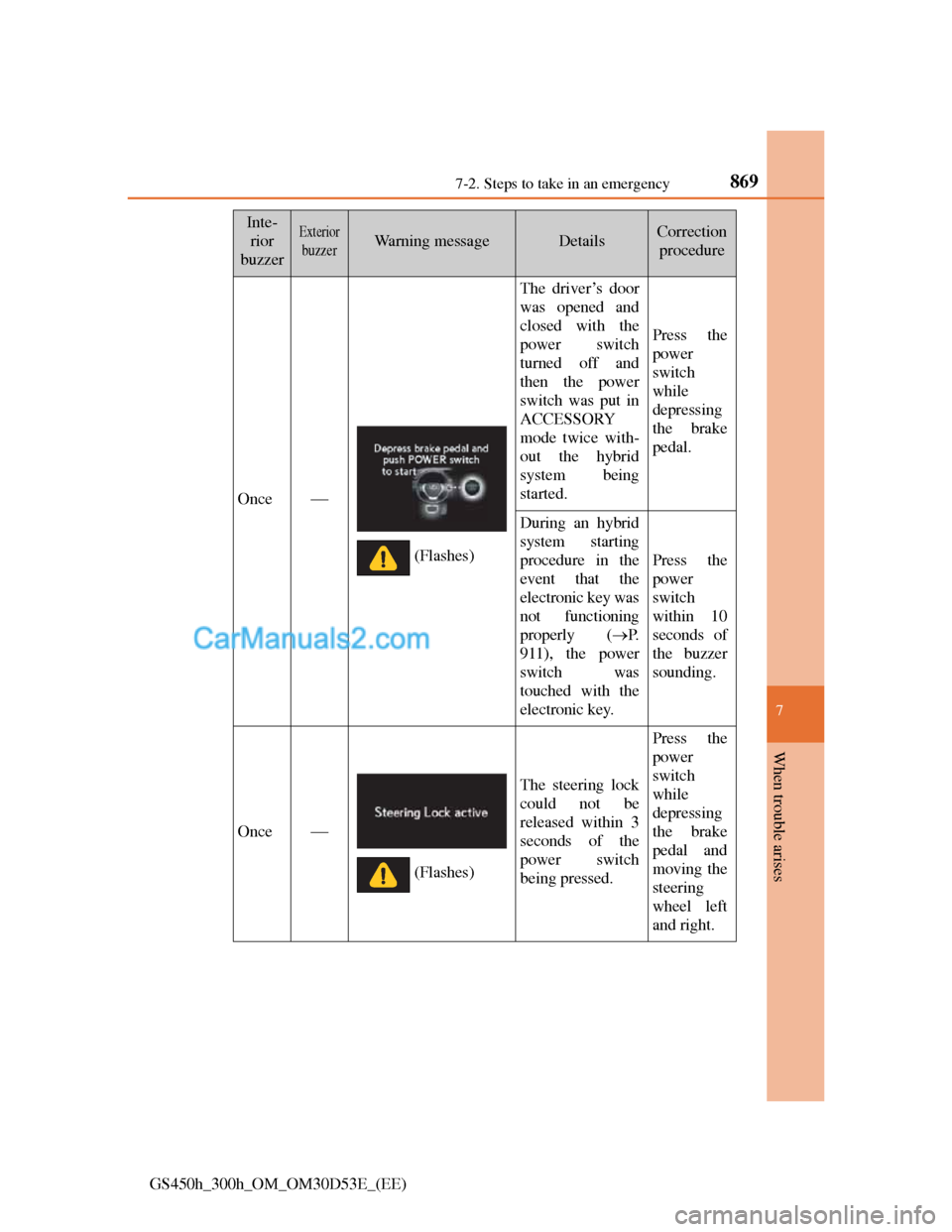

8697-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30D53E_(EE)
Inte-
rior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Once
The driver’s door
was opened and
closed with the
power switch
turned off and
then the power
switch was put in
ACCESSORY
mode twice with-
out the hybrid
system being
started.
Press the
power
switch
while
depressing
the brake
pedal.
During an hybrid
system starting
procedure in the
event that the
electronic key was
not functioning
properly (P.
911), the power
switch was
touched with the
electronic key.
Press the
power
switch
within 10
seconds of
the buzzer
sounding.
Once
The steering lock
could not be
released within 3
seconds of the
power switch
being pressed.
Press the
power
switch
while
depressing
the brake
pedal and
moving the
steering
wheel left
and right.
(Flashes)
(Flashes)

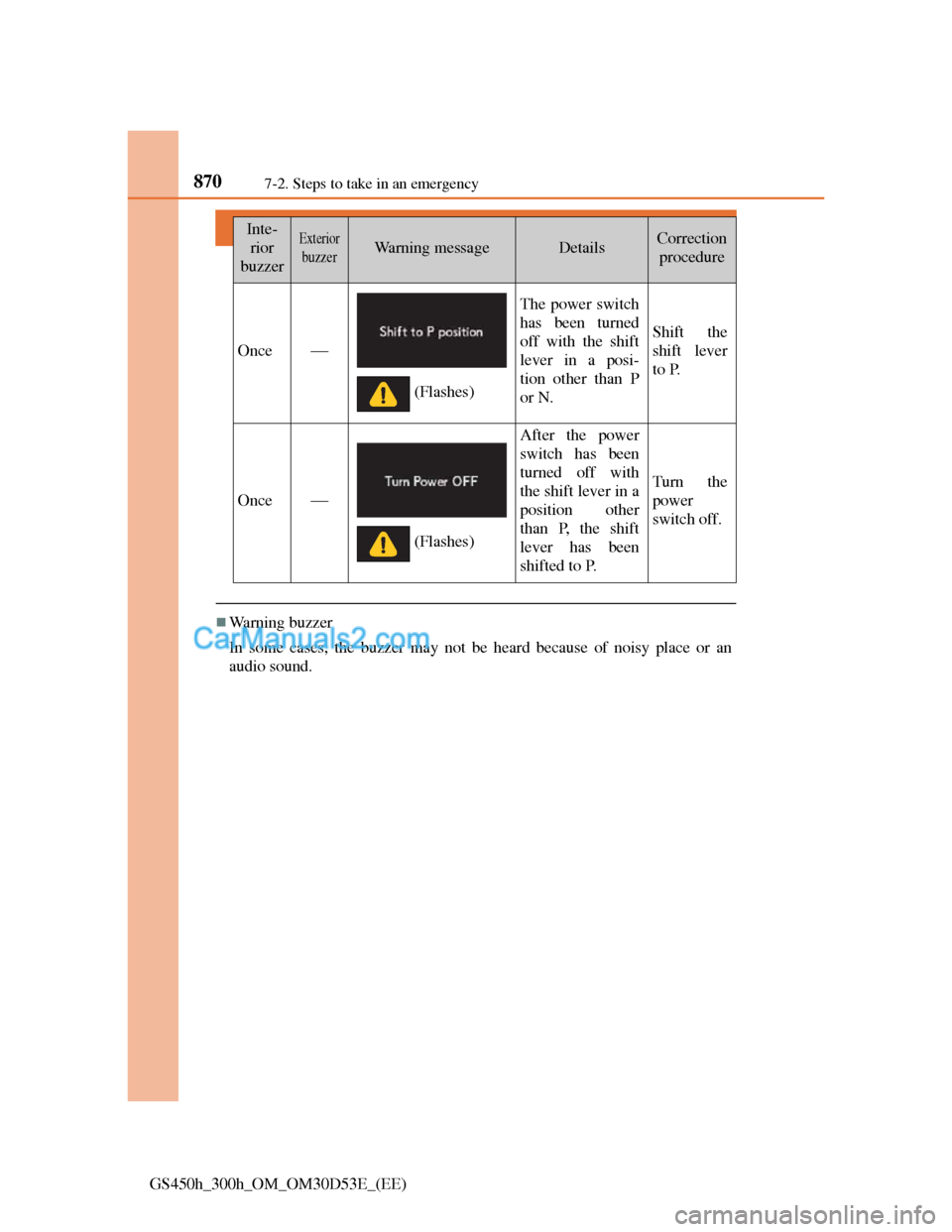

8707-2. Steps to take in an emergency
GS450h_300h_OM_OM30D53E_(EE)
Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
Inte-
rior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Once
The power switch
has been turned
off with the shift
lever in a posi-
tion other than P
or N.
Shift the
shift lever
to P.
Once
After the power
switch has been
turned off with
the shift lever in a
position other
than P, the shift
lever has been
shifted to P.
Turn the
power
switch off.
(Flashes)
(Flashes)

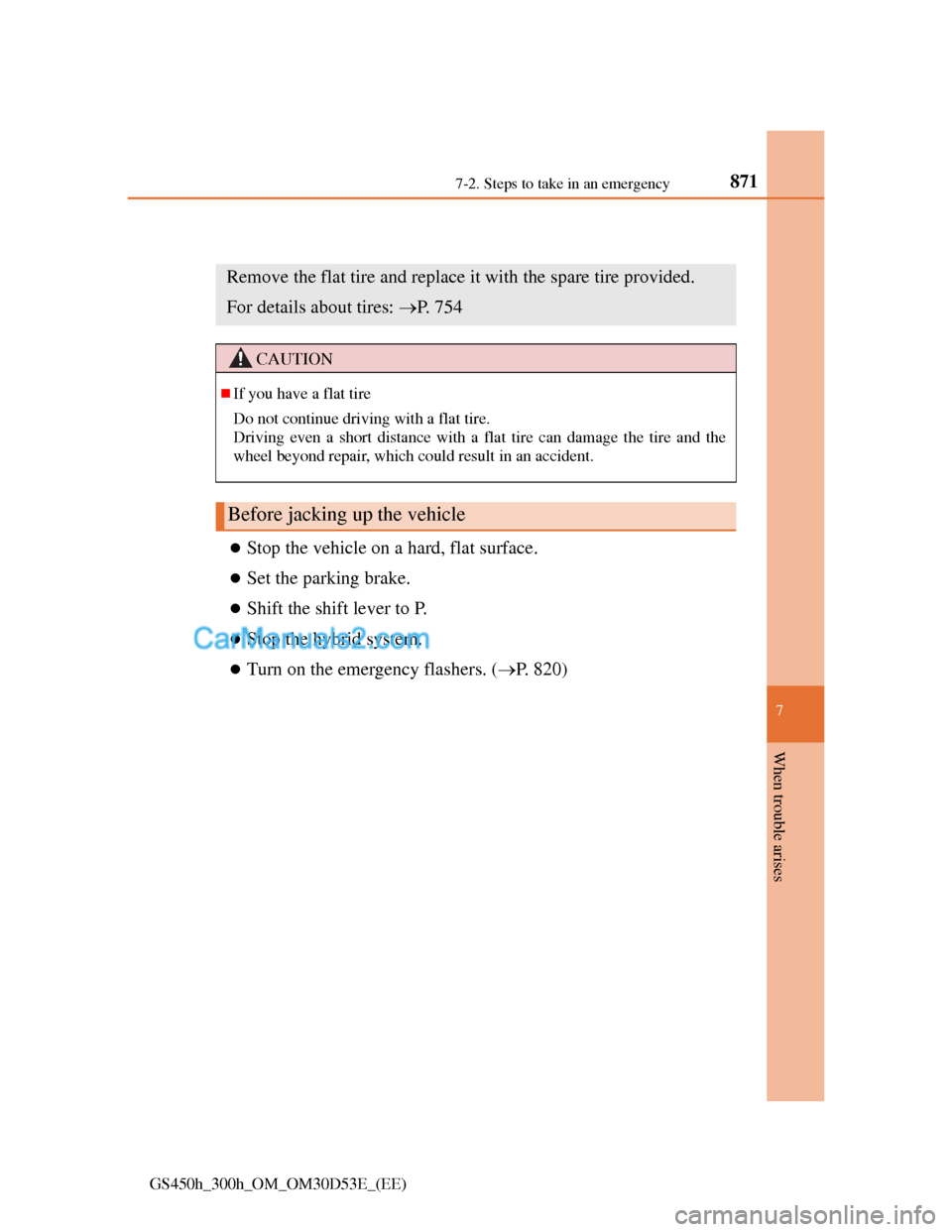

8717-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30D53E_(EE)
If you have a flat tire (vehicles with a spare tire)
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Shift the shift lever to P.
Stop the hybrid system.
Turn on the emergency flashers. (P. 820)
Remove the flat tire and replace it with the spare tire provided.
For details about tires: P. 754
CAUTION
If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle

8727-2. Steps to take in an emergency
GS450h_300h_OM_OM30D53E_(EE)

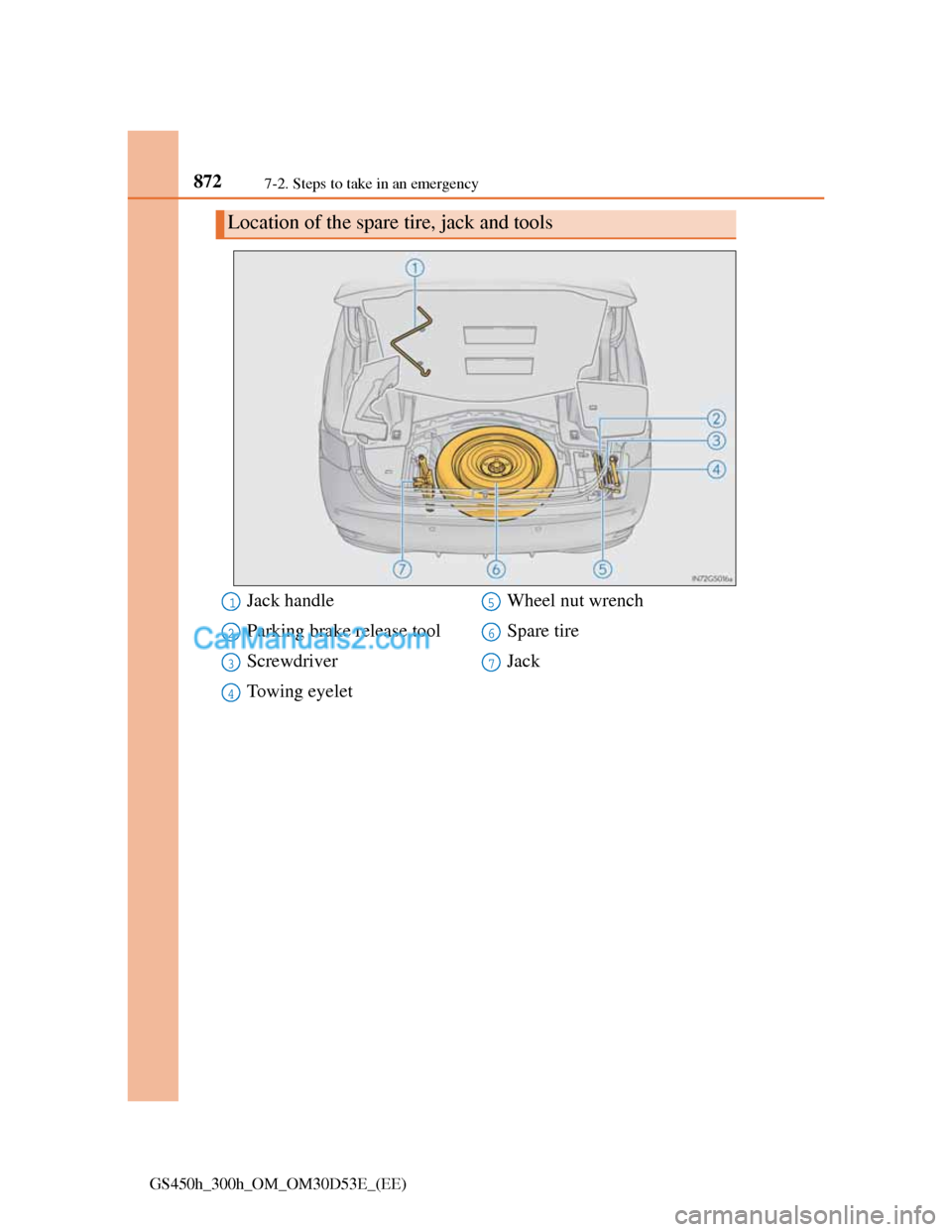

Location of the spare tire, jack and tools
Jack handle
Parking brake release tool
Screwdriver
Towing eyeletWheel nut wrench
Spare tire
Jack1
2
3
4
5
6
7

8737-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30D53E_(EE)

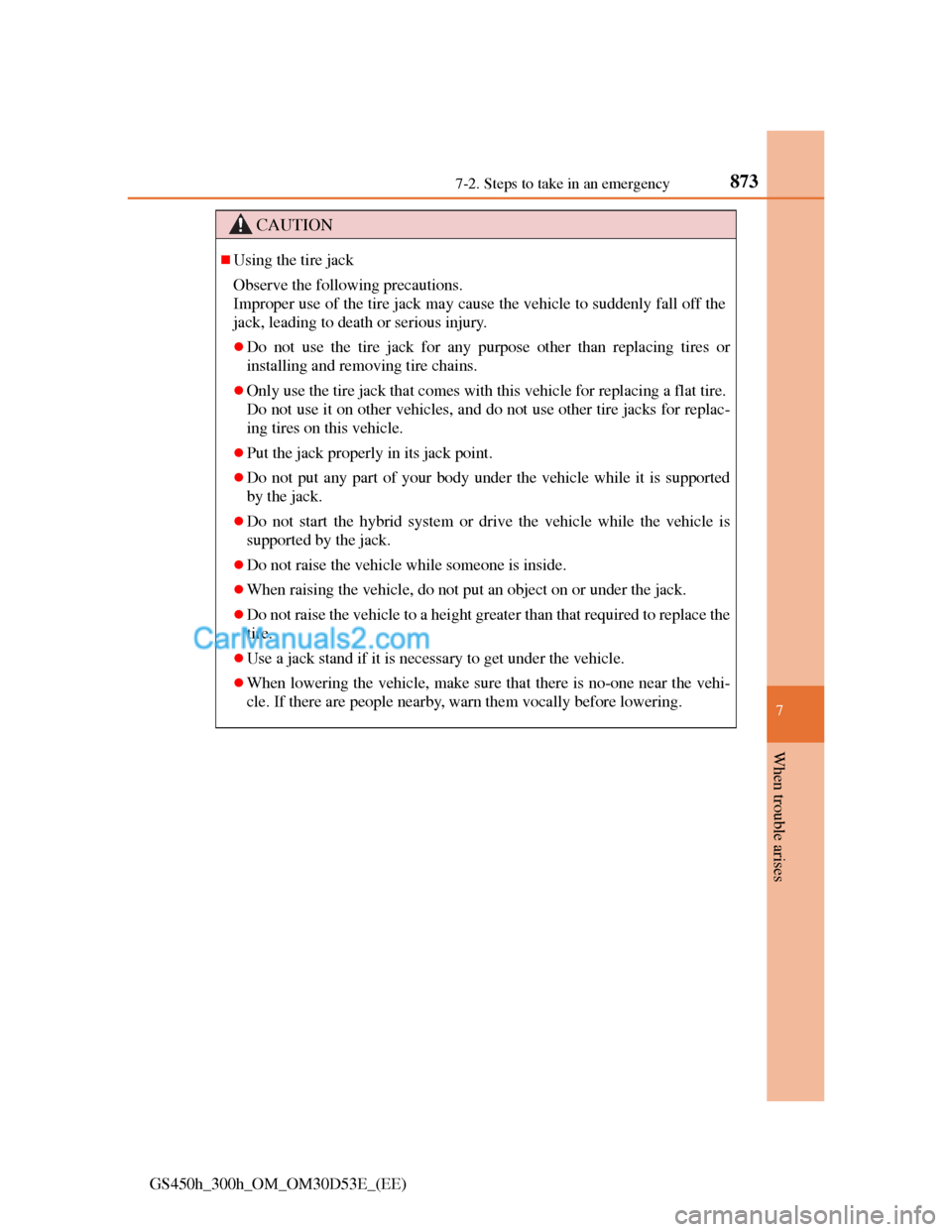

CAUTION
Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Put the jack properly in its jack point.
Do not put any part of your body under the vehicle while it is supported
by the jack.
Do not start the hybrid system or drive the vehicle while the vehicle is
supported by the jack.
Do not raise the vehicle while someone is inside.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace the
tire.
Use a jack stand if it is necessary to get under the vehicle.
When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.
