181
2. RADIO OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
AUDIO/VISUAL SYSTEM
4
1Tune in the desired station.
2Select one of the screen buttons (1-6)
and hold it until a beep is heard.
z The station’s frequency will be displayed in
the screen button.
z To change the preset station to a different
one, follow the same procedure.
X AM/FM
1Select “Manual” .
2Tune the desired station. X
DAB
1Select “Manual” .
2Tune the desired ensemble or service.
PRESETTING A STATION
Up to 6 preset stations can be regis-
tered.
MANUAL TUNING
No.Function
Select to seek up/down for a station.
Select to step up/down frequencies.
No.Function
Select to set the desired ensemble.
Select to set the desired service.

182
2. RADIO OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
1A pop-up message is displayed on the
screen when the radio seeks out a TP
station.
2Select “Continue” .
■TRAFFIC ANNOUNCEMENT
VOLUME FUNCTION
1Select “Time shift” .
2Select “<<” or “>>” to jump forward/
backward by 10 seconds.
Select and hold “<<” or “>>” to fast for-
ward /rewind.
RDS (RADIO DATA SYSTEM)
Depending on the availability of RDS in-
frastructure, the service may not func-
tion properly.
AF (ALTERNATIVE
FREQUENCY) FUNCTION
A station providing good reception is
automatically selected if current recep-
tion worsens.
TA (TRAFFIC
ANNOUNCEMENT)
FUNCTION
The tuner will automatically seek a sta-
tion that regularly broadcasts traffic in-
formation and the station broadcasts
when the traffic information program
starts.
INFORMATION
●
When TA is set to “On” ( →P. 2 1 6 ) , t h e
radio will begin seeking a TP station.
●When the program ends, the initial oper-
ation resumes.
The volume level when receiving the
traffic announcement is memorized.
TIME SHIFT OPERATION
(DAB)
The service you are currently listening to
can be re-listened to at any time.
INFORMATION
●
The times at which playback is possible
depend on the bit rate of the DAB station
to be recorded, the amount of DAB unit
memory, and the time at which reception
of the broadcast began.

183
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
AUDIO/VISUAL SYSTEM
4
3. MEDIA OPERATION
1. CD
■CONTROL SCREEN
■ CONTROL PANEL
OVERVIEW
The CD operation screen can be reached by the following methods: →P.171
XInserting a disc ( →P.171)
XAudio CD
XMP3/WMA/AAC disc

184
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
No.Function
•Select to select a track/file.
• Select and hold to rewind.
Select to play/pause.
•Select to select a track/file.
• Select and hold to fast forward.
Select to set repeat playback. ( →P.185)
Select to set random playback. ( →P.185)
•Audio CD: Select to display a track list.
• MP3/WMA/AAC disc: Select to display a folder list. To return to the top screen, select
“Now playing” on the list screen.
•Displays cover art
• Select to display a track/file list.
Select to select a folder.
Press to play/pause.
Tune/Scroll knob:
•Turn to select a track/file.
• Turn to move up/down the list.
•Press to select a track/file.
• Press and hold to fast forward/rewind.
INFORMATION
●
If a disc contains CD-DA files and MP3/WM A/AAC files, only the CD-DA files can be
played back.
●If a CD-TEXT disc is inserted, the title of the di sc and track will be displayed. Up to 32 char-
acters can be displayed.

185
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
AUDIO/VISUAL SYSTEM
4
1Select .
zEach time is selected, the mode
changes as follows:
X Audio CD
• track repeat → off
XMP3/WMA/AAC disc
• file repeat → folder repeat → off*1
• file repeat → off*2
*1: When random playback is off
*2: When random playback is on
1Select .
z Each time is selected, the mode
changes as follows:
X Audio CD
•random (1 disc random) → off
XMP3/WMA/AAC disc
• random (1 folder random) →
folder random (1 disc random) → off

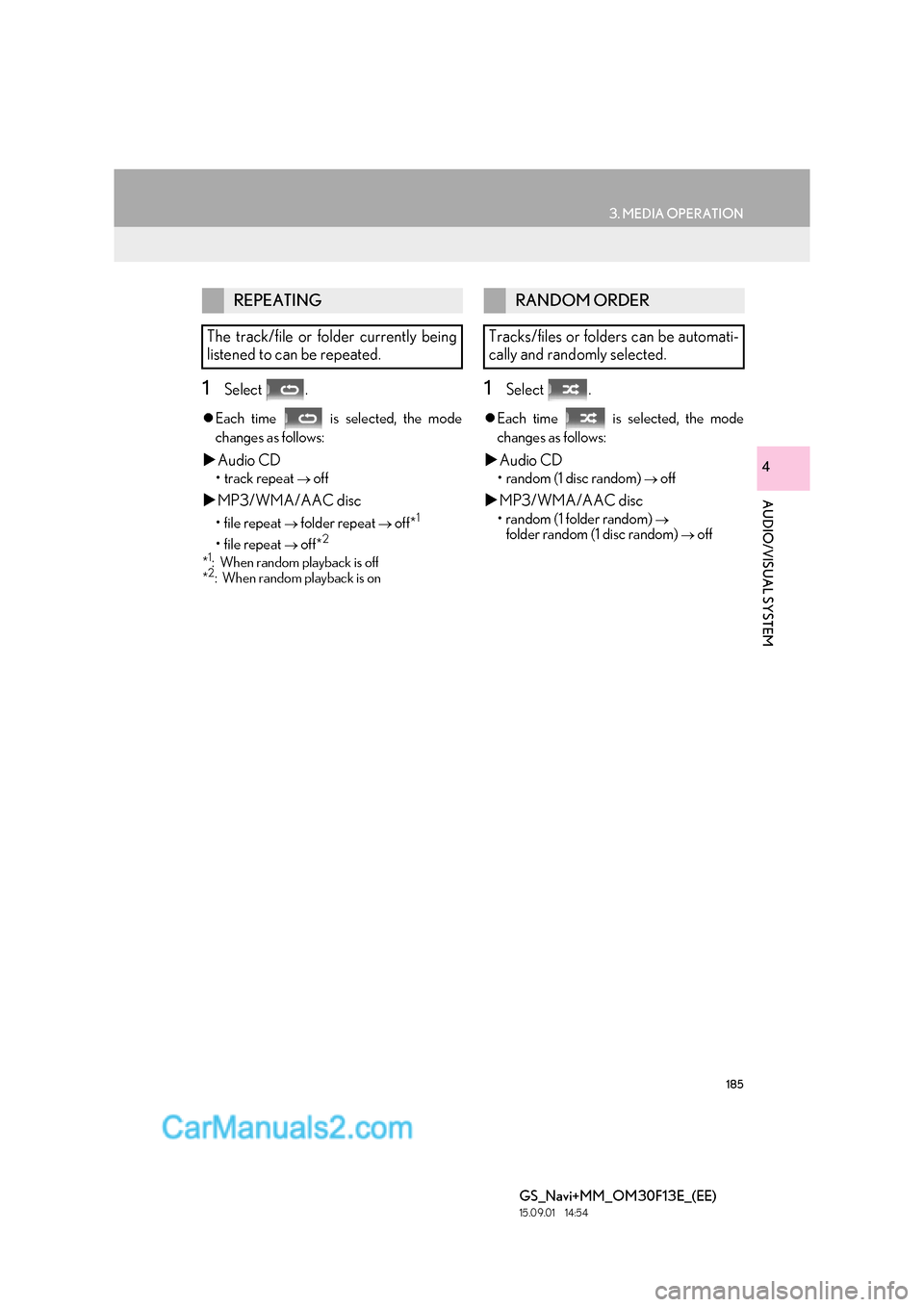

REPEATING
The track/file or folder currently being
listened to can be repeated.RANDOM ORDER
Tracks/files or folders can be automati-
cally and randomly selected.

186
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
2. DVD
■CONTROL SCREEN
For safety reasons, the DVD video discs can only be viewed when the following con-
ditions are met:
(a) The vehicle is completely stopped.
(b) The engine switch is in ACCESSORY or IGNITION ON mode.
(c) The parking brake is applied.
While driving in DVD video mode, only the DVD’s audio can be heard.
The playback condition of some DVD discs may be determined by the DVD software
producer. This DVD player plays a disc as the software producer intended. As such,
some functions may not work properly. Be sure to read the instruction manual that
comes with the individual DVD disc. (
→P.223)
OVERVIEW
The DVD operation screen can be reached by the following methods: →P.171
XInserting a disc ( →P.171)

187
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
AUDIO/VISUAL SYSTEM
4
■CONTROL PANEL
No.Function
Select to display the password input screen.
Select to display the menu screen.
Select to display the option screen. ( →P.189)
•Select to select a chapter.
• Select and hold to rewind.
Select to stop the video screen.
Select to play/pause.
•Select to select a chapter.
• During playback: Select and hold to fast forward.
• During a pause: Select and hold to slow forward.
Select to display the menu control key.
Full screen/Expand:
•Select to display full screen video. (8-inch display)
• Select to display expanded screen video. (12.3-inch display)
Press to play/pause.
Tune/Scroll knob:
Turn to select a chapter.

188
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
•Press to select a chapter.
• Press and hold to fast forward/rewind.
WA R N I N G
●Conversational speech on some DVDs is recorded at a low volume to emphasize the
impact of sound effects. If you adjust the volume assuming that the conversations represent
the maximum volume level that the DVD will play, you may be startled by louder sound
effects or when you change to a different au dio source. The louder sounds may have a sig-
nificant impact on the human body or pose a driving hazard. Keep this in mind when you
adjust the volume.
INFORMATION
●
According to the DVD disc, some menu items can be selected directly. (For details, see the
manual that comes with the DVD disc provided separately.)
●If appears on the screen when a control is selected, the operation relevant to the control
is not permitted.
No.Function

189
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
AUDIO/VISUAL SYSTEM
4
1Select “Options” .
2The following screen is displayed.
1Select “Search” .
2Enter the title number and select “OK”.
zThe player starts playing video for that title
number.
1Select “A u d i o ” .
2Each time “Change” is selected, the au-
dio language is changed.
z The languages available are restricted to
those available on the DVD disc.
DVD OPTIONS
No.FunctionPage
Select to display the title
search screen.189
Select to display the prede-
termined scene on the
screen and start playing.
Select to display the audio
selection screen.189
Select to display the subtitle
selection screen.190
Select to display the angle
selection screen.190
SEARCHING BY TITLE
CHANGING THE AUDIO
LANGUAGE

190
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
1Select “Subtitle” .
2Each time “Change” is selected, the lan-
guage the subtitles are displayed in is
changed.
z The languages available are restricted to
those available on the DVD disc.
z When “Hide” is selected, the subtitles can
be hidden.
1Select “A n g l e ” .
2Each time “Change” is selected, the an-
gle is changed.
z The angles available are restricted to those
available on the DVD disc.
CHANGING THE SUBTITLE
LANGUAGE
CHANGING THE ANGLE
The angle can be selected for discs that
are multi-angle compatible when the an-
gle mark appears on the screen.
