Lexus GS300h 2016 Navigation manual

331
3. WHAT TO DO IF...
TELEPHONE
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
7

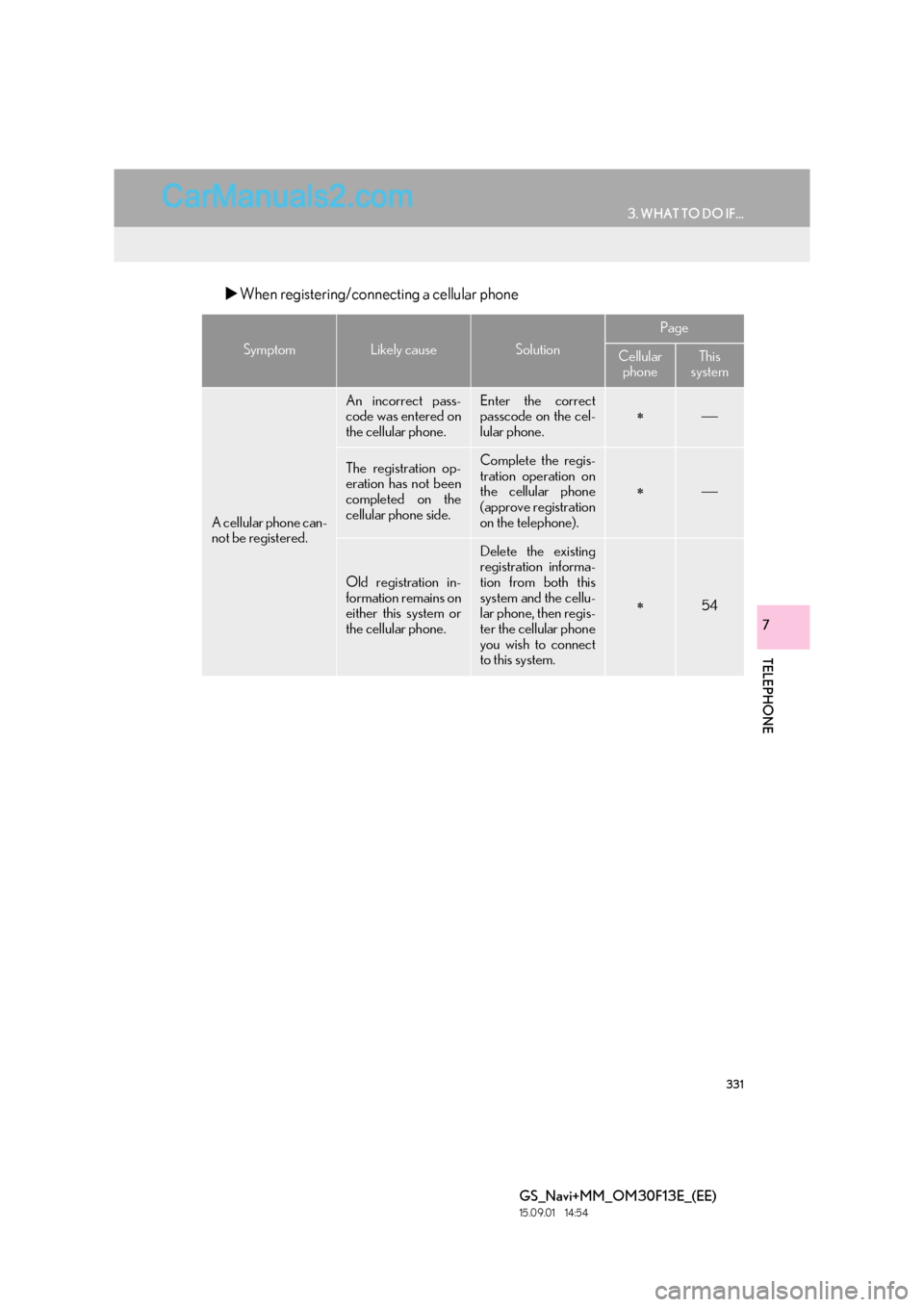

XWhen registering/connecting a cellular phone
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
A cellular phone can-
not be registered.
An incorrect pass-
code was entered on
the cellular phone.Enter the correct
passcode on the cel-
lular phone.∗
The registration op-
eration has not been
completed on the
cellular phone side.Complete the regis-
tration operation on
the cellular phone
(approve registration
on the telephone).
∗
Old registration in-
formation remains on
either this system or
the cellular phone.
Delete the existing
registration informa-
tion from both this
system and the cellu-
lar phone, then regis-
ter the cellular phone
you wish to connect
to this system.
∗54

332
3. WHAT TO DO IF...
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
A Bluetooth® con-
nection cannot be
made.
Another Bluetooth®
device is already
connected.
Manually connect
the cellular phone
you wish to use to this
system.
54
Bluetooth® function
is not enabled on the
cellular phone.Enable the
Bluetooth® function
on the cellular phone.∗
Automatic
Bluetooth® connec-
tion on this system is
set to off.
Set automatic
Bluetooth® connec-
tion on this system to
on when the engine
switch is in
ACCESSORY or
IGNITION ON
mode.
59
Preferred device set-
tings function on this
system is set to on.
Set preferred device
settings function on
this system to off.59
Set the desired cellu-
lar phone to the high-
est automatic
connection priority.
59
SymptomLikely causeSolution
Page
Cellular
phoneThis
system

333
3. WHAT TO DO IF...
TELEPHONE
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
7
XWhen making/receiving a call
“Check your tele-
phone.” message is
displayed.
Bluetooth® function
is not enabled on the
cellular phone.Enable the
Bluetooth® function
on the cellular phone.∗
Old registration in-
formation remains on
either this system or
the cellular phone.
Delete the existing
registration informa-
tion from both this
system and the cellu-
lar phone, then regis-
ter the cellular phone
you wish to connect
to this system.
∗54
SymptomLikely causeSolution
Page
Cellular phoneThis
system
A call cannot be
made/received.Your vehicle is in a
“No Service” area.Move to where “No
Service” no longer
appears on the dis-
play.

SymptomLikely causeSolution
Page
Cellular phoneThis
system

334
3. WHAT TO DO IF...
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54

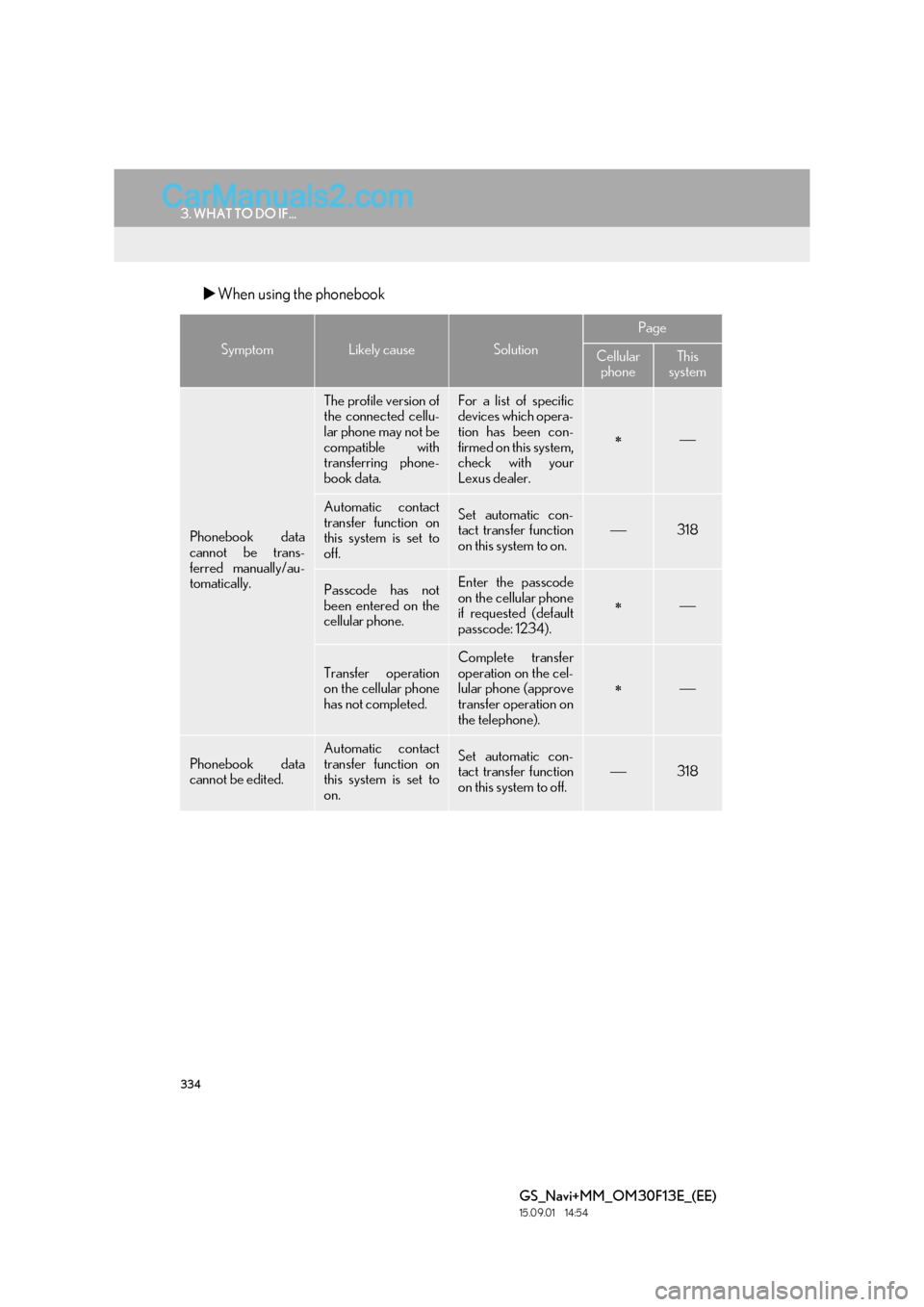

XWhen using the phonebook
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Phonebook data
cannot be trans-
ferred manually/au-
tomatically.
The profile version of
the connected cellu-
lar phone may not be
compatible with
transferring phone-
book data.For a list of specific
devices which opera-
tion has been con-
firmed on this system,
check with your
Lexus dealer.
∗
Automatic contact
transfer function on
this system is set to
off.Set automatic con-
tact transfer function
on this system to on.318
Passcode has not
been entered on the
cellular phone.Enter the passcode
on the cellular phone
if requested (default
passcode: 1234).
∗
Transfer operation
on the cellular phone
has not completed.Complete transfer
operation on the cel-
lular phone (approve
transfer operation on
the telephone).
∗
Phonebook data
cannot be edited.
Automatic contact
transfer function on
this system is set to
on.Set automatic con-
tact transfer function
on this system to off.318

335
3. WHAT TO DO IF...
TELEPHONE
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
7
XWhen using the Bluetooth® message function
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Messages cannot be
viewed.
Message transfer is
not enabled on the
cellular phone.Enable message
transfer on the cellu-
lar phone (approve
message transfer on
the telephone).
∗
Automatic transfer
function on this sys-
tem is set to off.Set automatic trans-
fer function on this
system to on.327
New message notifi-
cations are not dis-
played.
Notification of SMS/
MMS/E-mail recep-
tion on this system is
set to off.Set notification of
SMS/MMS/E-mail
reception on this sys-
tem to on.
∗327
Automatic message
transfer function is
not enabled on the
cellular phone.Enable automatic
transfer function on
the cellular phone.∗

336
3. WHAT TO DO IF...
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
XIn other situations
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the engine
switch is in ACCES-
SORY or IGNI-
TION ON
mode.
Connection confir-
mation display on this
system is set to on.To turn off the dis-
play, set connection
confirmation display
on this system to off.
58
Even though all con-
ceivable measures
have been taken, the
symptom status does
not change.
The cellular phone is
not close enough to
this system.Bring the cellular
phone closer to this
system.
Radio interference
has occurred.
Turn off Wi-Fi® de-
vices or other devic-
es that may emit
radio waves.


337
3. WHAT TO DO IF...
TELEPHONE
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
7
∗: For details, refer to the owner’s manual that came with the cellular phone.
Even though all con-
ceivable measures
have been taken, the
symptom status does
not change.
The cellular phone is
the most likely cause
of the symptom.
Turn the cellular
phone off, remove
and reinstall the bat-
tery pack, and then
restart the cellular
phone.
∗
Enable the cellular
phone’s Bluetooth®
connection.
∗
Disable the Wi-Fi®
connection of the
cellular phone.∗
Stop the cellular
phone’s security soft-
ware and close all ap-
plications.
∗
Before using an ap-
plication installed on
the cellular phone,
carefully check its
source and how its
operation might af-
fect this system.
∗
SymptomLikely causeSolution
Page
Cellular
phoneThis
system

338
3. WHAT TO DO IF...
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54

8
339
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:53
1
2
3
4
5 6
7
8 9
1. CONNECTED SERVICES OVERVIEW ............................................340
BEFORE USING CONNECTED
SERVICES............................................................... 342
2. SETTINGS REQUIRED FOR USING THE SERVICE ........................ 343
OBTAINING LEXUS PORTAL SITE
ACCOUNT ........................................................... 343
CONNECTING TO INTERNET .................... 343
3. ONLINE SEARCH .................................. 344
ONLINE SEARCH................................................. 344
VIEWING POI*2 DETAILS................................ 346
4.IMPORTING MEMORY POINTS AND STORED ROUTES............................. 347
REGISTERING AN EXTERNAL
POINT AS A MEMORY POINT AND
ROUTES FROM THE INTERNET .............. 347
PROCEDURE FOR DOWNLOADING MEMORY POINTS AND ROUTES
FROM A USB MEMORY .............................. 348
5. Street View..................................................350
6. Panoramio .................................................... 351
7. WEATHER .................................................. 353
CHANGING LOCATION .............................. 353
8. FUEL PRICE ............................................... 355 1. CONNECTED SERVICE
SETTINGS................................................ 357
CONNECTED SERVICE SETTINGS
SCREEN .................................................................. 357
1CONNECTED SERVICES2SETUP
CONNECTED SERVICES *1
Not all connected services may be available in all countries.
*1: If equipped
*2: Point of Interest

340
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
1. CONNECTED SERVICES
1. CONNECTED SERVICES OVERVIEW
XOnline search/Street View/Panoramio/Weather/Fuel price
The following services are available by connecting the system to Lexus portal site via
the internet using a cellular phone or Wi-Fi
® network.
z Online search: New establishments, such as restaurants, bars etc., that are not regis-
tered in the system, can be set as a destination.
z Importing memory points and routes: Establishments that were searched using a per-
sonal computer can be set as a destination and can be registered as memory points.
z Street View: The Street View of the desired location can be viewed.
z Panoramio: User’s pictures, comments and other information can be viewed on a map.
z Weather: Weather information for a desired location can be displayed.
z Fuel price: Fuel price information for a desired location can be displayed.
No.NameOperation
SystemEnter a keyword.
Lexus portal site*/
Contents providerThe keyword is sent to the search engine, the results are re-
ceived, and sent to the system.
SystemThe results are displayed.
*: For details about Lexus portal site, refer to www.my.lexus.eu.
