Lexus GS300h 2016 Navigation manual

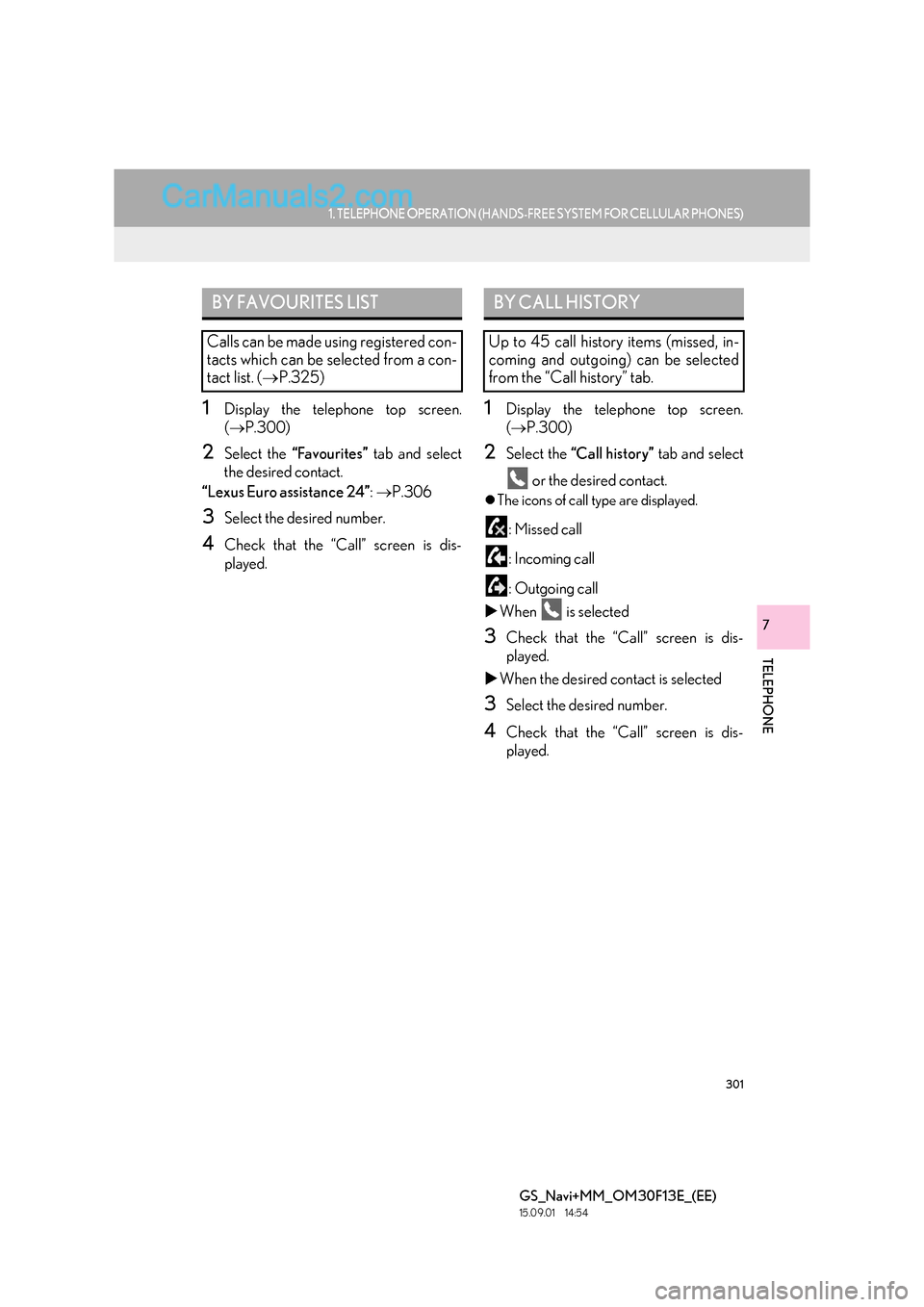

301
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
TELEPHONE
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
7
1Display the telephone top screen.
(→ P.300)
2Select the “Favourites” tab and select
the desired contact.
“Lexus Euro assistance 24” : → P.306
3Select the desired number.
4Check that the “Call” screen is dis-
played.
1Display the telephone top screen.
(→ P.300)
2Select the “Call history” tab and select
or the desired contact.
z The icons of call type are displayed.
: Missed call
: Incoming call
: Outgoing call
X When is selected
3Check that the “Call” screen is dis-
played.
X When the desired contact is selected
3Select the desired number.
4Check that the “Call” screen is dis-
played.
BY FAVOURITES LIST
Calls can be made using registered con-
tacts which can be selected from a con-
tact list. ( →P.325)
BY CALL HISTORY
Up to 45 call history items (missed, in-
coming and outgoing) can be selected
from the “Call history” tab.

302
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
1Display the telephone top screen.
(→ P.300)
2Select the “Contacts” tab and select the
desired contact.
3Select the desired number.
z The order of the telephone numbers that
are displayed may differ from the order
shown on the cellular phone.
4Check that the “Call” screen is dis-
played.
INFORMATION
●
When making a call to the same number
continuously, only the most recent call is
listed in call history.
●When a telephone number registered in
the contact list is received, the name is
displayed.
●Number-withheld calls are also memo-
rized in the system.
●International telephone calls may not be
made depending on the type of cellular
phone you have.
●The list should group together consecu-
tive entries with the same telephone num-
ber and same call type. For example, two
calls from John’s mobile would be dis-
played as follows: John (2)
●By pressing the switch on the steer-
ing wheel, a call to the latest history item
can be made.
BY CONTACTS LIST
Calls can be made by using contact data
which is transferred from a registered
cellular phone. ( →P.303)
Up to 2500 contacts (maximum of 4
telephone numbers and e-mail address-
es per contact) can be registered in the
contact list.

303
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
TELEPHONE
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
7
■FOR PBAP COMPATIBLE
Bluetooth
® PHONES
X When “Automatic transfer” is set to on
(→ P.319)
zContacts are transferred automatically.
X When “Automatic transfer” is set to off
(→ P.319)
1Select the desired item.
2Check that a confirmation screen is dis-
played when the operation is complete.
■FOR PBAP INCOMPATIBLE BUT
OPP COMPATIBLE Bluetooth
®
PHONES
1Select the desired item.
WHEN THE CONTACT IS
EMPTY
No.Function
Select to always transfer all the con-
tacts from a connected cellular
phone automatically.
Select to transfer all the contacts
from a connected cellular phone
only once.
Select to cancel transferring.
No.Function
Select to transfer the contacts from
the connected cellular phone.
Select to add a new contact manual-
ly.
Select to cancel transferring.

304
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
XWhen “Transfer” is selected
2Follow the steps in “ XWhen the contact
is not registered” from “STEP 2”.
( → P.322)
X When “Add” is selected
2Follow the steps in “REGISTERING A
NEW CONTACT TO THE CON-
TACTS LIST” from “STEP 2”.
(→ P.324)
1Display the telephone top screen.
(→ P.300)
2Select the “Dial Pad” tab and enter the
telephone number.
“SOS” : → P.305
3Select or press the switch on
the steering wheel.
4Check that the “Call” screen is dis-
played.INFORMATION
●
Manual transfer operation cannot be per-
formed while driving.
●If your cellular phone is neither PBAP nor
OPP compatible, the contacts cannot be
transferred.
●Depending on the type of Bluetooth®
phone:
• It may be necessary to perform addi- tional steps on the telephone when
transferring contact data.
• The registered image in the contact list may not transfer depending on the type
of Bluetooth
® phone connected.
BY DIAL PAD
INFORMATION
●
Depending on the type of Bluetooth®
phone being connected, it may be neces-
sary to perform additional steps on the
telephone.

305
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
TELEPHONE
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
7
1Press the switch on the steering
wheel to display the telephone top
screen.
2Press the switch on the steering
wheel to display the “Call history”
screen.
3Press the switch on the steering
wheel to call the latest history item.
4Check that the “Call” screen is dis-
played.
1Display the telephone top screen.
(→ P.300)
2Select the “Dial Pad” tab and select
“SOS” .
3Select “112”.
4Check that the “Call” screen is dis-
played.
zThe current location of the vehicle is dis-
played on the screen.
BY OFF HOOK SWITCH
Calls can be made using the latest call
history item.
SOS
112 EMERGENCY CALL
SUPPORT
This feature is used to make a 112 emer-
gency call. This function is not available
when the hands-free system is not con-
nected.
The call has to be placed from a country
where 112 is available.

306
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
1Display the telephone top screen.
(→ P.300)
2Select the “Favourites” tab and select
“Lexus Euro assistance 24” .
3Select .
4Check that the “Call” screen is dis-
played.
zThe current location of the vehicle is dis-
played on the screen.
ROADSIDE ASSIST
This feature is used to make a call to
Lexus roadside assist service.
The call has to be placed from a country
where Lexus roadside assist service is
available.
To use this function, it is necessary to
register a country. ( →P.328)

307
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
TELEPHONE
7
4. RECEIVING ON THE Bluetooth® PHONE
1Select or press the switch on
the steering wheel to talk on the tele-
phone.
To refuse to receive the call : Select
or press the switch on the steering
wheel.
To adjust the volume of a received call :
Turn the Power/Volume knob, or use the
volume control switch on the steering
wheel.
INCOMING CALLS
When a call is received, this screen is
displayed with a sound.
With 12.3-inch display: This screen can
also be displayed on the side display.
( → P.364)
INFORMATION
●
During international telephone calls, the
other party’s name or number may not be
displayed correctly depending on the
type of cellular phone you have.
●The ringtone that has been set in the
“Sounds” screen sounds when there is an
incoming call. Depending on the type of
Bluetooth
® phone, both the system and
Bluetooth® phone may sound simulta-
neously when there is an incoming call.
( → P. 3 1 7 )
●The incoming call display mode can be
set. ( →P. 3 1 8 )

308
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
5. TALKING ON THE Bluetooth® PHONE
While talking on the telephone, this
screen is displayed. The operations out-
lined below can be performed on this
screen.
With 12.3-inch display: This screen can
also be displayed on the side display.
(→ P.364)
No.FunctionPage
Select to display the dial
pad to send tones.309
Select to mute your voice to
the other party.
Select to adjust your voice
volume that the other party
hears from their speaker.309
Select to send tones. This
button only appears when a
number that contains a (w)
is dialed in hands-free
mode.
309
Select to hang up the tele-
phone.
Select “+” or “-” to adjust
the volume of the other par-
ty’s voice.
Select to change handset
modes between hands-free
and cellular phone.
Select to start talking with
the other party.310
INFORMATION
●
When cellular phone call is changed to
hands-free call, the hands-free screen will
be displayed and its functions can be
operated on the screen.
●Changing between cellular phone call
and hands-free call can be performed by
operating the cellular phone directly.
●Transferring methods and operations will
be different depending on the type of cel-
lular phone you have.
●For the operation of the cellular phone,
see the manual that comes with it.
●This screen can be displayed on the main
display or side display. ( →P. 3 1 8 )

309
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
TELEPHONE
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
7
■BY DIAL PAD
1Select “0-9”.
2Enter the desired number.
■BY SELECTING “Release tones”
1Select “Release tones” .
1Select “Transmit volume” .
2Select the desired level for the transmit
volume.
“Default” : Select to reset the transmit vol-
ume.
3Select “OK”.
SENDING TONES
“Release tones” appear when a contin-
uous tone signal(s) containing a (w) is
registered in the contact list.
INFORMATION
●
A continuous tone signal is a character
string that consists of numbers and the
characters p or w. (e.g.
056133w0123p#1 ½)
●When the “p” pause tone is used, the tone
data up until the next pause tone will be
automatically sent after 2 seconds have
elapsed. When the “w” pause tone is
used, the tone data up until the next
pause tone will be automatically sent
after a user operation is performed.
●Release tones can be used when auto-
mated operation of a telephone based
service such as an answering machine or
bank telephone service is desired. A tele-
phone number with continuous tone sig-
nals can be registered in the contact list.
TRANSMIT VOLUME SETTING
INFORMATION
●
The sound quality of the voice heard from
the other party’s speaker may be nega-
tively impacted.
●“Transmit volume” is dimmed when mute
is on.

310
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
1Select or press the switch on
the steering wheel to start talking with
the other party.
To refuse to receive the call : Select
or press the switch on the steering
wheel.
z Each time is selected or the
switch on the steering wheel is pressed
during an interrupted call, the party who is
on hold will be switched.
INCOMING CALL WAITING
When a call is interrupted by a third par-
ty while talking, the incoming screen is
displayed.
With 12.3-inch display: The incoming
screen can also be displayed on the side
display. ( →P.364)
INFORMATION
●
This function may not be available
depending on the type of cellular phone.
●This screen can be displayed on the main
display or side display. ( →P. 3 1 8 )
