Lexus GS300h 2016 Owner's Manual

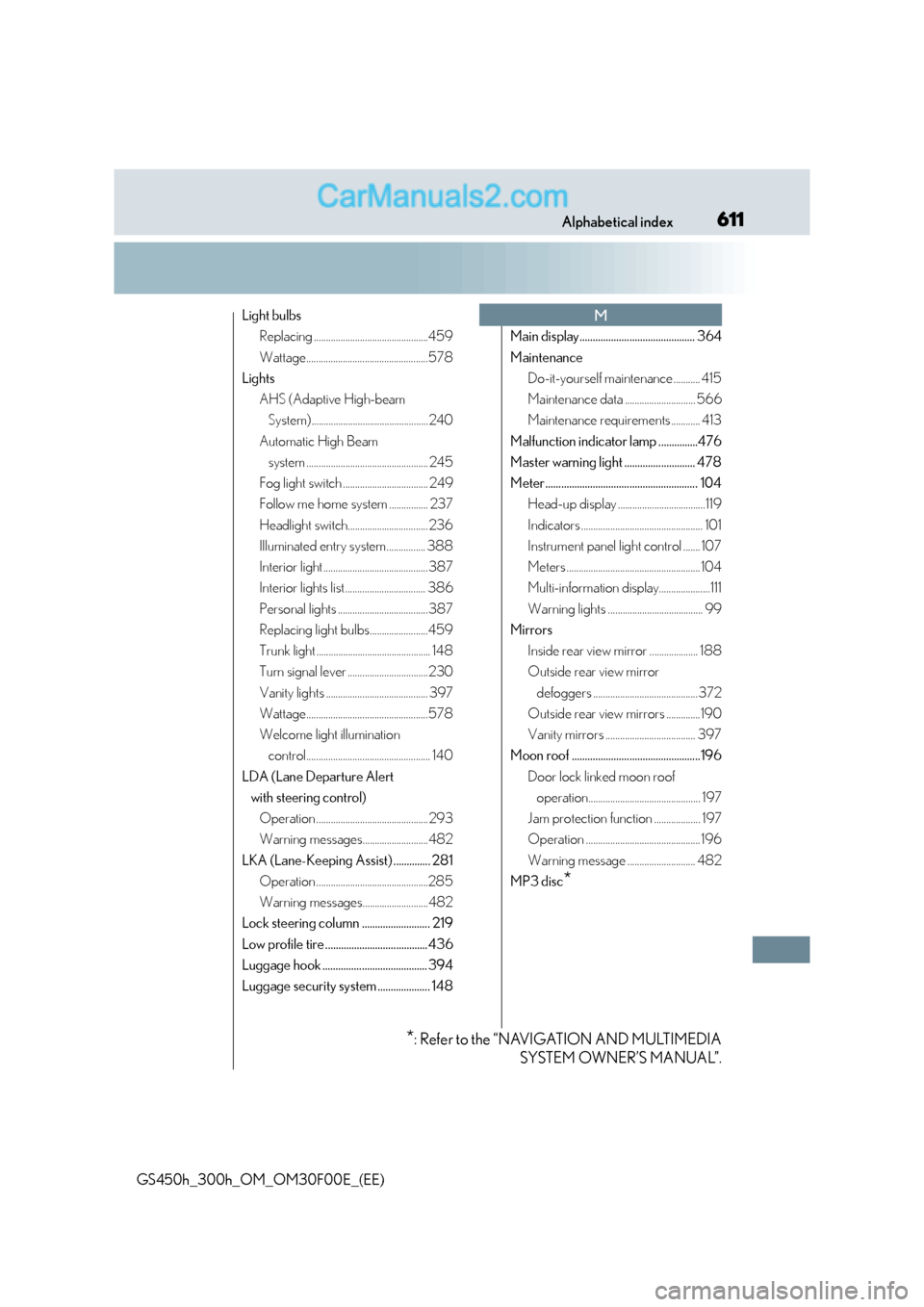

611Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
Light bulbsReplacing ...............................................459
Wattage..................................................578
Lights
AHS (Adaptive High-beam System)................................................240
Automatic High Beam system .................................................. 245
Fog light switch ................................... 249
Follow me home system ................ 237
Headlight switch................................. 236
Illuminated entry system................ 388
Interior light ........................................... 387
Interior lights list ................................. 386
Personal lights .....................................387
Replacing light bulbs........................459
Trunk light ............................................... 148
Turn signal lever .................................230
Vanity lights .......................................... 397
Wattage..................................................578
Welcome light illumination control................................................... 140
LDA (Lane Departure Alert with steering control)
Operation .............................................. 293
Warning messages...........................482
LKA (Lane-Keeping Assist) .............. 281 Operation ..............................................285
Warning messages...........................482
Lock steering column .......................... 219
Low profile tire ....................................... 436
Luggage hook ........................................ 394
Luggage security system .................... 148 Main display............................................ 364
Maintenance
Do-it-yourself maintenance ........... 415
Maintenance data ............................. 566
Maintenance requirements ............ 413
Malfunction indicator lamp ...............476
Master warning light ........................... 478
Meter .......................................................... 104 Head-up display ....................................119
Indicators .................................................. 101
Instrument panel li ght control ....... 107
Meters ....................................................... 104
Multi-information display.....................111
Warning lights ....................................... 99
Mirrors
Inside rear view mirror .................... 188
Outside rear view mirror defoggers ........................................... 372
Outside rear view mirrors ..............190
Vanity mirrors ..................................... 397
Moon roof .................................................196
Door lock linked moon roof operation.............................................. 197
Jam protection function ................... 197
Operation ............................................... 196
Warning message ............................ 482
MP3 disc
*
M
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

612Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
Multi-information display ...................... 111Audio system-linked ............................. 111
Drive information .................................. 113
Dynamic radar cruise control ...... 315
Dynamic radar cruise control with full-speed range....................303
G-force...................................................... 114
LDA (Lane Departure Alert with steering control) ...................290
LKA (Lane-Keeping Assist) .......... 281
Navigation system-linked................... 111
Settings....................................................... 115
Switch settings........................................ 115
Switching the display ...........................112
nanoe  system ..................................... 376
Navigation system
*
Odometer................................................. 105
Oil Differential oil ....................................... 574
Engine oil ...............................................570
Opener
Fuel filler door......................................256
Hood .......................................................... 417
Trunk ..........................................................146
Outer foot lights
Location................................................. 386
Replacing light bulbs..........................461
Wattage..................................................578 Outside rear view mirrors ................. 190
Adjusting and folding ........................190
BSM (Blind Spot Monitor) ........... 333
Linked mirror function
when reversing ...................................191
Mirror position memory .................. 178
Outside rear view mirror defoggers .......................................... 372
Outside temperature display ........... 105
Overheating ........................................... 556
Paddle shift switches ........................... 226
Parking assist sensors
*
Parking brake...........................................231 If the parking brake cannot
be released ....................................... 546
Operation ............................................... 231
Parking brake engaged warning buzzer............................... 482
Parking brake engaged warning message .......................... 482
PCS (Pre-Crash Safety system)............ 269
Function.................................................. 269
Warning light........................................ 477
Warning message ............................ 482
Personal lights........................................ 387
Pollen removal mode.......................... 372
Power control unit ...................................79
N
O
P

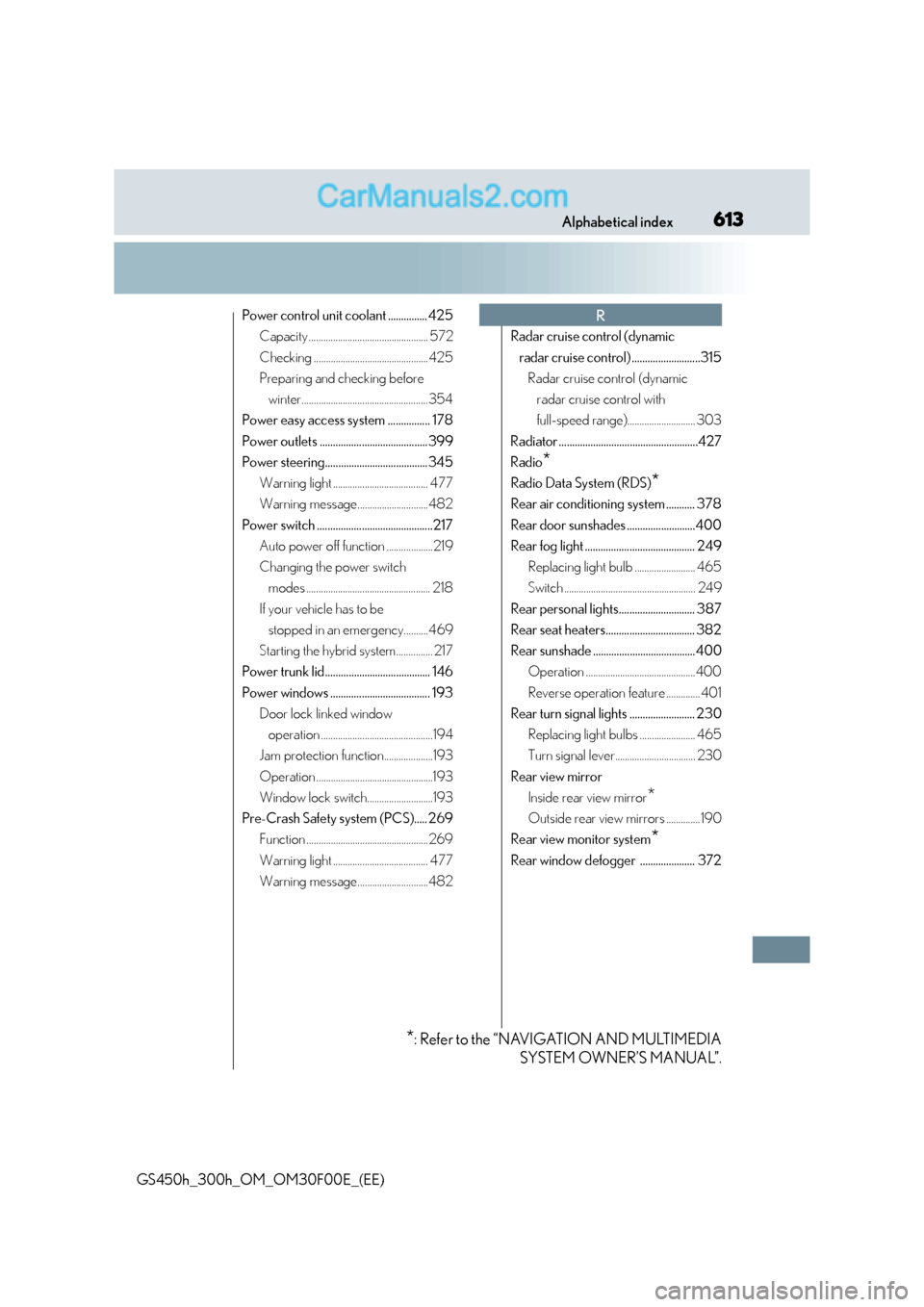

613Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
Power control unit coolant ............... 425Capacity ................................................. 572
Checking ............................................... 425
Preparing and checking before
winter....................................................354
Power easy access system ................ 178
Power outlets .........................................399
Power steering.......................................345
Warning light ....................................... 477
Warning message.............................482
Power switch ............................................217 Auto power off function ...................219
Changing the power switch modes ................................................... 218
If your vehicle has to be stopped in an emergency..........469
Starting the hybrid system............... 217
Power trunk lid........................................ 146
Power windows ...................................... 193 Door lock linked window
operation ..............................................194
Jam protection function....................193
Operation ................................................193
Window lock switch...........................193
Pre-Crash Safety system (PCS)..... 269 Function ..................................................269
Warning light ....................................... 477
Warning message.............................482 Radar cruise control (dynamic
radar cruise control) ..........................315Radar cruise control (dynamic
radar cruise control with
full-speed range)............................ 303
Radiator .....................................................427
Radio
*
Radio Data System (RDS)*
Rear air conditioning system ........... 378
Rear door sunshades ..........................400
Rear fog light .......................................... 249 Replacing light bulb ......................... 465
Switch ...................................................... 249
Rear personal lights............................. 387
Rear seat heaters.................................. 382
Rear sunshade .......................................400 Operation .............................................400
Reverse operation feature ..............401
Rear turn signal lights ......................... 230
Replacing light bulbs ....................... 465
Turn signal lever................................. 230
Rear view mirror Inside rear view mirror
*
Outside rear view mirrors ..............190
Rear view monitor system
*
Rear window defogger ..................... 372
R
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

614Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
Refueling .................................................. 256Capacity ................................................ 569
Fuel types .............................................. 569
Opening the fuel tank cap ............258
When the fuel filler door cannot be opened .........................258
Regenerative braking ............................ 76
Remote Touch
*
Replacing Electronic key battery........................451
Fuses ........................................................453
Light bulbs ............................................ 458
Tires ............................................................517
Rev indicator............................................ 106
Rev peak .................................................... 106
Road accident cautions.........................82
Seat belt reminder light ...................... 478
Seat belts .....................................................38
Adjusting the seat belt ........................ 39
Child restraint system installation.............................................. 66
Cleaning and maintaining
the seat belt .......................................... 411
Emergency Locking
Retractor (ELR).................................. 40
How to wear your seat belt ............. 38
How your child should wear the seat belt .......................................... 40
Pregnant women, proper seat belt use ........................................... 41
Reminder light and buzzer ........... 478
Seat belt pretensioners ...................... 39
SRS warning light............................... 476 Seat heaters ............................................ 382
Seat position memory...........................178
Seat ventilators ...................................... 382
Seats............................................................. 175
Adjustment ............................................. 175
Adjustment precautions................... 176
Child seats/child restraint system installation ............................. 65
Cleaning .................................................. 410
Driving position memory ................ 178
Head restraints .....................................183
Power easy access system............. 178
Properly sitting in the seat................ 36
Seat heaters.......................................... 382
Seat position memory ....................... 178
Seat ventilators ................................... 382
Sensor Automatic headlight system ........ 239
Automatic High Beam system ... 245
Inside rear view mirror .....................189
Intrusion sensor and tilt sensor...... 93
Lexus parking assist-sensor
*
LDA (Lane Departure Alert with steering control)................... 290
LKA (Lane-Keeping Assist) .......... 281
Radar sensor ........................... 262, 338
Rain-sensing windshield wipers .................................................. 254
Service plug ................................................79
Service reminder indicators ............... 98
S-FLOW mode ..................................... 367
S

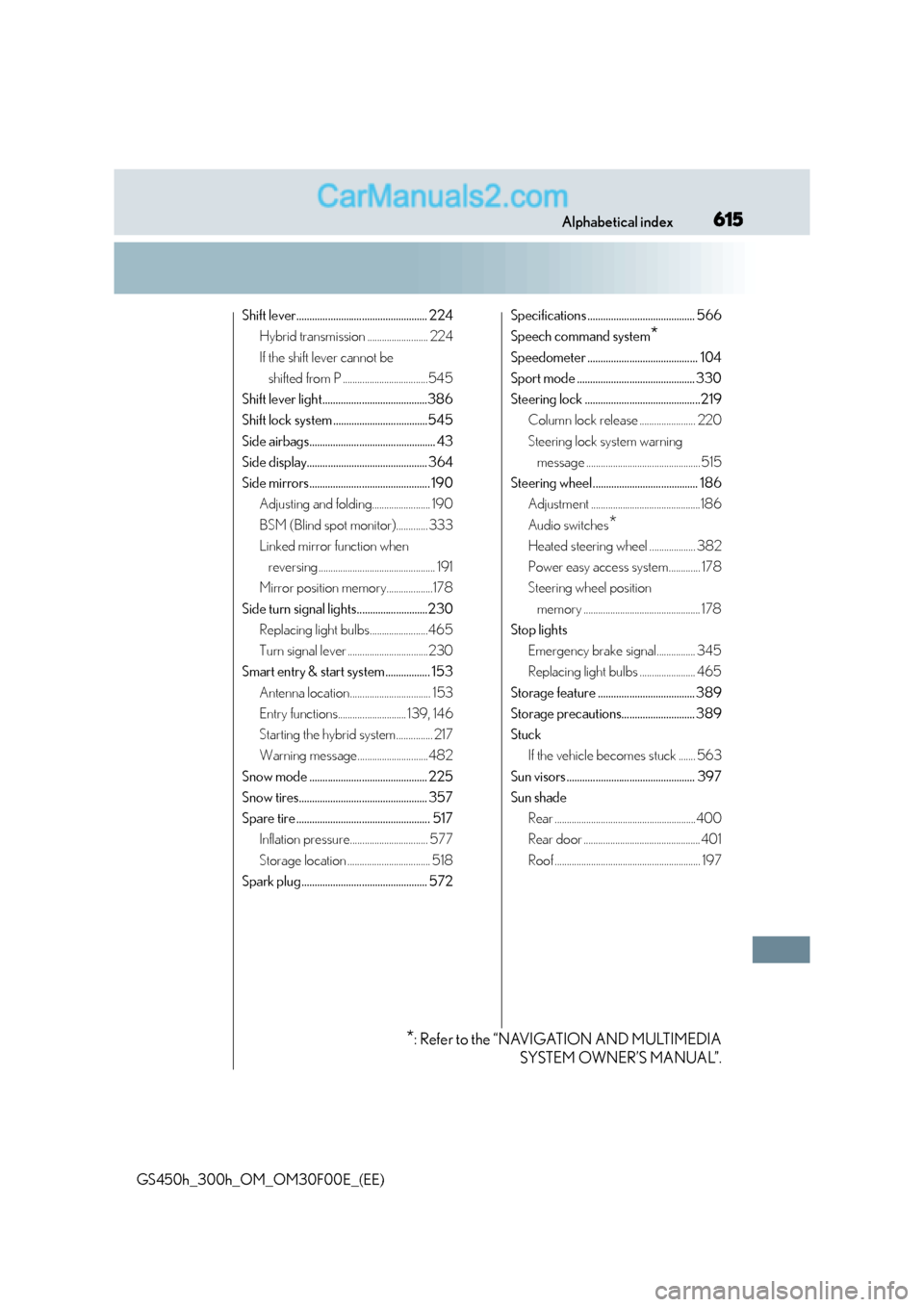

615Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
Shift lever.................................................. 224Hybrid transmission ......................... 224
If the shift lever cannot be shifted from P ...................................545
Shift lever light........................................386
Shift lock system ....................................545
Side airbags................................................ 43
Side display.............................................. 364
Side mirrors.............................................. 190 Adjusting and folding........................ 190
BSM (Blind spot monitor)............. 333
Linked mirror function when
reversing ................................................ 191
Mirror position memory...................178
Side turn signal lights...........................230 Replacing light bulbs........................465
Turn signal lever .................................230
Smart entry & start system................. 153
Antenna location................................. 153
Entry functions............................ 139, 146
Starting the hybrid system............... 217
Warning message.............................482
Snow mode ............................................. 225
Snow tires................................................. 357
Spare tire ................................................... 517 Inflation pressure................................ 577
Storage location .................................. 518
Spark plug................................................ 572 Specifications ......................................... 566
Speech command system
*
Speedometer .......................................... 104
Sport mode ............................................. 330
Steering lock ............................................219
Column lock release ....................... 220
Steering lock system warning message ...............................................515
Steering wheel........................................ 186 Adjustment .............................................186
Audio switches
*
Heated steering wheel ................... 382
Power easy access system............. 178
Steering wheel position
memory ................................................ 178
Stop lights
Emergency brake signal................ 345
Replacing light bulbs ....................... 465
Storage feature ..................................... 389
Storage precautions............................ 389
Stuck If the vehicle becomes stuck ....... 563
Sun visors ................................................. 397
Sun shade Rear ..........................................................400
Rear door ................................................401
Roof ............................................................ 197
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

616Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
SwitchesAdaptive High-beam System
switch....................................................240
Audio remote control switches
*
Automatic High Beam switch ..... 245
Brake hold switch .............................. 234
Cruise control switch............................. 303, 315, 327
Door lock switches ............................. 142
Driving mode select switch ..........330
Driving position memory switches.................................................178
Emergency flashers switch .......... 468
EV drive mode switch..................... 222
Fog light switch ................................... 249
Heated steering wheel switch.....382
HUD (Head-up display) switches.................................................. 119
Ignition switch ........................................ 217
Lexus parking assist-sensor switch
*
Light switch ........................................... 236
LDA (Lane Departure Alert with steering control) switch .... 293
LKA (Lane-Keeping Assist) switch....................................................285
Meter control switches. ......................112
Moon roof switches .......................... 196
Outside rear view mirror switches................................................ 190
Paddle shift switches ........................ 226
Parking brake switches.....................231
Power door lock switch ................... 142
Power switch ......................................... 217
Power window switches ..................193
Rear sunshade switch..................... 400 Rear window and outside rear
view mirror defoggers
switch ....................................................372
Seat heater switches ........................ 382
Seat ventilator switches .................. 382
Snow mode switch ............................225
Talk switch
*
Telephone switches*
Tilt and telescopic steering control switch ....................................186
Trunk closer switch ............................ 147
Trunk opener switch.......................... 146
Trunk opener main switch .............. 148
Vehicle-to-vehicle distance button .....................309, 321
VSC OFF switch............................... 346
Window lock switch .......................... 193
Windshield wipers
and washer switch......................... 250
Tachometer ............................................. 104
Tail lights................................................... 236 Light switch........................................... 236
Replacing light bulbs ....................... 465
Welcome light illumination
control ...................................................140
Talk switch
*
Telephone switches*
Theft deterrent system
Alarm .......................................................... 90
Double locking system ...................... 89
Immobilizer system ............................. 84
Intrusion sensor and tilt sensor...... 93
T

617Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
Tire inflation pressure ......................... 445Maintenance data..............................575
Tire inflation pressure display function ................................................ 433
Warning light ....................................... 479
Warning message.............................482
Tire pressure warning system ......... 433 Function .................................................. 433
Initializing................................................ 434
Installing tire pressure warning
valves and transmitters................ 434
Registering ID codes .......................435
Warning light ....................................... 479
Warning message.............................482
Tires ............................................................ 432 Chains .....................................................355
Checking ............................................... 432
Emergency tire puncture
repair kit ..............................................528
If you have a flat tire ............... 517, 528
Inflation pressure................................575
Replacing .................................................517
Rotating tires ........................................ 433
Size............................................................ 575
Snow tires .............................................. 357
Spare tire..................................................517
Tire inflation pressure display function ................................................ 433
Tire pressure warning system ..... 433
Warning light ....................................... 479
Warning message.............................482 Tools.................................................518, 529
Top strap ..................................................... 70
Towing ...................................................... 470
Emergency towing ........................... 470
Towing capacity................................. 566
Towing eyelet .......................................472
Trailer towing ........................... 209, 210
Traction battery (hybrid battery) .......79
Traction Control (TRC) ..................... 344
Traction motor (electric motor) .........75
Trailer towing ............................... 209, 210
Transmission........................................... 224
Driving mode select switch.......... 330
Hybrid transmission .......................... 224
If the shift lever cannot be shifted from P................................... 545
Paddle shift switches.........................226
S mode .................................................... 227
TRC (Traction Control) ..................... 344 Function.................................................. 344
TRC OFF switch ............................... 346
Trip information...................................... 104
Trip meters ............................................... 104
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

618Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
Trunk ........................................................... 146Jam protection function..................... 151
Luggage security system................ 148
Open trunk warning
message..............................................482
Power trunk lid......................................146
Smart entry & start system ..............146
Trunk closer switch ............................. 147
Trunk easy closer................................ 148
Trunk features...................................... 394
Trunk grip ................................................ 147
Trunk light ............................................... 148
Trunk opener main switch ............. 148
Trunk opener switch ..........................146
Wireless remote control ..................134
Trunk light ................................................. 148
Trunk light ............................................... 148
Wattage..................................................578
Turn signal lights....................................230 Replacing light bulbs........... 459, 465
Turn signal lever .................................230
Wattage..................................................578
USB port
*
Vanity lights ............................................. 397 Vanity lights .......................................... 397
Wattage..................................................578
Vanity mirrors ........................................ 397
Vanity lights .......................................... 397 Variable Gear Ratio Steering
(VGRS) ................................................. 344
Function.................................................. 344
Warning message ............................ 482
VDIM (Vehicle Dynamics Integrated Management) .............. 345
Vehicle identification number......... 567
Vehicle Stability Control (VSC) .................................................... 344
Ventilators (seat ventilators) ........... 382
VGRS (Variable Gear Ratio Steering) ............................................... 344
Function.................................................. 344
Warning message ............................ 482
VSC (Vehicle Stability Control) ................................................ 344
Warning buzzers Approach warning ................. 310, 322
Brake system ....................................... 476
Downshifting........................................ 228
Key reminder ......................................... 514
Lexus parking assist-sensor
*
Open door ........................................... 484
Open hood .......................................... 484
Open moon roof ............................... 499
Open trunk........................................... 484
Open window..................................... 499
Seat belt reminder ............................ 478
Warning label ............................................79
U
V
W

619Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
Warning lights........................................... 99ABS........................................................... 477
AFS OFF indicator............................478
Brake hold operated
indicator ..............................................478
Brake system ........................... 476, 478
Charging system ............................... 476
Electric power steering
system .................................................. 477
Low fuel level ....................................... 478
Malfunction indicator lamp ........... 476
Master warning light ........................ 478
Parking brake indicator .................. 478
Pre-Crash Safety system ............... 477
Seat belt reminder light................... 478
Slip indicator......................................... 477
SRS............................................................ 476
Tire pressure ........................................ 479
Warning messages ..............................482
Warning reflector storage belt .......396
Washer......................................................250 Checking ............................................... 427
Low washer fluid warning message..............................................482
Preparing and checking before winter ....................................354
Switch ......................................................250 Washing and waxing........................... 406
Weight ...................................................... 566
Welcome light illumination
control..................................................... 140
Wheels.......................................................447 Replacing................................................447
Size ........................................................... 575
Window glasses ......................................193
Window lock switch ..............................193
Windows ....................................................193
Power windows ................................... 193
Rear window defogger ...................372
Washer ................................................... 250
Windshield wiper de-icer ................. 372
Windshield wipers ............................... 250 Intermittent windshield wipers
with interval adjuster .................... 250
Position ................................................... 356
Rain-sensing windshield wipers ...................................................252
Winter driving tips ............................... 354
Wireless remote control key .............134 Battery-saving function ....................155
Locking/Unlocking ............................ 134
Replacing the battery ........................ 451
WMA disc
*
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

620
GS450h_300h_OM_OM30F00E_(EE)GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 4 1 7 P. 1 4 6 P. 2 5 8
Hood lock release leverTi r e i n f l a t i o n p r e s s u r e
P. 4 1 7
P. 5 7 5
Fuel tank capacity
(Reference) 66 L (17.4 gal., 14.5 Imp.gal.)
Fuel typeEU area: Unleaded gasoline conforming to European
standard EN228 only
Except EU area: Unleaded gasoline only
P. 5 6 9
Cold tire inflation
pressure P. 5 7 5
Engine oil capacity
(Drain and refill —
reference)P. 5 7 0
Engine oil type“Toyota Genuine Motor Oil” or equivalent
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Con-
serving” or SN “Resource-Conserving”; or ILSAC multi-
grade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
P. 5 7 0
