Lexus GS300h 2017 Owners Manual

91
1
1-3. Theft deterrent system
GS450h_300h_OM_OM30F92E_(EE)
For safety and security
Alarm 
The alarm uses light and sound to give an
alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set: ● A locked door is unlocked or opened in any way other than using the entry
function or wireless remote control. (The door will lock again automatically.)
● A trunk is opened in any way other than using the entry function, wireless
remote control or mechanical key.
● The hood is opened.
● The tilt sensor detects a change of vehicle inclination. (if equipped)
Close the doors, trunk and hood, and
lock all the doors using the entry func-
tion or wireless remote control. The
system will be set automatically after
30 seconds. The indicator light changes from being
on to flashing when the system is set.
: If equipped
The alarm
Setting the alarm system

921-3. Theft deterrent system
GS450h_300h_OM_OM30F92E_(EE) Do one of the following to deactivate or stop the alarm: ●
Unlock the doors or open the trunk using the entry function or wireless
remote control.
● Turn the power switch to ACCESSORY or ON mode, or start the hybrid sys-
tem. (The alarm will be deactivated or stopped after a few seconds.)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow- ing:
●Nobody is in the vehicle.
●The windows and moon roof (if equipped) are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

93
1-3. Theft deterrent system
1
GS450h_300h_OM_OM30F92E_(EE)
For safety and security

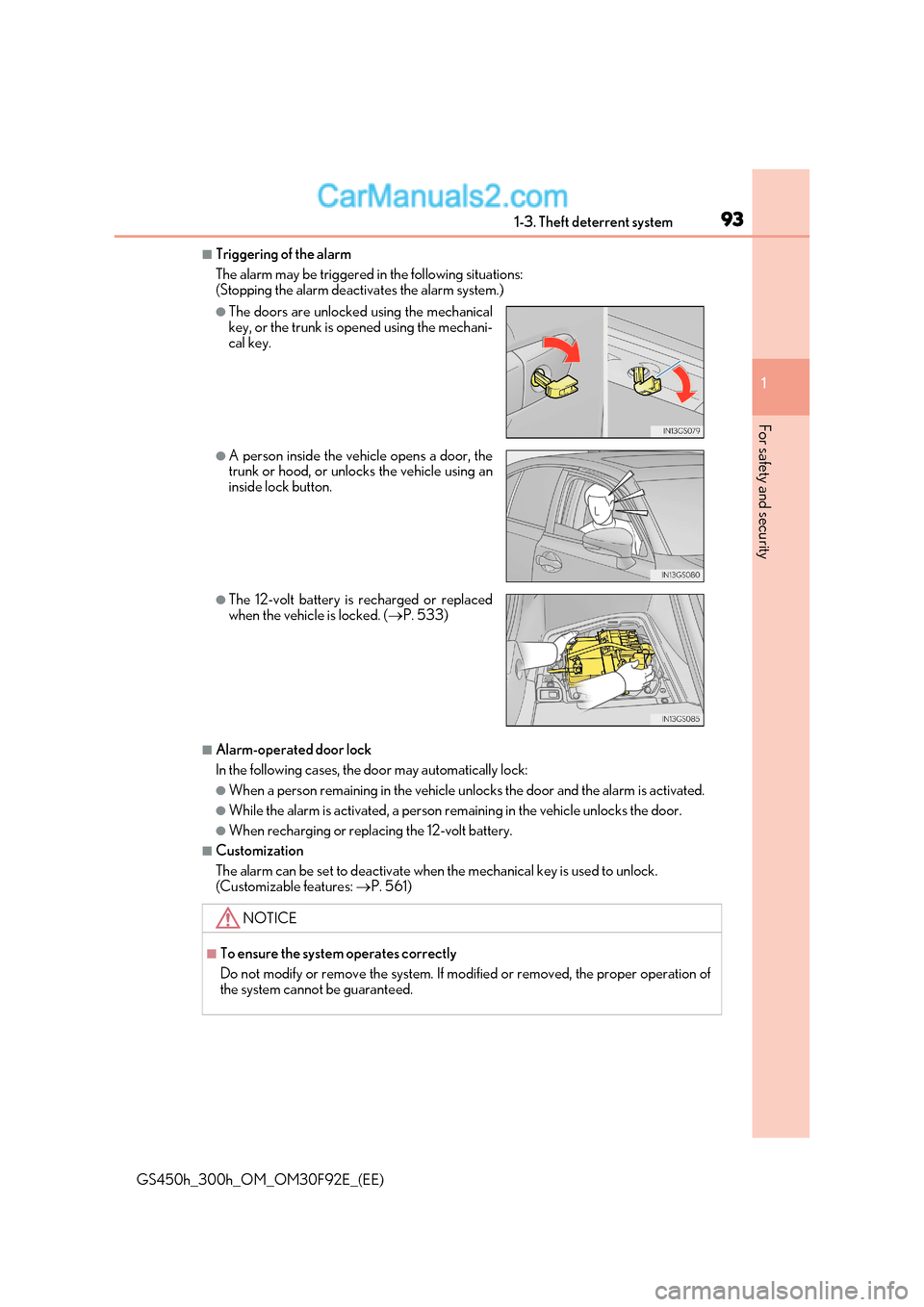

■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
In the following cases, the door may automatically lock:
●When a person remain ing in the vehicle unlocks the d oor and the alarm is activated.
●While the alarm is activated, a person re maining in the vehicle unlocks the door.
●When recharging or replacing the 12-volt battery.
■Customization
The alarm can be set to deactivate when the mechanical key is used to unlock.
(Customizable features: P. 561)
●The doors are unlocked using the mechanical
key, or the trunk is opened using the mechani-
cal key.
●A person inside the vehicle opens a door, the
trunk or hood, or unlocks the vehicle using an
inside lock button.
●The 12-volt battery is recharged or replaced
when the vehicle is locked. ( P. 533)
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If mo dified or removed, the proper operation of
the system cannot be guaranteed.

941-3. Theft deterrent system
GS450h_300h_OM_OM30F92E_(EE) ●
The intrusion sensor detects intruders or movement in the vehicle.
● The tilt sensor detects changes in vehicle inclination, such as when the vehicle
is towed away.
This system is designed to deter and pr event vehicle theft but does not guarantee
absolute security against all intrusions.
■Setting the intrusion sensor and tilt sensor
The intrusion sensor and tilt sensor will be set automatically when the alarm is
set. ( P. 91)
■Canceling the intrusion sensor and tilt sensor
If you are leaving pets or other moving things inside the vehi cle, make sure to
stop the intrusion sensor and tilt sensor before setting the alarm, as th ey will
respond to movement inside the vehicle.
Turn the power switch off.
Press the intrusion sensor and tilt
sensor cancel switch.
A message will be shown on the
multi-information display in the
instrument cluster.
Press the switch again to re-enable
the intrusion sensor and tilt sensor.
Intrusion sensor (if equipped) and tilt sensor (if equipped)
1
2

95
1-3. Theft deterrent system
1
GS450h_300h_OM_OM30F92E_(EE)
For safety and security
■Canceling and automatic re-enabling of the intrusion sensor and tilt sensor
●The alarm will still be set even when the intrusion sensor and tilt sensor are canceled.
●After the intrusion sensor and tilt sensor are canceled, pressing the power switch or
unlocking the doors using the entry function, wireless remote control or mechanical
key will re-enable the intrusio n sensor and tilt sensor.
●The intrusion sensor and tilt sensor will automatically be re-enabled when the alarm
system is deactivated.
■Intrusion sensor detection considerations (if equipped)
The sensor may trigger the alarm in the following situations:

961-3. Theft deterrent system
GS450h_300h_OM_OM30F92E_(EE)
■Tilt sensor detection cons iderations (if equipped)
The sensor may trigger the alarm in the following situations:
●The vehicle is transported by a ferry, trailer, train, etc.
●The vehicle is parked in a parking garage.
●The vehicle is inside a car wash that moves the vehicle.
●Any of the tires loses air pressure.
●The vehicle is jacked up.
●An earthquake occurs or the road caves in.
NOTICE
■To ensure the intrusion sensor function correctly
●Installing accessories other than genuine Lexus parts or leaving objects between the
driver’s seat and front passenger’s seat may reduce the detection performance.
●To ensure that the sensors operate properly,
do not touch or cover them.
●Do not spray air fresheners or other products
directly into the sensor holes.

97

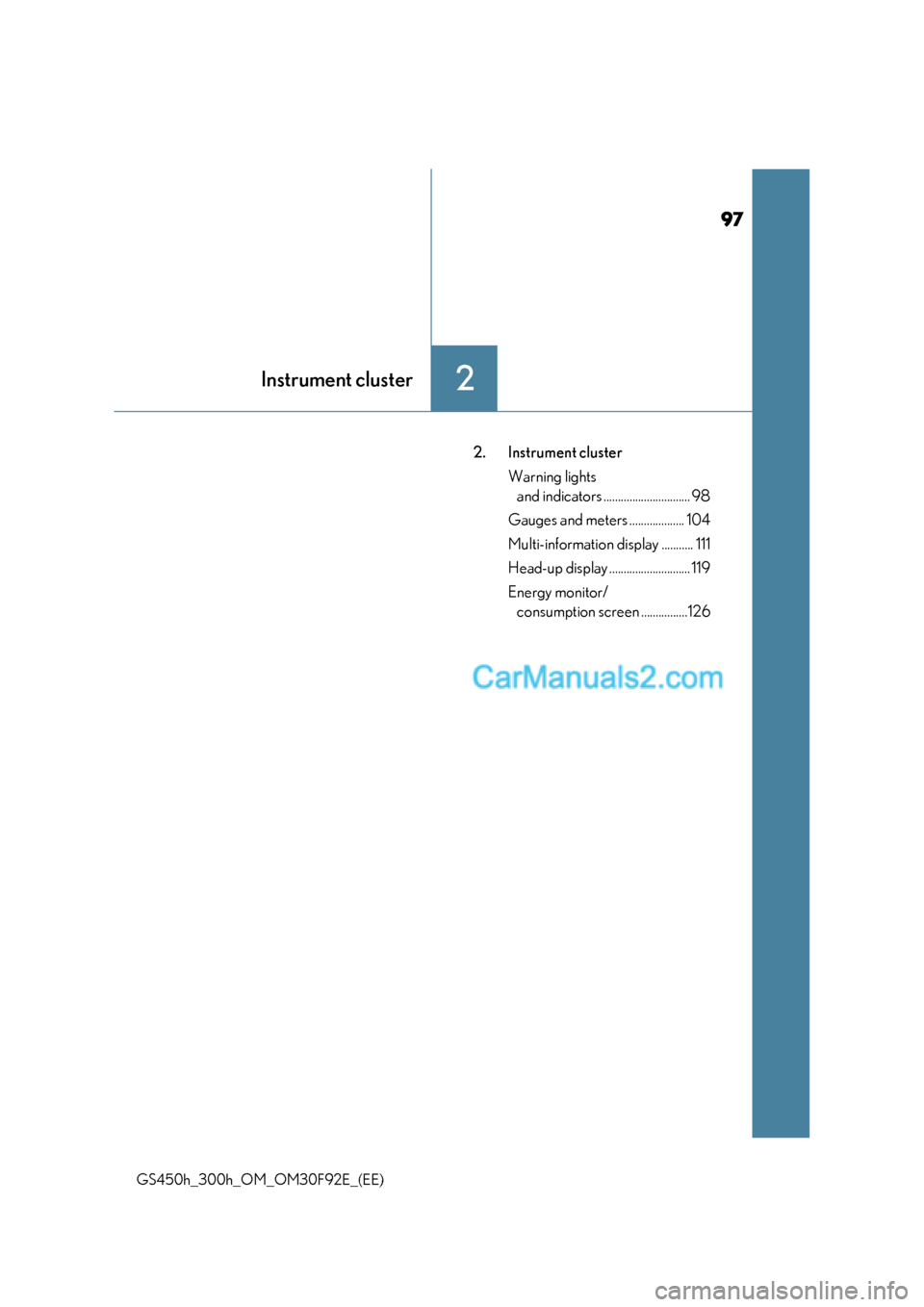

2Instrument cluster
GS450h_300h_OM_OM30F92E_(EE) 2. Instrument cluster
Warning lights and indicators .............................. 98
Gauges and meters ................... 104
Multi-information display ........... 111
Head-up display ............................ 119
Energy monitor/ consumption screen ................126

982. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)

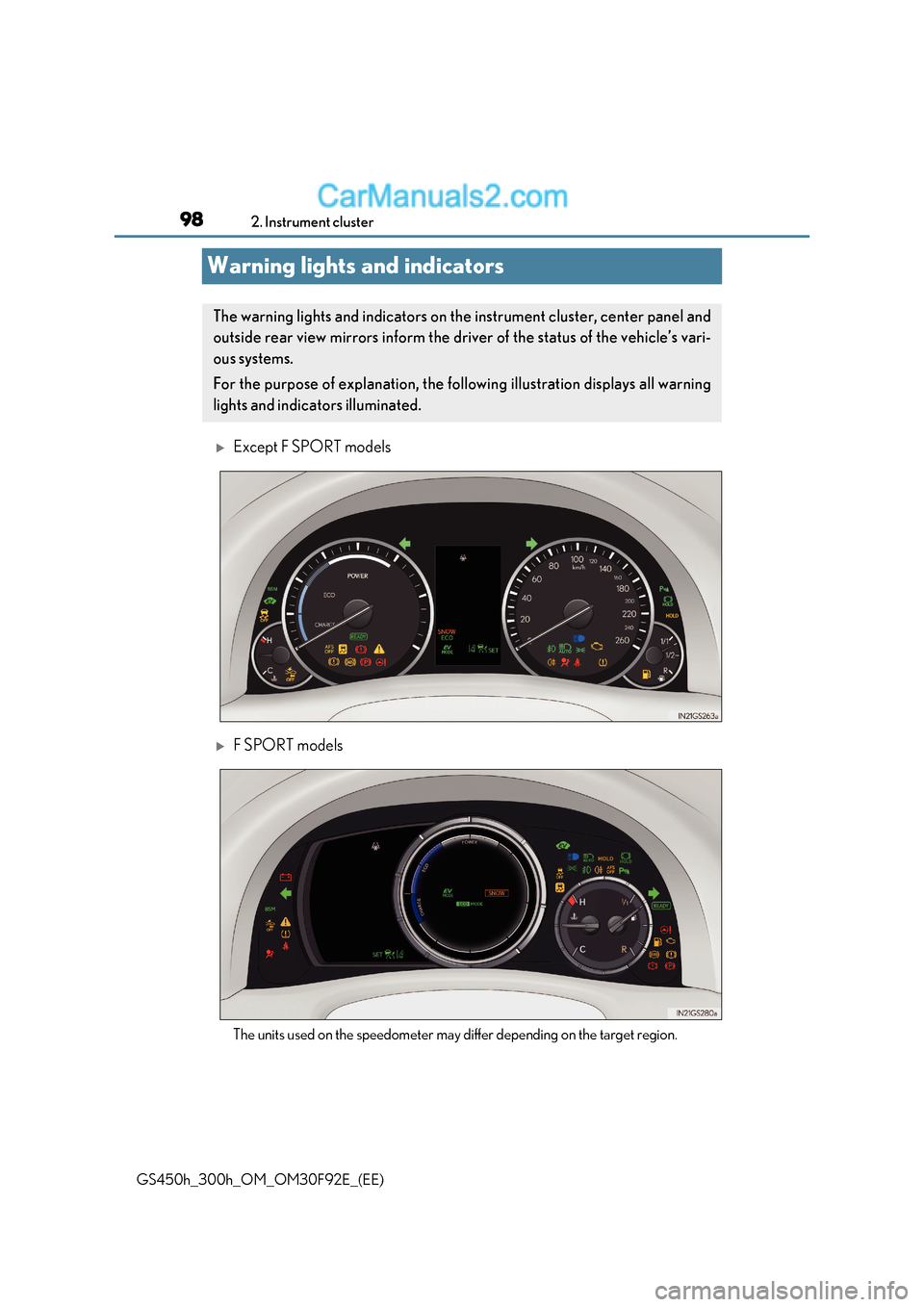

Warning lights and indicators
Except F SPORT models
F SPORT models
The units used on the speedometer may differ depending on the target region.
The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driv er of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the foll owing illustration displays all warning
lights and indicators illuminated.

99
2. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE) Warning lights inform the driver of malfunctions in the indicated vehicle’s sys-
tems.
Warning lights
*
1
Brake system warning light ( P. 460) *
2, 3
(If equipped)
“AFS OFF” indicator (
 P. 462)
* 2, 4
Charging system warning
light (P. 460) *
1, 3
Brake hold operated
indicator (
P. 462)
* 2
Malfunction indicator
lamp ( P. 460) *
3
Parking brake indicator (
 P. 462)
* 2
SRS warning light ( P. 460) *
1
Brake system warning light (
 P. 462)
* 1
ABS warning light ( P. 461)
Low fuel level warning light ( P. 462)
* 2
Electric power steering
system warning light (
 P. 461)Seat belt reminder light ( P. 462)
* 2, 3
(If equipped)
PCS (Pre-Crash Safety
system) warning light (
 P. 461) *
2
Master warning light ( P. 462)
* 1
Slip indicator (
P. 461) *
2
(If equipped)
Tire pressure warning light (
 P. 463)
(If equipped)
LKA warning light ( P. 463)

1002. Instrument cluster

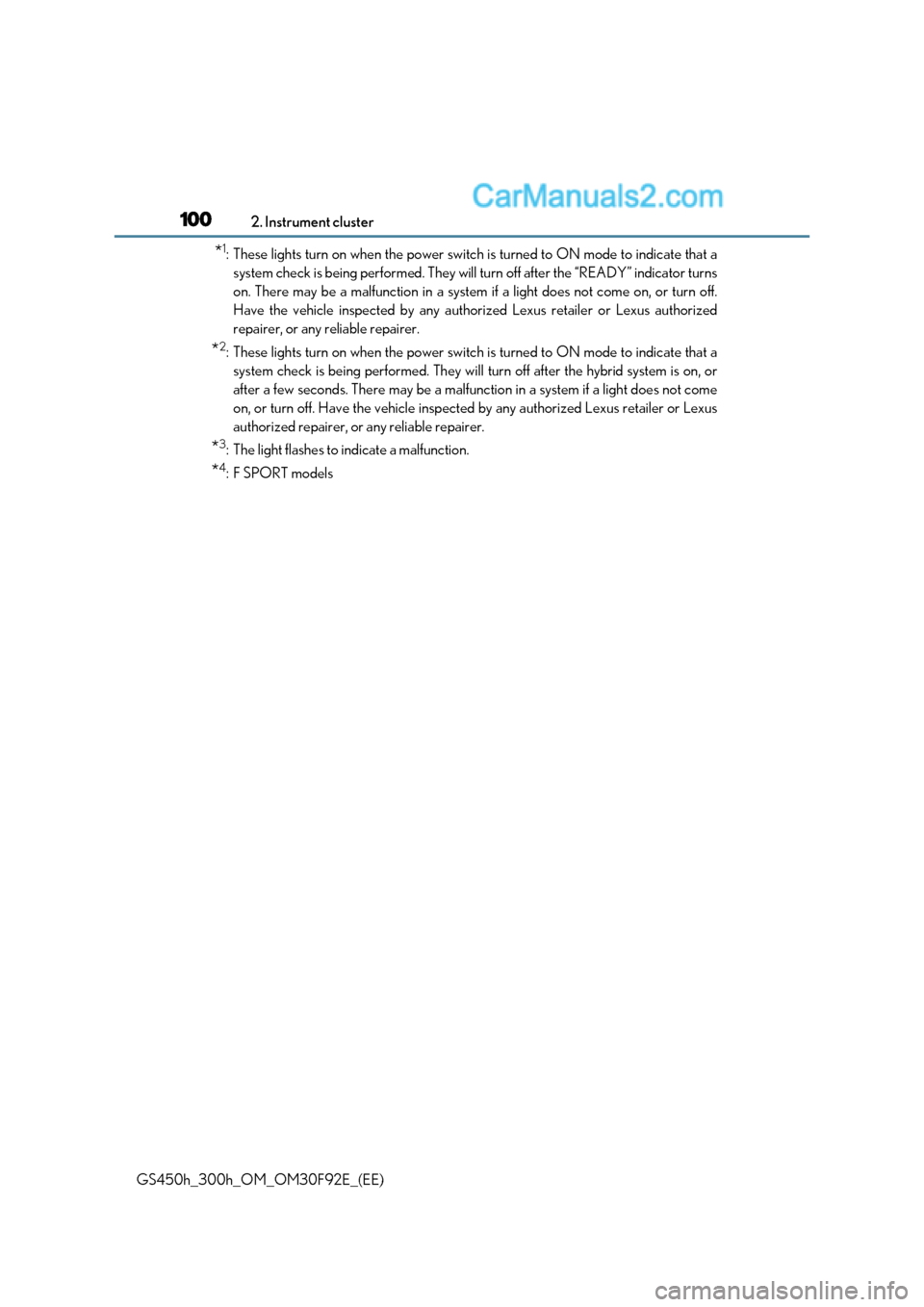

GS450h_300h_OM_OM30F92E_(EE) *
1
: These lights turn on when the power switch is turned to ON mo de to indicate that a
system check is being perfor med. They will turn off after the “READY” indicator turns
on. There may be a malfunction in a system if a light does not come on, or turn off.
Have the vehicle inspected by any author ized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
* 2
: These lights turn on when the power switch is turned to ON mo de to indicate that a
system check is being performed. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunction in a system if a light does not come
on, or turn off. Have the vehicle inspected by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
* 3
: The light flashes to indicate a malfunction.
* 4
:F SPORT models
