Lexus GS300h 2017 Owner's Manual

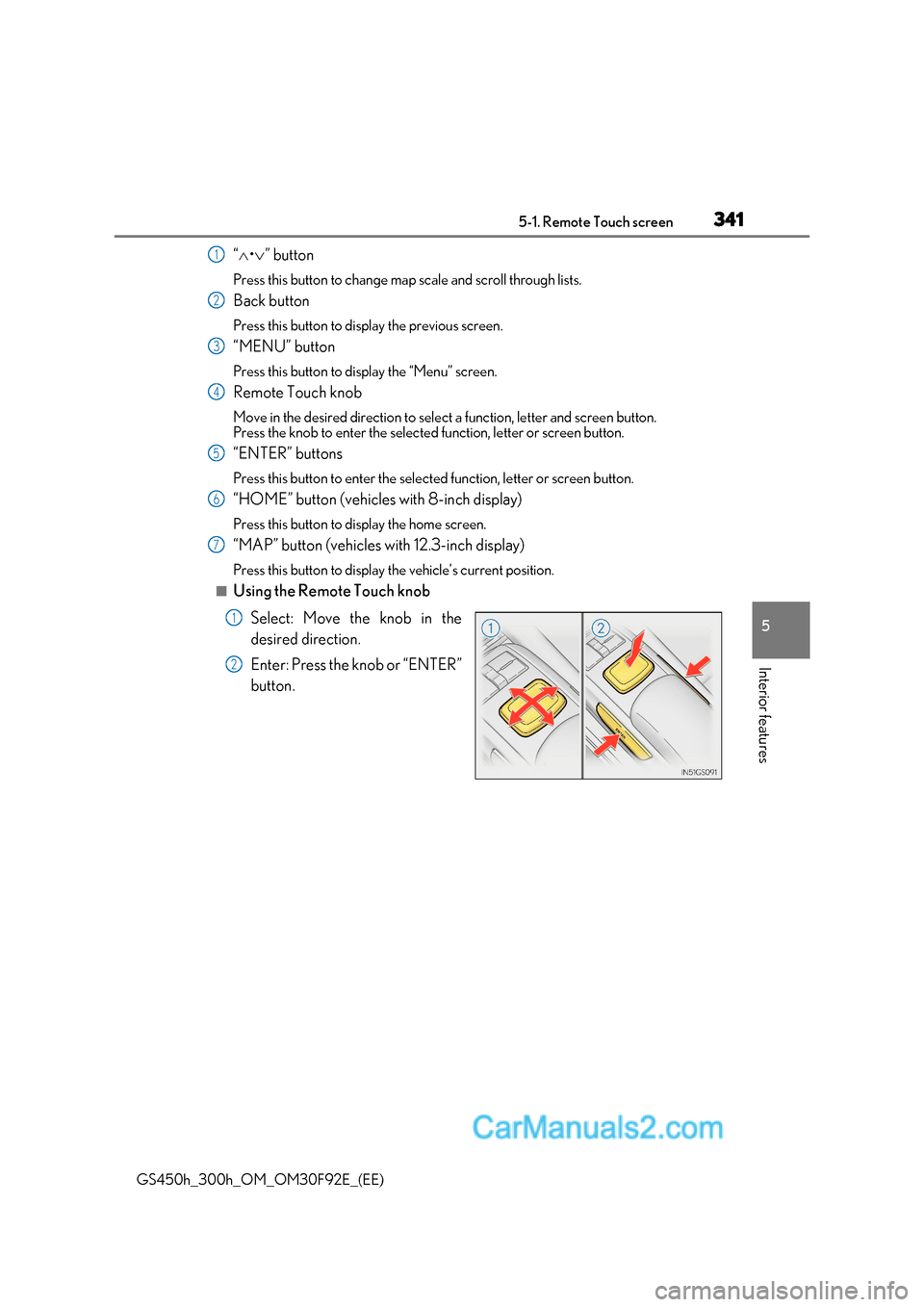

341
5-1. Remote Touch screen
5
Interior features
GS450h_300h_OM_OM30F92E_(EE) “


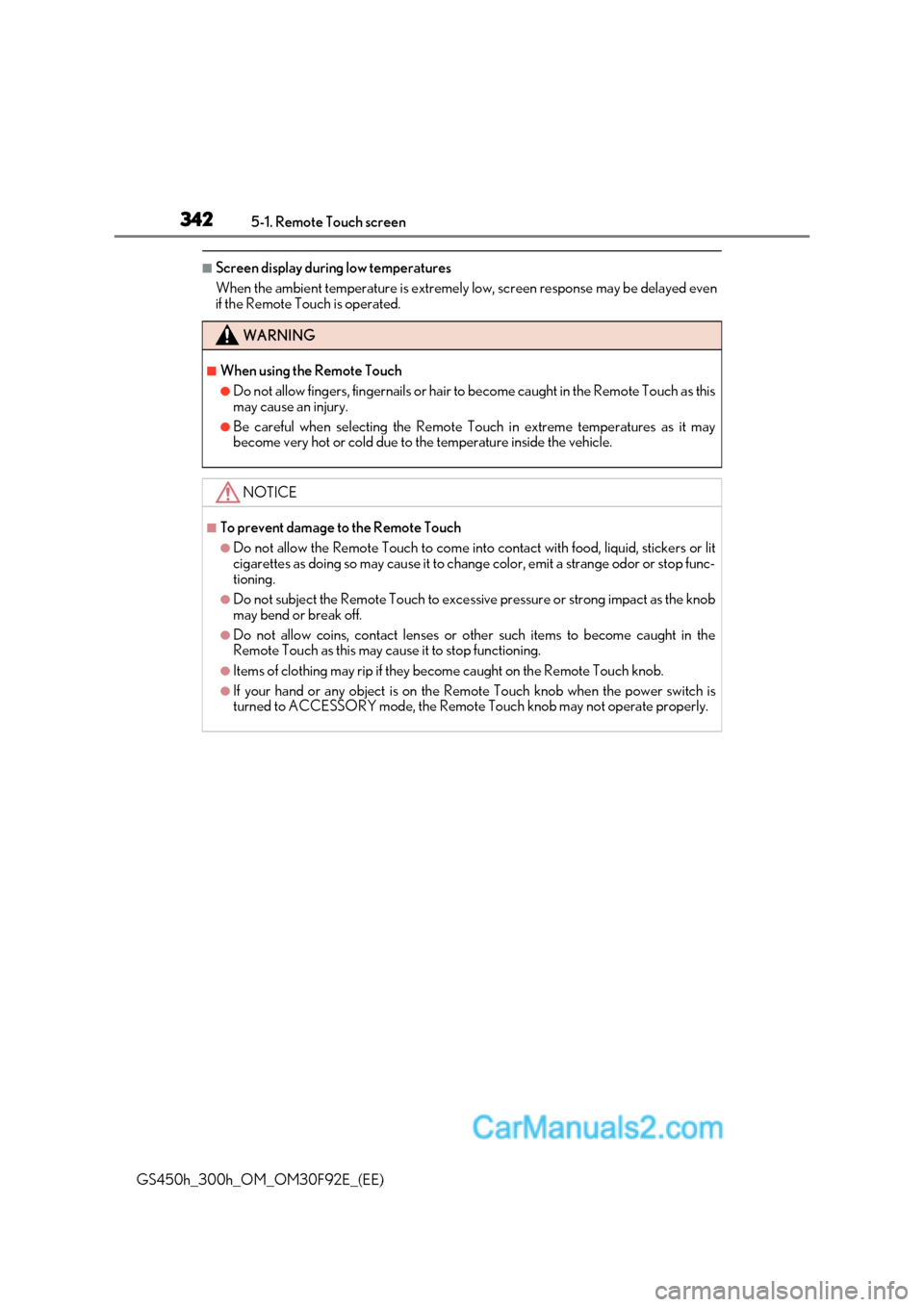

3425-1. Remote Touch screen
GS450h_300h_OM_OM30F92E_(EE)
■Screen display during low temperatures
When the ambient temperature is extremely low, screen response may be delayed even
if the Remote Touch is operated.
WARNING
■When using the Remote Touch
●Do not allow fingers, fingernails or hair to become caught in the Remote Touch as this
may cause an injury.
●Be careful when selecting the Remote Touch in extreme temperatures as it may
become very hot or cold due to the temperature inside the vehicle.
NOTICE
■To prevent damage to the Remote Touch
●Do not allow the Remote Touch to come into contact with food, liquid, stickers or lit
cigarettes as doing so may cause it to change color, emit a strange odor or stop func-
tioning.
●Do not subject the Remote Touch to excessive pressure or strong impact as the knob
may bend or break off.
●Do not allow coins, contact lenses or other such items to become caught in the
Remote Touch as this may cause it to stop functioning.
●Items of clothing may rip if they be come caught on the Remote Touch knob.
●If your hand or any object is on the Re mote Touch knob when the power switch is
turned to ACCESSORY mode, the Remote Touch knob may not operate properly.

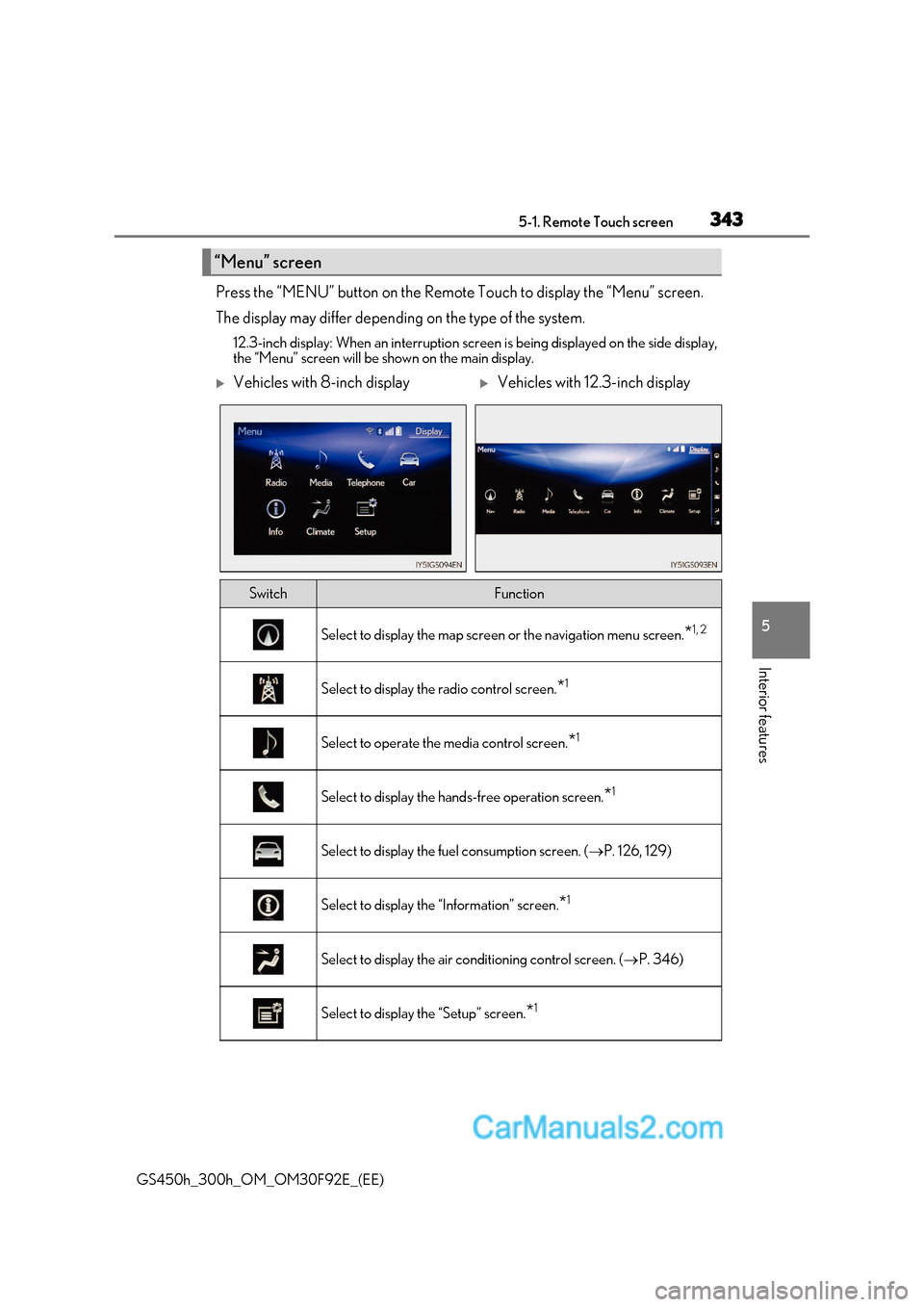

343
5-1. Remote Touch screen
5
Interior features
GS450h_300h_OM_OM30F92E_(EE) Press the “MENU” button on the Remote Touch to display the “Menu” screen.
The display may differ depending on the type of the system.
12.3-inch display: When an interruption scr een is being displayed on the side display,
the “Menu” screen will be shown on the main display.
“Menu” screen
Vehicles with 8-inch displayVehicles with 12.3-inch display
SwitchFunction
Select to display the map screen or the navigation menu screen.*1, 2
Select to display the radio control screen.
*1
Select to operate the media control screen.
*1
Select to display the hand
s-free operation screen.*1
Select to display the fuel consumption screen. (
P. 126, 129)
Select to display the “Information” screen. *1
Select to display the air conditioning control screen. (
P. 346)
Select to display the “Setup” screen. *1

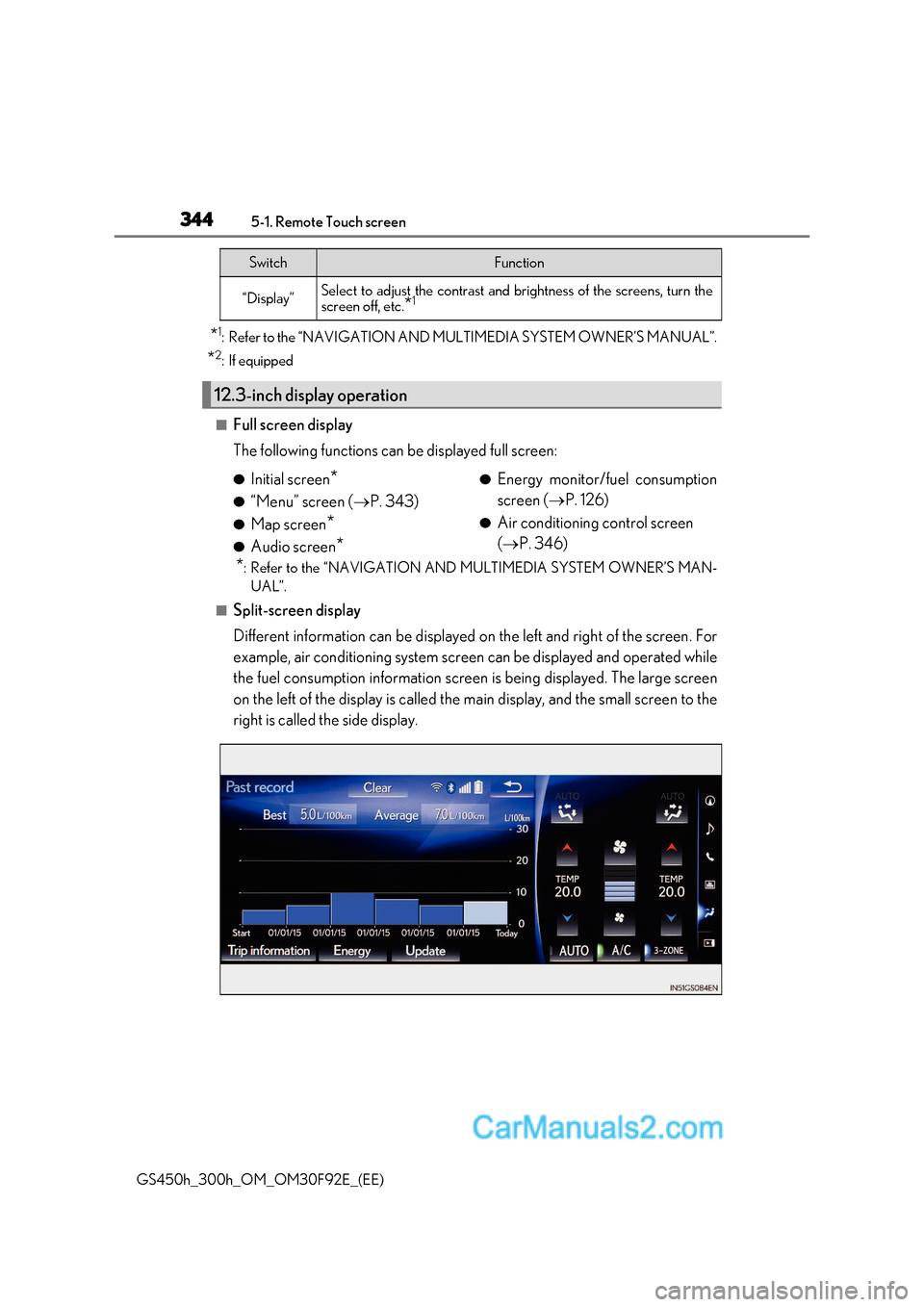

3445-1. Remote Touch screen
GS450h_300h_OM_OM30F92E_(EE) *
1
: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
* 2
: If equipped
■Full screen display
The following functions can be displayed full screen:
* : Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”.
■Split-screen display
Different information can be displayed on the left and right of the screen. For
example, air conditioning system screen can be displayed and operated while
the fuel consumption information screen is being displayed. The large screen
on the left of the display is called the main display, and the small screen to the
right is called the side display.
“Display”Select to adjust the contrast and brightness of the screens, turn the
screen off, etc. *1
12.3-inch display operation
SwitchFunction
●
Initial screen *
● “Menu” screen ( P. 343)
● Map screen *
● Audio screen * ●
Energy monitor/fuel consumption
screen ( P. 126)
● Air conditioning control screen ( P. 346)

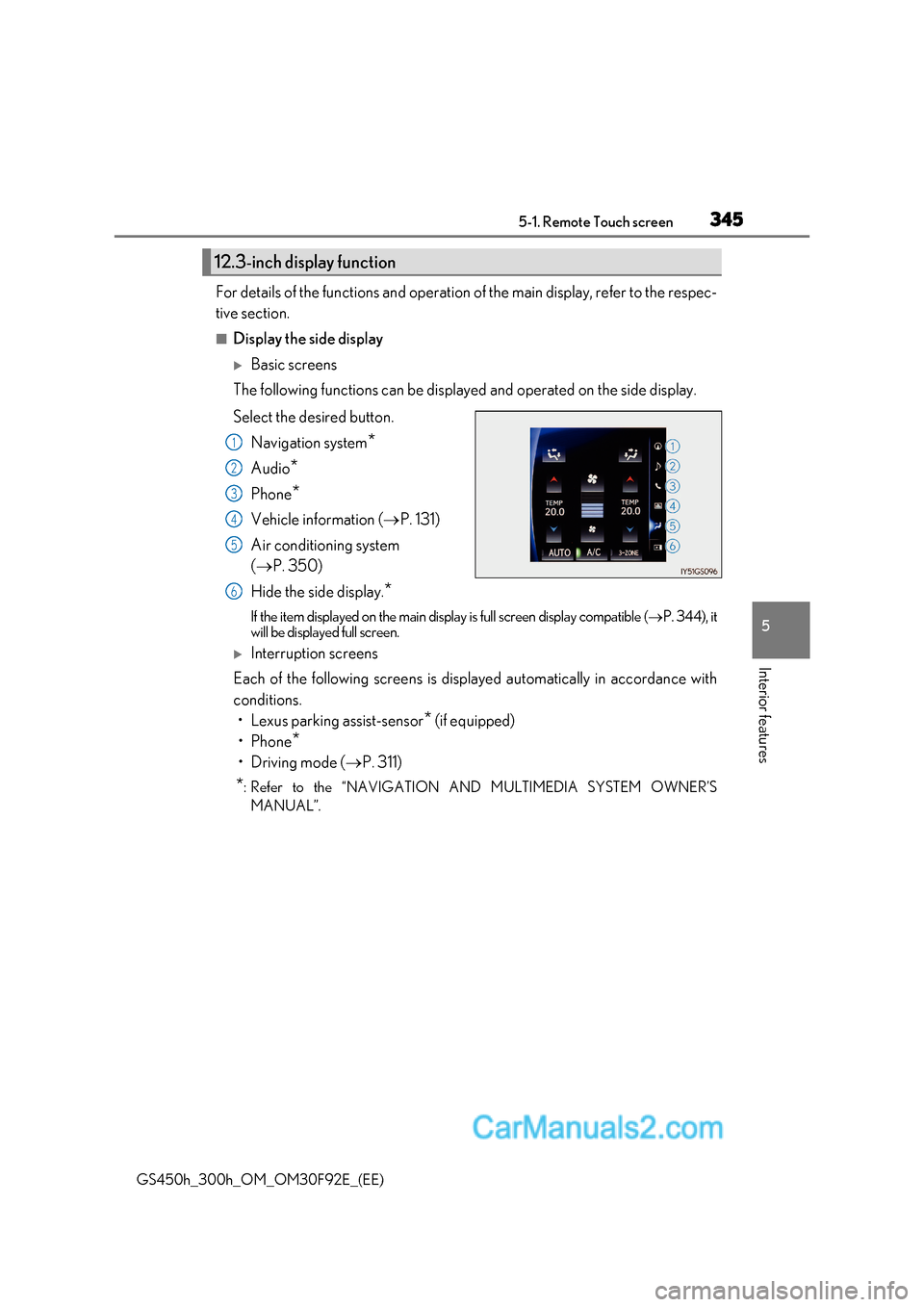

345
5-1. Remote Touch screen
5
Interior features
GS450h_300h_OM_OM30F92E_(EE) For details of the functions and operation of the main display, refer to the respec-
tive section.
■Display the side display
Basic screens
The following functions can be displayed and operated on the side display.
Select the desired button.
Navigation system *
Audio *
Phone *
Vehicle information ( P. 131)
Air conditioning system (  P. 350)
Hide the side display. *
If the item displayed on the main display is full screen display compatible ( P. 344), it
will be displayed full screen.
Interruption screens
Each of the following screens is displayed automatically in accordance with
conditions.

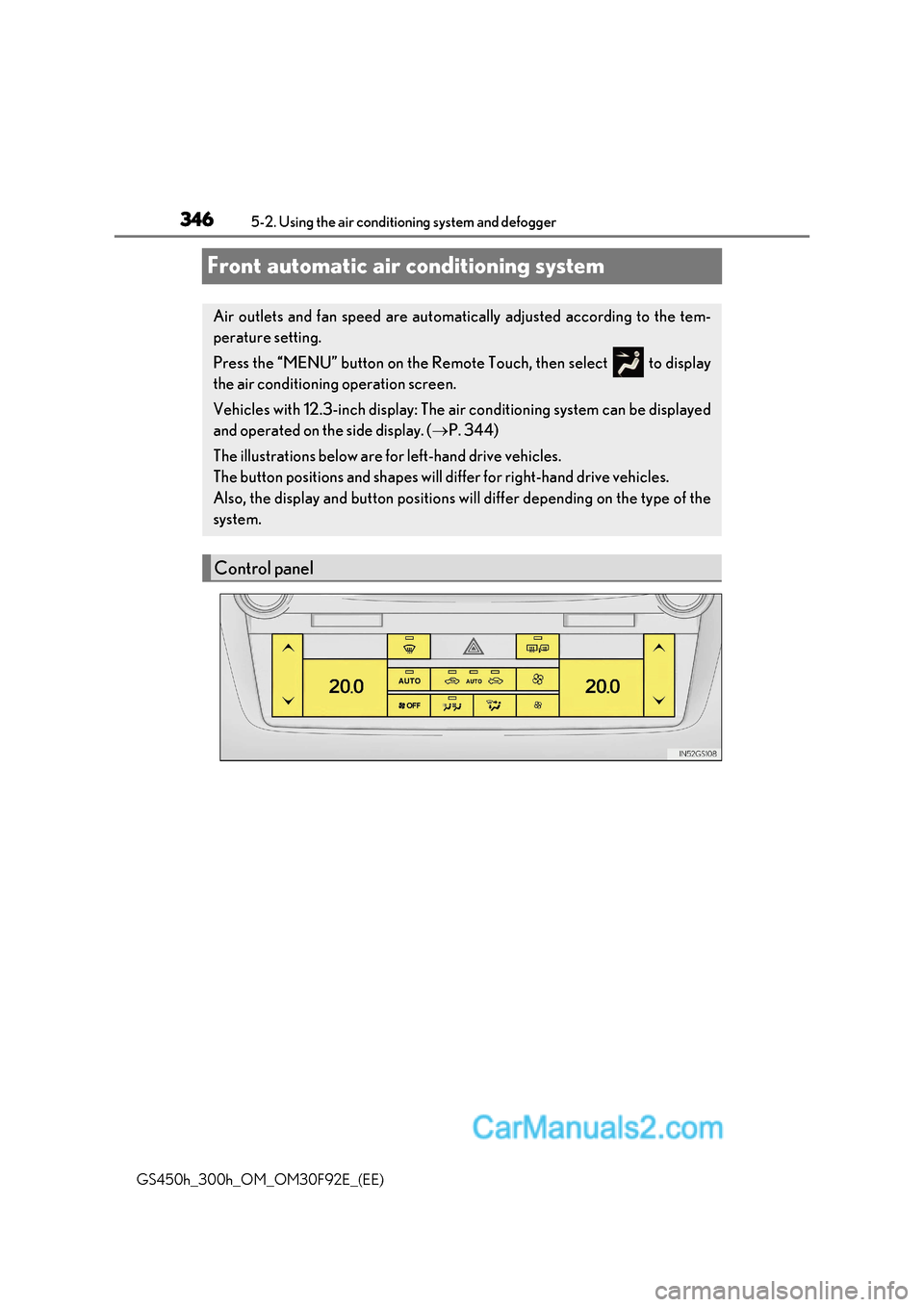

3465-2. Using the air conditioning system and defogger
GS450h_300h_OM_OM30F92E_(EE)
Front automatic air conditioning system
Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
Press the “MENU” button on the Remote Touch, then select to display
the air conditioning operation screen.
Vehicles with 12.3-inch display: The air conditioning system can be displayed
and operated on the side display. ( P. 344)
The illustrations below are for left-hand drive vehicles.
The button positions and shapes will di ffer for right-hand drive vehicles.
Also, the display and button positions will differ depending on the type of the
system.
Control panel

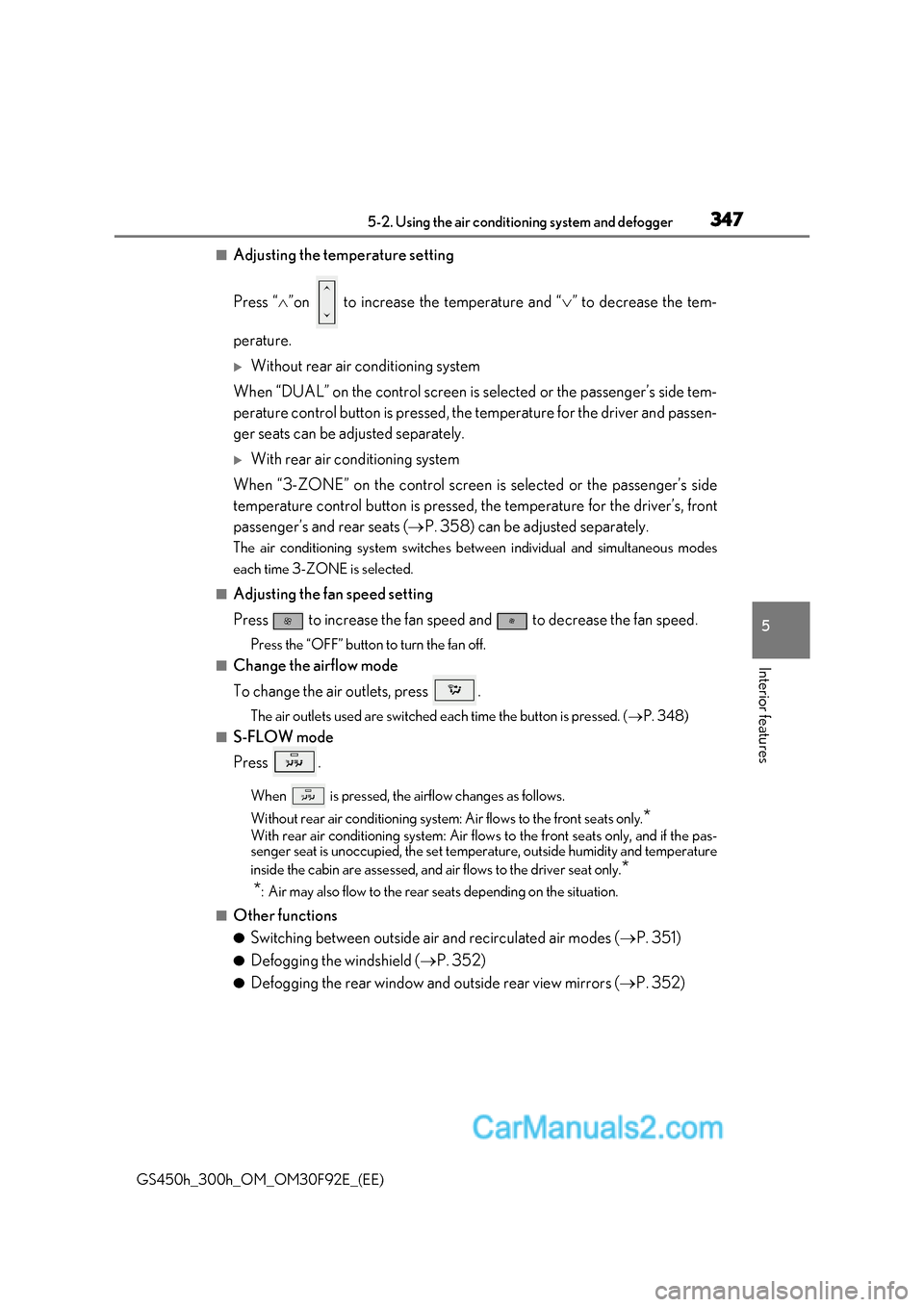

347
5-2. Using the air conditioning system and defogger
5
Interior features
GS450h_300h_OM_OM30F92E_(EE)
■Adjusting the temperature setting
Press “ ”on to increase the temperature and “ ” to decrease the tem-
perature.
Without rear air conditioning system
When “DUAL” on the control screen is selected or the passenger’s side tem-
perature control button is pressed, the temperature for the driver and passen-
ger seats can be adjusted separately.
With rear air conditioning system
When “3-ZONE” on the control screen is selected or the passenger’s side
temperature control button is pressed, the temperature for the driver’s, front
passenger’s and rear seats ( P. 358) can be adjusted separately.
The air conditioning system switches be tween individual and simultaneous modes
each time 3-ZONE is selected.
■Adjusting the fan speed setting
Press to increase the fan speed and to decrease the fan speed.
Press the “OFF” button to turn the fan off.
■Change the airflow mode
To change the air outlets, press .The air outlets used are switched each time the button is pressed. ( P. 348)
■S-FLOW mode
Press .
When is pressed, the airflow changes as follows.
Without rear air conditioning system: Air flows to the front seats only. *
With rear air conditioning system: Air flow s to the front seats only, and if the pas-
senger seat is unoccupied, the set temperature, outside humidity and temperature
inside the cabin are assessed, and ai r flows to the driver seat only.*
* : Air may also flow to the rear seats depending on the situation.
■Other functions ● Switching between outside air and recirculated air modes ( P. 351)
● Defogging the windshield ( P. 352)
● Defogging the rear window and outside rear view mirrors ( P. 352)

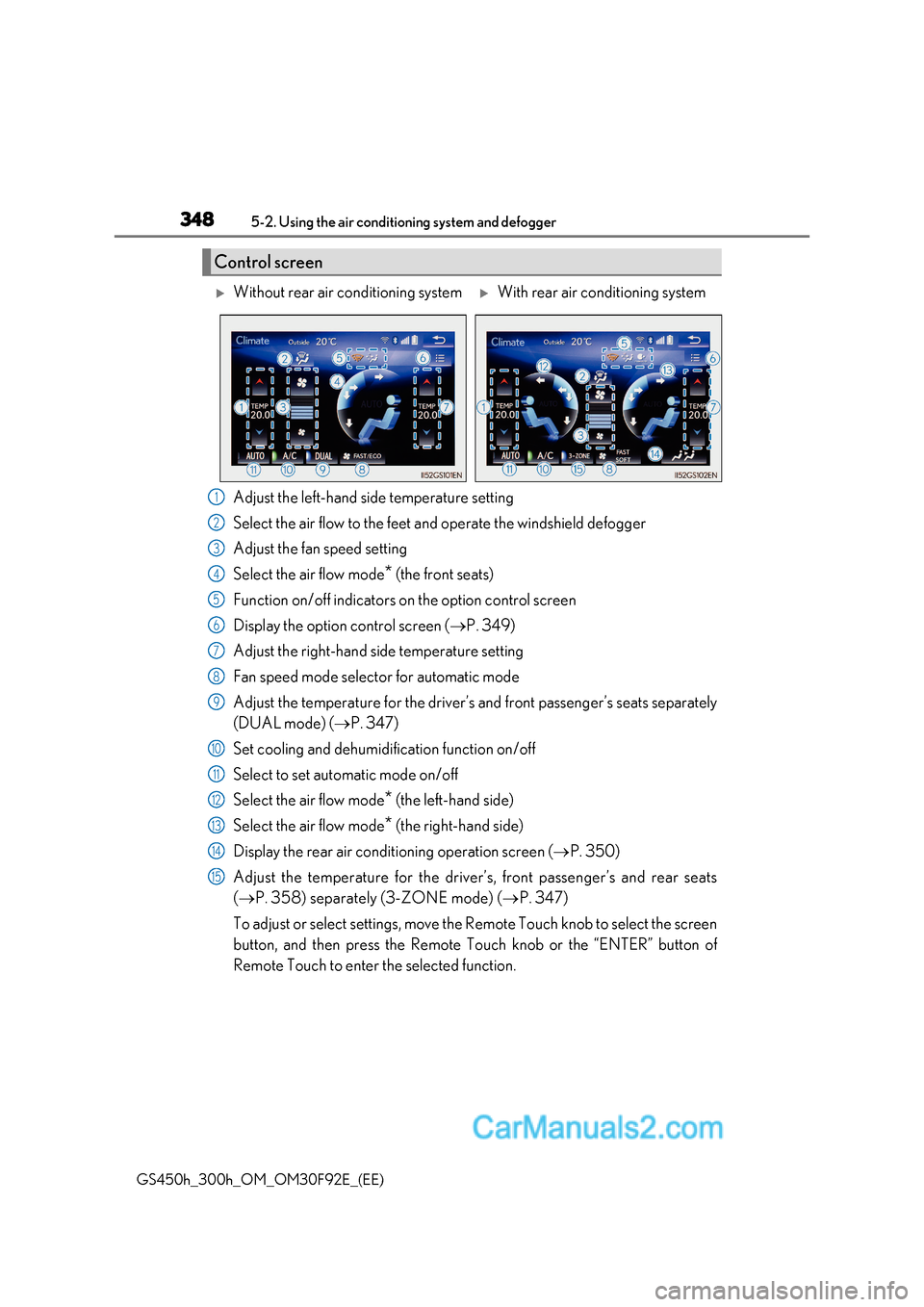

3485-2. Using the air conditio ning system and defogger
GS450h_300h_OM_OM30F92E_(EE)Adjust the left-hand side temperature setting
Select the air flow to the feet and operate the windshield defogger
Adjust the fan speed setting
Select the air flow mode
* (the front seats)
Function on/off indicators on the option control screen
Display the option control screen ( P. 349)
Adjust the right-hand side temperature setting
Fan speed mode selector for automatic mode
Adjust the temperature for the driver’s and front passenger’s seats separately
(DUAL mode) ( P. 347)
Set cooling and dehumidification function on/off
Select to set automatic mode on/off
Select the air flow mode *
(the left-hand side)
Select the air flow mode * (the right-hand side)
Display the rear air conditioning operation screen ( P. 350)
Adjust the temperature for the driver’s, front passenger’s and rear seats (  P. 358) separately (3-ZONE mode) ( P. 347)
To adjust or select settings, move the Remote Touch knob to select the screen
button, and then press the Remote Touch knob or the “ENTER” button of
Remote Touch to enter the selected function.
Control screen
Without rear air conditioning systemWith rear air conditioning system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

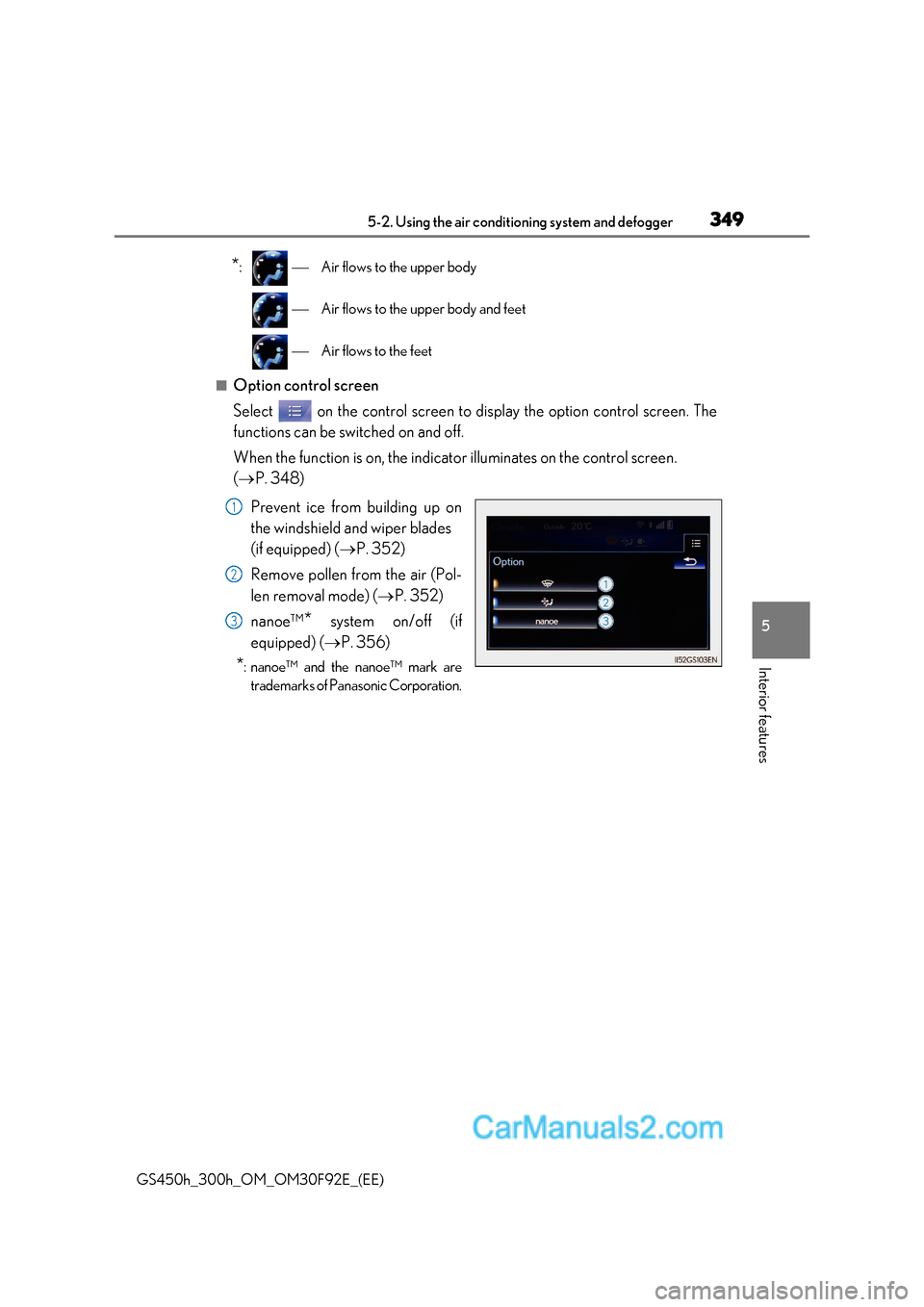

349
5-2. Using the air conditioning system and defogger
5
Interior features
GS450h_300h_OM_OM30F92E_(EE) *
: Air flows to the upper body
 Air flows to the upper body and feet
 Air flows to the feet
■Option control screen
Select on the control screen to display the option control screen. The
functions can be switched on and off.
When the function is on, the indicator illuminates on the control screen. ( P. 348)
Prevent ice from building up on
the windshield and wiper blades
(if equipped) ( P. 352)
Remove pollen from the air (Pol-
len removal mode) ( P. 352)
nanoe™ *
system on/off (if
equipped) ( P. 356)
* : nanoe™ and the nanoe™ mark are
trademarks of Panasonic Corporation.
1
2
3

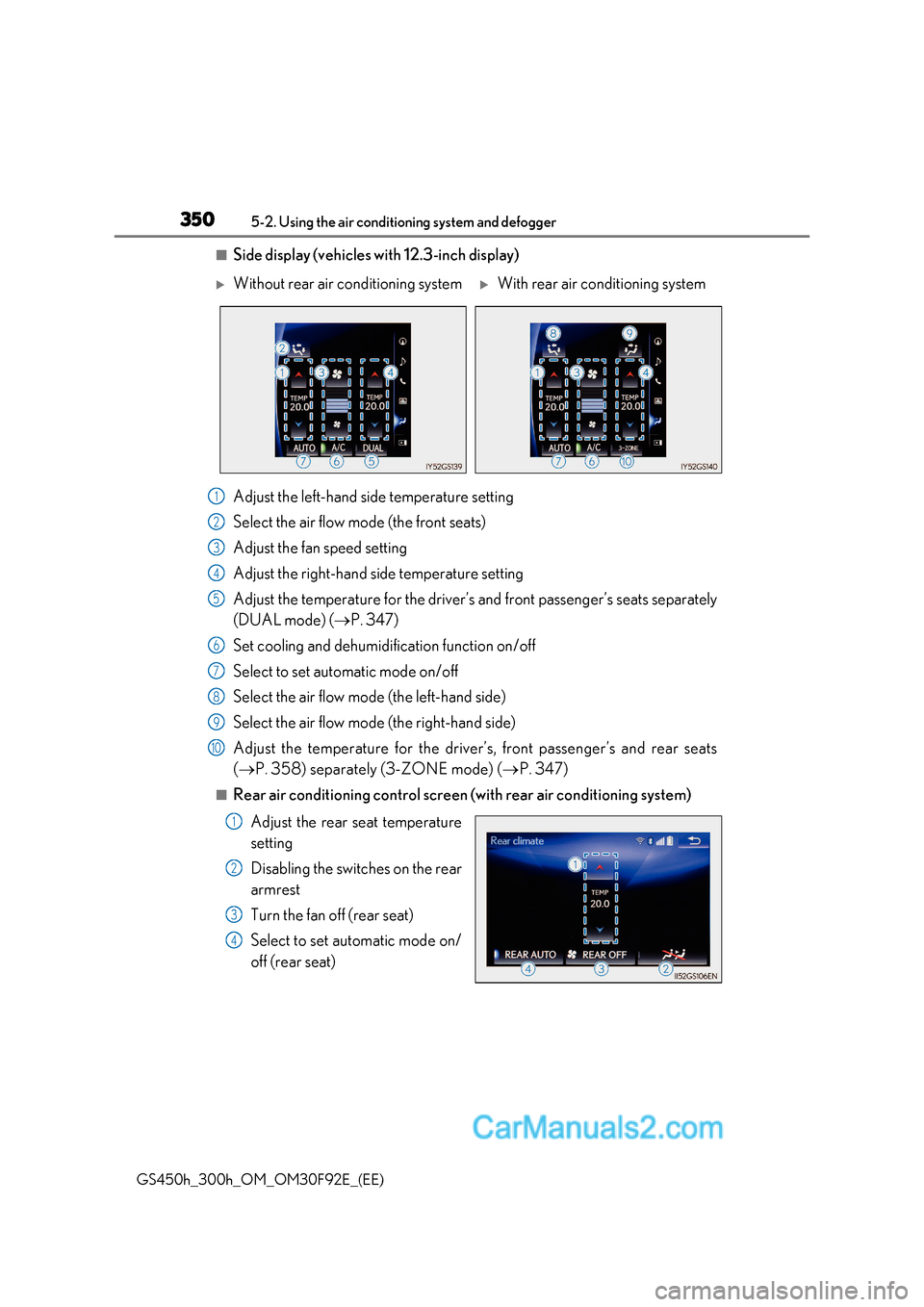

3505-2. Using the air conditio ning system and defogger
GS450h_300h_OM_OM30F92E_(EE)
■Side display (vehicles with 12.3-inch display)
Adjust the left-hand side temperature setting
Select the air flow mode (the front seats)
Adjust the fan speed setting
Adjust the right-hand side temperature setting
Adjust the temperature for the driver’s and front passenger’s seats separately
(DUAL mode) (P. 347)
Set cooling and dehumidification function on/off
Select to set automatic mode on/off
Select the air flow mode (the left-hand side)
Select the air flow mode (the right-hand side)
Adjust the temperature for the driver’s, front passenger’s and rear seats (  P. 358) separately (3-ZONE mode) ( P. 347)
■Rear air conditioning control screen (with rear air conditioning system)
Adjust the rear seat temperature
setting
Disabling the switches on the rear
armrest
Turn the fan off (rear seat)
Select to set automatic mode on/
off (rear seat)
Without rear air conditioning systemWith rear air conditioning system
1
2
3
4
5
6
7
8
9
10
1
2
3
4
