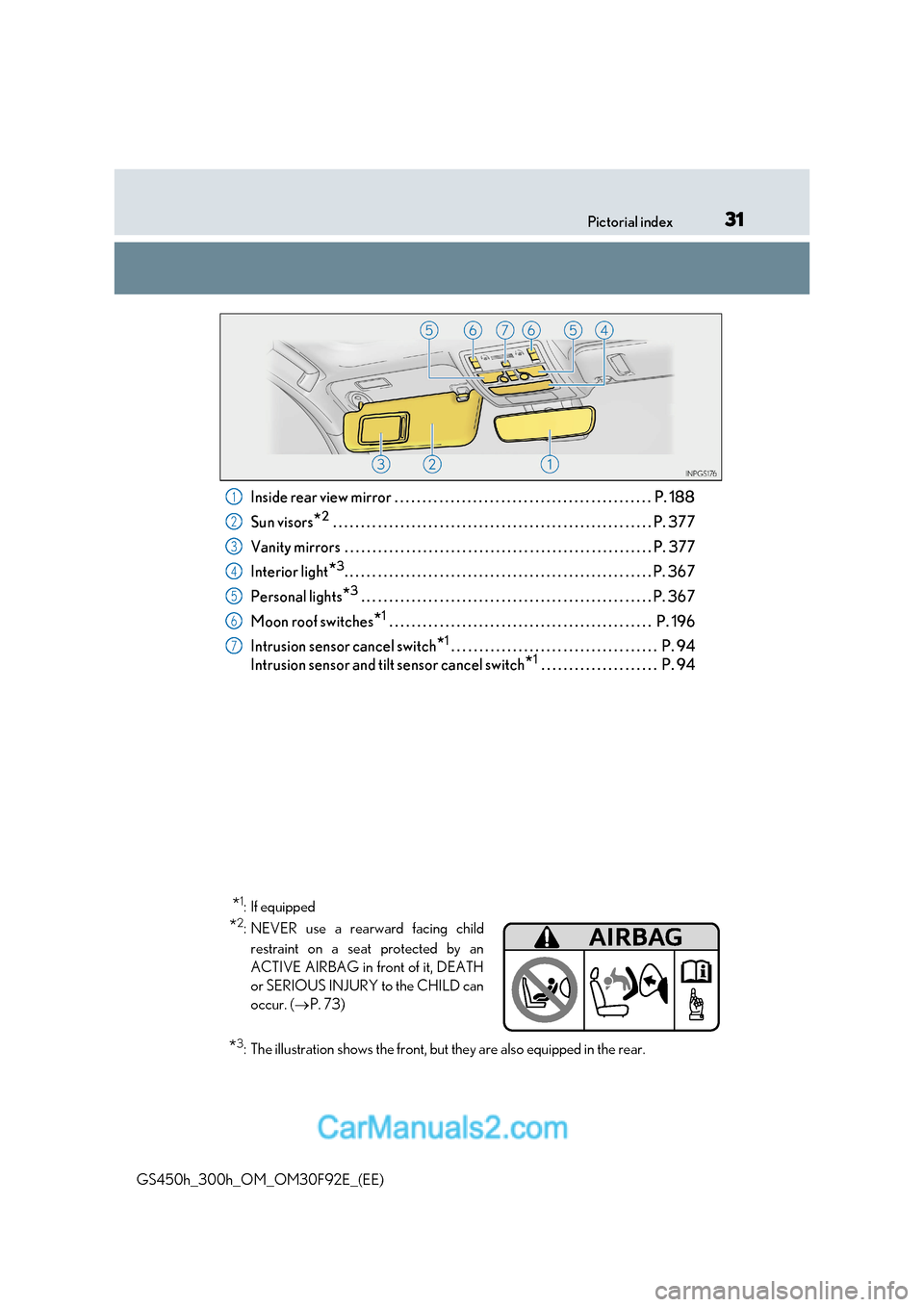

31
Pictorial index
GS450h_300h_OM_OM30F92E_(EE) Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188
Sun visors
*2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 377
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 377
Interior light *3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 367
Personal lights *3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 367
Moon roof switches *1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 196
Intrusion sensor cancel switch *1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 94
Intrusion sensor and tilt sensor cancel switch *1
. . . . . . . . . . . . . . . . . . . . . P. 94
1
2
3
4
5
6
7
* 1
:If equipped
* 2
: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. ( P. 73)
* 3
: The illustration shows the front, but they are also equipped in the rear.

32Pictorial index
GS450h_300h_OM_OM30F92E_(EE)

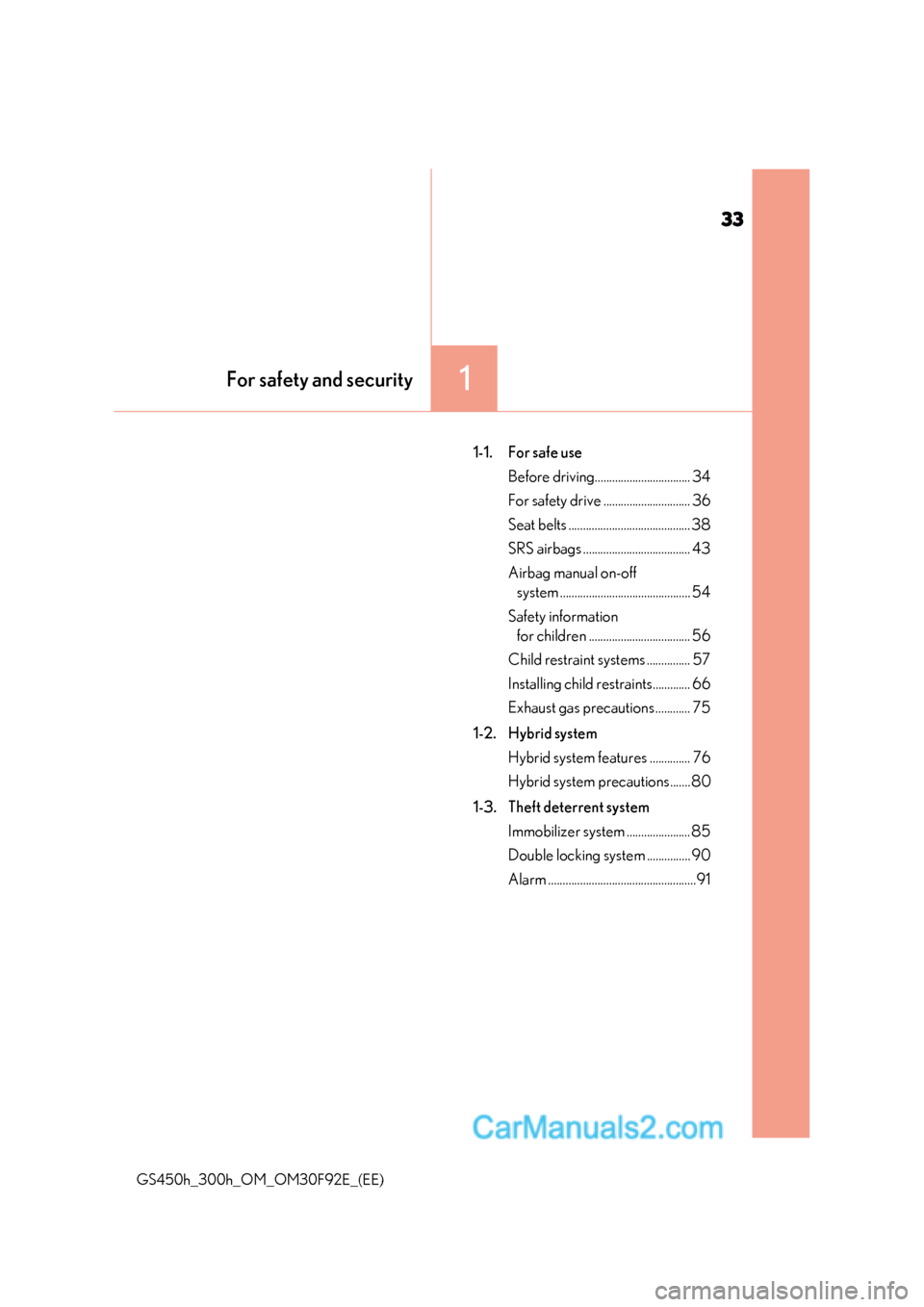

33
1For safety and security
GS450h_300h_OM_OM30F92E_(EE) 1-1. For safe use
Before driving................................. 34
For safety drive .............................. 36
Seat belts .......................................... 38
SRS airbags ..................................... 43
Airbag manual on-off system ............................................. 54
Safety information for children ................................... 56
Child restraint systems ............... 57
Installing child restraints............. 66
Exhaust gas precautions ............ 75
1-2. Hybrid system Hybrid system features .............. 76
Hybrid system precautions.......80
1-3. Theft deterrent system Immobilizer system ......................85
Double locking system ............... 90
Alarm ...................................................91

341-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)

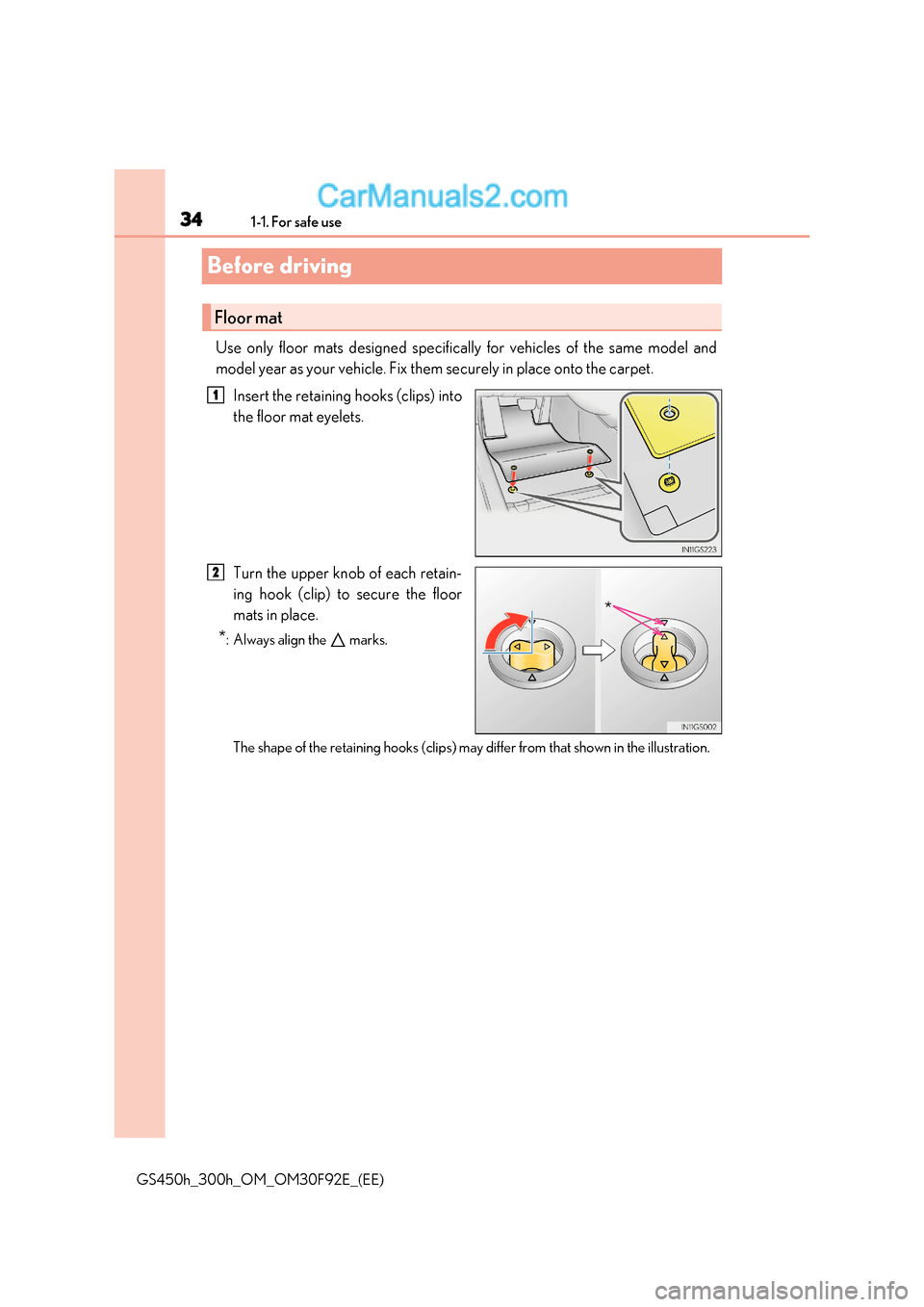

Before driving
Use only floor mats designed specifically for vehicles of the same model and
model year as your vehicle. Fix them securely in place onto the carpet .
Insert the retaining hooks (clips) into
the floor mat eyelets.
Turn the upper knob of each retain-
ing hook (clip) to secure the floor
mats in place.
* : Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the illustration.
Floor mat
1
*
2

35
1-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30F92E_(EE)

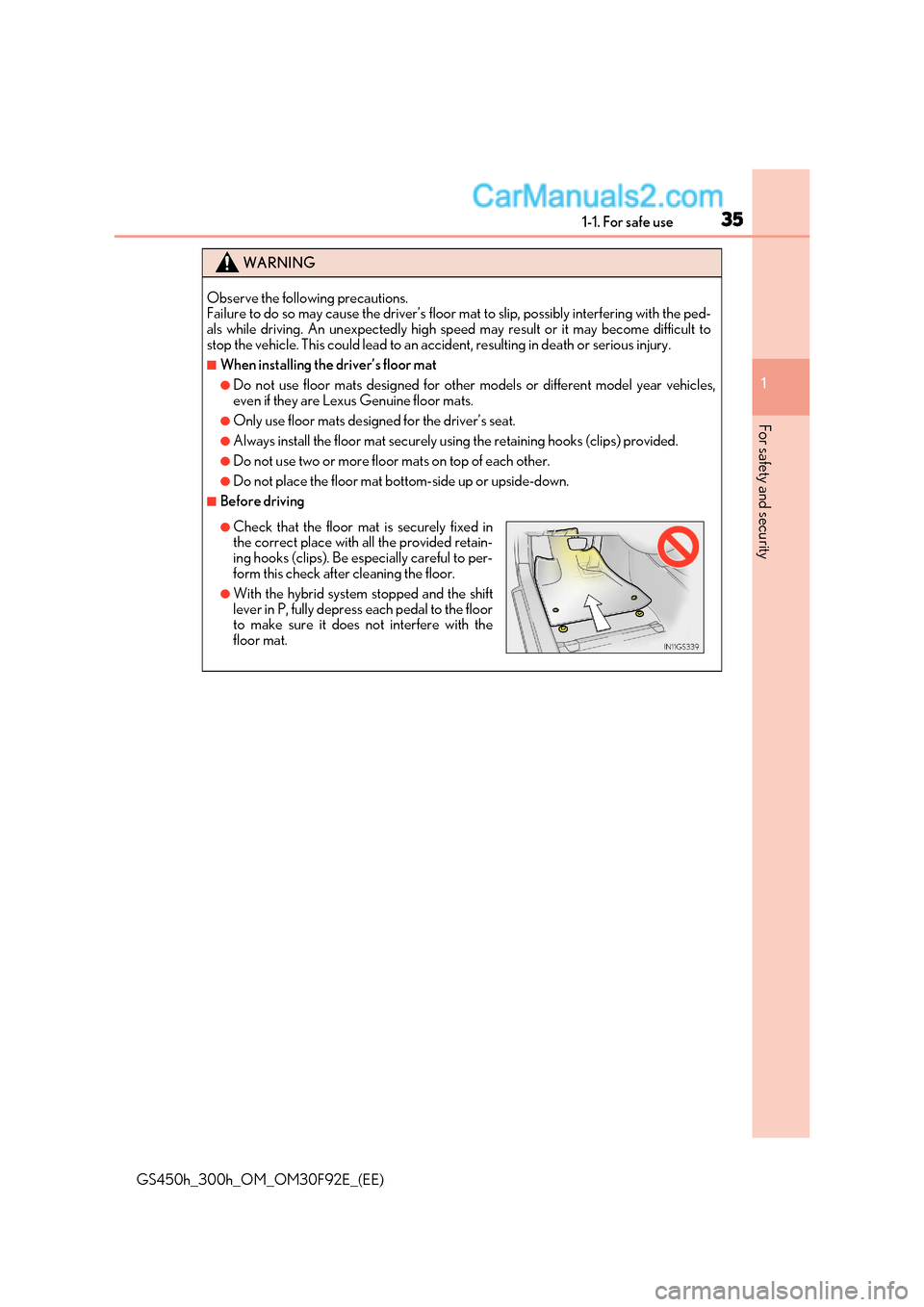

WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the ped-
als while driving. An unexpect edly high speed may result or it may become difficult to
stop the vehicle. This could lead to an acci dent, resulting in death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely us ing the retaining hooks (clips) provided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Check that the floor mat is securely fixed in
the correct place with all the provided retain-
ing hooks (clips). Be especially careful to per-
form this check after cleaning the floor.
●With the hybrid system stopped and the shift
lever in P, fully depress each pedal to the floor
to make sure it does not interfere with the
floor mat.

361-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)

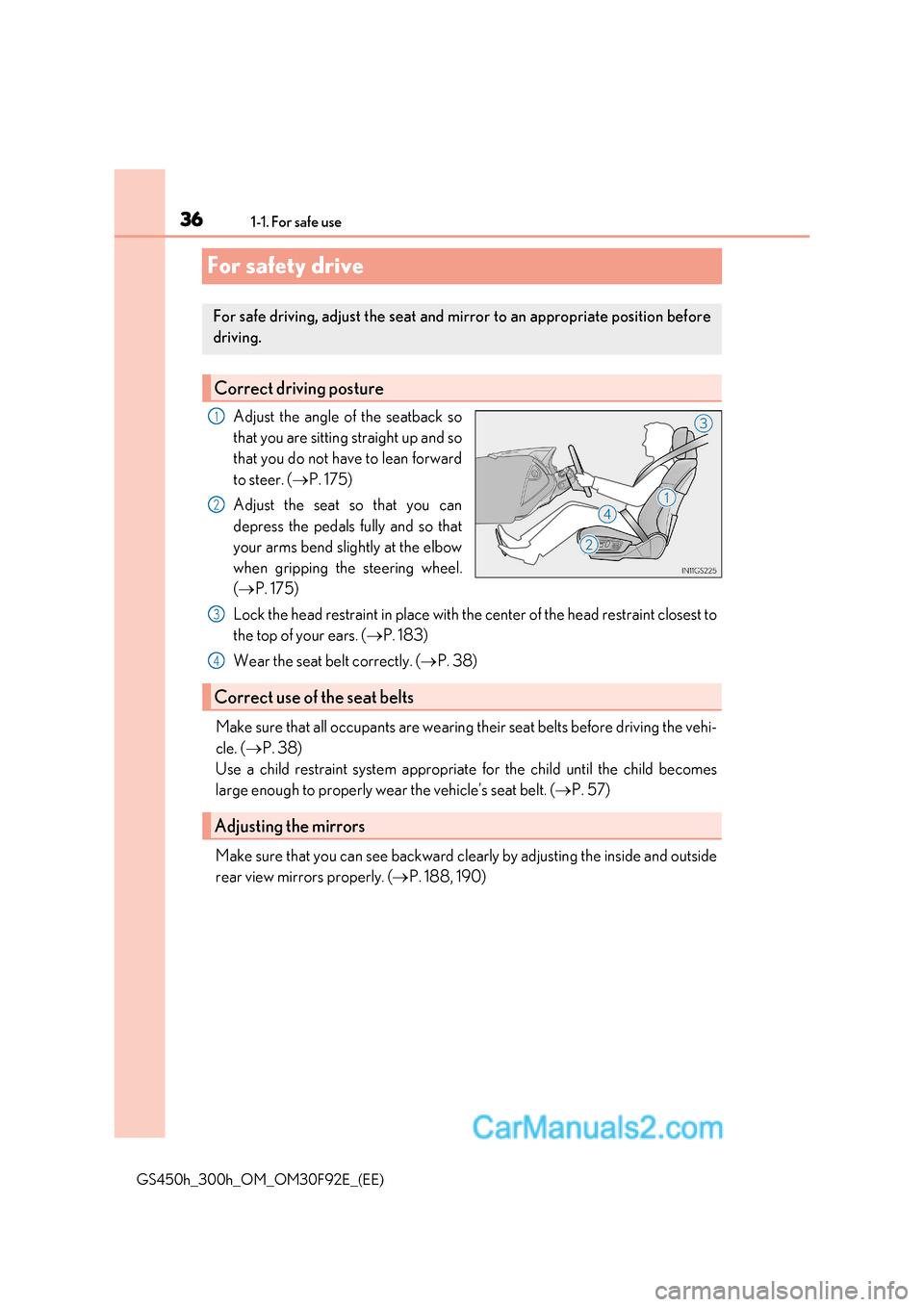

For safety drive
Adjust the angle of the seatback so
that you are sitting straight up and so
that you do not have to lean forward
to steer. (P. 175)
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the elbow
when gripping the steering wheel. (  P. 175)
Lock the head restraint in place with the center of the head restraint closest t o
the top of your ears. ( P. 183)
Wear the seat belt correctly. ( P. 38)
Make sure that all occupants are wearing their seat belts before driving the vehi -
cle. ( P. 38)
Use a child restraint system appropriat e for the child until the child becomes
large enough to properly wear the vehicle’s seat belt. ( P. 57)
Make sure that you can see backward clearly by adjusting the inside and outside
rear view mirrors properly. ( P. 188, 190)
For safe driving, adjust the seat and mirror to an appropriate position before
driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4

37
1-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30F92E_(EE)

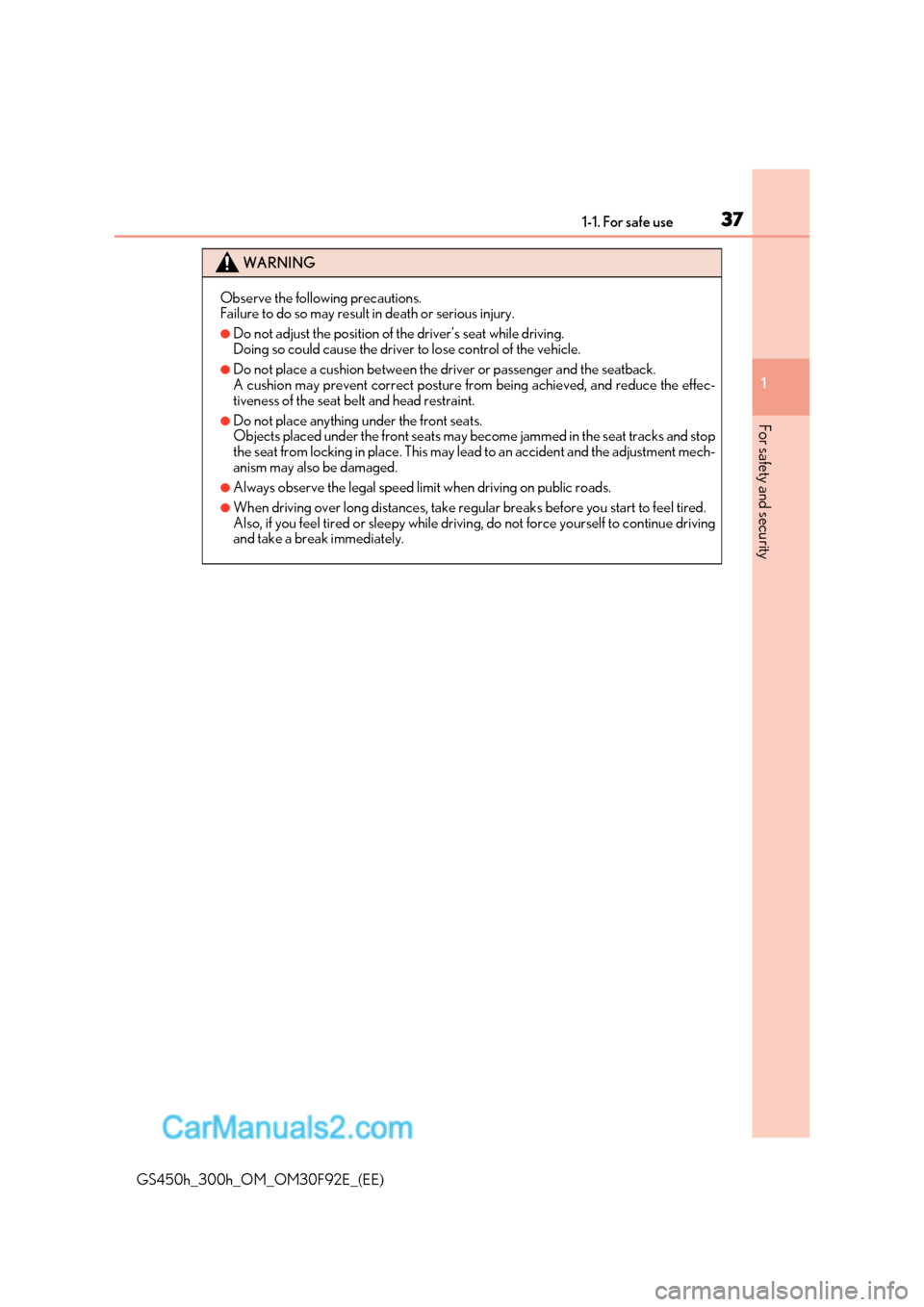

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the effec-
tiveness of the seat be lt and head restraint.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and stop
the seat from locking in place. This may lead to an accident and the adjustment mech-
anism may also be damaged.
●Always observe the legal speed limit when driving on public roads.
●When driving over long distances, take regu lar breaks before you start to feel tired.
Also, if you feel tired or sleepy while drivin g, do not force yourself to continue driving
and take a break immediately.

381-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)

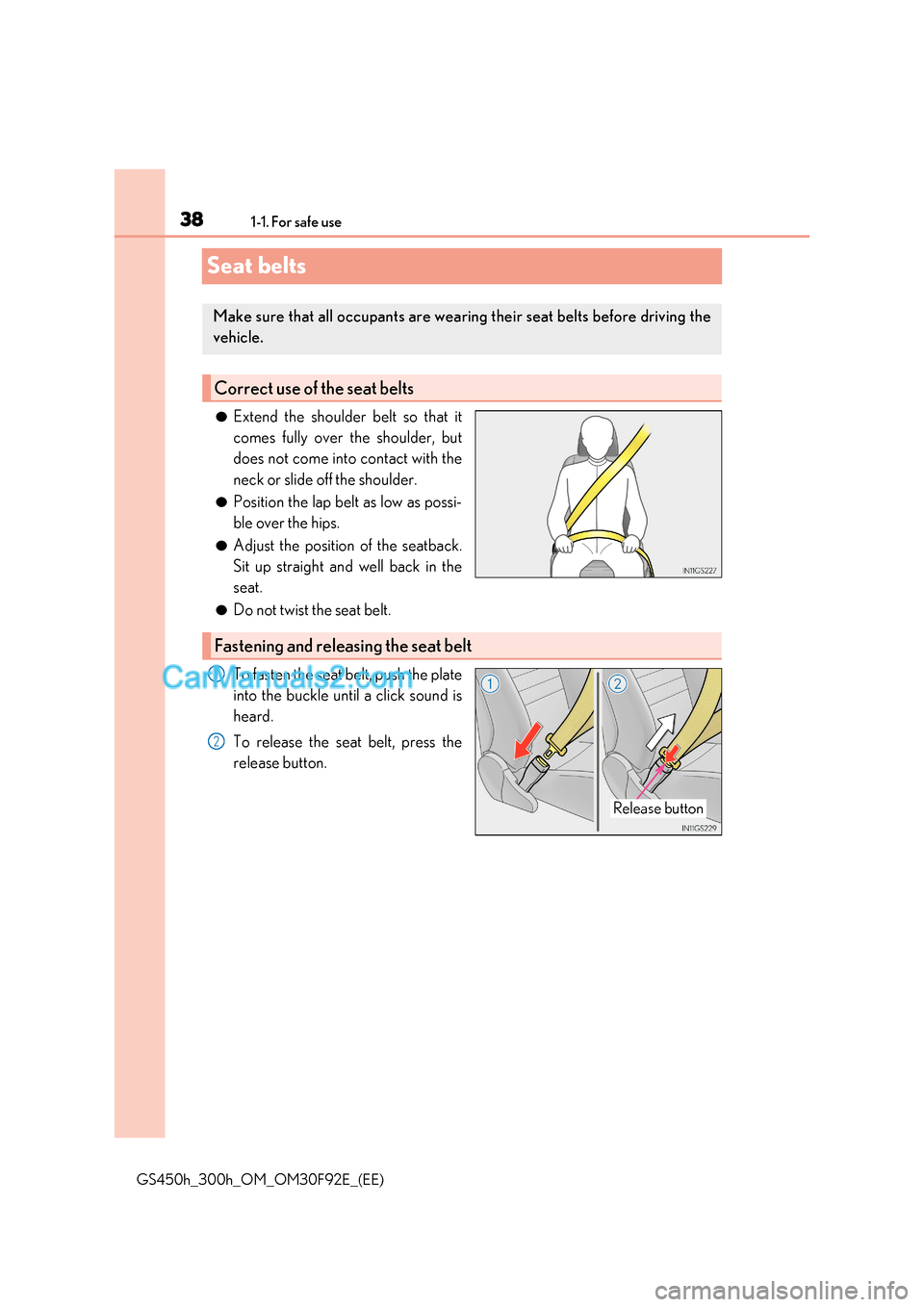

Seat belts
●Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
● Position the lap belt as low as possi-
ble over the hips.
● Adjust the position of the seatback.
Sit up straight and well back in the
seat.
● Do not twist the seat belt.
To fasten the seat belt, push the plate
into the buckle until a click sound is
heard.
To release the seat belt, press the
release button.
Make sure that all occupants are wearin g their seat belts before driving the
vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2

39
1-1. For safe use
1
For safety and security

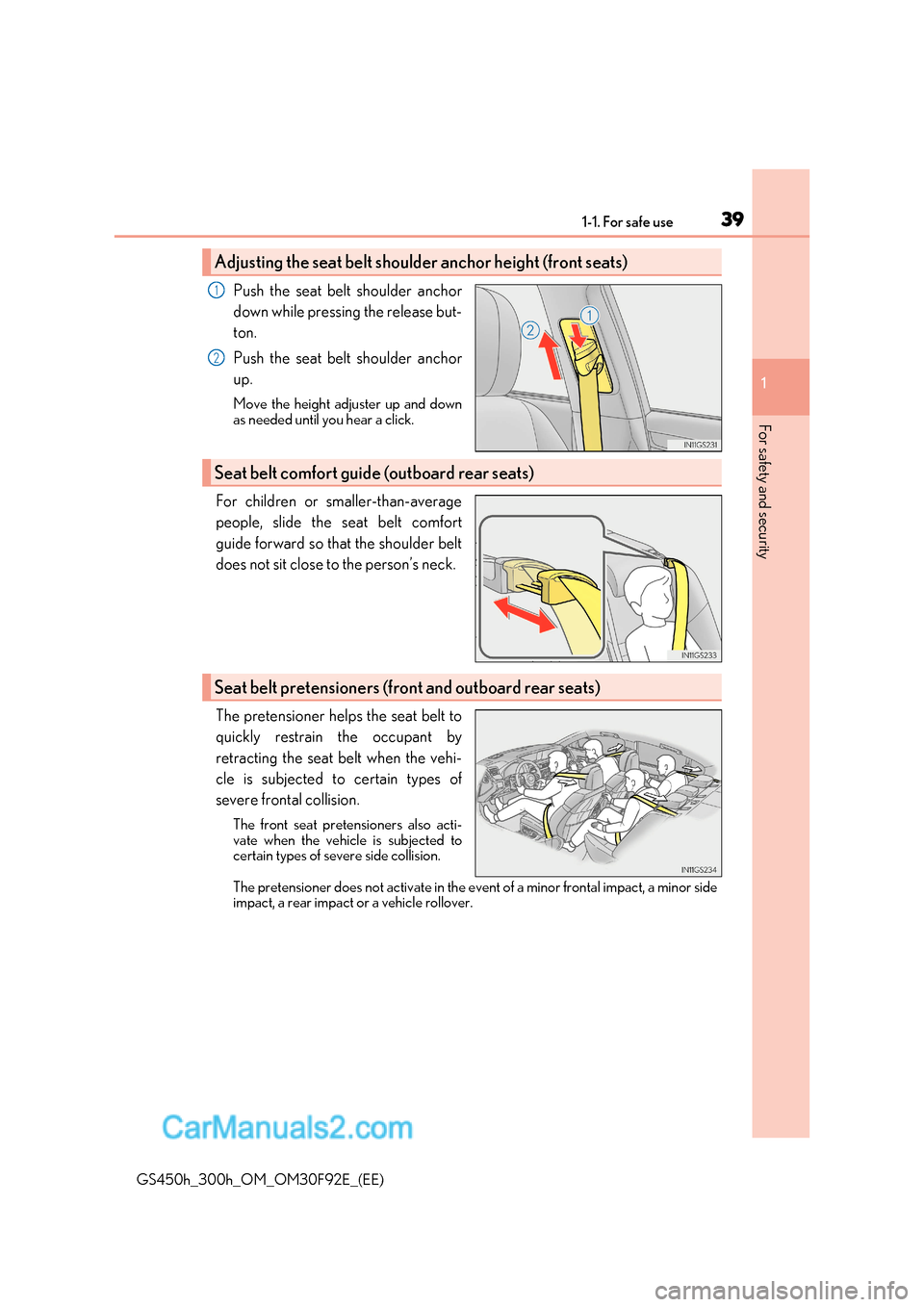

GS450h_300h_OM_OM30F92E_(EE) Push the seat belt shoulder anchor
down while pressing the release but-
ton.
Push the seat belt shoulder anchor up.
Move the height adjuster up and down
as needed until you hear a click.
For children or smaller-than-average
people, slide the seat belt comfort
guide forward so that the shoulder belt
does not sit close to the person’s neck.
The pretensioner helps the seat belt to
quickly restrain the occupant by
retracting the seat belt when the vehi-
cle is subjected to certain types of
severe frontal collision. The front seat pretensioners also acti-
vate when the vehicle is subjected to
certain types of severe side collision.
The pretensioner does not activate in the event of a minor frontal impact, a minor side
impact, a rear impact or a vehicle rollover.
Adjusting the seat belt shoulder anchor height (front seats)
1
2
Seat belt comfort guide (outboard rear seats)
Seat belt pretensioners (front and outboard rear seats)

401-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)

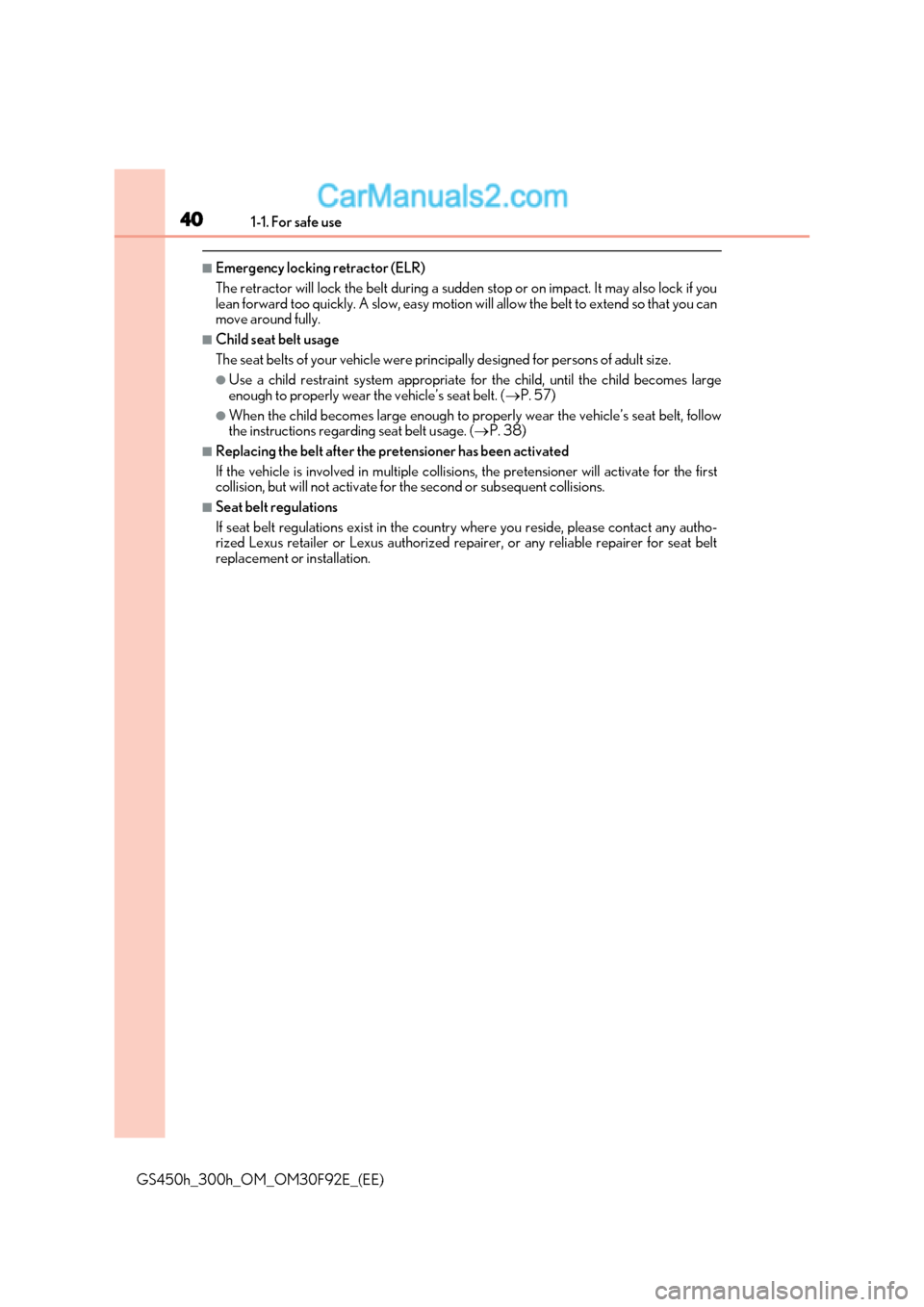

■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can
move around fully.
■Child seat belt usage
The seat belts of your vehicle were princi pally designed for persons of adult size.
●Use a child restraint system appropriate for the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. ( P. 57)
●When the child becomes large enough to properly wear the vehicle’s seat belt, follow
the instructions regardin g seat belt usage. (P. 38)
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisio ns, the pretensioner will activate for the first
collision, but will not activate for the second or subsequent collisions.
■Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact any autho-
rized Lexus retailer or Lexus au thorized repairer, or any reliable repairer for seat belt
replacement or installation.
