For safety and security
GS450h_300h_OM_OM30F92E_(EE)
WARNING
Observe the following precautions to reduce the risk of injury in the event of sudden braking, sudden swerving or an accident.Failure to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for morethan one person at on ce, including children.
●Lexus recommends that children be seated in the rear seat and always use a seat belt
and/or an appropriate child restraint system.
●To achieve a proper seating position, do not recline the seat more than necessary. The seat belt is most effective when the occupants are sitting up straight and well back in
the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Pregnant women
Obtain medical advice and wear the seat belt
in the proper way. ( P. 38)
Women who are pregnant should position the lap belt as low as possible over the hips in the
same manner as other occupants, extending the shoulder belt completely over the shoulderand avoiding belt contact with the rounding of
the abdominal area.
If the seat belt is not worn properly, not only the pregnant woman, but also the fetus could suffer
death or serious injury as a result of sudden braking or a collision.

421-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)
WARNING

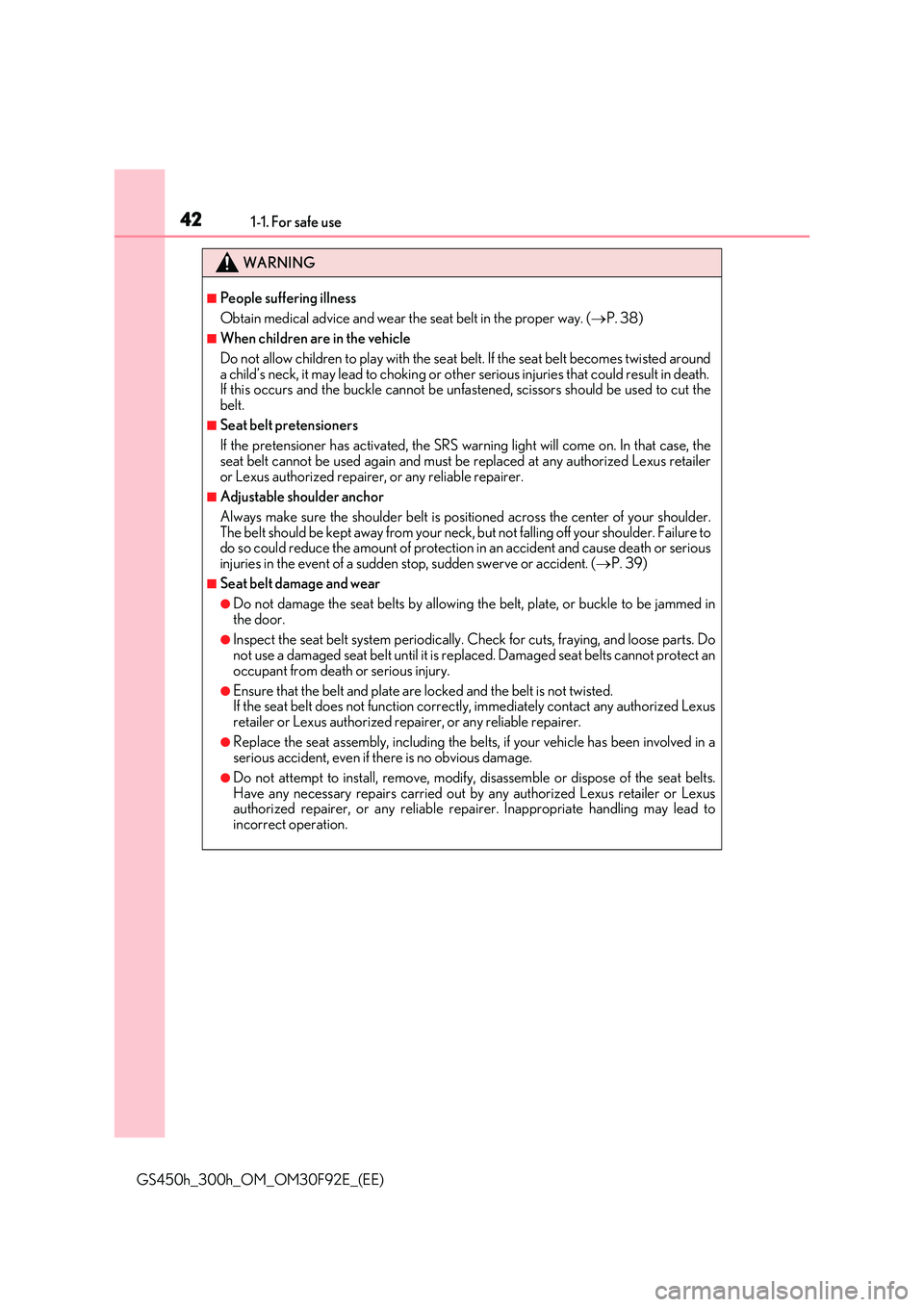

■People suffering illness
Obtain medical advice and wear the seat belt in the proper way. ( P. 38)
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around a child’s neck, it may lead to choking or othe r serious injuries that could result in death. If this occurs and the buckle cannot be unfa stened, scissors should be used to cut the
belt.
■Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that case, the
seat belt cannot be used again and must be replaced at any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your ne ck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause death or serious
injuries in the event of a sudden stop, sudden swerve or accident. ( P. 39)
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed in
the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do not use a damaged seat belt until it is re placed. Damaged seat belts cannot protect an
occupant from death or serious injury.
●Ensure that the belt and plate are locked and the belt is not twisted. If the seat belt does not function correctly, immediately contact any authorized Lexus
retailer or Lexus authorized repa irer, or any reliable repairer.
●Replace the seat assembly, including the belts, if your vehicle has been involved in a serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts. Have any necessary repairs carried out by any authorized Lexus retailer or Lexusauthorized repairer, or any reliable repa irer. Inappropriate handling may lead to
incorrect operation.

431-1. For safe use
1
GS450h_300h_OM_OM30F92E_(EE)
For safety and security
SRS airbags
◆SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from
impact with interior components
SRS knee airbags
Can help provide driver and front passenger protection
An SRS knee airbag for the front passenger’s seat is built into the glove box door.
◆SRS side and curtain shield airbags
SRS front side airbags
Can help protect the torso of the front seat occupants
SRS rear side airbags
Can help protect the torso of oc cupants in the rear outer seats
SRS curtain shield airbags
Can help protect primarily the head of occupants in the outer seats
The SRS airbags inflate when the vehi cle is subjected to certain types of
severe impacts that may cause significan t injury to the occupants. They work
together with the seat belts to help re duce the risk of death or serious injury.
1
2
3
4

441-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)
The main SRS airbag system components are shown above. The SRS airbag sys-
tem is controlled by the airbag sensor assembly. As the airbags deploy, a chemi-
cal reaction in the inflators quickly fills the airbags with non-toxic gas to help
restrain the motion of the occupants.
SRS airbag system components
Knee airbags
Airbag manual on-off switch
Front passenger airbag
Curtain shield airbags
“PASSENGER AIR BAG” indica-
tor lights
Seat belt pretensioners and force
limiters
Side impact sensors (front)
Front side airbags
SRS warning light
Driver airbag
Rear side airbags
Side impact sensors (rear)
Driver’s seat position sensor
Driver’s seat belt buckle switch
Airbag sensor assembly
Front impact sensors
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

451-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags. Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicl e must wear their seat belts properly. The SRS airbags are supplemental devices to be used with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause death or seri-
ous injury especially if the driv er is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.) of inflation, placing yourself 250 mm (10 in.) from your driver airbag provides you with a clear
margin of safety. This distance is measured from the center of the steering wheel to your breastbone. If you sit less than 250 mm (10 in.) away now, you can change yourdriving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals com- fortably.• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 250 mm (10 in.) dis- tance, even with the driver seat all the way forward, simply by reclining the back ofthe seat somewhat. If reclining the back of your seat makes it hard to see the road,
raise yourself by using a firm, non-slippery cushion, or raise the seat if your vehicle has that feature.• If your steering wheel is adjustable, tilt it downward. This points the airbag toward
your chest instead of your head and neck. The seat should be adjusted as recommend ed above, while still maintaining control of the foot pedals, steering wheel, and your view of the instrument panel controls.

461-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■SRS airbag precautions

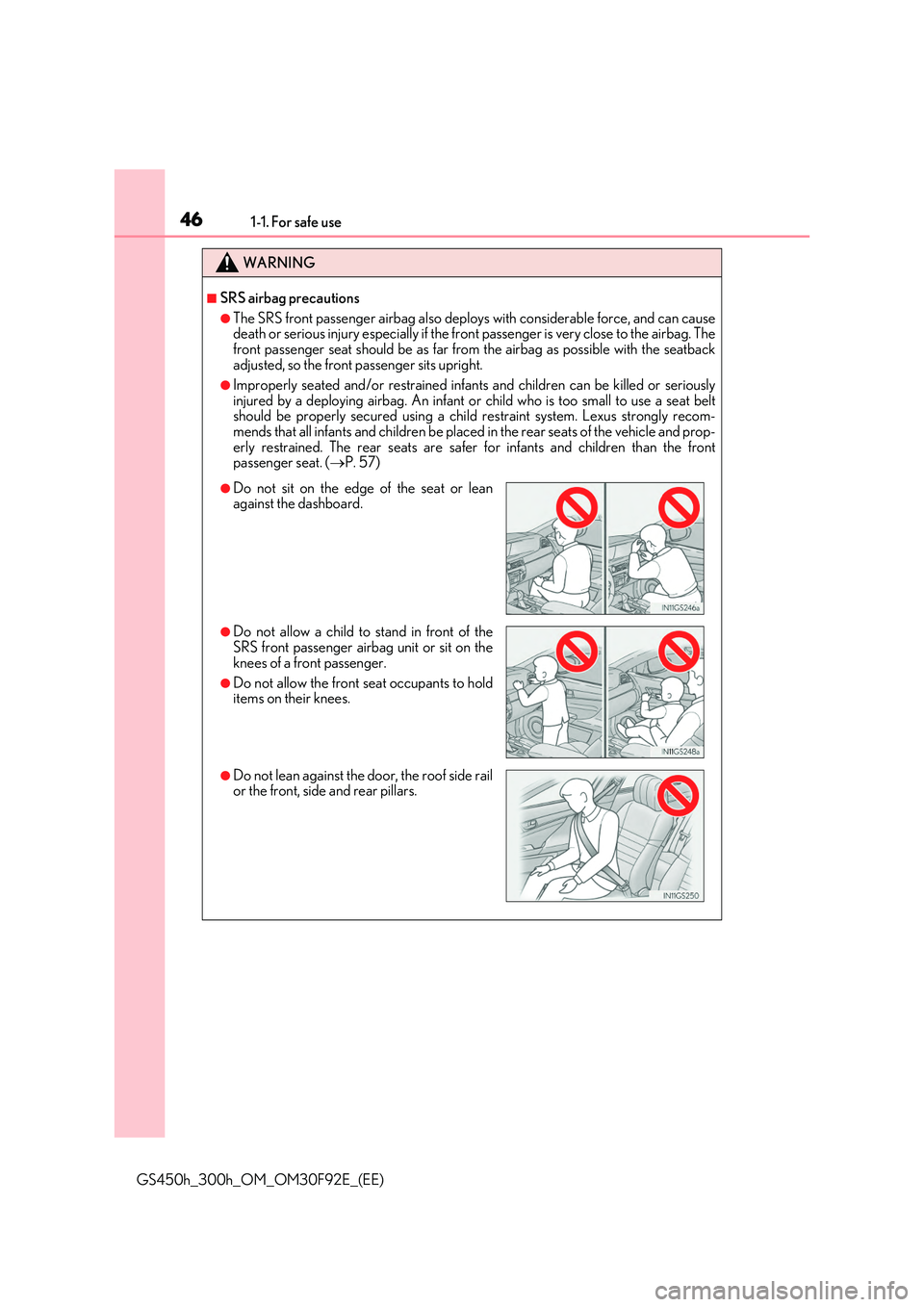

●The SRS front passenger airbag also deploys with considerable force, and can cause death or serious injury especially if the fron t passenger is very close to the airbag. The
front passenger seat should be as far from the airbag as possible with the seatback adjusted, so the front passenger sits upright.
●Improperly seated and/or restrained infant s and children can be killed or seriously
injured by a deploying airbag. An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Lexus strongly recom- mends that all infants and children be placed in the rear seats of the vehicle and prop-
erly restrained. The rear seats are safer for infants and children than the front passenger seat. ( P. 57)
●Do not sit on the edge of the seat or lean against the dashboard.
●Do not allow a child to stand in front of theSRS front passenger airbag unit or sit on the
knees of a front passenger.
●Do not allow the front seat occupants to hold items on their knees.
●Do not lean against the door, the roof side railor the front, side and rear pillars.

471-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■SRS airbag precautions

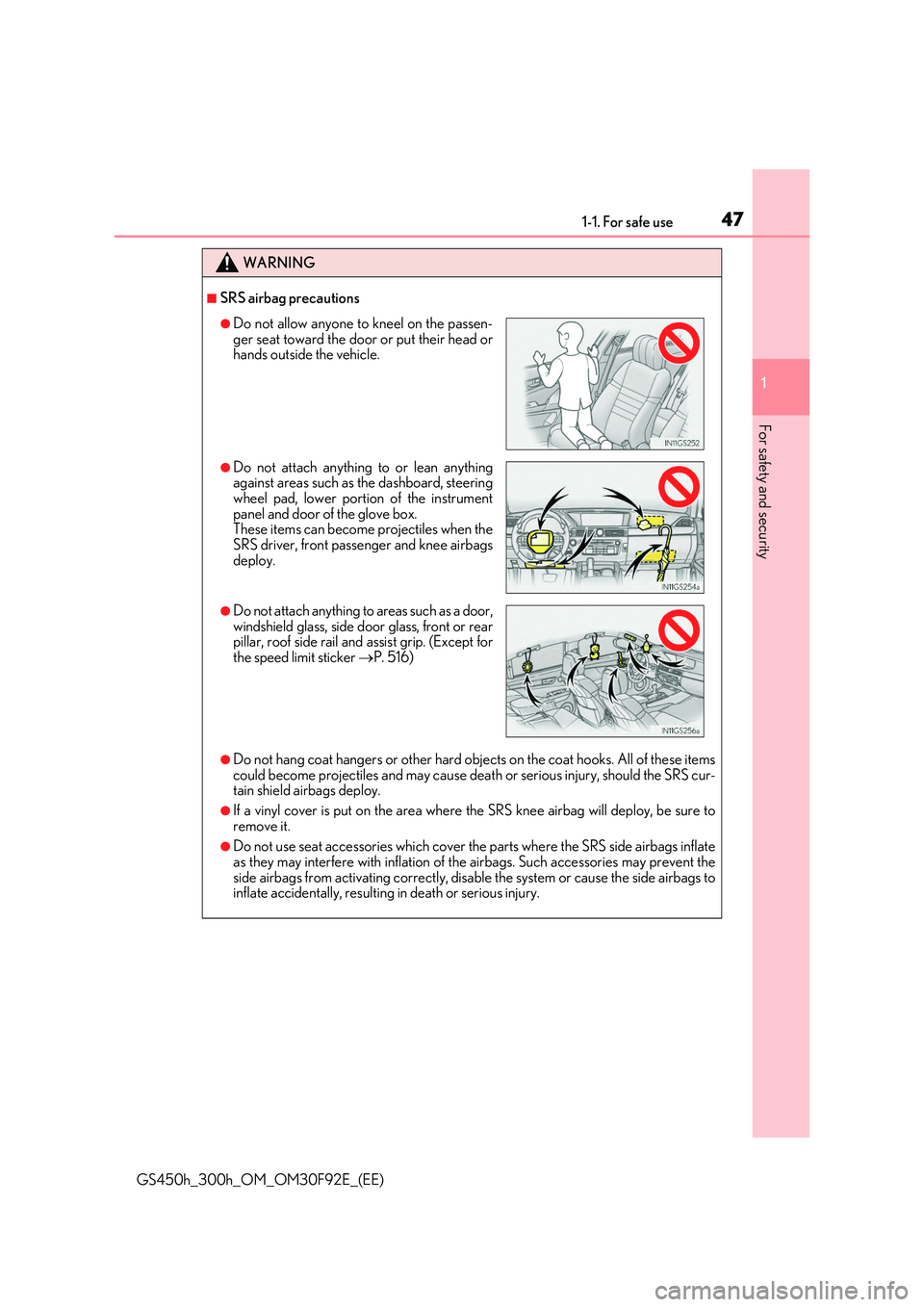

●Do not hang coat hangers or other hard objects on the coat hooks. All of these items
could become projectiles and may cause deat h or serious injury, should the SRS cur- tain shield airbags deploy.
●If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to
remove it.
●Do not use seat accessories which cover the parts where the SRS side airbags inflate as they may interfere with inflation of th e airbags. Such accessories may prevent the
side airbags from activating correctly, disable the system or cause the side airbags to inflate accidentally, resulting in death or serious injury.
●Do not allow anyone to kneel on the passen-
ger seat toward the door or put their head or hands outside the vehicle.
●Do not attach anything to or lean anythingagainst areas such as the dashboard, steeringwheel pad, lower portion of the instrument
panel and door of the glove box. These items can become projectiles when theSRS driver, front passenger and knee airbags
deploy.
●Do not attach anything to areas such as a door, windshield glass, side door glass, front or rearpillar, roof side rail and assist grip. (Except for
the speed limit sticker P. 516)

481-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■SRS airbag precautions
●Do not strike or apply significant levels of force to the area of the SRS airbag compo- nents.
Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component parts immediately after the SRS airbags have deployed (inflated) as they may be hot.
●If breathing becomes difficult after the SRS airbags have deployed, open a door orwindow to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any resi-due as soon as possible to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel pad, door ofthe glove box and front and rear pillar garnishes are damaged or cracked, have themreplaced by any authorized Lexus retailer or Lexus authorized repairer, or any reli-
able repairer.
■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications without
consulting any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer. The SRS airbags may malfunction or deploy (inflate) accidentally, causingdeath or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
●Repairs, modifications, removal or repl acement of the steering wheel, instrument panel, dashboard, glove box, seats or seat upholstery, front, side and rear pillars or
roof side rails
●Repairs or modifications of the front fender, front bumper, or side of the occupant compartment
●Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows or winches
●Modifications to the vehicle’s suspension system
●Installation of electronic devices such as mobile two-way radios (RF-transmitter) and
CD players
●Modifications to your vehicle for a person with a physical disability

491-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30F92E_(EE)

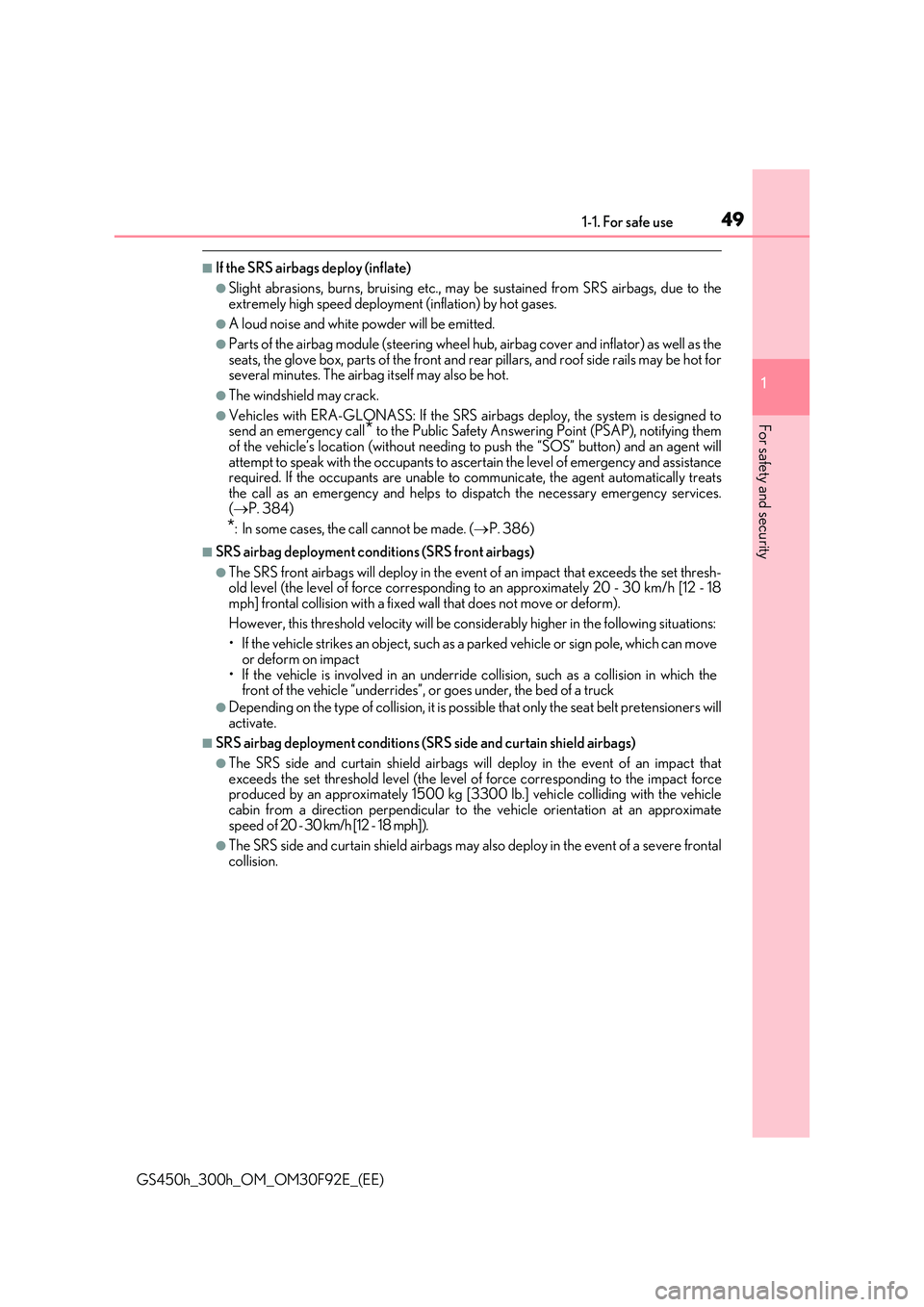

■If the SRS airbags deploy (inflate)
●Slight abrasions, burns, bruising etc., may be sustained from SRS airbags, due to the extremely high speed deployment (inflation) by hot gases.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as theseats, the glove box, parts of the front and re ar pillars, and roof side rails may be hot for several minutes. The airbag itself may also be hot.
●The windshield may crack.
●Vehicles with ERA-GLONASS: If the SRS ai rbags deploy, the system is designed to send an emergency call* to the Public Safety Answer ing Point (PSAP), notifying them
of the vehicle’s location (without needing to push the “SOS” button) and an agent will attempt to speak with the occupants to ascertain the level of emergency and assistancerequired. If the occupants are unable to communicate, the agent automatically treats
the call as an emergency and helps to di spatch the necessary emergency services. ( P. 384)
*: In some cases, the call cannot be made. (P. 386)
■SRS airbag deployment conditions (SRS front airbags)
●The SRS front airbags will deploy in the event of an impact that exceeds the set thresh- old level (the level of force corresponding to an approximately 20 - 30 km/h [12 - 18mph] frontal collision with a fixed wall that does not move or deform).
However, this threshold velocity will be cons iderably higher in the following situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the front of the vehicle “underrides”, or goes under, the bed of a truck
●Depending on the type of collision, it is possib le that only the seat belt pretensioners will activate.
■SRS airbag deployment conditions (SRS side and curtain shield airbags)
●The SRS side and curtain shield airbags w ill deploy in the event of an impact that exceeds the set threshold level (the level of force corresponding to the impact forceproduced by an approximately 1500 kg [3300 lb.] vehicle colliding with the vehicle
cabin from a direction perpendicular to the vehicle orientation at an approximate speed of 20 - 30 km/h [12 - 18 mph]).
●The SRS side and curtain shield airbags may also deploy in the event of a severe frontal
collision.

501-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)

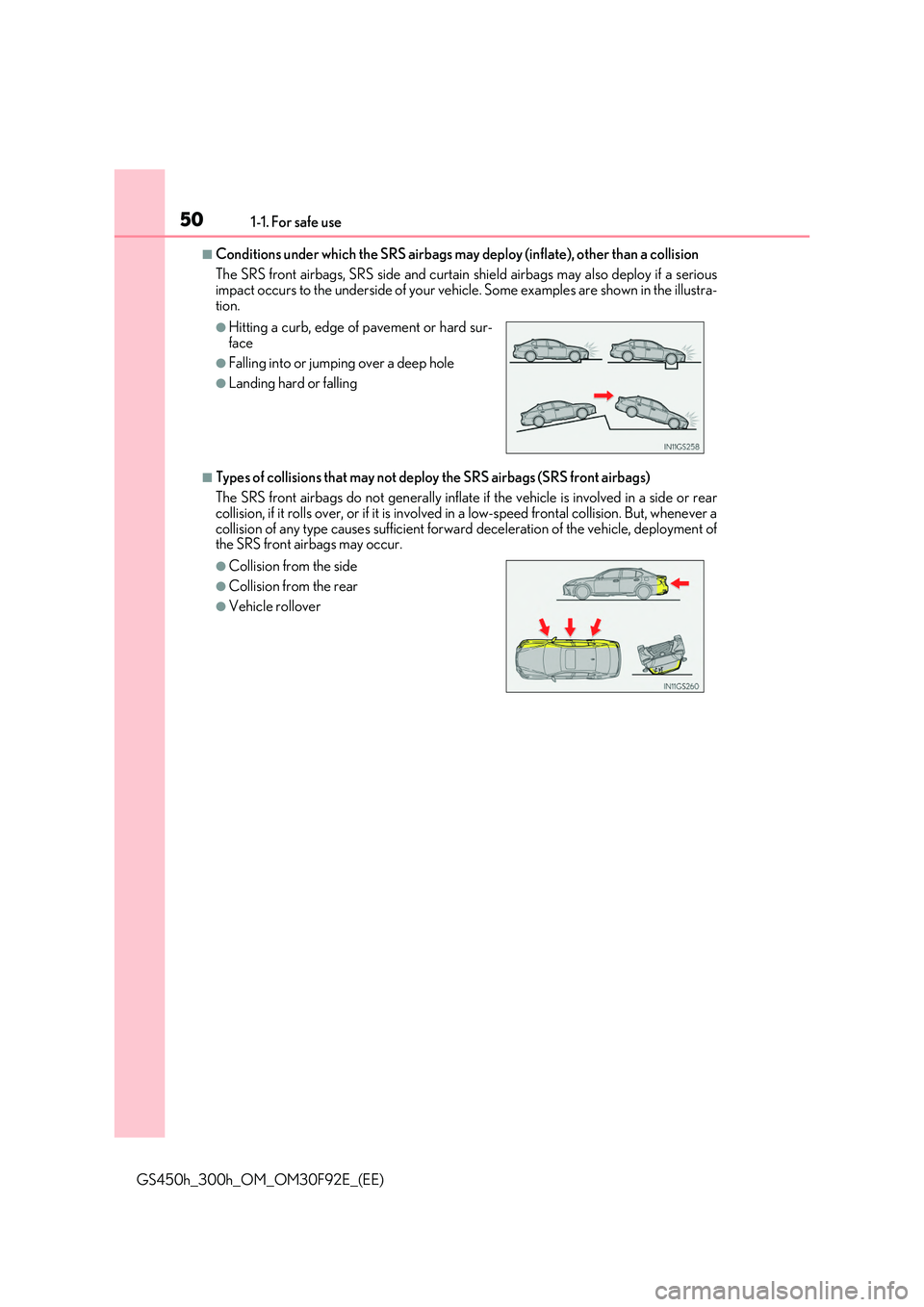

■Conditions under which the SRS airbags may deploy (inflate), other than a collision
The SRS front airbags, SRS side and curtain shield airbags may also deploy if a serious impact occurs to the underside of your vehi cle. Some examples are shown in the illustra-
tion.
■Types of collisions that may not deploy the SRS airbags (SRS front airbags)
The SRS front airbags do not generally inflate if the vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal collision. But, whenever a
collision of any type causes sufficient forward deceleration of the vehicle, deployment of the SRS front airbags may occur.
●Hitting a curb, edge of pavement or hard sur-
face
●Falling into or jumpin g over a deep hole
●Landing hard or falling
●Collision from the side
●Collision from the rear
●Vehicle rollover
