711-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30F92E_(EE)

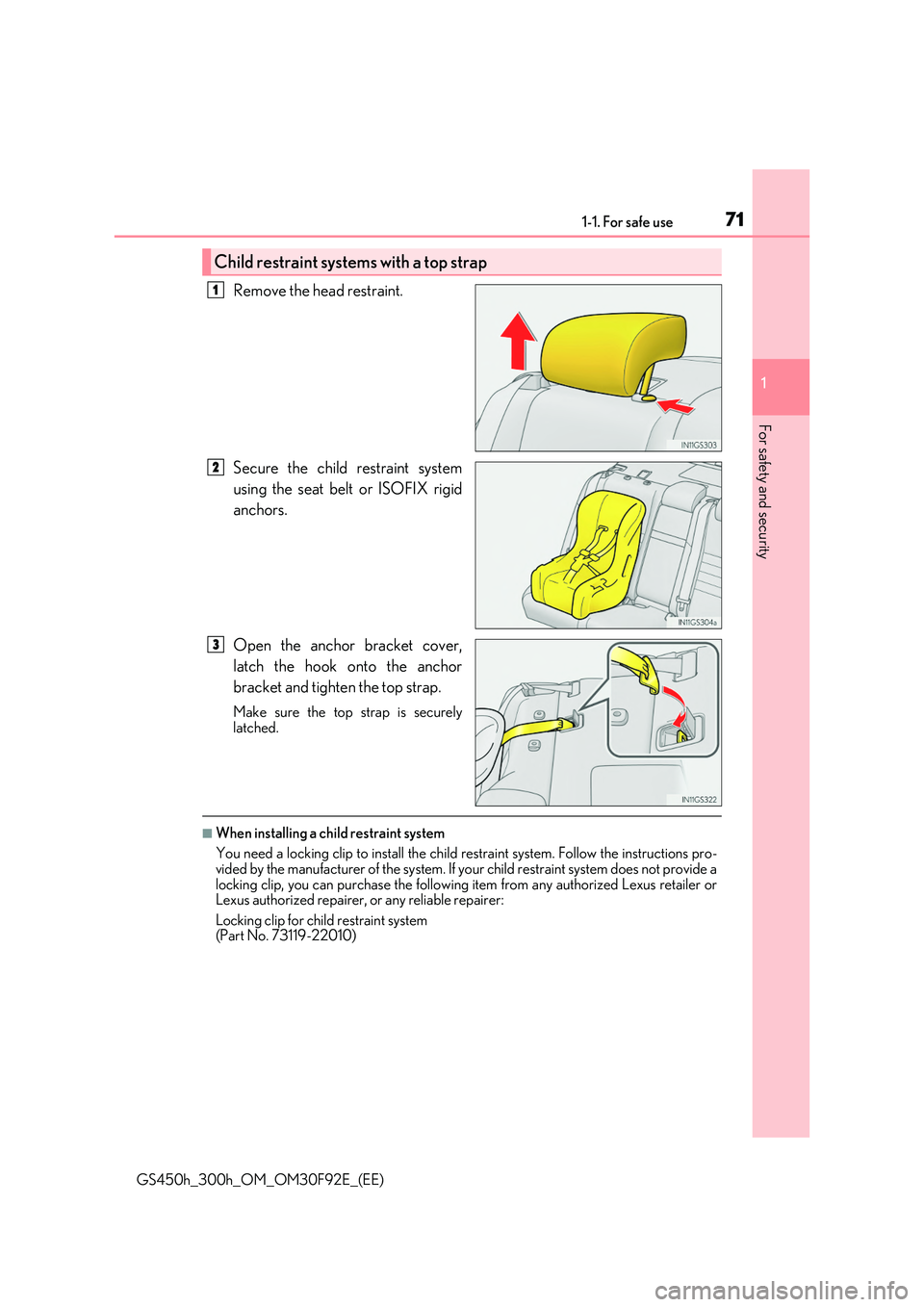

Remove the head restraint.
Secure the child restraint system
using the seat belt or ISOFIX rigid
anchors.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is securely latched.
■When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the instructions pro-
vided by the manufacturer of the system. If your child restraint system does not provide a locking clip, you can purchase the following item from any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer:
Locking clip for child restraint system (Part No. 73119-22010)
Child restraint systems with a top strap
1
2
3

721-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)

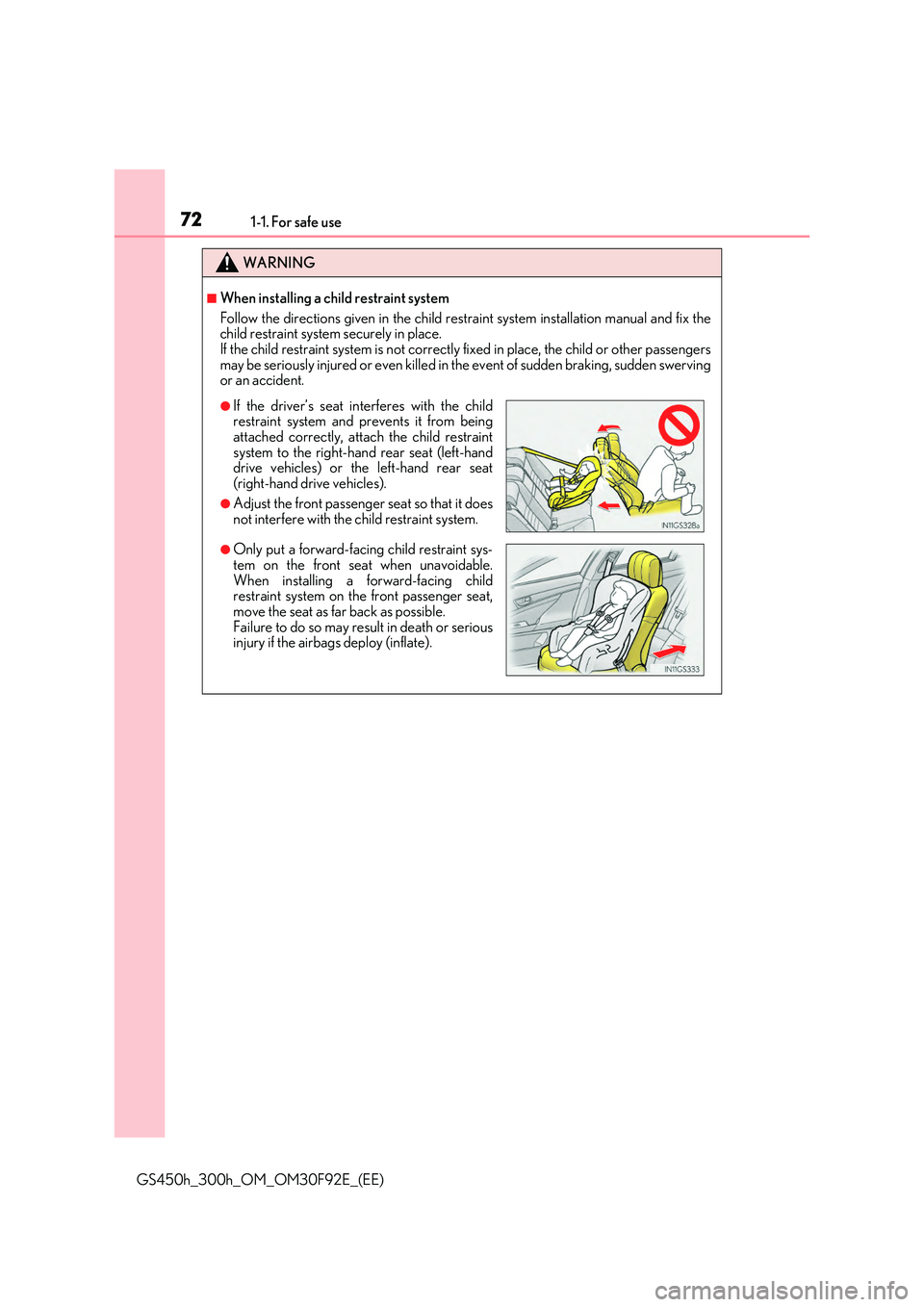

WARNING
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passengers may be seriously injured or even killed in the event of sudden braking, sudden swerving or an accident.
●If the driver’s seat interferes with the childrestraint system and prevents it from being
attached correctly, attach the child restraint system to the right-hand rear seat (left-handdrive vehicles) or the left-hand rear seat
(right-hand drive vehicles).
●Adjust the front passenger seat so that it does not interfere with the child restraint system.
●Only put a forward-facing child restraint sys-
tem on the front seat when unavoidable. When installing a forward-facing childrestraint system on the front passenger seat,
move the seat as far back as possible. Failure to do so may result in death or seriousinjury if the airbags deploy (inflate).

731-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30F92E_(EE)

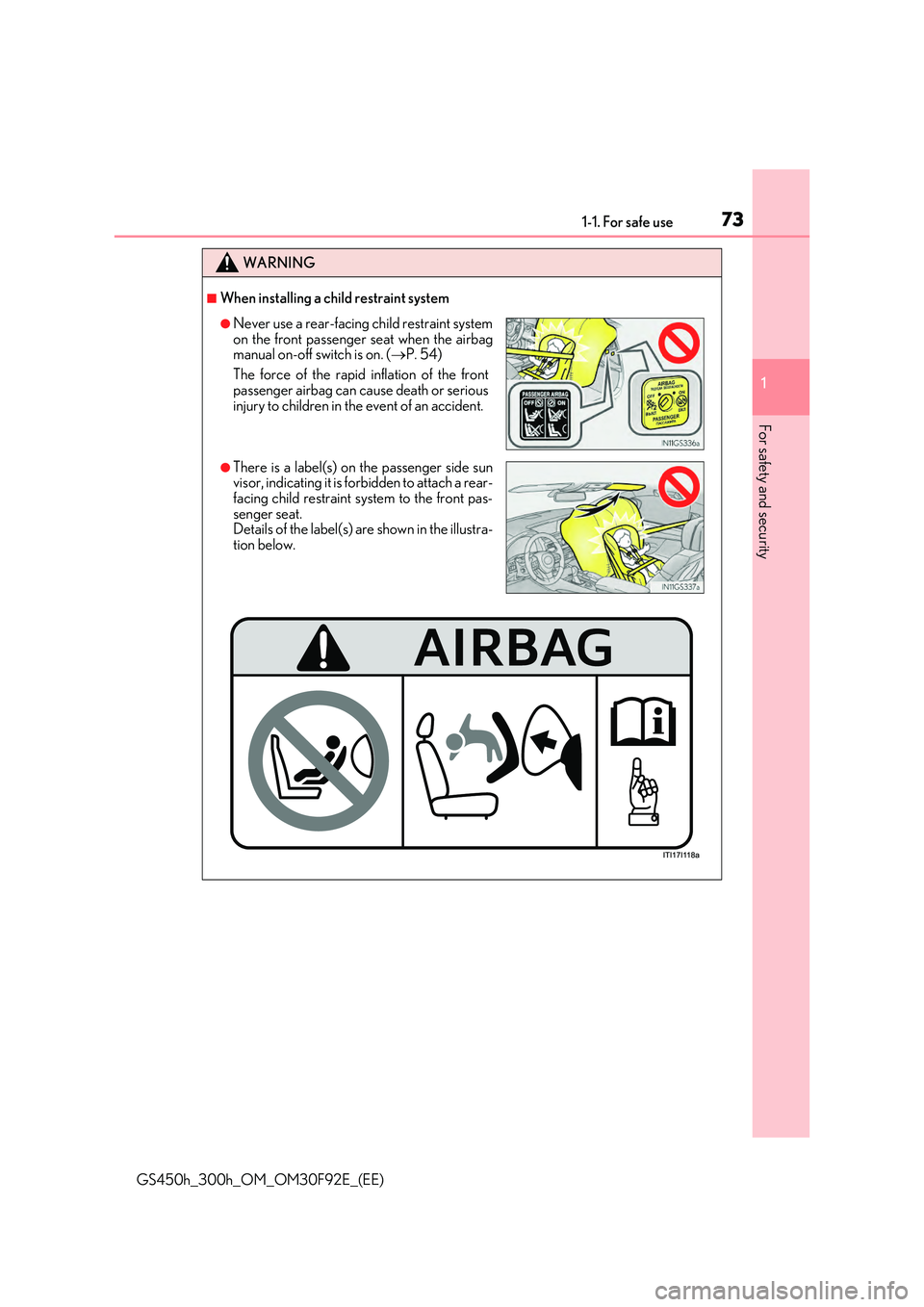

WARNING
■When installing a child restraint system
●Never use a rear-facing child restraint system
on the front passenger seat when the airbag manual on-off switch is on. ( P. 54)
The force of the rapid inflation of the front
passenger airbag can cause death or serious injury to children in the event of an accident.
●There is a label(s) on the passenger side sunvisor, indicating it is forbidden to attach a rear-facing child restraint system to the front pas-
senger seat. Details of the label(s) are shown in the illustra-tion below.

741-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)

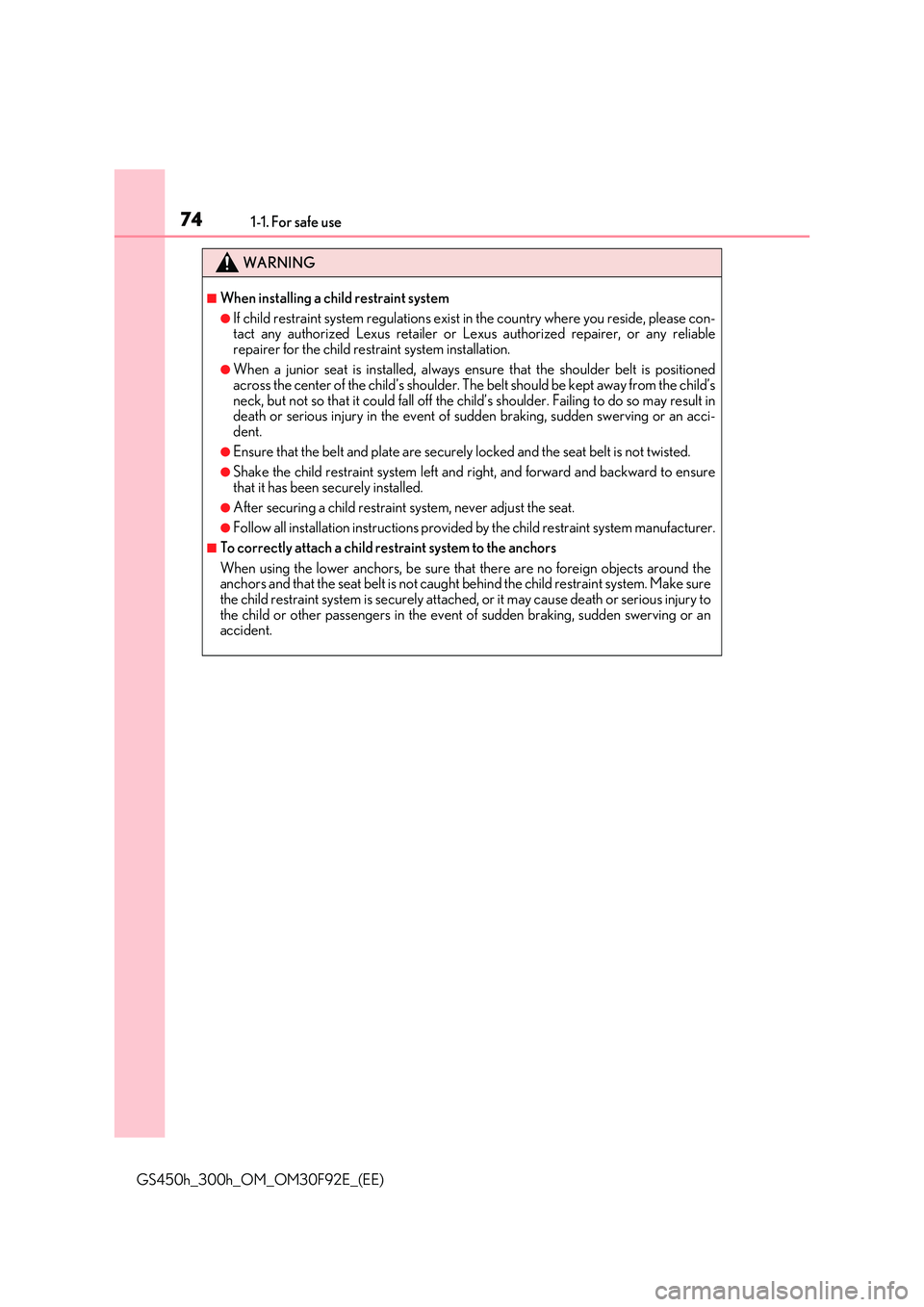

WARNING
■When installing a child restraint system
●If child restraint system regulations exist in the country where you reside, please con- tact any authorized Lexus retailer or Le xus authorized repairer, or any reliable
repairer for the child rest raint system installation.
●When a junior seat is installed, always ensure that the shoulder belt is positioned across the center of the child’s shoulder. The belt should be kept away from the child’s
neck, but not so that it could fall off the ch ild’s shoulder. Failing to do so may result in death or serious injury in the event of su dden braking, sudden swerving or an acci- dent.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Shake the child restraint system left and right, and forward and backward to ensure that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system manufacturer.
■To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects around the anchors and that the seat belt is not caught behind the child restraint system. Make sure the child restraint system is se curely attached, or it may cause death or serious injury to
the child or other passengers in the event of sudden braking, sudden swerving or an accident.

751-1. For safe use
1
GS450h_300h_OM_OM30F92E_(EE)
For safety and security

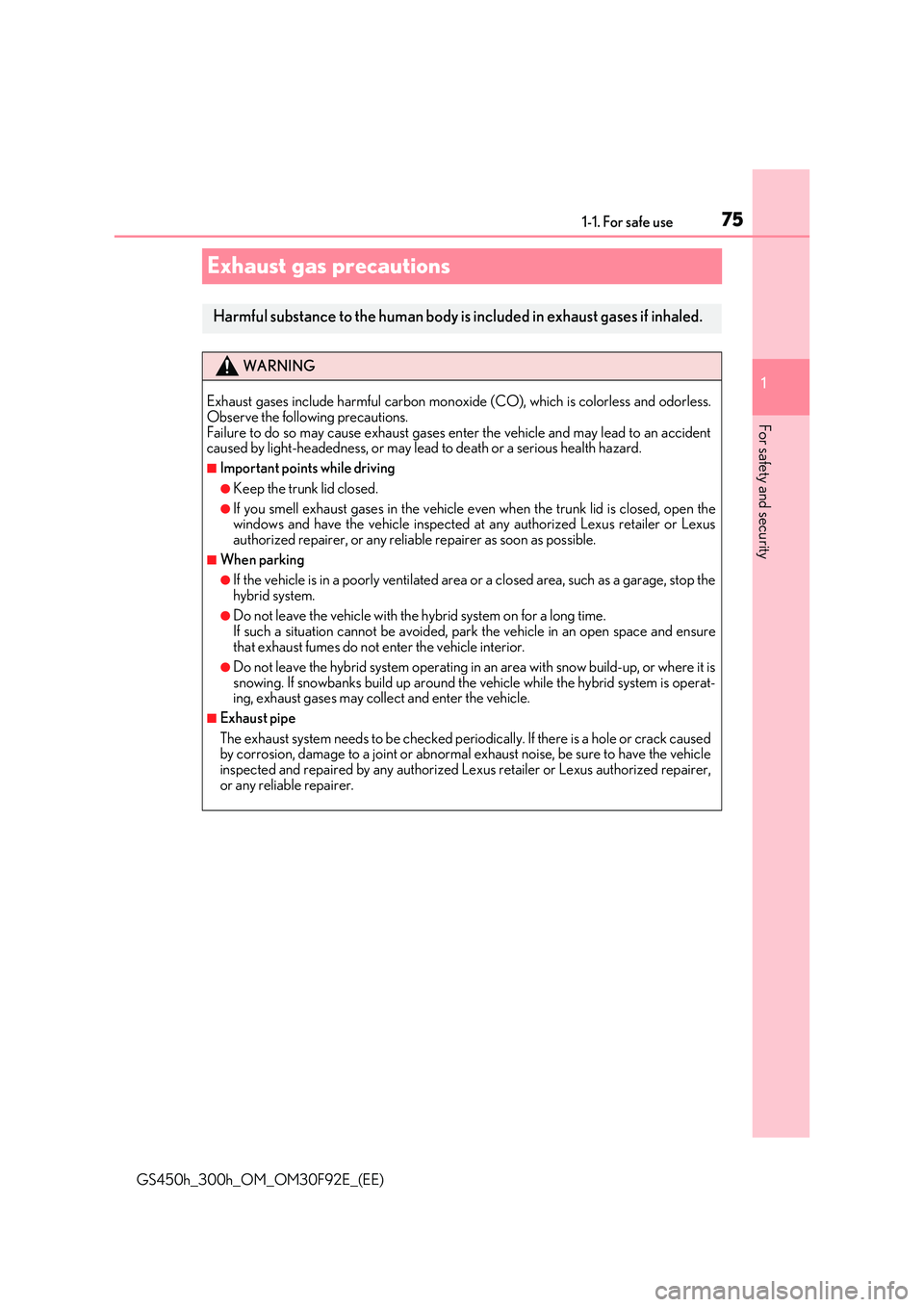

Exhaust gas precautions
Harmful substance to the human body is included in exhaust gases if inhaled.
WARNING
Exhaust gases include harmful carbon monoxide (CO), which is colorless and odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident caused by light-headedness, or may lead to death or a serious health hazard.
■Important points while driving
●Keep the trunk lid closed.
●If you smell exhaust gases in the vehicle even when the trunk lid is closed, open the windows and have the vehicle inspected at any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer as soon as possible.
■When parking
●If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the
hybrid system.
●Do not leave the vehicle with the hybrid system on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and ensure that exhaust fumes do not enter the vehicle interior.
●Do not leave the hybrid system operating in an area with snow build-up, or where it is
snowing. If snowbanks build up around the vehicle while the hybrid system is operat- ing, exhaust gases may collect and enter the vehicle.
■Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack caused by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicleinspected and repaired by any authorized Le xus retailer or Lexus authorized repairer,
or any reliable repairer.

761-2. Hybrid system
GS450h_300h_OM_OM30F92E_(EE)

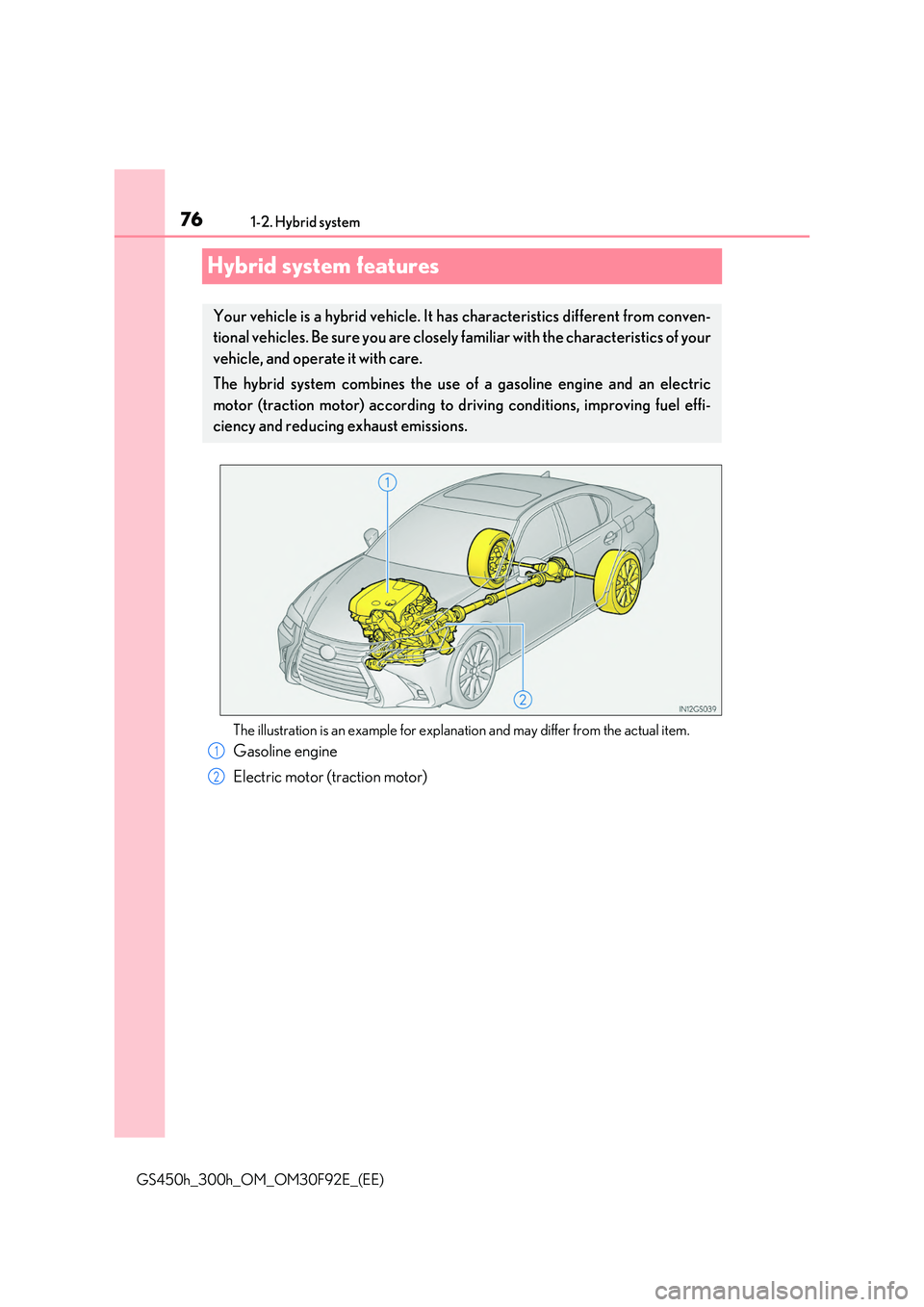

Hybrid system features
The illustration is an exam ple for explanation and may differ from the actual item.
Gasoline engine
Electric motor (traction motor)
Your vehicle is a hybrid vehicle. It ha s characteristics different from conven-
tional vehicles. Be sure you are closely familiar with the characteristics of your
vehicle, and operate it with care.
The hybrid system combines the use of a gasoline engine and an electric
motor (traction motor) according to dr iving conditions, improving fuel effi-
ciency and reducing exhaust emissions.
1
2

771-2. Hybrid system
1
GS450h_300h_OM_OM30F92E_(EE)
For safety and security

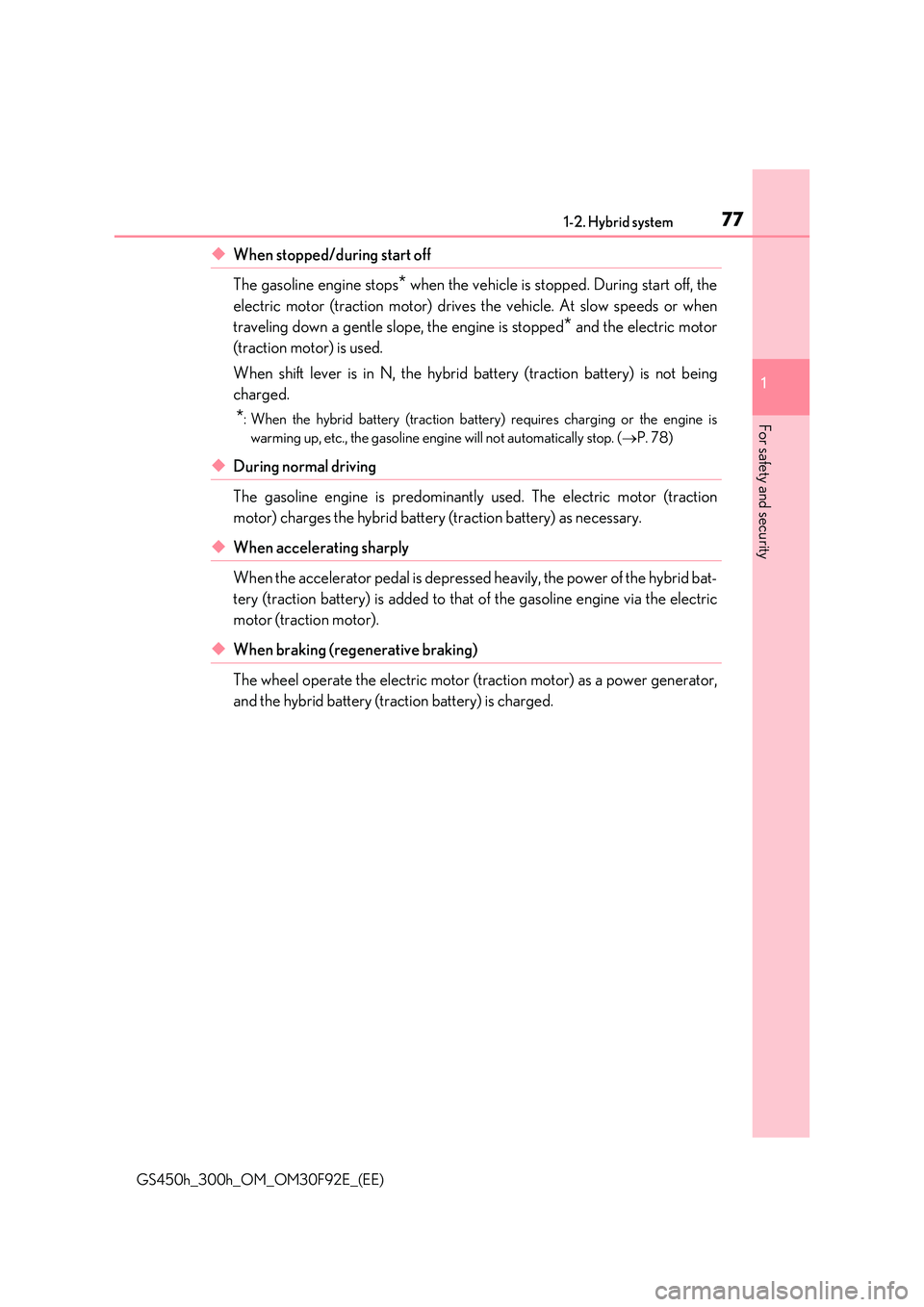

◆When stopped/during start off
The gasoline engine stops* when the vehicle is stopped. During start off, the
electric motor (traction motor) drives the vehicle. At slow speeds or when
traveling down a gentle slope, the engine is stopped* and the electric motor
(traction motor) is used.
When shift lever is in N, the hybrid battery (traction battery) is not being
charged.
*: When the hybrid battery (traction battery) requires charging or the engine is
warming up, etc., the gasoline engine will not automatically stop. ( P. 78)
◆During normal driving
The gasoline engine is predominantly used. The electric motor (traction
motor) charges the hybrid battery (traction battery) as necessary.
◆When accelerating sharply
When the accelerator pedal is depressed heavily, the power of the hybrid bat-
tery (traction battery) is added to that of the gasoline engine via the electric
motor (traction motor).
◆When braking (regenerative braking)
The wheel operate the electric motor (t raction motor) as a power generator,
and the hybrid battery (traction battery) is charged.

781-2. Hybrid system
GS450h_300h_OM_OM30F92E_(EE)

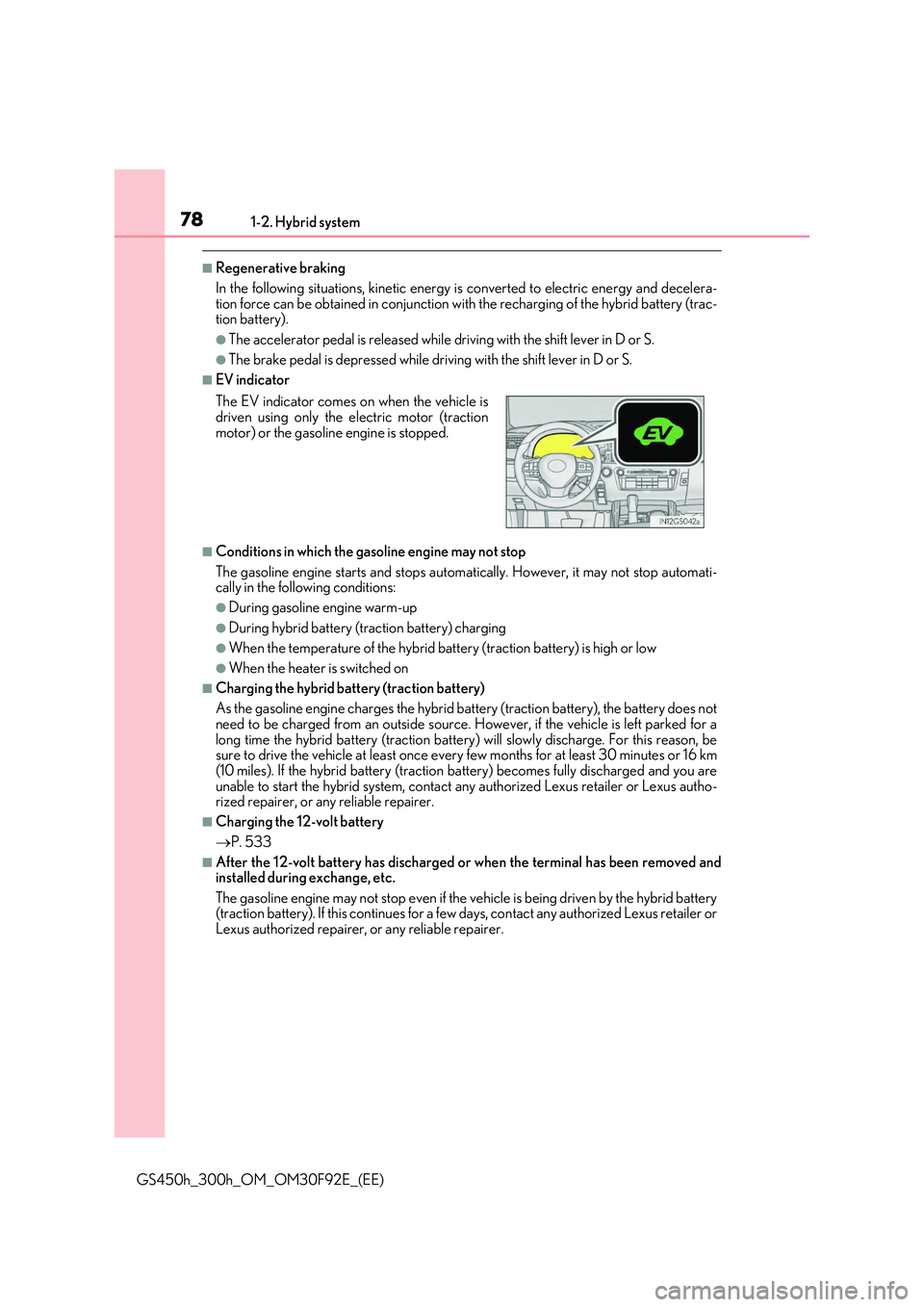

■Regenerative braking
In the following situations, kinetic energy is converted to electric energy and decelera- tion force can be obtained in conjunction with the recharging of the hybrid battery (trac-tion battery).
●The accelerator pedal is released while driving with the shift lever in D or S.
●The brake pedal is depressed while driving with the shift lever in D or S.
■EV indicator
■Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop automati- cally in the following conditions:
●During gasoline engine warm-up
●During hybrid battery (traction battery) charging
●When the temperature of the hybrid battery (traction battery) is high or low
●When the heater is switched on
■Charging the hybrid battery (traction battery)
As the gasoline engine charges the hybrid battery (traction battery), the battery does not need to be charged from an outside source. However, if the vehicle is left parked for a
long time the hybrid battery (traction battery ) will slowly discharge. For this reason, be sure to drive the vehicle at least once every few months for at least 30 minutes or 16 km(10 miles). If the hybrid battery (traction battery) becomes fully discharged and you are
unable to start the hybrid system, contact any authorized Lexus retailer or Lexus autho- rized repairer, or any reliable repairer.
■Charging the 12-volt battery
 P. 533
■After the 12-volt battery has discharged or when the terminal has been removed and installed during exchange, etc.
The gasoline engine may not stop even if the vehicle is being driven by the hybrid battery (traction battery). If this continues for a few days, contact any authorized Lexus retailer orLexus authorized repairer, or any reliable repairer.
The EV indicator comes on when the vehicle is driven using only the electric motor (traction
motor) or the gasoline engine is stopped.

791-2. Hybrid system
1
GS450h_300h_OM_OM30F92E_(EE)
For safety and security

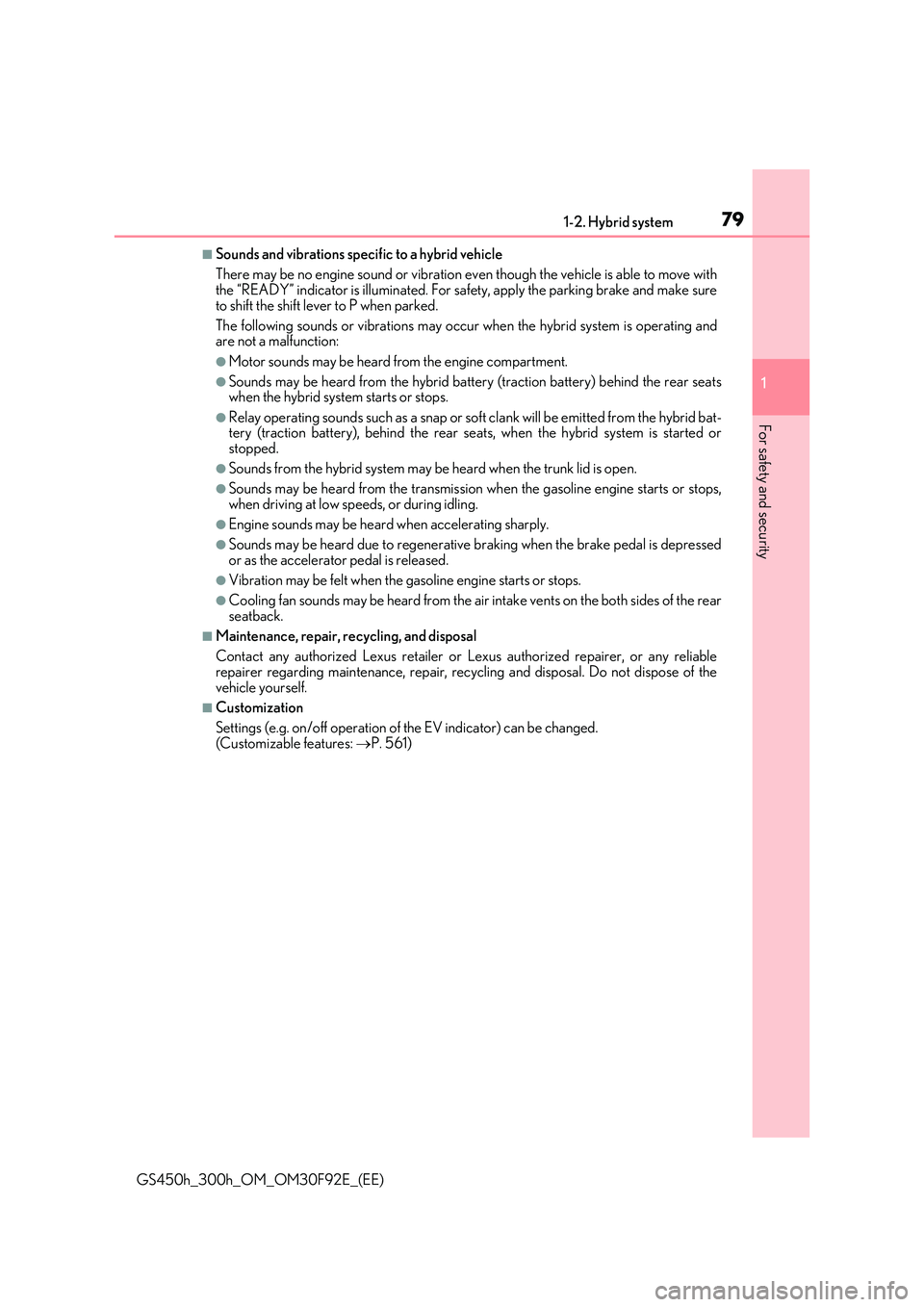

■Sounds and vibrations specific to a hybrid vehicle
There may be no engine sound or vibration ev en though the vehicle is able to move with the “READY” indicator is illuminated. For sa fety, apply the parking brake and make sure
to shift the shift lever to P when parked.
The following sounds or vibrations may occu r when the hybrid system is operating and are not a malfunction:
●Motor sounds may be heard from the engine compartment.
●Sounds may be heard from the hybrid battery (traction battery) behind the rear seats when the hybrid system starts or stops.
●Relay operating sounds such as a snap or so ft clank will be emitted from the hybrid bat- tery (traction battery), behind the rear se ats, when the hybrid system is started or stopped.
●Sounds from the hybrid system may be heard when the trunk lid is open.
●Sounds may be heard from the transmission when the gasoline engine starts or stops, when driving at low speeds, or during idling.
●Engine sounds may be heard when accelerating sharply.
●Sounds may be heard due to regenerative braking when the brake pedal is depressedor as the accelerator pedal is released.
●Vibration may be felt when the gasoline engine starts or stops.
●Cooling fan sounds may be heard from the air intake vents on the both sides of the rear seatback.
■Maintenance, repair, recycling, and disposal
Contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer regarding maintenance, repair, recy cling and disposal. Do not dispose of the
vehicle yourself.
■Customization
Settings (e.g. on/off operation of the EV indicator) can be changed. (Customizable features: P. 561)

801-2. Hybrid system
GS450h_300h_OM_OM30F92E_(EE)

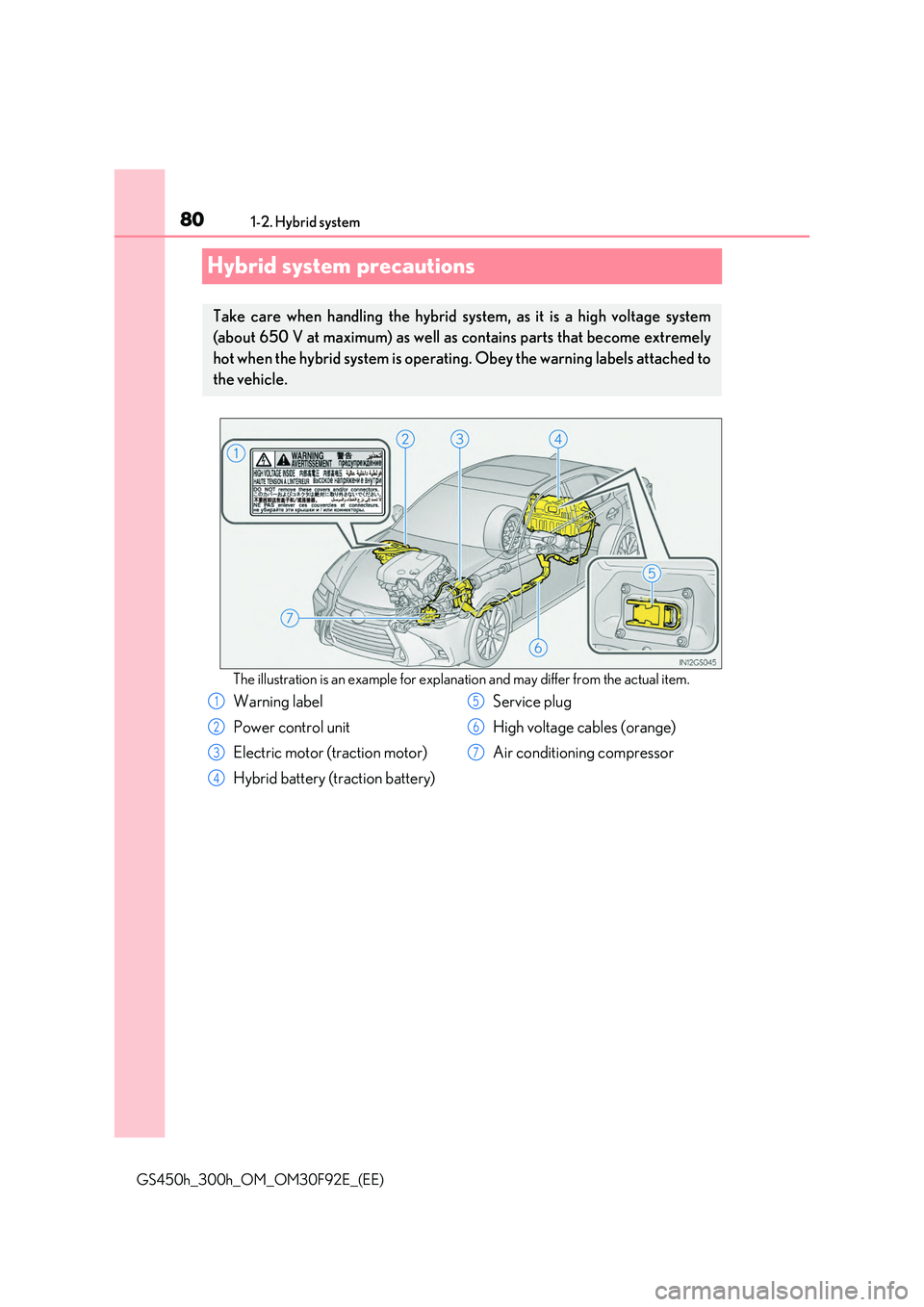

Hybrid system precautions
The illustration is an exam ple for explanation and may differ from the actual item.
Take care when handling the hybrid system, as it is a high voltage system
(about 650 V at maximum) as well as contains parts that become extremely
hot when the hybrid system is operatin g. Obey the warning labels attached to
the vehicle.
Warning label
Power control unit
Electric motor (traction motor)
Hybrid battery (traction battery)
Service plug
High voltage cables (orange)
Air conditioning compressor
1
2
3
4
5
6
7
