492
5-2. Steps to take in an emergency
If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the automatic air
conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam: 
Stop the engine and car efully lif
t the hood.
If you do not see steam: Leave the engine running and carefully lift the hood.
Remove the engine compartment cover. ( P. 3 7 8 )
Check to see if the cooling fan is operating.
If the fan is operating: 
Wait until the engine coolant temperature gauge begins to
fall and then stop the engine.
If the fan is not operating: 
Stop the engine immediately and call y
our local Lexus
dealer.
After the engine has cooled
do
wn sufficiently, check the
coolant level and inspect the
radiator core (radiator) for any
leaks.
STEP1
STEP2
STEP3
STEP4
STEP5

5
When trouble arises
493
5-2. Steps to take in an emergency
■Overheating
In the following situations, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when in specting under the hood of your vehicle
●Keep hands and clothing away from the fan and engine drive belt while the
engine is running.
●Do not loosen the radiator cap while the engine and radiator are hot. 
Serious injury, such as burns, may resu lt from hot coolant and steam released
under pressure.
Add coolant if required.
Water can be used in an emer -
gency measure if coolant is
una
vailable. ( P. 5 0 2 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP6

494
5-2. Steps to take in an emergency
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too quickly
can cause damage to the engine.

5
When trouble arises
495
5-2. Steps to take in an emergency
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the surround-
ing area is clear, to avoid striking other vehicles, objects or persons. The vehicle
may also lunge forward or lunge back suddenly as it becomes free. Use extreme
caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
●If the vehicle remains stuck after trying these procedures, the vehicle may require
towing to be freed.
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and shift the shift lever
in “P”.
Remove the mud, snow, or sand fr
om around the stuck tire.
Place wood, stones or some ot her material to help pr
ovide
traction under the tires.
Restart the engine.
Shift the shift lever to the “D” or “R” position and carefully apply
the accelerator to free the vehicle.
Turn off TRAC/VSC if these functions ar
e hampering your
attempts to free the vehicle. (  P. 1 6 1 )
STEP1
STEP2
STEP3
STEP4
STEP5

499
6-1. Specifications
6
Vehicle specifications
Vehicle identification
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the
engine compartment.
This number is also on the Certifi-
cation Label.
The engine number is stamped on the engine block as shown.
GS430GS350

500
6-1. Specifications
Engine
Fuel
GS430GS350
Model3UZ-FE2GR-FSE
Ty p e8-cylinder V type, 4-
cycle, gasoline6-cylinder V type, 4-
cycle, gasoline
Bore and stroke3.58  3.25 in. 
(91.0  82.5 mm)3.70  3.27 in. 
(94.0  83.0 mm)
Displacement262.0 cu.in. (4293 cm3)210.9 cu.in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel typePremium unleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity18.7 gal. (71 L, 15.6 lmp.gal)

501
6-1. Specifications
6
Vehicle specifications
Lubrication system
*: 5W-30 is an oil that provides optimal levels of fuel efficiency.
Oil viscosity:
● The 5W por
tion of the oil viscosity rating indicates the characteristic of
the oil which allows cold startability . Oils with a lower value before the W
allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is as its operating
temperature. An oil with a higher viscosity may be better suited if the
vehicle is operated at high speeds, or under extreme load condition.
GS430GS350 (2WD)GS350 (4 WD)
Oil capacity 
(drain and refill)
with filter
without filter5.4 qt. (5.1 L, 4.5
lmp.qt.)
4.8 qt. (4.5 L,
4.0 lmp.qt.)6.6 qt. (6.3 L, 5.5
lmp.qt.)
6.2 qt. (5.9 L, 5.2
lmp.qt.)6.7 qt. (6.4 L, 5.6
lmp.qt.)
6.3 qt. (6.0 L,
5.3 lmp.qt.)
Oil gradeILSAC multigrade engine oil
Recommended oil 
viscosity
Use Lexus approved “Toyota Genuine Motor Oil” or
equivalent to satisfy the above grade and viscosity.
Outside temperature

502
6-1. Specifications
Cooling system
Ignition system
GS430GS350
Capacity10.7 qt. 
(10.1 L, 8.9 lmp.qt.)9.6 q t . 
(9.1 L, 8.0 lmp.qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
GS430GS350
Spark plug
Make DENSO 
NGK
SK20R11
IFR6A11FK20HBR11 
ILFR6D11T
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

503
6-1. Specifications
6
Vehicle specifications
Electrical system
Differential
Battery
Open voltage at
68F (20 C):12.6  12.8V Fully charged 
12.2  12.4V Half charged 
11.8  12.0V Discharged 
(Voltage is checked 20 minutes after
the engine and all lights are turned off.)
Charging rates5A max.
GS430GS350 (2WD)GS350 (4WD)
Oil capacity1.42 qt. 
(1.35 L, 1.19 lmp.qt.)1.42 qt. 
(1.35 L, 1.19 lmp.qt.)
Front: 0.73 qt. 
(0.70 L, 0.61 lmp.qt.)
Rear: 1.42 qt. 
(1.35 L, 1.19 lmp.qt.)
Oil type and
viscosityToyota Genuine Synthetic Differential Gear Oil
API GL-5 SAE 75W-85

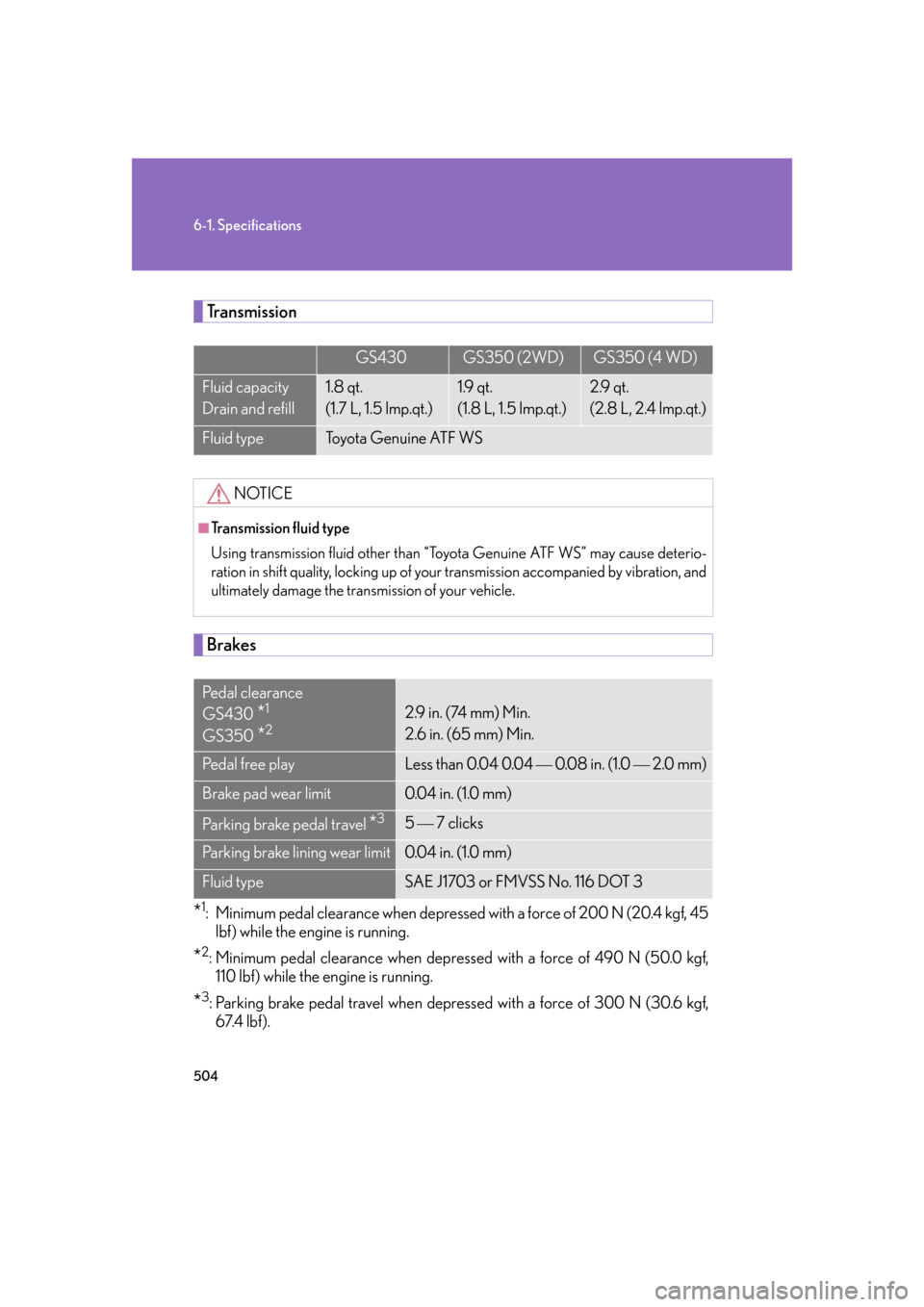

504
6-1. Specifications
Transmission
Brakes
*1: Minimum pedal clearance when depressed with a force of 200 N (20.4 kgf, 45 lbf) while the engine is running.
*2: Minimum pedal clearance when depressed with a force of 490 N (50.0 kgf, 110 lbf) while the engine is running.
*3: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf, 67.4 lbf).
GS430GS350 (2WD)GS350 (4 WD)
Fluid capacity
Drain and refill1.8 qt. 
(1.7 L, 1.5 lmp.qt.)1.9 qt. 
(1.8 L, 1.5 lmp.qt.)2.9 qt. 
(2.8 L, 2.4 lmp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “T oyota Genuine ATF WS” may cause deterio-
ration in shift quality, locking up of your transmission accompanied by vibration, and
ultimately damage the transmission of your vehicle.
Pe d a l c l e a r a n c e
GS430
*1
GS350 *2
2.9 in. (74 mm) Min.
2.6 in. (65 mm) Min.
Pedal free playLess than 0.04 0.04  0.08 in. (1.0  2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake pedal travel *35  7 clicks
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
