display Lexus GS350 2007 Using the front audio system / LEXUS 2007 GS430/350 OWNER'S MANUAL (OM30A04U)

TABLE OF CONTENTSIndex
ii
1-1. Key information .............................. 2Keys ......................................................... 2
1-2. Opening, closing and locking 
the doors and trunk ..................... 4
Smart access system with  push-button start ............................. 4
Wireless remote control ............... 14
Doors...................................................... 17
Trunk...................................................... 21
1-3. Adjustable components ............ 25 Front seats .......................................... 25
Driving position memory 
system ............................................... 27
Head restraints................................ 30
Seat belts ............................................ 33
Steering wheel.................................. 39
Inside rear view mirror .................. 40
Outside rear view mirrors ............ 41
1-4. Opening and closing the 
windows and moon roof .......... 43
Power windows................................ 43
Moon roof .......................................... 46
1-5. Refueling ........................................ 49 Opening the fuel tank cap ........... 49 1-6. Anti-theft system ......................... 52
Engine immobilizer system ......... 52
Alarm.................................................... 54
Theft prevention labels 
(U.S.A.) ............................................. 56
1-7. Safety information ....................... 57 Correct driving posture ............... 57
SRS airbags ....................................... 59
Front passenger occupant 
classification system .................... 70
Child restraint sy stems ................. 76
Installing child restraints ............... 79
2-1. Driving procedures..................... 90 Driving the vehicle .......................... 90
Starting the engine ......................... 97
Transmission ................................... 100
Turn signal lever............................. 104
Parking brake ................................. 105
2-2. Instrument cluster ..................... 106 Gauges and meters ..................... 106
Indicators and warning lights .... 110
Multi-information display............. 113
2-3. Operating the lights and 
windshield wipers..................... 116
Headlight switch .............................. 116
1Before driving
2When driving

TABLE OF CONTENTSIndex
iv
List of storage features................ 310
3-7. Other interior features............ 316 Sun visors.......................................... 316
Vanity mirror ................................... 317
Clock .................................................. 318
Outside temperature display ... 319
Ashtrays .......................................... 320
Cigarette lighter ............................ 321
Power outlet ................................... 322
Seat heaters .................................... 323
Seat heaters and ventilators .... 325
Armrest ............................................ 327
Rear sunshade .............................. 328
Floor mats....................................... 330
Trunk features................................. 331
Garage door opener .................. 334
Compass.......................................... 339
Lexus Link System ....................... 343
4-1. Maintenance and care............ 358 Cleaning and protecting the 
vehicle exterior ......................... 358
Cleaning and protecting the 
vehicle interior........................... 360
4-2. Maintenance ............................. 363 Maintenance requirements ..... 363
General maintenance ............... 365 Emission inspection and

maintenance (I/M) 
programs ..................................... 368
4-3. Do-it-yourself maintenance .. 369 Do-it-yourself service 
precautions .................................. 369
Hood.................................................. 372
Positioning the jack ..................... 373
Engine compartment.................. 375
Tires .................................................. 390
Tire inflation pressure................ 400
Wheels.............................................. 404
Air conditioning filter................. 406
Electronic key battery ............... 409
Checking and replacing 
fuses ................................................... 411
Headlight aim................................. 429
Light bulbs ........................................ 431
5-1. Essential information .............. 438 If your vehicle needs to be 
towed............................................. 438
If you think something is 
wrong ............................................. 445
Fuel pump shut off system ........ 446
Event data recorder .................... 447
5-2. Steps to take in an 
emergency ............................... 449
4Maintenance and care
5When trouble arises

1
2
3
4
5
6
7
v
If a warning light turns on or a 
warning buzzer sounds................ 449
If a warning message is 
displayed....................................... 455
If you have a flat tire (Vehicles 
with run-flat tires) ...................... 472
If you have a flat tire (Vehicles 
with standard tires) ................... 473
If the engine will not start ......... 483
If the shift lever cannot be 
shifted from P .............................. 484
If you lose your keys ................... 485
If the electronic key does not 
operate properly ...................... 486
If the vehicle battery is 
discharged .................................. 488
If your vehicle overheats ........... 492
If the vehicle becomes stuck ... 495
6-1. Specifications............................ 498 Maintenance data ....................... 498
Fuel information ........................... 508
Tire information................................ 511
6-2. Customization .......................... 523 Customizable features .............. 523
6-3. Initialization ................................ 527 Items to initialize ........................... 527 Reporting safety defects for

U.S. owners................................. 530
Alphabetical index................... 532
What to do if............................... 540
6Vehicle specifications
7For US owners
Index

xii
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 116
P. 104
P. 119
Gauges and meters P. 106
Multi-information display P. 113
Windshield wipers and washer switch P. 120
Engine switch P. 97
Trunk opener main switch P. 21
Glove box P. 311
Seat heater switches
Seat heater/ventilator switches

P. 323
P. 325
Tilt and telescopic steering 
control switch
P. 39
Parking brake pedal
P. 105
“VSC OFF” switch P. 161
Coin holder P. 313
Mode select switch P. 101
“AVS” switch P. 158

xiv
C
Pictorial indexInstrument panel
Security indicator P. 52, 54
Rear window and outside 
rear view mirror defoggers 
P. 198
Emergency flashers
Clock
P. 318Outside temper
ature display P. 319
Air conditioning 
system
P. 190
Audio system
P. 199
Navigation system*

7
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors have
be
en locked/unlocked. (Locked: Once; Unlocked: Twice)
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the fol -
lowing situations, the communication between the electronic key and the vehicle
m
ay be affected, preventing the smart a ccess system with push-button start and
wireless remote control from operating properly. (Way of coping; P. 4 8 6 )
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone or other wireless communica -
tion devices
●When multiple electronic keys has come into contact with, or is covered by a
metallic object
●When multiple electronic keys are in the vicinity
●When carrying or using the electronic key together with the following devices
that emit radio waves
• Another vehicle's electronic key
• A wireless key that emits radio waves
• Personal computer
●If window tint with a metallic content or metallic object are attached to the rear
window

8
1-2. Opening, closing and locking the doors and trunk
■Switching the door unlock function
It is possible to set which doors the entry function unlocks. Turn the engine switch “OFF”.
When the indicator on the key surface is turned off, push and
hold , , or for approximately 5 seconds while pushing the
button on the key.
The setting changes each time an operation is performed, as shown below. (Wait for
at least 5 seconds after each oper ation to continue an operation.)
Unlock the doors using the wireless remote control and open one of the
doors.
If a door is not opened within 60 seconds after is pressed, the doors
will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm. ( P. 5 4 )
STEP1
STEP2
Multi-information
displayUnlocking doorsBeep
Hold the driver’s door handle
to unlock only the driver’s
door
Exterior: Beeps 3 times
Interior: Rings once
Hold a passenger’s door han-
dle to unlock all the doors
Hold the door handle to
unlock the front and rear
doors on your sideExterior: Beeps 4 times
Interior: Rings once
Hold the door handle to
unlock the doorExterior: Beeps once
Interior: Rings once
Hold a door handle to unlock
all doorsExterior: Beeps twice
Interior: Rings once
STEP3

11
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warnings displayed on the
multi-information display are used to prevent theft of the vehicle and unforeseeable
accidents resulting from erroneous operation. Take appropriate measures in
response to any warning indications on the multi-information display. (P. 4 6 2 )
The following table describes circumstances and correction procedures when only
alarms are sounded.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for 2
seconds
Tried to lock the doors using
the entry function while the
electronic key is still inside
the passenger compartmentRetrieve the electronic
key from the passenger
compartment and lock
the doors again.
Tried to exit the vehicle with
the electronic key and lock
the doors without first turning
the engine switch “OFF”Turn the engine switch
“OFF” and lock the
doors again.
Closed the trunk while the
electronic key is still inside
and all doors are lockedRetrieve the electronic
key from the trunk and
close the trunk lid.
Exterior alarm
sounds once for 10
secondsTried to lock the vehicle using
the entry function while a
door is openClose all of the doors
and lock the doors
again.
Interior alarm
sounds continu-
ouslyTried to open the door and
exit the vehicle without shift-
ing the shift lever to “P”Shift the shift lever to
“P”.

79
1
1-7. Safety information
Before driving

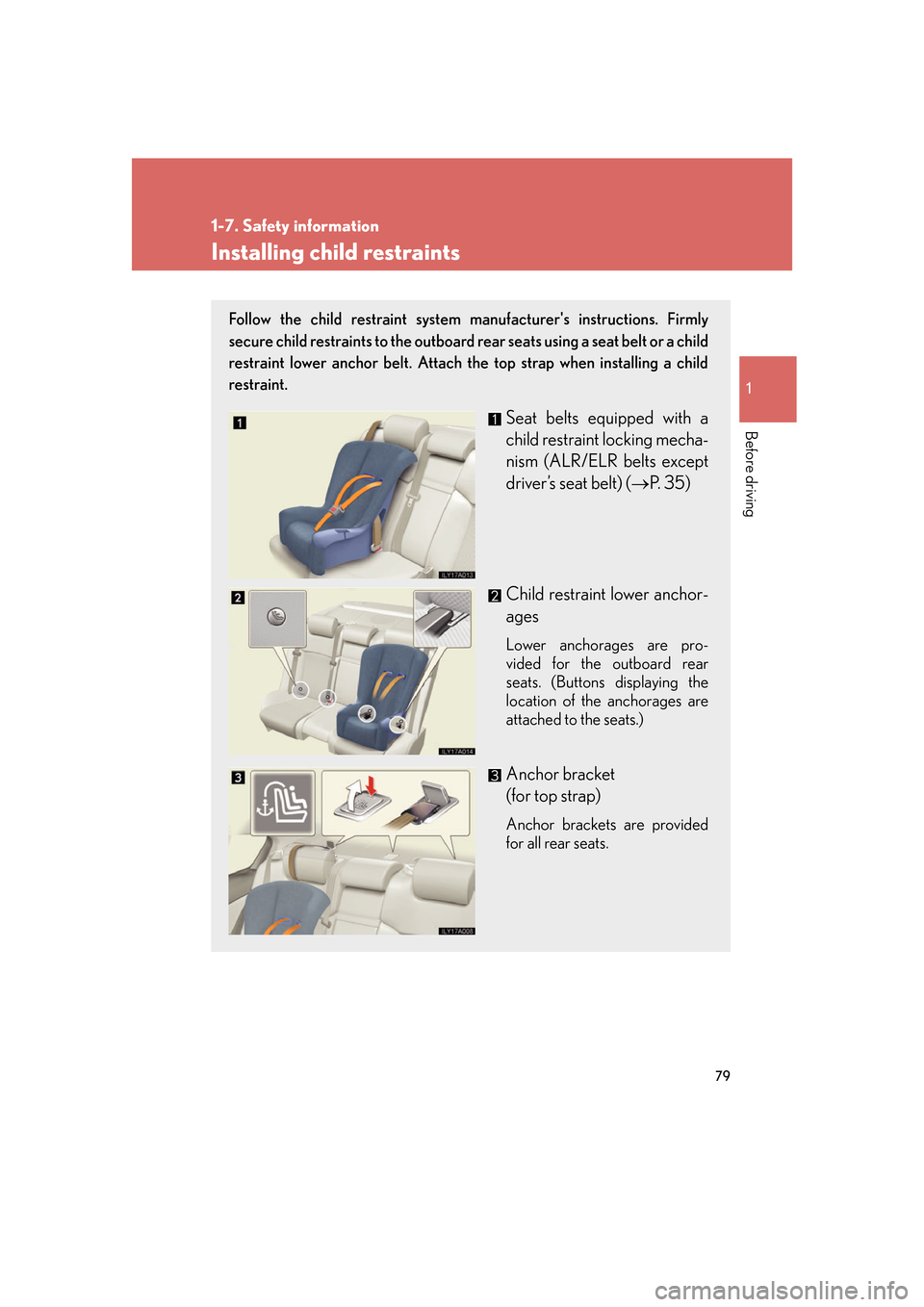

Installing child restraints
Follow the child restraint system manufacturer's instructions. Firmly
secure child restraints to the outboard rear seats using a seat belt or a child
restraint lower anchor belt. Attach the top strap when installing a child
restraint.
Seat belts equipped with a
child restraint locking mecha -
nism (ALR/ELR belts except
driv

er’s seat belt) ( P. 3 5)
Child restraint lower anchor -
ages
Lower anchorages are pro -
vided for the outboard rear
seats. (Bu
ttons displaying the
location of the anchorages are
attached to the seats.)
Anchor bracket 
(for top strap)
Anchor brackets are provided
for all rear seats.

When driving2
89
2-1. Driving procedures ................. 90Driving the vehicle ....................... 90
Starting the engine ...................... 97
Transmission ................................. 100
Turn signal lever .......................... 104
Parking brake ............................... 105
2-2. Instrument cluster................... 106 Gauges and meters .................. 106
Indicators and warning 
lights............................................... 110
Multi-information display.......... 113
2-3. Operating the lights and 
windshield wipers .................. 116
Headlight switch ........................... 116
Fog light switch.............................. 119
Windshield wipers and 
washer.......................................... 120
Headlight cleaner switch ........ 123
2-4. Using other driving 
systems .................................... 124
Cruise control............................... 124
Dynamic radar cruise 
control........................................... 127 Intuitive parking assist .............. 136
Rear view monitor system ...... 155
AVS (Adaptive Variable

Suspension System) ............... 158
Driving assist systems............... 159
PCS (Pre-Collision 
System)........................................ 165
2-5. Driving information................ 168 Cargo and luggage................... 168
Vehicle load limits ........................ 171
Winter driving tips ...................... 172
Trailer towing................................. 177
Dinghy towing .............................. 178
