484
5-1. Essential information
GS_G_U
May 13, 2008 5:14 pm

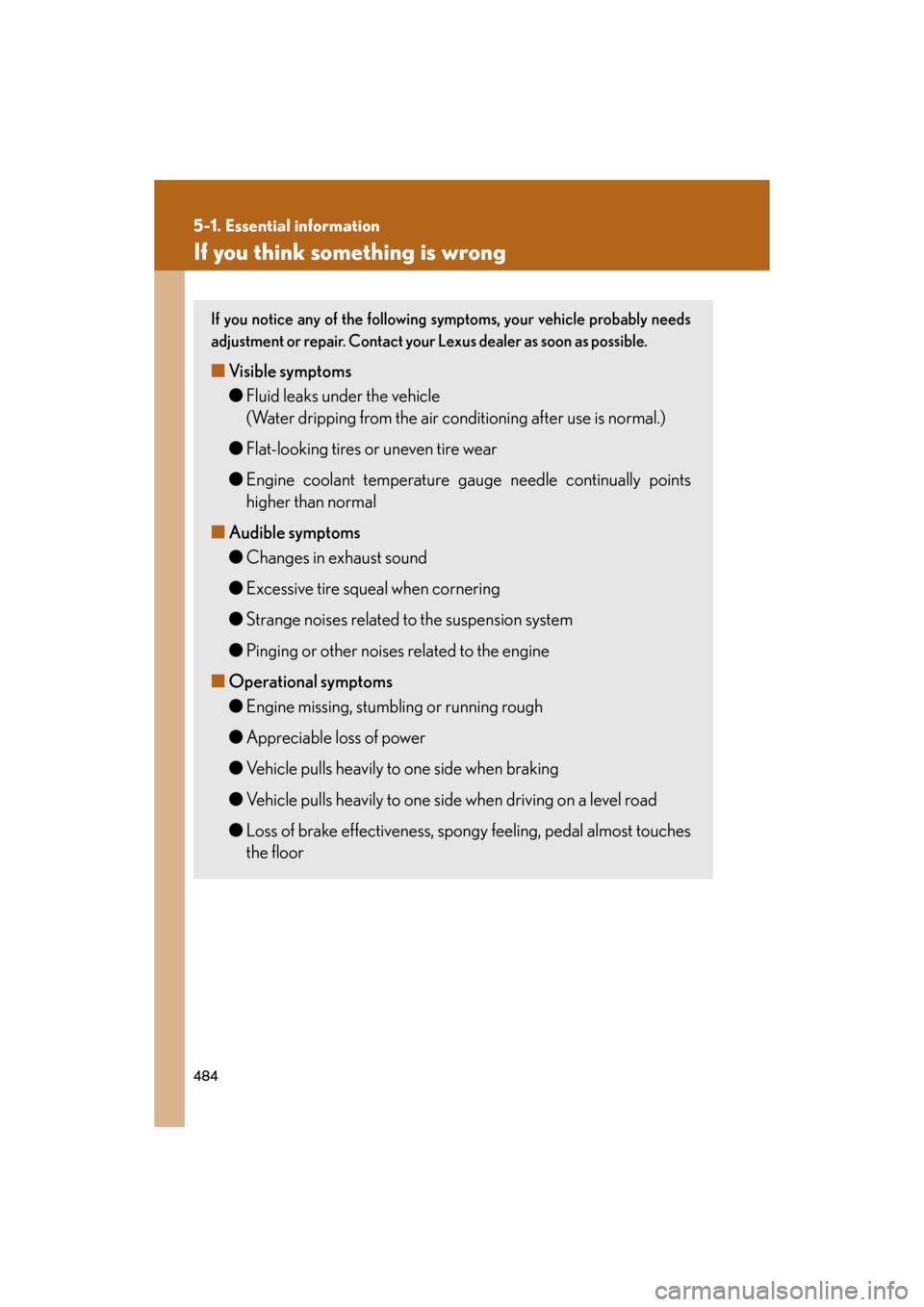

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■ Visible symptoms
●Fluid leaks under the vehicle 
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temper ature gauge needle continually points
higher than normal
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor

5
When trouble arises
533
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm
If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the air conditioning
system.
Check to see if steam is coming out from under the hood.
If you see steam: 
Stop the engine and car efully lift the hood.
If you do not see steam: Leave the engine running and carefully lift the hood.
Remove the engine compartment cover. ( P. 4 0 8 )
Check to see if the cooling fan is operating.
If the fan is operating: 
Wait until the engine coolant temperature gauge begins to
fall and then stop the engine.
If the fan is not operating: 
Stop the engine immediately and call your local Lexus
dealer.
After the engine has cooled
down sufficiently, check the
coolant level and inspect the
radiator core (radiator) for any
leaks.STEP1
STEP2
STEP3
STEP4
STEP5

534
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm
■Overheating
In the following situations, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when in specting under the hood of your vehicle
●Keep hands and clothing away from the fan and engine drive belt while the
engine is running.
●Do not loosen the radiator cap while the engine and radiator are hot. 
Serious injury, such as burns, may resu lt from hot coolant and steam released
under pressure.
Add coolant if necessary.
Water can be used in an emer-
gency measure if coolant is
unavailable. ( P. 5 4 6 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP6

5
When trouble arises
535
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm
NOTICE
■When adding coolant
Wait until the engine has cooled down before adding coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too quickly
can cause damage to the engine.

546
6-1. Specifications
GS_G_U
May 13, 2008 5:14 pm
Cooling system
Ignition system
CapacityGS46011.7 qt. (11.0 L, 9.7 Imp.qt.)
GS3509.6 qt. (9.1 L, 8.0 Imp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make DENSOFK20HBR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

563
6-1. Specifications
6
Vehicle specifications
GS_G_U
May 13, 2008 5:14 pm
Tire related termMeaning
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of: 
(a) Curb weight 
(b) Accessory weight 
(c) Vehicle capacity weight 
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1* below
Production options
weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
Rim diameter 
(Wheel diameter)Nominal diameter of the bead seat

586
Alphabetical index
GS_G_U
May 13, 2008 5:14 pm
DoorsDoor lock................................. 22, 34, 37
Rear door child protector ................ 38
Driver’s seat belt reminder light .....490
Driver’s seat position memory ........... 47
Driving Correct posture .................................... 78
Procedures ...............................................112
DVD player/changer........................... 251
Electric power steering ....................... 184
Electronic key If the electronic key does 
not operate properly .................... 526
Replacing battery .............................. 440
Emergency, in case of If a warning light turns on ............. 488
If a warning message is 
displayed ............................................ 497
If the electronic key does 
not operate properly .................... 526
If the engine will not 
start........................................................ 523
If the shift lever cannot be  shifted from “P”................................ 524
If the 12 volt battery is 
discharged ....................................... 529
If you have a flat tire ............... 512, 522
If you lose your keys......................... 525
If you think something is 
wrong ................................................... 484
If your vehicle becomes stuck.....536
If your vehicle needs to be 
towed ................................................... 478
If your vehicle overheats ................ 533 Engine
ACCESSORY mode........................122
Compartment ..................................... 406
Engine (ignition) switch...................... 121
Hood ....................................................... 403
How to start the engine ..................... 121
If the engine will not start ............... 523
Overheating ........................................ 533
Engine compartment cover .............408
Engine coolant temperature 
gauge .......................................................132
Engine coolant Capacity ................................................ 546
Checking................................................. 414
Preparing and checking 
before winter...................................... 199
Engine oil Capacity ................................................ 544
Checking............................................... 409
Preparing and checking 
before winter...................................... 199
Engine oil maintenance data .............412
Engine (ignition) switch......................... 121
Event data recorder ............................ 486
First-aid kit storage belt ..................... 360
Floor mats ................................................ 359
Fluid Brake ......................................................... 416
Washer................................................... 420
Fog lights Switch ........................................................ 145
Wattage ................................................. 552
Foot light .................................................. 337
E
F

594
GS_G_U
May 13, 2008 5:14 pm

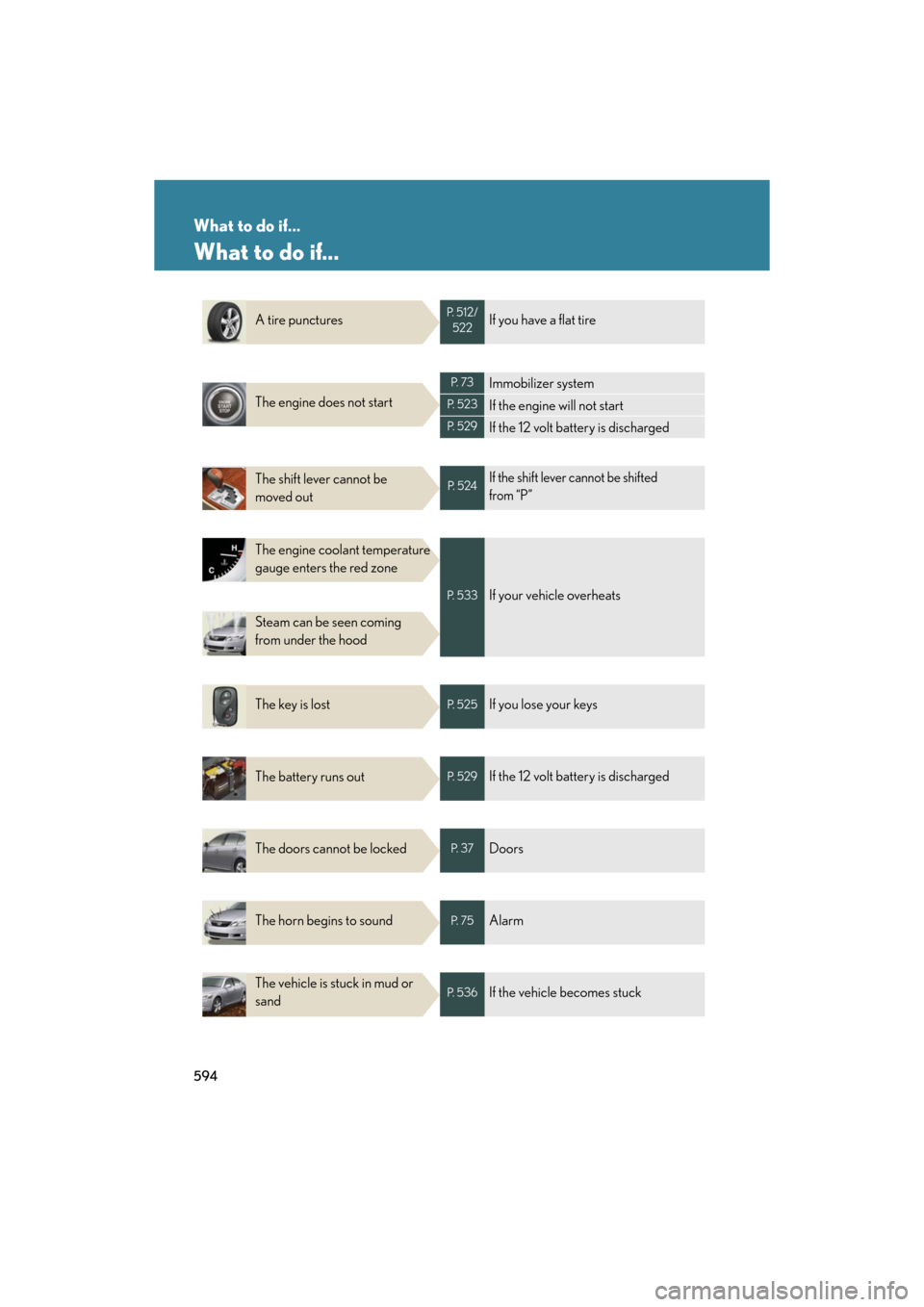

What to do if...
What to do if...
A tire puncturesP. 5 1 2 /522If you have a flat tire
The engine does not start
P. 7 3Immobilizer system
P. 5 2 3If the engine will not start
P. 5 2 9If the 12 volt battery is discharged
The shift lever cannot be 
moved outP. 5 2 4If the shift lever cannot be shifted 
from “P”
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming 
from under the hood
P. 5 3 3If your vehicle overheats
The key is lostP. 5 2 5If you lose your keys
The battery runs outP. 5 2 9If the 12 volt battery is discharged
The doors cannot be lockedP. 3 7Doors
The horn begins to soundP. 7 5Alarm
The vehicle is stuck in mud or
sandP. 5 3 6If the vehicle becomes stuck
