68
1-4. Opening and closing the windows and moon roof
GS_G_U
June 19, 2008 12:54 pm
■The moon roof can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Linked door lock moon roof operation
●The moon roof can be opened and closed using the mechanical key. (→P. 5 2 6 )
●The moon roof can be opened using the wireless remote control. ( →P. 3 4 )
●The moon roof can be closed using the smart access system with push-button
start. ( →P. 22)
■Operating the moon roof after turning the “ENGINE START STOP” switch OFF
The moon roof can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. It cannot, however, be operated once the driver’s door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and the moon roof opens slightly.
■If the moon roof cannot be closed automatically
Keep the close switch depressed.
■To reduce moon roof wind noise
Drive with the moon roof opened automatically ( just before fully opened position).
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 5 7 1 )
GS_U_G.book Page 68 Thursday, June 19, 2008 12:54 PM

75
1
1-6. Theft deterrent system
Before driving
GS_G_U
June 19, 2008 12:54 pm
Alarm
The system sounds the alarm and flashes lights when forcible entry is
detected.
■Triggering of the alarm
The alarm is triggered in the following situations.
● A locked door or trunk is unlocked or opened in any way other
than using the smart access system with push-button start, wire-
less remote control or mechanical key. (The doors will lock again
automatically.)
● The hood is opened while the vehicle is locked.
■ Setting the alarm system
Close the doors, trunk and
hood, and lock all doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
● Unlock the doors or trunk.
● Turn the “ENGINE START STOP” switch to the ACCESSORY or
IGNITION ON mode. (The alarm will be deactivated or stopped
after a few seconds.)
GS_U_G.book Page 75 Thursday, June 19, 2008 12:54 PM

144
2-3. Operating the lights and windshield wipers
GS_G_U
June 19, 2008 12:54 pm
■Automatic light off system
The headlights and tail lights turn off 30 seconds after all doors are closed if the
“ENGINE START STOP” switch has been switched to ACCESSORY mode or
turned OFF while the headlights are turned on. (The lights turn off immediately if
the button on the key is pressed after all doors are locked.)
To turn the lights on again, switch to IGNITION ON mode, or turn the light switch
off once and then back to the or position.
■Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■If the indicator flashes...
It may indicate a malfunction in the system. Contact your Lexus dealer.
■Customization that can be configured at Lexus dealer
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features →P. 5 7 2 )
NOTICE
■To prevent 12 volt battery discharge
Do not leave the lights on longer than necessary when the engine is off.
GS_U_G.book Page 144 Thursday, June 19, 2008 12:54 PM

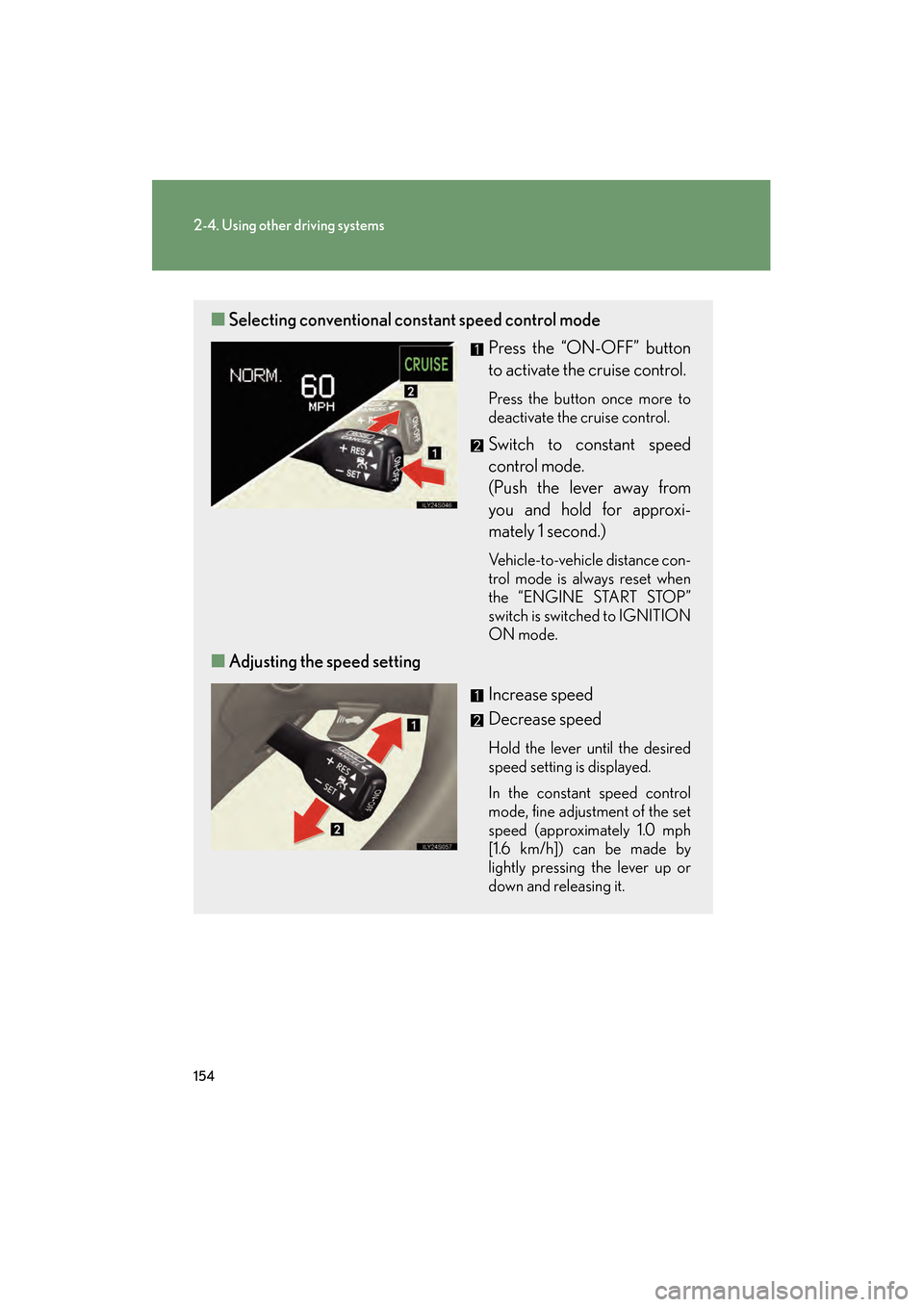

154
2-4. Using other driving systems
GS_G_U
June 19, 2008 12:54 pm
■Selecting conventional cons tant speed control mode
Press the “ON-OFF” button
to activate the cruise control.
Press the button once more to
deactivate the cruise control.
Switch to constant speed
control mode.
(Push the lever away from
you and hold for approxi-
mately 1 second.)
Vehicle-to-vehicle distance con-
trol mode is always reset when
the “ENGINE START STOP”
switch is switched to IGNITION
ON mode.
■Adjusting the speed setting
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is displayed.
In the constant speed control
mode, fine adjustment of the set
speed (approximately 1.0 mph
[1.6 km/h]) can be made by
lightly pressing the lever up or
down and releasing it.
GS_U_G.book Page 154 Thursday, June 19, 2008 12:54 PM

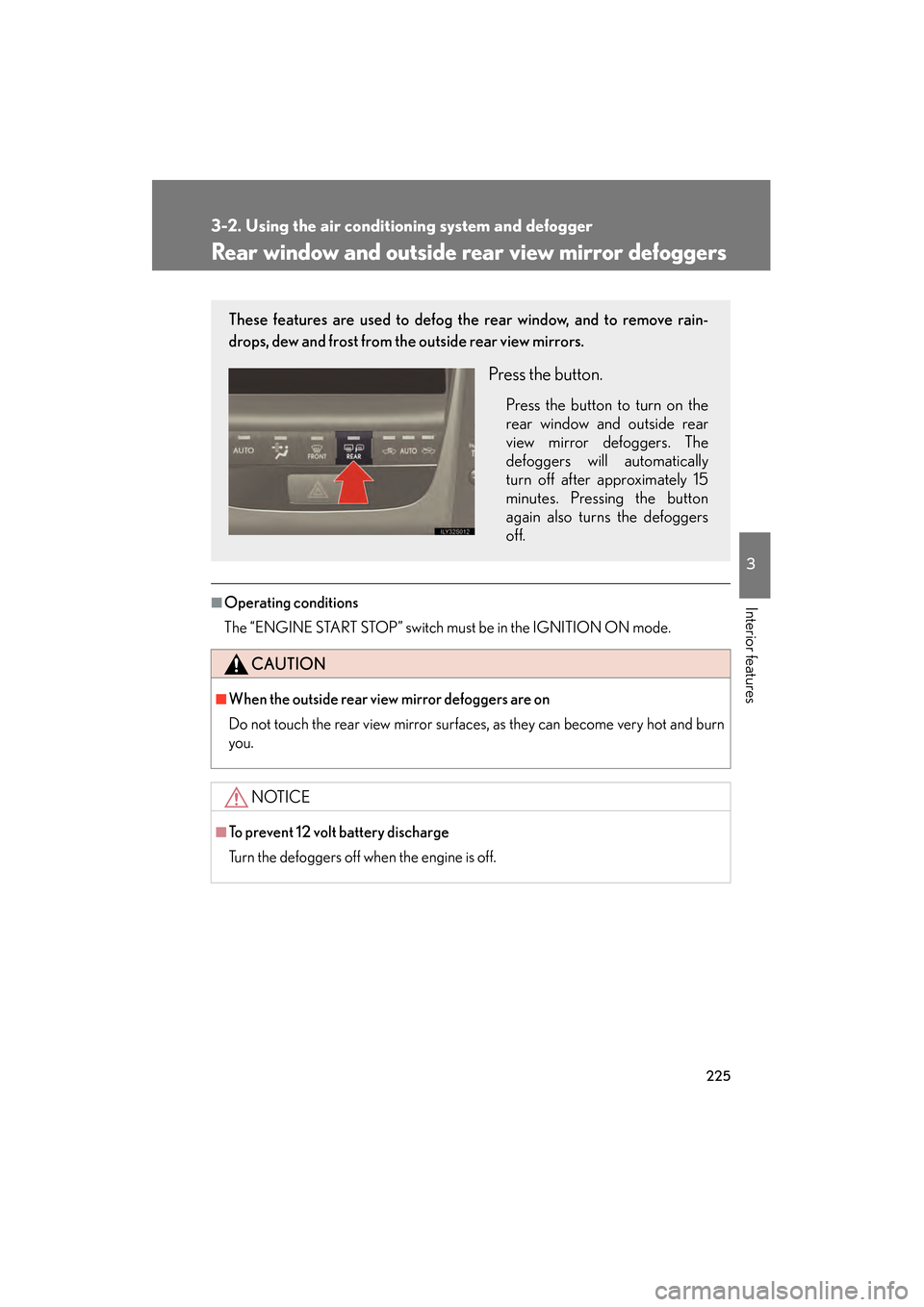

225
3-2. Using the air conditioning system and defogger
3
Interior features
GS_G_U
June 19, 2008 12:54 pm
Rear window and outside rear view mirror defoggers
■Operating conditions
The “ENGINE START STOP” switch must be in the IGNITION ON mode.
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
NOTICE
■To prevent 12 volt battery discharge
Turn the defoggers off when the engine is off.
These features are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press the button.
Press the button to turn on the
rear window and outside rear
view mirror defoggers. The
defoggers will automatically
turn off after approximately 15
minutes. Pressing the button
again also turns the defoggers
off.
GS_U_G.book Page 225 Thursday, June 19, 2008 12:54 PM

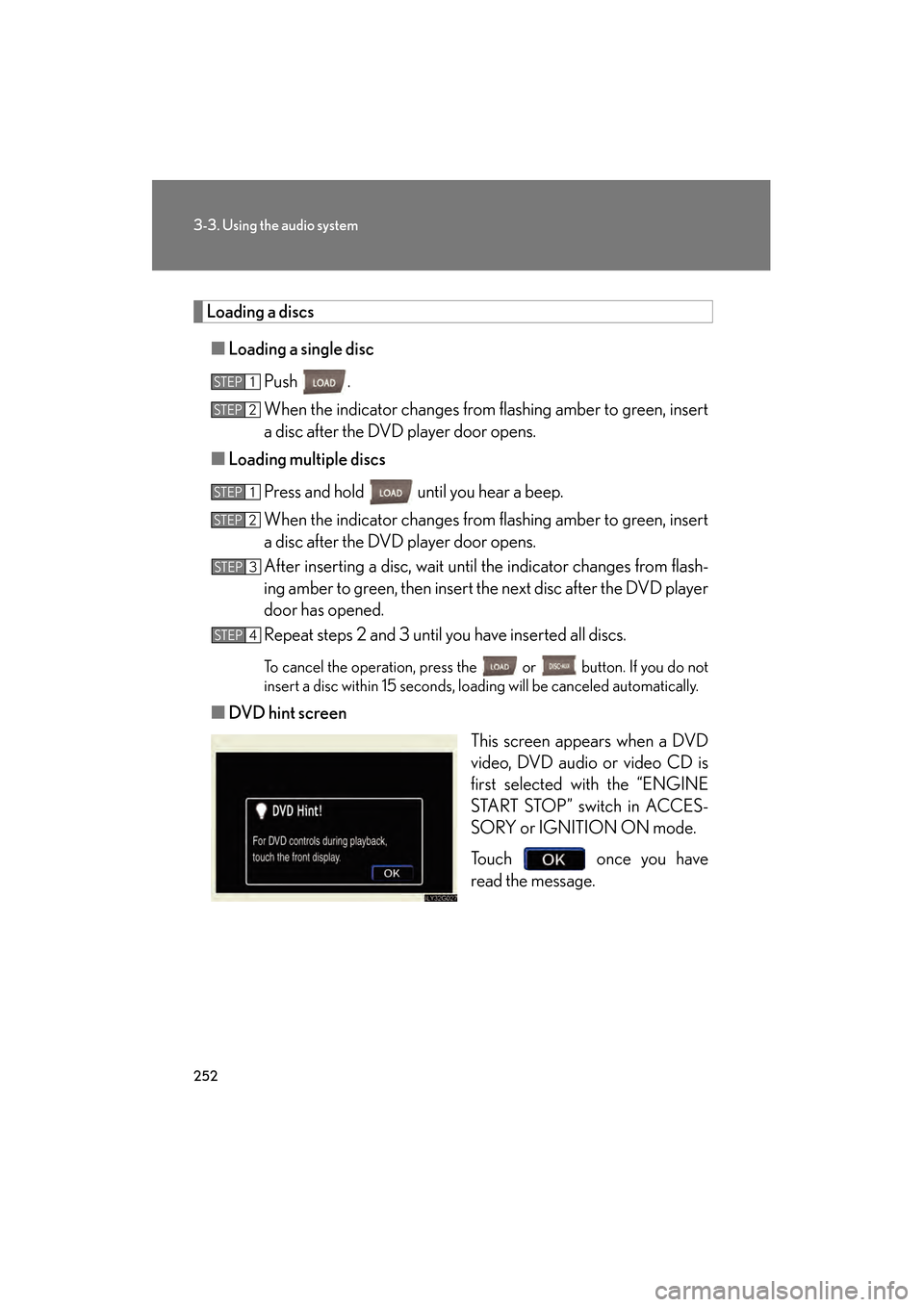

252
3-3. Using the audio system
GS_G_U
June 19, 2008 12:54 pm
Loading a discs■ Loading a single disc
Push .
When the indicator changes from flashing amber to green, insert
a disc after the DVD player door opens.
■ Loading multiple discs
Press and hold until you hear a beep.
When the indicator changes from flashing amber to green, insert
a disc after the DVD player door opens.
After inserting a disc, wait until the indicator changes from flash-
ing amber to green, then insert the next disc after the DVD player
door has opened.
Repeat steps 2 and 3 until you have inserted all discs.
To cancel the operation, press the or button. If you do not
insert a disc within 15 seconds, loading will be canceled automatically.
■DVD hint screen
This screen appears when a DVD
video, DVD audio or video CD is
first selected with the “ENGINE
START STOP” switch in ACCES-
SORY or IGNITION ON mode.
Touch once you have
read the message.
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
GS_U_G.book Page 252 Thursday, June 19, 2008 12:54 PM

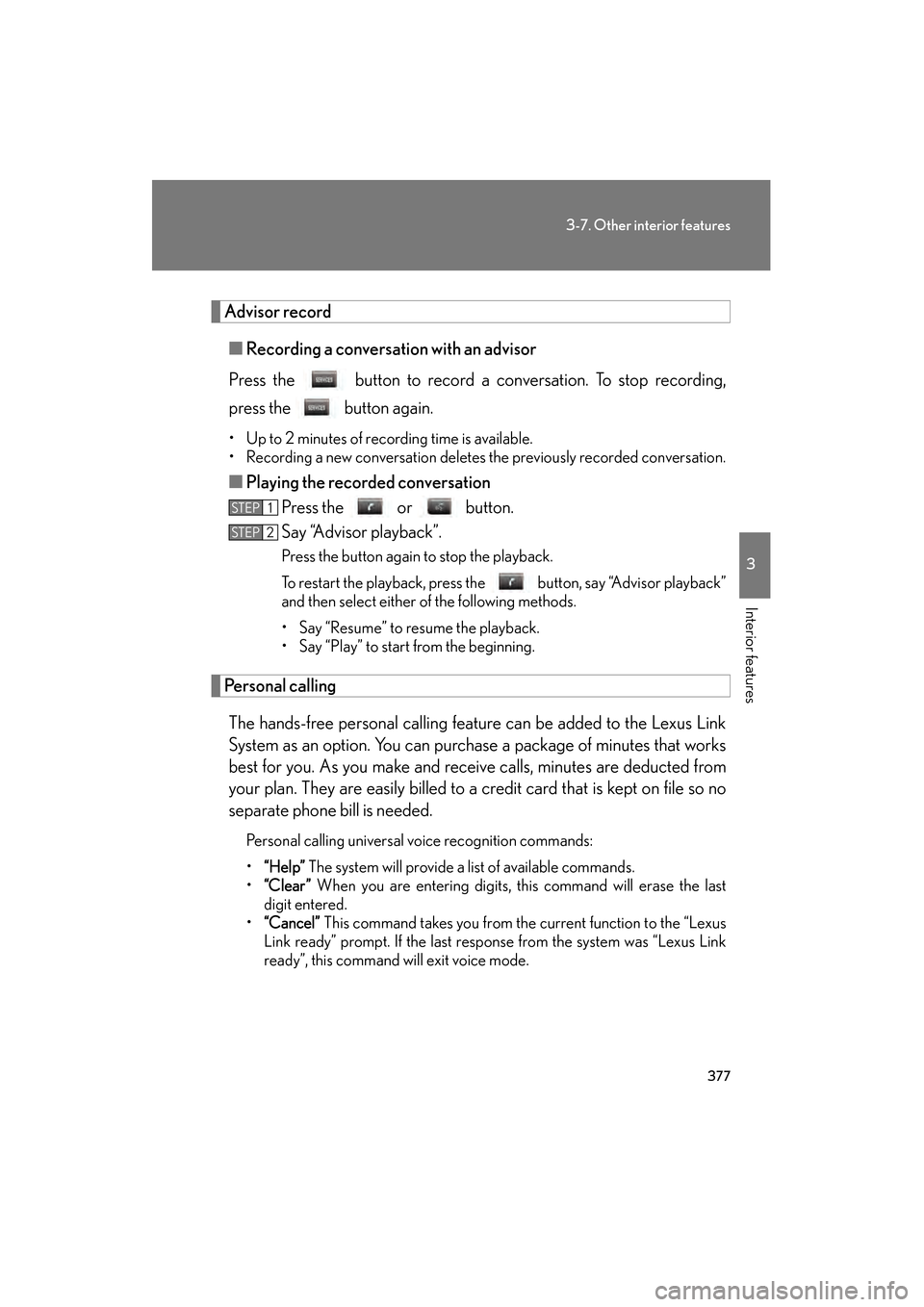

377
3-7. Other interior features
3
Interior features
GS_G_U
June 19, 2008 12:54 pm
Advisor record■ Recording a conversati on with an advisor
Press the button to record a conversation. To stop recording,
press the button again.
• Up to 2 minutes of recording time is available.
• Recording a new conversation deletes the previously recorded conversation.
■Playing the recorded conversation
Press the or button.
Say “Advisor playback”.
Press the button again to stop the playback.
To restart the playback, press the button, say “Advisor playback”
and then select either of the following methods.
• Say “Resume” to resume the playback.
• Say “Play” to start from the beginning.
Personal calling
The hands-free personal calling feature can be added to the Lexus Link
System as an option. You can purchase a package of minutes that works
best for you. As you make and receive calls, minutes are deducted from
your plan. They are easily billed to a credit card that is kept on file so no
separate phone bill is needed.
Personal calling universal voice recognition commands:
• “Help” The system will provide a list of available commands.
• “Clear ” When you are entering digits, this command will erase the last
digit entered.
• “Cancel” This command takes you from the current function to the “Lexus
Link ready” prompt. If the last response from the system was “Lexus Link
ready”, this command will exit voice mode.
STEP1
STEP2
GS_U_G.book Page 377 Thursday, June 19, 2008 12:54 PM

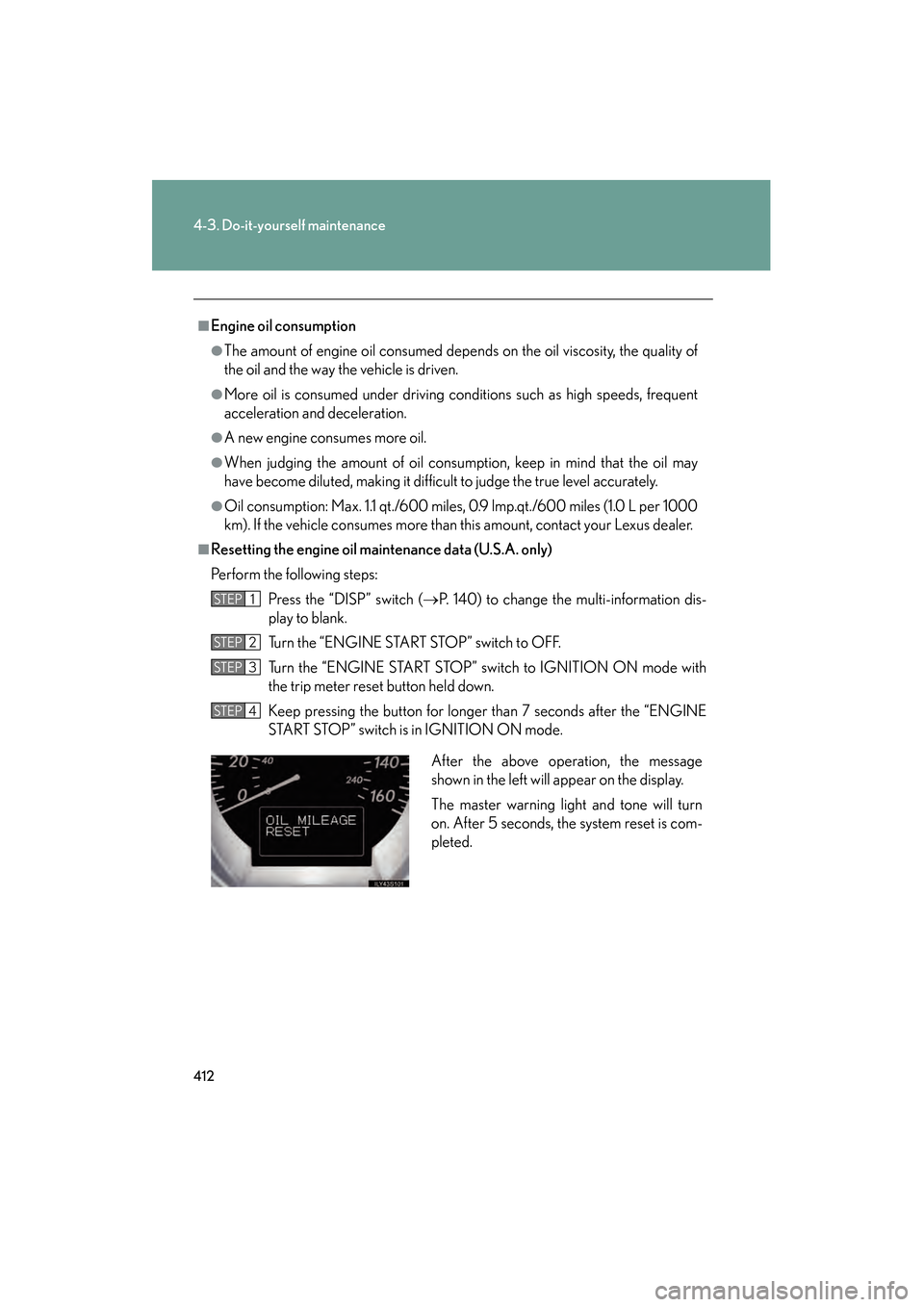

412
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm
■Engine oil consumption
●The amount of engine oil consumed depends on the oil viscosity, the quality of
the oil and the way the vehicle is driven.
●More oil is consumed under driving conditions such as high speeds, frequent
acceleration and deceleration.
●A new engine consumes more oil.
●When judging the amount of oil consumption, keep in mind that the oil may
have become diluted, making it difficult to judge the true level accurately.
●Oil consumption: Max. 1.1 qt./600 miles, 0.9 lmp.qt./600 miles (1.0 L per 1000
km). If the vehicle consumes more than this amount, contact your Lexus dealer.
■Resetting the engine oil maintenance data (U.S.A. only)
Perform the following steps:Press the “DISP” switch ( →P. 140) to change the multi-information dis-
play to blank.
Turn the “ENGINE START STOP” switch to OFF.
Turn the “ENGINE START STOP” switch to IGNITION ON mode with
the trip meter reset button held down.
Keep pressing the button for longer than 7 seconds after the “ENGINE
START STOP” switch is in IGNITION ON mode.
STEP1
STEP2
STEP3
STEP4
After the above operation, the message
shown in the left will appear on the display.
The master warning light and tone will turn
on. After 5 seconds, the system reset is com-
pleted.
GS_U_G.book Page 412 Thursday, June 19, 2008 12:54 PM

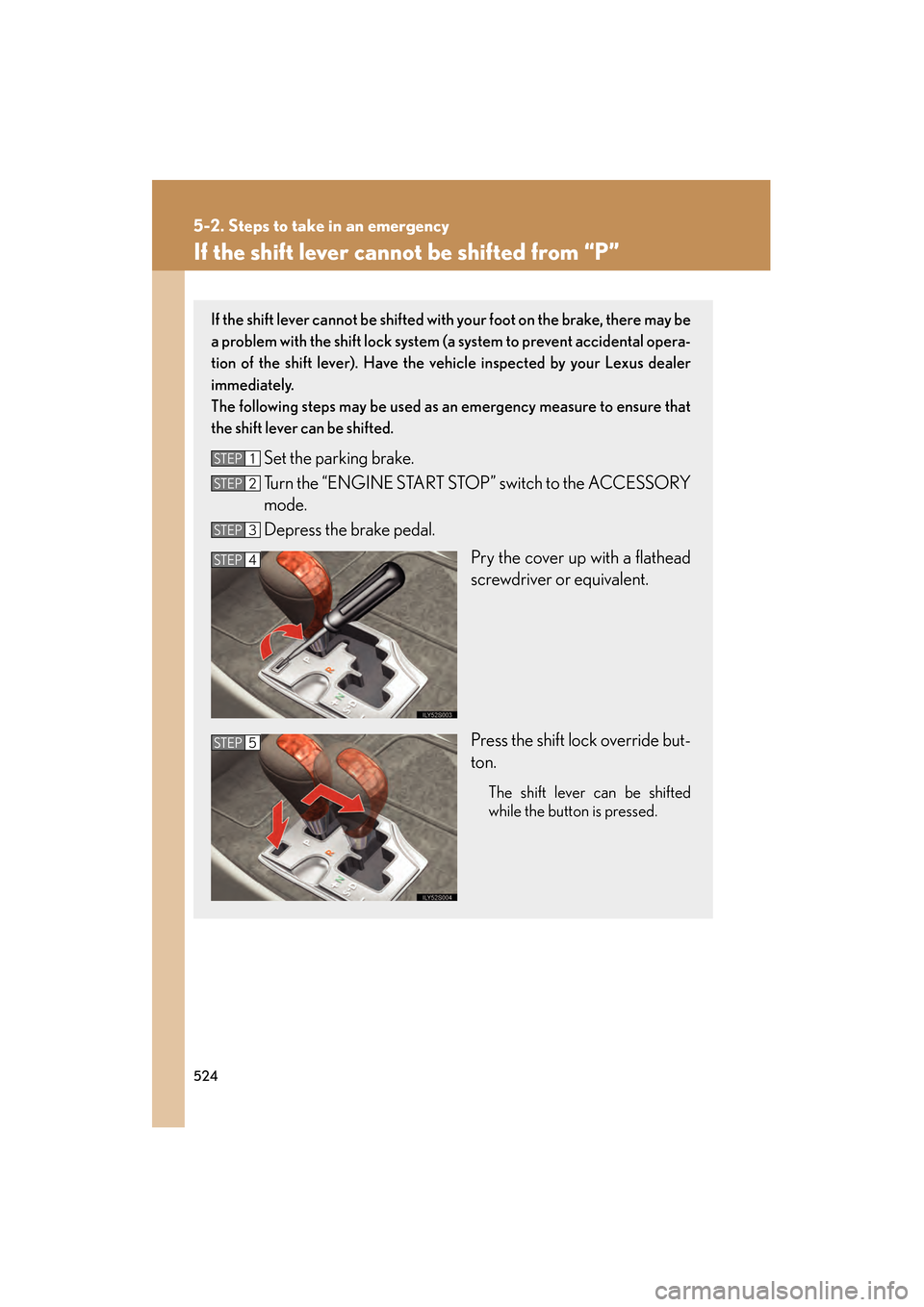

524
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
If the shift lever cannot be shifted from “P”
If the shift lever cannot be shifted with your foot on the brake, there may be
a problem with the shift lock system (a system to prevent accidental opera-
tion of the shift lever). Have the vehicle inspected by your Lexus dealer
immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Set the parking brake.
Turn the “ENGINE START STOP” switch to the ACCESSORY
mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent.
Press the shift lock override but-
ton.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4
STEP5
GS_U_G.book Page 524 Thursday, June 19, 2008 12:54 PM

590
Alphabetical index
GS_G_U
June 19, 2008 12:54 pm
Smart access system with push-button start
Antenna location....................................24
Entry function...........................................22
Starting the engine ................................ 121
Spare tire
Inflation pressure............................... 550
Spare tire..................................................513
Spark plug ................................................546
Specifications ........................................ 540
Speedometer........................................... 132
Steering wheel Adjustment............................................... 60
Audio switches ...................................288
Steering wheel position memory...................................................47
Storage compartment ........................ 344
Storage feature......................................340
Stuck If your vehicle becomes stuck.....536
Sun visors ................................................. 347
Switch “ENGINE START STOP” switch ....................................................... 121
Fog light switch.....................................145
Ignition switch..........................................121
Light switches ........................................ 142
Mode select switch............................. 126
Power door lock switch .....................37
Power window switch ........................ 64
Tire pressure warning reset switch ....................................... 422
Tire pressure warning select switch ................... 424
Window lock switch ........................... 64
Wipers and washer switch ............. 146 Tachometer ..............................................132
Tail lights
Switch ........................................................ 142
Theft deterrent system
Alarm...........................................................75
Immobilizer system .............................. 73
Theft prevention labels...........................77
Tire inflation pressure .........................550
Tire information Glossary ................................................ 562
Size ........................................................... 559
Tire identification number .............558
Uniform Tire Quality Grading ... 560
Tires
Chains..................................................... 200
Checking................................................. 421
Compact spare tire............................ 513
If you have a flat tire ............... 512, 522
Inflation pressure ...............................550
Information ........................................... 556
Replacing ................................................ 512
Rotating tires.......................................... 421
Size ........................................................... 550
Snow tires.............................................. 202
Tire pressure warning system....... 421
Tools.............................................................512
Total load capacity ................................ 198
Touch screen..........................................208
Towing Dinghy towing .................................... 205
Emergency towing ........................... 478
Trailer towing ...................................... 204
Traction control...................................... 184
Trip meter ..................................................132T
GS_U_G.book Page 590 Thursday, June 19, 2008 12:54 PM
