Lexus GS350 2008 Owner's Manual
Manufacturer: LEXUS, Model Year: 2008, Model line: GS350, Model: Lexus GS350 2008Pages: 598, PDF Size: 14.03 MB
Page 571 of 598
570
6-2. Customization
GS_G_U
June 19, 2008 12:54 pm
ItemFunctionDefault settingCustomizedsetting
Wi re le ss
remote con-
trol
(
→P. 3 4 )
Unlocking operation
Driver’s door
unlocked in 1-
step, all doors
unlocked
in 2-step
All doors
unlocked in 1-step
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
OFF
30 seconds
120 seconds
Operation signal
(Emergency flashers)ONOFF
Operation signal
(Buzzer) ONOFF
Trunk unlocking functionONOFF
Trunk unlocking operationPush and holdPush twice
One short push
Panic functionONOFF
Buzzer sounds when
pushing with any door
not closed
ONOFF
GS_U_G.book Page 570 Thursday, June 19, 2008 12:54 PM
Page 572 of 598
571
6-2. Customization
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm
ItemFunctionDefault settingCustomizedsetting
Door lock (
→P. 3 7 )
Unlocking using a key
Driver’s door
unlocked in 1-
step, all doors
unlocked
in 2-step
All doors
unlocked in 1-step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver’s door
unlocks all doors OFFON
Shift the shift lever to “P”
unlocks all doorsONOFF
Shift the shift lever to posi-
tion other than “P” locks
all doors
ONOFF
Po w e r w i n -
dows
(
→P. 6 4 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Wireless remote control
linked operationONOFF
Linked entry functionONOFF
GS_U_G.book Page 571 Thursday, June 19, 2008 12:54 PM
Page 573 of 598
572
6-2. Customization
GS_G_U
June 19, 2008 12:54 pm
*: Vehicles sold outside Canada
ItemFunctionDefault settingCustomizedsetting
Moon roof
(
→P. 6 7 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Linked operation of com-
ponents when door key is
used
Slide onlyTilt only
Wireless remote control
linked operationONOFF
Linked operation of com-
ponents when wireless
remote control used
Slide onlyTilt only
Linked entry functionONOFF
Automatic
light control
system
(
→P. 1 4 2 )
Light sensor sensitivityLevel 3Levels 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Daytime running lightONOFF*
GS_U_G.book Page 572 Thursday, June 19, 2008 12:54 PM
Page 574 of 598
573
6-2. Customization
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm
ItemFunctionDefault settingCustomizedsetting
Windshield
wipers and
washer
(
→P. 1 4 6 )
Switching operation when
the vehicle is stationaryONOFF
Drip prevention functionONOFF
Time elapsed before the
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Illumination
(
→P. 3 3 7 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedONOFF
Operation after the
“ENGINE START STOP”
switch turned OFF
ONOFF
Front/rear personal lights
turned on when a door is
openedCorresponding light onlyAll lights
OFF
Foot lights ONOFF
Shift lever lightONOFF
Outer foot lightONOFF
Rear sunshade
(
→P. 3 5 7 )
Time elapsed before the
reverse operation feature
activates
0.7 seconds
0 seconds
0.9 seconds
1.2 seconds
GS_U_G.book Page 573 Thursday, June 19, 2008 12:54 PM
Page 575 of 598
574
6-2. Customization
GS_G_U
June 19, 2008 12:54 pm

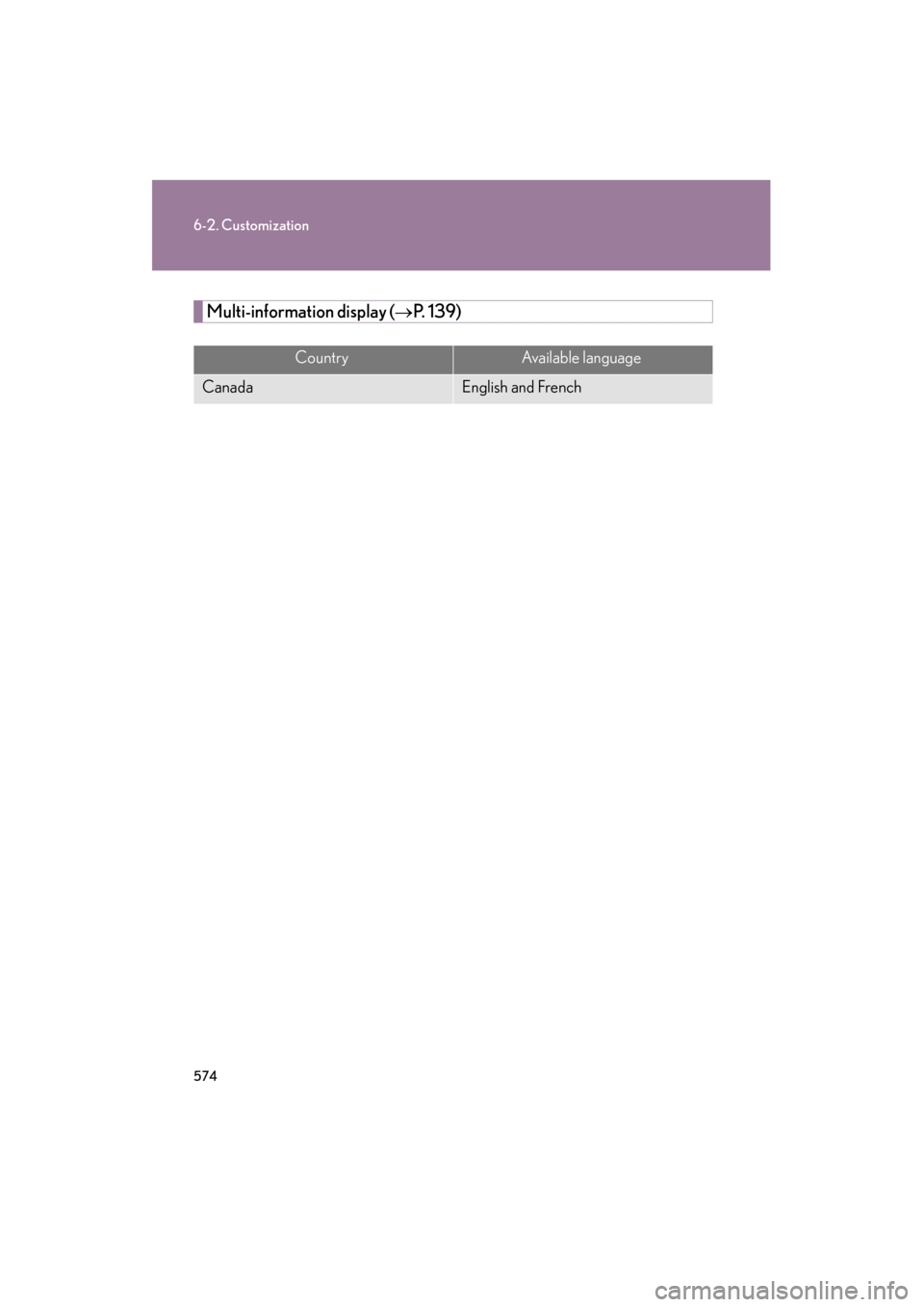

Multi-information display (→P. 139)
CountryAvailable language
CanadaEnglish and French
GS_U_G.book Page 574 Thursday, June 19, 2008 12:54 PM
Page 576 of 598
575
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm

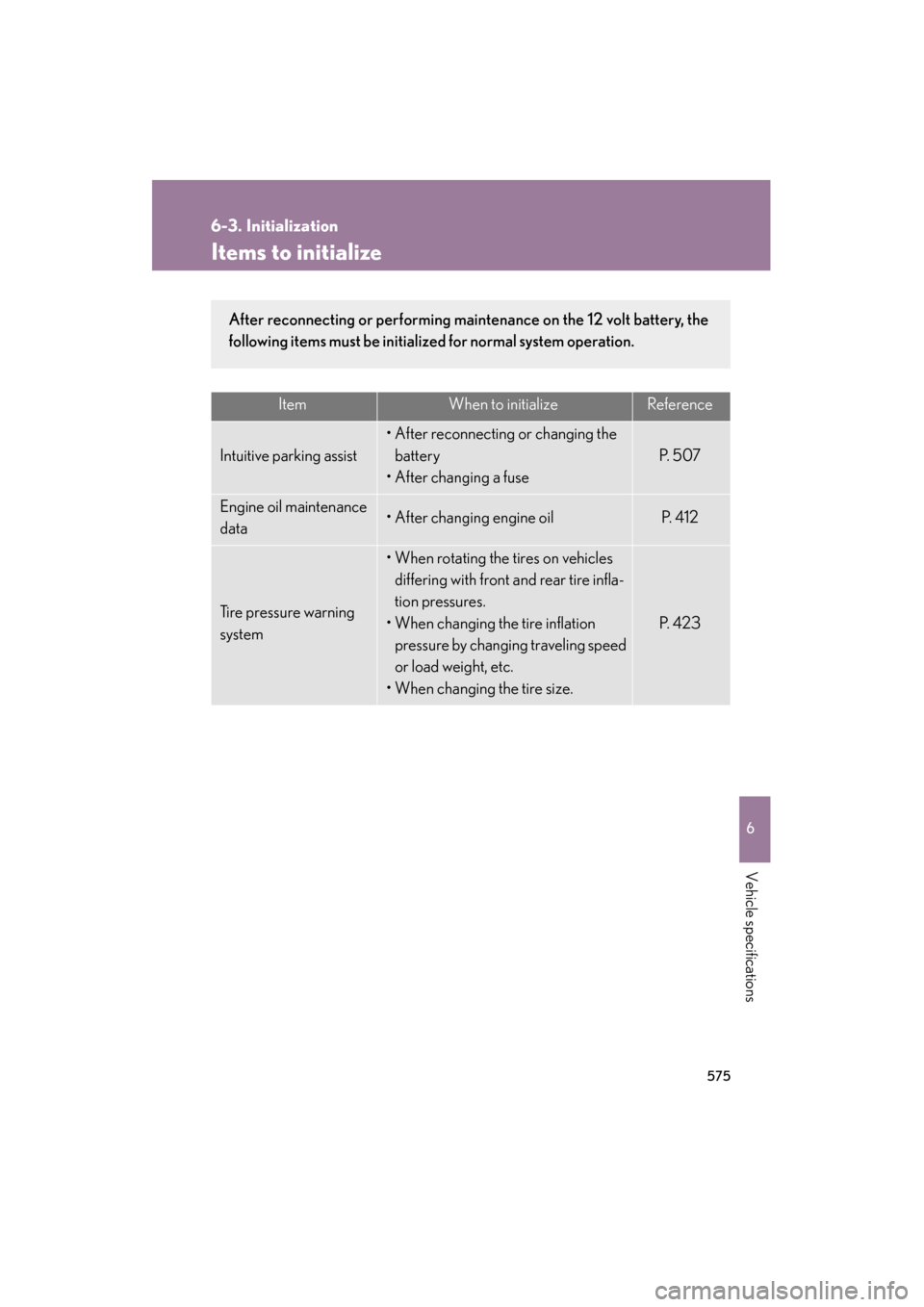

6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Intuitive parking assist
• After reconnecting or changing the battery
• After changing a fuse
P. 5 0 7
Engine oil maintenance
data•After changing engine oilP. 4 1 2
Tire pressure warning
system
• When rotating the tires on vehicles differing with front and rear tire infla-
tion pressures.
• When changing the tire inflation pressure by changing traveling speed
or load weight, etc.
• When changing the tire size.
P. 4 2 3
After reconnecting or performing maintenance on the 12 volt battery, the
following items must be initialized for normal system operation.
GS_U_G.book Page 575 Thursday, June 19, 2008 12:54 PM
Page 577 of 598
576

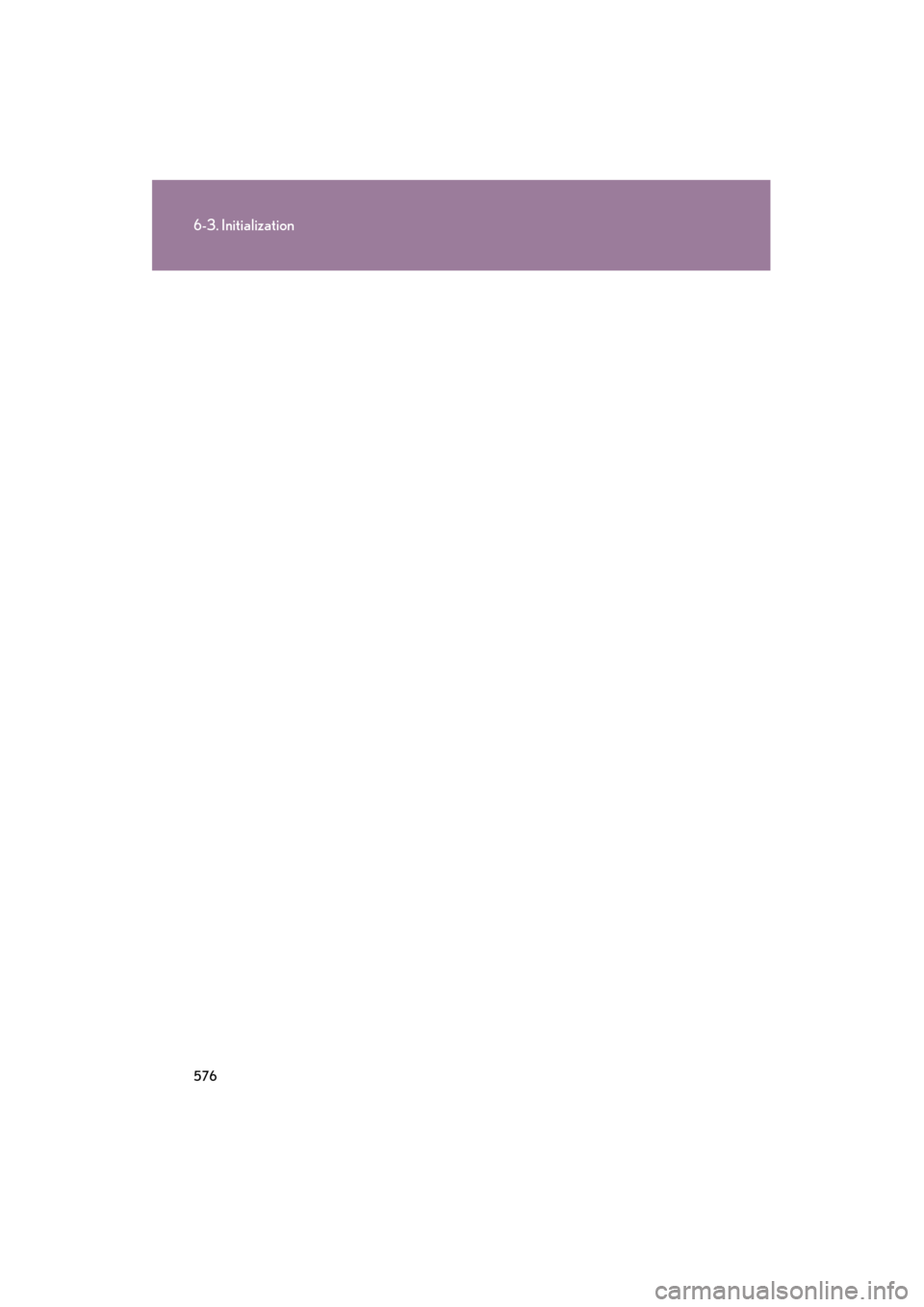

6-3. Initialization
GS_G_U
June 19, 2008 12:54 pm
GS_U_G.book Page 576 Thursday, June 19, 2008 12:54 PM
Page 578 of 598

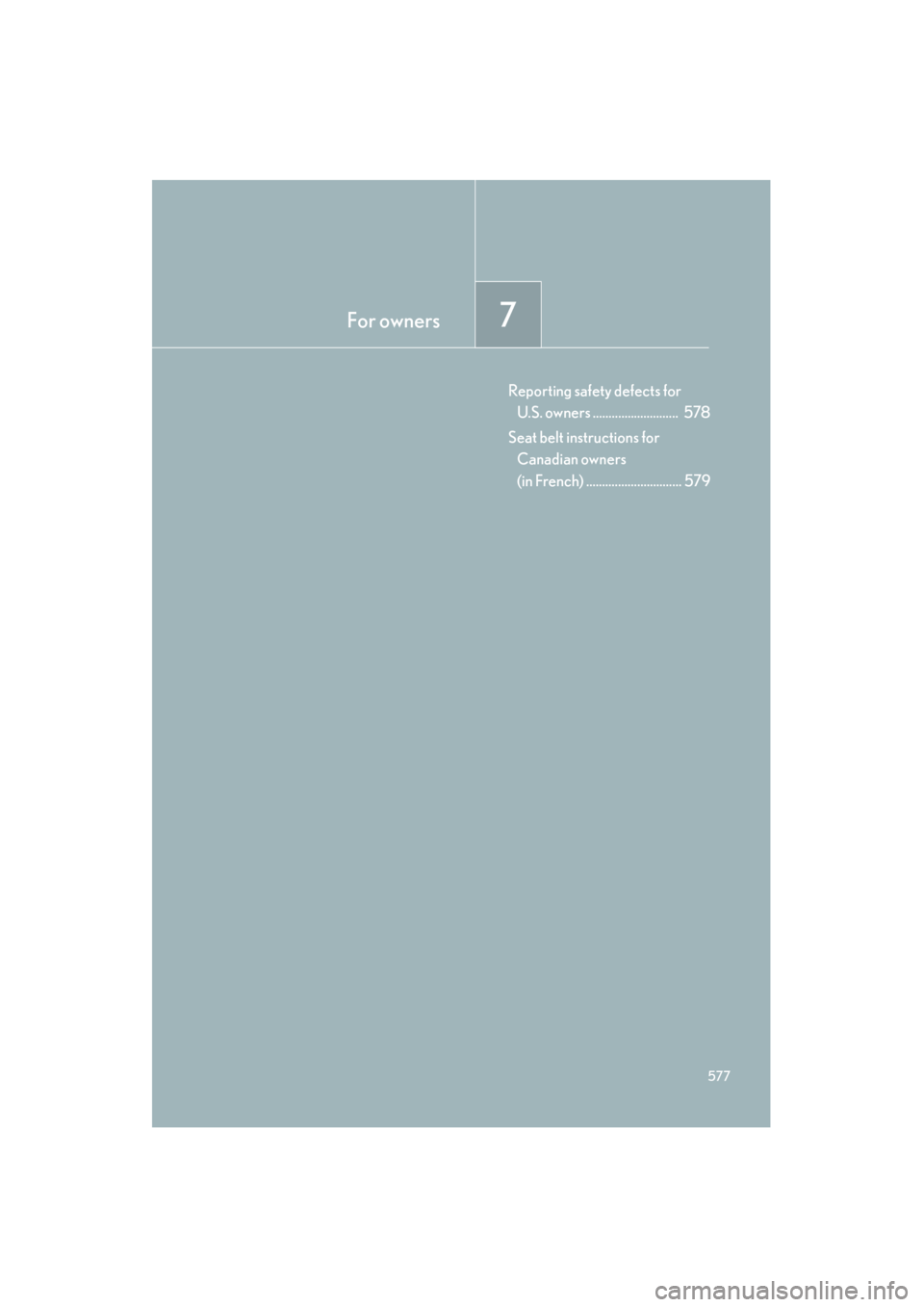

For owners7
577
GS_G_U
June 19, 2008 12:54 pm
Reporting safety defects for U.S. owners ........................... 578
Seat belt instructions for Canadian owners
(in French) .............................. 579
GS_U_G.book Page 577 Thursday, June 19, 2008 12:54 PM
Page 579 of 598
578
GS_G_U
June 19, 2008 12:54 pm

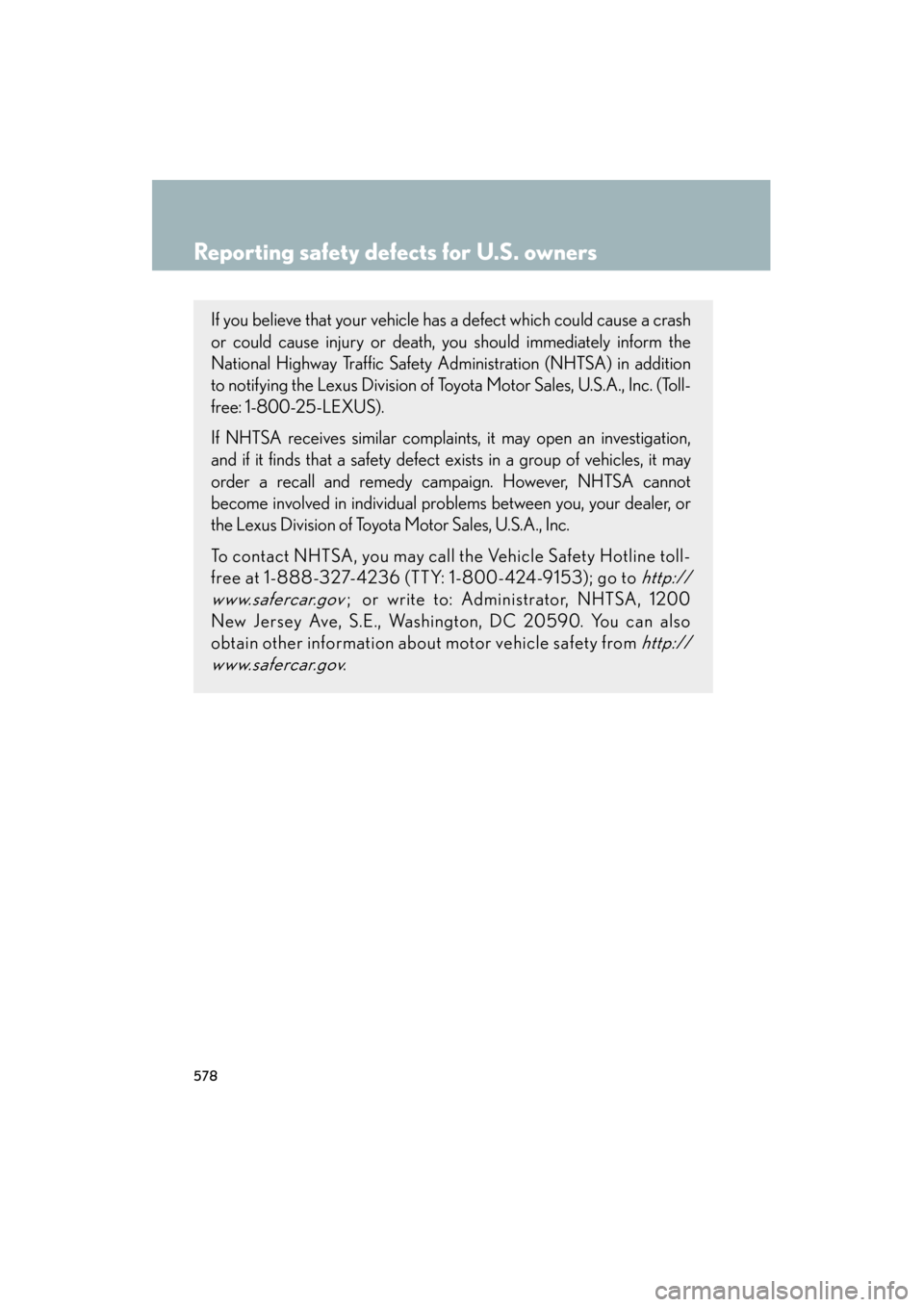

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a crash
or could cause injury or death, you should immediately inform the
National Highway Traffic Safety Administration (NHTSA) in addition
to notifying the Lexus Division of Toyota Motor Sales, U.S.A., Inc. (Toll-
free: 1-800-25-LEXUS).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer, or
the Lexus Division of Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-
free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200
New Jersey Ave, S.E., Washington, DC 20590. You can also
obtain other information about motor vehicle safety from
http://
www.safercar.gov
.
GS_U_G.book Page 578 Thursday, June 19, 2008 12:54 PM
Page 580 of 598
579
7
GS_G_U
June 19, 2008 12:54 pm
For owners

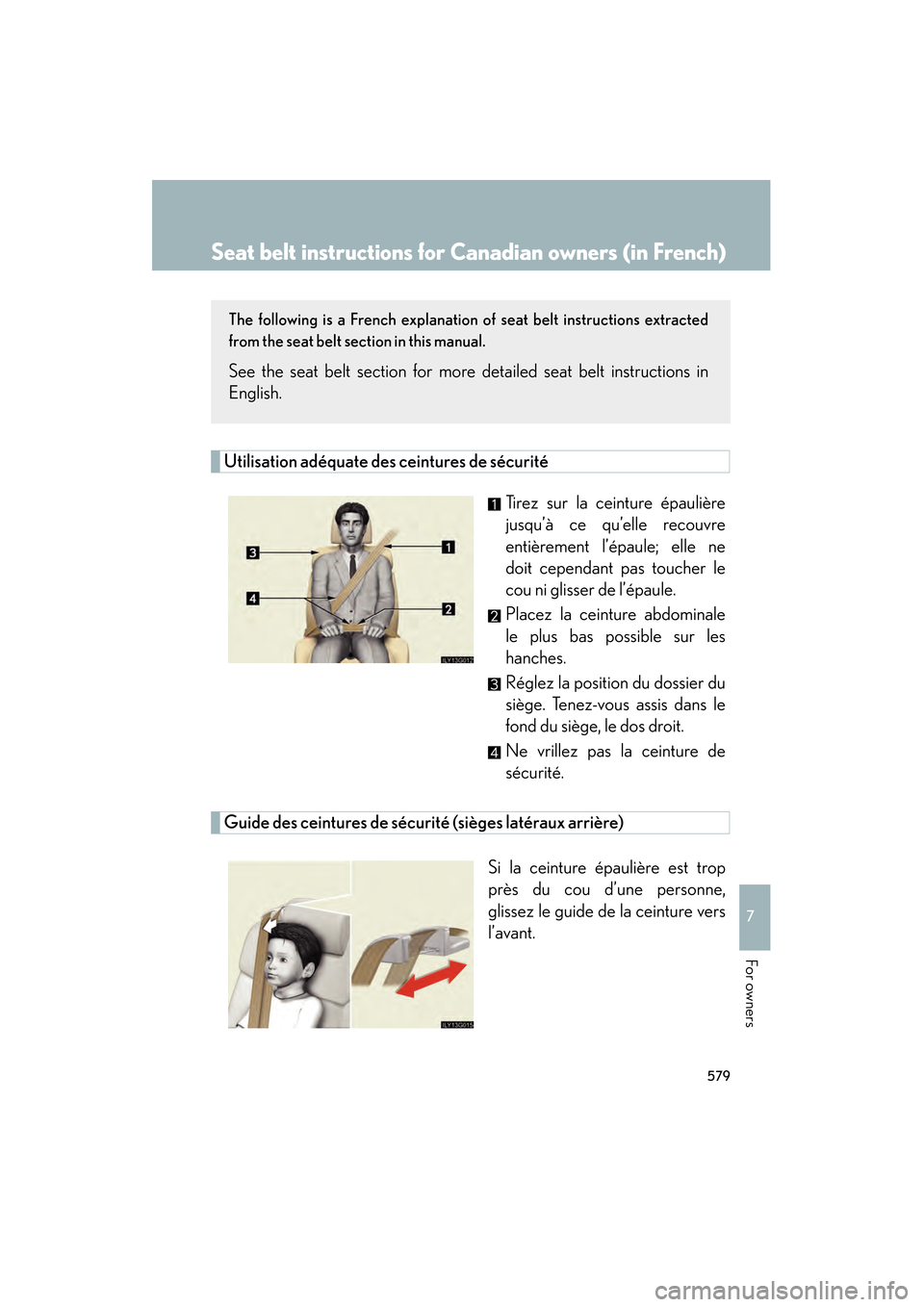

Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions extracted
from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation adéquate des ceintures de sécuritéTirez sur la ceinture épaulière
jusqu’à ce qu’elle recouvre
entièrement l’épaule; elle ne
doit cependant pas toucher le
cou ni glisser de l’épaule.
Placez la ceinture abdominale
le plus bas possible sur les
hanches.
Réglez la position du dossier du
siège. Tenez-vous assis dans le
fond du siège, le dos droit.
Ne vrillez pas la ceinture de
sécurité.
Guide des ceintures de sécurité (sièges latéraux arrière)
Si la ceinture épaulière est trop
près du cou d’une personne,
glissez le guide de la ceinture vers
l’avant.
GS_U_G.book Page 579 Thursday, June 19, 2008 12:54 PM
