Page 541 of 598
540
GS_G_U
June 19, 2008 12:54 pm
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicle
Overall length190.7 in. (4845 mm)
Overall width71.6 in. (1820 mm)
Overall height *2WD56.1 in. (1425 mm)
4WD56.4 in. (1435 mm)
Wheelbase112.2 in. (2850 mm)
Tr e a d
Front60.4 in. (1535 mm)
Rear2WD
4WD
60.6 in. (1540 mm)
60.4 in. (1535 mm)
Vehicle capacity weight
(Occupants + luggage)815 lb. (370 kg)
GS_U_G.book Page 540 Thursday, June 19, 2008 12:54 PM
Page 542 of 598
541
6-1. Specifications
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm

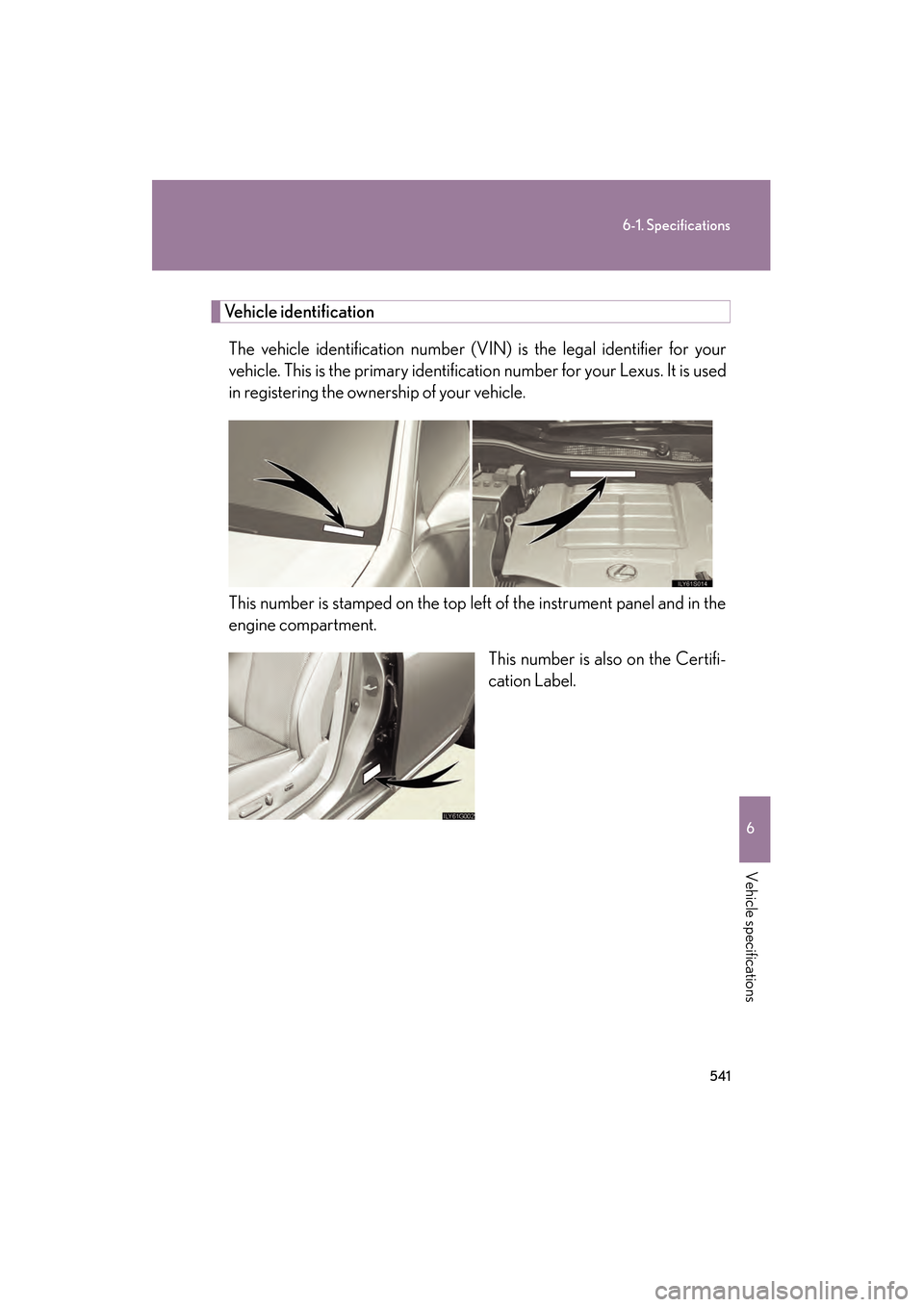

Vehicle identificationThe vehicle identification number (V IN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the
engine compartment.
This number is also on the Certifi-
cation Label.
GS_U_G.book Page 541 Thursday, June 19, 2008 12:54 PM
Page 543 of 598
542
6-1. Specifications
GS_G_U
June 19, 2008 12:54 pm

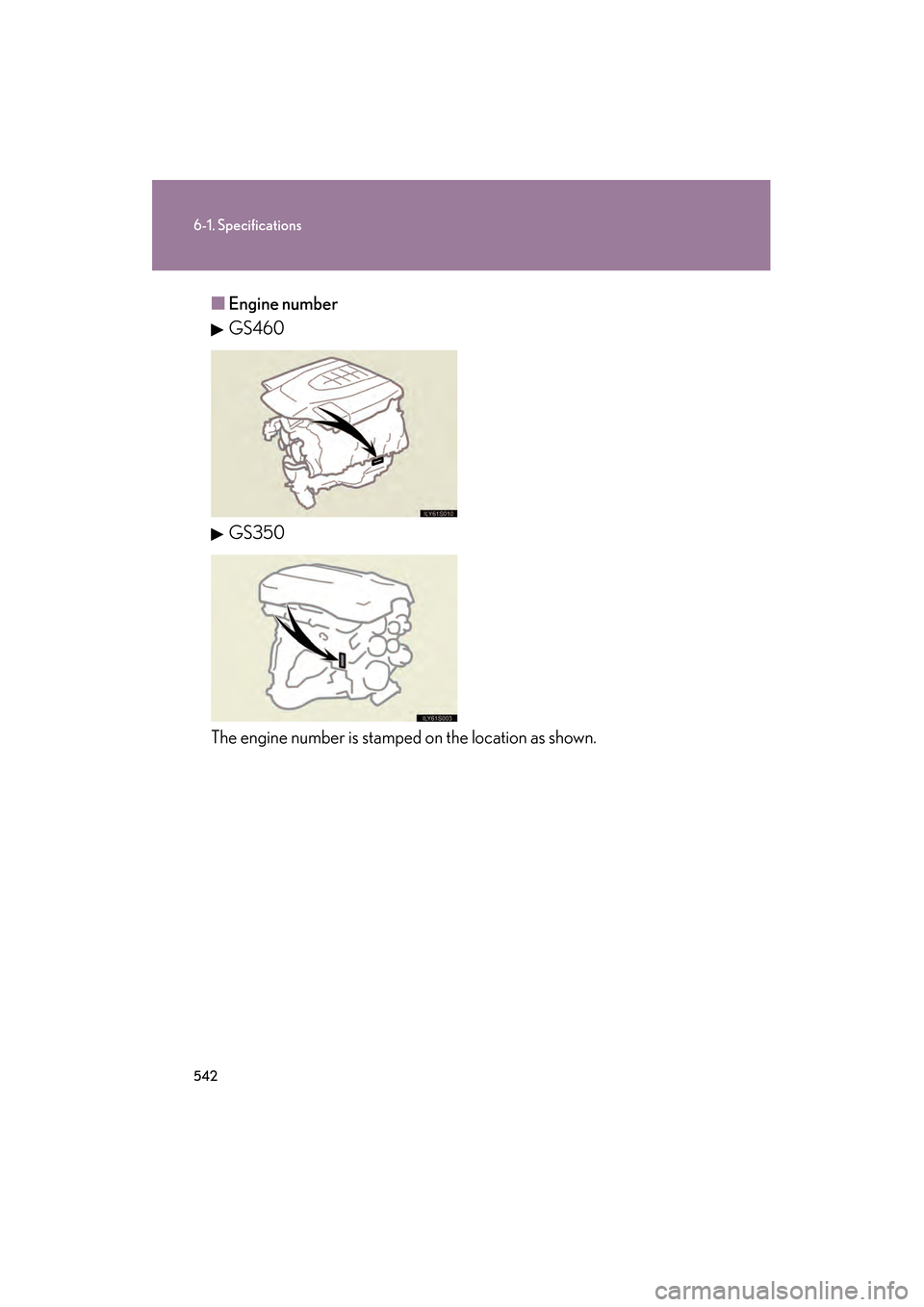

■Engine number
GS460
GS350
The engine number is stamped on the location as shown.
GS_U_G.book Page 542 Thursday, June 19, 2008 12:54 PM
Page 544 of 598
543
6-1. Specifications
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm

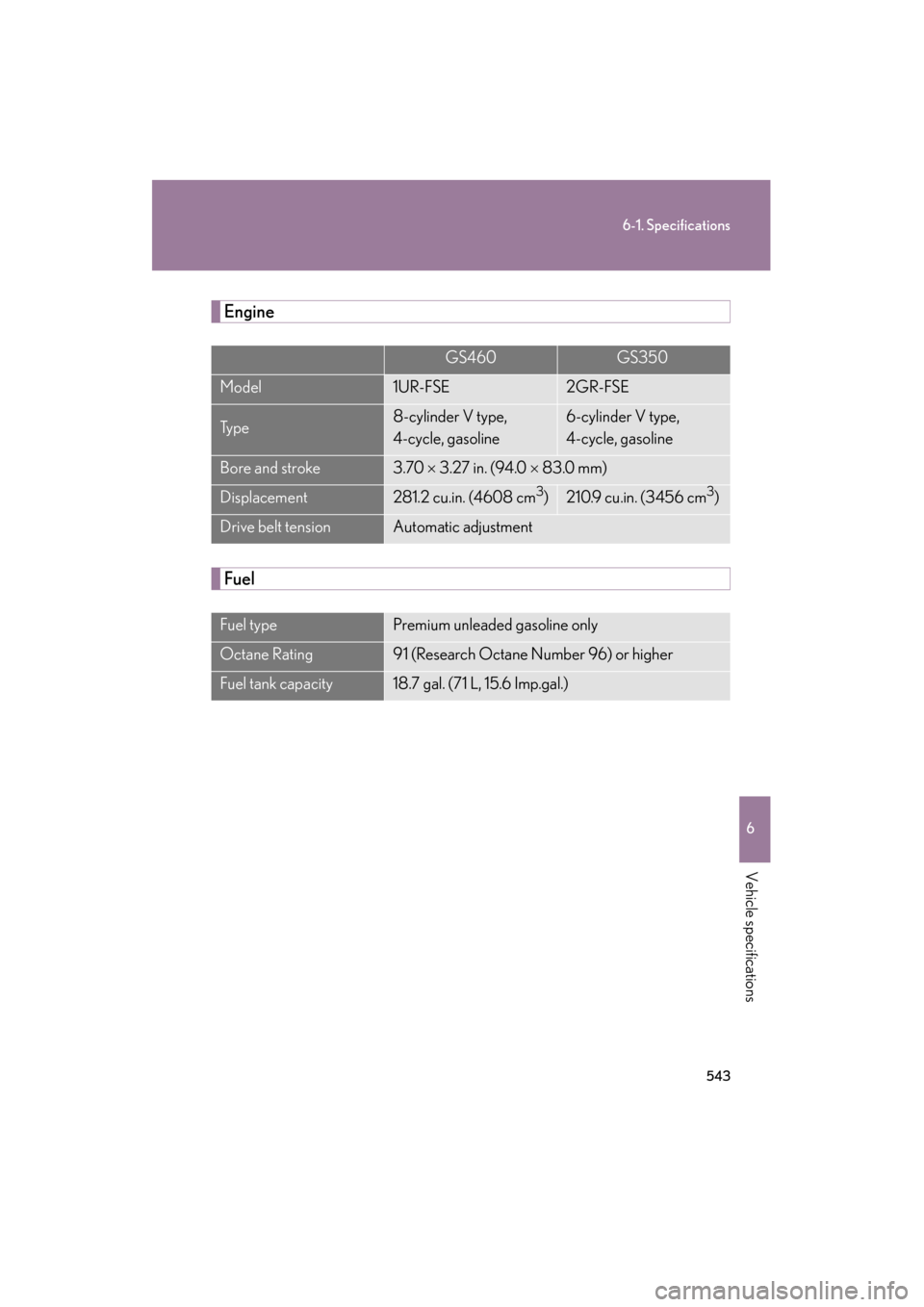

Engine
Fuel
GS460GS350
Model1UR-FSE2GR-FSE
Ty p e8-cylinder V type,
4-cycle, gasoline6-cylinder V type,
4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement281.2 cu.in. (4608 cm3)210.9 cu.in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel typePremium unleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity18.7 gal. (71 L, 15.6 Imp.gal.)
GS_U_G.book Page 543 Thursday, June 19, 2008 12:54 PM
Page 545 of 598
544
6-1. Specifications
GS_G_U
June 19, 2008 12:54 pm

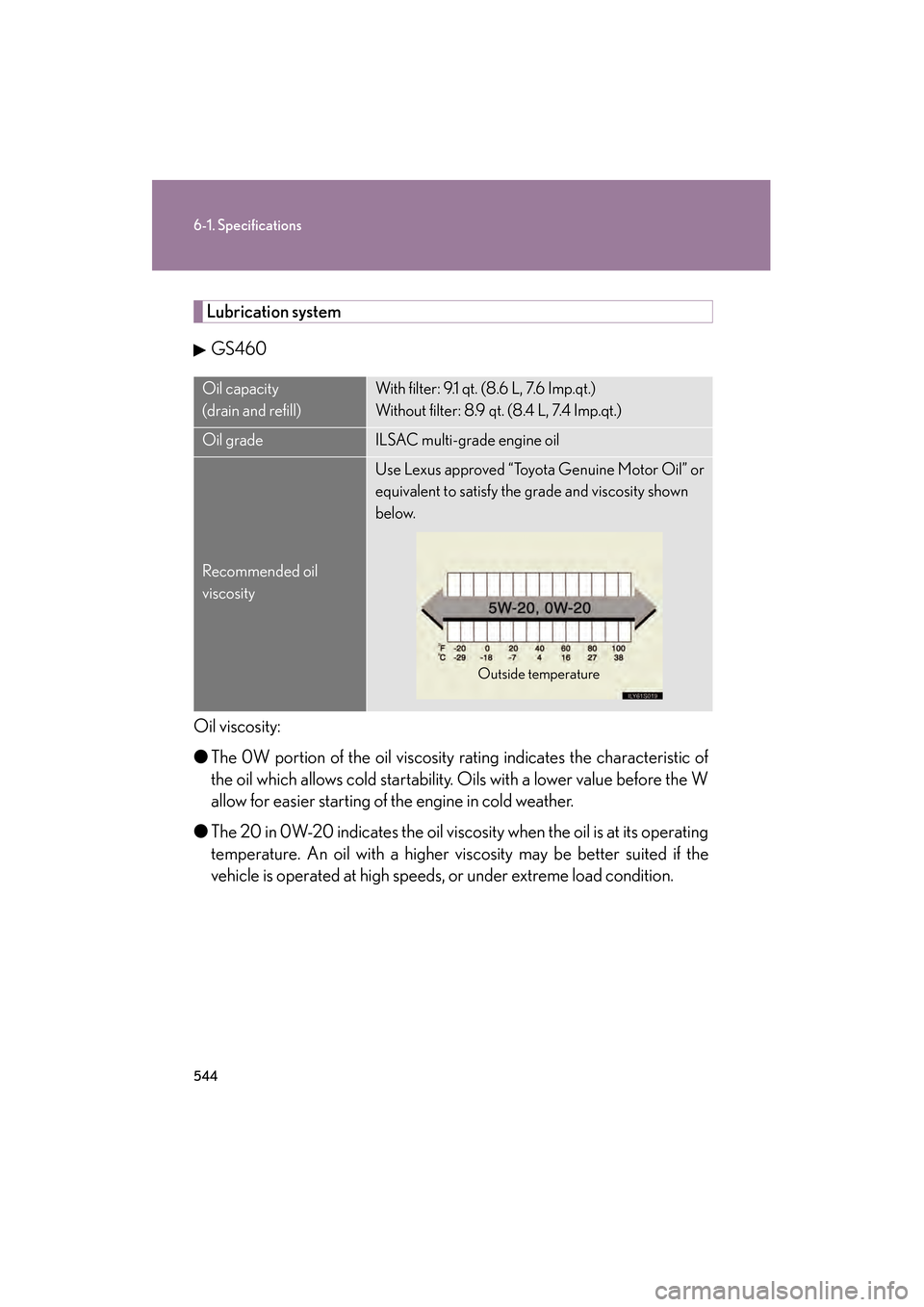

Lubrication system
GS460
Oil viscosity:
● The 0W portion of the oil viscosity rating indicates the characteristic of
the oil which allows cold startability. Oils with a lower value before the W
allow for easier starting of the engine in cold weather.
● The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the
vehicle is operated at high speeds, or under extreme load condition.
Oil capacity
(drain and refill)With filter: 9.1 qt. (8.6 L, 7.6 Imp.qt.)
Without filter: 8.9 qt. (8.4 L, 7.4 Imp.qt.)
Oil gradeILSAC multi-grade engine oil
Recommended oil
viscosity
Use Lexus approved “Toyota Genuine Motor Oil” or
equivalent to satisfy the grade and viscosity shown
below.
Outside temperature
GS_U_G.book Page 544 Thursday, June 19, 2008 12:54 PM
Page 546 of 598
545
6-1. Specifications
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm

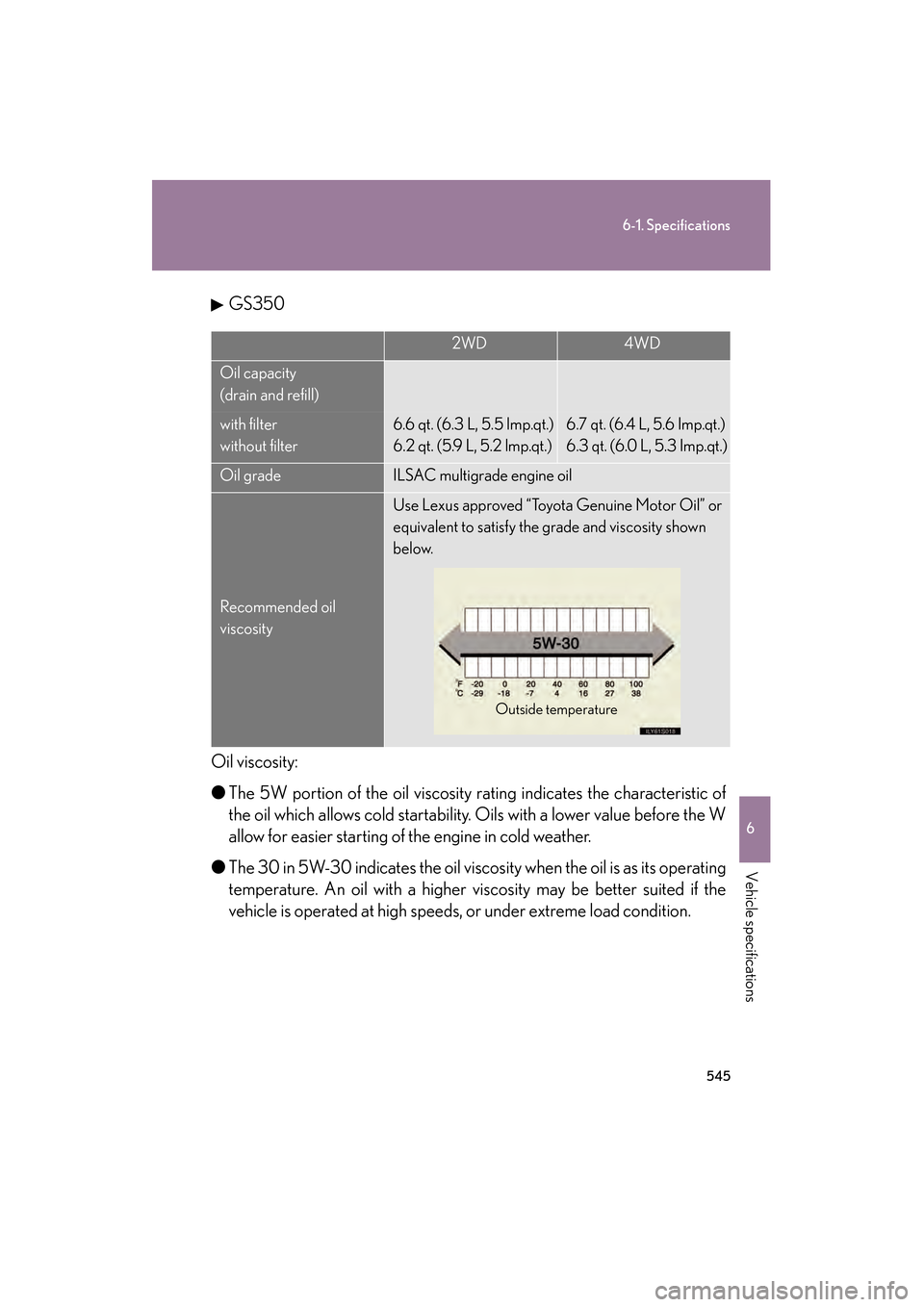

GS350
Oil viscosity:
● The 5W portion of the oil viscosity rating indicates the characteristic of
the oil which allows cold startability. Oils with a lower value before the W
allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is as its operating
temperature. An oil with a higher viscosity may be better suited if the
vehicle is operated at high speeds, or under extreme load condition.
2WD4WD
Oil capacity
(drain and refill)
with filter
without filter6.6 qt. (6.3 L, 5.5 lmp.qt.)
6.2 qt. (5.9 L, 5.2 lmp.qt.)6.7 qt. (6.4 L, 5.6 Imp.qt.)
6.3 qt. (6.0 L, 5.3 Imp.qt.)
Oil gradeILSAC multigrade engine oil
Recommended oil
viscosity
Use Lexus approved “Toyota Genuine Motor Oil” or
equivalent to satisfy the grade and viscosity shown
below.
Outside temperature
GS_U_G.book Page 545 Thursday, June 19, 2008 12:54 PM
Page 547 of 598
546
6-1. Specifications
GS_G_U
June 19, 2008 12:54 pm
Cooling system
Ignition system
CapacityGS46011.7 qt. (11.0 L, 9.7 Imp.qt.)
GS3509.6 qt. (9.1 L, 8.0 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make DENSOFK20HBR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
GS_U_G.book Page 546 Thursday, June 19, 2008 12:54 PM
Page 548 of 598
547
6-1. Specifications
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm
Electrical system
Differential
Rear differential: “Toyota Genuine Differential Gear Oil” is filled in your
Lexus vehicle at factory fill. Use Lexus approved “Toyota Genuine Differen-
tial Gear Oil” or an equivalent of matching quality to satisfy the above spec-
ification. Please contact your Lexus dealer for further details.
12 volt battery
Open voltage at
68 °F (20 °C):12.6 12.8V Fully charged
12.2 12.4V Half charged
11.8 12.0V Discharged
(Voltage is checked 20 minutes after
the engine and all lights are turned off.)
Charging rates5A max.
GS460/
GS350 (2WD)GS350 (4WD)
FrontRear
Oil capacity1.42 qt.
(1.35 L, 1.19 Imp.qt.)0.73 qt.
(0.70 L, 0.61 Imp.qt.)1.42 qt.
(1.35 L, 1.19 Imp.qt.)
Oil type and
viscosity
To y o t a G e n u i n e D i f -
ferential Gear Oil LT
75W-85 GL-5 or
equivalent
Hypoid gear oil API
GL-5
Above 0°F (-18°C):
SAE 90
Below 0°F (-18°C):
SAE 80W or SAE
80W-90
To y o t a G e n u i n e D i f -
ferential Gear Oil LT
75W-85 GL-5 or
equivalent
GS_U_G.book Page 547 Thursday, June 19, 2008 12:54 PM
Page 549 of 598
548
6-1. Specifications
GS_G_U
June 19, 2008 12:54 pm

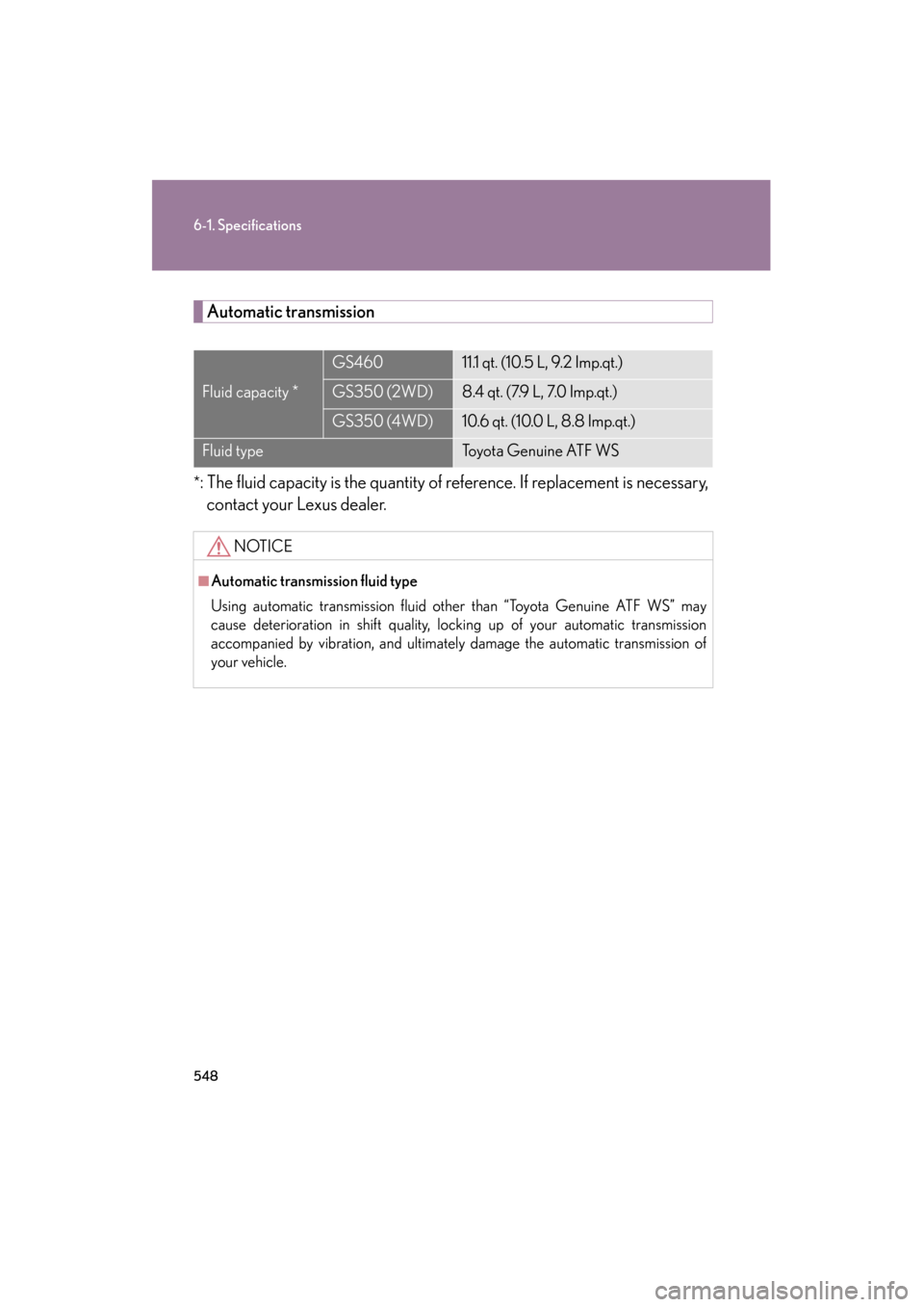

Automatic transmission
*: The fluid capacity is the quantity of reference. If replacement is necessary,
contact your Lexus dealer.
Fluid capacity *
GS46011.1 qt. (10.5 L, 9.2 Imp.qt.)
GS350 (2WD) 8.4 qt. (7.9 L, 7.0 Imp.qt.)
GS350 (4WD) 10.6 qt. (10.0 L, 8.8 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Automatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS” may
cause deterioration in shift quality, locking up of your automatic transmission
accompanied by vibration, and ultimately damage the automatic transmission of
your vehicle.
GS_U_G.book Page 548 Thursday, June 19, 2008 12:54 PM
Page 550 of 598
549
6-1. Specifications
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm

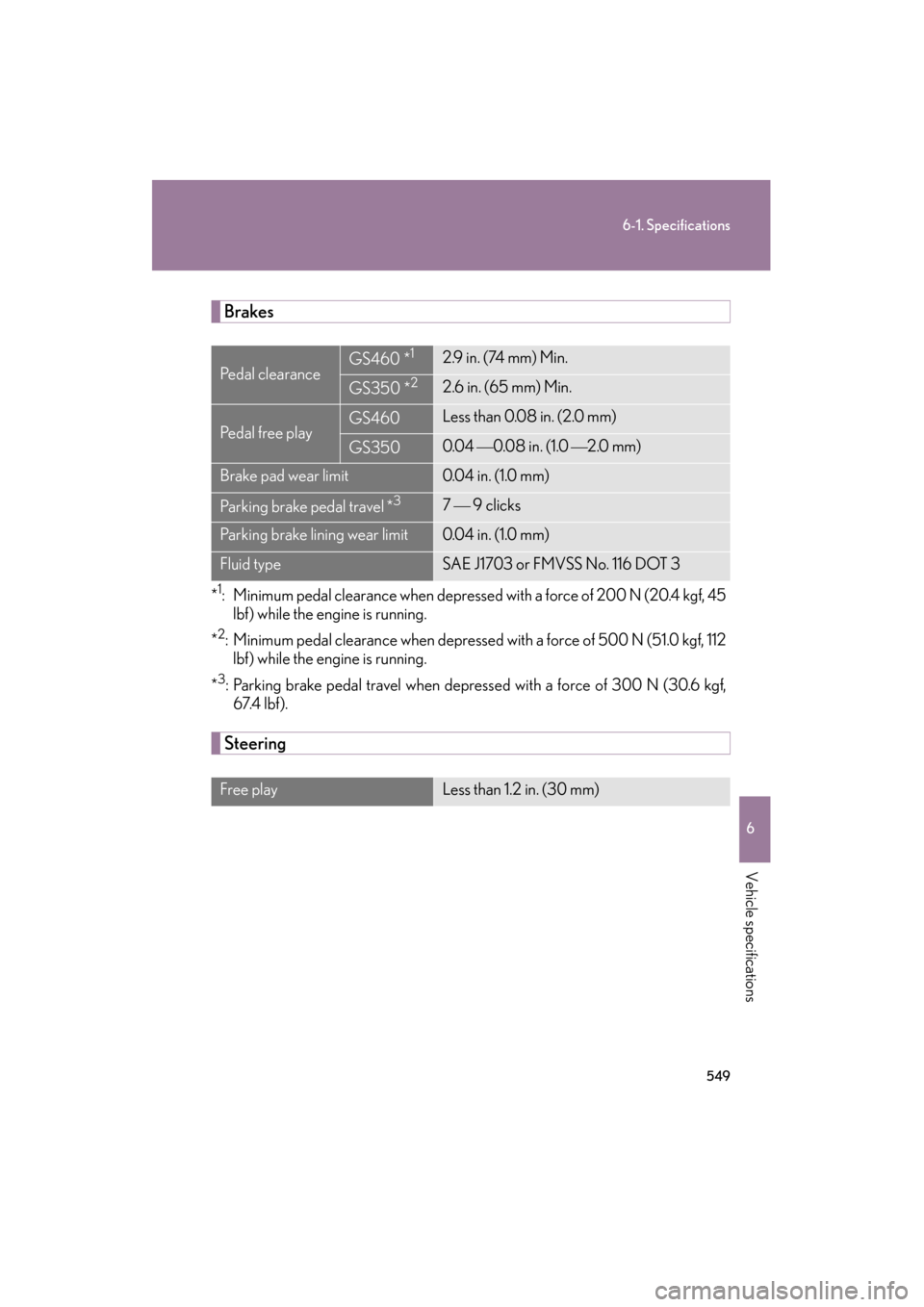

Brakes
*1: Minimum pedal clearance when depressed with a force of 200 N (20.4 kgf, 45lbf) while the engine is running.
*
2: Minimum pedal clearance when depressed with a force of 500 N (51.0 kgf, 112 lbf) while the engine is running.
*
3: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf, 67.4 l bf ).
Steering
Pe d a l c l e a r a n c e GS460 *12.9 in. (74 mm) Min.
GS350 *22.6 in. (65 mm) Min.
Pedal free play GS460Less than 0.08 in. (2.0 mm)
GS3500.04 0.08 in. (1.0 2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake pedal travel *37 9 clicks
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 1.2 in. (30 mm)
GS_U_G.book Page 549 Thursday, June 19, 2008 12:54 PM
