key Lexus GS350 2008 Workshop Manual

5
When trouble arises
525
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm

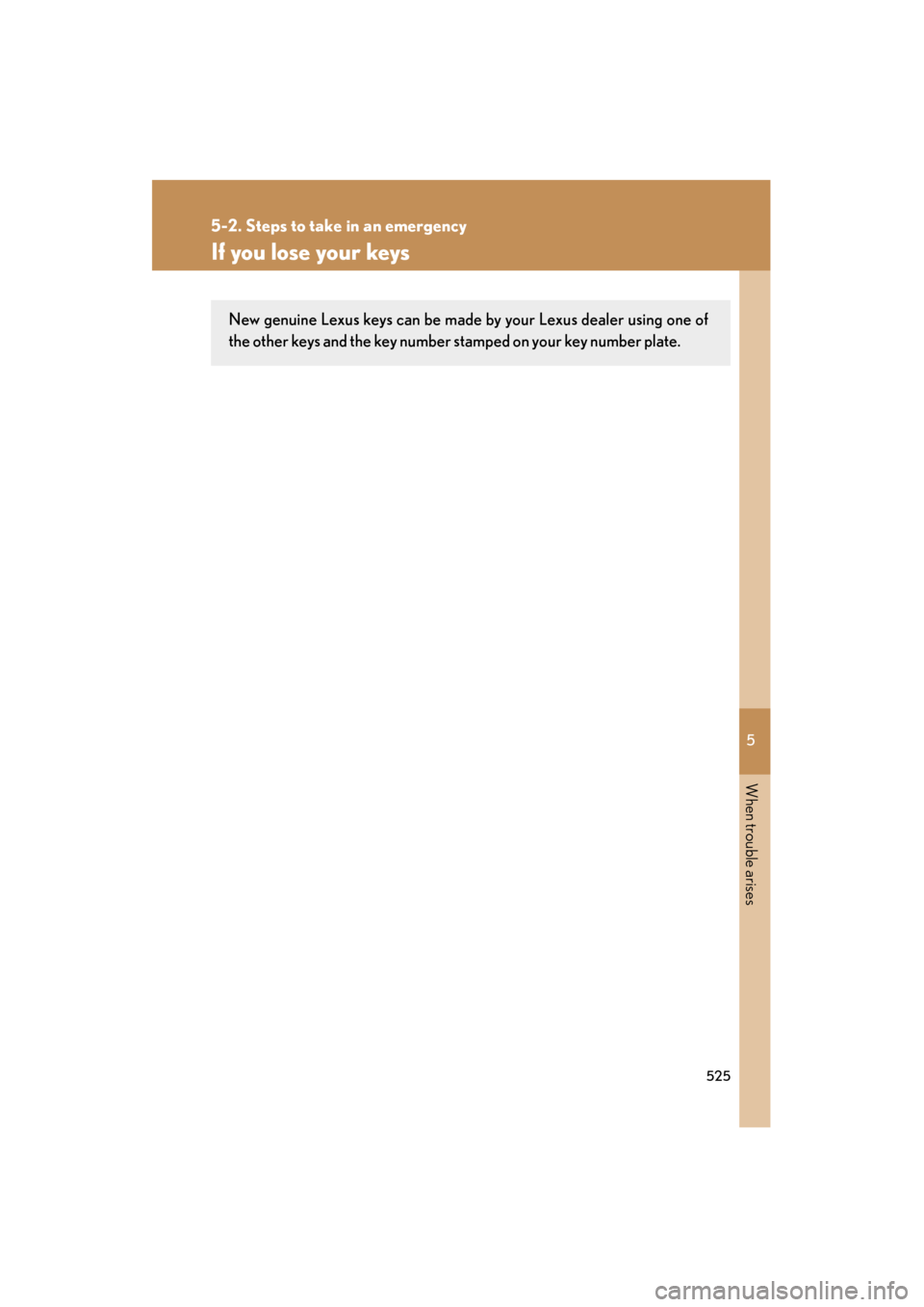

If you lose your keys
New genuine Lexus keys can be made by your Lexus dealer using one of
the other keys and the key number stamped on your key number plate.
GS_U_G.book Page 525 Thursday, June 19, 2008 12:54 PM

526
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk and key linked
functions
Doors Using the mechanical key in order
to perform the following opera-
tions:
Locks all doors
Closes the windows/moon roof
(turn and hold)
Unlocks the door
Tu r n i n g t h e k e y r e a r w a r d u n l o c k s
the driver’s door.
Turning the key once again unlocks
the other doors.
Opens the windows/moon roof
(turn and hold)
If communication between the electronic key and vehicle is interrupted
(
→P. 26) or the electronic key cann ot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors and trunk can be
opened or the engine can be started by following the procedure below.
GS_U_G.book Page 526 Thursday, June 19, 2008 12:54 PM

5
When trouble arises
527
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm

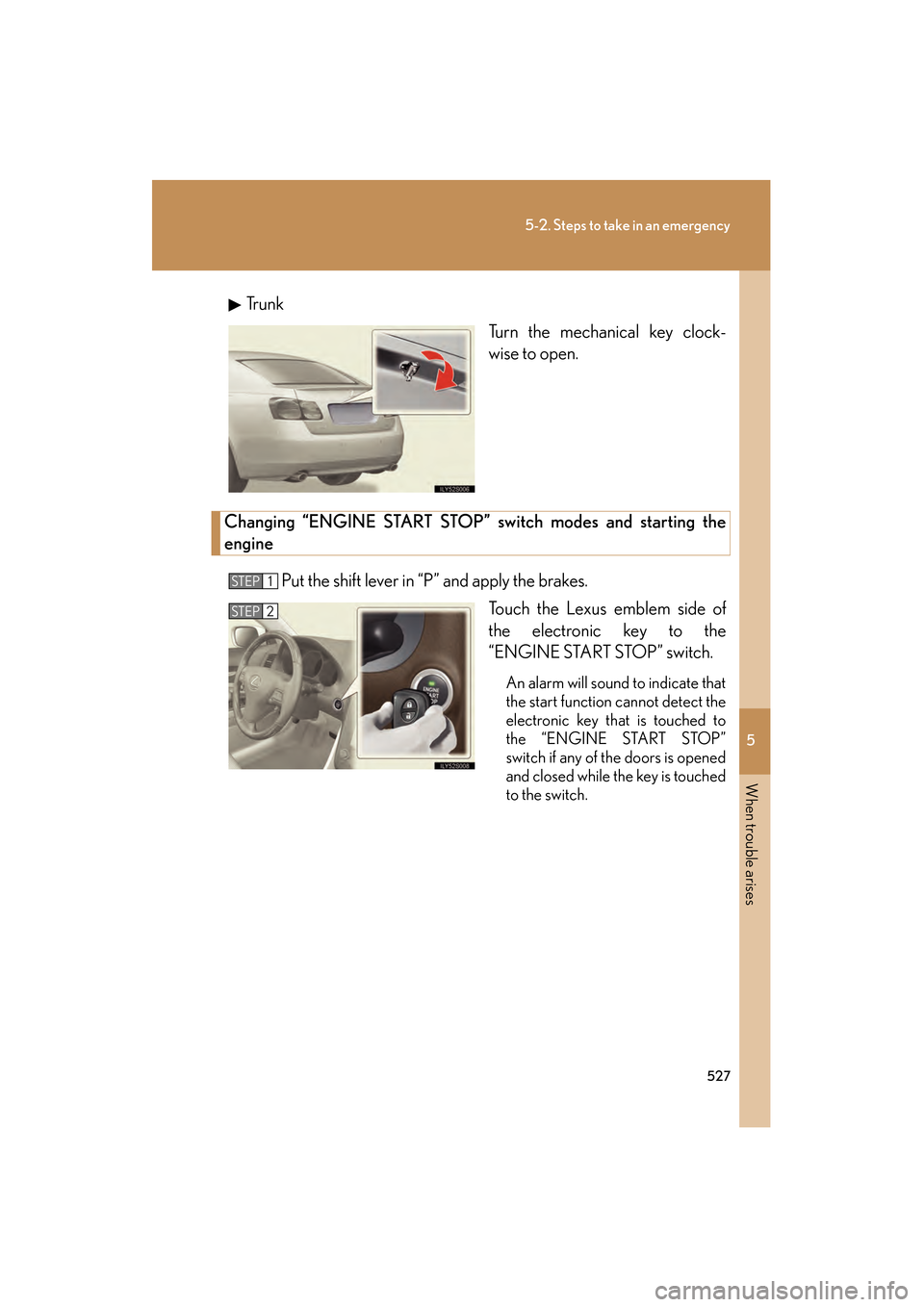

Tr u n kTurn the mechanical key clock-
wise to open.
Changing “ENGINE START STOP” switch modes and starting the
engine
Put the shift lever in “P” and apply the brakes. Touch the Lexus emblem side of
the electronic key to the
“ENGINE START STOP” switch.
An alarm will sound to indicate that
the start function cannot detect the
electronic key that is touched to
the “ENGINE START STOP”
switch if any of the doors is opened
and closed while the key is touched
to the switch.
STEP1
STEP2
GS_U_G.book Page 527 Thursday, June 19, 2008 12:54 PM

528
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm

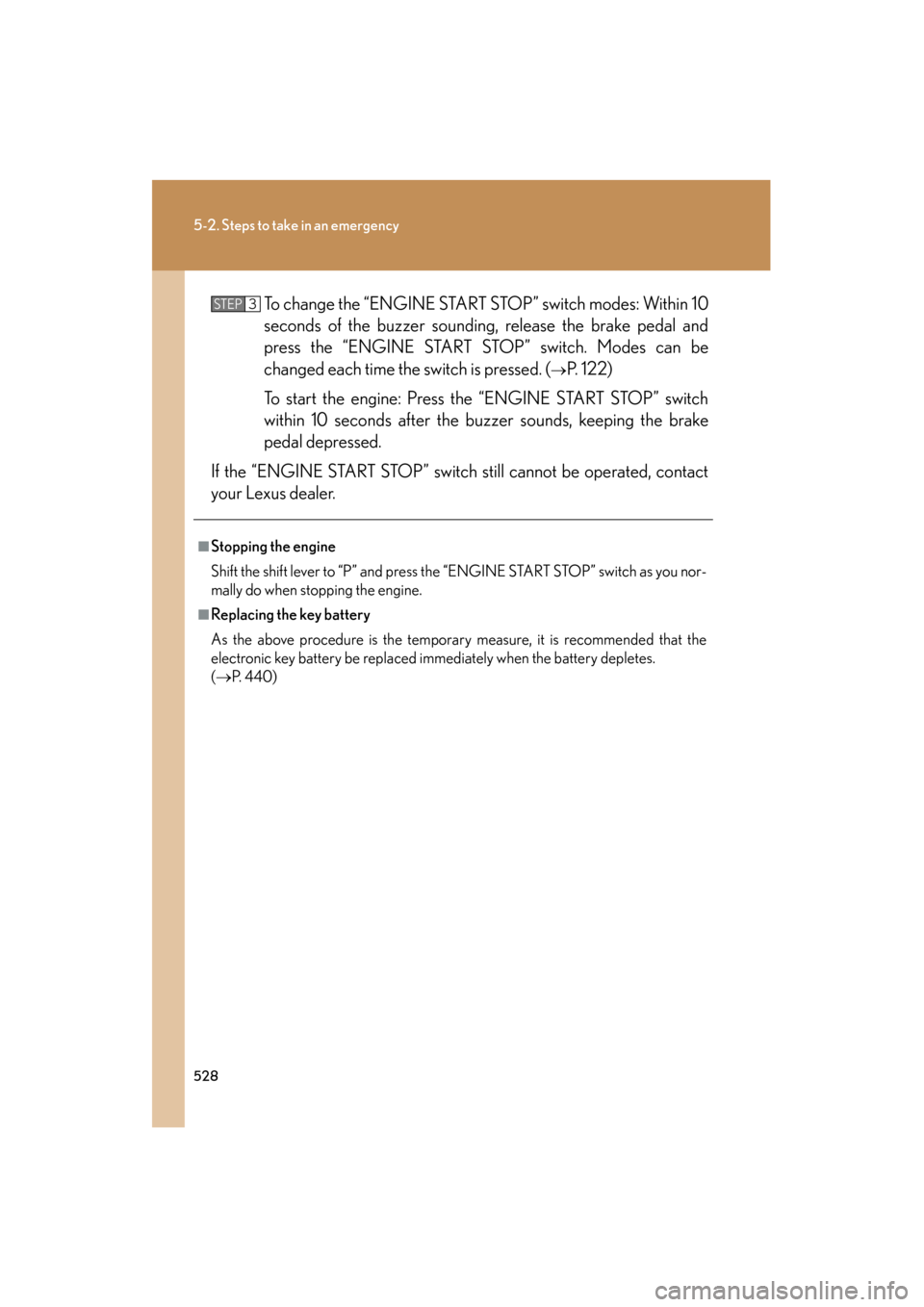

To change the “ENGINE START STOP” switch modes: Within 10
seconds of the buzzer sounding, release the brake pedal and
press the “ENGINE START STOP” switch. Modes can be
changed each time the switch is pressed. (
→P. 122)
To start the engine: Press the “ENGINE START STOP” switch
within 10 seconds after the buzzer sounds, keeping the brake
pedal depressed.
If the “ENGINE START STOP” switch still cannot be operated, contact
your Lexus dealer.
■Stopping the engine
Shift the shift lever to “P” and press th e “ENGINE START STOP” switch as you nor-
mally do when stopping the engine.
■Replacing the key battery
As the above procedure is the temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery depletes.
( → P. 440)
STEP3
GS_U_G.book Page 528 Thursday, June 19, 2008 12:54 PM

5
When trouble arises
529
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
If the 12 volt battery is discharged
The following procedures may be used to start the engine if the 12 volt bat-
tery is discharged.
You can call your Lexus dealer or qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12 volt battery, you can jump start your Lexus following the steps
below.
Open the door using the mechanical key, then open the hood.
GS350: Remove the engine compartment covers.
Connecting the jumper cables.
GS460
STEP1
STEP2
GS_U_G.book Page 529 Thursday, June 19, 2008 12:54 PM

571
6-2. Customization
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm

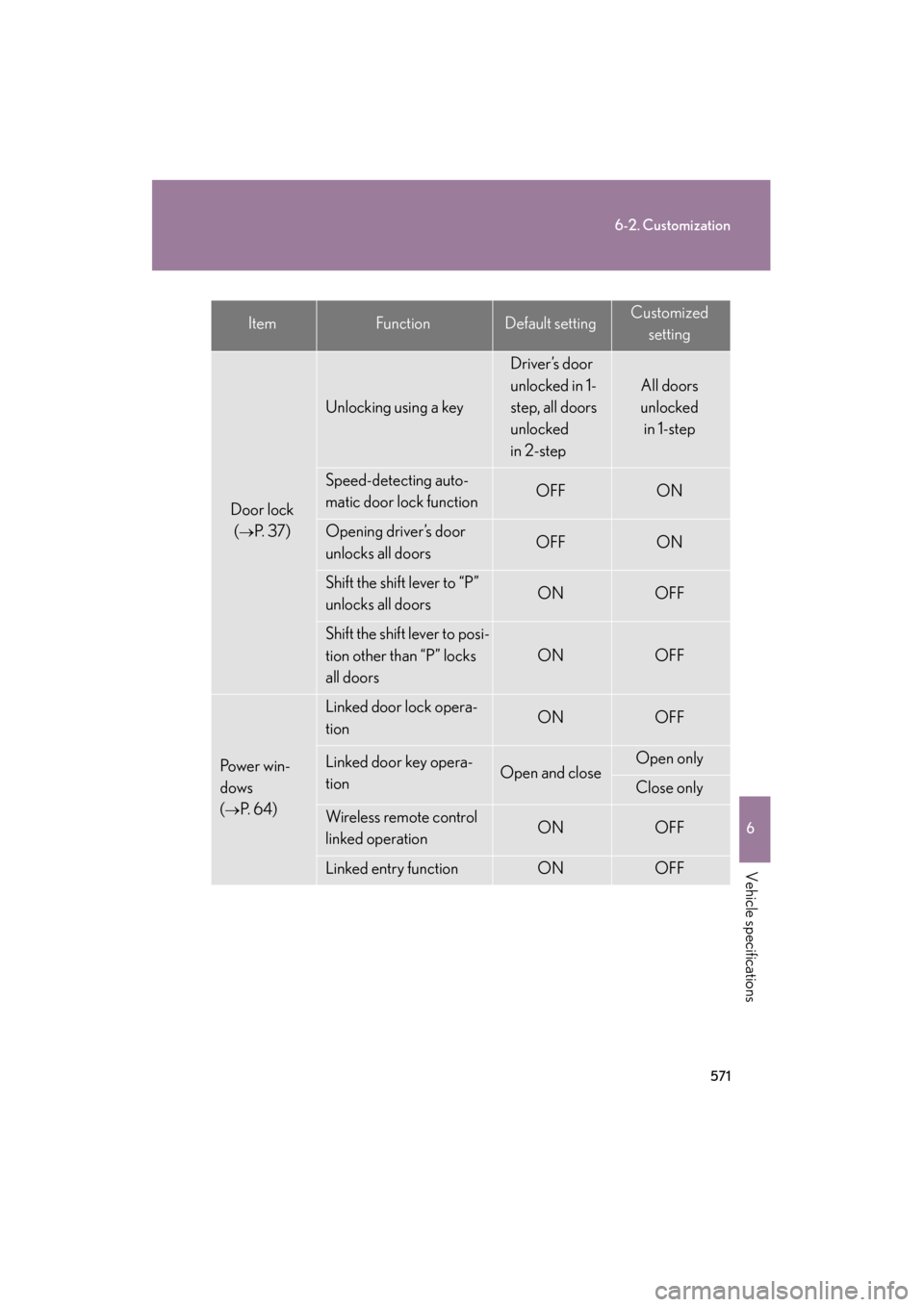

ItemFunctionDefault settingCustomizedsetting
Door lock (
→P. 3 7 )
Unlocking using a key
Driver’s door
unlocked in 1-
step, all doors
unlocked
in 2-step
All doors
unlocked in 1-step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver’s door
unlocks all doors OFFON
Shift the shift lever to “P”
unlocks all doorsONOFF
Shift the shift lever to posi-
tion other than “P” locks
all doors
ONOFF
Po w e r w i n -
dows
(
→P. 6 4 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Wireless remote control
linked operationONOFF
Linked entry functionONOFF
GS_U_G.book Page 571 Thursday, June 19, 2008 12:54 PM

572
6-2. Customization
GS_G_U
June 19, 2008 12:54 pm
*: Vehicles sold outside Canada
ItemFunctionDefault settingCustomizedsetting
Moon roof
(
→P. 6 7 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Linked operation of com-
ponents when door key is
used
Slide onlyTilt only
Wireless remote control
linked operationONOFF
Linked operation of com-
ponents when wireless
remote control used
Slide onlyTilt only
Linked entry functionONOFF
Automatic
light control
system
(
→P. 1 4 2 )
Light sensor sensitivityLevel 3Levels 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Daytime running lightONOFF*
GS_U_G.book Page 572 Thursday, June 19, 2008 12:54 PM

585
Alphabetical index
GS_G_U
June 19, 2008 12:54 pm
BrakeFluid ............................................................ 416
Parking brake ..........................................131
Brake assist ............................................... 184
Care
Exterior ...................................................388
Interior.......................................................391
Seat belts ............................................... 392
Cargo capacity ....................................... 194
Cargo hooks .......................................... 360
CD player/changer .............................242
Chains....................................................... 200
Child-protectors ..................................... 38
Child restraint system Definition................................................... 98
Installation................................................ 102
Installing CRS with lower
anchors .................................................106
Installing CRS with seatbelts .........103
Installing CRS with top straps ....... 107
Child safety
Airbag precautions ............................. 87
Battery precautions................419, 532
Child restraint system ........................ 98
Child-protectors................................... 38
How your child should wear the seatbelt ........................................... 56
Installing child restraints ................... 102
Moon roof precautions ..................... 69
Power window lock switch ..............64
Power window precautions.............64
Removed electronic key battery precautions ......................................... 441
Seat belt comfort guide..................... 54
Seat belt precautions...........................57 Seat heater precautions................ 355
Trunk precautions................................. 44
Cigarette lighter....................................352
Cleaning Exterior................................................... 388
Interior ...................................................... 391
Seat belts ................................................392
Clock ......................................................... 349
Coin holder .............................................345
Compass .................................................. 369
Condenser ............................................... 415
Console box ........................................... 342
Cooling system Engine overheating.......................... 533
Cruise control Cruise control....................................... 150
Dynamic radar cruise control....... 153
Cup holders ............................................345
Curtain shield airbags........................... 80
Customizable features .......................569
Daytime running light system ........... 143
Defogger Rear window ........................................ 225
Side mirror............................................. 225
Dimension................................................540
Dinghy towing ........................................205
Display
Multi-information display ................ 139
Touch screen ...................................... 208
Trip information ................................... 140
Warning message............................. 497
Do-it-yourself maintenance ............ 400
Door courtesy lights ............................ 337
Door pocket............................................ 346
C
D
GS_U_G.book Page 585 Thursday, June 19, 2008 12:54 PM

586
Alphabetical index
GS_G_U
June 19, 2008 12:54 pm
DoorsDoor lock................................. 22, 34, 37
Rear door child protector ................ 38
Driver’s seat belt reminder light .....490
Driver’s seat position memory ........... 47
Driving
Correct posture .................................... 78
Procedures ...............................................112
DVD player/changer........................... 251
Electric power steering ....................... 184
Electronic key If the electronic key does not operate properly .................... 526
Replacing battery .............................. 440
Emergency, in case of
If a warning light turns on ............. 488
If a warning message is displayed ............................................ 497
If the electronic key does
not operate properly .................... 526
If the engine will not
start ........................................................ 523
If the shift lever cannot be
shifted from “P”................................ 524
If the 12 volt battery is
discharged ....................................... 529
If you have a flat tire ...............512, 522
If you lose your keys......................... 525
If you think something is
wrong ................................................... 484
If your vehicle becomes stuck.....536
If your vehicle needs to be towed ................................................... 478
If your vehicle overheats ................533 Engine
ACCESSORY mode........................122
Compartment ..................................... 406
Engine (ignition) switch...................... 121
Hood ....................................................... 403
How to start the engine ..................... 121
If the engine will not start ............... 523
Overheating ........................................ 533
Engine compartment cover .............408
Engine coolant temperature gauge .......................................................132
Engine coolant
Capacity ................................................ 546
Checking................................................. 414
Preparing and checking before winter...................................... 199
Engine oil Capacity ................................................ 544
Checking............................................... 409
Preparing and checking
before winter...................................... 199
Engine oil maintenance data .............412
Engine (ignition) switch......................... 121
Event data recorder ............................ 486
First-aid kit storage belt .....................360
Floor mats ................................................ 359
Fluid
Brake ......................................................... 416
Washer................................................... 420
Fog lights Switch ........................................................ 145
Wattage ................................................. 552
Foot light .................................................. 337
E
F
GS_U_G.book Page 586 Thursday, June 19, 2008 12:54 PM

588
Alphabetical index
GS_G_U
June 19, 2008 12:54 pm
JackPositioning a floor jack....................404
Replacing the wheel........................... 512
Jack handle ............................................... 512
Keyless entry.............................................. 34
Keys Engine (ignition) switch ......................121
If the electronic key does not operate properly .................... 526
If you lose your keys......................... 525
Key number plate ................................. 20
Keys ............................................................. 20
Mechanical key...................................... 20
Wireless remote control key .......... 34
Lexus Link System ................................ 373
Light bulbs Replacing ............................................... 470
Wattage.................................................. 552
Light sensitive optitron meter ........... 134
Lights Fog light switch.....................................145
Headlights switch ................................ 142
Interior lights list.................................. 337
Replacing light bulbs........................ 470
Turn signal lever .................................. 130
Vanity lights ..........................................348
Wattage.................................................. 552 Maintenance
Do-it-yourself ma intenance......... 400
General maintenance..................... 396
Maintenance data ............................. 540
Maintenance requirements.......... 394
Meter
Instrument panel light control ....... 133
Meters....................................................... 132
Micro dust and pollen filter ................ 221
Mirrors Inside rear view mirror ........................ 61
Side mirror heater..............................225
Side mirrors.............................................. 62
Vanity mirrors ..................................... 348
Moon roof....................................................67
MP3 disc...................................................247
Multi-information display ....................139
Odometer .................................................132
Oil Engine oil............................................... 409
Opener
Fuel filler door .........................................70
Hood ....................................................... 403
Trunk............................................................ 42
Outer foot lights.................................... 337
Outside rear view mirrors Adjusting and folding .......................... 62
Mirror position memory .................... 47
Outside temperature
display ..........................................140, 350
Overhead console ............................... 343
Overheating, Engine .......................... 533J
K
L
M
O
GS_U_G.book Page 588 Thursday, June 19, 2008 12:54 PM
