405
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm

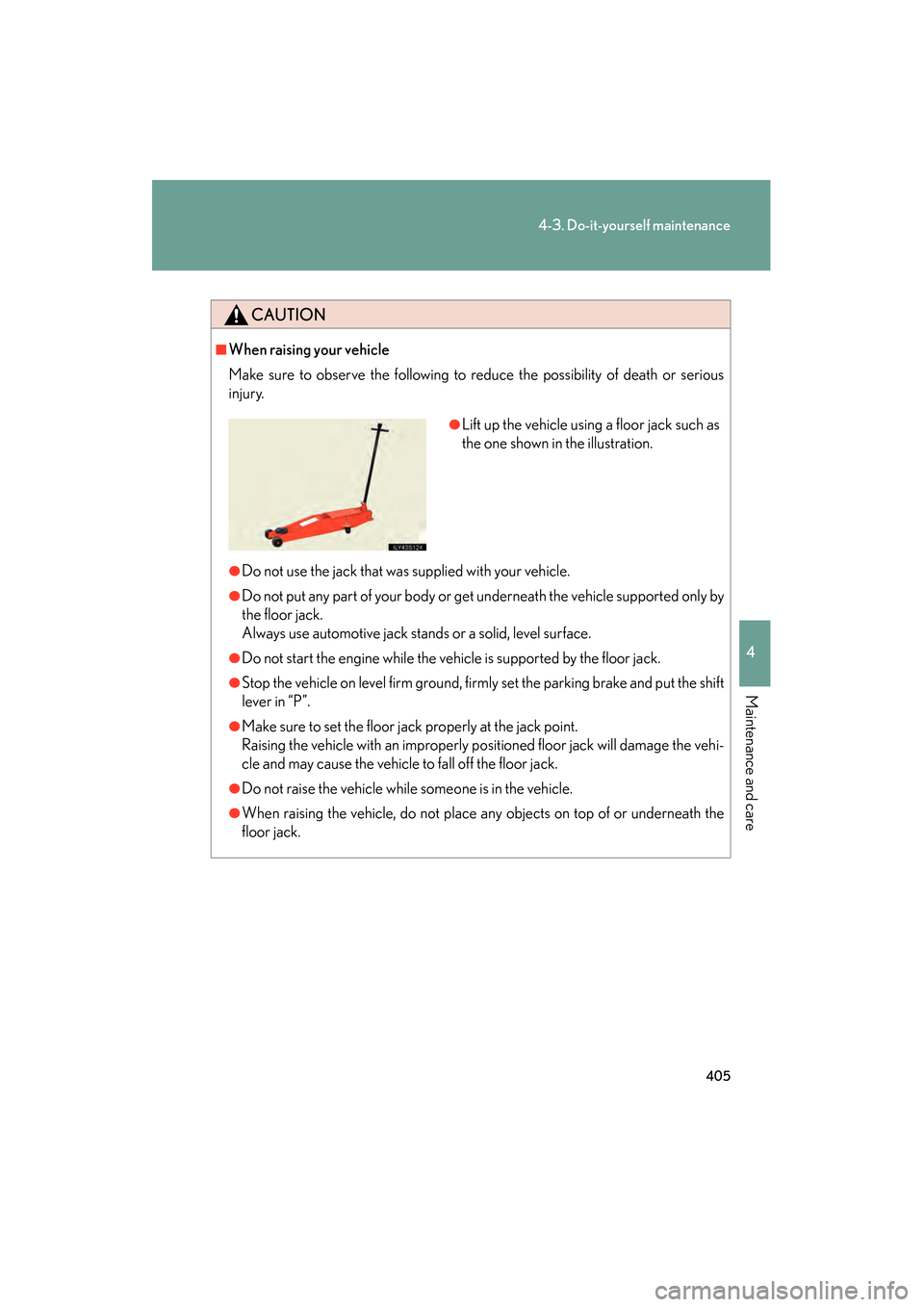

CAUTION
■When raising your vehicle
Make sure to observe the following to reduce the possibility of death or serious
injury.
●Do not use the jack that was supplied with your vehicle.
●Do not put any part of your body or get underneath the vehicle supported only by
the floor jack.
Always use automotive jack stands or a solid, level surface.
●Do not start the engine while the vehicle is supported by the floor jack.
●Stop the vehicle on level firm ground, firmly set the parking brake and put the shift
lever in “P”.
●Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage the vehi-
cle and may cause the vehicle to fall off the floor jack.
●Do not raise the vehicle while someone is in the vehicle.
●When raising the vehicle, do not place any objects on top of or underneath the
floor jack.
●Lift up the vehicle using a floor jack such as
the one shown in the illustration.
GS_U_G.book Page 405 Thursday, June 19, 2008 12:54 PM

412
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm
■Engine oil consumption
●The amount of engine oil consumed depends on the oil viscosity, the quality of
the oil and the way the vehicle is driven.
●More oil is consumed under driving conditions such as high speeds, frequent
acceleration and deceleration.
●A new engine consumes more oil.
●When judging the amount of oil consumption, keep in mind that the oil may
have become diluted, making it difficult to judge the true level accurately.
●Oil consumption: Max. 1.1 qt./600 miles, 0.9 lmp.qt./600 miles (1.0 L per 1000
km). If the vehicle consumes more than this amount, contact your Lexus dealer.
■Resetting the engine oil maintenance data (U.S.A. only)
Perform the following steps:Press the “DISP” switch ( →P. 140) to change the multi-information dis-
play to blank.
Turn the “ENGINE START STOP” switch to OFF.
Turn the “ENGINE START STOP” switch to IGNITION ON mode with
the trip meter reset button held down.
Keep pressing the button for longer than 7 seconds after the “ENGINE
START STOP” switch is in IGNITION ON mode.
STEP1
STEP2
STEP3
STEP4
After the above operation, the message
shown in the left will appear on the display.
The master warning light and tone will turn
on. After 5 seconds, the system reset is com-
pleted.
GS_U_G.book Page 412 Thursday, June 19, 2008 12:54 PM

418
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm

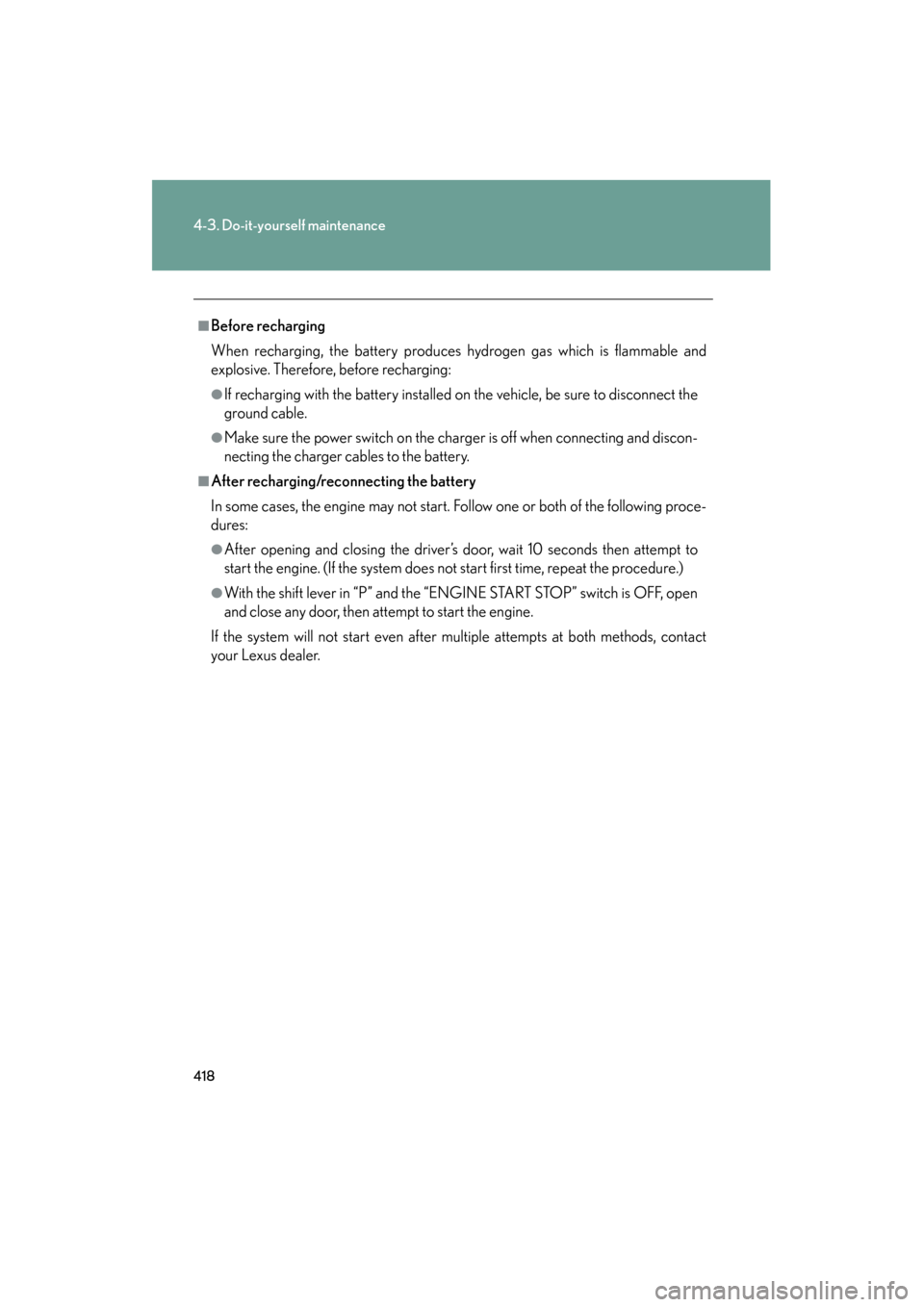

■Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, before recharging:
●If recharging with the battery installed on the vehicle, be sure to disconnect the
ground cable.
●Make sure the power switch on the charger is off when connecting and discon-
necting the charger cables to the battery.
■After recharging/reconnecting the battery
In some cases, the engine may not start. Follow one or both of the following proce-
dures:
●After opening and closing the driver’s door, wait 10 seconds then attempt to
start the engine. (If the system does not start first time, repeat the procedure.)
●With the shift lever in “P” and the “ENGINE START STOP” switch is OFF, open
and close any door, then attempt to start the engine.
If the system will not start even after multiple attempts at both methods, contact
your Lexus dealer.
GS_U_G.book Page 418 Thursday, June 19, 2008 12:54 PM

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm

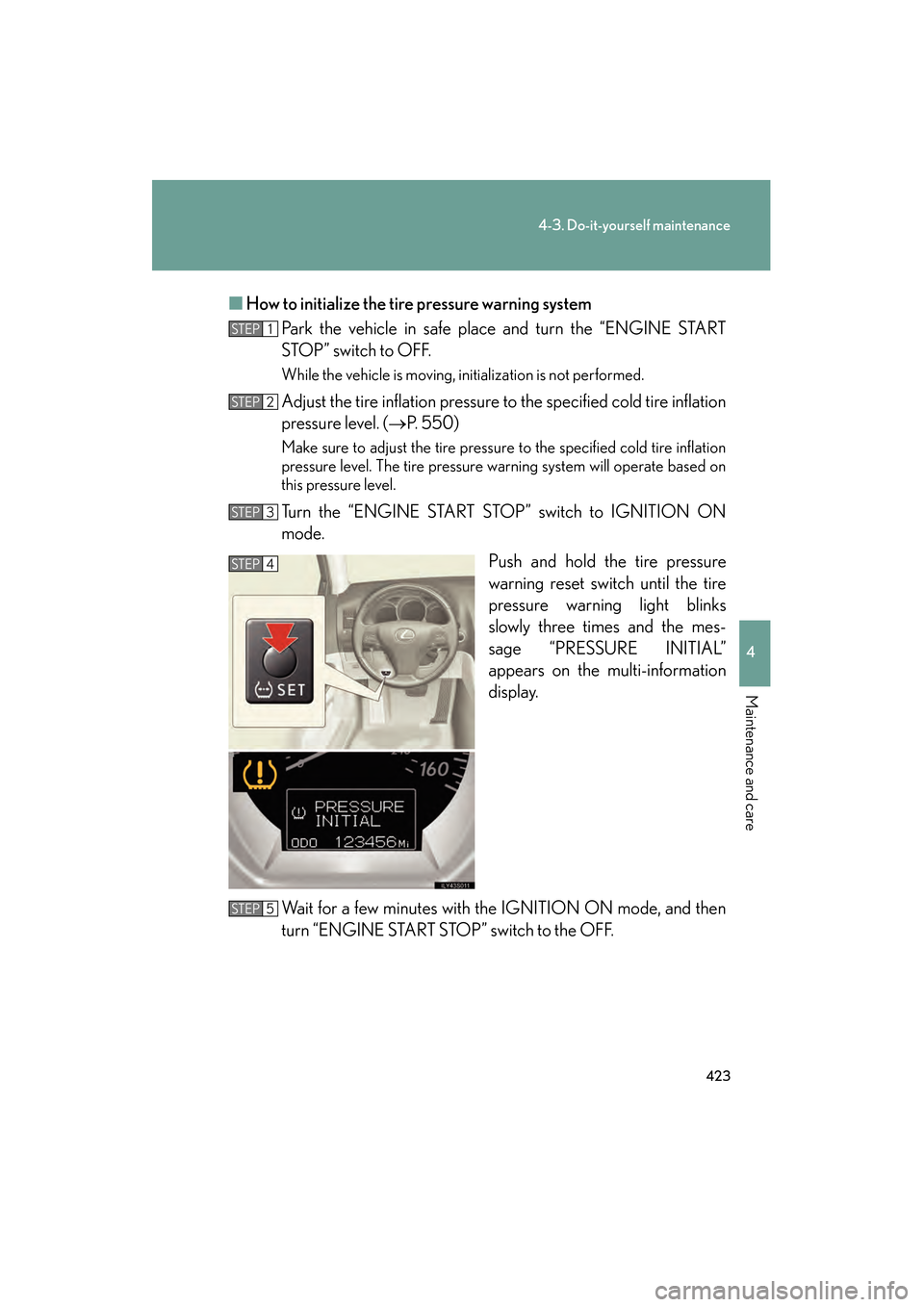

■How to initialize the tire pressure warning system
Park the vehicle in safe place and turn the “ENGINE START
STOP” switch to OFF.
While the vehicle is moving, initialization is not performed.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. ( →P. 5 5 0 )
Make sure to adjust the tire pressure to the specified cold tire inflation
pressure level. The tire pressure warning system will operate based on
this pressure level.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Push and hold the tire pressure
warning reset switch until the tire
pressure warning light blinks
slowly three times and the mes-
sage “PRESSURE INITIAL”
appears on the multi-information
display.
Wait for a few minutes with the IGNITION ON mode, and then
turn “ENGINE START STOP” switch to the OFF.
STEP1
STEP2
STEP3
STEP4
STEP5
GS_U_G.book Page 423 Thursday, June 19, 2008 12:54 PM

437
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm

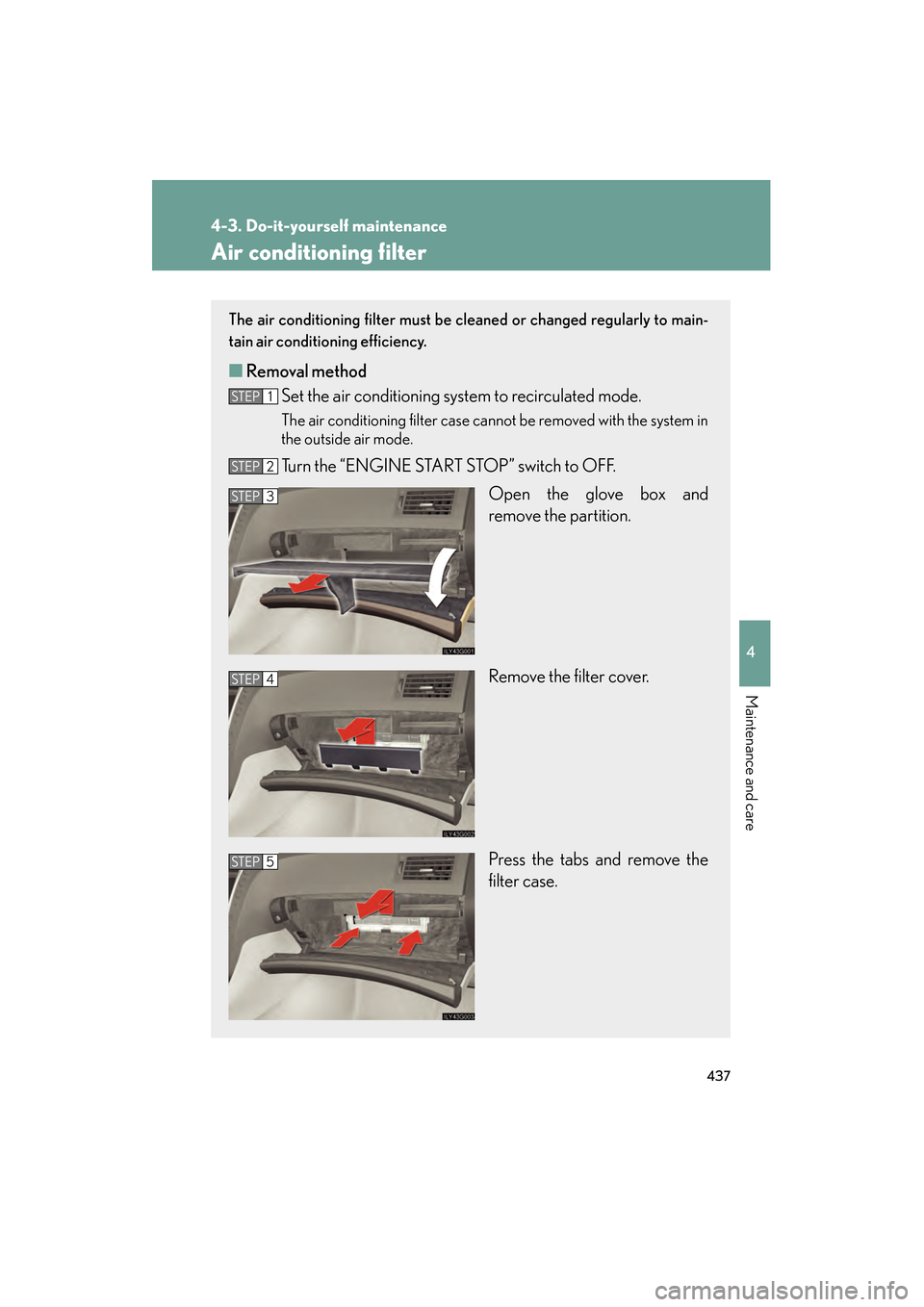

Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to main-
tain air conditioning efficiency.
■ Removal method
Set the air conditioning system to recirculated mode.
The air conditioning filter case cannot be removed with the system in
the outside air mode.
Turn the “ENGINE START STOP” switch to OFF.
Open the glove box and
remove the partition.
Remove the filter cover.
Press the tabs and remove the
filter case.
STEP1
STEP2
STEP3
STEP4
STEP5
GS_U_G.book Page 437 Thursday, June 19, 2008 12:54 PM

442
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch to OFF.
Remove the engine compartment cover if necessary.
→P. 4 0 8
Open the fuse box cover.
■ Engine compartment
Ty p e A
Push the tabs in and lift the lid
off.
Ty p e B Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3
GS_U_G.book Page 442 Thursday, June 19, 2008 12:54 PM

449
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm

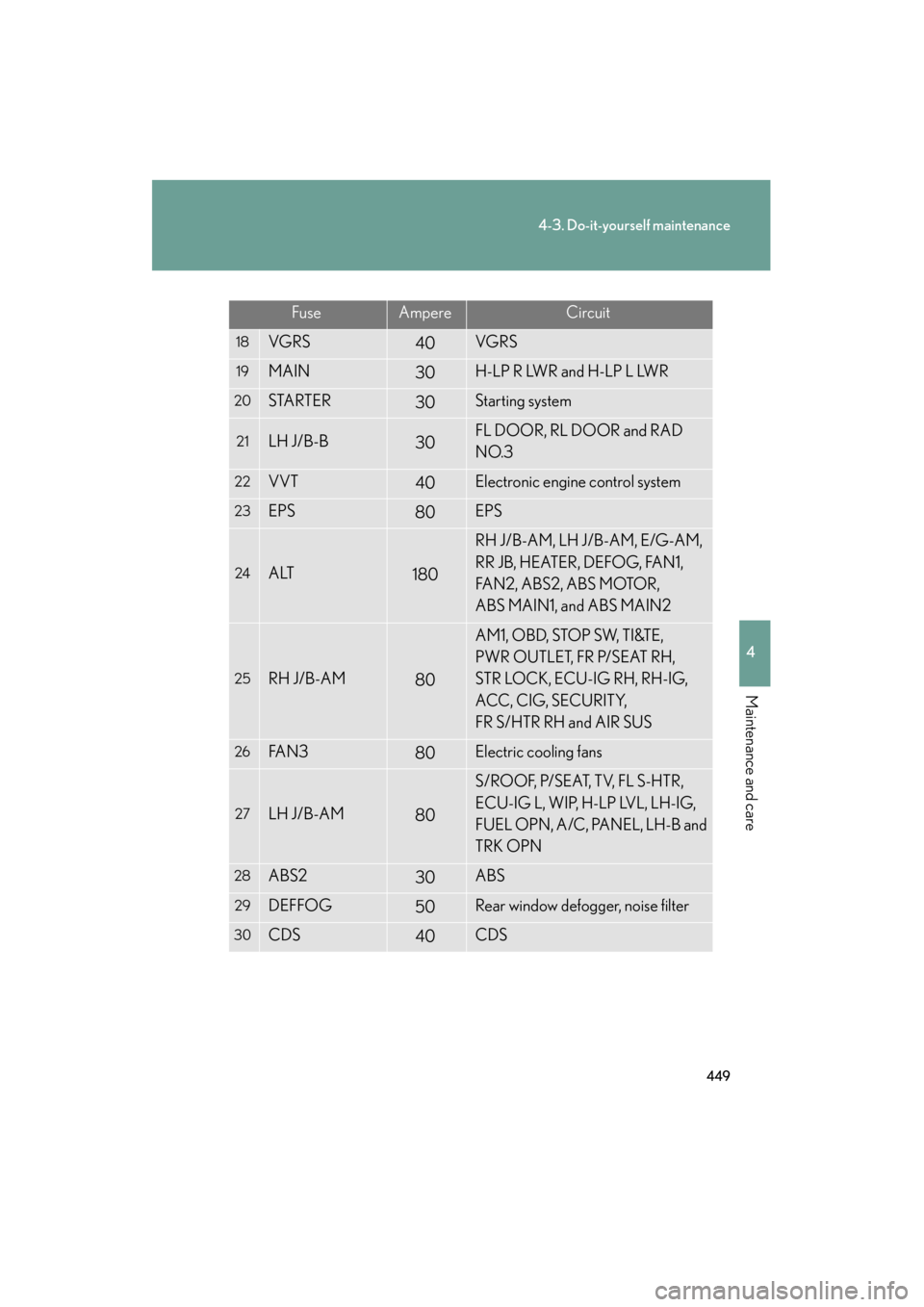

FuseAmpereCircuit
18VGRS40VGRS
19MAIN30H-LP R LWR and H-LP L LWR
20STARTER30Starting system
21LH J/B-B30FL DOOR, RL DOOR and RAD
NO.3
22VVT40Electronic engine control system
23EPS80EPS
24ALT180
RH J/B-AM, LH J/B-AM, E/G-AM,
RR JB, HEATER, DEFOG, FAN1,
FAN2, ABS2, ABS MOTOR,
ABS MAIN1, and ABS MAIN2
25RH J/B-AM80
AM1, OBD, STOP SW, TI&TE,
PWR OUTLET, FR P/SEAT RH,
STR LOCK, ECU-IG RH, RH-IG,
ACC, CIG, SECURITY,
FR S/HTR RH and AIR SUS
26FA N 380Electric cooling fans
27LH J/B-AM80
S/ROOF, P/SEAT, TV, FL S-HTR,
ECU-IG L, WIP, H-LP LVL, LH-IG,
FUEL OPN, A/C, PANEL, LH-B and
TRK OPN
28ABS230ABS
29DEFFOG50Rear window defogger, noise filter
30CDS40CDS
GS_U_G.book Page 449 Thursday, June 19, 2008 12:54 PM

453
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm

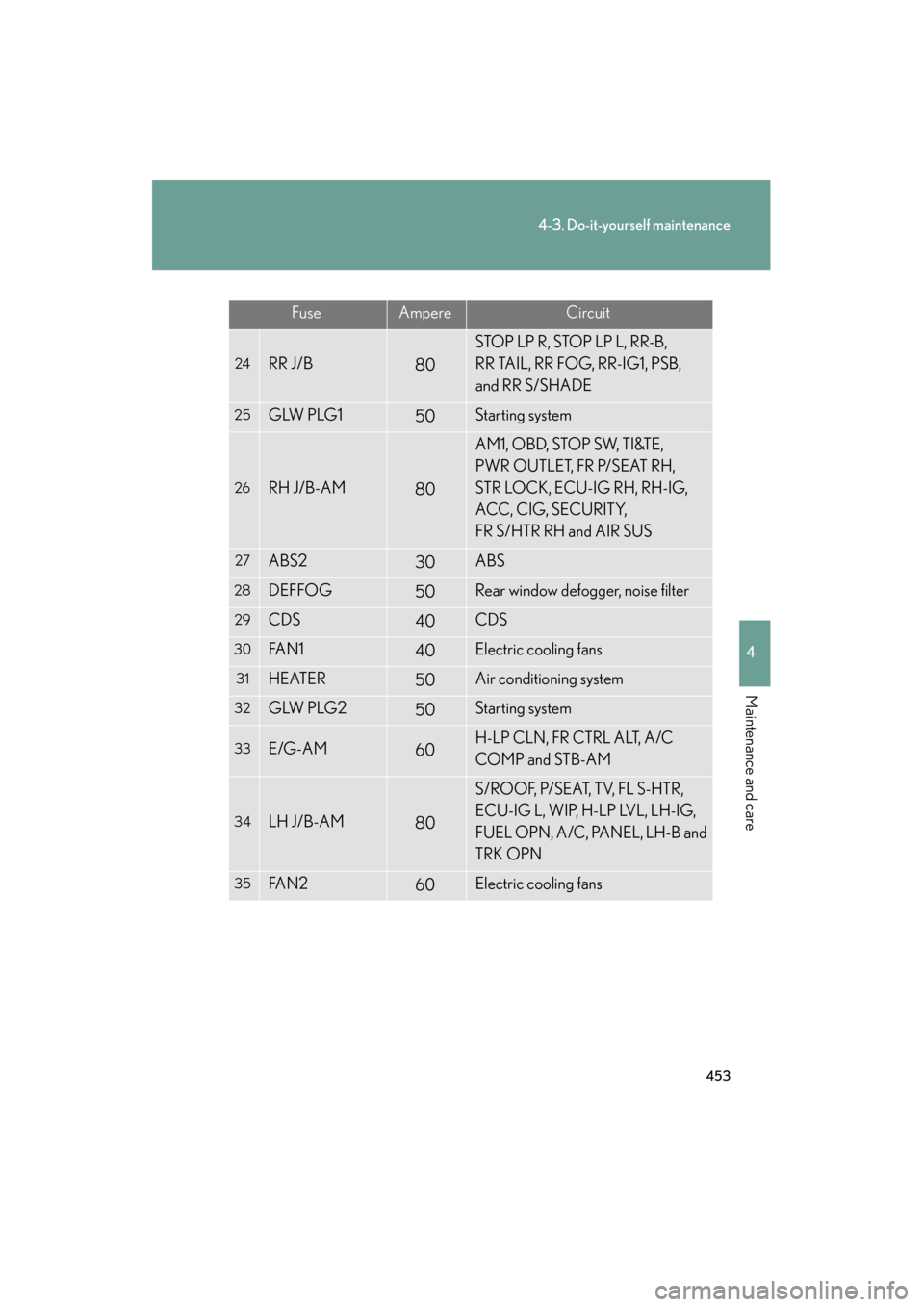

FuseAmpereCircuit
24RR J/B80
STOP LP R, STOP LP L, RR-B,
RR TAIL, RR FOG, RR-IG1, PSB,
and RR S/SHADE
25GLW PLG150Starting system
26RH J/B-AM80
AM1, OBD, STOP SW, TI&TE,
PWR OUTLET, FR P/SEAT RH,
STR LOCK, ECU-IG RH, RH-IG,
ACC, CIG, SECURITY,
FR S/HTR RH and AIR SUS
27ABS230ABS
28DEFFOG50Rear window defogger, noise filter
29CDS40CDS
30FA N 140Electric cooling fans
31HEATER50Air conditioning system
32GLW PLG250Starting system
33E/G-AM60H-LP CLN, FR CTRL ALT, A/C
COMP and STB-AM
34LH J/B-AM80
S/ROOF, P/SEAT, TV, FL S-HTR,
ECU-IG L, WIP, H-LP LVL, LH-IG,
FUEL OPN, A/C, PANEL, LH-B and
TRK OPN
35FA N 260Electric cooling fans
GS_U_G.book Page 453 Thursday, June 19, 2008 12:54 PM

461
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm
■Right side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30Power seat system
2OBD7. 5On-board diagnosis system
3STOP SW7. 5
Stop/tail lights, multi-port fuel injec-
tion system/sequential multiport fuel
injection system, starting system,
electronically controlled brake sys-
tem, VSC system, shift lock system,
ECT ECU
4AM17. 5
5TI&TE20Tilt and telescopic steering wheel,
multiplex communication system
6SECURITY7. 5Smart access system with push-but-
ton start
7STR LOCK25Steering lock system
8GAUGE7. 5Gauges and meters
GS_U_G.book Page 461 Thursday, June 19, 2008 12:54 PM

462
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm

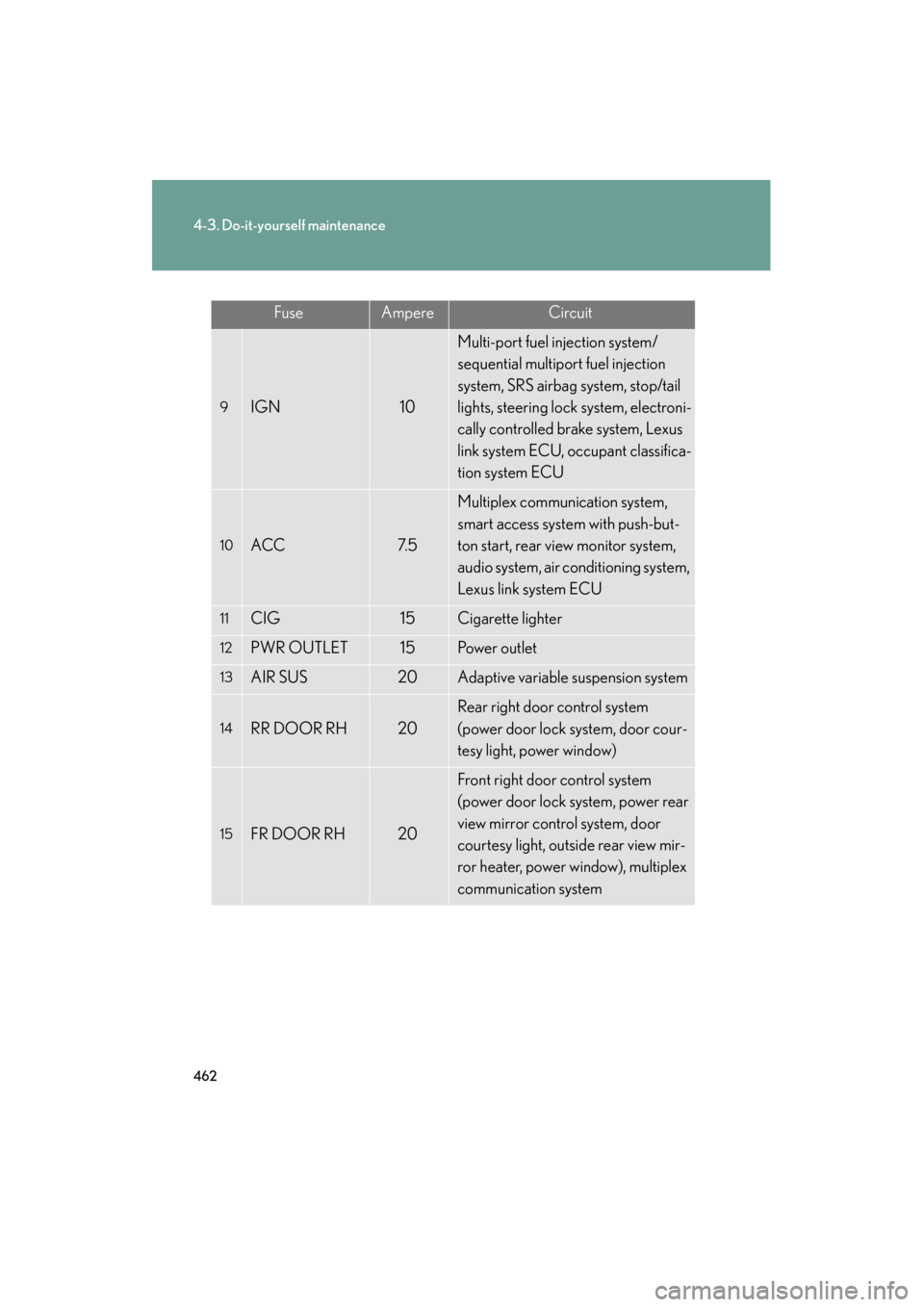

FuseAmpereCircuit
9IGN10
Multi-port fuel injection system/
sequential multiport fuel injection
system, SRS airbag system, stop/tail
lights, steering lock system, electroni-
cally controlled brake system, Lexus
link system ECU, occupant classifica-
tion system ECU
10ACC7. 5
Multiplex communication system,
smart access system with push-but-
ton start, rear view monitor system,
audio system, air conditioning system,
Lexus link system ECU
11CIG15Cigarette lighter
12PWR OUTLET15Po w e r o u t l e t
13AIR SUS20Adaptive variable suspension system
14RR DOOR RH20
Rear right door control system
(power door lock system, door cour-
tesy light, power window)
15FR DOOR RH20
Front right door control system
(power door lock system, power rear
view mirror control system, door
courtesy light, outside rear view mir-
ror heater, power window), multiplex
communication system
GS_U_G.book Page 462 Thursday, June 19, 2008 12:54 PM
