5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm

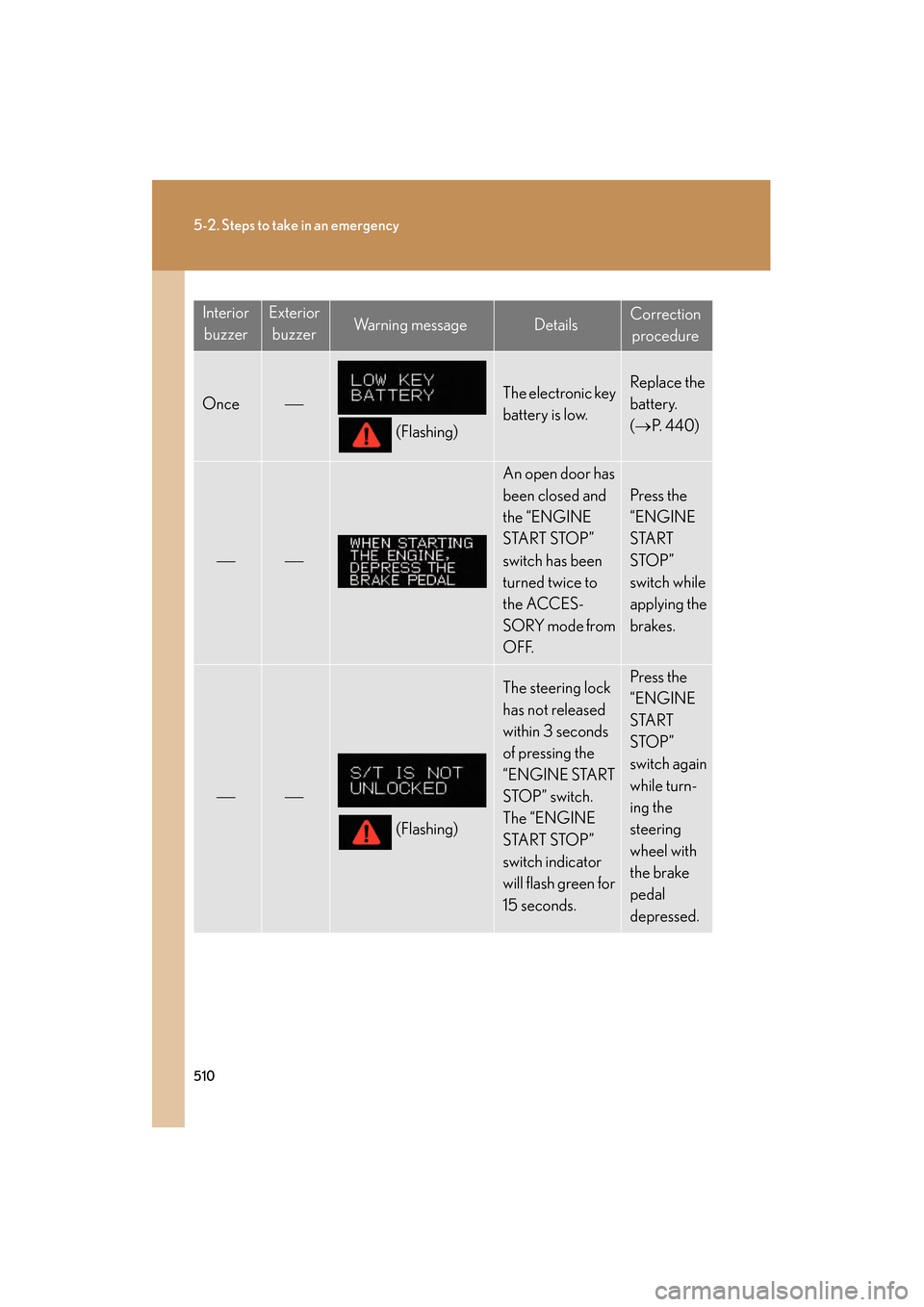

InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure
Once
(Flashing)
The electronic key
battery is low.Replace the
battery.
( → P. 440)

An open door has
been closed and
the “ENGINE
START STOP”
switch has been
turned twice to
the ACCES-
SORY mode from
OFF.
Press the
“ENGINE
START
STOP”
switch while
applying the
brakes.

(Flashing)
The steering lock
has not released
within 3 seconds
of pressing the
“ENGINE START
STOP” switch.
The “ENGINE
START STOP”
switch indicator
will flash green for
15 seconds.Press the
“ENGINE
START
STOP”
switch again
while turn-
ing the
steering
wheel with
the brake
pedal
depressed.
GS_U_G.book Page 510 Thursday, June 19, 2008 12:54 PM

524
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
If the shift lever cannot be shifted from “P”
If the shift lever cannot be shifted with your foot on the brake, there may be
a problem with the shift lock system (a system to prevent accidental opera-
tion of the shift lever). Have the vehicle inspected by your Lexus dealer
immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Set the parking brake.
Turn the “ENGINE START STOP” switch to the ACCESSORY
mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent.
Press the shift lock override but-
ton.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4
STEP5
GS_U_G.book Page 524 Thursday, June 19, 2008 12:54 PM

5
When trouble arises
527
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
Tr u n kTurn the mechanical key clock-
wise to open.
Changing “ENGINE START STOP” switch modes and starting the
engine
Put the shift lever in “P” and apply the brakes. Touch the Lexus emblem side of
the electronic key to the
“ENGINE START STOP” switch.
An alarm will sound to indicate that
the start function cannot detect the
electronic key that is touched to
the “ENGINE START STOP”
switch if any of the doors is opened
and closed while the key is touched
to the switch.
STEP1
STEP2
GS_U_G.book Page 527 Thursday, June 19, 2008 12:54 PM

528
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
To change the “ENGINE START STOP” switch modes: Within 10
seconds of the buzzer sounding, release the brake pedal and
press the “ENGINE START STOP” switch. Modes can be
changed each time the switch is pressed. (
→P. 122)
To start the engine: Press the “ENGINE START STOP” switch
within 10 seconds after the buzzer sounds, keeping the brake
pedal depressed.
If the “ENGINE START STOP” switch still cannot be operated, contact
your Lexus dealer.
■Stopping the engine
Shift the shift lever to “P” and press th e “ENGINE START STOP” switch as you nor-
mally do when stopping the engine.
■Replacing the key battery
As the above procedure is the temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery depletes.
( → P. 440)
STEP3
GS_U_G.book Page 528 Thursday, June 19, 2008 12:54 PM

530
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm

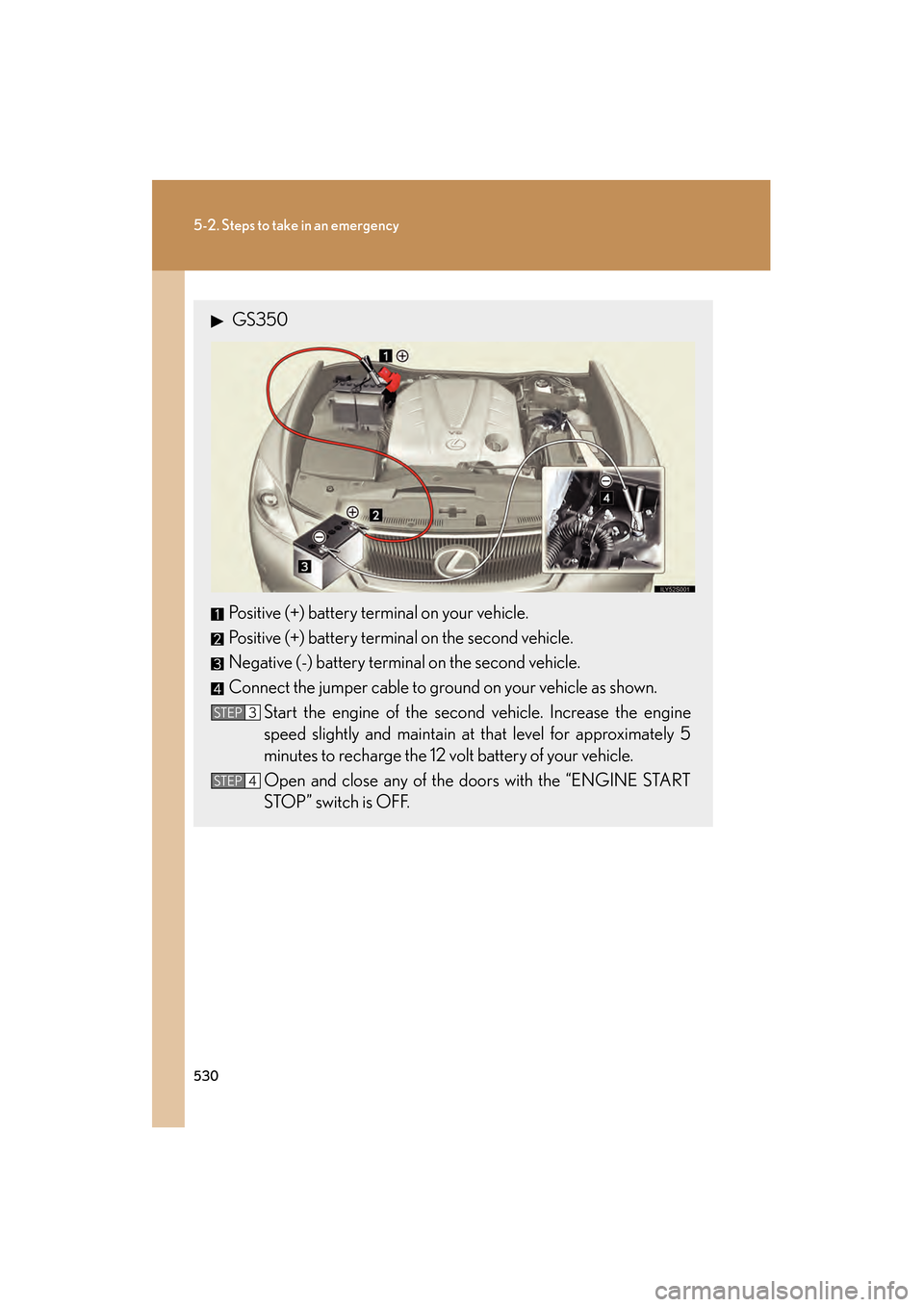

GS350
Positive (+) battery terminal on your vehicle.
Positive (+) battery terminal on the second vehicle.
Negative (-) battery terminal on the second vehicle.
Connect the jumper cable to ground on your vehicle as shown.Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the 12 volt battery of your vehicle.
Open and close any of the doors with the “ENGINE START
STOP” switch is OFF.
STEP3
STEP4
GS_U_G.book Page 530 Thursday, June 19, 2008 12:54 PM

5
When trouble arises
531
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
■Starting the engine when the 12 volt battery is discharged
The engine cannot be started by push-starting.
■To prevent 12 volt battery discharge
●Turn off the headlights and the audio system while the engine is turned off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■When the 12 volt battery is removed or discharged
The following systems must be initialized.
●Tire pressure warning system (→P. 422)
●Intuitive parking assist (→P. 5 0 7 )
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery.
●Make sure the jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any part other than the intended terminal.
●Do not allow the jumper cables to come into contact with the “+” and “-” termi-
nals.
●Do not allow open flame or use matches, cigarette lighters or smoke near the
battery.
Maintain the engine speed on the second vehicle and turn the
“ENGINE START STOP” switch to the IGNITION ON mode,
then start the vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Lexus dealer
as soon as possible.STEP5
STEP6
GS_U_G.book Page 531 Thursday, June 19, 2008 12:54 PM

536
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm

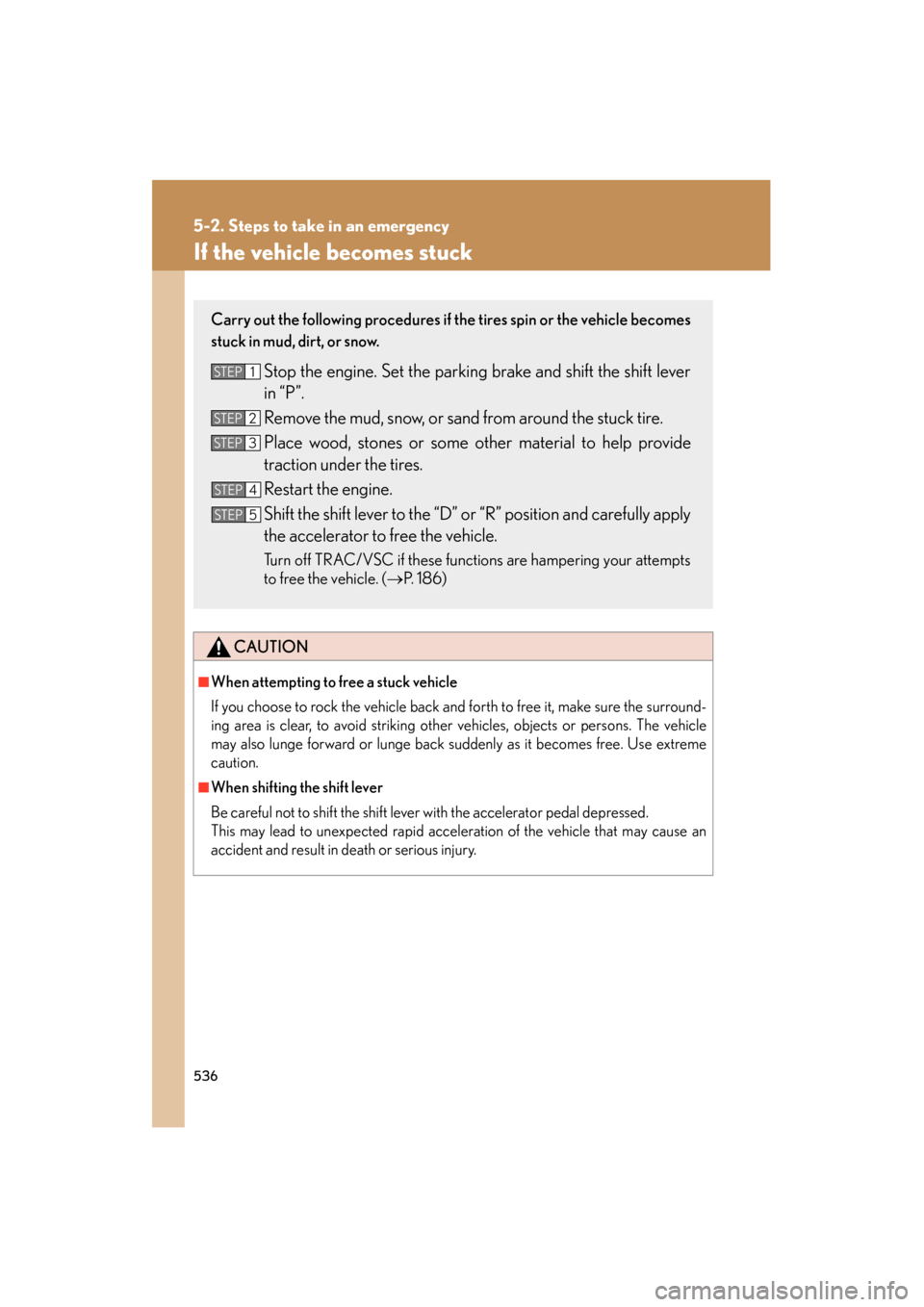

If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the surround-
ing area is clear, to avoid striking other vehicles, objects or persons. The vehicle
may also lunge forward or lunge back suddenly as it becomes free. Use extreme
caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and shift the shift lever
in “P”.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Shift the shift lever to the “D” or “R” position and carefully apply
the accelerator to free the vehicle.
Turn off TRAC/VSC if these functions are hampering your attempts
to free the vehicle. (→P. 1 8 6 )
STEP1
STEP2
STEP3
STEP4
STEP5
GS_U_G.book Page 536 Thursday, June 19, 2008 12:54 PM

573
6-2. Customization
6
Vehicle specifications
GS_G_U
June 19, 2008 12:54 pm

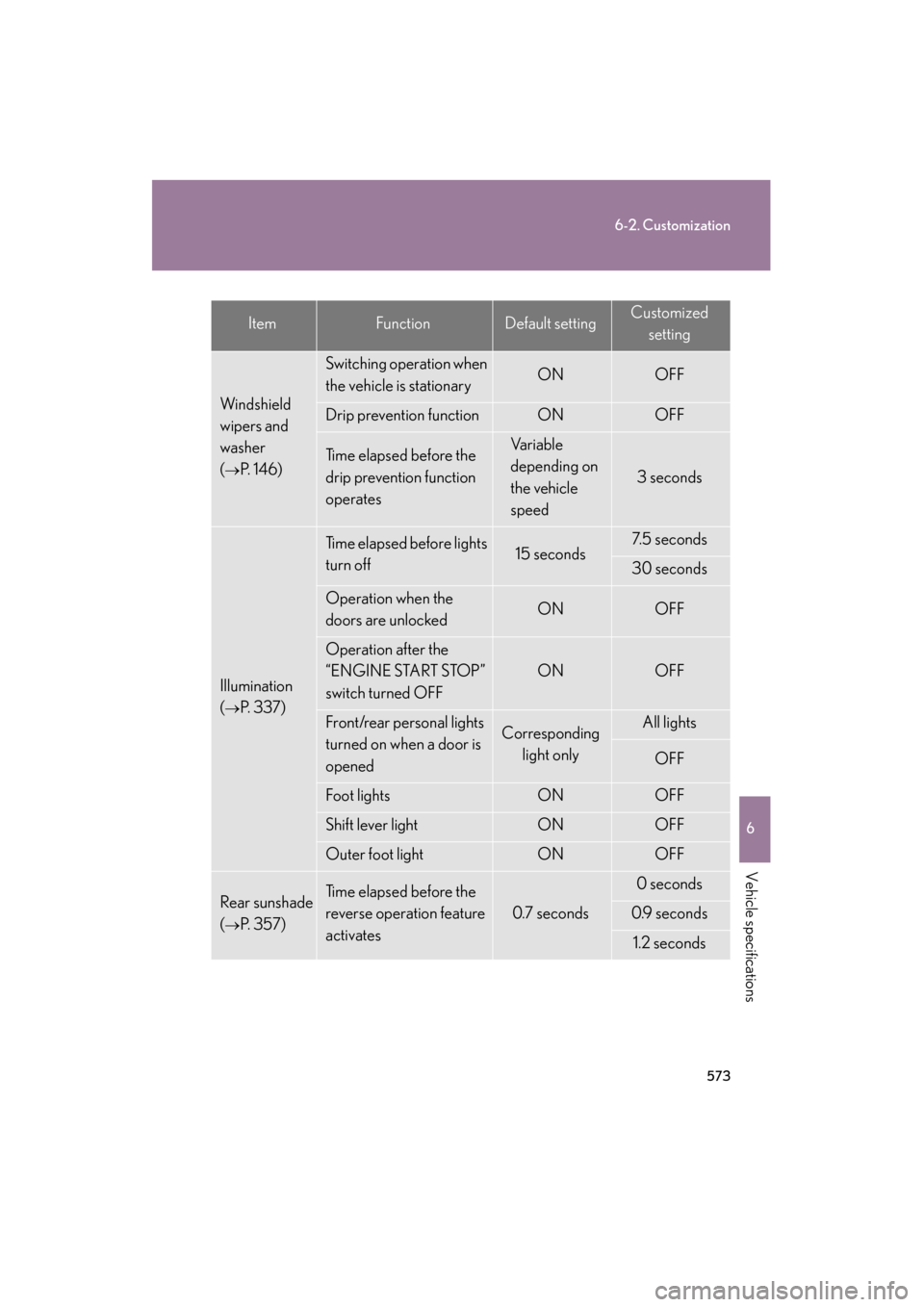

ItemFunctionDefault settingCustomizedsetting
Windshield
wipers and
washer
(
→P. 1 4 6 )
Switching operation when
the vehicle is stationaryONOFF
Drip prevention functionONOFF
Time elapsed before the
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Illumination
(
→P. 3 3 7 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedONOFF
Operation after the
“ENGINE START STOP”
switch turned OFF
ONOFF
Front/rear personal lights
turned on when a door is
openedCorresponding light onlyAll lights
OFF
Foot lights ONOFF
Shift lever lightONOFF
Outer foot lightONOFF
Rear sunshade
(
→P. 3 5 7 )
Time elapsed before the
reverse operation feature
activates
0.7 seconds
0 seconds
0.9 seconds
1.2 seconds
GS_U_G.book Page 573 Thursday, June 19, 2008 12:54 PM

590
Alphabetical index
GS_G_U
June 19, 2008 12:54 pm
Smart access system with push-button start
Antenna location....................................24
Entry function...........................................22
Starting the engine ................................ 121
Spare tire
Inflation pressure............................... 550
Spare tire..................................................513
Spark plug ................................................546
Specifications ........................................ 540
Speedometer........................................... 132
Steering wheel Adjustment............................................... 60
Audio switches ...................................288
Steering wheel position memory...................................................47
Storage compartment ........................ 344
Storage feature......................................340
Stuck If your vehicle becomes stuck.....536
Sun visors ................................................. 347
Switch “ENGINE START STOP” switch ....................................................... 121
Fog light switch.....................................145
Ignition switch..........................................121
Light switches ........................................ 142
Mode select switch............................. 126
Power door lock switch .....................37
Power window switch ........................ 64
Tire pressure warning reset switch ....................................... 422
Tire pressure warning select switch ................... 424
Window lock switch ........................... 64
Wipers and washer switch ............. 146 Tachometer ..............................................132
Tail lights
Switch ........................................................ 142
Theft deterrent system
Alarm...........................................................75
Immobilizer system .............................. 73
Theft prevention labels...........................77
Tire inflation pressure .........................550
Tire information Glossary ................................................ 562
Size ........................................................... 559
Tire identification number .............558
Uniform Tire Quality Grading ... 560
Tires
Chains..................................................... 200
Checking................................................. 421
Compact spare tire............................ 513
If you have a flat tire ............... 512, 522
Inflation pressure ...............................550
Information ........................................... 556
Replacing ................................................ 512
Rotating tires.......................................... 421
Size ........................................................... 550
Snow tires.............................................. 202
Tire pressure warning system....... 421
Tools.............................................................512
Total load capacity ................................ 198
Touch screen..........................................208
Towing Dinghy towing .................................... 205
Emergency towing ........................... 478
Trailer towing ...................................... 204
Traction control...................................... 184
Trip meter ..................................................132T
