5-1. Essential information .............. 478If your vehicle needs to be towed .................................. 478
If you think something is wrong ............................................. 484
Fuel pump shut off system ....... 485
Event data recorder ................... 486
5-2. Steps to take in an emergency .............................. 488
If a warning light turns on or a warning buzzer sounds... ...... 488
If a warning message is displayed....................................... 497
If you have a flat tire (Vehicles with standard tires) .................... 512
If you have a flat tire (Vehicles with run-flat tires) ...................... 522
If the engine will not start .......... 523
If the shift lever cannot be shifted from “P” .......................... 524
If you lose your keys .................... 525
If the electronic key does not operate properly ....................... 526
If the 12 volt battery is discharged ................................... 529
If your vehicle overheats .......... 533
If the vehicle becomes stuck................................................ 536 6-1. Specifications............................ 540
Maintenance data (fuel, oil level, etc.).................... 540
Fuel information........................... 553
Tire information ............................ 556
6-2. Customization .......................... 569 Customizable features .............. 569
6-3. Initialization ............................... 575 Items to initialize ........................... 575
Reporting safety defects for U.S. owners.................................. 578
Seat belt instructions for Canadian owners
(in French) .................................... 579
Abbreviation list ....................... 582
Alphabetical index................... 584
What to do if............................... 594
5When trouble arises6Vehicle specifications
7For owners
Index
GS_U_G.book Page 5 Thursday, June 19, 2008 12:54 PM

26
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
■Operation signals
●Doors: A buzzer sounds and the emergency flashers flash to indicate that the
doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
●Windows and moon roof: A buzzer sounds when the windows and moon roof
begin to close.
■Door lock buzzer
If a door is not fully closed, a buzzer sounds continuously if an attempt to lock the
door is made. Fully close the door to st op the buzzer, and lock the vehicle once
more.
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the fol-
lowing situations, the communication between key and vehicle may be affected,
preventing the smart access system with push-button start and wireless remote
control from operating properly. (Way of coping: →P. 5 2 6 )
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wire-
less communication devices
●When the electronic key has come into contact with, or is covered by a metallic
object
●When multiple electronic keys are in the vicinity
●When carrying or using the electronic key together with the following devices
that emit radio waves
• Another vehicle’s electronic key
• A wireless key that emits radio waves
• Personal computer
●If window tint with a metallic content or metallic objects are attached to the rear
window
GS_U_G.book Page 26 Thursday, June 19, 2008 12:54 PM

30
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
●Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
smart access system with push-button star t. (Use the wireless remote control to
unlock the doors.)
●A sudden approach to the effective range or door handle operation may pre-
vent the doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pulling the door handle
again.
■When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of
the vehicle.
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the theft deterrent system automatically locks the vehicle again.
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warnings displayed on the
multi-information display are used to prevent theft of the vehicle and unforeseeable
accidents resulting from erroneous operation. Take appropriate measures in
response to any warning indications on the multi-information display. ( →P. 5 0 8 )
The following table describes circumstances and correction procedures when only
alarms are sounded.
GS_U_G.book Page 30 Thursday, June 19, 2008 12:54 PM

72

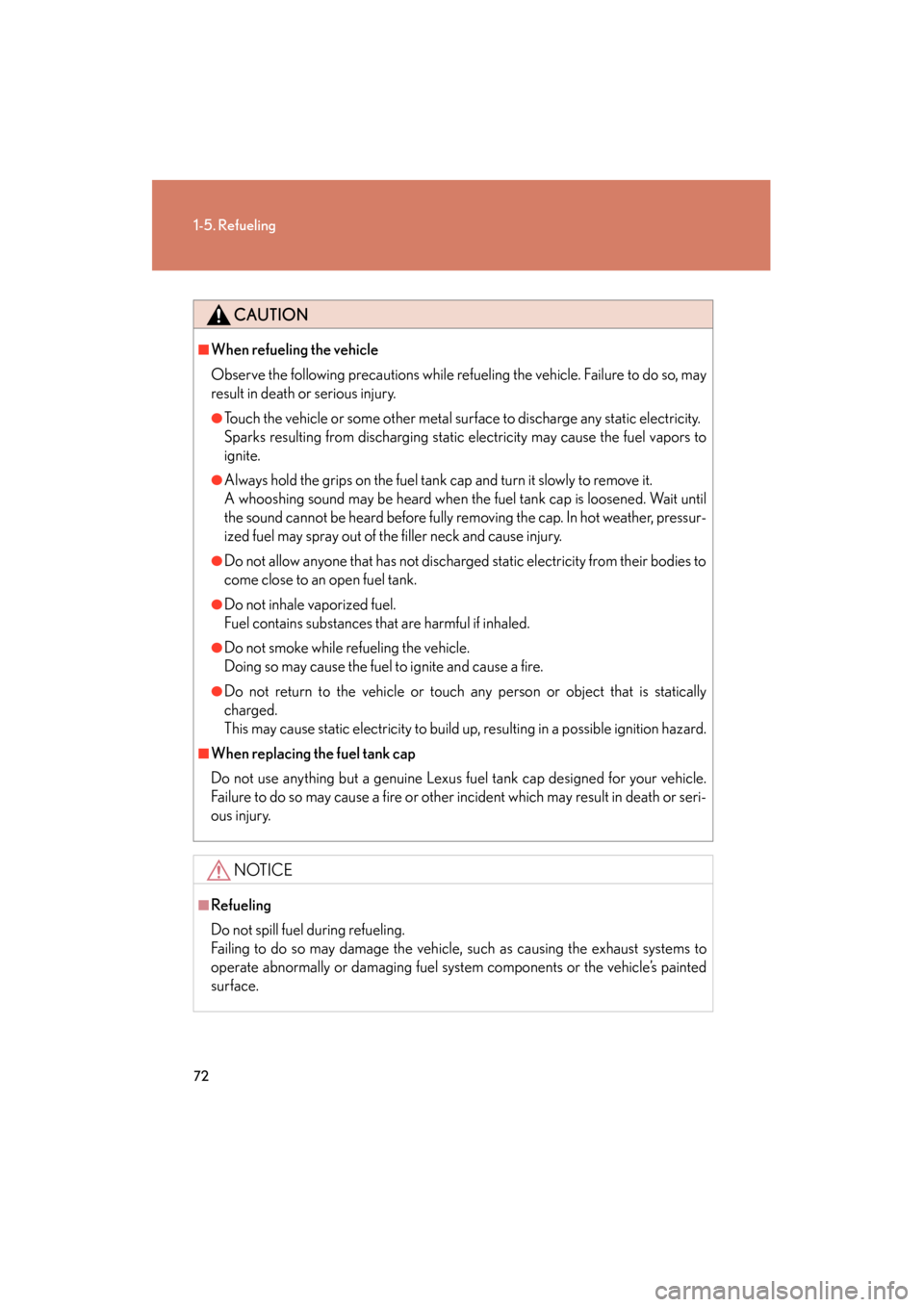

1-5. Refueling
GS_G_U
June 19, 2008 12:54 pm
CAUTION
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so, may
result in death or serious injury.
●Touch the vehicle or some other metal surface to discharge any static electricity.
Sparks resulting from discharging static electricity may cause the fuel vapors to
ignite.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur-
ized fuel may spray out of the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their bodies to
come close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
■When replacing the fuel tank cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Failure to do so may cause a fire or other incident which may result in death or seri-
ous injury.
NOTICE
■Refueling
Do not spill fuel during refueling.
Failing to do so may damage the vehicle, such as causing the exhaust systems to
operate abnormally or damaging fuel system components or the vehicle’s painted
surface.
GS_U_G.book Page 72 Thursday, June 19, 2008 12:54 PM

75
1
1-6. Theft deterrent system
Before driving
GS_G_U
June 19, 2008 12:54 pm
Alarm
The system sounds the alarm and flashes lights when forcible entry is
detected.
■Triggering of the alarm
The alarm is triggered in the following situations.
● A locked door or trunk is unlocked or opened in any way other
than using the smart access system with push-button start, wire-
less remote control or mechanical key. (The doors will lock again
automatically.)
● The hood is opened while the vehicle is locked.
■ Setting the alarm system
Close the doors, trunk and
hood, and lock all doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
● Unlock the doors or trunk.
● Turn the “ENGINE START STOP” switch to the ACCESSORY or
IGNITION ON mode. (The alarm will be deactivated or stopped
after a few seconds.)
GS_U_G.book Page 75 Thursday, June 19, 2008 12:54 PM

76
1-6. Theft deterrent system
GS_G_U
June 19, 2008 12:54 pm
■Items to check before locking the vehicle
To prevent unintended triggering of the alarm and vehicle theft, make sure of the
following.
●Nobody is in the vehicle.
●The windows and moon roof (if equipped) are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations.
(Stopping the alarm deactivates the alarm system.)
●A person inside the vehicle opens a door, the trunk or hood.
●The 12 volt battery is recharged or replaced when the vehicle is locked.
■When the 12 volt battery is disconnected
Be sure to cancel the alarm system.
If the 12 volt battery is disconnected before canceling the alarm, the system may be
triggered when the battery is reconnected.
■Pa n ic m o d eWhen is pushed for longer than about
one second, the headlights/tail lights/emer-
gency flashers will flash, the front and rear
interior lights will come on, and an alarm will
sound for about 60 seconds to deter any
person from trying to break into or damage
your vehicle.
To stop the alarm, push any button on the
wireless remote control.
GS_U_G.book Page 76 Thursday, June 19, 2008 12:54 PM

123

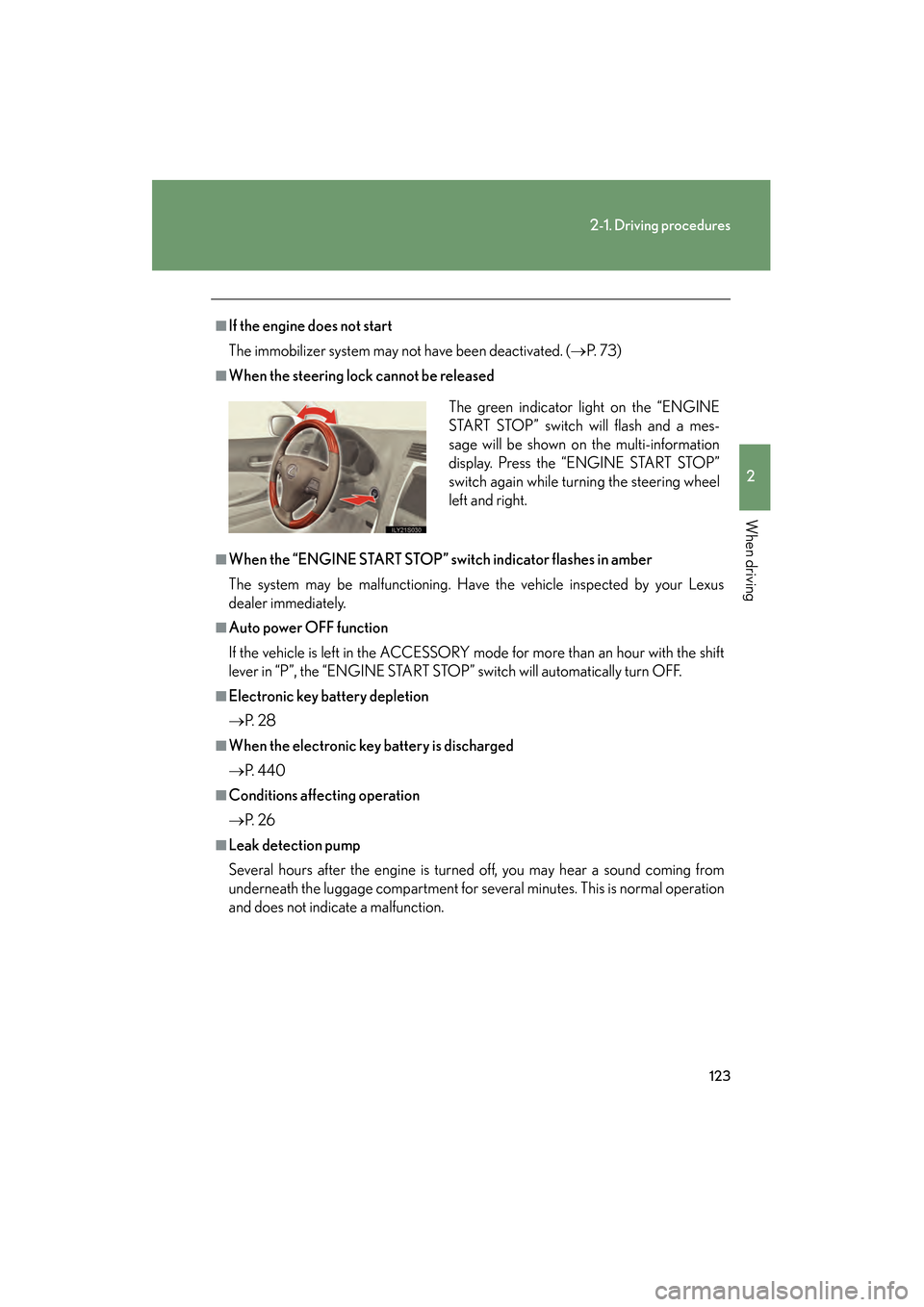

2-1. Driving procedures
2
When driving
GS_G_U
June 19, 2008 12:54 pm
■If the engine does not start
The immobilizer system may not have been deactivated. (→P. 7 3 )
■When the steering lock cannot be released
■When the “ENGINE START STOP” switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your Lexus
dealer immediately.
■Auto power OFF function
If the vehicle is left in the ACCESSORY mode for more than an hour with the shift
lever in “P”, the “ENGINE START STOP” switch will automatically turn OFF.
■Electronic key battery depletion
→P. 2 8
■When the electronic key battery is discharged
→P. 4 4 0
■Conditions affecting operation
→P. 2 6
■Leak detection pump
Several hours after the engine is turned off, you may hear a sound coming from
underneath the luggage compartment for several minutes. This is normal operation
and does not indicate a malfunction. The green indicator light on the “ENGINE
START STOP” switch will flash and a mes-
sage will be shown on the multi-information
display. Press the “ENGINE START STOP”
switch again while turning the steering wheel
left and right.
GS_U_G.book Page 123 Thursday, June 19, 2008 12:54 PM

157

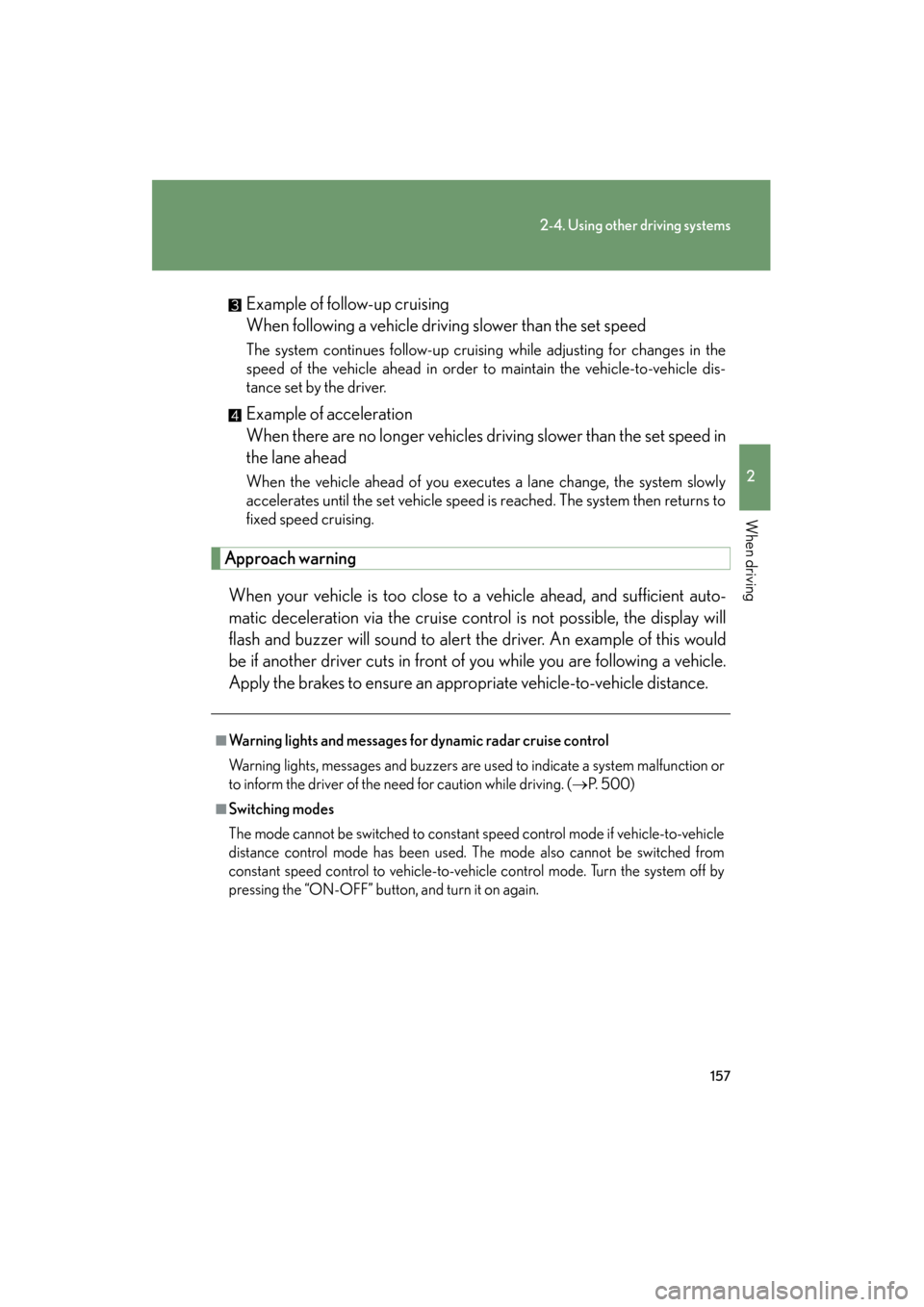

2-4. Using other driving systems
2
When driving
GS_G_U
June 19, 2008 12:54 pm
Example of follow-up cruising
When following a vehicle driving slower than the set speed
The system continues follow-up cruising while adjusting for changes in the
speed of the vehicle ahead in order to maintain the vehicle-to-vehicle dis-
tance set by the driver.
Example of acceleration
When there are no longer vehicles driving slower than the set speed in
the lane ahead
When the vehicle ahead of you executes a lane change, the system slowly
accelerates until the set vehicle speed is reached. The system then returns to
fixed speed cruising.
Approach warningWhen your vehicle is too close to a vehicle ahead, and sufficient auto-
matic deceleration via the cruise control is not possible, the display will
flash and buzzer will sound to alert the driver. An example of this would
be if another driver cuts in front of you while you are following a vehicle.
Apply the brakes to ensure an appropriate vehicle-to-vehicle distance.
■Warning lights and messages for dynamic radar cruise control
Warning lights, messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution while driving. ( →P. 500)
■Switching modes
The mode cannot be switched to constant speed control mode if vehicle-to-vehicle
distance control mode has been used. The mode also cannot be switched from
constant speed control to vehicle-to-vehicle control mode. Turn the system off by
pressing the “ON-OFF” button, and turn it on again.
GS_U_G.book Page 157 Thursday, June 19, 2008 12:54 PM

167
2-4. Using other driving systems
2
When driving
GS_G_U
June 19, 2008 12:54 pm
Sensor detection display, obstacle distance and beepsWhen the intuitive parking assist is activated, the approximate distance to
the obstacle is displayed. Also, if an obstacle with which a collision is pos-
sible is detected, a warning beep will sound.
■ Dual sensor
• If the shift lever is in “R”, only the corner sensors will detect obstacles.
Approximate
distance to obstacleMulti-informa-
tion display
To u c h s c r e e n
With beeps(danger of collision)No beeps
(no danger of collision)
3.0 ft. (100 cm)
to 1.5 ft. (50 cm)
(continuous)(continuous)(continuous)
1.5 ft. (50 cm) to
1.1 ft. (37.5 cm)
(continuous)(continuous)(continuous)
1.1 ft. (37.5 cm) to
0. 8 f t . (25 cm)
(continuous)(continuous)(continuous)
Less than 0.8 ft.
(25 cm)
(blinking)(continuous)

GS_U_G.book Page 167 Thursday, June 19, 2008 12:54 PM

171
2-4. Using other driving systems
2
When driving
GS_G_U
June 19, 2008 12:54 pm

Steering guide symbolDisplays the steering maneuvers required to avoid an obstacle. Move the
steering wheel in the direction shown by the arrow. The steering guide symbol only
shows the maneuvers necessary to
avoid an obstacle.
When using the system, always
check your surroundings for
safety.
Beeps and obstacle distance
A beep sounds when an obstacle with which there is a danger of collision
is detected. As the vehicle moves closer to the obstacle, the interval of
the beep becomes shorter.
● When the following obstacle distances are reached, the beep changes
from intermittent to continuous:
• If the distance to the obstacle detected by the dual sensors or rear corner
sensors is less than 0.8 ft. (25 cm).
• If the distance to the obstacle detected by the back sensors is less than 1.1
ft. (35 cm).
● If obstacles are detected by the dual sensors in 2 places at once, or if
both rear corner sensors detect obstacles at the same time, the system
will sound a warning beep for the closer of the 2 obstacles.
GS_U_G.book Page 171 Thursday, June 19, 2008 12:54 PM
