snow chains Lexus GS350 2008 Owner's Manual

188
2-4. Using other driving systems
GS_G_U
June 19, 2008 12:54 pm
■Reduced effectiveness of EPS
The effectiveness of EPS is reduced to prevent the system from overheating when
there is frequent steering input over an extended period of time. The steering wheel
may feel heavy as a result. Should this occur, refrain from excessive steering input or
stop the vehicle and turn the engine off. The system should return to normal about
10 minutes.
■GS460: VGRS is disabled in the following situations
●During stopping or the steering wheel has been moved for a long time while
driving at lower speeds.
●After the engine is restarted at less than -22°F (-30°C).
CAUTION
Any of the following conditions may result in an accident which could cause death or
serious injury:
■The ABS does not operate effectively when
●The limits of tire gripping performance have been exceeded.
●The vehicle hydroplanes while driving at high speed on the wet or slick road.
■Stopping distance when the ABS is operating will exceed that of normal condi-
tions
The ABS is not designed to shorten the vehicle’s stopping distance. Always main-
tain a safe distance from the vehicle in front of you in the following situations.
●When driving on dirt, gravel or snow-covered roads
●When driving with tire chains
●When driving over bumps in the road
●When driving over roads with potholes or roads with uneven roads
■TRAC may not operate effectively when
Directional control and power may not be achievable while driving on slippery road
surfaces, even if the TRAC is operating.
Do not drive the vehicle in conditions where stability and power may be lost.
GS_U_G.book Page 188 Thursday, June 19, 2008 12:54 PM

199
2-5. Driving information
2
When driving
GS_G_U
June 19, 2008 12:54 pm
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■Pre-winter preparations
● Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the level and specific gravity of
battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
■Before driving the vehicle
Perform the following according to the driving conditions.
● Do not try to forcibly open a window or move a wiper that is fro-
zen. Pour warm water over the frozen area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Remove any ice that has accumulated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow that
may have accumulated in the wheel well or on the brakes.
GS_U_G.book Page 199 Thursday, June 19, 2008 12:54 PM

200
2-5. Driving information
GS_G_U
June 19, 2008 12:54 pm
Regulations on the use of snow chains● Regulations regarding the use of tire chains vary according to location
and type of road. Always check local regulations before installing
chains.
● Use SAE Class “S” type radial tire chains, with the exception of radial
cable chains or V-bar type chains.
• Install the chains on the rear tires.
• Refer to the explanation that comes with the tire chains for installa-
tion instructions.
● Retighten the chains after driving 1 /4 - 1 /2 mile (0.5 - 1.0 km).
■When driving the vehicle
Accelerate the vehicle slowly and drive at a reduced speed suitable
to road conditions.
■ When parking the vehicle
Park the vehicle and move the shift lever to “P” without setting the
parking brake. The parking brake may freeze up, preventing it from
being released.
GS_U_G.book Page 200 Thursday, June 19, 2008 12:54 PM

202
2-5. Driving information
GS_G_U
June 19, 2008 12:54 pm
■Snow chain installation
Observe the following precautions when installing and removing chains.
●Install and remove tire chains in a safe location.
●Install tire chains on the rear tires only. Do not install tire chains on front tires.
●Install tire chains following the instructions provided in the accompanying
instructions.
CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or serious
injury.
●Use tires of the size specified for your vehicle.
●Maintain the specified level of tire inflation pressure.
●Do not drive in excess of 75 mph (120 km/h), regardless of the type of snow tires
being used.
●Use snow tires on all, not just some wheels.
■Driving with snow chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely, and may
cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being used,
or 30 mph (50 km/h), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden turns and braking, as use of chains may adversely affect vehicle
handling.
●Slow down sufficiently before entering a curve to ensure that vehicle control is
maintained.
GS_U_G.book Page 202 Thursday, June 19, 2008 12:54 PM

203
2-5. Driving information
2
When driving
GS_G_U
June 19, 2008 12:54 pm
NOTICE
■Repairing or replacing snow tires
Request repairs of and obtain replacement snow tires from Lexus dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the operation of
the tire pressure warning valves and transmitters.
■Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly when
tire chains are fitted.
GS_U_G.book Page 203 Thursday, June 19, 2008 12:54 PM

425
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm
■When to replace your vehicle’s tires
Tires should be replaced if:
●You have tire damage such as cuts, splits, cracks deep enough to expose the
fabric or bulges indicating internal damage
●A tire goes flat repeatedly or cannot be properly repaired due to the size or
location of a cut or other damage
If you are not sure, consult with your Lexus dealer.
■Replacing tires and wheels
If the ID code of the tire pressure warning valve and transmitter is not registered,
the tire pressure warning system will not work properly. After driving for about 20
minutes, the tire pressure warning light comes on after blinking for 1 minute to indi-
cate a system malfunction.
■Tire life
Any tire over 6 years old must be checked by a qualified technician even if they
have seldom or never been us ed or damage is not obvious.
■If the tread wears down below 0. 16 in. (4 mm) on snow tires
The effectiveness of snow tires is lost.
■Low profile tires (245/40R18, P245/40R18 and 245/40ZR18 tires)
Generally, low profile tires will wear more rapidly and tire grip performance will be
reduced on snowy and/or icy roads when compared to standard tires. Be sure to
use snow tires or snow chains on snowy and/or icy roads and drive carefully at a
speed appropriate for road and weather conditions.
■Initializing the tire pressure warning system
Initialize the tires with the tire inflation pressure adjusted to the specified level.
GS_U_G.book Page 425 Thursday, June 19, 2008 12:54 PM

5
When trouble arises
493
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch does not turn off the tire pressure warning light.
■If the tire pressure warning system is inoperative
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used.
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer.
●If the tire pressure warning select switch is set to a different tire setting.
●If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or higher.
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies are nearby.
●If a radio set at similar frequencies is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings.
●If non-genuine Lexus wheels are used. (Even if you use Lexus wheels, the tire
pressure warning system may not work properly with some types of tires.)
●If tire chains are used.
■The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such as natural air
leaks or tire inflation pressure changes caused by temperature. In this case, adjust-
ing the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
The compact spare tire is not equipped with the tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off even
though the flat tire is replaced with the spare tire. Replace the spare tire with the
repaired tire and adjust the proper tire inflation pressure. The tire pressure warning
light will turn off after a few minutes.
GS_U_G.book Page 493 Thursday, June 19, 2008 12:54 PM

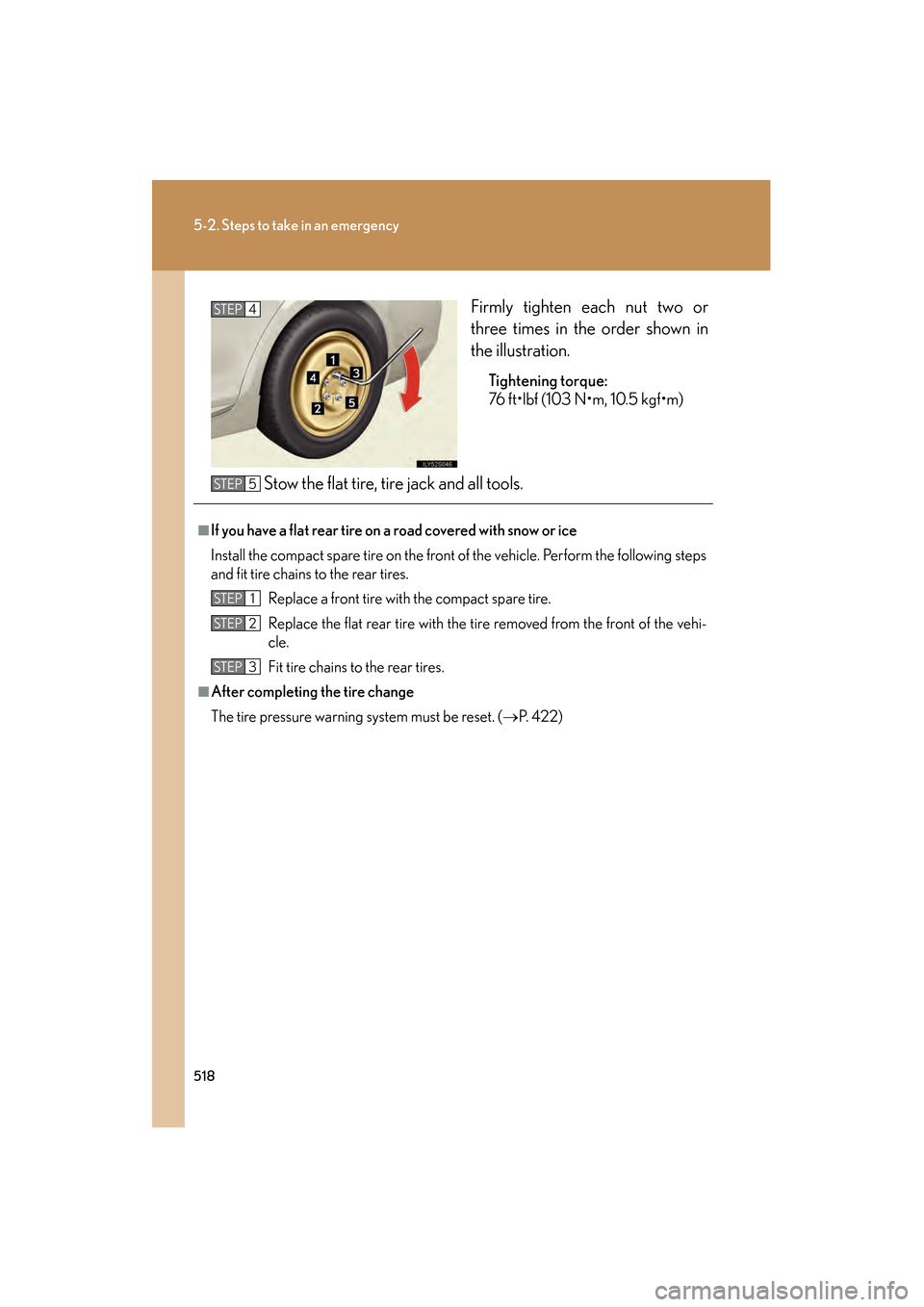

518
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
STEP4
■If you have a flat rear tire on a road covered with snow or ice
Install the compact spare tire on the front of the vehicle. Perform the following steps
and fit tire chains to the rear tires.Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of the vehi-
cle.
Fit tire chains to the rear tires.
■After completing the tire change
The tire pressure warning system must be reset. ( →P. 422)
STEP5
STEP1
STEP2
STEP3
GS_U_G.book Page 518 Thursday, June 19, 2008 12:54 PM

590
Alphabetical index
GS_G_U
June 19, 2008 12:54 pm
Smart access system with push-button start
Antenna location....................................24
Entry function...........................................22
Starting the engine ................................ 121
Spare tire
Inflation pressure............................... 550
Spare tire..................................................513
Spark plug ................................................546
Specifications ........................................ 540
Speedometer........................................... 132
Steering wheel Adjustment............................................... 60
Audio switches ...................................288
Steering wheel position memory...................................................47
Storage compartment ........................ 344
Storage feature......................................340
Stuck If your vehicle becomes stuck.....536
Sun visors ................................................. 347
Switch “ENGINE START STOP” switch ....................................................... 121
Fog light switch.....................................145
Ignition switch..........................................121
Light switches ........................................ 142
Mode select switch............................. 126
Power door lock switch .....................37
Power window switch ........................ 64
Tire pressure warning reset switch ....................................... 422
Tire pressure warning select switch ................... 424
Window lock switch ........................... 64
Wipers and washer switch ............. 146 Tachometer ..............................................132
Tail lights
Switch ........................................................ 142
Theft deterrent system
Alarm...........................................................75
Immobilizer system .............................. 73
Theft prevention labels...........................77
Tire inflation pressure .........................550
Tire information Glossary ................................................ 562
Size ........................................................... 559
Tire identification number .............558
Uniform Tire Quality Grading ... 560
Tires
Chains..................................................... 200
Checking................................................. 421
Compact spare tire............................ 513
If you have a flat tire ............... 512, 522
Inflation pressure ...............................550
Information ........................................... 556
Replacing ................................................ 512
Rotating tires.......................................... 421
Size ........................................................... 550
Snow tires.............................................. 202
Tire pressure warning system....... 421
Tools.............................................................512
Total load capacity ................................ 198
Touch screen..........................................208
Towing Dinghy towing .................................... 205
Emergency towing ........................... 478
Trailer towing ...................................... 204
Traction control...................................... 184
Trip meter ..................................................132T
GS_U_G.book Page 590 Thursday, June 19, 2008 12:54 PM
