Lexus GS350 2009 Owner's Guide

20
GS_G_U (OM30B43U)
April 20, 2009 4:34 pm

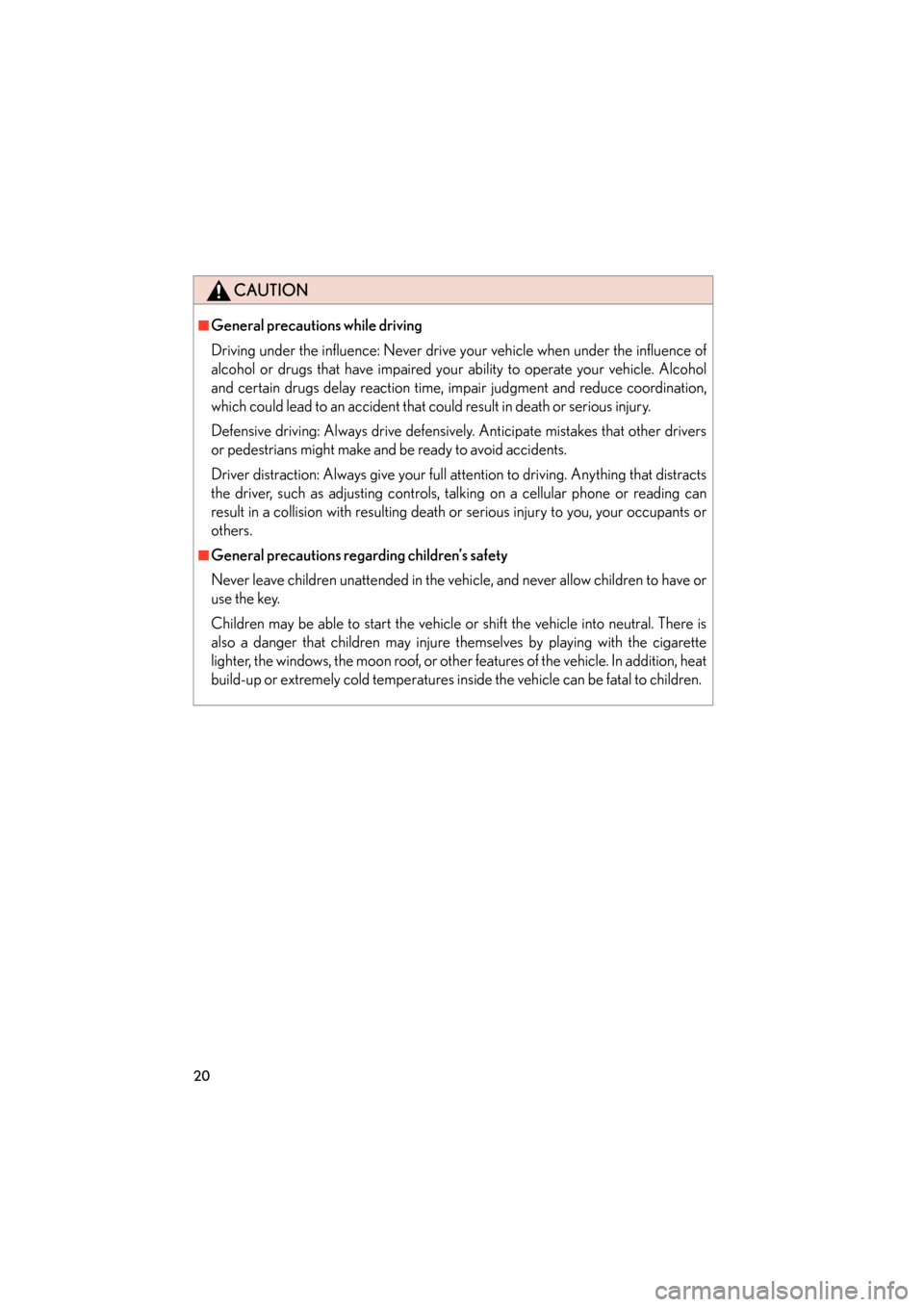

CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, im pair judgment and reduce coordination,
which could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full at tention to driving. Anything that distracts
the driver, such as adjusting controls, ta lking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■General precautions regarding children’s safety
Never leave children unattended in the vehi cle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the moon roof, or othe r features of the vehicle. In addition, heat
build-up or extremely cold temperatures insi de the vehicle can be fatal to children.
GS_U_G.book Page 20 Monday, April 27, 2009 10:50 AM

21
GS_G_U (OM30B43U)
April 20, 2009 4:34 pm

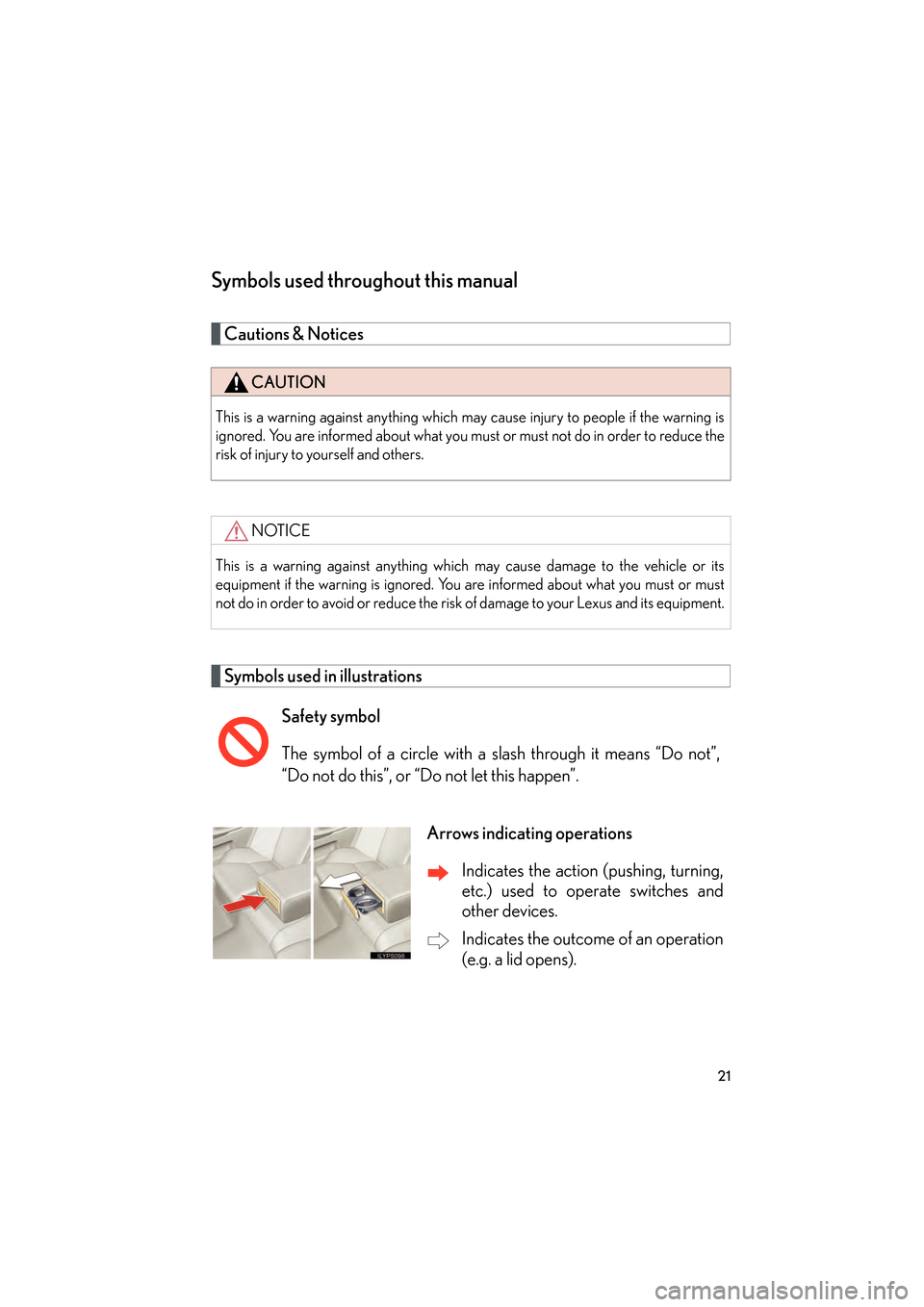

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against anything which may cause injury to people if the warning is
ignored. You are informed about what you must or must not do in order to reduce the
risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or its
equipment if the warning is ignored. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Lexus and its equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”,
“Do not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,etc.) used to operate switches and
other devices.
Indicates the outcome of an operation (e.g. a lid opens).
GS_U_G.book Page 21 Monday, April 27, 2009 10:50 AM

22
GS_G_U (OM30B43U)
April 20, 2009 4:34 pm
GS_U_G.book Page 22 Monday, April 27, 2009 10:50 AM

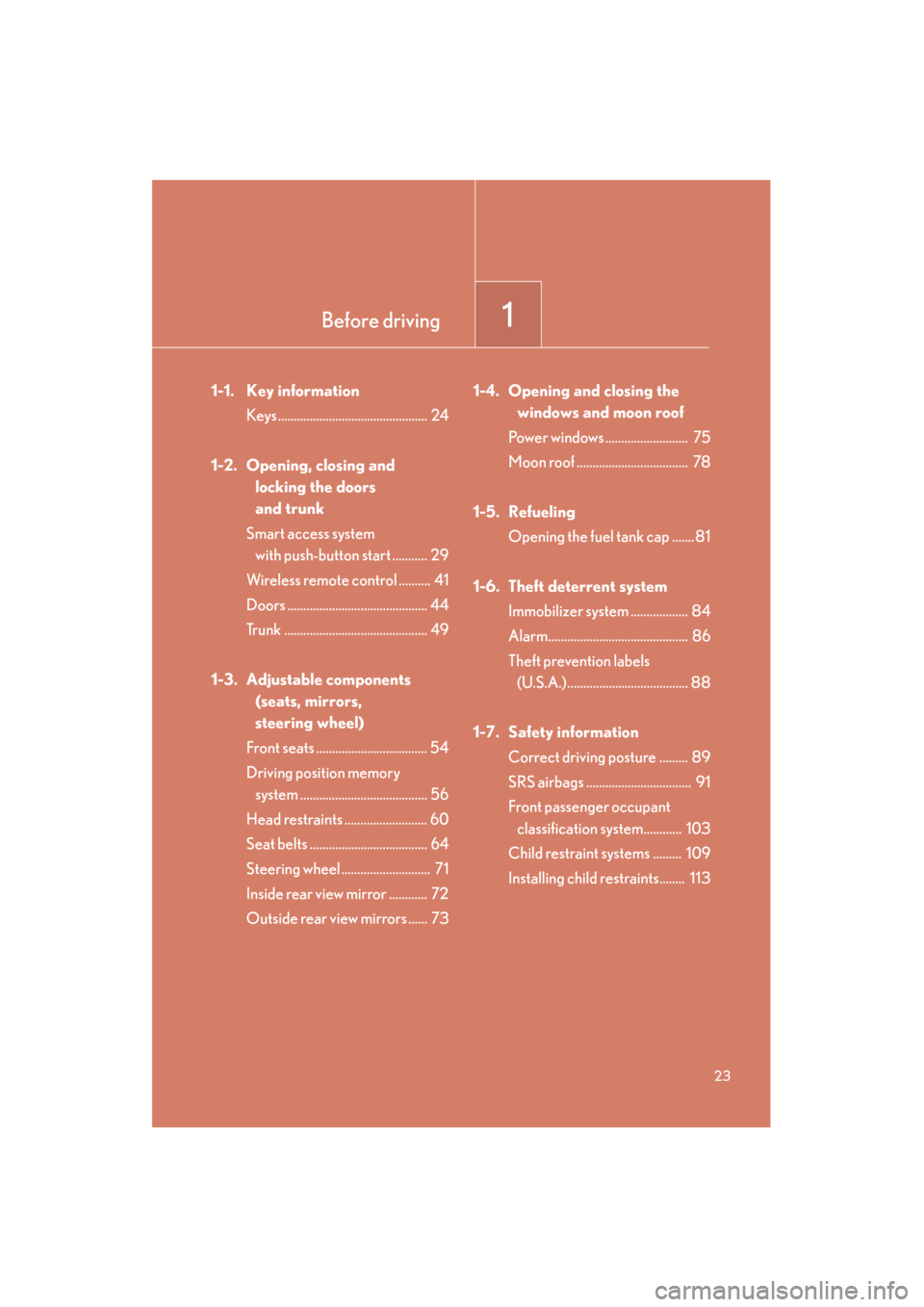

Before driving1
23
GS_G_U (OM30B43U)
April 27, 2009 10:36 am
1-1. Key informationKeys ............................................... 24
1-2. Opening, closing and locking the doors
and trunk
Smart access system with push-button start ........... 29
Wireless remote control .......... 41
Doors ............................................ 44
Trunk ............................................. 49
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ................................... 54
Driving position memory system ........................................ 56
Head restraints .......................... 60
Seat belts ..................................... 64
Steering wheel ............................ 71
Inside rear view mirror ............ 72
Outside rear view mirrors ...... 73 1-4. Opening and closing the
windows and moon roof
Power windows .......................... 75
Moon roof ................................... 78
1-5. Refueling Opening the fuel tank cap .......81
1-6. Theft deterrent system Immobilizer system .................. 84
Alarm............................................ 86
Theft prevention labels (U.S.A.)...................................... 88
1-7. Safety information Correct driving posture ......... 89
SRS airbags ................................. 91
Front passenger occupant classification system............ 103
Child restraint systems ......... 109
Installing child restraints........ 113
GS_U_G.book Page 23 Monday, April 27, 2009 10:50 AM

24
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

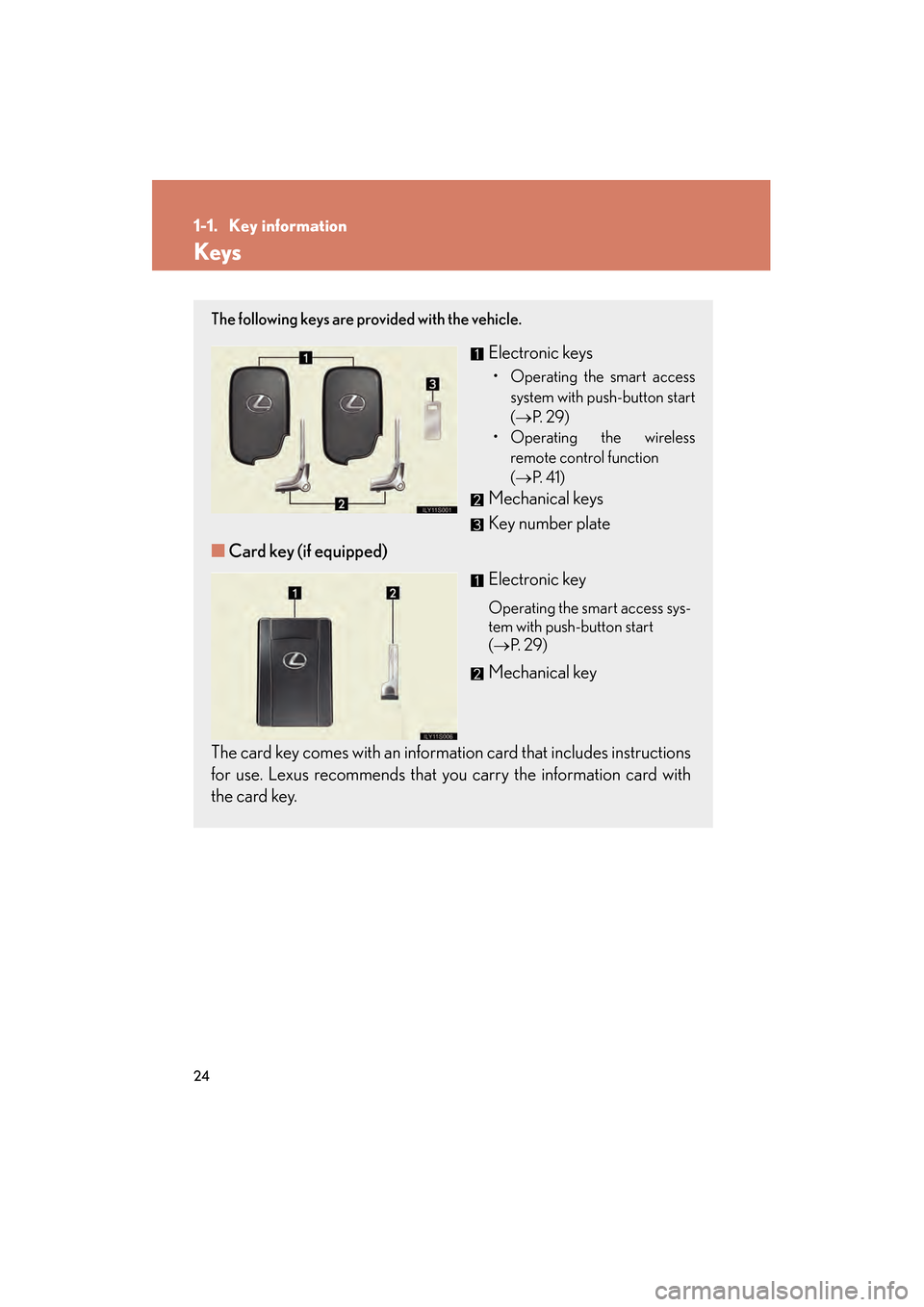

1-1. Key information
Keys
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart accesssystem with push-button start
(→ P. 2 9 )
• Operating the wireless
remote control function
(→ P. 4 1 )
Mechanical keys
Key number plate
■ Card key (if equipped)
Electronic key
Operating the smart access sys-
tem with push-button start
(→P. 2 9 )
Mechanical key
The card key comes with an information card that includes instructions
for use. Lexus recommends that you carry the information card with
the card key.
GS_U_G.book Page 24 Monday, April 27, 2009 10:50 AM

25
1-1. Key information
1
Before driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

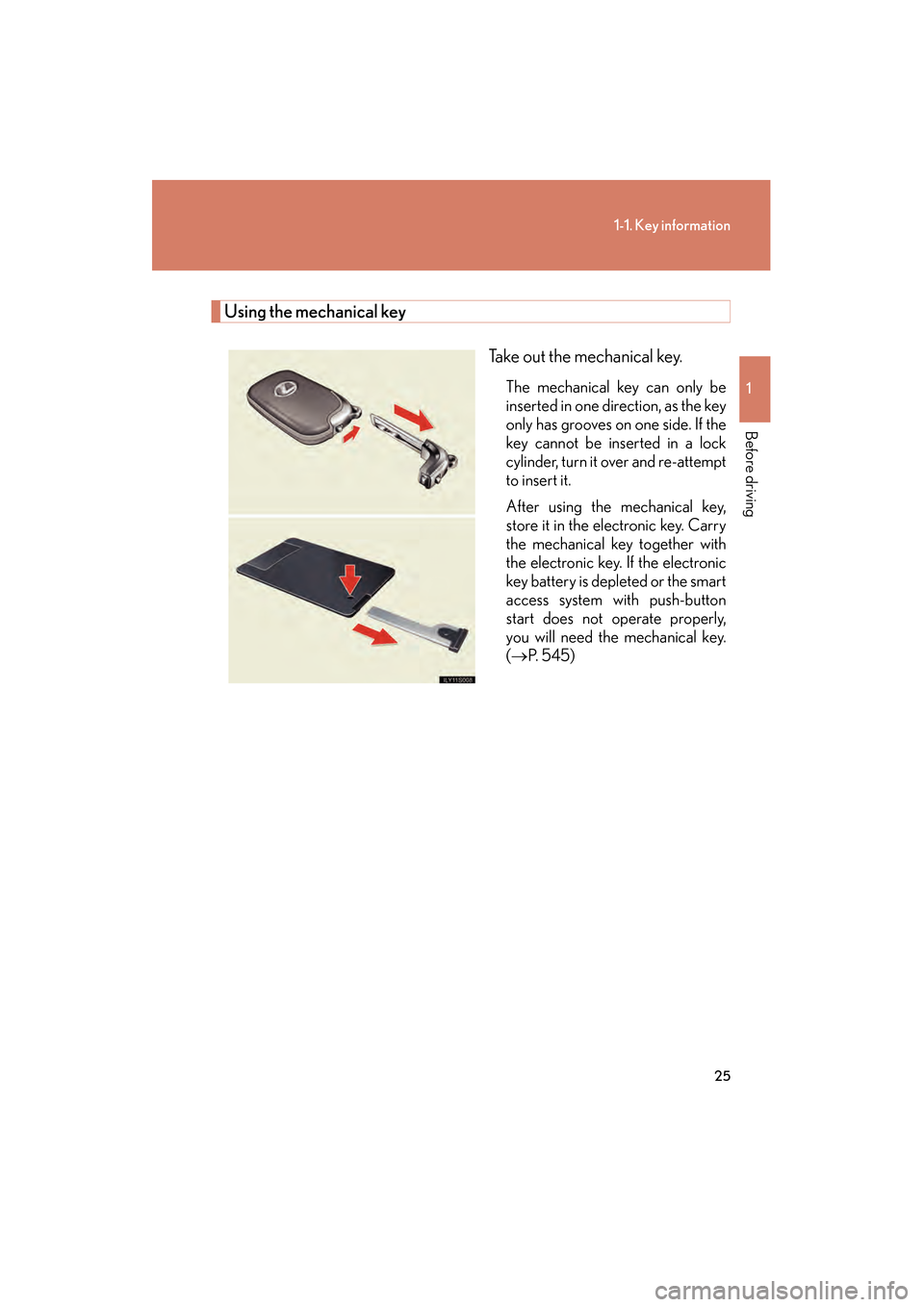

Using the mechanical keyTake out the mechanical key.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock
cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the smart
access system with push-button
start does not operate properly,
you will need the mechanical key.
(→P. 545)
GS_U_G.book Page 25 Monday, April 27, 2009 10:50 AM

26
1-1. Key information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

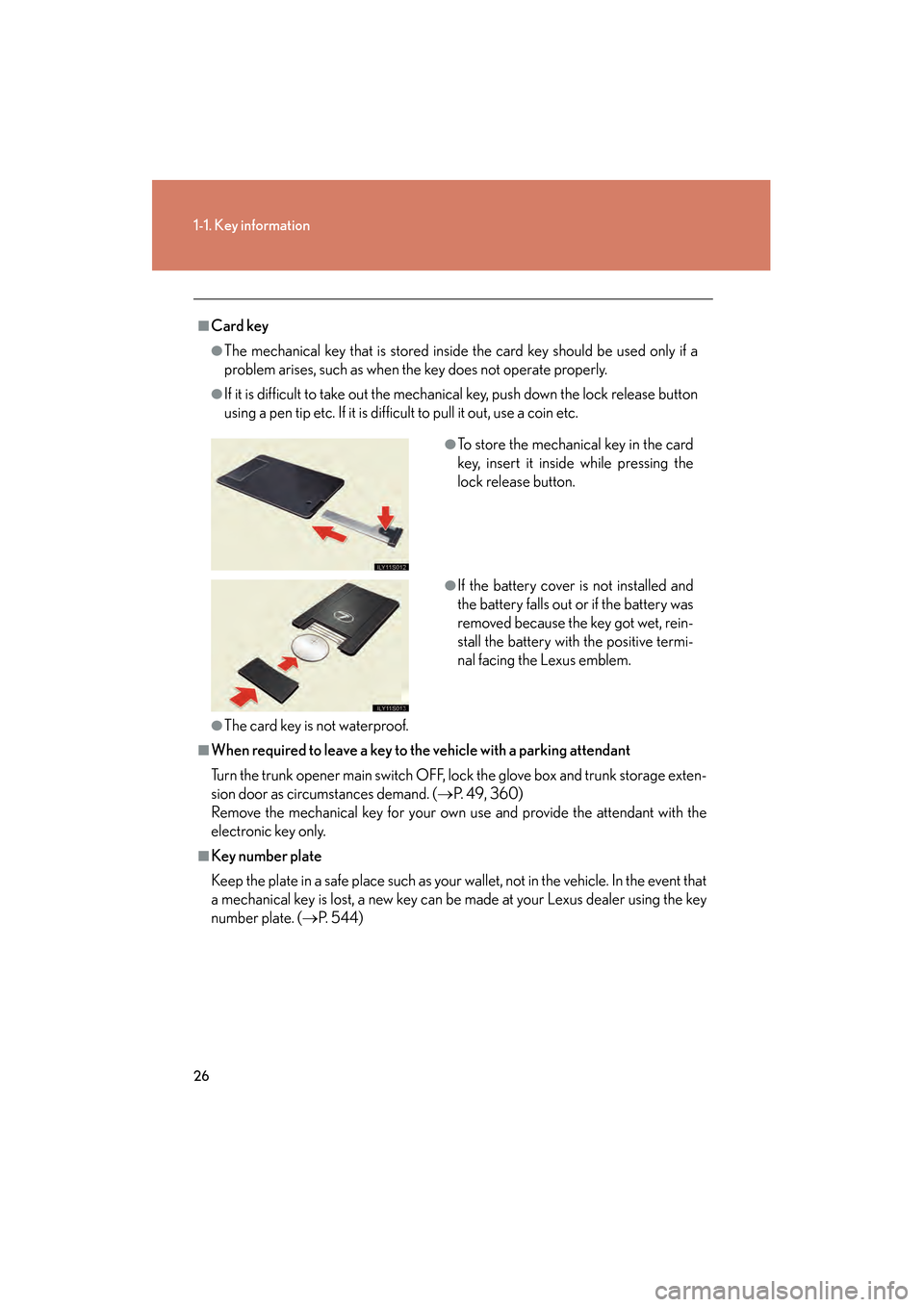

■Card key
●The mechanical key that is stored inside the card key should be used only if a
problem arises, such as when the key does not operate properly.
●If it is difficult to take out the mechanical key, push down the lock release button
using a pen tip etc. If it is difficult to pull it out, use a coin etc.
●The card key is not waterproof.
■When required to leave a key to the vehicle with a parking attendant
Turn the trunk opener main switch OFF, lock the glove box and trunk storage exten-
sion door as circumstances demand. ( →P. 4 9 , 3 6 0 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. ( →P. 544)
●To store the mechanical key in the card
key, insert it inside while pressing the
lock release button.
●If the battery cover is not installed and
the battery falls out or if the battery was
removed because the key got wet, rein-
stall the battery with the positive termi-
nal facing the Lexus emblem.
GS_U_G.book Page 26 Monday, April 27, 2009 10:50 AM

27
1-1. Key information
1
Before driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

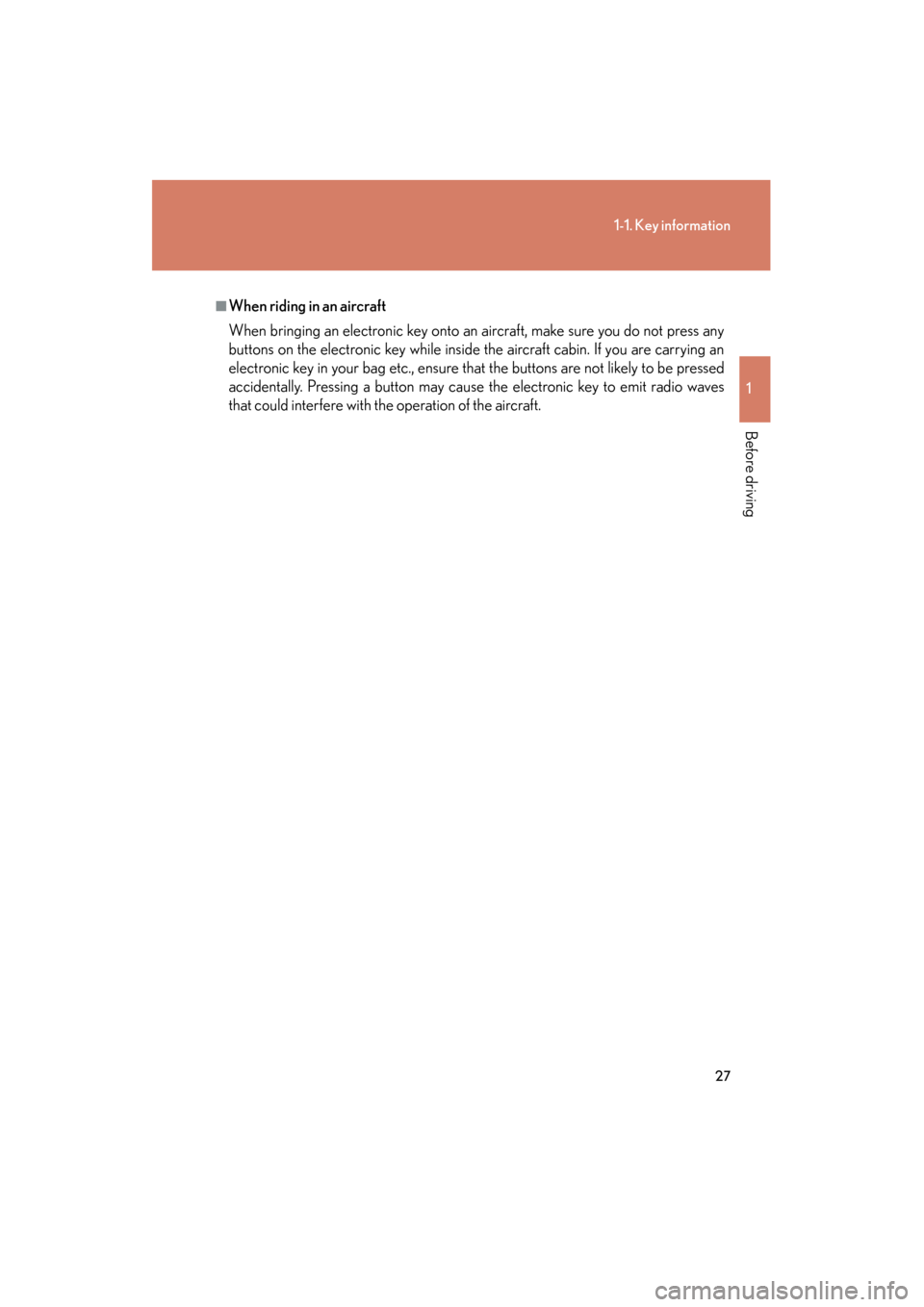

■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc., ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves
that could interfere with the operation of the aircraft.
GS_U_G.book Page 27 Monday, April 27, 2009 10:50 AM

28
1-1. Key information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

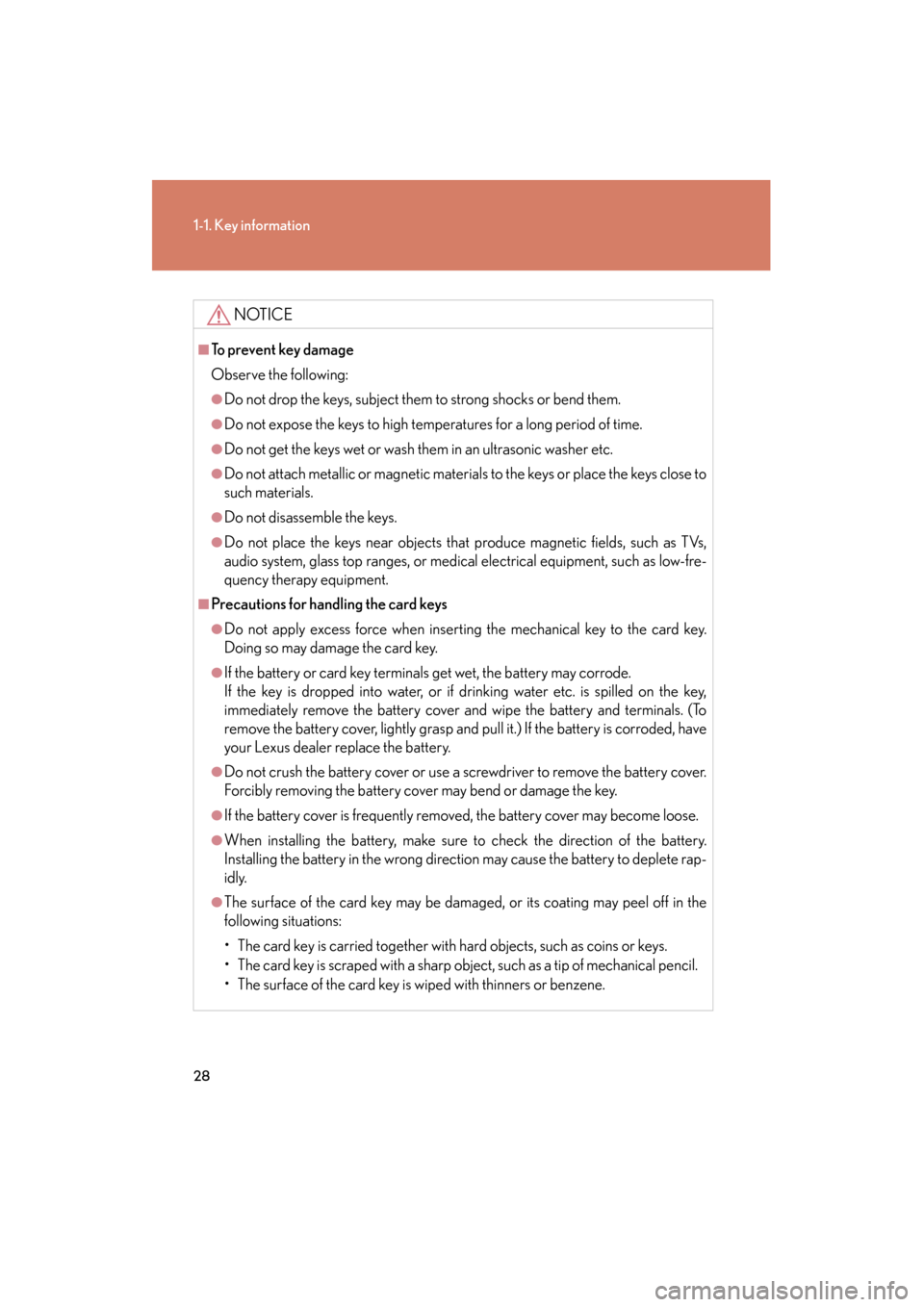

NOTICE
■To prevent key damage
Observe the following:
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for a long period of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys close to
such materials.
●Do not disassemble the keys.
●Do not place the keys near objects that produce magnetic fields, such as TVs,
audio system, glass top ranges, or medical electrical equipment, such as low-fre-
quency therapy equipment.
■Precautions for handling the card keys
●Do not apply excess force when inserting the mechanical key to the card key.
Doing so may damage the card key.
●If the battery or card key terminals get wet, the battery may corrode.
If the key is dropped into water, or if drinking water etc. is spilled on the key,
immediately remove the battery cover and wipe the battery and terminals. (To
remove the battery cover, lightly grasp and pull it.) If the battery is corroded, have
your Lexus dealer replace the battery.
●Do not crush the battery cover or use a screwdriver to remove the battery cover.
Forcibly removing the battery co ver may bend or damage the key.
●If the battery cover is frequently removed, the battery cover may become loose.
●When installing the battery, make sure to check the direction of the battery.
Installing the battery in the wrong direction may cause the battery to deplete rap-
idly.
●The surface of the card key may be damage d, or its coating may peel off in the
following situations:
• The card key is carried together with hard objects, such as coins or keys.
• The card key is scraped with a sharp object, such as a tip of mechanical pencil.
• The surface of the card key is wiped with thinners or benzene.
GS_U_G.book Page 28 Monday, April 27, 2009 10:50 AM

29
1
Before driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

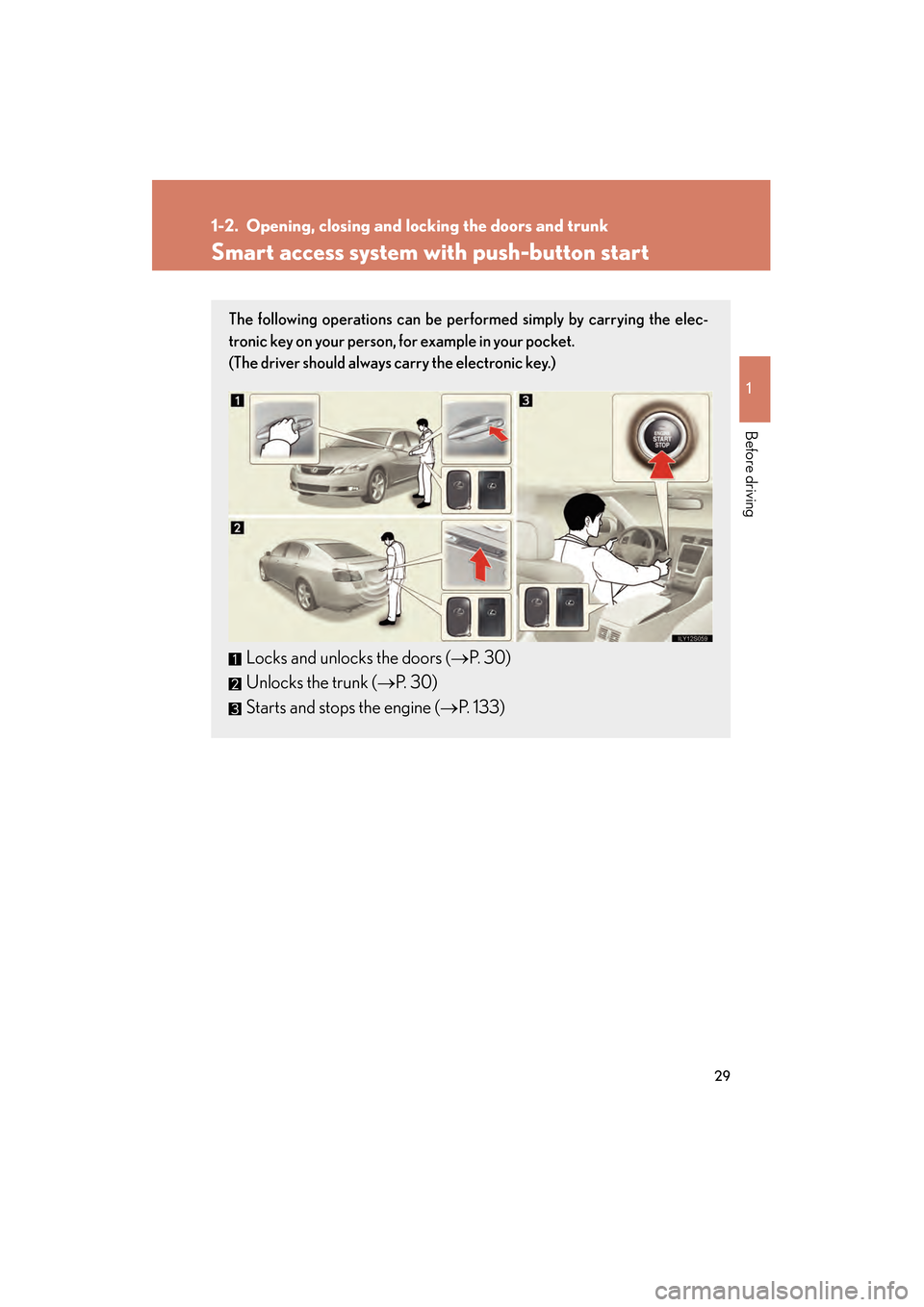

1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start
The following operations can be performed simply by carrying the elec-
tronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors (→P. 30)
Unlocks the trunk ( →P. 30)
Starts and stops the engine ( →P. 133)
GS_U_G.book Page 29 Monday, April 27, 2009 10:50 AM
