Page 461 of 622
460
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch to OFF.
Remove the engine compartment cover if necessary.
→P. 4 2 6
Open the fuse box cover.
■ Engine compartment
Type A
Push the tabs in and lift the lid
off.
Type B Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3
GS_U_G.book Page 460 Monday, April 27, 2009 10:50 AM
Page 462 of 622
461
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■Front controller in the engine compartment fuse box
(engine compartment: type B)
Lift the lid off while pushing the
tabs on either side.
■ Left side instrument panel
Remove the lid.
■ Right side instrument panel
Remove the lid.
GS_U_G.book Page 461 Monday, April 27, 2009 10:50 AM
Page 463 of 622
462
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

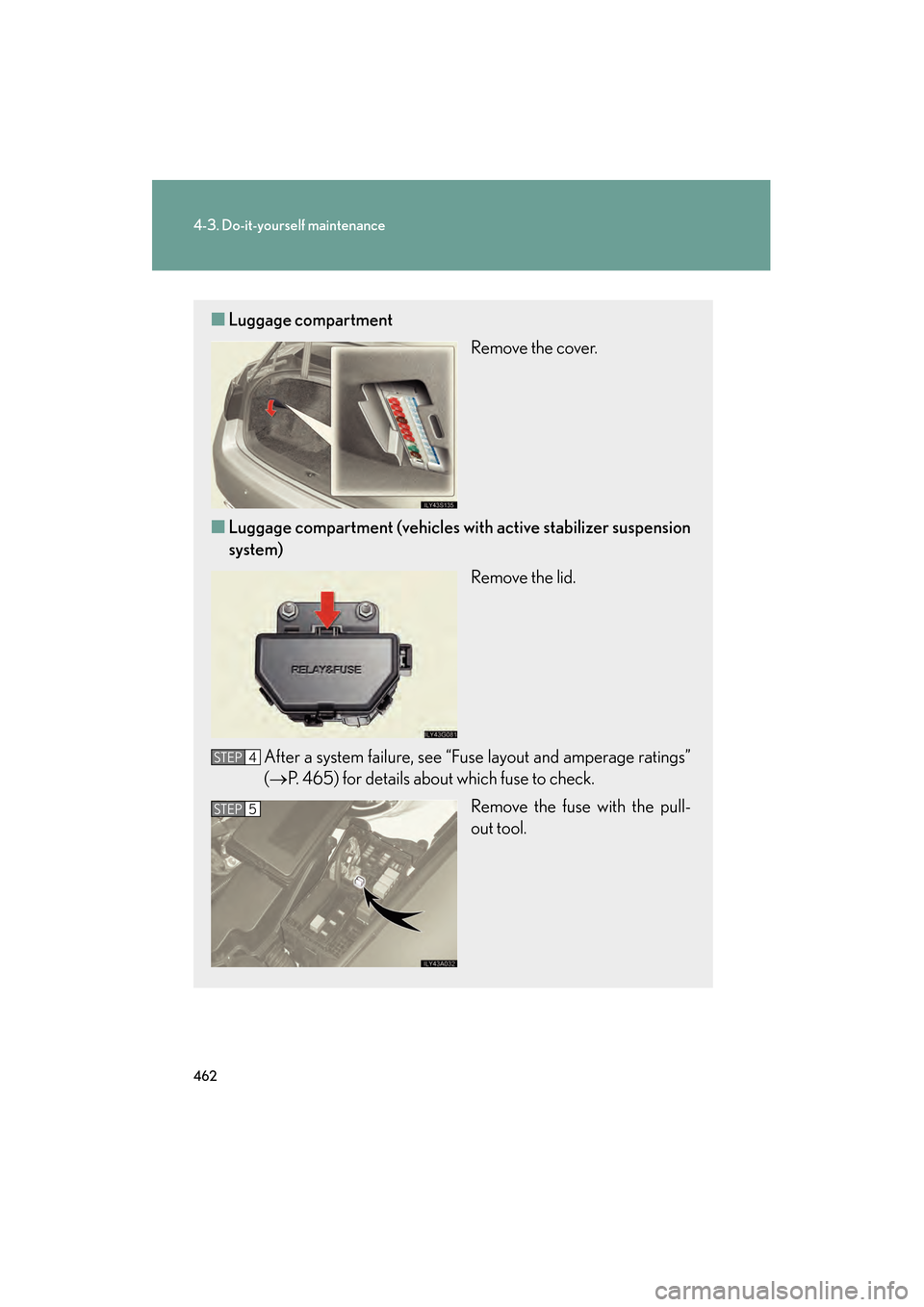

■Luggage compartment
Remove the cover.
■ Luggage compartment (vehicles with active stabilizer suspension
system)
Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
(→ P. 465) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
STEP4
STEP5
GS_U_G.book Page 462 Monday, April 27, 2009 10:50 AM
Page 464 of 622
463
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Check if the fuse has blown.
Type A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type CNormal fuse
Blown fuse
Contact your Lexus dealer.
STEP6
GS_U_G.book Page 463 Monday, April 27, 2009 10:50 AM
Page 465 of 622
464
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

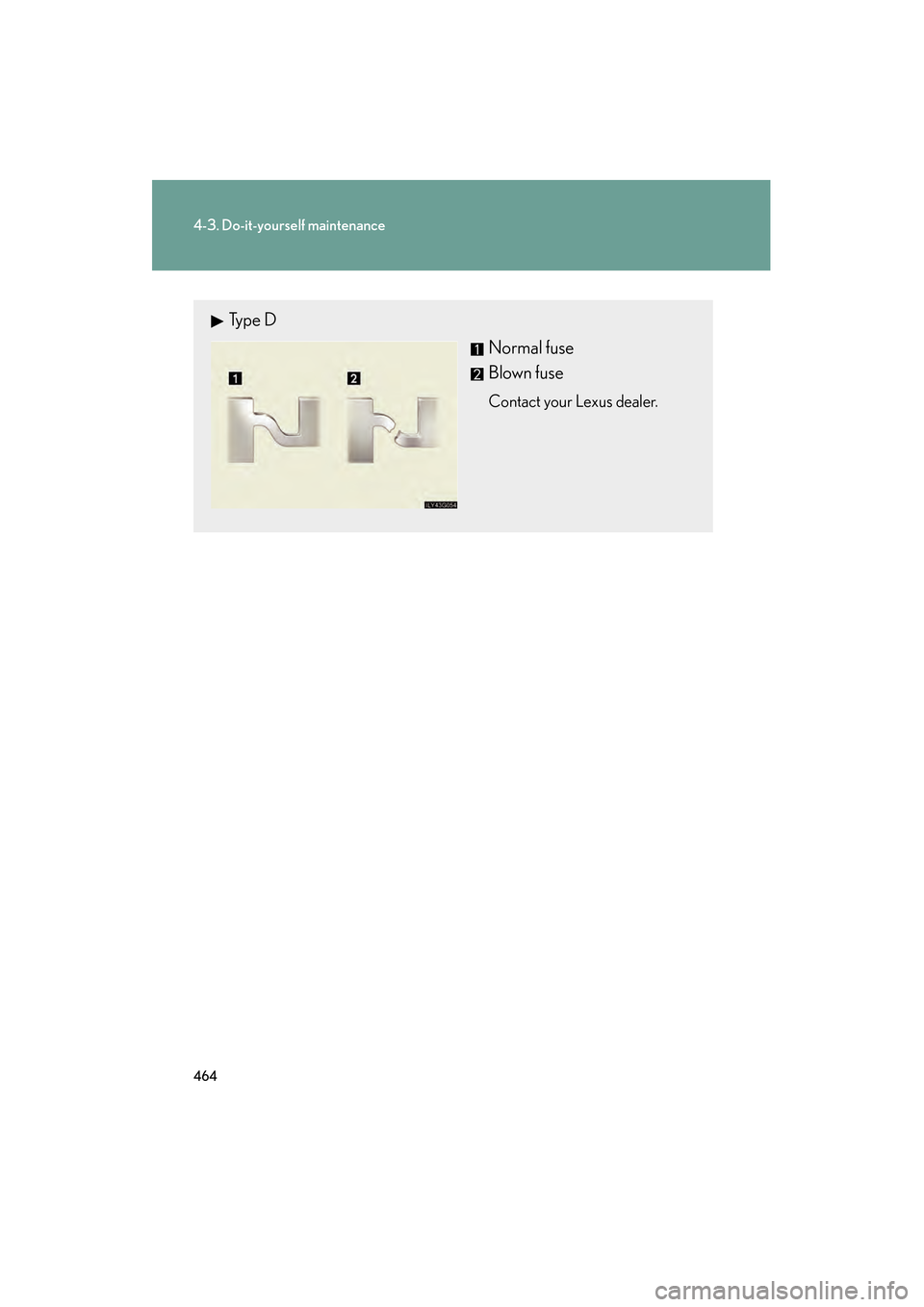

Type DNormal fuse
Blown fuse
Contact your Lexus dealer.
GS_U_G.book Page 464 Monday, April 27, 2009 10:50 AM
Page 466 of 622
465
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

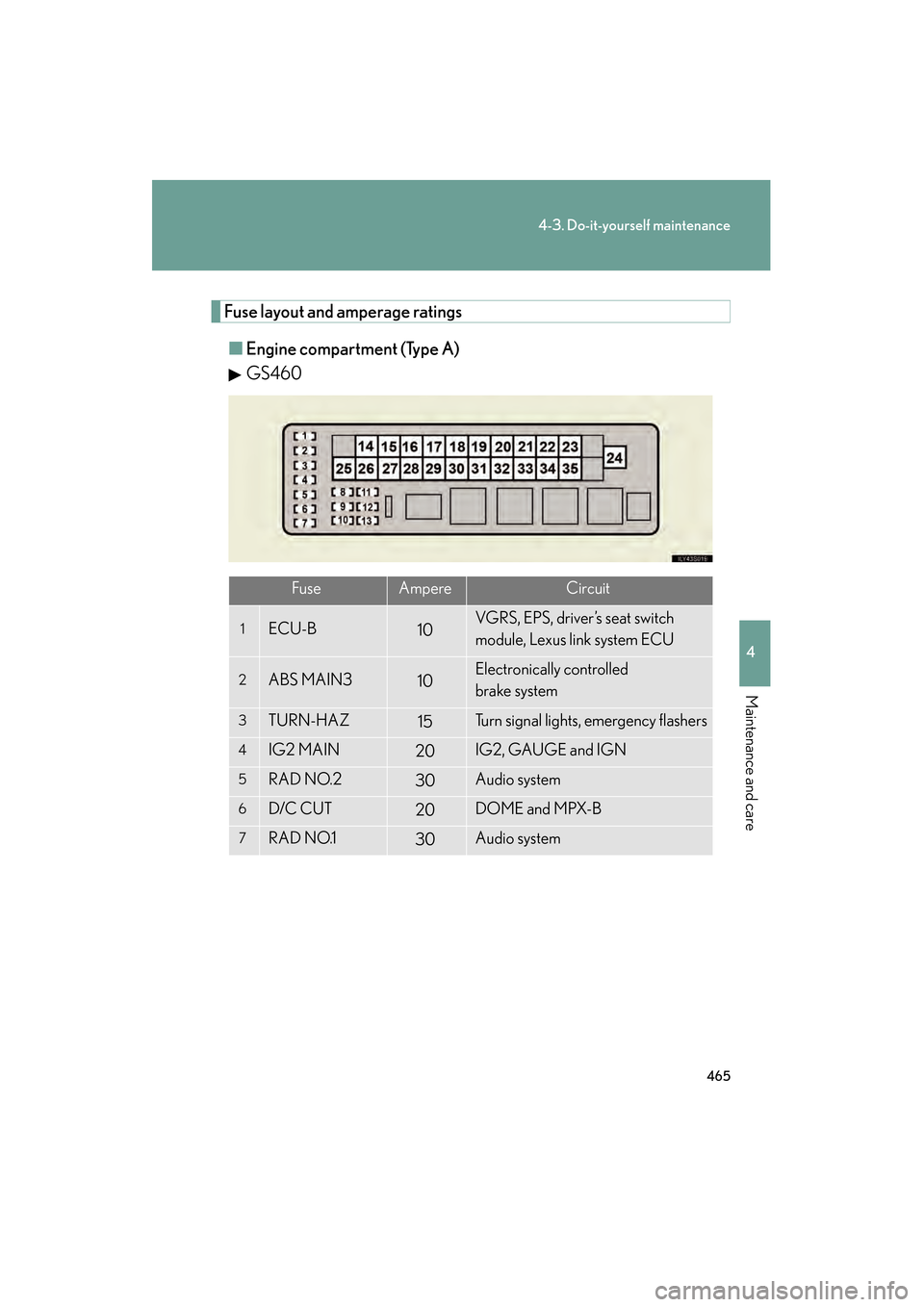

Fuse layout and amperage ratings■ Engine compartment (Type A)
GS460
FuseAmpereCircuit
1ECU-B10VGRS, EPS, driver’s seat switch
module, Lexus link system ECU
2ABS MAIN310Electronically controlled
brake system
3TURN-HAZ15Turn signal lights, emergency flashers
4IG2 MAIN20IG2, GAUGE and IGN
5RAD NO.230Audio system
6D/C CUT20DOME and MPX-B
7RAD NO.130Audio system
GS_U_G.book Page 465 Monday, April 27, 2009 10:50 AM
Page 467 of 622
466
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
May 14, 2009 1:15 pm
FuseAmpereCircuit
8MPX-B10
Multiplex communication system,
front controller, door control system
(power door lock system, door cour-
tesy lights, power windows, power
rear view mirror control system, out-
side rear view mirror heaters), power
seat system, steering sensors, elec-
tronically controlled brake system, tilt
and telescopic steering wheel,
gauges and meters, combination
switch
9DOME10
Foot lights, vanity lights, gauges and
meters, steering spot light, steering
switch illumination, rear personal
lights, automatic transmission selec-
tor lever spot light, front personal
lights
10CDS10Noise filter
11ABS MAIN210Electronically controlled
brake system
12ABS MOTOR30ABS
13ABS MAIN110Capacitor
14E/G-B60FR CTRL BATT, ETCS, ALT-S,
A/F HTR and INJ2
15P/ I - B60EFI NO.1, F/PMP and INJ
16ABS150VDIM
17RH J/B-B30AM2, DOOR FR and DOOR RR
sec_04_03.fm Page 466 Thursday, May 14, 2009 1:15 PM
Page 468 of 622
467
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
FuseAmpereCircuit
18VGRS40VGRS
19MAIN30H-LP R LWR and H-LP L LWR
20STARTER30Starting system
21LH J/B-B30FL DOOR, RL DOOR and RAD
NO.3
22VVT40Electronic engine control system
23EPS80EPS
24ALT180
RH J/B-AM, LH J/B-AM, E/G-AM,
RR JB, HEATER, DEFOG, FAN1,
FAN2, ABS2, ABS MOTOR,
ABS MAIN1, and ABS MAIN2
25RH J/B-AM80
AM1, OBD, STOP SW, TI&TE,
PWR OUTLET, FR P/SEAT RH,
STR LOCK, ECU-IG RH, RH-IG,
ACC, CIG, SECURITY,
FR S/HTR RH and AIR SUS
26FA N 380Electric cooling fans
27LH J/B-AM80
S/ROOF, P/SEAT, TV, FL S-HTR,
ECU-IG L, WIP, H-LP LVL, LH-IG,
FUEL OPN, A/C, PANEL, LH-B and
TRK OPN
28ABS230ABS
29DEFFOG50Rear window defogger, noise filter
30CDS40CDS
GS_U_G.book Page 467 Monday, April 27, 2009 10:50 AM
Page 469 of 622
468
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

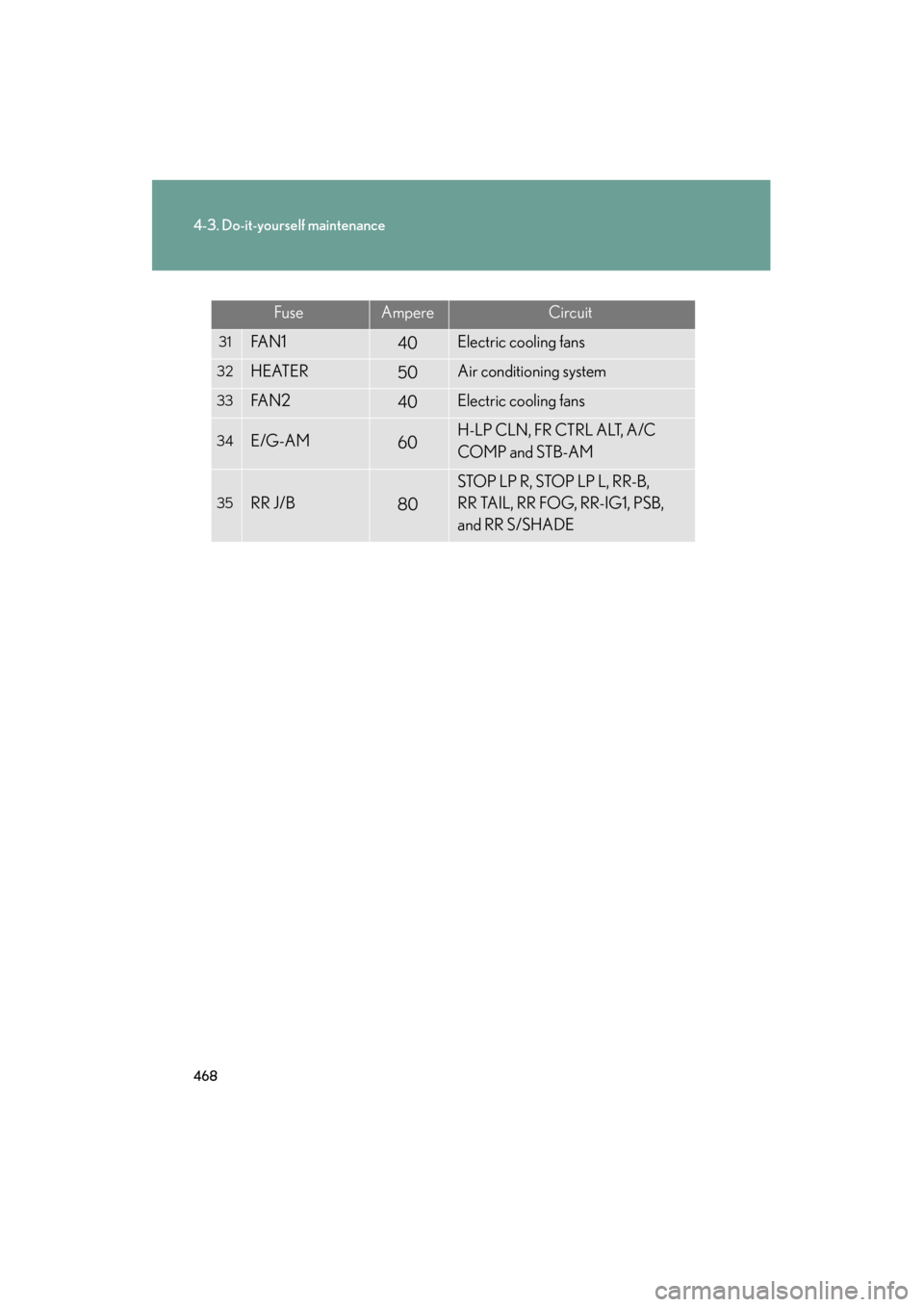

FuseAmpereCircuit
31FA N 140Electric cooling fans
32HEATER50Air conditioning system
33FA N 240Electric cooling fans
34E/G-AM60H-LP CLN, FR CTRL ALT, A/C
COMP and STB-AM
35RR J/B80
STOP LP R, STOP LP L, RR-B,
RR TAIL, RR FOG, RR-IG1, PSB,
and RR S/SHADE
GS_U_G.book Page 468 Monday, April 27, 2009 10:50 AM
Page 470 of 622
469
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
GS350
FuseAmpereCircuit
1ECU-B10VGRS, EPS, driver’s seat switch
module, Lexus link system ECU
2ABS MAIN325Electronically controlled
brake system
3TURN-HAZ15Turn signal lights, emergency flashers
4IG2 MAIN20IG2, GAUGE and IGN
5RAD NO.230Audio system
6D/C CUT20DOME and MPX-B
7RAD NO.130Audio system
8MPX-B10
Multiplex communication system,
front controller, door control system
(power door lock system, door cour-
tesy lights, power windows, power
rear view mirror control system, out-
side rear view mirror heaters), power
seat system, steering sensors, elec-
tronically controlled brake system, tilt
and telescopic steering wheel,
gauges and meters, combination
switch
GS_U_G.book Page 469 Monday, April 27, 2009 10:50 AM
