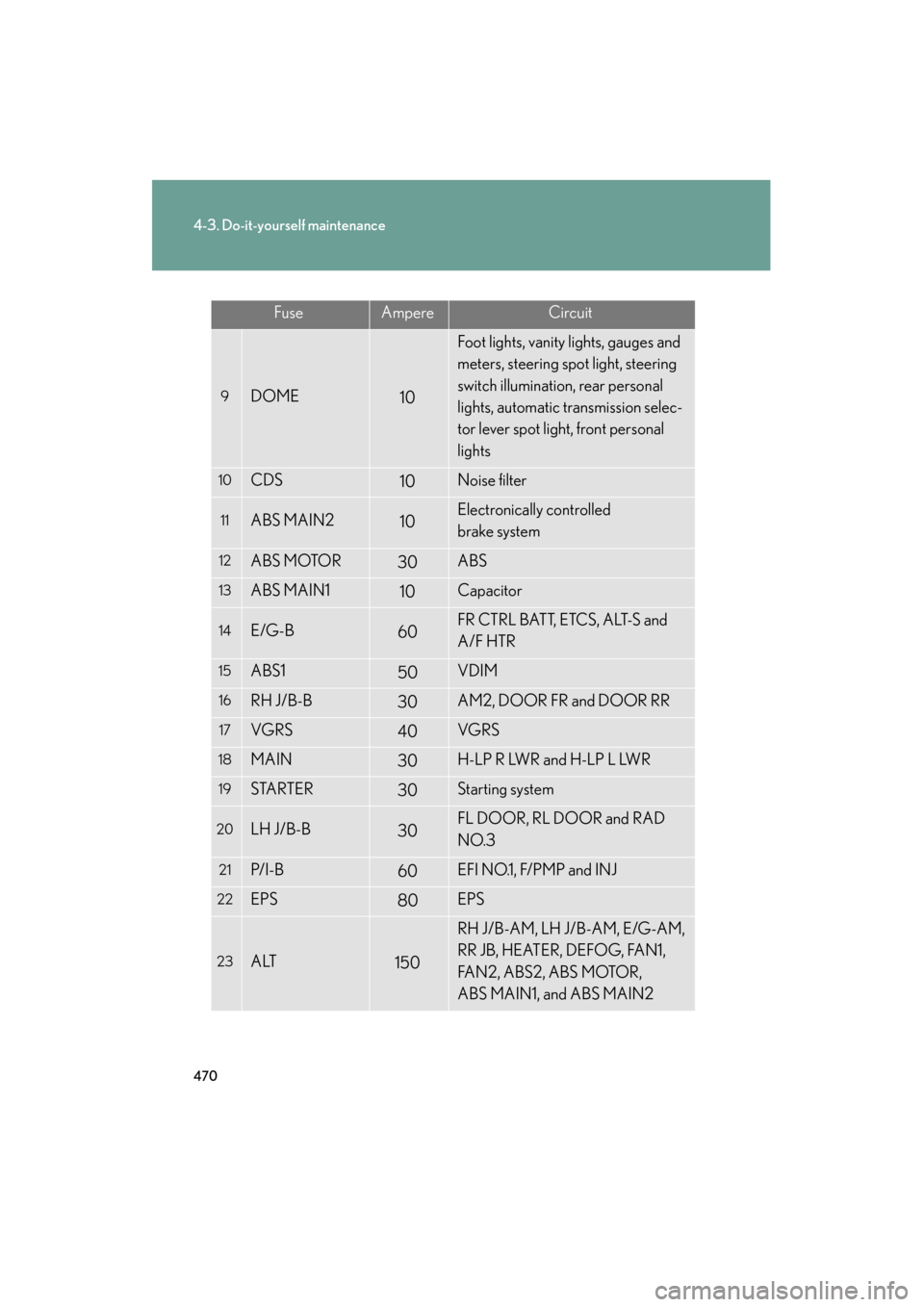

Page 471 of 622

Lexus GS350 2009  Owners Manual 470
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
May 14, 2009 1:16 pm
FuseAmpereCircuit
9DOME10
Foot lights, vanity lights, gauges and
meters, steering spot light, steering
switch illumination,

Page 472 of 622

Lexus GS350 2009  Owners Manual 471
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
FuseAmpereCircuit
24RR J/B80
STOP LP R, STOP LP L, RR-B,
RR TAIL, RR FOG, RR-IG1, PSB,
and RR S/S

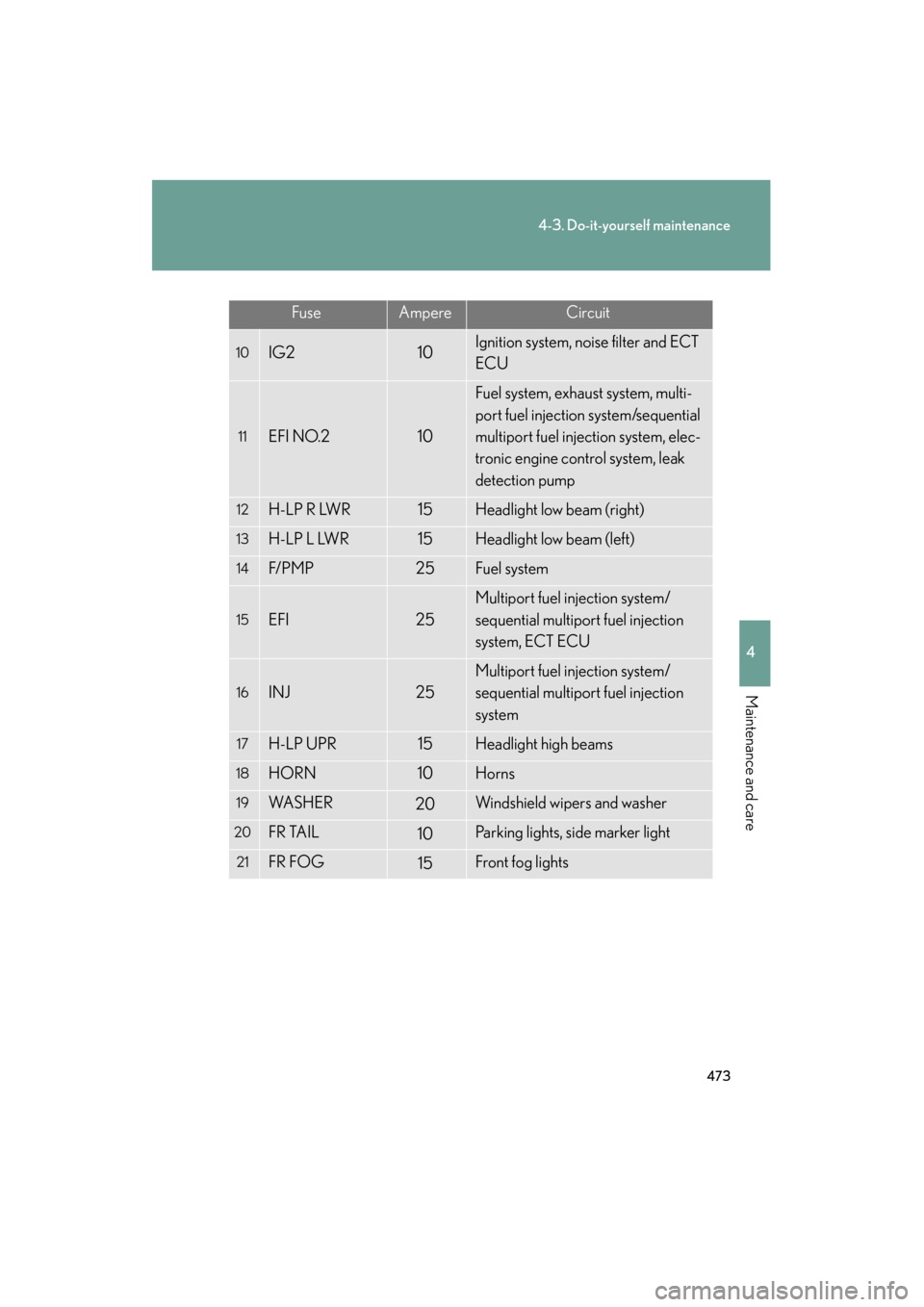

Page 473 of 622

Lexus GS350 2009  Owners Manual 472
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■Engine compartment (Type B)
GS460
FuseAmpereCircuit
1FR CTRL-B25H-LP UPR and HORN
2A/F15Exhaust system
3ETCS10Electroni

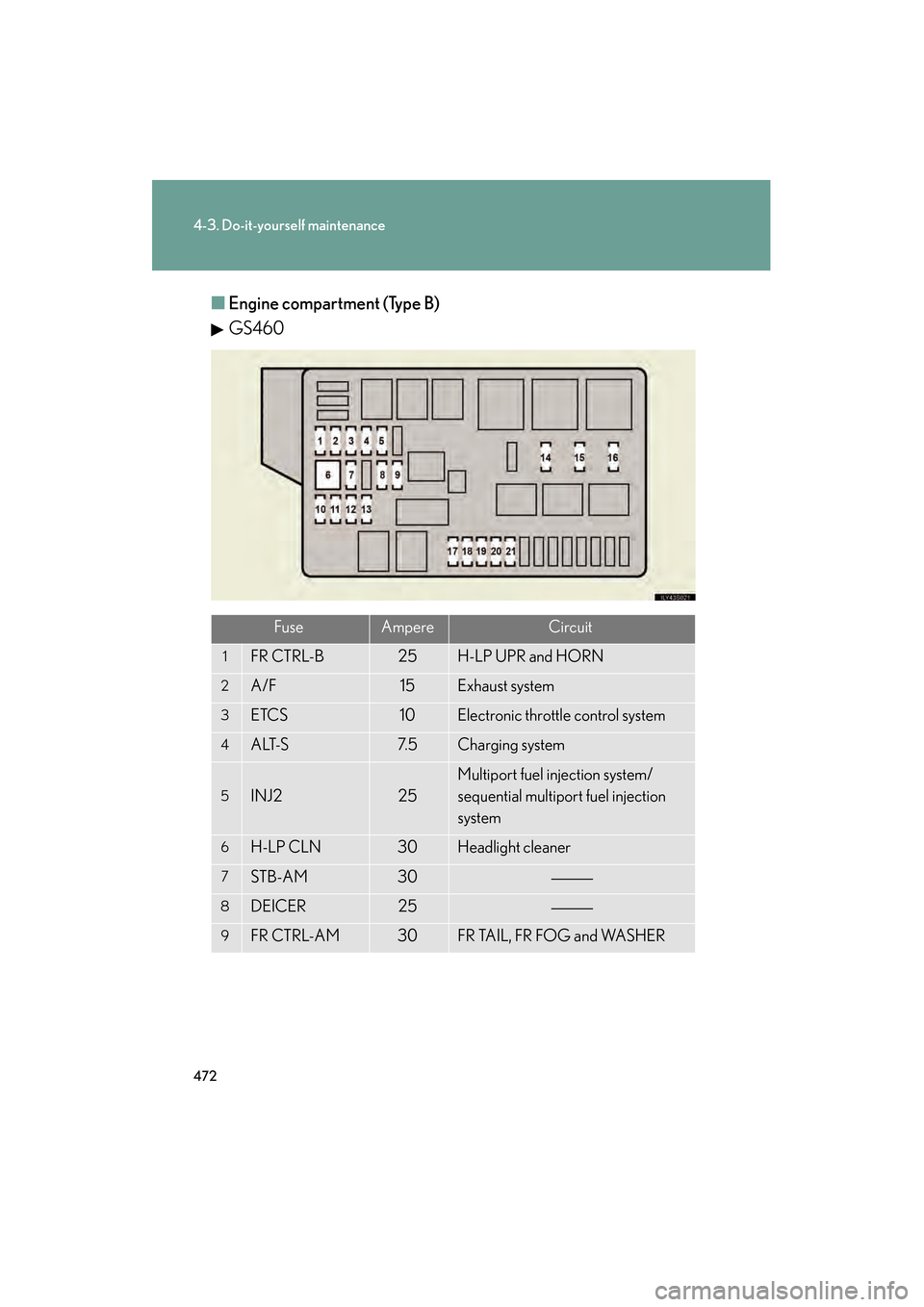

Page 474 of 622

Lexus GS350 2009  Owners Manual 473
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
FuseAmpereCircuit
10IG210Ignition system, noise filter and ECT
ECU
11EFI NO.210
Fuel system, exhau

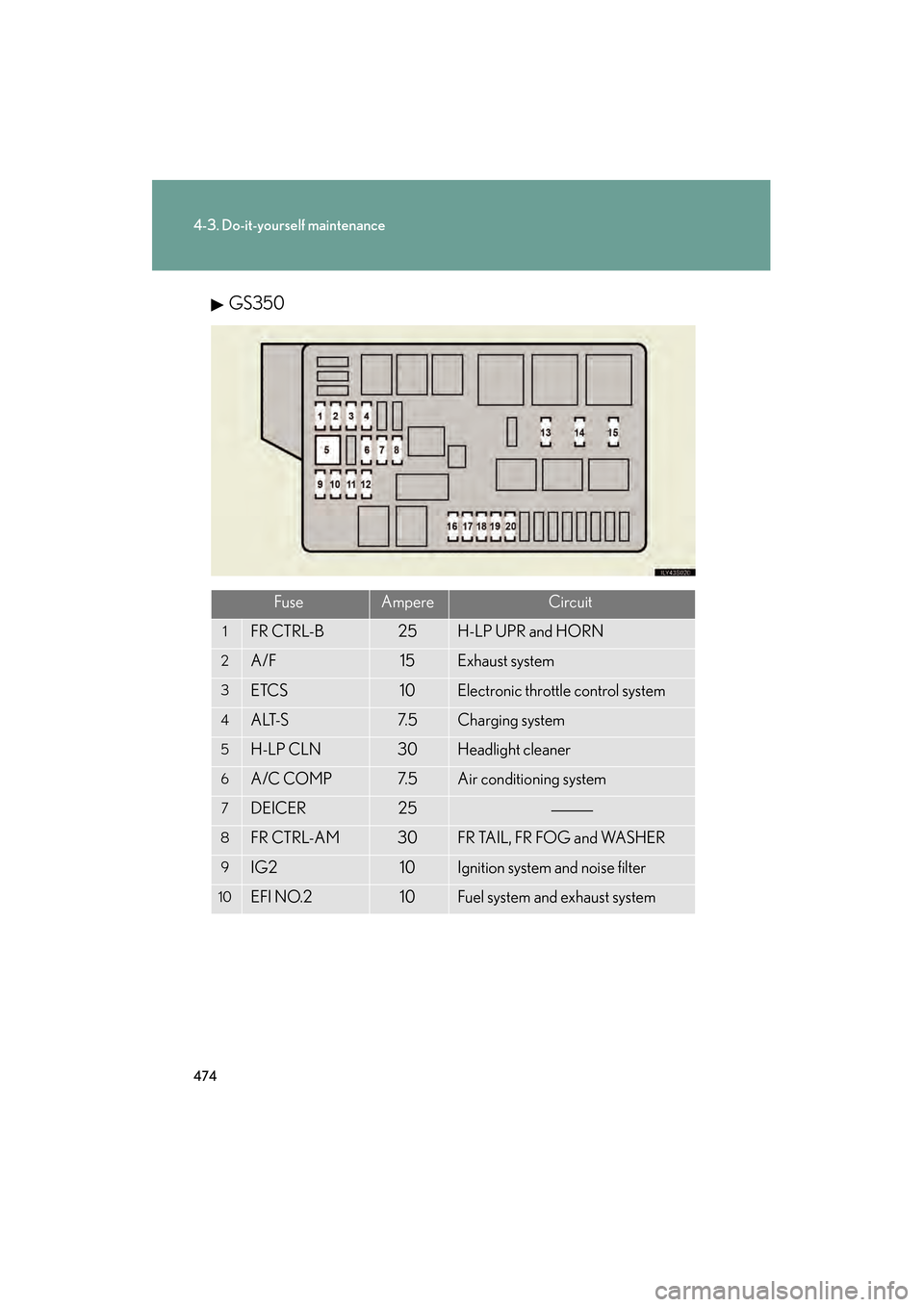

Page 475 of 622

Lexus GS350 2009  Owners Manual 474
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
GS350
FuseAmpereCircuit
1FR CTRL-B25H-LP UPR and HORN
2A/F15Exhaust system
3ETCS10Electronic throttle control system
4ALT-

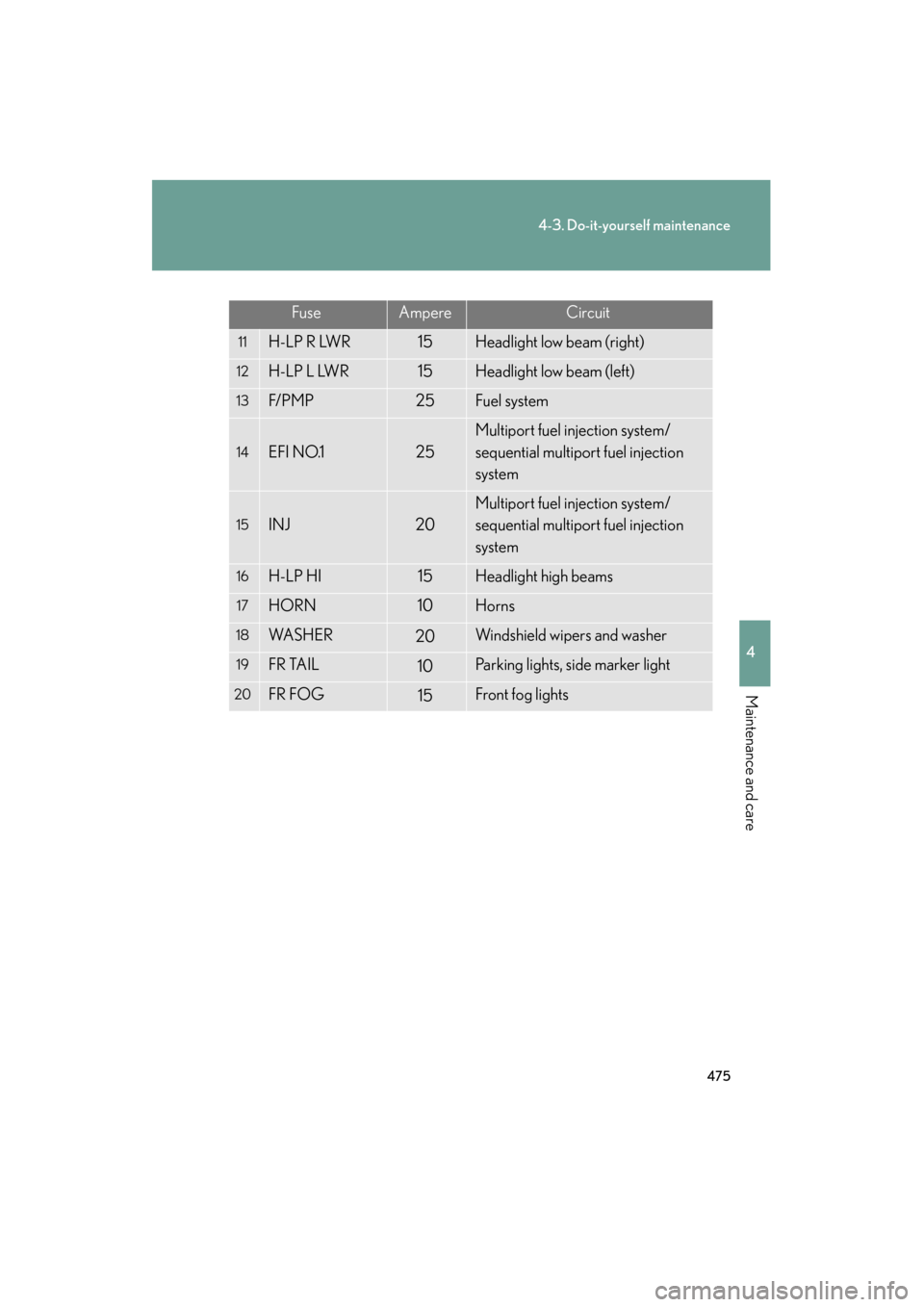

Page 476 of 622

Lexus GS350 2009  Owners Manual 475
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
FuseAmpereCircuit
11H-LP R LWR15Headlight low beam (right)
12H-LP L LWR15Headlight low beam (left)

Page 477 of 622

Lexus GS350 2009  Owners Manual 476
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■Left side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30Power seat system
2A/C7. 5Air conditioning system
3TV7. 5Au

Page 478 of 622

Lexus GS350 2009  Owners Manual 477
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
FuseAmpereCircuit
8FUEL OPN10Fuel filler door opener, trunk lid
opener
9ECU-IG LH10
VDIM, electron

Page 479 of 622

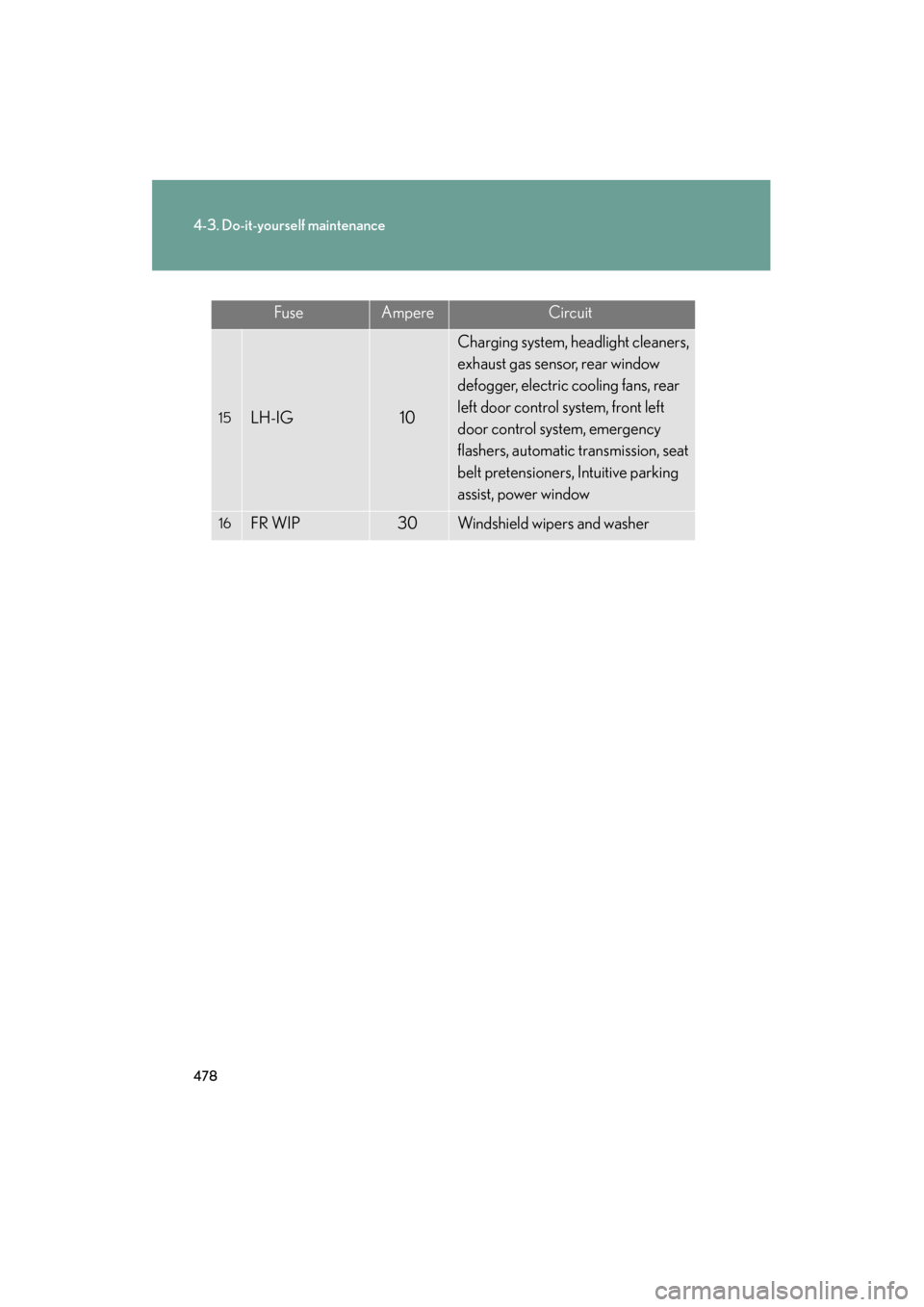

Lexus GS350 2009  Owners Manual 478
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
FuseAmpereCircuit
15LH-IG10
Charging system, headlight cleaners,
exhaust gas sensor, rear window
defogger, electric cool

Page 480 of 622

Lexus GS350 2009  Owners Manual 479
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■Right side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30Power seat system
2OBD7. 5On-board
